3
User’s Manual
English
InBody270 User's Manual for Measurement Guide and Setup
Thank you for purchasing the InBody270. This user’s manual describes all the features of the
InBody270.
Please read before use and keep it in a safe place. By following the manual instructions, you will be
able to use the InBody270 more safely and effectively.

Please note the important information below before reading this manual.
This product can also be used for medical purposes as the InBody270 measures body composition.
InBody Co., Ltd. [HEAD OFFICE]
InBody Bldg., 625, Eonju-ro, Gangnam-gu, Seoul 06106 KOREA
TEL: [phone]
FAX: [phone]
Website: inbody.com
E-mail: [e-mail]
InBody Co., Ltd. [MANUFACTURER]
15, Heugam-gil, Ipjang-myeon, Seobuk-gu, Cheonan-si, Chungcheongnam-do 31025 KOREA
TEL: [phone] FAX: [phone]
Website: inbody.com E-mail: [e-mail]
©2022 InBody Co., Ltd. All rights reserved.
Reproduction, adaptation, or translation of this manual is prohibited without prior written consent from InBody Co., Ltd.
under the copyright laws. This manual might have typographical errors, and its content can be changed without a
prior notice. InBody Co., Ltd. shall not be liable for any errors, incidental, or consequential damages that occurred
by not complying with the content of the User’s Manual.
Visit our website inbody.com to view and download further information about the functions of the InBody270, the
explanation of results output, and more. InBody Co., Ltd. reserves the right to modify the appearance, specifications,
and etc. of the InBody270 to improve the quality of the product, without prior notice for reasons of performance
improvement.
Failure to comply with safety warnings and regulations can cause serious injury or death.
Failure to comply with safety cautions and regulations can cause injury or property damage.
Warning
Caution
Representative & Sponsor Information
InBody Europe B.V.
Gyroscoopweg 122, 1042 AZ, Amsterdam, The Netherlands
TEL: [phone] FAX: [phone] Website: nl.inbody.com E-mail: [e-mail]
Australian Sponsor. [AUSTRALIA]
Emergo AUSTRALIA. Level 20, Tower II, Darling Park, 201 Sussex Street, Sydney, NSW 2000, AUSTRALIA
Customer Service Information
InBody USA [USA]
13850 Cerritos Corporate Dr. Unit C Cerritos, CA 90703 USA
TEL: [phone] FAX: [phone] Website: inbodyusa.com E-mail: [e-mail]
InBody Japan [JAPAN]
Tani Bldg., 1-28-6, Kameido, Koto-ku, Tokyo 136-0071 Japan
TEL: [phone] FAX: [phone] Website: www.inbody.co.jp E-mail: [e-mail]
InBody China [CHINA]
903, 904, XingDiPlaza, No.1698 YiShanRoad, Shanghai 201103 China
TEL: [phone] FAX: [phone] Website: inbodychina.com E-mail: [email protected]

I. InBody270 Installation
A. Product Components
B. Operating Environment
C. Installation Instructions
D. Initial Setup

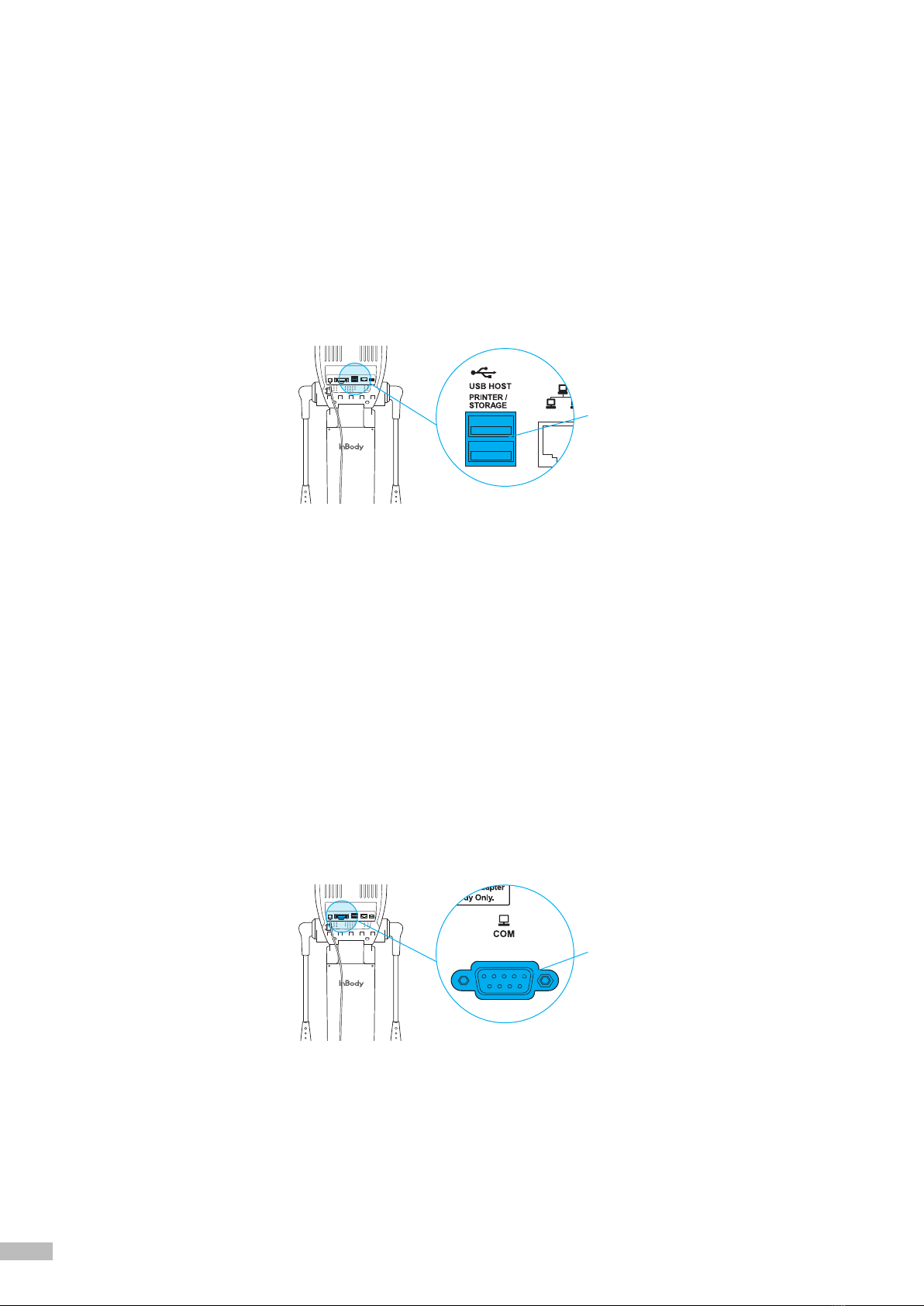

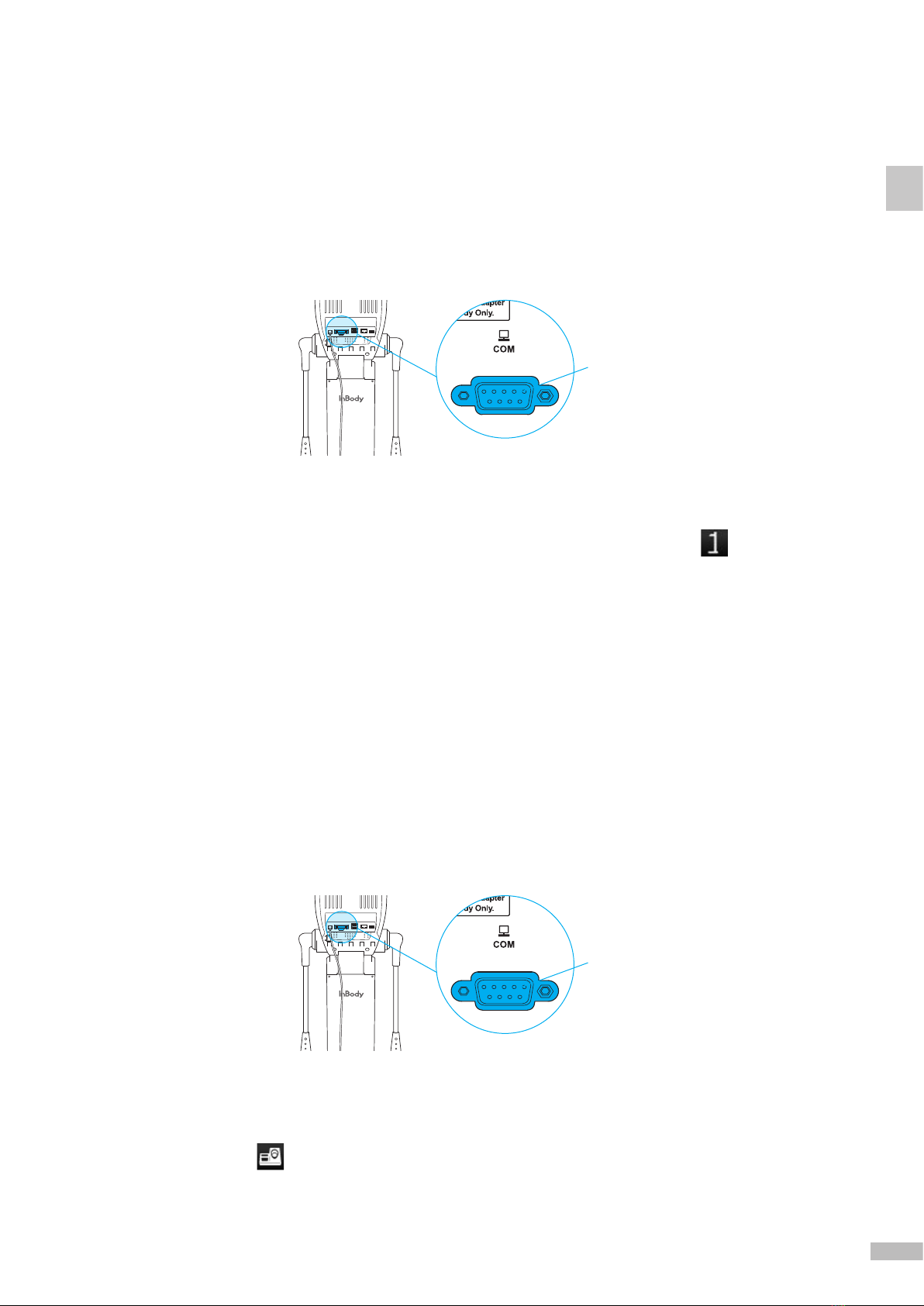

E. Connecting Printer, Thermal Printer, Stadiometer,
Blood Pressure Monitor, Barcode Reader and SD400
F. Maintenance
II. InBody Test
A. Precautionary Steps
B. Test Instructions
C. Test Posture
III. Transportation and Storage
A. Cautions during Transportation
B. Repacking Instructions
C. Transportation and Storage Environment
IV. Frequently Asked Questions (FAQ)
A. Regarding the InBody
B. Regarding the InBody Test
V. Others
A. Exterior and Functions
B. Safety Information
 C.Classication
 D.Specications
6
7
7
10
14
17
18
19
21
22
22
22
23
25
26
29
31
31
User’s Manual Contents

6
I. InBody270 Installation
A.Product Components
The InBody270 consists of the following components. Please make sure all of the following components
are present.
*Please inspect each component of the InBody270 for defects prior to installation.
❶
InBody270
❷
Adapter (DC 12V, 3.4A/3.34A) 1 EA
❸
Power cord 1 EA
❹
User’s Manual 1 EA
Hand electrodes
Input Buttons
Upper part
Footplate
Hinge
Foot electrodes
❶
제품보증서
제품보증서
❷
제품보증서
❶
제품보증서
제품보증서
❸
제품보증서
❹

7
EN
B. Operating Environment
Please make sure that the environment is adequate for the InBody270 installation. This equipment is designed
  forindooruse.Ifinstallingoutdoors,thefollowingrequirementsmustbefullled.
C. Installation Instructions
1. Open the packing box of the InBody270 and remove the packing pads. Then take the InBody270 out of
the box.
2. While holding the upper part lock button, raise the upper part of the InBody270 and remove the polyethylene
foam cover.
•
If you have any problems installing your InBody270, please contact InBody for assistance.
•
Do not transport the equipment by holding the screen portion or the joints of the hand electrodes.
•
Keep the packing materials provided for repacking the equipment in the future. Other wastes should be
disposed of according to relevant laws and regulations.
DANGER
NOTECAUTION
참 조 주 의참 고 주 의
Caution
•
Using the InBody270 on carpet may cause static electricity, which could damage the equipment. If installing
the InBody270 on carpet is unavoidable, please use an antistatic mat.
•
Install the InBody270 on a leveled, non-vibrating surface. Installing the equipment on an uneven surface
may cause the examinee to fall down. Test results may also be inaccurate.
•
Never clean the hand and foot electrodes with liquid spray or detergent directly. The equipment may corrode
and/or malfunction if the liquid or detergent leaks inside. Use the InBody Tissue when cleaning the InBody270.
DANGER
NOTECAUTION
참 조 주 의참 고 주 의
Caution
Temperature range 10 ~ 40°C (50 ~ 104°F)
Relative humidity 30 ~ 75% RH
Atmospheric pressure 70 ~ 106kPa
* Please refer to the following illustrations to properly transport the equipment.
Polyethylene foam cover
Packing pads
Hinge

8
3. Level the InBody270 by rotating the leveling screws under the footplate to the left and right so that the
air bubble is centered.
*Leveling the equipment is necessary for accurate measurement of weight. There are a total of 4 leveling screws.
4. Connect the adapter (❷) to the power input port, which is located on the rear panel (❶). Connect the adapter (❷)
to the power cord (❸). Plug the power cord (❸) into a grounded 3-socket outlet.
*The InBody270 can be used in connection with other equipment such as a stadiometer, a blood pressure monitor, data management
software called LookinBody, or a barcode reader. For more information, please refer to 'I. InBody270 Installation E.Connecting Printer,
Thermal Printer, Stadiometer, Blood Pressure Monitor, Barcode Reader and SD400' in User's Manual.
Leveling screws under the footplate
•
Avoid injuring your hands when rotating the leveling screws under the footplate.
DANGER
NOTECAUTION
참 조 주 의참 고 주 의
Caution
Leveled Not leveled
Level Indicator
DANGER
NOTECAUTION
참 조 주 의참 고 주 의
Warning
•
Do not place the InBody270 in a location making it difficult to disconnect the power cord.
•
Do not plug in or pull out the power cord with wet hands. There is a risk of an electric shock.
•
Always use an outlet connected to the power (AC 100 - 240 V). Using other power rated outlets may result in
fire or malfunction.
•
When using a power surge protector, make sure that the outlet or the extension cable has adequate power capacity.
•
Do not disassemble or modify the equipment including internal parts without written consent from the
manufacturer. This may cause electric shock or injury, product malfunction, inaccurate results, and will
void the manufacturer’s warranty.
❶
InBody
Power input port
Rear panel
❸
❷
Grounded outlet
3-socket outlet

9
EN
•
If this equipment is modified, appropriate inspection and testing must be conducted to ensure continued safe
use of equipment.
•
Do not directly contact the InBody270 with any other electronic device when the InBody270 is on.
This may result in an electric shock.
DANGER
NOTECAUTION
참 조 주 의참 고 주 의
Caution
•If the InBody270 is not plugged into a grounded outlet, it may cause damage through electric surges or
product malfunction. This may affect the test results.
•The test results may be inaccurate if the InBody270 is under electrical interference. Do not install the
InBody270 near products that generate electrical interference such as fluorescent lights, large AC motor
equipment(treadmill, vibration plate, refrigerator, air-conditioner, compressor, etc.), high-frequency thermal
therapy equipments, or heating appliances. Do not share the power source of the InBody270 with other
electrical devices. This may affect the test results.
•When connecting the InBody270 with other test equipment, turn on the other equipment first. When
turning off other equipment, turn off the InBody270 first. This is necessary to minimize electrical surges
on the InBody270.
•Always use the specified adapter provided by InBody as it is a part of the InBody270. Using other adapters
may result in malfunction of the InBody270.
•Operation of the InBody270 2,000m above sea level may affect the weight measurement.
•Adapter must be arranged so that easily cut off the power when a problem occurs in the InBody270.
5. Flip the power switch to turn on the InBody270.
InBody
Power switch

10
D. Initial Setup
1. The InBody270 automatically starts booting when it is turned on. While booting, it performs a self
weight calibration.
*While booting (about 5 minutes), make sure there is nothing on top of the footplate. Please do not stand on the footplate, or
place objects on the footplate.
2. Press the [Administrator Menu] button on the screen, which appears when no one is on the footplate.
3. Input the password (default password: 0000) to access the Administrator Menu.
4. The Administrator Menu will give you access to ‘Setup’ and ‘Troubleshooting’.
Setup Troubleshooting
Administrator Menu

11
EN
  1)Setup:Conguresettingsandmanagedataaccordingtothetestenvironment.
01. Date/Date Format/Time/Units/Country/Language/Password/Volume
: Change or modify the InBody’s basic settings.
02. Self Mode/Professional Mode
•Self Mode: The examinee takes the InBody Test by entering only his/her height.
Throughout the test, instructions and the InBody Information will be shown on screen.
•Professional Mode: An examiner is present and guiding the examinee through the InBody Test.
03. N/A
04. Cloud Service
: If you enable the ‘Cloud Service’, members will have the option to check their InBody results from
the registered mobile device.
05. Bypass Age/Gender
: The examinees can bypass inputting their age or gender if the test environment is designed for testing
      onlyadultsoraspecicgender.
06. View/Print/Delete Data
: The administrator can manage test results using ID.
07. Export Data as Excel
     :YoucanexporttestresultsasanexcelleonaUSBThumbDrive.Exportedtestresultscanbeviewed
      asanexcelleonacomputer.
08. Data Backup/Restoration/Combine
     :BackupInBodyTestresultstoaUSBThumbDrive,orrestoretestresultsusingabackupleona
      USBThumbDrive,oraddtestresultsusingabackupleonaUSBThumbDrivetotheInBody.
09. Printer Setup
: Connect the printer to the InBody. A connected printer will allow for printing results sheets after testing.
10. Results Sheet Types
: Select which results sheets to utilize with the InBody270.
(InBody Results Sheet, InBody Results Sheet for Children, and Thermal Results Sheet).
11. Automatic Printing Options
: This option enables automatic printing of the Results Sheet after each test. Up to two copies can be
printed at a time.
12. Paper Types
: Select the paper type for printed results sheets. Options include blank A4 paper or pre-printed InBody
Results Sheets provided by InBody.
13. Outputs/Interpretations for Results Sheet
     :Thisoptionallowsyoutoconguretheoutputsandinterpretationsappearingontheright-handsideof
the InBody Results Sheet, the InBody Results Sheet for Children, and the Thermal Results Sheet.

12
14. Results Sheet Custom Logo
: Insert a logo on upper right corner of the printed results sheet.
*Please contact InBody for help with uploading or modifying a logo.
15. Printing Alignment
: Adjust the alignment of where the results will be printed on the results sheets.
16. Internet Options
: You can connect the InBody wirelessly to the network when using the data management software,
LookinBody.
17. Bluetooth
: Connect the InBody270 to data management software LookinBody via Bluetooth.
18. Manual/Automatic Weight
: Select whether to have weight automatically weighed or manually entered before testing.
19. Adjust Weight
     :AdjustmeasuredweightbyaxedvalueontheInBody.(Example:Workoutclothesatthegymare
approximately 0.2kg; most examinees are assumed to be wearing workout clothes, so the examiner
may adjust the set value to -0.2kg.)
20. Normal Range
: Set the normal range for BMI, Percent Body Fat and Waist-Hip Ratio.
*The ideal value of BMI may also be set.
21. N/A
22. Standard Child Growth Curve
: Set the type of standard child growth curve to use on the InBody Result Sheet for Children.
23. Touchscreen Alignment
: Adjust the alignment of the touchscreen.
24. Customer Service Information
: Save the customer service contact information. Please refer to the customer service information
if you have any inquiries regarding the InBody Test, or problems that cannot be resolved through the
‘Troubleshooting’ menu.
25. Auto-Lock
: Set the password and wait time for auto-lock on the InBody270.
26. Serial Connect
   
: This option allows you to connect InBody with LookinBody member management program for PC
or with other devices over serial connection.

13
EN
2) Troubleshooting: See additional information on how to use the InBody. Refer to troubleshooting checklist
when there are problems that occur during the InBody use/test.
01. Customer Service Information
: See the customer service contact information saved under the Setup of the Administrator Menu
«24. Customer Service Information». Please contact the customer service if your problem cannot be
resolved through the ‘Troubleshooting’ or if you need further inquiries regarding the InBody Test.
02. Results Sheet does not print.
: View the troubleshooting checklist when the Results Sheet does not print by the printer connected
to the InBody.
03. Weight is not being measured.
: View the troubleshooting checklist when weight is not being measured, after stepping on to the
InBody footplate.
04. Weight measurement seems to be inaccurate.
: View the troubleshooting checklist when the weight measurement seems to be inaccurate.
05. The InBody Test has stopped.
: View the troubleshooting checklist when the InBody Test has stopped.
06. Test results seem to be inaccurate.
: View the troubleshooting checklist when the test results seem to be inaccurate.

14
E. Connecting Printer, Thermal Printer, Stadiometer, Blood Pressure Monitor,
Barcode Reader and SD400
1. Printer
In order to print InBody Results Sheets, an InBody270 compatible printer is required.
*A list of printers compatible with the InBody270 can be found at https://www.inbodyservice.com.
   1)FirstturnotheInBody270andthentheprinter.
*You may experience connection issues in connecting the printer to the InBody270 if the InBody is turned on.
2) Plug the USB cable provided with the printer into the USB HOST port on the rear panel of the InBody270
and plug the other end of the USB cable into the printer.
3) Turn on the printer.
4) Turn on the InBody270 and setup your printer under Settings of the Administrator Menu «09. Printer Setup».
5) You can edit your printing settings under Settings of the Administrator Menu from «10. Results Sheet Types»
through «15. Printing Alignment».
2. Thermal Printer
Connect thermal printer to the InBody270 to print Thermal Results Sheet.
*Forbestresult,theInBody270shouldbeturnedowhenconnectingtothermalprinter.
   1)TurnotheInBody270.
*Forbestresult,theInBody270shouldbeturnedowhenconnectingtothermalprinter.
2) Connect the serial cable supplied with your thermal printer to the 9-pin serial port on the rear panel of the
InBody270. Then, connect the other end of the serial cable to the serial port on to thermal printer.
3) Turns on the thermal printer.
4) Turn on the InBody270. Go to Setup in Administrator Menu and select ‘Thermal Printer’ under «26. Serial
Connect».
5) Go to Setup in Administrator Menu and select ‘Thermal Results Sheet’ under «10. Results Sheet Types» and
   conguretheitemsprintedtotheThermalResultsSheetunder«13.Outputs/InterpretationsforResultsSheet».
USB HOST port
9-pin serial port

15
EN
3. Stadiometer
If a stadiometer is connected to the InBody270, the height values measured by the stadiometer will be sent
directly to the InBody270.
*Always connect a stadiometer from InBody.
   1)FirstturnotheInBody270andthenthestadiometer.
*You may experience connection issues in connecting the stadiometer to the InBody270 if the InBody is turned on.
2) Plug the serial cable provided with the stadiometer to the 9-pin serial port on the rear panel of the
InBody270.
3) Turn on the stadiometer.
4) Turn on the InBody270. Go to Setup in Administrator Menu and select ‘Stadiometer’ under «26. Serial
Connect». If the stadiometer is connected to the InBody270, the stadiometer icon ( ) will appear
on the top left corner of the screen when no one is on the footplate.
4. Blood Pressure Monitor
If a blood pressure monitor is connected to the InBody270, the blood pressure values measured by the
blood pressure monitor will be sent directly to the InBody270.
*Always connect a blood pressure monitor from InBody.
*If you select to print blood pressure measurements under Settings of the Administrator Menu «13. Outputs/Interpretations for Results
Sheet», the blood pressure measurements will be printed on the InBody Results Sheet.
   1)FirstturnotheInBody270andthenthebloodpressuremonitor.
*You may experience connection issues in connecting the blood pressure monitor to the InBody270 if the InBody is turned on.
2) Plug the serial cable provided with the blood pressure monitor to the 9-pin serial port on the rear panel of
the InBody270.
3) Turn on the blood pressure monitor.
4) Turn on the InBody270. Go to Setup in Administrator Menu and select ‘Blood Pressure Monitor’ under
«26. Serial Connect». If the blood pressure monitor is connected to the InBody270, the blood pressure
monitor icon ( ) will appear on the top left corner of the screen when no one is on the footplate.
9-pin serial port
9-pin serial port

16
5. Barcode Reader
If a barcode reader is connected to the InBody270, the ID can be inputted automatically.
*If the InBody cannot recognize the barcode reader, please contact InBody.
   1)FirstturnotheInBody270.
*You may experience connection issues in connecting the barcode reader to the InBody270 if the InBody is turned on.
2) Plug the USB cable of the barcode reader into the USB HOST port on the rear panel of the InBody270.
3) Turn on the InBody270. If the barcode reader is connected to the InBody270, the barcode reader
icon( ) will appear on the top left corner of the screen when no one is on the footplate.
6. SD400
Connect the SD400 to the InBody270 in order to connect the stadiometer and the blood pressure monitor
simultaneously.
   1)TurnotheInBody270.
*Forbestresult,theInBody270shouldbeturnedowhenconnectingtothermalprinter.
2) Connect the serial cable supplied with the SD400 to the 9-pin serial port on the rear panel of the
InBody270.
Then, connect the other end of the serial cable to the serial port of the SD400.
3) Connect your devices (such as stadiometer and blood pressure monitor) to the ports on the SD400 and turn
on the devices.
4) Turn on the InBody270. Go to Setup in Administrator Menu. Select ‘SD400’ under «26. Serial Connect»
and select the devices you have connected to the ports on the SD400. When your devices are connected,
the icons ( ) of your devices will appear in the top left of the test standby screen.
USB HOST port
9-pin serial port

17
EN
DANGER
NOTECAUTION
참 조 주 의참 고 주 의
Caution
•
Do not bend the handles of the hand electrodes or rotate them in the reverse direction beyond its limitation.
•
Do not extend the handles of the hand electrodes beyond its limitation.
•
Do not place any objects on the footplate.
•
Do not apply excessive force on the equipment.
•
Turn off the equipment if you are not using it for a day or longer.
•
Do not allow any liquid substances to contact the equipment directly. Keep food and drinks away from the
equipment. Substances getting inside the equipment can cause critical damage to the electronic components.
•
Use a lint-free cloth to gently wipe the external surface of the equipment about once every week. Be careful not
to scratch the LCD screen.
•
InBody270 does not need regular maintenance. If some problems occur while operating the device, get in touch
with the store where you purchased it or A/S manager.
We do not take the responsibility about problems caused by any arbitrary repairs.
F. Maintenance

18
II. InBody Test
A.Precautionary Steps
DANGER
NOTECAUTION
참 조 주 의참 고 주 의
Warning
•
Individuals with medical implant devices such as pacemakers, or essential support devices such as patient
monitoring systems, must not use this equipment. Safe, low-level currents will flow through the body during
the test, which may cause malfunctioning of the device or endanger lives.
•
Children and people with limited mobility should be supervised or assisted when attempting to test on the InBody.
•
After an individual with any kind of contagious disease or infection tests on the InBody, use an InBody Tissue
to clean the equipment.
DANGER
NOTECAUTION
참 조 주 의참 고 주 의
Caution
•
Stand upright for about 5 minutes before testing. Taking the test immediately after lying in bed or sitting for
a long period of time might result in a slight change in the test results. This is because body water tends to
move to the lower body as soon as the person stands or gets up.
•
Do not eat before testing. In cases where the examinee has already eaten, the test should be put off for at least
two hours after the meal. This is because food mass is included in the examinee’s weight and thus, may result
in measurement errors.
•
Use the bathroom before testing. Waste is not included in the body’s compositional elements, but the volume
of urine and excrement is included in the weight measurement affecting accuracy of the test results.
•
Do not exercise before testing. Strenuous exercise or sharp movements can cause temporary changes in body
composition. Even light exercise can change your body composition temporarily.
•
Take the test in the morning, if possible. Body water tends to gravitate towards the lower body throughout
the day, affecting accuracy of the test results.
•
Thoroughly wipe the palms and soles with the InBody Tissue before testing. Testing may be difficult if the
examinee’s palms and soles are too dry or if the examinee has too many calluses.
•
Avoid contact with the examinee during testing. Contact may lead to interference affecting test results.

19
EN
B. Test Instructions
1. Step on the footplate when the screen below is shown.
*The screens vary according to the Settings of the Administrator Menu ‘02. Self Mode/Professional Mode’.
Professional Mode: An examiner is present and guiding the examinee through the InBody Test.
Self Mode: The examinee takes the InBody Test following the instructions that are displayed on screen.
2. Weight measurement begins.
3. Input personal information.
*In Professional Mode, enter the ID.
*Input height only if using Self Mode.
Professional Mode Self Mode

20
4. Maintain proper posture to take the test.
*Refer to «C. Test Posture» for the proper posture.
5. The InBody Test begins.
6. When the test is completed, the results will be shown on screen.
Professional Mode Self Mode
Professional Mode Self Mode
