I. InBody570 Installation
A. Product Components
B. Operating Environment
C. Installation Instructions
D.Initial Setup
E. Connecting Printer, Stadiometer,
Blood Pressure Monitor, and Barcode Reader
F. Maintenance
II. InBody Test
A. Precautionary Steps
B. Test Instructions
C. Test Posture
III. Transportation and Storage
A. Cautions during Transportation
B. Repacking Instructions
C. Transportation and Storage Environment
IV. Frequently Asked Questions (FAQ)
A. Regarding the InBody
B. Regarding the InBody Test
V. Others
A. Exterior and Functions
B. Safety Information
 C.Classication
 D.Specications
4
5
5
8
12
14
15
16
17
18
18
18
19
21
22
25
26
26
User’s Manual Contents
570_manual_ENG_D_150520.indd3 2015.11.6.오전11:43

4
5
I. InBody570 Installation
A.Product Components
The InBody570 consists of the following components. Please make sure all of the following components are
present.
*Please inspect each component of the InBody570 for defects prior to installation.
❶
InBody570
❷
Adapter (DC 12V, 3.4A) 1 EA
❸
Power cord 1 EA
❹
User’s Manual 1 EA
Keypad
Hand electrodes
Upper part
Footplate
Foot electrodes
❶
570
User’s Manual
제품보증서
❸
❷
❹
❶
재포장
570_manual_ENG_D_150520.indd4 2015.11.6.오전11:43

4
5
B.Operating Environment
Please make sure that the environment is adequate for the InBody570 installation. This equipment is designed
  forindooruse.Ifinstallingoutdoors,thefollowingrequirementsmustbefullled.
C.Installation Instructions

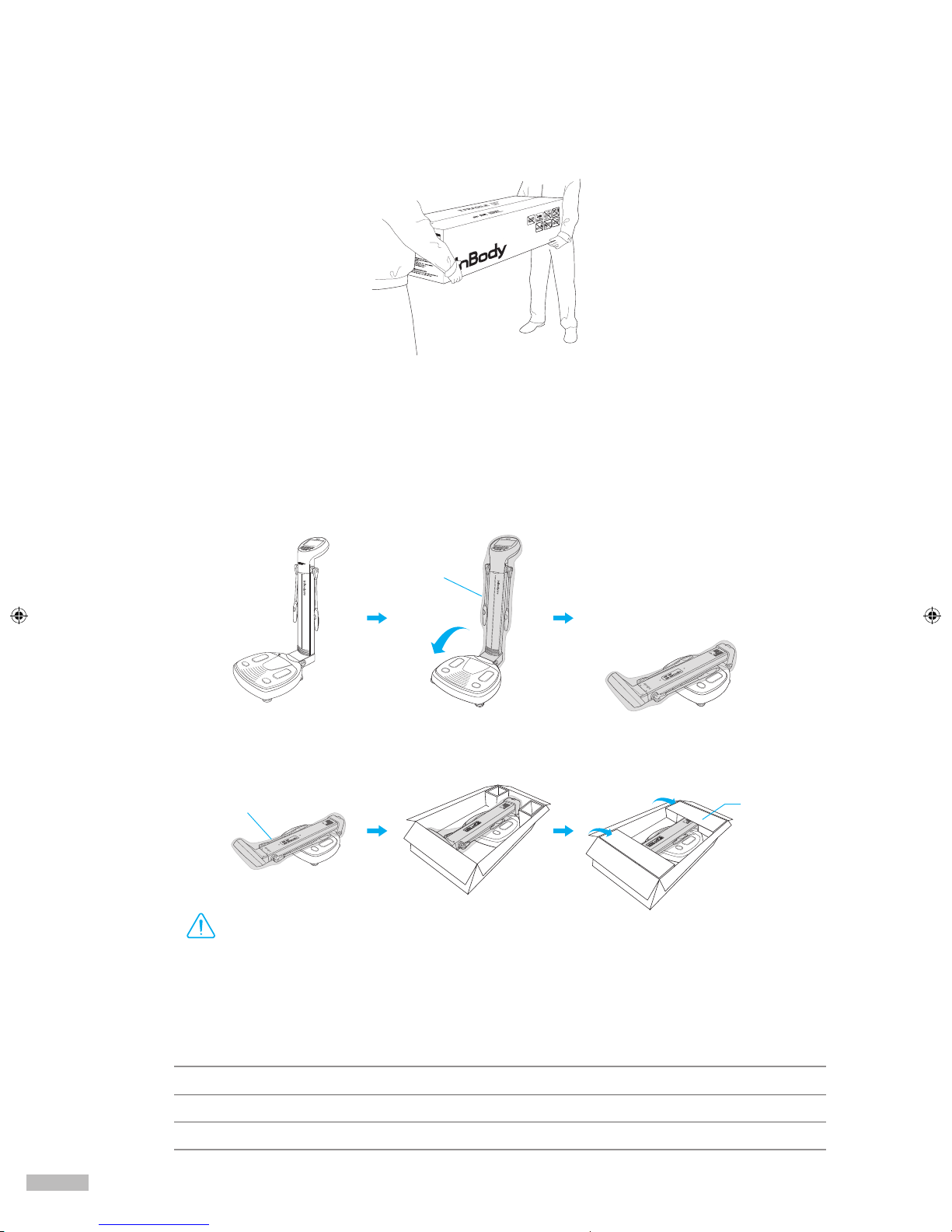

1. Open the packing box of the InBody570 and remove the packing pads. Then take the InBody570 out of the box.
2. After completely raising the upper part of the InBody570, remove the polyethylene foam cover.
재포장
Polyethylene foam cover
Packing pads
•
If you have any problems installing your InBody570, please contact InBody for assistance.
•
Do not transport the equipment by holding the screen portion or the joints of the hand electrodes.
•
Keep the packing materials provided for repacking the equipment in the future. Other wastes should be
disposed of according to relevant laws and regulations.
DANGER
NOTECAUTION
참 조 주 의참 고 주 의
Caution
•
Using the InBody570 on carpet may cause static electricity, which could damage the equipment. If installing
the InBody570 on carpet is unavoidable, please use an antistatic mat.
•
Install the InBody570 on a leveled, non-vibrating surface. Installing the equipment on an uneven surface may
cause the examinee to fall down. Test results may also be inaccurate.
•
Never clean the hand and foot electrodes with liquid spray or detergent directly. The equipment may corrode
and/or malfunction if the liquid or detergent leaks inside. Use the InBody Tissue when cleaning the InBody570.
DANGER
NOTECAUTION
참 조 주 의참 고 주 의
Caution
Temperature range 10 ~ 40℃ (50 ~ 104℉)
Relative humidity 30 ~ 75% RH
Atmospheric pressure 70 ~ 106kPa
* Please refer to the following illustrations to properly transport the equipment.
Joint frame
570_manual_ENG_D_150520.indd5 2015.11.6.오전11:43

6
7

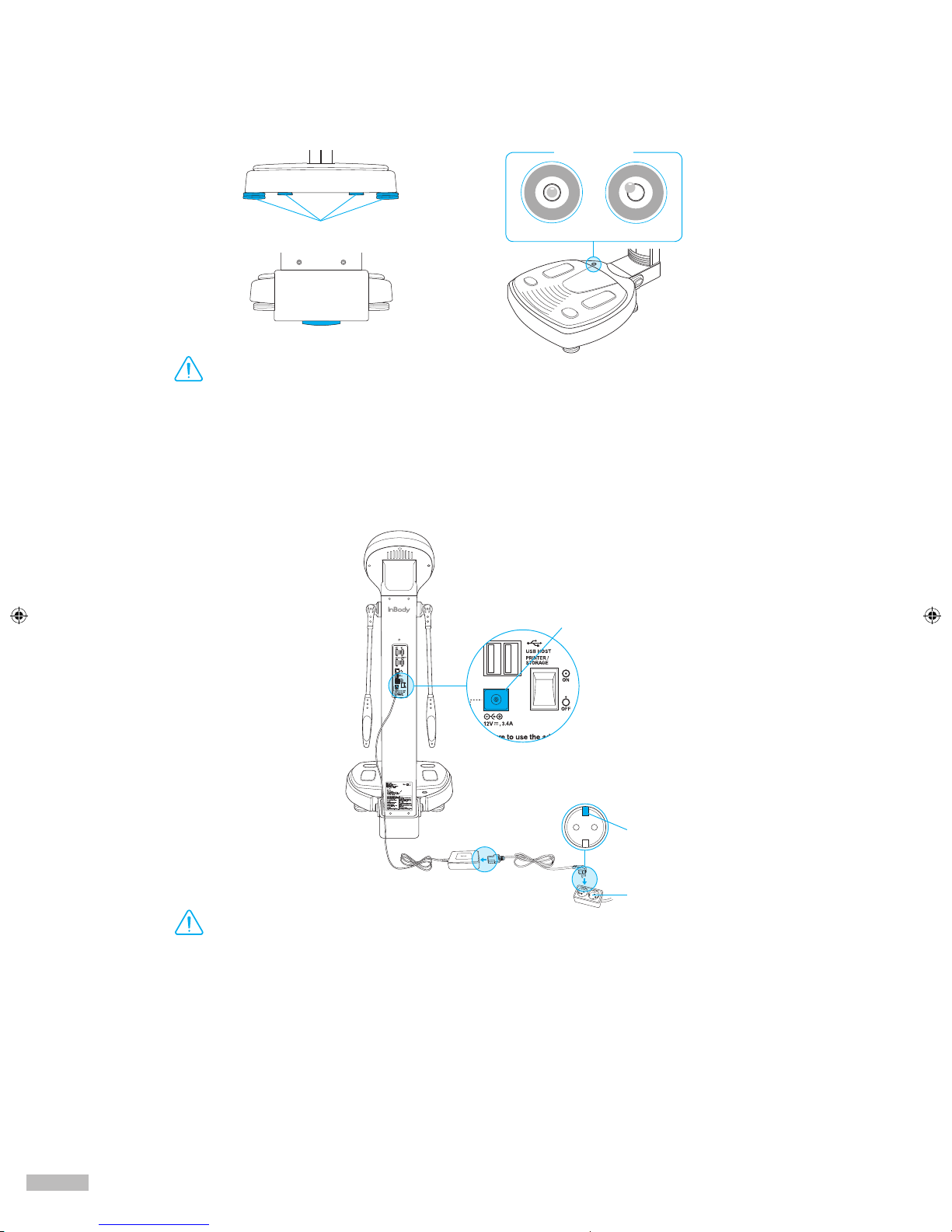

3. Level the InBody570 by rotating the leveling screws under the footplate to the left and right so that the
air bubble is centered.
*Leveling the equipment is necessary for accurate measurement of weight. There are a total of 5 leveling screws.
4. Connect the adapter (❷) to the power input port, which is located on the rear panel (❶). Connect the adapter (❷)
to the power cord (❸). Plug the power cord (❸) into a grounded 3-socket outlet.
*The InBody570 can be used in connection with other equipment such as a stadiometer, a blood pressure monitor, data management
software called Lookin’Body120, or a barcode reader. For more information, please refer to ‘A. Exterior and Functions 3. Rear Panel’
in section ‘V. Others’in this User’s Manual.
Leveled Not leveled
Level Indicator
Leveling screws under the footplate
Leveling screws under the footplate
DANGER
NOTECAUTION
참 조 주 의참 고 주 의
Warning
•
Do not place the InBody570 in a location making it difficult to disconnect the power cord.
•
Do not plug in or pull out the power cord with wet hands. There is a risk of an electric shock.
•
Always use an outlet connected to the power (AC 100-240 V). Using other power rated outlets may result in
fire or malfunction.
•
When using a power surge protector, make sure that the outlet or the extension cable has adequate power capacity.
•
Do not disassemble or modify the equipment including internal parts without written consent from the
manufacturer. This may cause electric shock or injury, product malfunction, inaccurate results, and will
void the manufacturer’s warranty.
•
Do not directly contact the InBody570 with any other electronic device when the InBody570 is on. This may
result in an electric shock.
Power input port
Rear panel
❷
3-socket outlet
Grounded outlet
❶
❸
•
Avoid injuring your hands when rotating the leveling screws under the footplate.
DANGER
NOTECAUTION
참 조 주 의참 고 주 의
Caution
570_manual_ENG_D_150520.indd6 2015.11.6.오전11:43

6
7
DANGER
NOTECAUTION
참 조 주 의참 고 주 의
Caution
Power switch
•If the InBody570 is not plugged into a grounded outlet, it may cause damage through electric surges or
product malfunction. This may affect the test results.
•The test results may be inaccurate if the InBody570 is under electrical interference. Do not install the InBody570
near products that generate electrical interference such as fluorescent lights, largeAC motor equipment
(treadmill, vibration plate, refrigerator, air-conditioner, compressor, etc.), high-frequency thermal therapy
equipments, or heating appliances. Do not share the power source of the InBody570 with other electrical
devices. This may affect the test results.
•When connecting the InBody570 with other test equipment, turn on the other equipment first. When
turning off other equipment, turn off the InBody570 first. This is necessary to minimize electrical surges on the
InBody570.
•Always use the specified adapter provided by InBody as it is a part of the InBody570. Using other adapters
may result in malfunction of the InBody570.
•Operation of the InBody570 2,000m above sea level may affect the weight measurement.

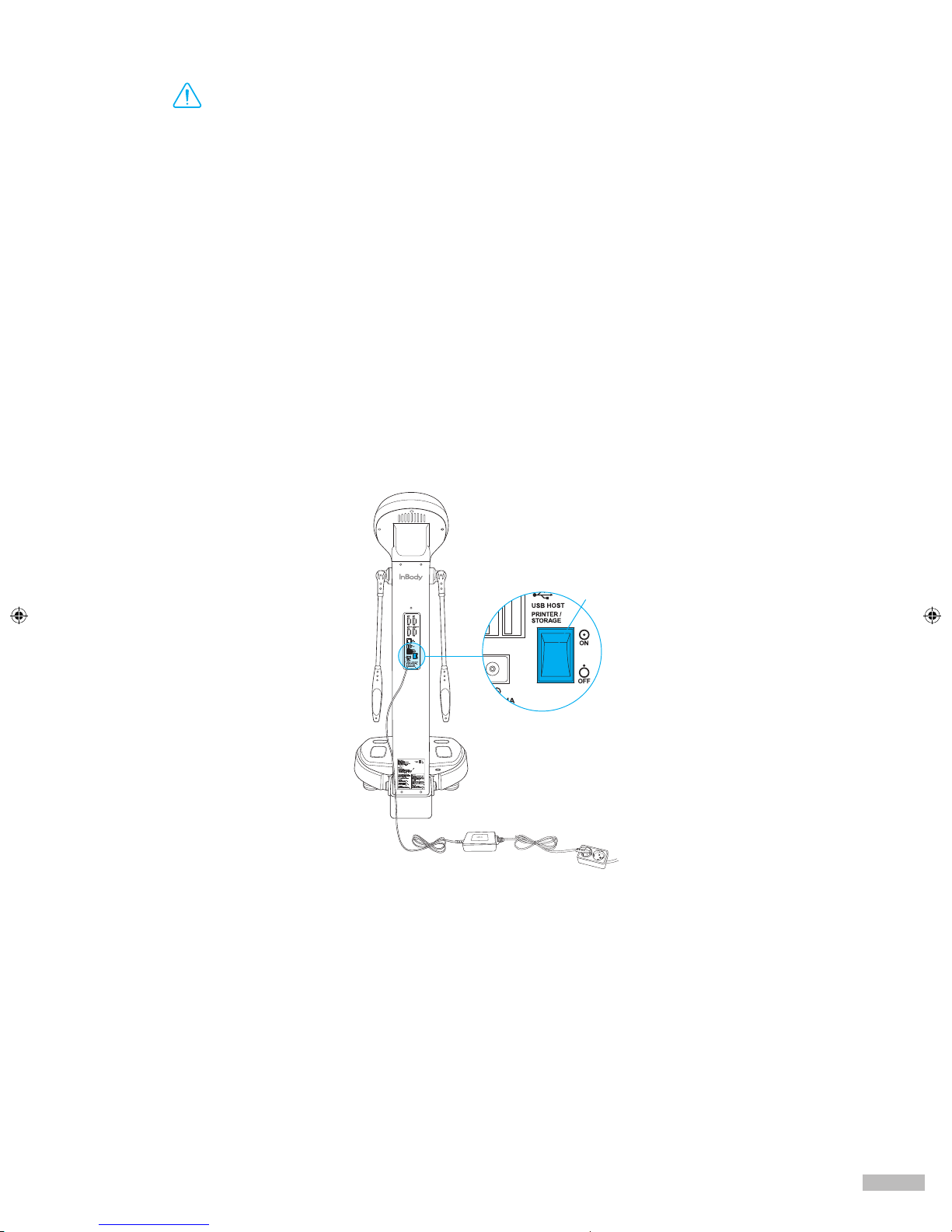

5. Flip the power switch to turn on the InBody570.
570_manual_ENG_D_150520.indd7 2015.11.6.오전11:43

8
9
D. Initial Setup
1. The InBody570 automatically starts booting when it is turned on. While booting, it performs a self weight
calibration.
*While booting (about 5 minutes), make sure there is nothing on top of the footplate. Please do not stand on the footplate, or
place objects on the footplate.

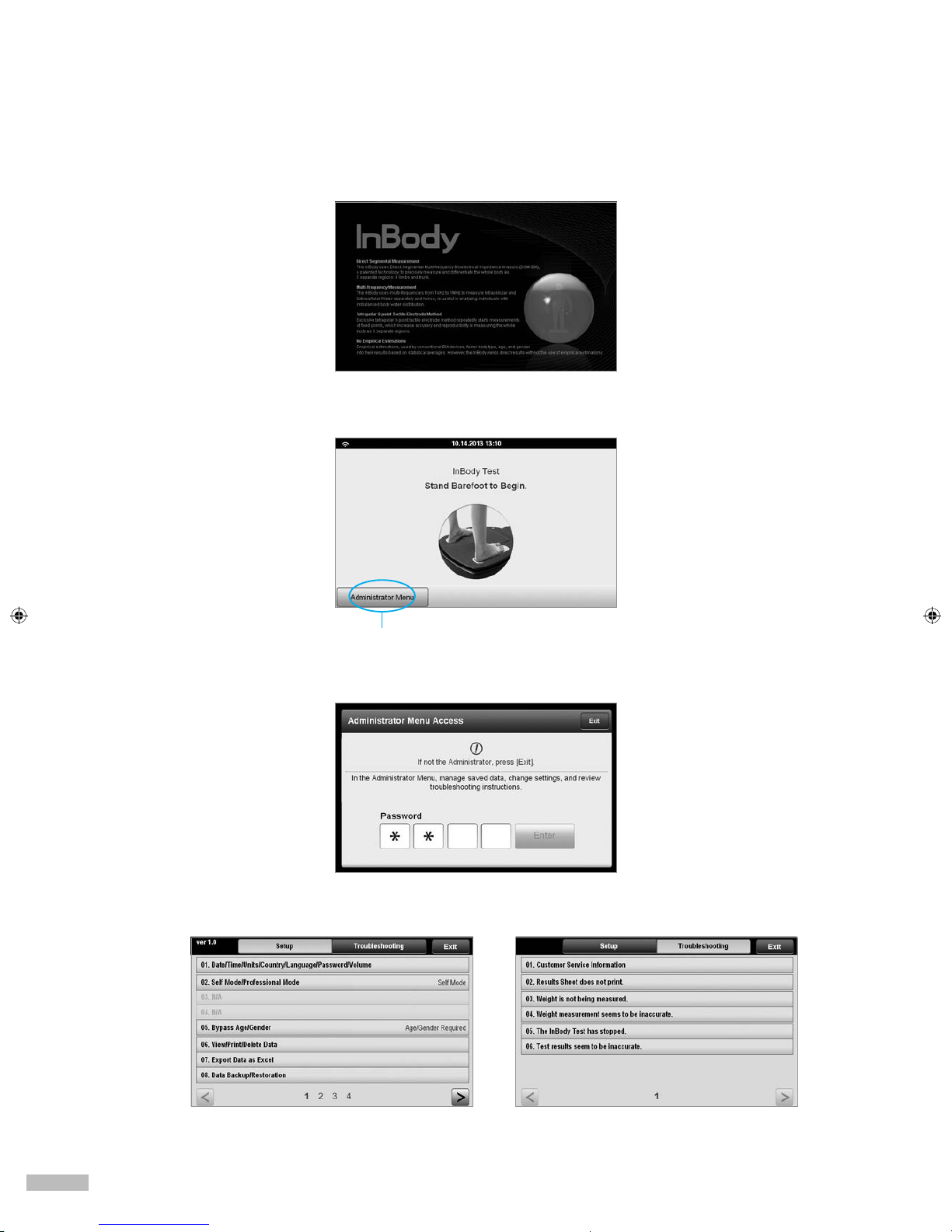

2. Press the [Administrator Menu] button on the screen, which appears when no one is on the footplate.
3. Input the password (default password: 0000) to access the Administrator Menu.
4. TheAdministrator Menu will give you access to ‘Setup’and ‘Troubleshooting’.
Administrator Menu
Setup Troubleshooting
570_manual_ENG_D_150520.indd8 2015.11.6.오전11:43

8
9
  1)Setup:Conguresettingsandmanagedataaccordingtothetestenvironment.
01. Date/Time/Units/Country/Language/Password/Volume
: Change or modify the InBody’s basic settings.
02. Self Mode/Professional Mode
•Self Mode: The examinee takes the InBody Test by entering only his/her height.
Throughout the test, instructions and the InBody Information will be shown on screen.
•Professional Mode: An examiner is present and guiding the examinee through the InBody Test.
03. N/A
04. N/A
05. Bypass Age/Gender
: The examinees can bypass inputting their age or gender if the test environment is designed for testing
      onlyadultsoraspecicgender.
06. View/Print/Delete Data
: The administrator can manage test results using ID.
07. Export Data as Excel
     :YoucanexporttestresultsasanexcelleonaUSBThumbDrive.Exportedtestresultscanbeviewed
      asanexcelleonacomputer.
08. Data Backup/Restoration
     :BackuptheInBodyTestresultstoaUSBThumbDriveorrestoretestresultsusingabackupleon
a USB Thumb Drive.
09. Printer Setup
: Connect the printer to the InBody. A connected printer will allow for printing results sheets after testing.
10. Results Sheet Types
: Select which results sheets to print among the results sheets provided by the InBody570
(InBody Results Sheet and InBody Results Sheet for Children).
11. Automatic Printing Options
: Print applicable results sheets automatically after each completed test. The InBody can print up to
2 copies after every test.
12. Paper Types
: Select the paper type for printed results sheets. Options include blank A4 paper or pre-printed InBody
Results Sheets provided by InBody.
13. Outputs/Interpretations for Results Sheet
: Select outputs or interpretations that will appear on the right side of the InBody Results Sheet and
InBody Results Sheet for Children.
570_manual_ENG_D_150520.indd9 2015.11.6.오전11:43

10
11
14. Results Sheet Custom Logo
: Insert a logo on upper right corner of the printed results sheet.
*Please contact InBody for help with uploading or modifying a logo.
15. Printing Alignment
: Adjust the alignment of where the results will be printed on the results sheets.
16. Internet Options
: You can connect the InBody to the Internet. When the InBody is connected to the internet, can
connect to data management software Lookin’Body120, regardless of location.
17. Bluetooth
: Connect the InBody to data management software Lookin’Body120, via Bluetooth connection.
18. Manual/Automatic Weight
: Select whether to proceed testing by entering the examinee’s weight manually or by taking the
weight measurement automatically.
19. Adjust Weight
     :AdjustmeasuredweightbyaxedvalueontheInBody.(Example:Workoutclothesatthegymare
approximately 0.2kg; most examinees are assumed to be wearing workout clothes, so the examiner
may adjust the set value to -0.2kg.)
20. Normal Range
: Set the normal range for BMI, Percent Body Fat, and Waist-Hip Ratio.
*The ideal value of BMI may also be set.
21. N/A
22. Standard Child Growth Curve
: Set the type of standard child growth curve to use on the InBody Result Sheet for Children.
23. Touchscreen Alignment
: Adjust the alignment of the touchscreen.
24. Customer Service Information
: Save the customer service (supplier) contact information. Please refer to the customer service information
if you have any inquiries regarding the InBody Test, or problems that cannot be resolved through the
‘Troubleshooting’menu.
25. Auto-Lock
: Set a password or screen lock (auto-lock) time to secure the InBody usage.
570_manual_ENG_D_150520.indd10 2015.11.6.오전11:43

10
11
2) Troubleshooting: See additional information on how to use the InBody. Refer to troubleshooting checklist
when there are problems that occur during the InBody use/test.
01. Customer Service Information
: See the customer service contact information saved under the Setup of the Administrator Menu
‘24. Customer Service Information’. Please contact the customer service if your problem cannot be
resolved through the ‘Troubleshooting’or if you need further inquiries regarding the InBody Test.
02. Results Sheet does not print.
: View the troubleshooting checklist when the Results Sheet does not print by the printer connected
to the InBody.
03. Weight is not being measured.
: View the troubleshooting checklist when weight is not being measured, after stepping on to the
InBody footplate.
04. Weight measurement seems to be inaccurate.
: View the troubleshooting checklist when the weight measurement seems to be inaccurate.
05. The InBody Test has stopped.
: View the troubleshooting checklist when the InBody Test has stopped.
06. Test results seem to be inaccurate.
: View the troubleshooting checklist when the test results seem to be inaccurate.
570_manual_ENG_D_150520.indd11 2015.11.6.오전11:43

12
13
E. Connecting Printer, Stadiometer, Blood Pressure Monitor, and Barcode Reader
1. Printer
In order to print InBody Results Sheets, an InBody570 compatible printer is required.
*A list of printers compatible with the InBody570 can be found at http://www.inbodyservice.com.
1) First turn off the InBody570 and then the printer.
*You may experience connection issues in connecting the printer to the InBody570 if the InBody is turned on.
2) Plug the USB cable provided with the printer into the USB HOST port on the rear panel of the InBody570 and
plug the other end of the USB cable into the printer.
3) Turn on the printer.
4) Turn on the InBody570 and setup your printer under Settings of theAdministrator Menu ‘09. Printer Setup’.
5) You can edit your printing settings under Settings of the Administrator Menu from ‘10. Results Sheet Types’
through ‘15. PrintingAlignment’.
2. Stadiometer
If a stadiometer is connected to the InBody570, the height values measured by the stadiometer will be sent
directly to the InBody570.
*Always connect a stadiometer from InBody.
1) First turn off the InBody570 and then the stadiometer.
*You may experience connection issues in connecting the stadiometer to the InBody570 if the InBody is turned on.
2) Plug the serial cable provided with the stadiometer to the 9-pin stadiometer serial port on the rear panel of
the InBody570.
3) Turn on the stadiometer.
4) Turn on the InBody570. If the stadiometer is connected to the InBody570, the stadiometer icon( ) will
appear on the top left corner of the screen when no one is on the footplate.

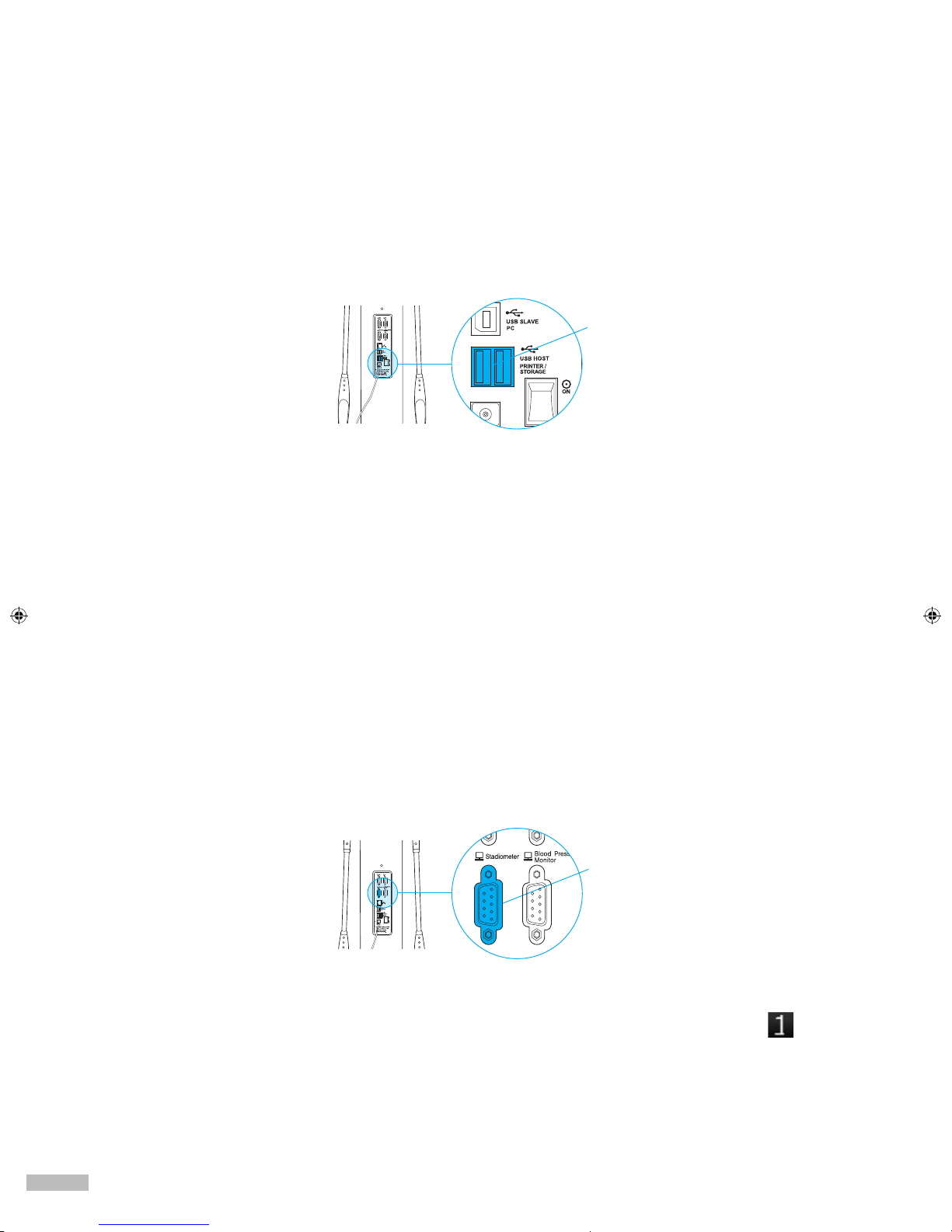

USB HOST port
9-pin stadiometer
serial port
570_manual_ENG_D_150520.indd12 2015.11.6.오전11:43

12
13
3. Blood Pressure Monitor
If a blood pressure monitor is connected to the InBody570, the blood pressure values measured by the blood
pressure monitor will be sent directly to the InBody570.
*Always connect a blood pressure monitor from InBody.
*If you select to print blood pressure measurements under Settings of the Administrator Menu ‘13. Outputs/Interpretations for Results
Sheet’, the blood pressure measurements will be printed on the InBody Results Sheet.
1) First turn off the InBody570 and then the blood pressure monitor.
*You may experience connection issues in connecting the blood pressure monitor to the InBody570 if the InBody is turned on.
2) Plug the serial cable provided with the blood pressure monitor to the 9-pin blood pressure monitor serial
port on the rear panel of the InBody570.
3) Turn on the blood pressure monitor.
4) Turn on the InBody570. If the blood pressure monitor is connected to the InBody570, the blood pressure
monitor icon ( ) will appear on the top left corner of the screen when no one is on the footplate.
4. Barcode Reader
If a barcode reader is connected to the InBody570, the ID will be inputted automatically.
*If the InBody cannot recognize the barcode reader, please contact InBody.
1) First turn off the InBody570.
*You may experience connection issues in connecting the barcode reader to the InBody570 if the InBody is turned on.
2) Plug the USB cable of the barcode reader into the USB HOST port on the rear panel of the InBody570.
3) Turn on the InBody570. If the barcode reader is connected to the InBody570, the barcode reader icon( )
will appear on the top left corner of the screen when no one is on the footplate.
9-pin blood pressure monitor
serial port
USB HOST port
570_manual_ENG_D_150520.indd13 2015.11.6.오전11:43

14
15
DANGER
NOTECAUTION
참 조 주 의참 고 주 의
Caution
•
Do not bend the handles of the hand electrodes or rotate them in the reverse direction beyond its limitation.
•
Do not extend the handles of the hand electrodes beyond its limitation.
•
Do not place any objects on the footplate.
•
Do not apply excessive force on the equipment.
•
Turn off the equipment if you are not using it for a day or longer.
•
Do not allow any liquid substances to contact the equipment directly. Keep food and drinks away from the
equipment. Substances getting inside the equipment can cause critical damage to the electronic components.
•
Use a lint-free cloth to gently wipe the external surface of the equipment about once every week. Be careful not
to scratch the LCD screen.
F. Maintenance
570_manual_ENG_D_150520.indd14 2015.11.6.오전11:43

14
15
II. InBody Test
A.Precautionary Steps
DANGER
NOTECAUTION
참 조 주 의참 고 주 의
Warning
•
Individuals with medical implant devices such as pacemakers, or essential support devices such as patient
monitoring systems, must not use this equipment. Safe, low-level currents will flow through the body during
the test, which may cause malfunctioning of the device or endanger lives.
•
Bioelectrical ImpedanceAnalysis (BIA) uses safe low level currents, which are not harmful to the body. However,
we do not recommend pregnant women test.
•
Children and people with limited mobility should be supervised or assisted when attempting to test on the InBody.
•
After an individual with any kind of contagious disease or infection tests on the InBody, use an InBody Tissue
to clean the equipment.
DANGER
NOTECAUTION
참 조 주 의참 고 주 의
Caution
•
Stand upright for about 5 minutes before testing. Taking the test immediately after lying in bed or sitting for
a long period of time might result in a slight change in the test results. This is because body water tends to
move to the lower body as soon as the person stands or gets up.
•
Do not eat before testing. In cases where the examinee has already eaten, the test should be put off for at least
two hours after the meal. This is because food mass is included in the examinee’s weight and thus, may result
in measurement errors.
•
Use the bathroom before testing. Waste is not included in the body’s compositional elements, but the volume
of urine and excrement is included in the weight measurement affecting accuracy of the test results.
•
Do not exercise before testing. Strenuous exercise or sharp movements can cause temporary changes in body
composition. Even light exercise can change your body composition temporarily.
•
Take the test in the morning, if possible. Body water tends to gravitate towards the lower body throughout
the day, affecting accuracy of the test results.
•
Thoroughly wipe the palms and soles with the InBody Tissue before testing. Testing may be difficult if the
examinee’s palms and soles are too dry or if the examinee has too many calluses.
•
Avoid contact with the examinee during testing. Contact may lead to interference affecting test results.
570_manual_ENG_D_150520.indd15 2015.11.6.오전11:43

16
17
B. Test Instructions
1. Step on the footplate when the screen below is shown.
*The screens vary according to the Settings of the Administrator Menu ‘02. Self Mode/Professional Mode’.
Professional Mode:An examiner is present and guiding the examinee through the InBody Test.
Self Mode: The examinee takes the InBody Test following the instructions that are displayed on screen.
2. Weight measurement begins.
3. Input personal information.
*Input height only if using Self Mode.
4. Maintain proper posture to take the test.
*Refer to ‘C. Test Posture’for the proper posture.
5. The InBody Test begins.
*InBody Information is shown if using Self Mode.
Professional Mode Self Mode
Professional Mode Self Mode
570_manual_ENG_D_150520.indd16 2015.11.6.오전11:43

16
17
6. When the test is completed, the results will be shown on screen.
C.Test Posture
The examinee must maintain proper posture to have accurate test results.
*The test will proceed when there is good electrical contact.
Professional Mode Self Mode
Place the heels on the rear sole
electrodes.
Keep your arms straight.
The thighs should not touch.
Hold the hand electrode so that
the4ngerswrapthesurface
of the bottom hand electrode,
and place the thumb on the oval
electrode.
Your arms must not touch the
sides of your body.
Step on the footplate barefoot.
570_manual_ENG_D_150520.indd17 2015.11.6.오전11:43

18
19
III. Transportation and Storage
A.Cautions during Transportation
When transporting, have two people keep the InBody570 parallel to the ground.
B. Repacking Instructions
Once the InBody570 is installed, avoid transporting the equipment. If it must be transported, repack it in
the following sequence.
1. Turn off the InBody570.
2. Separate the connected adapter, cords, and cables from the equipment, and cover the InBody570 with
the polyethylene foam cover. After covering the InBody, lower the upper part.
3. Put the InBody into the packing box. Place the packing pad over the equipment and tape up the
packing box.
C. Transportation and Storage Environment
The InBody570 should be transported or stored under the following conditions.
DANGER
NOTECAUTION
참 조 주 의참 고 주 의
Caution
•
Always use the protective packing materials provided by InBody when repacking.
재포장
재포장
Polyethylene foam cover Packing pads
Temperature range -10 ~ 70℃(14 ~ 158℉)
Relative humidity 10 ~ 80% RH (No Condensation)
Atmospheric pressure 50 ~ 106kPa
Polyethylene foam cover
570_manual_ENG_D_150520.indd18 2015.11.6.오전11:43

18
19
IV. FrequentlyAsked Questions (FAQ)
Even if no problems arise from the equipment, users may still have many questions, especially regarding
clinical procedures. Few common questions and answers are listed below. If your questions are not answered
here, please contact InBody.
*Customer contact information can be found under Settings of the Administrator Menu ‘24. Customer Service Information’.
A.Regarding the InBody
  IfaproblemariseswiththeInBody570,youmayrstattempttocheckthe‘Troubleshooting’intheAdministrator
Menu. The InBody570 can help you diagnose and solve some problems. If your problem cannot be resolved
through the ‘Troubleshooting’, please refer to the possible solutions below.
Question Answer
• My InBody570 does not
turn on. •Insert the power plug completely into a grounded 3-socket outlet.
•When using a power surge protector, the equipment may not power on if
the power switch on the power surge protector is turned off. Check the
power surge protector which the power plug is connected to.
•The problem may occur if the power cord is not completely plugged into
the adapter. Insert the power cord completely into the adapter.
•The problem may occur if you are using the power adapter that is not provide
by InBody. Always connect a power adapter (DC 12V, 3.4 A) provided
by InBody.
Power surge protector
power switch
Grounded 3-socket outlet
Power adapter
570
User’s Manual
제품보증서
570
User’s Manual
제품보증서
Power cord
570_manual_ENG_D_150520.indd19 2015.11.6.오전11:43

20
21
Question Answer
• My touchscreen
is inaccurate or not
responsive.
• Calibrate the touchscreen under Settings of the Administrator Menu
‘23. Touchscreen Alignment’.
*Pressrmlytooptimizetouchscreenresponse.
• If you cannot enter the Administrator Menu due to touchscreen problems,
please restart the InBody. The InBody stores the last touchscreen alignment
and will automatically recall the previous touchscreen settings. The InBody
can also recognize if its touchscreen alignment is off screen and will
automatically take the user to the calibration screen after restarting.
• I would like to connect
other equipment to the
InBody570.
• Please refer to ‘E. Connecting Printer, Stadiometer, Blood Pressure
Monitor, and Barcode Reader’ in section ‘I. InBody570 Installation’in
this User’s Manual.
570_manual_ENG_D_150520.indd20 2015.11.6.오전11:43
