inbody S10 User manual

User’s Manual

Please note the important information below before reading this manual.
Failure to comply with safety warnings and regulations can cause serious injury or death.
DANGER
NOTECAUTION
참 조 주 의참 고 주 의
Failure to comply with safety cautions and regulations can cause injury or property damage.
DANGER
NOTECAUTION
참 조 주 의참 고 주 의
Warning
Caution
©2019 InBody Co., Ltd. All rights reserved. BM-ENG-83-D-190710
InBody Co., Ltd. [HEAD OFFICE]
InBody Bldg., 625, Eonju-ro, Gangnam-gu, Seoul 06106 KOREA
TEL: [phone]
FAX: [phone]
Website: https://www.inbody.com
E-mail: [e-mail]
©2019 InBody Co., Ltd. All rights reserved.
Reproduction, adaptation, or translation of this manual is prohibited without prior written consent from InBody Co., Ltd
under the copyright laws. This manual might have typographical errors, and its content can be changed without a
prior notice. InBody Co., Ltd shall not be liable for any errors, incidental, or consequential damages that occurred
by not complying with the content of the User’s Manual.
Visit our website https://www.inbody.com to view and download further information about the functions of the
InBodyS10, the explanation of results output, and more. InBody Co., Ltd reserves the right to modify the appearance,
specifications, and etc. of the InBodyS10 to improve the quality of the product, without prior notice for reasons of
performance improvement.
Representative & Sponsor Information
InBody Europe B.V.
Gyroscoopweg 122, 1042 AZ, Amsterdam, The Netherlands
TEL: [phone] Website: https://nl.inbody.com E-mail: [e-mail]
Australian Sponsor. [AUSTRALIA]
Emergo AUSTRALIA. Level 20, Tower II, Darling Park, 201 Sussex Street, Sydney, NSW 2000, AUSTRALIA
TEL: [phone] FAX: [phone] Website: https://www.emergogroup.com E-mail: [email protected]
Customer Service Information
InBody [USA]
13850 Cerritos Corporate Dr., Unit C, Cerritos, CA 90703, USA
TEL: [phone] FAX: [phone] Website: https://www.inbody.com E-mail: [e-mail]
InBody Japan Inc. [JAPAN]
Tani Bldg., 1-28-6, Kameido, Koto-ku, Tokyo 136-0071 JAPAN
TEL: [phone] FAX: [phone] Website: https://www.inbody.co.jp E-mail: [e-mail]
InBody China. [CHINA]
904, Xing Di Plaza, No. 1698 Yishan Road, Shanghai, 201103, CHINA
TEL: [phone], 9739, 9705 FAX: [phone] Website: https://www.inbody.com E-mail: [email protected]

I. Installation & Maintenance
A. Contents of the Box
B. Exterior & Functions
C. Installation Instructions
D. Transportation
E. Repacking
F. Maintenance
II. Management & Results Description
A. Cautions Before Measurement
B. Exterior and Function of Keypad
C. Measurement Posture
D. Connecting the Electrodes
E. Power Connection & Getting Started
F. Home Screen
G. Measurement Settings
 H.PersonalProle
I. How to Operate the Equipment
J. Results
III. Setup Establishment
A. Setup
B. Setup Menu
C. Database
I V. Problems & Solutions
A. Error Messages
B. Troubleshooting
C. Frequently Asked Questions (FAQ)
V. Other
A. Results Sheet
B. Accessories
C. Safety Information
 D.Classication
 E.Specications
F. EMC Declaration
4
6
8
17
18
19
20
21
25
31
34
35
36
37
38
40
42
43
46
48
48
51
52
52
58
60
60
62
User’s Manual Contents

4 5
I. Installation & Maintenance
A. Contents of the Box
When opening the box, make sure all of the following items are inside:
1. Included Items
❶
InBodyS10 1EA
❷
User’s Manual 1EA
❸
Adapter (12V, 3.4A) 1EA
❹
Power cord (AC 125V, 10A, 1.8m) 1EA
❺
Electrode cable 4EA
❻
InBody carrying case 1EA
❼
Touch Type hand electrode 4 units
❽
Touch Type foot electrode 2 units
❾
Adhesive Type electrode 8 units
❿
EKG adhesives
⓫
USB Thumb Drive
⓬
Cart 1EA
⓭
External Battery 2EA
⓮
Cable (75cm) 1EA for connecting
external battery to the unit
❻
❼❽
❿⓫
❾
❶
❹
❷❸
❺
⓬
⓮
⓭

4 5
•
To prevent physical shock, use InBody’s packing material when shipping or transporting the equipment.
Refer to this Chapter I, Section D: “Transportation.”
Caution
DANGER
NOTECAUTION
참 조 주 의참 고 주 의
•
Save the wrapping material after unpacking in the event of relocation.
Note
DANGER
NOTECAUTION
참 조 주 의참 고 주 의

6 7
•
Do not dismantle the equipment or open the back cover. Internal parts are not for customer use and may cause
electric shock. If the equipment is dismantled, the warranty is void, and service costs will be charged.
Warning
DANGER
NOTECAUTION
참 조 주 의참 고 주 의
B. Exterior & Functions
  Individualpartidenticationandfunctionswithschematicsketchesareprovidedbelow.Pleaseinspecteach
component of the InBodyS10 before installation to ensure there are no scratches or damage.
1. LCD Monitor
2. Electrode Connection Unit
3. Operational Keypad
4. Control & Connection Unit
1. LCD Monitor
4. Control & Connection Unit
3. Operational Keypad
2. Electrode
Connection Unit

6 7
1. LCD Monitor
Touch-screen LCD. This displays the analysis procedure, messages and results.
2. Electrode Connection Unit
Connects electrode cables into the InBodyS10’s internal circuit.
3. Operational Keypad
The keypad is divisible into input buttons and function buttons.
The buttons are used to input data required for body composition analysis, set up the operating environment
or to print out test results.
4. Control & Connection Unit
Connects to peripherals such as a PC or a printer for data transmission.
❶Power Switch
Powers the InBodyS10 on/off.
❷Power Input Port
Use to connect the power adapter.
❸9 Pin Serial Port, Female (RS-232C)
Use to connect optional devices.
SD400(Serial Distributor) provided by InBody is for the connection of several optional devices.
❹USB Host Port
Use to interface with a USB printer or a USB storage device.
❺USB Slave Port
Use to connect with a PC.
❶
❷
❸
❹❺
•
Do not drop any food or liquid on the equipment. It may affect the electrical parts in the equipment or cause damage.
•
Only use the adapter provided by InBody.
Warning
DANGER
NOTECAUTION
참 조 주 의참 고 주 의
•
When you use the adapter cable, insert the adapter cable tightly into the InBodyS10.
•
Including the optional equipment, only the peripherals provided by InBody can be connected to the InBodyS10.
For any inquiry about peripherals, contact InBody.
Note
DANGER
NOTECAUTION
참 조 주 의참 고 주 의

8 9
C. Installation Instructions
1. Workplace Requirements
Location: Indoors only. Any outdoor area where the equipment is to be located should meet all the conditions below.
2. For InBody Carrying Case Users
(1) When opening the box, check to make sure all the following items are inside.
(2) Connect the electrode cables to the InBodyS10.
Connect electrodes of RA(Right Arm), LA(Left Arm), RL(Right Leg), LL(Left Leg) to each
corresponding part of the InBodyS10. InBodyS10 offers two types of electrodes: the Touch Type
electrodes and Adhesive Type electrodes.
(1) Operation Condition
Temperature range 10~40˚C(50~104˚F)
Relative humidity 30 ~ 75%
Atmospheric pressure range 70 ~ 106kPa
(3) Connect it to an outlet with a grounding terminal. Equipment may be damaged or malfunction due to
electrical shock, which may result in inaccurate test results.
(4) If InBodyS10 experiences electrical interference, the test results may be inaccurate. Do not install near
 uorescentlamps,largeACmotorequipment(runningmachines,refrigerators,airconditioners,compressors),
high-frequency thermal therapy devices, and electric heaters.
(5) Do not connect multiple peripherals to the same outlet. If it is plugged into a power outlet such as an electrical
appliance, disconnect it and plug it into a different power outlet.
(2) Adapter
Manufacturer BridgePower Corp.
Model BPM040S12F07
Power Input AC 100 ~ 240V, 50/60Hz, 1.2A(12A-0.6A)
Power Output DC 12V, 3.4A

8 9
Installing Touch Type Electrodes:
Installing Adhesive Type Electrodes:

10 11

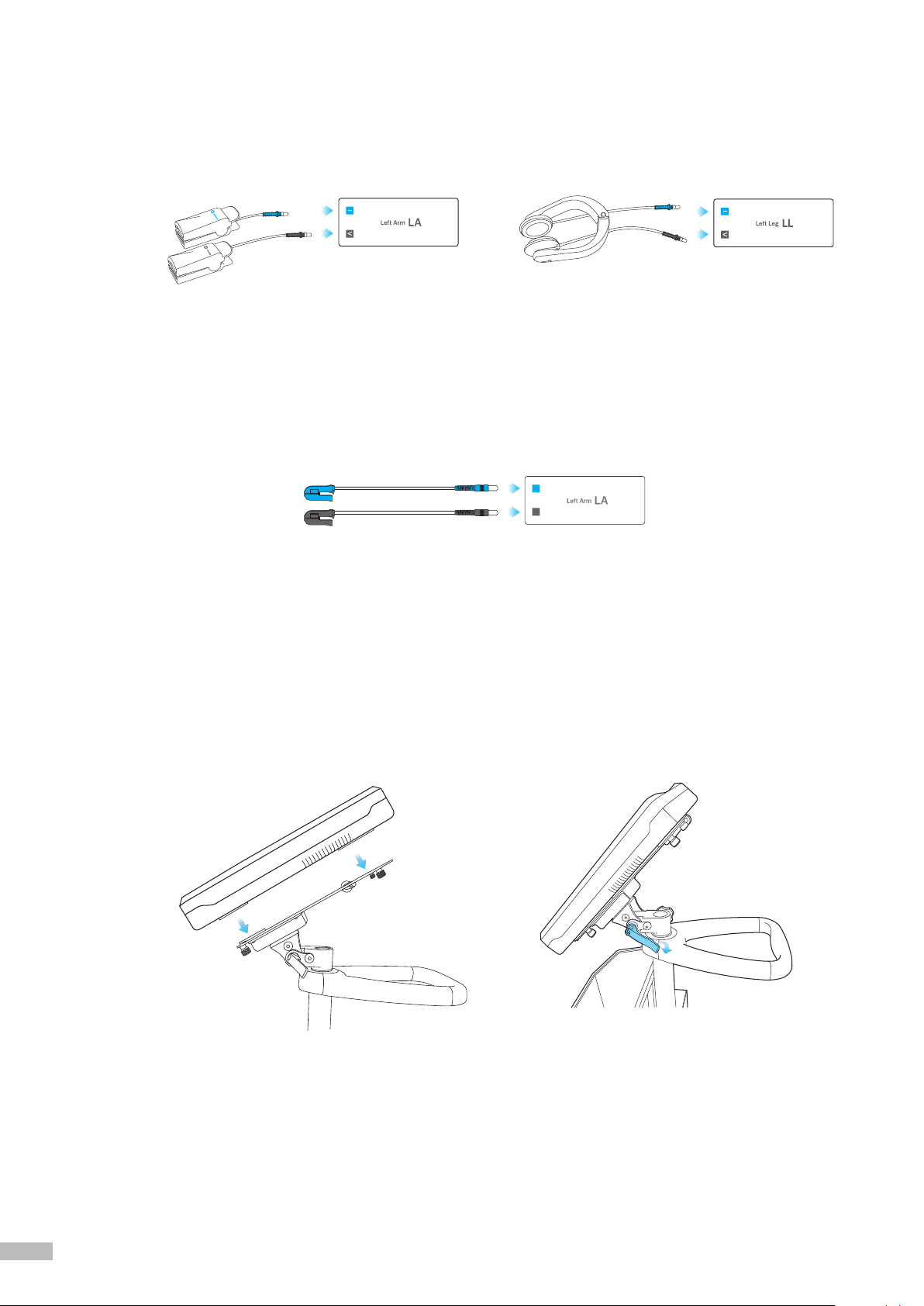

3. How to Install the InBodyS10 Cart
(1) Please place the InBodyS10 on the cart. Align the InBodyS10’s 4 screws on the rear side of the unit to
the cart’s 4 grooves on the head unit. Screw them to fasten the InBodyS10 onto the cart.
❶Touch Type
Connect the black cable to the black port(V) of the electrode module, and connect the red cable to the
red port(I) of the electrode module.
<hand electrode> <foot electrode>
❷Adhesive Type
Connect the black cable to the black port(V) of the electrode module, and connect the red cable to the
red port(I) of the electrode module.
IV

10 11
(2) As shown below, adjust the direction and angle as desired.
*HELP
❶For left/right control
Loosen the screw by twisting left. Fasten the screw by twisting right.
❷For up/down control
Loosen ❷and adjust the angle degree. Fasten ❷again.
❸When ❷is too tight or loose
If unscrewed, ❷becomes loose. If screwed, ❷becomes tight.
❷
❶
❸

12 13

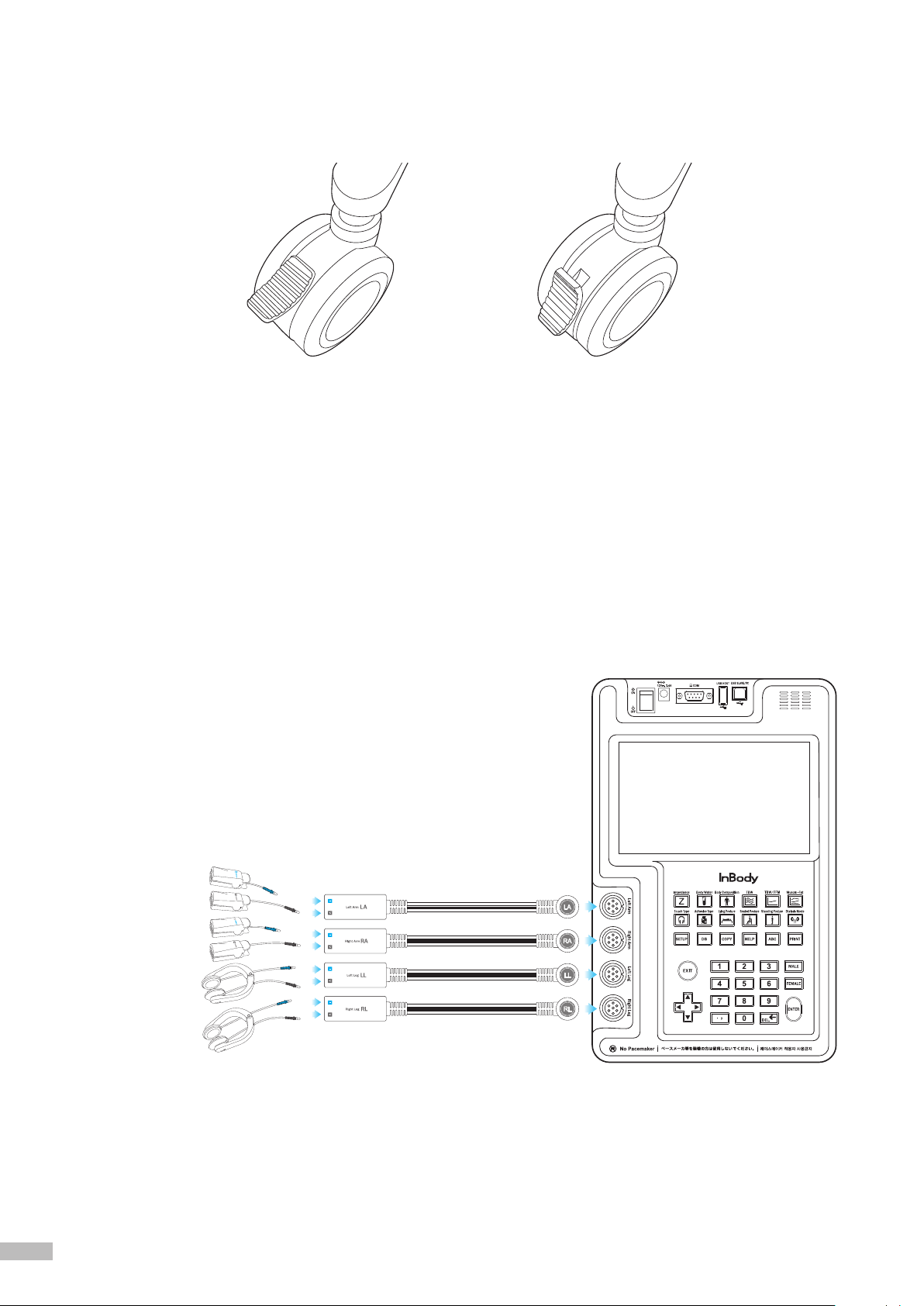

(3) After installation, you can lock the wheels by pushing down the locking lever(as illustrated below).
<Caster unlocked> <Caster locked>
(4) Connect the electrode cables to the InBodyS10.
Connect the RA(Right Arm), LA(Left Arm), RL(Right Leg), LL(Left Leg) electrodes to each
corresponding part of the InBodyS10. The InBodyS10 offers two types of electrodes:
the Touch Type electrodes and Adhesive Type electrodes.
Installing the Touch Type Electrodes:

12 13
Installing the Adhesive Type Electrodes:
❶Touch Type
Connect the black cable to the black port(V) of the electrode module, and connect the red cable to the
red port(I) of the electrode module.
<hand electrode> <foot electrode>
❷Adhesive Type electrode
Connect the black cable to the black port(V) of the electrode module, and connect the red cable to the
red port(I) of the electrode module.
IV

14 15
•
Do not place the InBodyS10 in a location making it difficult to disconnect the power cord.
•
Do not plug in or pull out the power cord with wet hands. There is a risk of an electric shock.
•
Always use an outlet with a voltage range of 100 - 240. Using outlets outside this range may result in fire
or malfunction.
•
When using a power surge protector, make sure that the outlet or the extension cable has adequate power capacity.
•
Do not disassemble or modify the equipment, including internal parts, without written consent from the
manufacturer. This may cause electric shock or injury, product malfunction, inaccurate results, and will
void the manufacturer’s warranty.
•
If this equipment is modified, appropriate inspection and testing must be conducted to ensure continued safe
use of equipment.
•
Do not directly contact the InBodyS10 with any other electronic device when the InBodyS10 is on. This may
result in an electric shock.
Warning
DANGER
NOTECAUTION
참 조 주 의참 고 주 의
•
If you have any problems installing your InBodyS10, please contact InBody for assistance.
•
If the InBodyS10 is not plugged into a grounded outlet, damage due to electric surges or product malfunctions
may occur. This may affect the test results.
•
The test results may be inaccurate if the InBodyS10 is under electrical interference. Do not install the InBodyS10
near products that generate electrical interference such as fluorescent lights, large AC motor equipment(treadmill,
vibration plate, refrigerator, air-conditioner, compressor, etc.), high-frequency thermal therapy equipment, or
heating appliances. Do not share the power source of the InBodyS10 with other electrical devices. This may
affect the test results.
•
When connecting the InBodyS10 with other test equipment, turn on the other equipment first. When turning off
other equipment, turn off the InBodyS10 first. This is necessary to minimize electrical surges to the InBodyS10.
•
Always use the specified adapter provided by InBody, as it is a part of the InBodyS10. Using other adapters may
result in a malfunction of the InBodyS10.
•
Operation of the InBodyS10 2,000m above sea level may affect the weight measurement.
•
Adapter must be arranged so the power may easily be cut off when a problem occurs in the InBodyS10.
Caution
DANGER
NOTECAUTION
참 조 주 의참 고 주 의

14 15
❷ Install the printer platform on the cart pole.
*Installing the Printer onto the Cart
❶ Insert a power strip in the slot provided under the printer platform.
❸ Use a hex key to fasten the printer platform into place.

16 17
❹ Use the USB cable to connect the printer to the unit.

16 17
D. Transportation
If it must be transported, be extra careful to ensure safe handling. The following are some tips for safely
transporting the InBodyS10.
- Before transporting the InBodyS10, turn off the power switch and unplug the adapter.
- Be careful not to damage the hand module.
- Be careful not to damage the electric cables.
1. Environmental Requirements
2. Transporting Before Installation
Before installation, the InBodyS10 will be shipped in a box designed by InBody.
3. Transporting After Installation
   Topreventphysicalshock,useInBody᾿spackingmaterialwhenshippingortransportingtheequipment.
Storage environment
Temperature range -10~70˚C(14~158˚F)
Relative humidity 10 ~ 80%RH (No condensation)
Atmospheric pressure range 50 ~ 106kPa
•
Severe physical impact can cause damage. Be careful not to drop or shake the InBodyS10.
Warning
DANGER
NOTECAUTION
참 조 주 의참 고 주 의

18 19
E. Repacking
Be sure to turn off the power switch and unplug the power cable before repacking. Be careful to avoid severe
physical shock, jarring or other damage while repacking, especially with regard to the electrode cables and
touch type hand/foot electrodes.
(1) Turn off the power switch.
(2) Remove all cables connected to the InBodyS10.
(3) Put the separated units in the provided carrying case.
(4) You can carry the machine easily with the carrying case.

18 19
F. Maintenance
•
Do not modify this equipment without the authorization of the manufacturer.
•
If the equipment is modified, appropriate inspection and testing must be conducted to ensure continued safe
use of equipment.
Warning
DANGER
NOTECAUTION
참 조 주 의참 고 주 의
•
Do not apply excessive force on the equipment.
•
Turn off the equipment if you are not using it for a day or more.
•
Do not allow any liquid substances to contact the equipment directly. Keep food and drinks away from the
equipment. Substances getting inside the equipment can cause critical damage to the electronic components.
•
Use a lint-free cloth to gently wipe the external surface of the equipment about once every week. Be careful
not to scratch the LCD screen.
•
The InBodyS10 does not need regular maintenance. If problems occur while operating the device, please contact
InBody. We do not take any responsibility for problems or damage caused by unlicensed repairs not performed
by InBody.
•
Do not pull the electrode cables by force. Treat them with care.
•
Do not drag the electrode cables on the floor or drag them on the ground.
•
TurnofftheInBodyS10ʼspowerswitchthenturnoffanyotherelectricaldevices.Minimizeanypossible
electrical shock to InBodyS10.
•
Be careful not to drop the hand electrode and the food electrode on the floor. Impacts can cause severe damage
to electronic components inside the electrode.
•
Do not wipe the hands and foot electrode with a cleaning solution. If the liquid in cleaning solution enters
the electrode, corrosion may occur and the equipment may fail. To clean the electrode, use an InBody tissue
containing alcohol or physiological saline and wipe lightly.
•
Use a disposable electrode (EKG) if your patient has wounds or contagious diseases.
Caution
DANGER
NOTECAUTION
참 조 주 의참 고 주 의

20 21
II. Management & Results Description
A. Cautions before Measurement
•
Individuals with medical implant devices such as pacemakers, or essential support devices such as patient
monitoring systems, must not use this equipment. Safe, low-level currents will flow through the body during
the test, which may cause a malfunction of the device or endanger lives.
•
Children and people with limited mobility should be supervised or assisted when attempting to test on the
InBodyS10.
•
After an individual with any kind of contagious disease or infection tests on the InBodyS10, use an InBody Tissue
to clean the equipment.
Warning
DANGER
NOTECAUTION
참 조 주 의참 고 주 의
•
Stand upright for about 5 minutes before testing. Taking the test immediately after lying in bed or sitting
for a long period of time might result in a slight change in the test results. This is because body water tends
to move to the lower body as soon as the person stands or gets up.
•
Do not eat before testing. In cases where the examinee has already eaten, the test should be put off for at
least two hours after the meal. This is because food mass is included in the examinee’s weight and thus,
may result in measurement errors.
•
Use the bathroom before testing. Waste is not included in the body’s compositional elements, but the volume
of urine and excrement is included in the weight measurement, which may affect the accuracy of the test results.
•
Do not exercise before testing. Strenuous exercise or sharp movements can cause temporary changes in
body composition. Even light exercise can change your body composition temporarily.
•
Take the test in the morning, if possible. Body water tends to gravitate towards the lower body throughout
the day, affecting the accuracy of the test results.
•
Thoroughly wipe the palms and soles with an InBody Tissue before testing. Testing may be difficult if the
examinee’s palms and soles are too dry or if the examinee has too many calluses.
•
Avoid contact with the examinee during testing. Contact may lead to interference that may affect the test results.
•
Make sure that the body does not make any contact with conductive materials such as steel structures during
measurement. Secure enough space for arms to be spread out.
•
Administrator or guardian should assist Children or patients with reduced mobility to take the measurement.
Be sure not to make any physical contact during measurement.
Caution
DANGER
NOTECAUTION
참 조 주 의참 고 주 의
