USER’S MANUAL EC1700

Reference Description

PW2 Poignée universelle de la gamme POWERCOUP PW2.

THD600 Taille-haie double, longueur du lamier 600 mm (23,5’’).

THD700 Taille-haie double, longueur du lamier 700 mm (27,5’’).

THS700 Taille-haie simple, longueur du lamier 700 mm (27,5’’).

TR8

Elagueuse, capacité de coupe max. Ø150 (5,9’’).

SC160 Tête de scie, capacité de coupe max. Ø100 (3’’).

PW930 Rallonge carbone, longueur 930 mm (3 ft ).

PW1830 Rallonge carbone, longueur 1830 mm (6 ft ).

PWT1650 Rallonge carbone, longueur 1650 mm (5,4 ft ).

EC1700 Efﬂeureuse, perche télescopique 1,5m à 1,9m (59’’ to 74,5’’).

EP1700 Epampreuse, perche télescopique 1,2m à 1,6m (47’’ to 63’’).

OT2650 Vibreur à olives, perche télescopique 2,2 à 2,8m (86,5’’ to 110’’).

OF1830 Vibreur à olives, perche ﬁxe 2,5m (98,5‘‘).

OF1530 Vibreur à olives, perche ﬁxe 2,2m (86,5‘‘).

CONTENTS _________________________________________________________ 4

SAFETY INSTRUCTIONS ______________________________________________ 4

PERSONAL PROTECTIVE EQUIPMENT__________________________________ 4

ENVIRONMENTAL PROTECTION ______________________________________ 5

CHARACTERISTICS __________________________________________________ 5

VIEWS OF ACCESSORIES ____________________________________________ 5

USER’S MANUAL____________________________________________________ 6

INSTALLATION AND POWER CONNECTION ___________________________________________ 6

USING THE MACHINE ______________________________________________________ 6 - 7 - 8

SAFETY PRECAUTIONS_______________________________________________ 9

CARE AND MAINTENANCE _________________________________________ 10

WEEKLY GREASING_______________________________________________________________10

ASSEMBLING THE BRUSH ________________________________________________________ 11

SAFETY INSTRUCTIONS _____________________________________________ 12

WARRANTY CONDITIONS ___________________________________________ 13

RECOMMANDATIONS ______________________________________________ 14

TROUBLESHOOTING________________________________________________ 15

WARRANTY CARD _____________________________________________ 17 - 18

MATÉRIEL FABRIQUÉ EN FRANCE ____________________________________ 19

DÉCLARATION OF CONFORMITY CE__________________________________ 20

Contents

3

Keep all safety warnings and instructions so that you can refer to them at

a later date.

The term “tool” in the warnings refers to your electrical tool run off the main

supply (with supply power cord) or your electrical battery-operated tool (without

a supply power cord).

WARNING. Read all safety warnings and all instructions. Failure to

abide by warnings and instructions could lead to an electric shock, ﬁre

and/or serious injury.

PERSONAL PROTECTIVE EQUIPMENT

ENVIRONMENTAL PROTECTION

Follow the speciﬁc instructions for waste elimination in your

country. Electrical appliances should not be thrown in the garbage.

The device, accessories and packaging should be recycled.

Ask your specialist INFACO retailer for the latest information on

eco-compatible waste elimination.

SAFETY INSTRUCTIONS

Read the user manual carefully, especially the safety instructions.

You MUST wear a helmet, eye protection and hearing protection.

Hand protection, for work gloves.

Foot protection by closed toed shoes

Face protection, or visor.

Note: The extensions poles are made of carbon, which conducts electricity. Do not use

the extensions poles near electricity supply points or electrical wires.

Note: Do not place any part of your body close to the blade. Do not remove cut mate-

rial or hold the material you wish to cut while the blades are moving.

10m

4

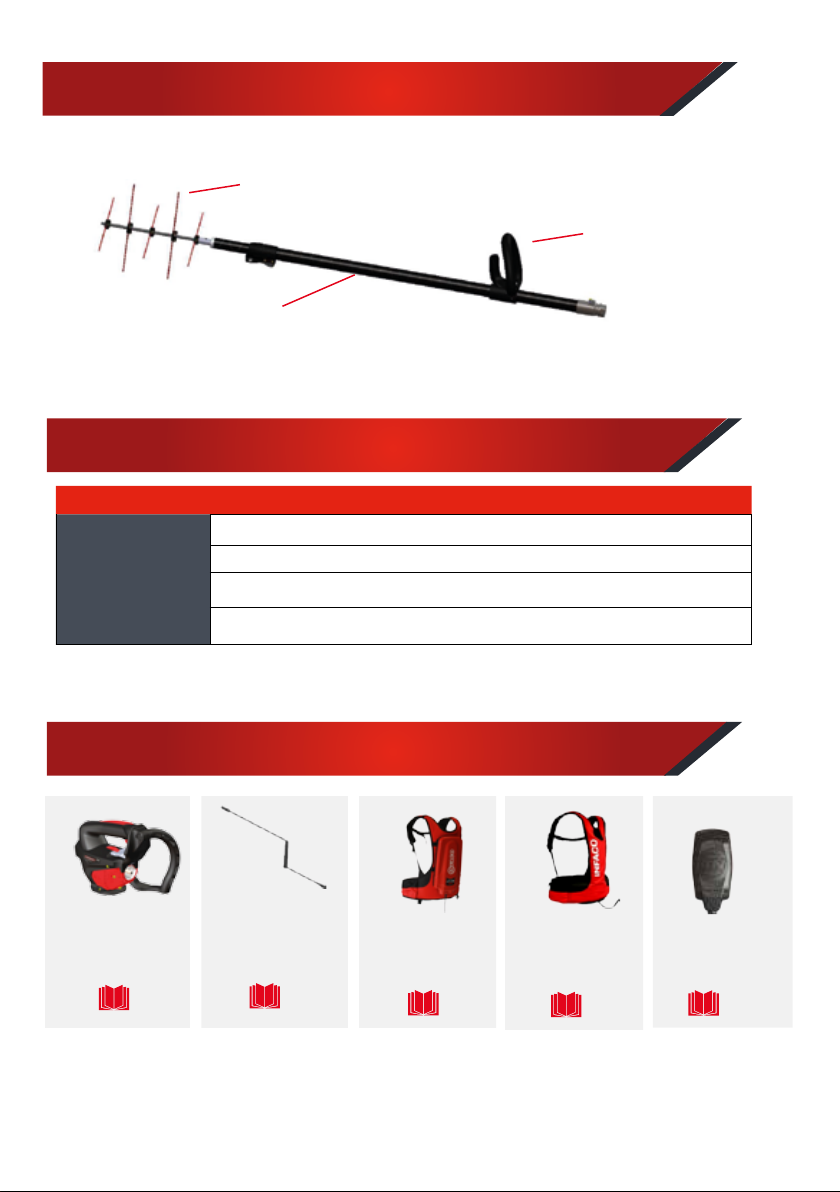

GENERAL OVERVIEW

Removable handle

Electroﬂor brush

Telescopic pole

Reference EC1700

Power 1400W Max

Weight 2 kg 790

Length

1.63 à 2.26m

Blade speed Réglable de 200 à 1900 r/min

CHARACTERISTICS

VIEWS OF ACCESSORIES

Battery 500Wh

10,4Amp.

Réf : L810B

Power cord

Réf : PW225S

PW2 handle

Réf : PW2

NOT

L810B

NOT

PW2

NOT

PW2

Battery 150Wh

3,1Amp.

Réf : 731B

NOT

F3010

5

Battery 120Wh

2,5Amp.

Réf : 831B

NOT

F3015

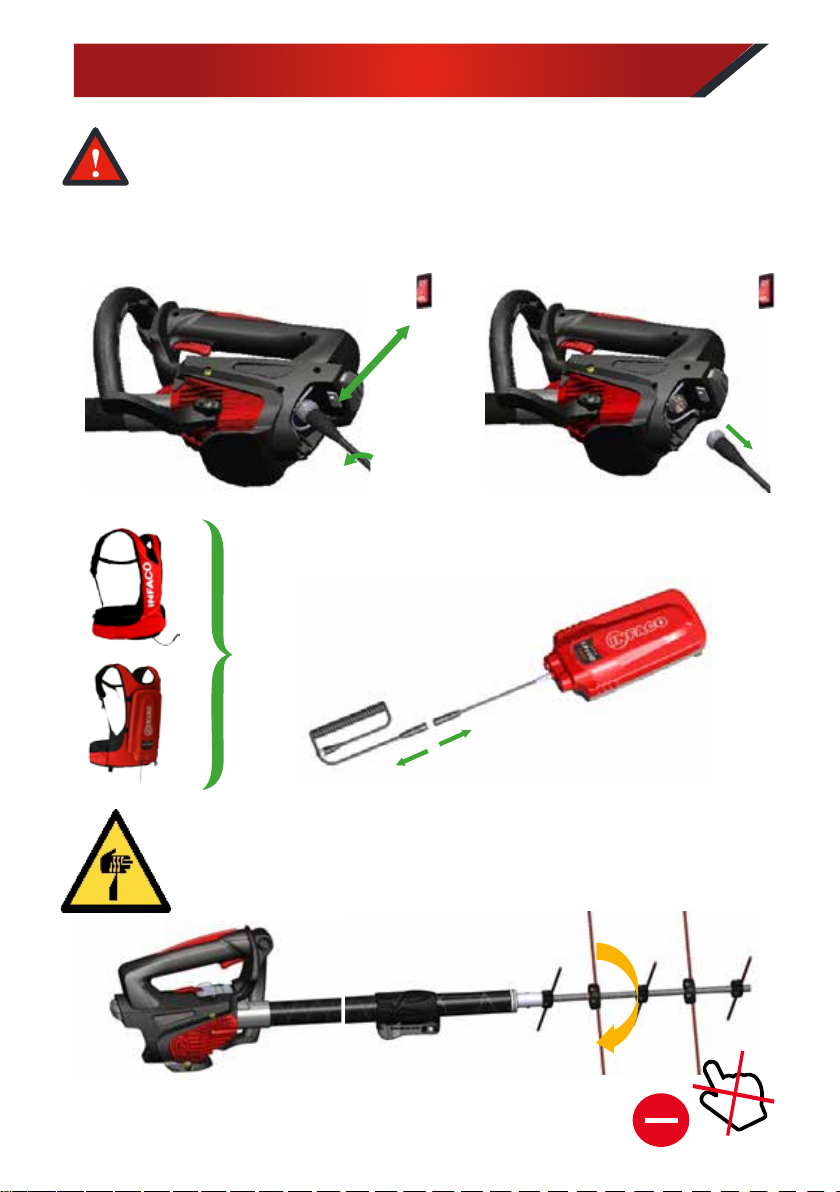

USER’S MANUAL

INSTALLATION AND POWER CONNECTION

USING THE MACHINE

AOFF ON

F

A/ B/

Only use INFACO brand batteries with a supply voltage 48 volts.

It is imperative to read the operating instructions for the tools and accessories

before handling or connecting the tool.

If it is raining, the battery vest must be worn underneath waterproof clothing so

that the battery unit and control box remain dry.

2

1

6

C/

OFF ON

1

2

6 7

D/ E/

F/ G/

H/ I/

J/

K/

C/

A/ B/

x10 short pulls

x1 long pull

2

1 Start : 2 short pulls of the trigger = ON

Standby output : 2 short pulls of the trigger = ON

2 Normal operations :

1 long pull of the trigger = ON / Releasing the trigger = OFF

1 short pull of the trigger = ON / 1 short pull of the trigger = OFF

Start the machine To enter the set-up mode, do a long pull

on the trigger.

The machine starts automatically at the

ﬁrst increment on low speed.

Select the requested speed with successive short pulls on the trigger. 10 speed increments

available.

Validate the requested speed and exit the set-up mode with a long pull on the trigger until the

machine stops completely.

The machine is ready to work, the speed will be locked until the next set-up.

The tool is ﬁtted with an electronic protection system. As soon as the brush becomes blocked

due to meeting strong resistance, the electronic system causes the motor to stop. Restart the

tool by carrying out operation «l» in “Using the Tool” on page 8.

SETTING OF ROTATION SPEED

10 speed increments available between 320 and 1900 r/min

ON

8 9

2 (x3)

L/

SAFETY PRECAUTIONS

For transportation, storage, maintenance, tool maintenance or any other

operation outside of using the tool you must unplug the tool.

1

O O

2

A / B /

c/

9

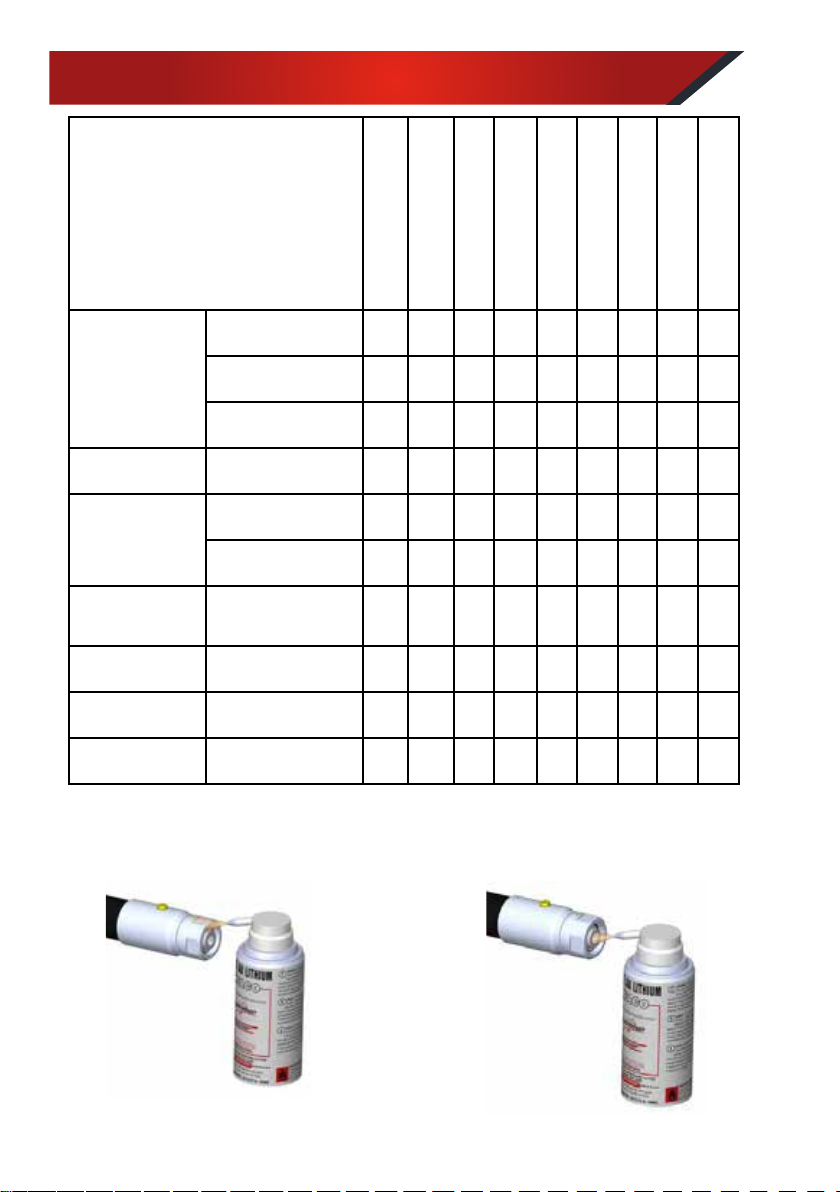

Care AND MAINTENANCE

WEEKLY GREASING

Before starting work

At the end of work daily

Each time the battery is

changed

Monthly

Yearly

If faulty

If damaged

As required

Weekly

All maintenance operations must be performed

with the tool disconnected from all power sources.

Maintenance of the tool depends on the frequency

of tool use.

Occasional use, space out intervals. Intensive use,

more frequent intervals.

Complete tool

Visual inspection X X

Cleaning X X

Have checked by dealer X X

Fixing the brush

Check X

Wire of brush

Visual inspection X

Change X X

Power cord

Visual inspection X X X

Battery

Visual inspection X X X X

Vest

Visual inspection X X X

Handle

Visual inspection X X

10

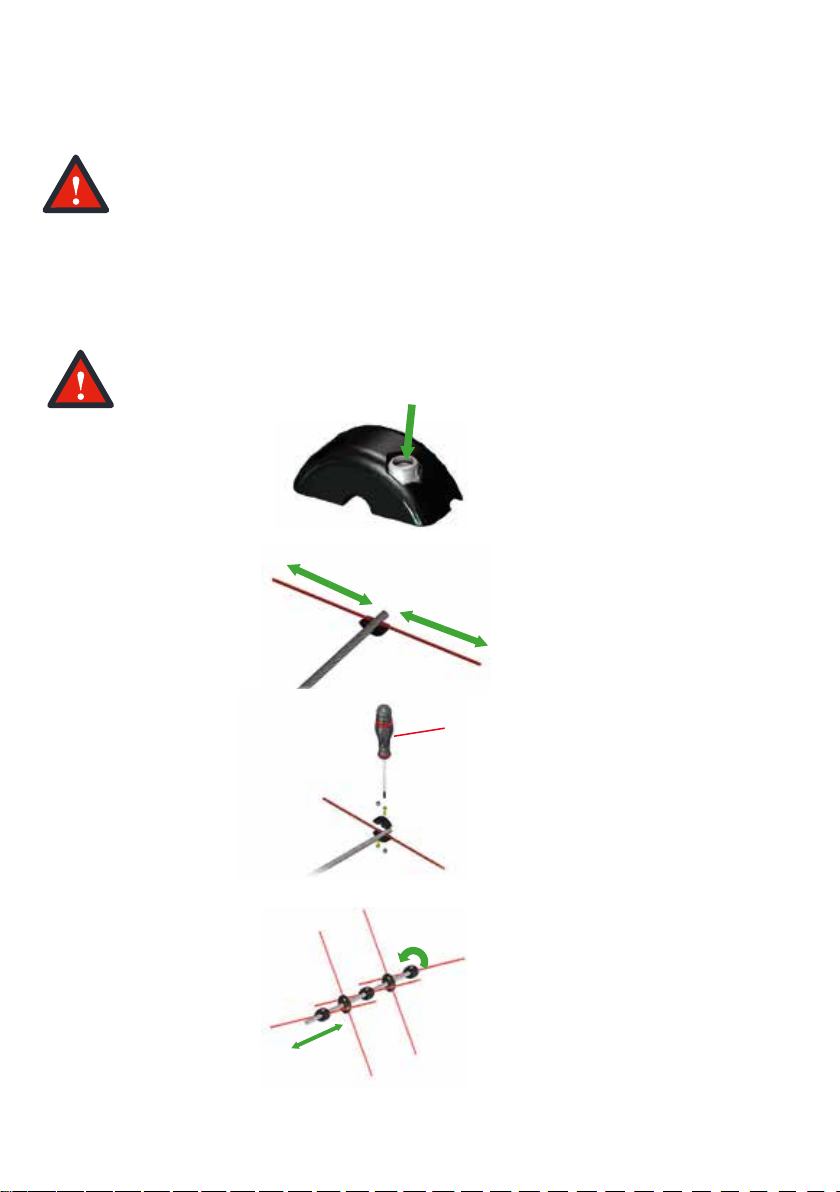

ASSEMBLING THE BRUSH

Prepare the carbon shaft, half-shell and wires required, according to use.

1- Place a lock-nut on each half-shell (supplied with the machine. (Fig. 1A)

2- Place a lock-nut on each half-shell..

3- Place the unit on the end of the carbon shaft. (Fig. 1B).

4- Pinch the wire with a second half-shell.

5- Tighten the unit with Torx T20 Allen key and the two screws supplied with the machine (Fig. 1C)

6- Repeat the procedure, with a different of 90° between each shell. Leave approximately 3 cm of space

free at the end for ﬁxing the shaft to the chuck (Fig. 1D).

The wire must be positioned symmetrically.

Do not mount more than 8 wires per brush (max wire length 30 cm).

Tournevis Torx T10

10 11

Fig.1A

Fig.1B

Fig.1D

Fig.1C

BEWARE! In order to reduce the risk of electrical discharge, injury and ﬁre during

the use of electrical tools, please observe the following basic safety measures.

Read and follow these instructions before using the tool, and keep these safety

instructions !

When not in operation, the POWERCOUP PW2 handle and its accessories must be

disconnected and stored in their case.

While the tool is in operation, always remember to keep hands away from the

accessory being used.

Do not use the tool if you are tired or feeling unwell.

Wear recommended safety equipment speciﬁc to each accessory.

Do not leave the tool within the reach of children or visitors.

Never use the tool at night or in poorly lit conditions without setting up extra

lighting.

While using the tool, make sure you keep both feet on the ground and stay well-

balanced.

- Servicing.

- Charging the battery

- Maintenance.

- Transport.

- Storage.

POWERCOUP PW2 handle must always be disconnected from all power

sources for to the following :

Do not use the tool if there is any risk of ﬁre or explosion- for example in

the presence of ﬂammable liquids or gas.

Never carry the charger by its power cord, and so not pull on the power

cord to unplug it.

BEWARE! – the extension poles and rake are made out of carbon – a

conductive material. Do not use near electrical wires or other power

sources.

Keep the power cord away from heat sources, oil or sharp edges.

12

SAFETY INSTRUCTIONS

The EC1700 POWERCOUP PW2 has a warranty for a period of two years against all

manufacturing faults and defects :

This warranty corresponds to normal use of the tool and excludes:

- Damage due to poor maintenance or a lack of maintenance,

- Damage due to inappropriate usage,

- Damage due to normal wear and tear,

- Tools which have been dismantled by unauthorized repairers,

- External forces (ﬁre, ﬂooding, lightning, etc.),

- Damage from tool being dropped or from other impact,

- Tools with warranty cards not returned at the time of purchase,

- Tools used with a battery or charger other than those manufactured by INFACO.

INFACO shall not remit payment for any monetary loss incurred for the time the tool is

unavailable during repairs.

All repairs made by a person other than an approved INFACO authorized service provider (ASP)

will invalidate the equipment warranty.

In case of any breakdown, we strongly recommend that users of INFACO equipment either

contact the retailer from whom they purchased the tool, or our after-sales service on

(+33) 05 63 33 91 49 (France).

Please note our after-sales service shipping policy:

- For equipment submitted to us within the scope of the warranty, you pay to send it to

us and we pay the return postage.

- For equipment which is not within its warranty period, you pay to send it to us and the

return will be made at your cost, cash on delivery. We will send you an estimate if the cost

of the repair is more than 80 € ex-VAT.

WARRANTY CONDITIONS

12 13

RECOMMANDATIONS

Keep your work area tidy.

Untidiness in the work area increases the risk of accidents.

Take the work area environment into account.

Don’t expose electrical tools to the rain. Don’t use electrical tools in a humid or wet

environment. Make sure the work area is well lit. Don’t use electrical tools if there

are ﬂammable liquids or gases in the vicinity.

Protect yourself against electrical discharge.

Avoid bodily contact with grounded surfaces, such as, for example: battery charger,

multiway electrical sockets, etc...

Keep children away !

Don’t allow other people to touch either the tool or the power cord. Keep others

well away from your work area.

Store your tools in a safe place.

Tools not in use should be stored in a dry, enclosed place, in their original packaging

and out of the reach of children.

Wear suitable working gear.

Do not wear ﬂowing clothes or jewelry. These could get caught up by moving parts.

When working outdoors, it is recommended that you wear rubber gloves and shoes

with non-slip soles. Use a hairnet if you have long hair.

Wear protective goggles.

Use a mask as well if the work you are doing produces dust or debris.

Take care of the power cord.

Never carry the charger by its power cord and so not pull on the power cord to

unplug it. Keep the power cord away from heat sources, oil or sharp edges.

Take good care of your tools.

Regularly check the condition of the power cord and plug, and have them changed

by an Authorized Service Provider (ASP) if they show any signs of damage. Keep the

POWERCOUP PW2 material dry and free of oil and grease.

Remove the tool keys.

Remove any adjustment keys before switching on the tool.

Check whether your tool is damaged.

Before using the tool again, carefully check that the safety features are in perfect

working order and whether any parts have been even slightly damaged.

Have your tool repaired by a specialist.

This tool is compliant with the safety regulations in force. All repairs must be carried

out by an Authorized Service Provider (ASP) or by INFACO and exclusively using

original parts. Parts which are not original may seriously risk the safety to the user.

14 15

TROUBLESHOOTING

Perturbations Causes Solutions

Abnormal heavy vibrations

Wrong tightening of the brush Contact your dealer

Detect faulty tool. Contact your dealer

Wire breakage Wear Change the worn wire

Noise in the pole Deteriorated pole guide Contact your dealer

Tool does not start

Battery drained Recharge the battery

No power to the tool Reconnect to power source

Others Contact your dealer

Tool suddenly stops Battery drained Recharge the battery

14 15

Note :

................................................................................................................................................................................

16

RETAILER SECTION

The retailer to keep this section

WARRANTY CARD

RETURN this form IMMEDIATELY, ﬁlled in with CAPITAL LETTERS to ensure full warranty coverage

Month / year of manufacture : ......................................

Last name : ......................................................................................................................................

First name : .....................................................................................................................................

Company name : ............................................................................................................................

Street address : ...........................................................................................................................

............................................................................................................................................................

City : .................................................................................................................................................

Zip code : .................................................

Phone : ...................................................

Purchase date : ........./........./.........

Do you already own an ELECTROCOUP pruning shear?:

If yes, serial #……………..

Observation : ....................................................................................................................................

Yes

EC1700Model:

Model EC1700

Yes

No

CUSTOMER SIGNATURE

Do you already own an ELECTROCOUP pruning shear ? :

If yes, serial # ...................

Observation : ......................................................

Month / year of manufacture : .................................................................

Last name : ...................................................... First name : ............................................

Company name : ............................................................................................................................

Street address : ...........................................................................................................................

............................................................................................................................................................

City : ................................................. Zip code : .........................................................................

Phone: .................................... E-mail : .................................. E-mail : .........................................

Purchase date : ........./........./.........

Arboriculture

Pruning

Wine growing

Parks and gardens

RETAILER STAMP

RETAILER

INFACO S.A.S

Bois de Roziès

81140 CAHUZAC SUR VERE

(France)

TO BE KEPT

BY THE RETAILER FOR

THE

INFACO

CUSTOMER FILE

Technical information or After-Sales :

MATERIEL FABRIQUÉ EN FRANCE

Manufacturer : INFACO S.A.S. - 81140 CAHUZAC-SUR-VÈRE (FRANCE)

Type : ELECTRO’FLOR EC1700

Weight of ELECTROLIV : Modèle EC1700 2790g

Max. power : 220 W

Battery voltage : 48 Volts

This information is being given for informational purposes only. It is under no circumstances

contractual, and is subject to modiﬁcation for reasons of improvement, without prior notice.

Patented equipment.

The following pictograms are used in this user’s manual :

Indicates a risk of bodily harm, danger of death or a risk of damage to the tool if

the instructions given in this user’s manual are not followed.

Indicates the presence of electrical voltage.

Read this user’s manual carefully before using the tool. Make sure that you have

understood how the tool works and is operated. Take good care of the tool in

compliance with these instructions, so that it will always function correctly. Keep

this user’s manual and the attached documentation close to the tool.

19

NOT PW2 EC1700 - EN - 2017 - IND 02

20 15

Déclaration d’incorporation

Declaration of Incorporation

INFACO s.a.s. déclare que la quasi-machine neuve désignée ci-après :

INFACO S.A.S. declares that the new partly-completed machine designated below:

Eclairciseuse électroportative

Electronic ﬂower thinner machine

De marque – Brand name : INFACO Modèle - Model : ELECTRO’FLOR EC1700

N° de série – Serial no : Année de fabrication – Year of manufacture :

Est conforme aux dispositifs des directives :

Complies with the provisions of the directives for:

- “Machines” (directive 2006/42/CEE).

“Appliances” (directive 2006/42/CEE)

- “Emissions sonores machines utilisées en extérieur” directive 2000/14/CE (arrêté du 18 mars 2002)

modiﬁée par la 2005/88/CE (arrêté du 22 mai 2006).

Directive 200/14/EC « on the noise emission by equipment for use outdoors » (order of 18 march 2002) modiﬁed by the directive

2005/88/EC (order of 22 may 2006).

- “Chargeurs électriques” (directive 2004/108/CEE) et aux réglementations nationales les transposant.

“electric chargers” (directive 2004/108/CEE) and with national legislation adapting them.

- La personne autorisée à constituer le dossier technique au sein d’INFACO est M.ALVAREZ Grégory.

The person authorized to compile the technical ﬁle within the company INFACO is Mr. Gregory ALVAREZ.

L’appareil est également conforme aux dispositions des directives européennes suivantes :

The equipment also complies with the provisions of the following European directives:

NF EN 61000-3-2

NF EN 61000-4-2

NF EN 61000-4-3

NF EN 61000-4-4

NF EN 61000-4-5

NF EN 61000-4-6

NF EN 61000-4-11

NF EN 55014-1

NF EN 550014-2

NF EN 55022

NF EN 55011

Fait à - Signed in : CAHUZAC SUR VÈRE Le – Date : 19/06/2017

M. DELMAS Daniel, Président de la Société INFACO - INFACO President

Signature – Signature :

INFACO s’engage à fournir aux autorités nationales les informations pertinentes concernant la machine.

INFACO undertakes to provide national authorities with all relevant information concerning the machine.

La quasi-machine ne doit pas être mise en service avant que la machine ﬁnale dans laquelle elle doit être

incorporée ait été déclarée conforme aux dispositions pertinentes de la présente directive.

The partly-completed machine must not be put into service until the ﬁnal machine into which it is to be incorporated has

been declared in conformity with the relevant provisions of this Directive.

infaco EC1700 User manual

Popular Power Tools manuals by other brands
