Infaco Powercoup pw2 User manual

USER’S MANUAL PW2

SAFETY INSTRUCTIONS ______________________________________________ 5

PERSONAL PROTECTIVE EQUIPMENT__________________________________ 5

ENVIRONMENTAL PROTECTION ______________________________________ 5

GENERAL VIEW PRODUCT____________________________________________ 6

CHARACTERISTICS __________________________________________________ 6

VIEWS COMPATIBLE ACCESSORIES « PW2 » ___________________________ 7

USUER MANUAL ____________________________________________________ 8

Using for the ﬁrst time_______________________________________________________8

Mounting the handle _______________________________________________________8

Installation and connection______________________________________________ 8

Using the machine ____________________________________________________________ 9 - 10

Light Display / LED _______________________________________________________________ 11

SAFETY PRECAUTIONS _____________________________________________ 12

CARE AND MAINTENANCE _________________________________________ 13

SETTING CLEARANCE _______________________________________________ 14

SAFETY INSTRUCTIONS _____________________________________________ 15

WARRANTY CONDITIONS ___________________________________________ 16

RECOMMANDATIONS ______________________________________________ 17

REPAIR ____________________________________________________________ 18

WARRANTY CARD _____________________________________________ 21 - 22

EQUIPMENT MANUFACTURED IN FRANCE ____________________________ 23

DECLARATION OF CONFORMITY CE__________________________________ 24

Contents

3

Reference Description

PW2 Universal handle for the range POWERCOUP PW2.

THD600 Double hedge trimmer, length of the cutting bar 600 mm (23,5’’).

THD700 Single hedge trimmer, length of the cutting bar 700 mm (27,5’’).

THS700 Single hedge trimmer, length of the cutting barr 700 mm (27,5’’).

TR8

Chain saw, max cutting capacity. Ø150 (5,9’’).

SC160 Reciprocating saw, max cutting capacity Ø100 (3’’).

PW930 Carbon extension pole, length 930 mm (3 ft ).

PW1830 Carbon extension pole, length 1830 mm (6 ft ).

PWT1650 Carbon extension pole, length 1.10 to 1.65 mm (43.31’’ to 64.96’’).

EC1700 Flower Thinner, telescopic pole 1,5m to 1,9m (59’’ to 74,5’’).

EP1700 Desuckering tool, telescopic pole 1,3m to 2m (51.18’’ to 78.74’’).

OT2650 Olive harvester, telescopic pole 1,5 à 2,6m (59.05’’ to 102.36’’).

OF1830 Olive harvester, ﬁxed pole 2,5m (98,42‘‘).

OF1530 Olive harvester, ﬁxed pole 2,2m (86,61‘‘).

4

Keep all safety warnings and instructions so that you can refer to them at

a later date.

The term “tool” in the warnings refers to your electrical tool run off the main

supply (with power cord) or your electrical batteryoperated tool (without a power

cord).

WARNING. Read all safety warnings and all instructions. Failure to abide

by warnings and instructions could lead to an electric shock, ﬁre and/or

serious injury.

PERSONAL PROTECTIVE EQUIPMENT

ENVIRONMENTAL PROTECTION

The device, accessories and packaging should be recycled.

Ask your specialist INFACO retailer for the latest information on

eco-compatible waste elimination..

Follow the speciﬁc instructions for waste elimination in your

country. Electrical appliances should not be thrown in the garbage.

SAFETY INSTRUCTIONS

Read the user instructions carefully, especially the safety instructions.

You MUST wear a helmet, eye protection and hearing protection.

Note: The extensions are made of carbon, which conducts electricity. Do not use the

extensions near electricity supply points or electrical wires.

10m

5

GENERAL OVERVIEW

CHARACTERISTICS

Reference PW2

Voltage 48VCC

Power 220W à 1100W

Weight 1,480 Kg

Dimensions (L x

l x h)

227 mm x 154 mm x 188 mm

Electronic detection

tools Automatic speed adaptation, torque, power and operating mode

Retractable handle

T20 Screwdriver Torx

Power trigger

Safety trigger

Clamping lever

Bumper

ON/OFF button

Tethering ring

Power port

Vent grill

Lock

LED light

Clamping screw handle

Removable handle

User’s manual for PW2

Motorized handle

Spray lubricant

6

These speciﬁcations are given as an indication only. Under no circumstances may they be considered as contractually binding. They are

subject to modiﬁcation without prior notice in the interests of product development.

Patented equipment

Spray lubricant

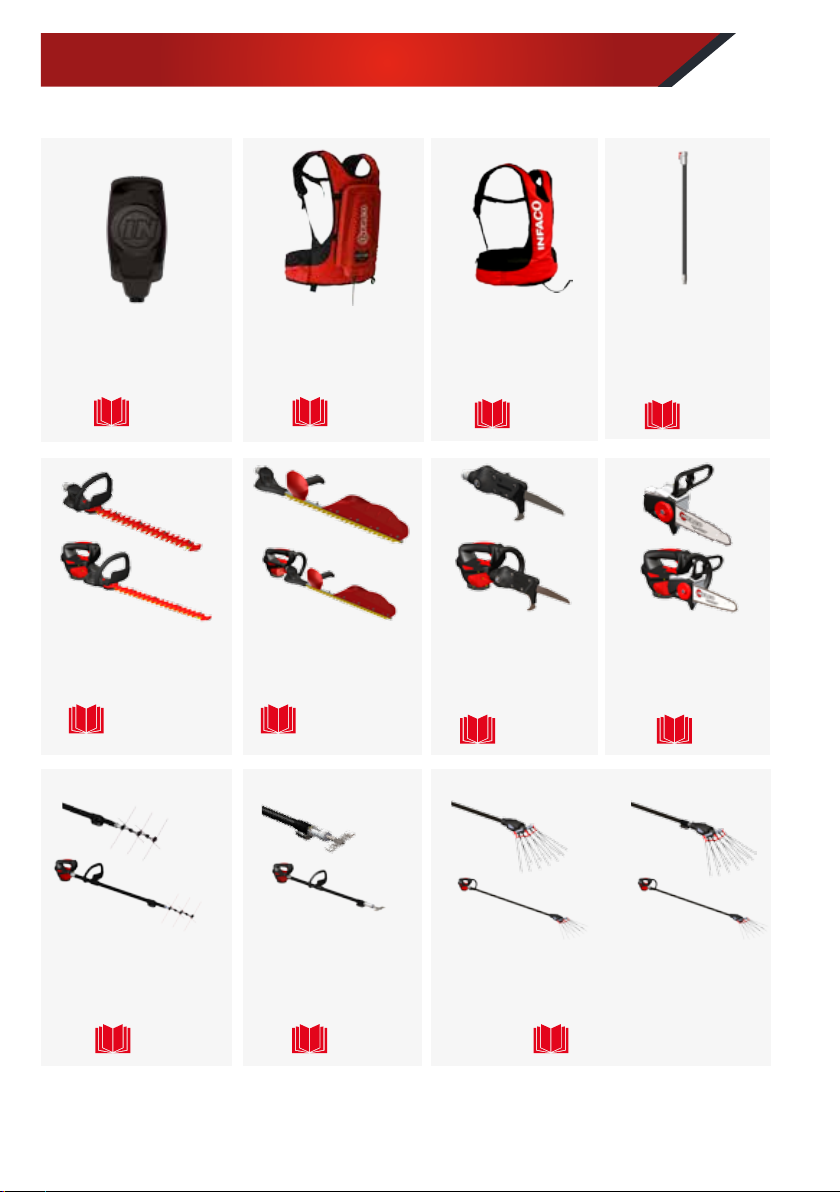

COMPATIBLE ACCESSORY VIEWS FOR THE « PW2 »

Battery 500Wh

10,4Amp.

Réf : L810B

Battery 120Wh

.Réf : L831B

Double hedge trimmer

Réf : THD600 -THD700

Flower thinner

Réf : EC1700

Reciprocating saw

Réf : SC160

Olive harvester

Réf : OF1530 - OF1830 - OT2650

Single hedge trimmer

Réf : THS700

Desuckering tool

Réf : EP1700

Chain saw

Réf : TR8

Battery 150Wh

3,1Amp.

Réf : 731B

Extension

3,1Amp.

Réf : PW930

MANUAL

L810B

MANUAL

F3015

MANUAL

THD600 - THD700

THS 700

MANUAL

THD600 - THD700

THS 700

MANUAL

EF1700

MANUAL

SC160

MANUAL

OF1530/OF1830/OT2650

MANUAL

EP1700

MANUAL

TR8

MANUAL

F3010 MANUAL

PW930

7

USER’S MANUAL

FIRST TIME USE

We strongly recommend that you ask for assistance from your retailer, who is

authorized to give you all the advice you need to use the machine properly and

achieve a great results.

It is essential to read the operating instructions for the equipment and accessories

before handling or connecting the device.

MOUNTING THE HANDLE

Only use INFACO brand batteries with a supply voltage 48 volts.

Use of any battery other than INFACO batteries can cause damage. No warranty

will be granted on the motorized handle when using batteries other than those

manufactured by INFACO.

If it is raining, the battery vest must be worn underneath waterproof clothing so

that the battery unit and control box remain dry.

2

1

INSTALLATION AND CONNECTION

8

2

1

AOFF ON

J

A / B/

C /

D /

E /

USING THE TOOL

9

F / G /

J /

L /

K /

I /

H /

1

2

1

2

1

2

M /

1 Start: :

2 short presses of the trigger = ON

Standby output:

2 short presses of the trigger = ON

1 short press of the trigger = ON

1 short press of the trigger = OFF

10

Situation Display Descriptions

Battery level 48VCC Battery level between 100% and 80%.

Battery level 1,480 Kg Battery level between 80% and 50%.

Battery level Battery level between 50% and 20%.

Battery level

Battery level between 20% and 0%.

Sequence when plugged in

2 cycles for power and then displays

standby mode.

Standby

Flashing battery level slowly.

Error D01

Battery empty.

Error D02

Handle error, see chapter Troubleshooting.

Error D14

Chain saw brake error. See chapter

Troubleshooting.

LIGHT DISPLAY / LED

11

SAFETY PRECAUTIONS

The tool is ﬁtted with an electronic protection system. As soon as the appliance

becomes blocked due to meeting strong resistance, the electronic system causes

the motor to stop. Restart the machine by carrying out operation « l » in “Using

the tool” on page 10.

We also recommend keeping the tool’s protective tube, in case it needs to be

returned to the factory for after-sales service.

For transportation, storage, maintenance, tool maintenance or any other

operation outside of usinf the tool, you must unplug the tool.

1

O O

2

A / B /

c/

12

Before starting work

At the end of work daily

Each time the battery is

changed

Monthly

Yearly

If faulty

If damaged

As required

Weekly

Grease least once per week.

Grease all accessories.

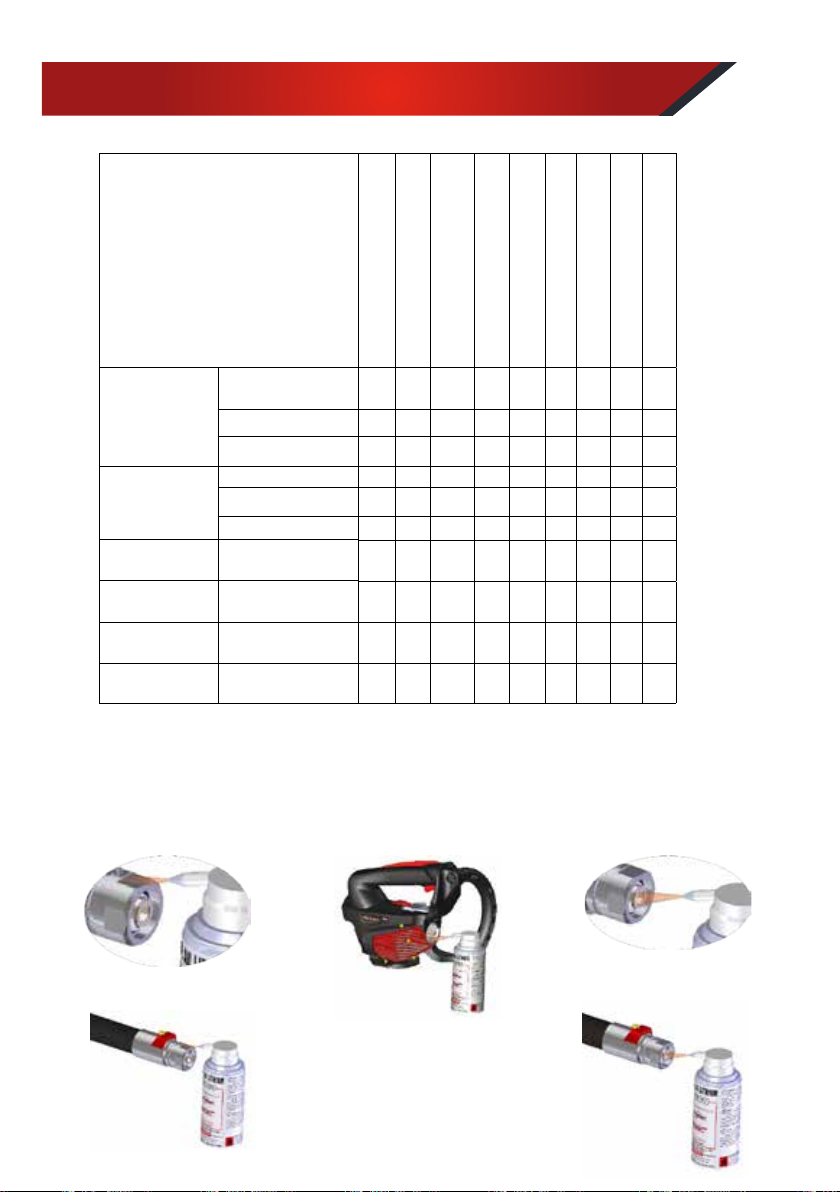

CARE AND MAINTENANCE

All maintenance operations or maintenance

must be performed after disconnecting the

tool from all power sources.

Maintenance of the tool depends on

frequency of use.

Occasional use, space out intervals. Intensive

use, more frequent intervals.

X X

X

X X X

X X X X

X X X

Complete tool

Visual inspection

Cleaning

Have check by dealer

Accessories

Cleaning and greasing

Check clearance

Setting clearance

Vent grill Cleaning

Power cord Visual inspection

Battery Visual inspection

Vest Visual inspection

GREASING

13

SETTING CLEARANCE

Unplug the tool.

Do not connect the PW2 handle on the extension.

The setting clearance should be IMPERATIVELY with

an accessory mounted and locked on the handle.

If no movement = clearance is OK

If movement = adjust the clearance

For TR8 and SC160

Applies to all accessories.

If no movement = clearance is OK

If movement = adjust the clearance

14

BEWARE! In order to reduce the risk of electrical discharge, injury and ﬁre during

the use of electrical tools, please observe the following basic safety measures.

Read and follow these instructions before using the tool, and keep these safety

instructions!

When not in operation, the POWERCOUP PW2 handle and its accessories must be

disconnected and stored in their case.

While the tool is in operation, always remember to keep hands away well away

from the accessory being used.

Do not use the tool if you are tired or feeling unwell.

Wear recommended safety equipment speciﬁc to each accessory.

Do not leave the tool within the reach of children or visitors..

- Servicing.

- Charging the battery

- Maintenance.

- Transport.

- Storage.

SAFETY INSTRUCTIONS

PW2 POWERCOUP handle must always be disconnected from all power

sources to the following:

Do not use the tool if there is any risk of ﬁre or explosion- for example

in the presence of ﬂammable liquids or gas.

Never use the tool at night or in poorly lit conditions without setting up extra

lighting.

While using the tool, make sure you keep both feet on the ground and stay

well-balanced.

Keep the power cord away from heat sources, oil or sharp edges.

Be careful – the extension poles and rake are made out of carbon – a

conductive material. Do not use near electrical wires or other power

sources.

Never carry the charger by its power cord, and so not pull on the power cord to

unplug it.

15

The POWERCOUP PW2 handle is covered under warranty for a period of two years

against all manufacturing faults and defects.

This warranty corresponds to recommended use of the tool and excludes:

- Damage due to poor maintenance or a lack of maintenance,

- Damage due to inappropriate usage,

- Damage due to normal wear and tear,

- Tools which have been dismantled by unauthorized repairers,

- External forces (ﬁre, ﬂooding, lightning, etc.),

- Damage from tool being dropped or from other impact,

- Tools with warranty cards not returned at the time of purchase,

- Tools used with a battery or charger other than those manufactured by INFACO.

INFACO shall not remit payment for any monetary loss incurred for the time the

tool is unavailable during repairs.

All repairs made by a person other than an approved INFACO authorized service

provider (ASP) will invalidate the equipment warranty.

In case of any breakdown, we strongly recommend that users of INFACO

equipment either contact the retailer from whom they purchased the tool, or our

after-sales service on (+33) 05 63 33 91 49 (France).

Please note our after-sales service shipping policy:

- For equipment submitted to us within the scope of the warranty, you pay to send

it to us and we pay the return postage.

- For equipment which is not within its warranty period, you pay to send it to us

and the return will be made at your cost, cash on delivery. We will send you an

estimate if the cost of the repair is more than $50..

WARRANTY CONDITIONS

16

RECOMMANDATIONS

Keep your work area tidy.

Untidiness in the work area increases the risk of accidents.

Take the work area environment into account.

Don’t expose electrical tools to the rain. Don’t use electrical tools in a humid or wet

environment. Make sure the work area is well lit. Don’t use electrical tools if there

are ﬂammable liquids or gases in the vicinity.

Protect yourself against electrical discharge.

Avoid bodily contact with grounded surfaces, such as, for example: battery charger,

multiway electrical sockets, etc.

Keep children away!

Don’t allow other people to touch either the tool or the power cord. Keep others

well away from your work area.

Store your tools in a safe place.

Tools not in use should be stored in a dry, enclosed place, in their original packaging

and out of the reach of children.

Wear suitable working gear.

Do not wear ﬂowing clothes or jewelry. These could get caught up by moving parts.

When working outdoors, it is recommended that you wear rubber gloves and shoes

with non-slip soles. Use a hairnet if you have long hair..

Wear protective goggles.

Use a mask as well if the work you are doing produces dust or debris.

Take care of the lead.

Never carry the charger by its power cord, and so not pull on the power cord to

unplug it. Keep the power cord away from heat sources, oil or sharp edges.

Take good care of your tools.

Regularly check the condition of the power cord and plug, and have them changed

by an approved specialist if they show any signs of damage. Keep the POWERCOUP

PW2 material dry and free of oil and grease.

Remove the tool keys.

Remove any adjustment keys before switching on the tool.

Check whether your tool is damaged.

Before using the tool, carefully check that the safety features are in perfect working

order and whether any parts have been even slightly damaged.

Have your tool repaired by a specialist.

This tool is compliant with the safety regulations in force. All repairs must be carried

out by an authorized service provider (ASP) or by INFACO and exclusively using

original parts. Parts which are not original may seriously risk the safety of the user.

17

REPAIR

Problem Causes Solutions

Tool does not start

No power Machine Reconnect to power supply.

Error D01

Battery drained Recharge the battery.

Error D02

Load too high Mechanical seizing

Restart by pulling the trigger once. If the problem

persists, contact your dealer.

Error D14

Safety brake actived

With Chain saw, check that the chain

brake is unlocked.

Wrong tool detected

Turn off the ON / OFF button. Ensure the tool

is correctly assembled. If the problem persists,

contact your dealer.

Others Contact your dealer.

Tool stops working

Error D01

Battery drained Recharge the battery.

Error D02

Load too high

Change working method or take advice from your

dealer. Restart by pulling the trigger once.

Error D14

Safety brake actived

Upon the removal of the chain brake,

restart by pulling the trigger twice.

Others Contact your dealer.

Tool stays in standby

Overheating Wait for the tool to cool down and restart

by pulling the trigger twice.

Wrong tool detected

Turn off the ON / OFF Ensure the tool is

correctly assembled. If the problem per-

sists, contact your dealer.

18

Notes :

................................................................................................................................................................................

19

Notes :

................................................................................................................................................................................

20

infaco Powercoup PW2 User manual

Popular Power Tools manuals by other brands
