infaco Powercoup PW2 User manual

USER’S MANUAL EP1700

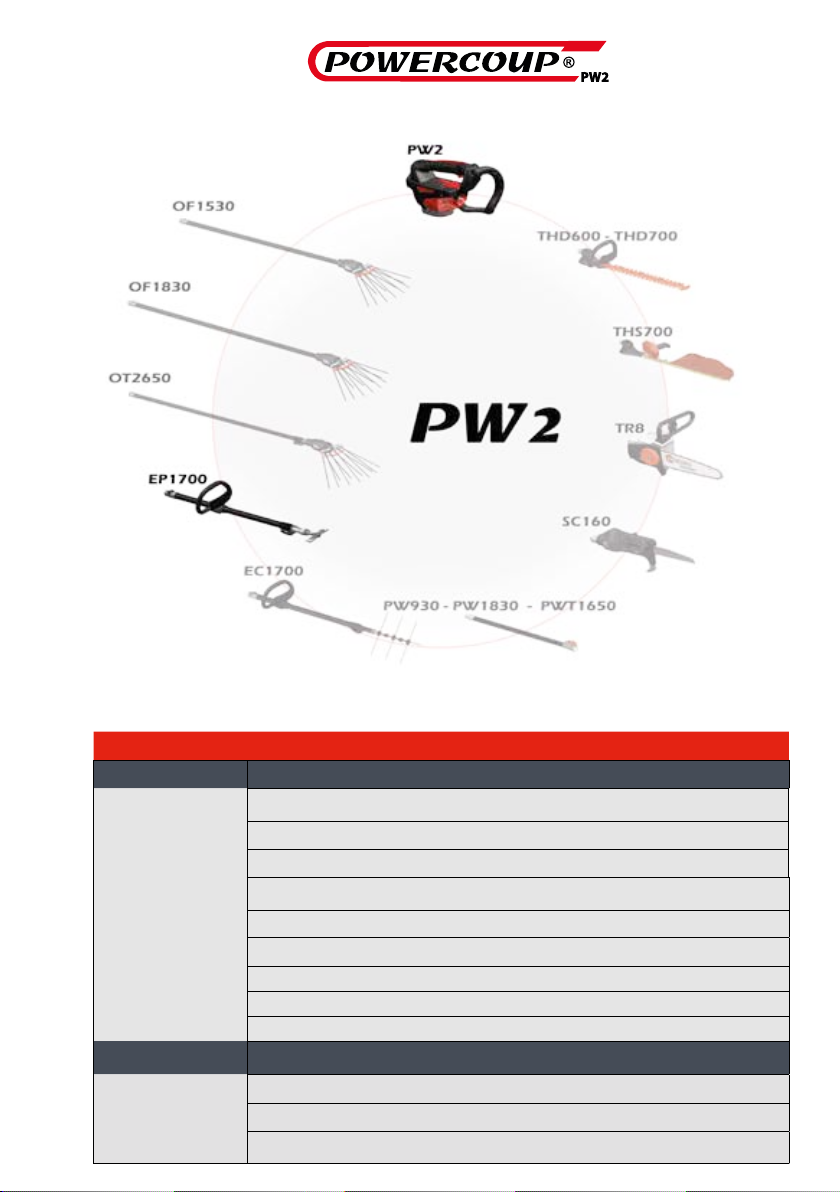

Reference Description
PW2 Universal handle for the range POWERCOUP PW2.
THD600 Double hedge trimmer, length of the cutting bar 600 mm (23,5’’).
THD700 Single hedge trimmer, length of the cutting bar 700 mm (27,5’’).
THS700 Double hedge trimmer, length of the cutting bar 700 mm (27,5’’).
TR8
Chain saw, max cutting capacity Ø150 (5,9’’).
SC160 Reciprocating saw, max cutting capacity Ø100 (3’’).
PW930 Carbon extension pole, length 930 mm (3 ft ).
PW1830 Carbon extension pole, length 1830 mm (6 ft ).
PWT1650 Carbon extension pole, length 1650 mm (5,4 ft ).
EC1700 Flower Thinner, telescopic pole 1,5m to 1,9m (59’’ to 74,5’’).
EP1700 Desuckering tool, telescopic pole 1,2m to 1,6m (47’’ to 63’’).
OT2650 Olive harvester, telescopic pole 2,2 to 2,8m (86,5’’ to 110’’).
OF1830 Olive harvester, fixed pole 2,5m (98,5‘‘).
OF1530 Olive harvester, fixed pole 2,2m (86,5‘‘).

SAFETY INSTRUCTIONS ______________________________________________ 4
PERSONAL PROTECTIVE EQUIPMENT__________________________________ 4
ENVIRONMENTAL PROTECTION ______________________________________ 4
GENERAL OVERVIEW ________________________________________________ 5
CHARACTERISTICS __________________________________________________ 5
USER’S MANUAL ___________________________________________________ 5
INSTALLATION AND POWER CONNECTION ____________________________ 6
USING THE MACHINE ____________________________________________________ 6
SAFETY PRECAUTIONS _______________________________________________________6
CARE AND MAINTENANCE ___________________________________________ 9
DAILY GREASING __________________________________________________ 10
CHANGING THE ROTOR _______________________________________________________ 6
CHANGING THE FLYWEIGHTS _________________________________________________ 6
SAFETY INSTRUCTIONS _______________________________________________________ 6
WARRANTY CONDITIONS ___________________________________________ 12
RECOMMANDATIONS ______________________________________________ 13
REPAIR ____________________________________________________________ 14
WARRANTY CARD _________________________________________________ 15
EQUIPMENT MANUFACTURED IN FRANCE ________________________ 17 - 18
DÉCLARATION DE CONFORMITÉ CE __________________________________ 20
CONTENTS
3

Keep all safety warnings and instructions so that you can refer to them at
a later date.
The term “tool” in the warnings refers to your electrical tool run off the main
supply (with power cord) or your electrical battery-operated tool (without a
power cord).
WARNING. Read all safety warnings and all instructions. Failure to
abide by warnings and instructions could lead to an electric shock, fire
and/or serious injury.
PERSONAL PROTECTIVE EQUIPMENT
ENVIRONMENTAL PROTECTION
Follow the specific instructions for waste elimination in your
country. Electrical appliances should not be thrown in the garbage.
The device, accessories and packaging should be recycled.
Ask your specialist INFACO retailer for the latest information on
eco-compatible waste elimination.
SAFETY INSTRUCTIONS
Read the user manual carefully, especially the safety instructions.
You MUST wear a helmet, eye protection and hearing protection.
Hand protection, for work gloves.
Foot protection by closed toed shoes.
Face protection, or visor.
Note: The extensions poles are made of carbon, which conducts electricity. Do not use
the extensions poles near electricity supply points or electrical wires.
Note: Do not place any part of your body close to the blade. Do not remove cut mate-
rial or hold the material you wish to cut while the blades are moving.
10m
4

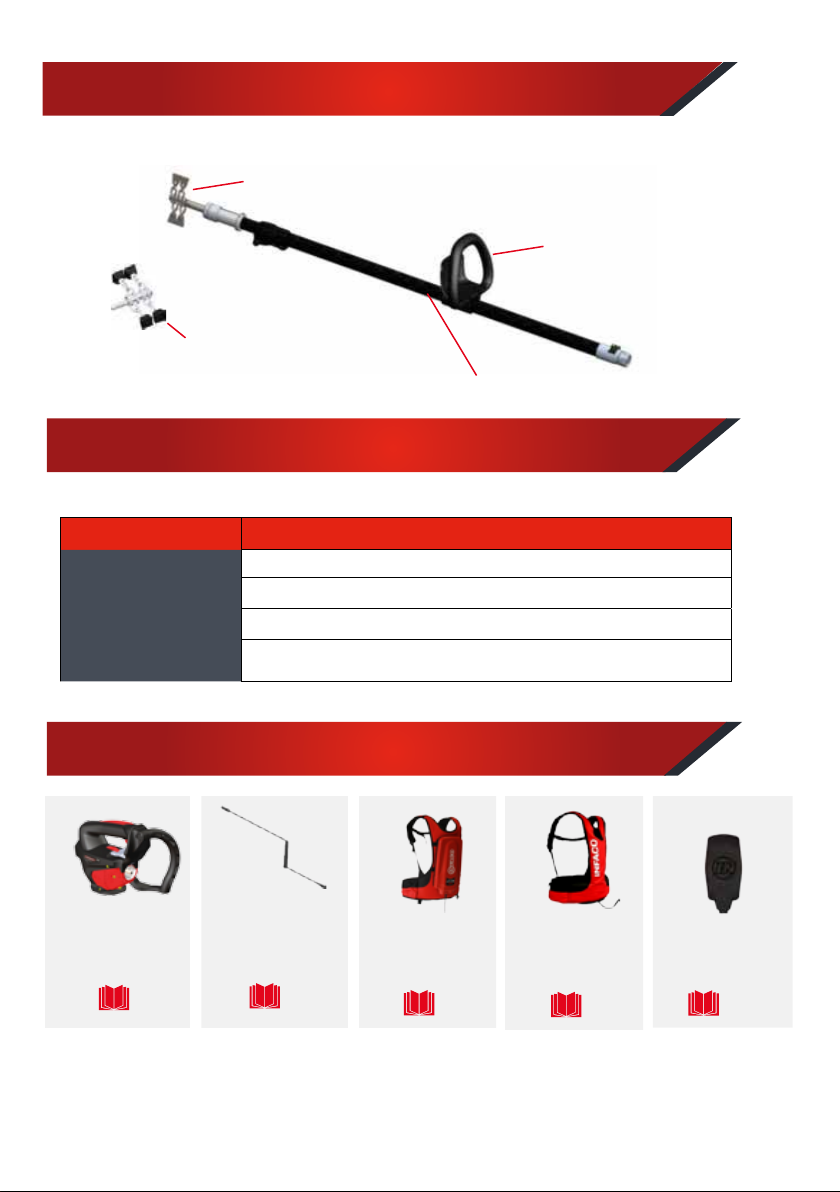

GENERAL OVERVIEW
Removable handle
Telescopic Pole
Rotor equipped with steel flyweights
(Standard : Ref.EP13PC)
Rotor equipped with rubber flyweights
(optional extra: Réf.EP13PPC)
Reference EP1700
Voltage 250W
Weight
2.8 kg
Length 1.3 à 2m
Length 1900 tr/min
CHARACTERISTICS
Vues des accessoires
Battery 500Wh
10,4Amp.
Réf : L810B
Power cord
Réf : PW225S
PW2 Handle
Réf : PW2
NOT
L810B
NOT
PW2
NOT
PW2
Battery 150Wh
3,1Amp.
Réf : 731B
NOT
F3010
5
Battery 120Wh
2,5Amp.
Réf : 831B
NOT
F3015

USER’S MANUAL

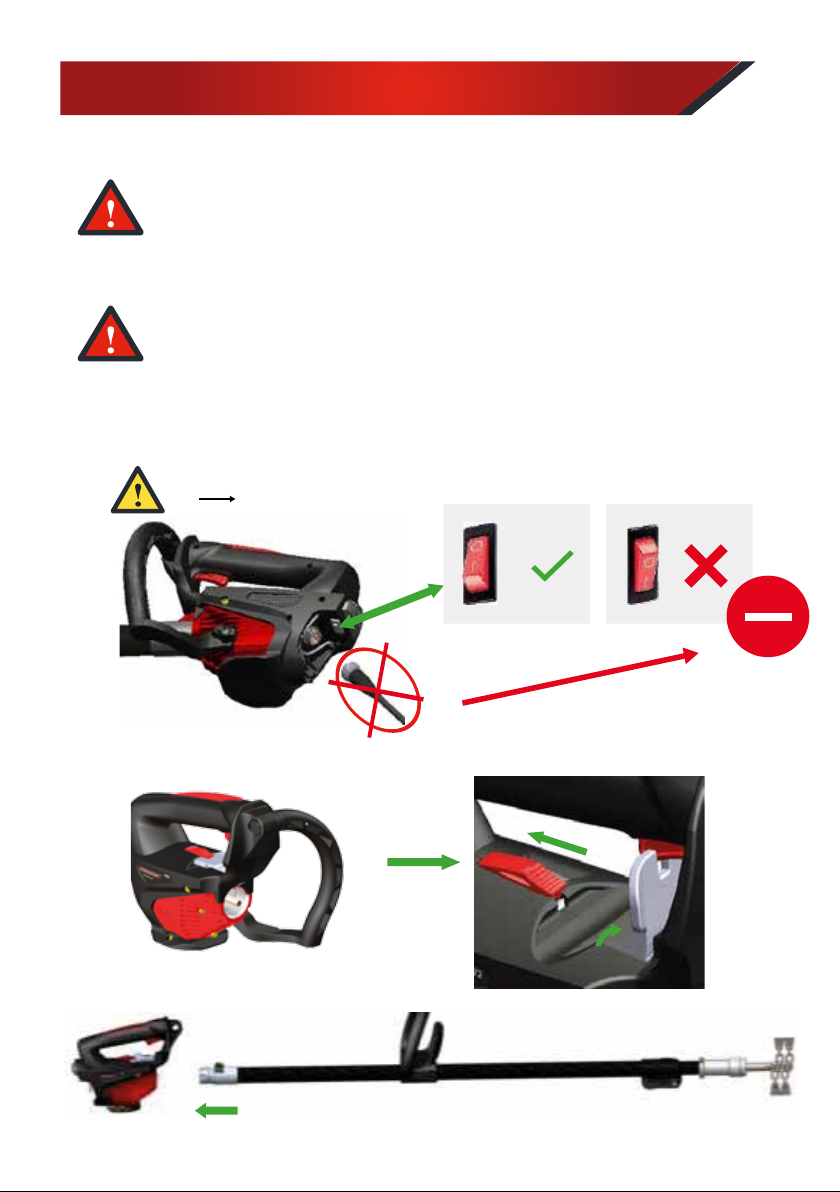

INSTALLATION AND POWER CONNECTION

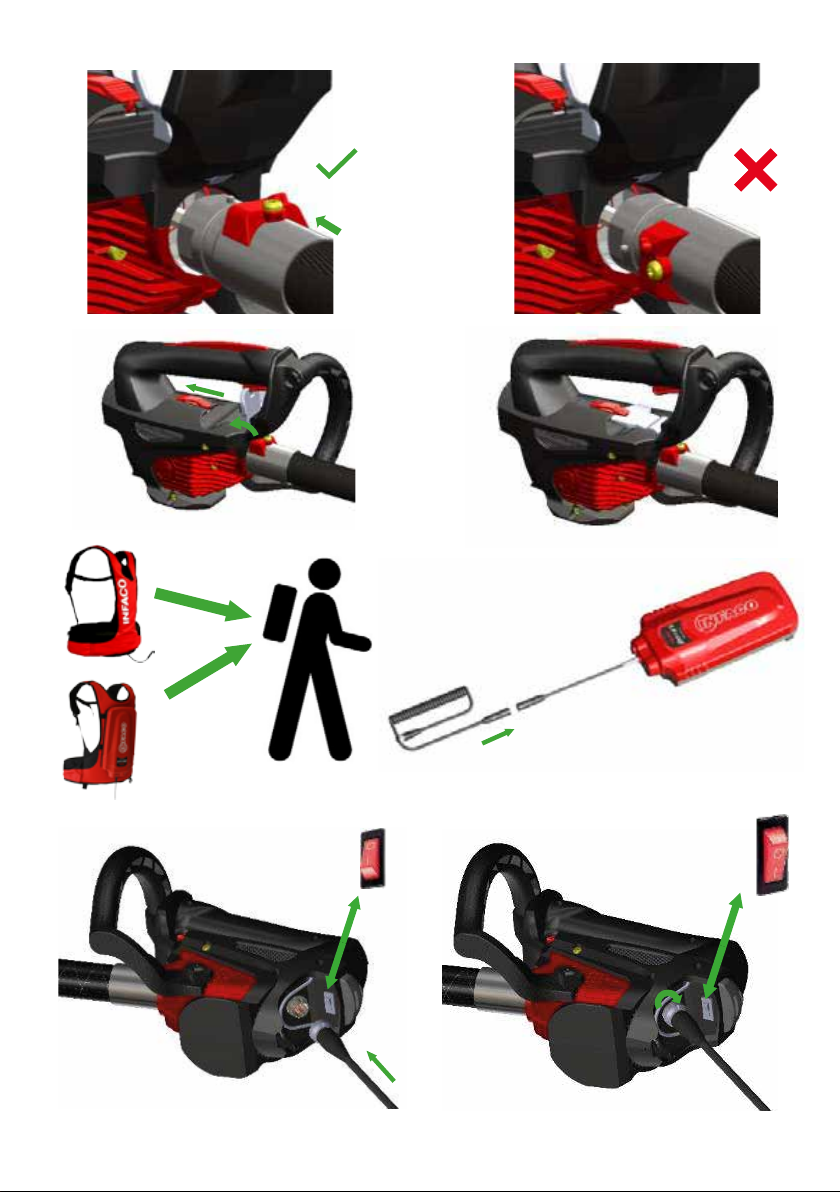

USING THE MACHINE
Only use INFACO brand batteries with a supply voltage 48 volts.
If it is raining, the battery vest must be worn underneath waterproof
clothing so that the battery unit and control box remain dry.
It is imperative to read the operating instructions for the tools and
accessories before handling or connecting the tool.
6
A
A B
OFF ON
F
2
1
C

6 7
DE
F
1
2
G / H /
1
1
2
2
OFF ON

8

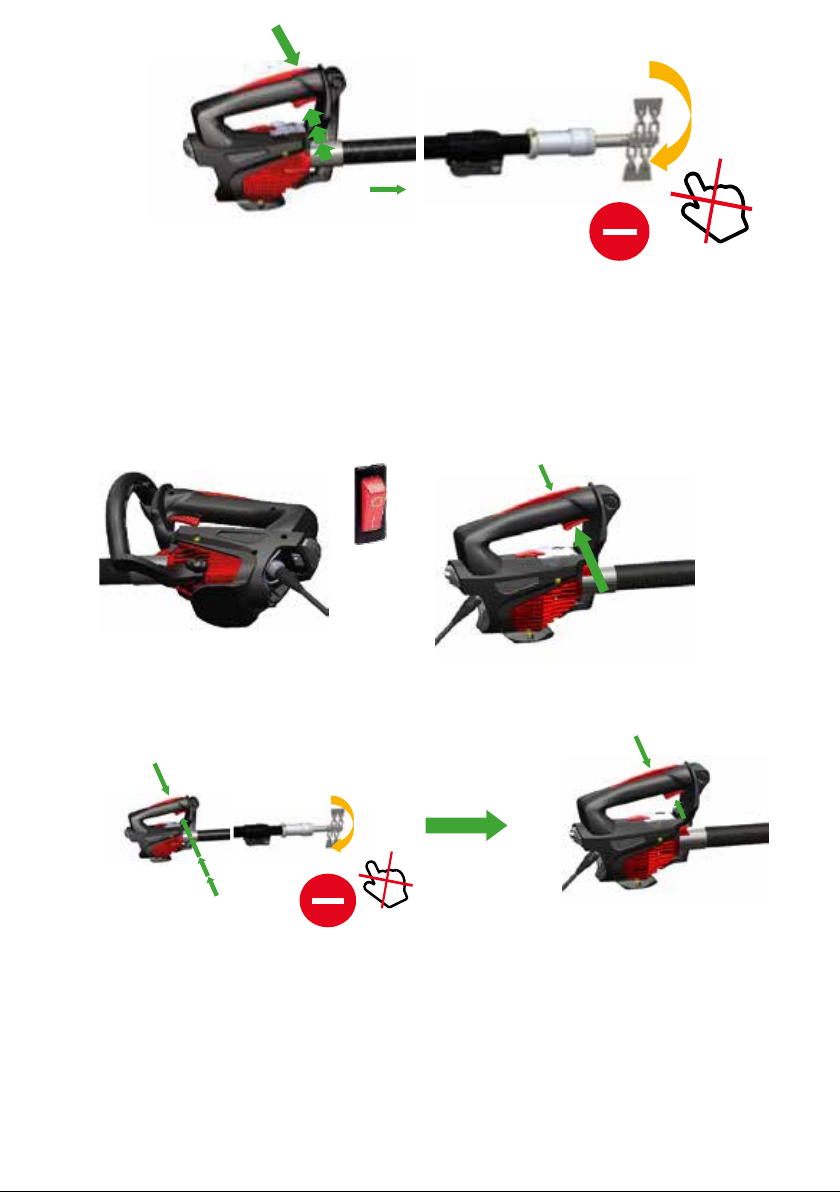

1 Start : 2 short pulls of the trigger = ON
Standby output : 2 short pulls of the trigger = ON
Normal operation : 1 long pull of the trigger = ON
Releasing the trigger = OFF
9
The tool is fitted with an electronic protection system. As soon as the rotor becomes
blocked due to meeting strong resistance, the electronic system causes the motor to stop.
C/
A/ B/
x10 short pulls
x1 long pull
2
Start the machine To enter the set-up mode, do a long pull
on the trigger.
The machine starts automatically at the
first increment on low speed.
Select the requested speed with successive short pulls on the trigger. 10 speed
increments available.
Validate the requested speed and exit the set-up mode with a long pull on the
trigger until the machine stops completely.
The machine is ready to work, the speed will be locked until the next set-up.
SETTING OF ROTATION SPEED
10 speed increments available between 320 and 1900 r/min
ON
2 (x3)

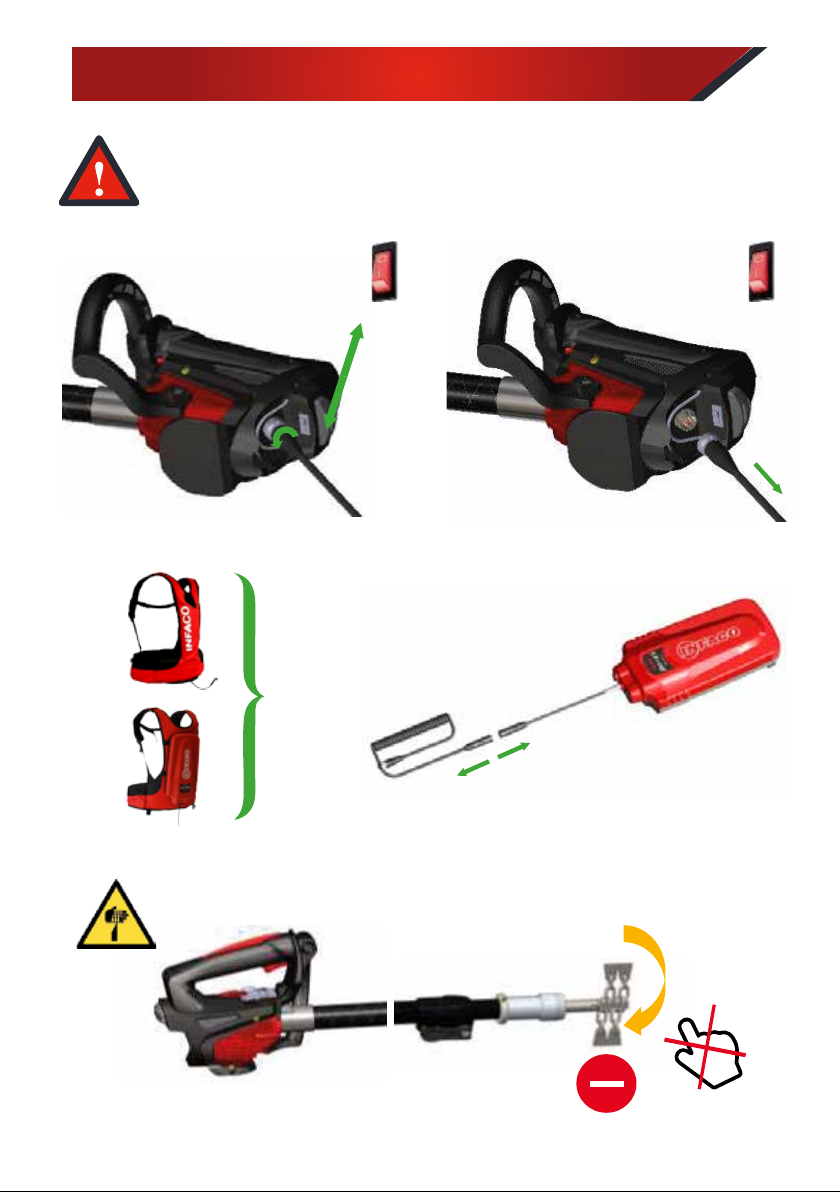

SAFETY PRECAUTIONS
For transportation, storage, maintenance, tool maintenance or any other
operation outside of using the tool, you must unplug the tool.
B /
OFF
A /
C /
2
1
9

CARE AND MAINTENANCE
Before starting work
At the end of work daily
Each time the battery is changed
Monthly
Yearly
If faulty If damaged
As required
Weekly
All maintenance operations or maintenance must
be performed after disconnecting the tool from all
power sources.
Maintenance of the tool depends on frequency
of use.
Occasional use, space out intervals. Intensive use,
more frequent intervals.
Complete tool
Visual inception X X
Cleaning X X
Have check by dealer X X
Rotor attachment
Inception X
Flyweights
Visual inception X
Remplace
X X
Power cord
Visual inception
X X X
Battery
Visual inception X X X X
Vest
Visual inception X X X
Handle
Visual inception X X
DAILY GREASING
10

1110
CHANGING THE ROTOR
CHANGING THE FLYWEIGHTS
Fig.1A Fig.1B
For transportation, storage, maintenance, tool maintenance or any other
operation outside of using the tool, you must unplug the tool.
For transportation, storage, maintenance, tool maintenance or any other
operation outside of using the tool, you must unplug the tool.
1- Using an open-ended spanner (15), block the transmission shaft of rotor
2- Release rotor turning anticlockwise by hand. If the rotor cannot be released by hand, use a pair
of pliers.
3- Attention, keep joint.
Perform the operation in reverse order to assemble the rotor on the machine

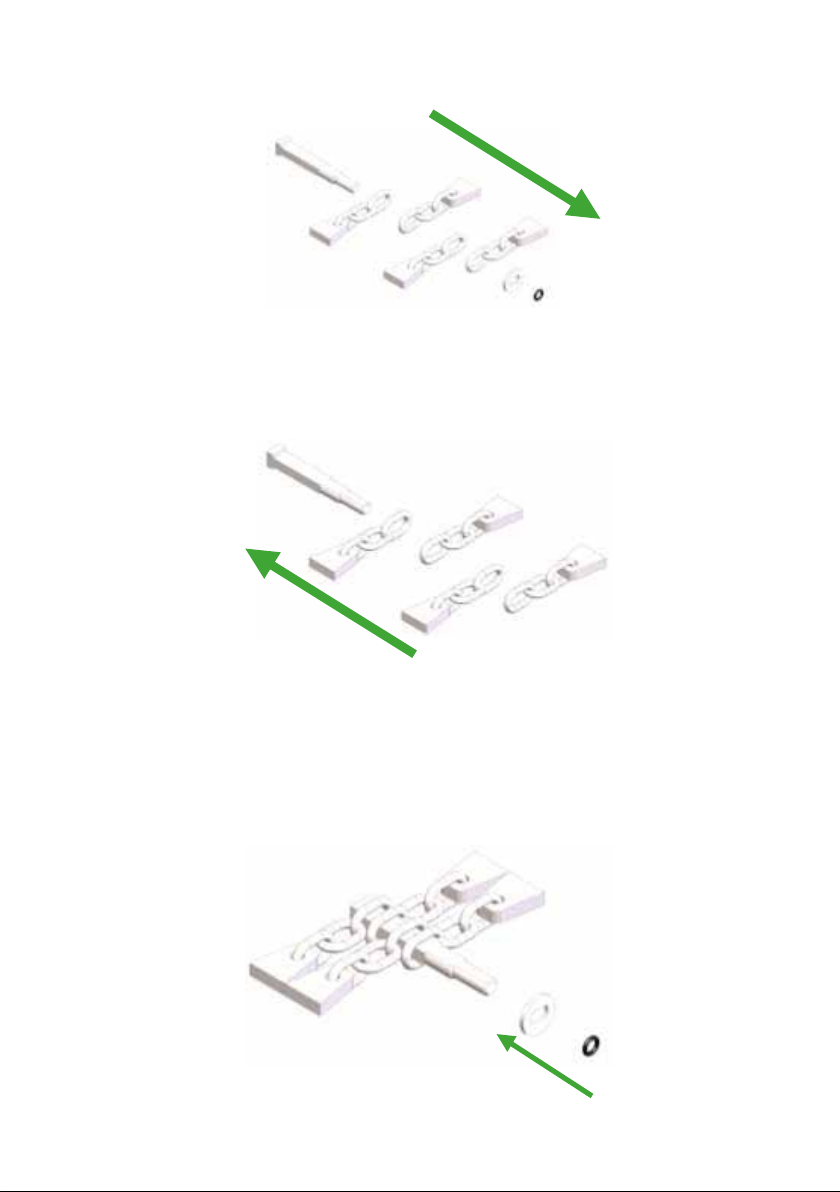

1- Remove rotor n°6 from the desuckering head (see instructions above).
2- Remove joint, washer and then the 4 worn flyweights (Fig. 2A).
3- Replace the flyweights in the original position (Fig. 2B).
4- Put washer into position and then joint. If necessary, replace washer and joint (Fig. 2C)
5- Tighten and block the rotor on the machine

Fig.2A
Fig.2B
Fig.2C
12

BEWARE! In order to reduce the risk of electrical discharge, injury and fire during the use
of electrical tools, please observe the following basic safety measures. Read and follow
these instructions before using the tool, and keep these safety instructions !
When not in operation, the POWERCOUP PW2 handle and its accessories must be
disconnected and stored in their case.
While the tool is in operation, always remember to keep hands away well away from the
accessory being used.
Do not use the tool if you are tired or feeling unwell.
Wear recommended safety equipment specific to each accessory.
Do not leave the tool within the reach of children or visitors.
Never use the tool at night or in poorly lit conditions without setting up extra
lighting.
While using the tool, make sure you keep both feet on the ground and stay well-
balanced.
- Servicing.
- Charging the battery
- Maintenance.
- Transport.
- Storage.
PW2 POWERCOUP handle must always be disconnected from all power
sources to the following :
Do not use the tool if there is any risk of fire or explosion- for example in
the presence of flammable liquids or gas.
Never carry the charger by its power cord, and so not pull on the power
cord to unplug it.
Be careful – the extension poles and rake are made out of carbon – a
conductive material. Do not use near electrical wires or other power
sources.
Keep the power cord away from heat sources, oil or sharp edges.
13
SAFETY INSTRUCTIONS

The POWERCOUP PW2 handle is covered under warranty for a period of two years against
all manufacturing faults and defects.
This warranty corresponds to recommended use of the tool and excludes :
- Damage due to poor maintenance or a lack of maintenance,
- Damage due to inappropriate usage,
- Damage due to normal wear and tear,
- Tools which have been dismantled by unauthorized repairers,
- External forces (fire, flooding, lightning, etc.),
- Damage from tool being dropped or from other impact,
- Tools with warranty cards not returned at the time of purchase,
- Tools used with a battery or charger other than those manufactured by INFACO.
INFACO shall not remit payment for any monetary loss incurred for the time the tool is
unavailable during repairs.
All repairs made by a person other than an approved INFACO authorized service provider (ASP)
will invalidate the equipment warranty.
In case of any breakdown, we strongly recommend that users of INFACO equipment either
contact the retailer from whom they purchased the tool, or our after-sales service on
([phone] (France).
Please note our after-sales service shipping policy :
- For equipment submitted to us within the scope of the warranty, you pay to send it to
us and we pay the return postage.
- For equipment which is not within its warranty period, you pay to send it to us and the
return will be made at your cost, cash on delivery. We will send you an estimate if the cost
of the repair is more than $50.
WARRANTY CONDITIONS
14

RECOMMANDATIONS
Keep your work area tidy.
Untidiness in the work area increases the risk of accidents.
Take the work area environment into account.
Don’t expose electrical tools to the rain. Don’t use electrical tools in a humid or wet
environment. Make sure the work area is well lit. Don’t use electrical tools if there
are flammable liquids or gases in the vicinity.
Protect yourself against electrical discharge.
Avoid bodily contact with grounded surfaces, such as, for example: battery charger,
multiway electrical sockets, etc...
Keep children away!
Don’t allow other people to touch either the tool or the power cord. Keep others
well away from your work area.
Store your tools in a safe place.
Tools not in use should be stored in a dry, enclosed place, in their original packaging
and out of the reach of children.
Wear suitable working gear.
Do not wear flowing clothes or jewelry. These could get caught up by moving parts.
When working outdoors, it is recommended that you wear rubber gloves and shoes
with non-slip soles. Use a hairnet if you have long hair.
Wear protective goggles.
Use a mask as well if the work you are doing produces dust or debris.
Take care of the lead.
Never carry the charger by its power cord, and so not pull on the power cord to
unplug it. Keep the power cord away from heat sources, oil or sharp edges.
Take good care of your tools.
Regularly check the condition of the power cord and plug, and have them changed
by an approved specialist if they show any signs of damage. Keep the POWERCOUP
PW2 material dry and free of oil and grease.
Remove the tool keys.
Remove any adjustment keys before switching on the tool.
Check whether your tool is damaged
Before using the tool, carefully check that the safety features are in perfect working
order and whether any parts have been even slightly damaged.
Have your tool repaired by a specialist.
This tool is compliant with the safety regulations in force. All repairs must be carried
out by an authorized service provider (ASP) or by INFACO and exclusively using
original parts. Parts which are not original may seriously risk the safety of the user.
15

REPAIR
Problem Cause Solution
Abnormal heavy vibrations
Bad brush clamp Contact your dealer
Faulty Tool Detection Contact your dealer
Flyweight breakage Wear Change the broken flyweight
Noise in the pole Deteriorated pole guide Contact your dealer
Tool does not start
Battery drained Recharge the battery
No power Machine Reconnect to power supply.
Others Contact your dealer.
Machine shut downs Battery drained Recharge the battery
16

RETAILER SECTION
The retailer to keep this section
WARRANTY CARD
RETURN this form IMMEDIATELY, filled in with CAPITAL LETTERS to ensure full warranty coverage
Month / year of manufacture : ......................................
Last name : ......................................................................................................................................
First name : .....................................................................................................................................
Company name : ............................................................................................................................
Street address : ...........................................................................................................................
............................................................................................................................................................
City : .................................................................................................................................................
Zip code : .................................................
Phone : ...................................................
Purchase date : ........./........./.........
Do you already own an ELECTROCOUP pruning shear?:
If yes, serial #……………..
Observation : ....................................................................................................................................
Yes
EP1700Model:
Model EP1700
Yes
No
No
CUSTOMER SIGNATURE
Do you already own an ELECTROCOUP pruning shear ? :
If yes, serial # ...................
Observation : ......................................................
Month / year of manufacture : .................................................................
Last name : ...................................................... First name : ............................................
Company name : ............................................................................................................................
Street address : ...........................................................................................................................
............................................................................................................................................................
City : ................................................. Zip code : .........................................................................
Phone: .................................... E-mail : .................................. E-mail : .........................................
Purchase date : ........./........./.........
Arboriculture
Pruning
Wine growing
Parks and gardens
RETAILER STAMP

RETAILER
TO BE KEPT
BY THE RETAILER FOR
THE
INFACO
CUSTOMER FILE

Technical information or After-Sales :
EQUIPMENT MANUFACTURED
IN FRANCE
Manufacturer : INFACO S.A.S. - 81140 CAHUZAC-SUR-VÈRE (FRANCE)
Type : DESUCKERING TOOL EP1700
Weight : Model EP1700 3000g
Max. power : 220 W
Battery voltage : 48 Volts
This information is being given for informational purposes only. It is under no circumstances
contractual, and is subject to modification for reasons of improvement, without prior notice.
Patented equipment.
The following pictograms are used in this user’s manual :
Indicates a risk of bodily harm, danger of death or a risk of damage to the tool if
the instructions given in this user’s manual are not followed.
Indicates the presence of electrical voltage.
Read this user’s manual carefully before using the tool. Make sure that you have
understood how the tool works and is operated. Take good care of the tool in
compliance with these instructions, so that it will always function correctly. Keep
this user’s manual and the attached documentation close to the tool.
19

Déclaration d’incorporation
Declaration of Incorporation
INFACO s.a.s. déclare que la quasi-machine neuve désignée ci-après :
INFACO S.A.S. declares that the new partly-completed machine designated below:
Epampreuse électroportative
Electronic trunk thinner machine
De marque – Brand name : INFACO Modèle - Model : EPAMPREUSE EP1700
N° de série – Serial no : Année de fabrication – Year of manufacture :
Est conforme aux dispositifs des directives :
Complies with the provisions of the directives for:
- “Machines” (directive 2006/42/CEE).
“Appliances” (directive 2006/42/CEE)
- “Emissions sonores machines utilisées en extérieur” directive 2000/14/CE (arrêté du 18 mars 2002)
modifiée par la 2005/88/CE (arrêté du 22 mai 2006).
Directive 200/14/EC « on the noise emission by equipment for use outdoors » (order of 18 march 2002) modified by the directive
2005/88/EC (order of 22 may 2006).
directive 2005/88/EC (order of 22 may 2006).
- La personne autorisée à constituer le dossier technique au sein d’INFACO est M.ALVAREZ Grégory.
The person authorized to compile the technical file within the company INFACO is Mr. Gregory ALVAREZ.
Fait à - Signed in : CAHUZAC SUR VÈRE Le – Date : 19/06/2017
M. DELMAS Daniel, Président de la Société INFACO - INFACO President
Signature – Signature :
NNOT PW2 EP1700 - ENSS - 2017 - IND 02
20 15
INFACO s’engage à fournir aux autorités nationales les informations pertinentes concernant la machine.
INFACO undertakes to provide national authorities with all relevant information concerning the machine.
La quasi-machine ne doit pas être mise en service avant que la machine finale dans laquelle elle doit être
incorporée ait été déclarée conforme aux dispositions pertinentes de la présente directive.
The partly-completed machine must not be put into service until the final machine into which it is to be incorporated has
been declared in conformity with the relevant provisions of this Directive.
POWERCOUP PW2 - EP1700
Niveau de pression acoustique pondéré A au poste de travail, LpA (NF EN 60745-2-11 : 2009) 71 dB(A)
Sound pressure level LpA
Valeur mesurée d'émission vibratoire, ah (EN12096) 1.2 m/s2
Measured value of vibratory emission, ah
