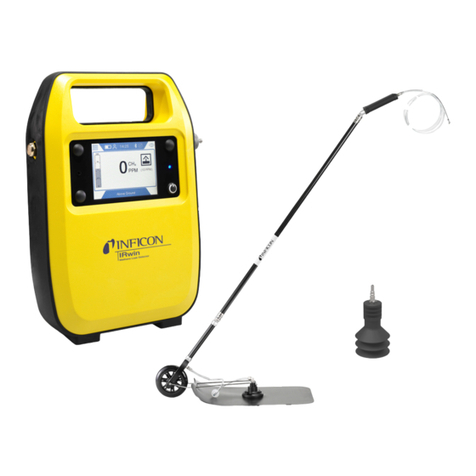

Inficon IRwin Series User manual

How to Set your IRwin Methane Leak Detector for 1 Point Calibration
2.2% (2.5%) - Universal Mode
(for a factory set unit)
QUICK START GUIDE
1 of 5
1
Make sure your IRwin is set in Universal Mode (see the How to set your IRwin for Universal
Mode quick start guide)
Use to navigate to General and press
2
3
4
5
Press followed by
Use to navigate to AbG Cal Setup and press
mimc66en1-02 (1905)
Use to navigate to Custom and press

How to Set your IRwin Methane Leak Detector
for 1 Point Calibration 2.2% (2.5%)
7
Use to select Generic and press
followed by
8
9
2 of 5 mimc66en1-02 (1905)
Use and to navigate to Calibration
and press
Use to navigate to Settings and press
10
If prompted, enter the (min) Intermediate password code
If not prompted, go ahead to next step
6
If prompted, enter the Supervisor (Advanced) password code
If not prompted, go ahead to next step

11
How to Set your IRwin Methane Leak Detector
for 1 Point Calibration 2.2% (2.5%)
3 of 5 mimc66en1-02 (1905)
Press to get to the drop-down menu
12
Press on the rst choice of the drop-down
menu
13
Navigate to far right drop-down menu and press
14
Use to select Disabled and press
15
Press again to view drop-down menu

16
How to Set your IRwin Methane Leak Detector
for 1 Point Calibration 2.2% (2.5%)
17
18
Use to select Disabled and press
19
4 of 5 mimc66en1-02 (1905)
20
In Universal Low Range, use to select the
second choice in the drop-down menu, press
Navigate to far right drop-down menu and press
Press again to view the drop-down menu
In Universal Low Range, use to select the third
choice in the drop-down menu, press

www.inficon.com [email protected]
Due to our continuing program of product improvements, specifications are subject to change without notice.
All trademarks are the property of the ir respective owners.
©2019 INFICON mimc66en1-02 (1905)
How to Set your IRwin Methane Leak Detector
for 1 Point Calibration 2.2% (2.5%)
21
22
23
Select Set by using and and press
Navigate to far right drop-down menu and press
Use to navigate to drop-down menus. Set the
actual value of the calibration gas you have, nominally
2.2% or 2.5%, by entering:
2 and press
2 (5) and press
24
Press followed by and
