Infinity PALISADE 4D User manual

PALISADE 4D
User Manual

Welcome to
Thank you and congratulations on purchasing an Infinity Massage Chair - you’ve made a
great choice.
With over a decade of experience designing, building and servicing massage chairs,
Infinity takes pride in every chair sold, including yours. We are here for you. The US-
based Customer Care team can be reached at [phone] or visit us online at www.
infinitymassagechairs.com and find valuable self service resources under the SUPPORT tab,
including electronic copies of all documents and video tutorials.
Inside this manual, you will find everything you need to setup and safely enjoy your
chair. Please review the entire manual before assembling or using your chair. If you are
assembling the chair yourself, please see the Assembly Guide next and reference the
online assembly video.
For convenience, we’ve also created a Quick Start Guide. We suggest you keep it in the
remote pocket as a tool to get to know all the features of your new chair.
Get ready to sit back, relax and enjoy the Ultimate Massage Experience.
We know you can’t wait to sit in your new Infinity Massage chair! Take a picture of you enjoying the ultimate
massage experience and make sure to tag us on social media with the hashtag #lovemyinfinitychair
Register your product at www.infinitymassagechairs.com/warranty
to ensure it is in our system. This will simplify the warranty process
should you ever need it.
Alternatively, scan the QR code to go directly to the URL above.
Before assembling your chair, watch an assembly video at:
www.infinitymassagechairs.com/assembly-tutorials
Alternatively, scan the QR code to go directly to the URL above.
THE ULTIMATE MASSAGE EXPERIENCE
@infinitymassagechairs@infinitymassagechairs @infinity_chairs@infinity_chairs @infinitymassagechairs@infinitymassagechairs
SCAN CODE
SCAN CODE
Warranty Registration
Assembly Video

Table of Contents
Before Getting Started
Your Chair
Chair Setup
Taking Control
Installation Site
Clearance Space for the Chair
Floor Protection
Move Methods
Connect to Power
Chair Features
External Structure
6
6
6
7
7
5
5
Getting Comfortable
Main Power Switch
Adjust Pillow
Reduce the Intensity of Your
Massage - Manually
Body Scanning
Legrest Extend/Retract
Getting Out Of The Chair
8
8
8
8
9
9
9
Remote Control Layout
Remote Control Operation
Auto Programs
MyMassage Memory
Program Descriptions
Airbag Massage
Airbag Region
Airbag Intensity
Back Heat
Foot Rollers
USB Charging Port
10
11
12
12
13
14
14
14
15
15
15
Bluetooth Audio
App Download & Installation
Nature Sounds
Language
Bluetooth
Beep
Timer
Remote Control Screen Idle
Trouble Shooting
Specifications
Frequently Asked Questions
Manual Programs
Back Massage Technique Mode
Massage Part (Back Region)
Back Node Width
Massage Speed
Foot Rollers
Zero Gravity
16
16
17
18
18
18
19
19
24
25
26
20
20
20
21
21
21
21
Staying Safe
Set Your Environment
Settings
Build Your Own
Fixing Issues
22
4

Chair Features
5
Your Chair
External Structure
Speaker
Pillow
Back cushion
Seat cushion
Legrest
Back cover
Armrest
Caster
4D Massage Zero Wall Space-
Saving Technology
Memory Function
See page 6 See page 12
See page 9
Zero Gravity
See page 21
Body Scanning Lumbar Heat
See page 15
Apple/Android
Application
Bluetooth
See page 16
See page 16
2
Total Sole
Reflexology Rollers
Calf Rollers &
Oscillation
USB Charging Port
See page 15
See page 15 & 21
Manual Massage
Customization
See page 20
See page 17
Nature Sounds

6
- 4” clearance for the recline of the backrest; 24” clearance for the extension of footrest and
sliding forward of the chair.
- Keep it 3 feet away from the TV, radio or other audio & video appliance to avoid signal
interference.
Clearance Space for the Chair
Installation Site
Before Getting Started
CAUTION
- Keep the distance between the power socket and power switch within 60” to avoid damage of power cord
while massage chair sliding forward.
- Straighten the power cord while in use to avoid tangle or damage.
- When the massage chair sliding forwards or back, please check to make sure there is no children, pets or
other obstacles around to avoid accident.
We recommend to place a piece of thin carpet or soft mat underneath it to avoid damaging
the floor.
Floor Protection
- Do not use the massage chair in high moisture environment such as near a swimming pool or bathroom to
prevent electric shock accident.
- Please keep the massage chair away from heated surfaces to prevent fire hazard or damage to the product.
WARNING
Massage chair
Floor
Carpet
24”
2”

7

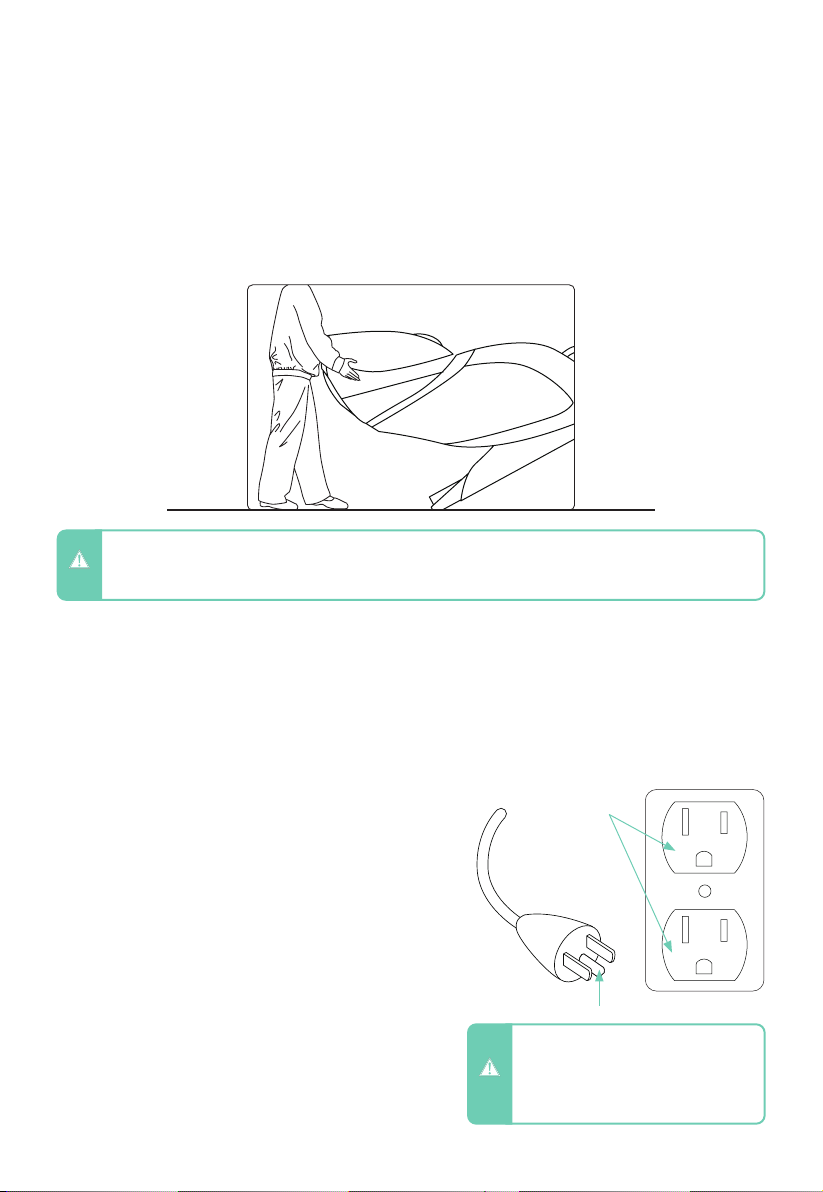

Apply pressure to the back of the massage chair from behind to pivot on the Castors.
Have a second person up front to guide the Footrest until in the correct position. Maintain
clearances as mentioned above. Gently lower into place. Do not pull on the side arms.
Move Methods
Connect to Power
CAUTION
- Do not move the chair when there is user inside.
- To carry this product, do not lift by the footrest or armrest, hold the chassis and steady the backrest (have 4
or more people to carry the product).
Plug into a 110V grounded outlet.
4”
DANGER – Improper connection of the equipment-
grounding conductor can result in a risk of electric shock. Check
with a qualified electrician or serviceman if you are in doubt as to
whether the product is properly grounded. Do not modify the plug
provided with the product – if it will not fit the outlet, have a proper
outlet installed by a qualified electrician.
This product is for use on a nominal 120-V circuit and has a
grounding plug that looks like the plug illustrated. Make sure that
the product is connected to an outlet having the same configuration
as the plug. No adapter should be used with this product.
Earthing
This massage chair belongs to Level One electrical appliance, make
sure to use three-core power supply socket and to guarantee the
ground wire connected to the power supply socket has obtained
good ground connection to avoid electric leakage, electric shock
and some other negative effect during use.
Grounding Instructions
This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for
electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding
conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and
grounded in accordance with all local codes and ordinances.
- Ensure there is no damage to the
supply cord before switching on the
massage chair.
- Ensure that the main power switch is
turned off before connecting to power
CAUTION
Grounded
outlet
Grounding pin

8
To power up the chair, flip the main power switch located on the side of the base of the chair
to ON. Ensure the electrical cord is connected to a 110V grounded outlet and plugged into the
power cord port located on the back of the base of the chair.
Main Power Switch
Getting Comfortable
Chair Setup
To make the massage less intense, you can add the back pad to the seat back of your
chair, or you can also fold down the neck rest to provide more cushioning between you
and the massage mechanism in the seat back. To make the foot rollers less intense, insert
the foot pads that came with your chair into the foot bed of the footrest.
Reduce the Intensity of your Massage - Manually
CAUTION
- Children should be supervised to ensure that they do not play with the chair or touch the power box.
- Always unplug the massage chair from the electrical outlet immediately after use.
- Unplug from outlet during thunder or lightening storms, and before putting on or taking off parts.
- Turn off the power switch and unplug the massage chair from the electrical outlet while not in use to avoid
children powering on the massage chair accidentally.
- When not in use for a long period of time, we recommend that the chair be covered, the power cord be coiled
and that the unit be placed in an environment free of dust and moisture.
Take a seat in the chair and take note of where the neck
pillow rests on your neck. Adjust the pillow so that it rests
comfortably in the arch of your neck. Do this by removing it
from the velcro, aligning it, and then reattaching to the velcro
once it is in the desired position.
Adjust Pillow Neck Pillow
Tube fuse
Main Power
Switch Power cord port

9
Select any auto program and press the OK button. The chair will automatically begin
scanning your body, mapping your back, shoulders, and neck. During this process its is
importing to remain seated back into the chair without lifting your head.
The scan can be viewed on the remote control screen. If fine tuning is needed just after your
body scan, wait for the shoulder adjust prompt to appear and then use the Back Adjustment
buttons to move the massage rollers up or down for the perfect shoulder kneading position.
Body Scanning
To easily exit the chair at any time, press the ON/OFF power button
on the remote control to restore the chair to the upright position.
Getting out of the Chair
Smart tip: To increase intensity in the neck
and shoulder region, flip the pillow or the
pillow and pillow pad up so you lay directly
on the seat back pad.
Home key to select function
Sports Refresh
body sensing...
Shoulder adjust
10min
left image will be of
the body scanning
screen
Sports Refresh
body sensing...
Home key to select function
10min
Your chair will automatically set the leg length,
however, if you need to adjust, the legrest can
be extended or retracted manually. To adjust
the legrest, press the feet extend or feet retract
button.
Legrest Extend/Retract
Body Scanning Shoulder Adjust
Prompt
Extend
Retract

10
Remote Control Layout
ON/OFF
TIME
SOUNDS
4D
On/Off
Menu
Feet
Adjust
Feet
Extend
Back
Adjust
Foot
Roller
OK
Directional
Button
Seat Back
Position
Feet
Retract
4D
Taking Control

11
Remote Control Operation
On/Off – Powers up the remote or returns the chair to the exit position and
powers down remote.
Menu – Shortcut to the home page of all menu screens.
Feet Adjust – Press and hold up arrow to bring foot rest up, press and hold
down arrow to bring foot rest down.
4D 4D – Press to increase or decrease 4D intensity of back mechanism. In-use
screen displays intensity dial.
Feet Extend – Press and hold to extend the leg length adjustment.
Back Adjust – Back mechanism position adjustment; press and hold up to raise,
press and hold down to lower. Use during initial body scan fine tuning or in
manual point zone mode.
Foot Roller – Press this button to toggle the foot rollers on or off.
Directional Button – Press up, down, left or right to navigate the display screen.
During the massage, press up or down buttons to adjust mechanism speed.
Press left or right button to adjust airbag intensity.
OK – After navigating to the command desired on the display, push OK to
select. During the massage, press OK button to switch to zero gravity.
Seat Back Position – Press and hold down arrow to recline the seat back, press
and hold the up arrow to upright the seat back.
Feet Retract – Press and hold to retract the leg length adjustment.

12
MyMassage 1
Auto Programs
MyMassage Memory
Taking Control
When massage chair is operating, press the
AUTO button on the remote control to enter
Auto Program Menu. Choose from Sports
Refresh, Extension, Rest & Sleep, Working
Relief, Neck & Shoulder, Waist & Spine, Deep
Shiatsu, Healthy Breath, All Air, MyMassage
1, or MyMassage 2. Press OK to enter the
program you desire. Selected program will
Your chair has the ability to save your favorite
customized massage programs to memory.
To do this, create a manual massage
program (see page 18 for instructions) with all
of your desired air, heat, speed, and intensity
settings.
Storing a memory program:
After creating your custom massage in
manual mode, select AUTO from the Home
display and scroll to the bottom of the
page. Here you will see MyMassage 1 and
MyMassage 2. Press OK button to select
either 1 or 2 then select “Save”. If you save
over the top of an existing memory program,
the existing program will be erased and
replaced by the most recent save.
Loading a memory program
Select AUTO from Home display and
scroll to the bottom of the page. Select
MyMassage 1 or MyMassage 2 and then
select “Run”. The chair will now run the
program you created.

13
Relaxes muscles and speeds up recovery time
after intense exercise by promoting circulation.
Inspired by Thai massage. The strong
kneading and stretching functions effectively
decompress the entire body.
Kneads the entire body with a gradual
lightening of intensity massage to relieve tired
muscles.
Performs a strong massage to ease muscles
and recuperate the body.
A sequence of neck, shoulder, and upper back
massage techniques.
Focuses on the lumbar vertebra with targeted
massage to relieve tension in this area.
Soothe muscles after sports
activities and exercise.
This program is the best
choice to relax tired muscles
and increase physical vigor.
Try this program as you
prepare your body to rest
for the night.
This is a great program for
people who work at a desk
or travel a lot.
Soothing pain and tension in
the neck and shoulders.
Helps to relax and recover
the main back muscles along
your spine.
Sports Refresh
Neck & Shoulder
Extension
Waist & Spine
Rest & Sleep
Working Relief
Deep Shiatsu
MyMassage1
Healthy Breath
MyMassage2
All Air
Deep shiatsu on the back for 10 minutes.
Rhythmic five-minute massage to aid with deep
breathing.
Saving custom built
massage programs.
Saving custom built
massage programs.
Designed for morning or
midday relaxing.
Full-body airbag-only massage
ProgramW hat for? Description
1
2
This program is
reccomended to relieve
lower back pain.
For compression only massage without any
kneading and tapping. Many find this program
beneficial to relax and ease stress when
winding down.
W

14
Airbag Region
Taking Control
Select AIRBAG from Home display, press up or down button to
navigate among: PART and FORCE. Select by pressing OK.
PART allows you to select which airbags to use. Select Full for
all airbags. Otherwise pick and choose amongst the other Parts
to turn them on or off. You may select more than one Part. To
turn off all Airbags, select any lit parts and hit OK to turn off.
When no Parts are lit, all airbags are off.
Airbag Massage
Navigate to PART, press right button, then use the up or down
button to select your desired airbag region: Full, Arm & Shoulder,
Back and Waist, Leg & Foot, Buttock. Press OK button to select
the airbag region.
Airbag Intensity
Navigate to FORCE, press right button, then use the up or down
button to select your desired intensity: 1 = light, 5 = firm, or Off.
Press OK button to select the airbag intensity.
While the in-use screen is displayed during a massage program,
press the left or right directional button to adjust the airbag
intensity (this feature works in both Auto and Manual programs).

15
USB Charging Port
Thigh Airbag
Select MANUAL from Home display, then press up or down button to navigate to ROLLER.
Press right button, then use the up and down buttons to select your desired foot roller speed: 1
= slow, 2, 3 = fast, or Off (deactivate foot roller). Press OK button to select the foot roller setting.
Foot Rollers
Select HEAT from Home display, press right button, then press up or down button to
navigate to desired heat setting: On, or Off. Press OK button to select the heat setting.
Back Heat
Smart tip: While the in-use screen is
displayed during a massage program, press
the left or right directional button to adjust
the airbag intensity (this feature works in
both Auto and Manual programs).
USB Charging Port
Your massage chair includes a USB-A port to charge
your phone or tablet while using the chair. This feature is
especially helpful when using the app to control the chair.
The port is located on the left hip side of the chair
behind the thigh airbag. To access, locate the thigh
airbag and pull it back, away from the chair to reveal the
USB port.

16
Set your Environment
Android System Software (Android System V2.2 or later)
- Open the Google play store. In the search bar, search for ‘Infinity Massage Chair Palisade’.
Click on the Palisade app tile.
- Click “Install” to download and install the Palisade APK, then press Settings button on your
computer or Android device > press Wireless and Web Setting > Bluetooth > Scan Bluetooth
device > Palisade, then pair.
- Start the Palisade APK, press Settings menu > Bluetooth > and pair with the Palisade to link
the APK
Apple iOS: (iPhone or iPad devices)
- Open the App Store. In the search bar, search for ‘Palisade by Infinity’ to find the app. Click
“Get” at the top right corner to download and install the software.
- In your device settings, open Bluetooth and connect it to the massage chair.
- Please note: Only Apple equipment compatible with Bluetooth 4.0 can connect to the chair’s Bluetooth.
App Download & Installation
Your massage chair includes Bluetooth compatibility so you can play and enjoy your favorite
music. To turn on your chair’s Bluetooth, select SETTING from Home display, then press
up or down button to navigate to BLUETOOTH. Press right button, then press up or down
button to select your desired Bluetooth setting: On or Off. Press OK to select setting.
Open Bluetooth from audio device and pair with Palisade to play music.
Bluetooth Audio

17
Smart tip: Ensure Bluetooth is turned on
before attempting to play nature sounds.
Press SOUNDS from Home display, press right button then press up or down button to
navigate among: SOUND, VOLUME and ON/OFF.Press OK button to enter the sounds
setting you desire to control.
Nature Sounds
White Noise
Sounds What is it?
Nature
Ocean Surf
Air Plane
Crickets
Thunderstorm
Car Ride
Rain
Windy Night
Fireplace
A constant, even loop of pure white noise to mask out distractions
Soothing ocean waves rolling onto the shore
Night time in the suburbs. Churping Crickets, water trickling from a pond, and faint
traffic noises
Quiet, light, refreshing rain falling to the ground
Refreshing sounds of small birds peacefully singing along a tranquil stream.
A Cessna propeller airplane motor idling
Calming inner-city traffic featuring cars, trucks, and motorcycles
Crackling of fire in a fireplace
Heavy rainstorm with thunder
Heard from inside a cabin, a howling wind blows constantly outside
Note: Bluetooth must be ON for sounds to work.

18
Beep
The remote control provides an audible “beep” as feedback.
You may turn this audible beep off. Navigate to BEEP, press
right button, then use the down button to Off. Press OK. To
restore the beeping, select On.
Settings
Language
Navigate to LANGUAGE, press right button, then use the up or
down button to select your desired language: Chinese or English.
Press OK button to select language.
Bluetooth
To connect your Android or Apple device, press SETTING from
Home display, then press up or down button to navigate to
BLUETOOTH. Press right button, then press up or down button to
select your desired Bluetooth setting: On or Off. Press OK to select
Bluetooth setting.
In order to use the chair app or to play music from your Bluetooth
enabled audio device, Bluetooth must first be turned on in settings.
Select SETTING from Home display, then use the up or down
button to toggle between Time, Language, Bluetooth, or Voice.
Setting

19
Smart tip: All settings listed below will be
memorized when you turn off the massage
chair.
Remote Control In-Use Screen
Whilst running an Auto Program or Manual mode, the remote control screen will return to
the in-use screen (as shown below) after 10 seconds of being idle.
Manual in-use screen Auto Program in-use screen
- Please do not spill water or other liquids on the controller in order to avoid key malfunctions and error codes.
- Please do not place heavy objects on the controller or power cord.
CAUTION
Select TIME from Home display, then use the up or down button to select your desired
timer: 10mins, 20mins, or 30mins. Press OK button to select timer.
Timer

20
Build your own
In Manual mode you can operate components of your massage
chair individually or combine them to create unique massage
scenarios.
If you create a manual massage you love, you can save it to
memory and go back to it whenever you want. See ‘MyMassage
Memory’ on page 10 for instructions on how to do this.
Press MANUAL from Home display, press up or down button to
navigate among: MODE, PART, WIDTH, SPEED, ROLLER, and
ZERO.
Manual Programs
Back Massage Technique Mode
Navigate to MODE, press right button, then use the up or down
button to select your desired mode: Kneading, Tapping, Knocking,
Shiatsu, Sync. Press OK button to select mode.
Massage Part (Back Region)
Navigate to PART, press right button, then use the up or down
button to select your desired region: Whole, Partial, and Point
massage. Press OK button to select region.
Whole travels the entire length of the track.
Partial travels a short distance and reverses direction for
focused relief.
Point stops on the track for targeted relief.
Partial and Point location can be fine tuned using the Back
Adjustment arrow up or arrow down buttons
