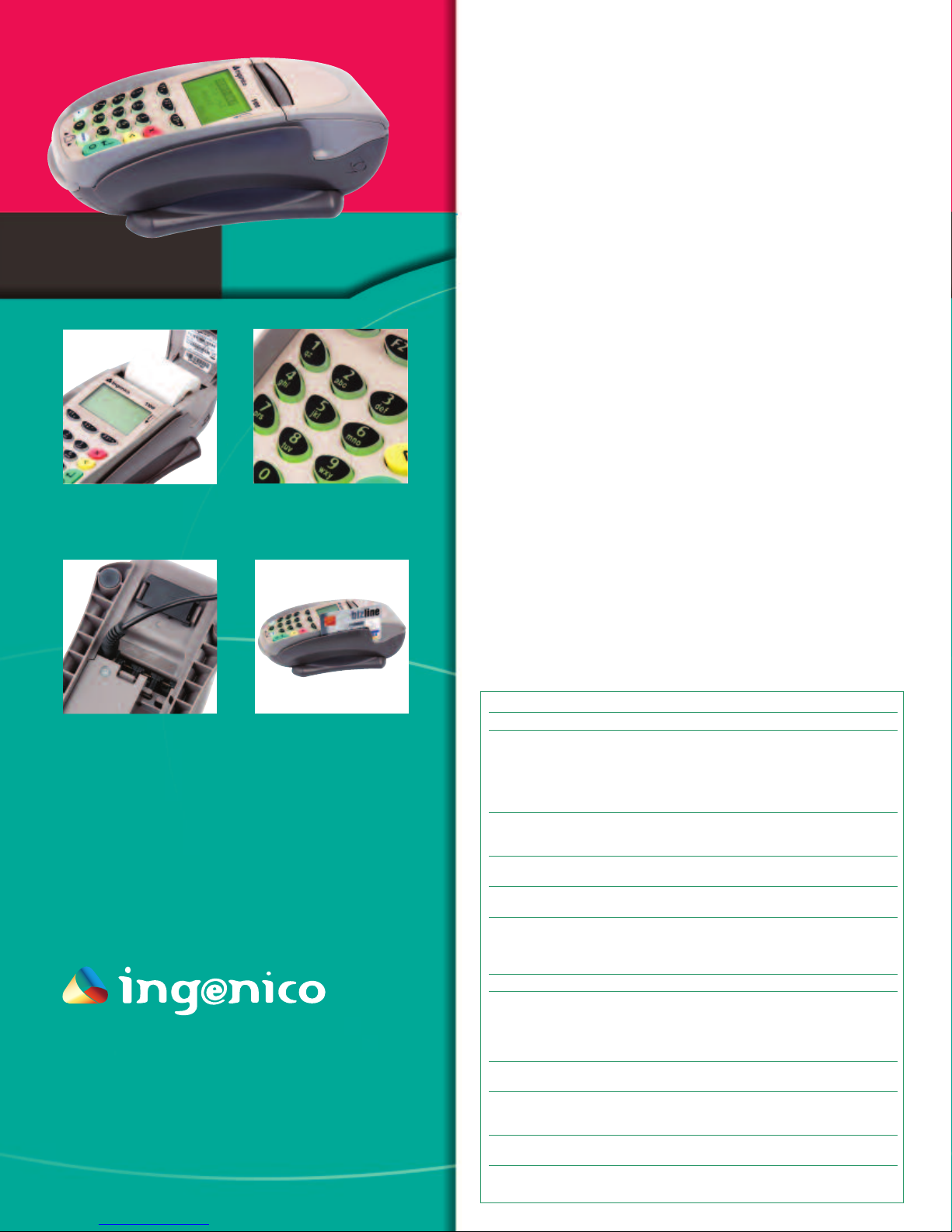

Ingenico i5100 User manual

•The Ingenico 5100 is a PCI PED
advanced, powerful, secure and flexible
payment terminal that provides a single
solution for electronic transaction
acceptance for retailers and restaurants.
•The i5100 was designed for fast transac-
tion acceptance with a 12 lines per sec-
ond thermal printer,high speed modem
and powerful 32-bit processor. A simple
keypad and large bright backlit display
with 3 screen addressable keys make it
veryeasy to use.
•The i5100 is configured for Dial-up or
Ethernet (with Dial back-up) to enable
retailers to leverage DSL and other
high speed communication methods to
reduce communication costs while
streamlining authorization.
RangeCountertop
Cost effective dial-up or
IP/Ethernet payment
terminal with integrated
PIN pad
Secure transaction and payment solutions
Ingenico
5100
UNICAPT
Application compatibility
EMV
Fast transaction time HSC 32 bits
Secure module PCI PED
Approved
TCP/IP
Ethernet
@

Processor 32 bit ARM processor
Memory 2MB SRAM and 8 MB Flash
Security Integrated PIN pad
PCI PED on-line/off-line approved
Interac Chip & Frontal Attack Protection certified
DES or 3DES
DUKPT or Master/Session key management
Secure local and remote software downloading
Printer 12 lines per second thermal printer
Easy load with end-of-paper roll detection
Full graphics printing capability
Display LCD display, 128x64 pixels and graphics capability
Backlit with adjustable contrast
Keypad 18 backlit keys including 3 screen addressable
function keys
Communication V34 modem, transfers up to 33.6K bits per second (bps)
Synchronous and asynchronous transmission
TCP/IP for use as a thin client
TCP/IP – POP3, SMTP, SSL
Magnetic stripe reader Tracks 1, 2 & 3
Smart card reader EMV Level 1 approved
UNICAPT 32 EMV Level 2 approved
ISO 7816 1-2-3, Async/Sync. T=0 & T=1
Optional support for up to 3 Secure Access Modules,
(SAM) in SIM format
Connectivity (2) RS232 ports for connecting peripherals
Optional: Ethernet Support
Programming UNICAPT 32 securemulti-application platform and
development environment
Programmable in C
Environmental Operating temperature: +5°C to +40°C (41F to 104F)
Storage temperature: -20°C to +70°C (-2F to 158F)
Dimensions &Weight 21 x 9.5 x 7.5 cm (8.27 x 3.74 x 2.95 in.)
600 g (1.32 lb.)
Ethernet communications
reduces transaction time
Optional: Dial-up only
model
Backlit ergonomic style
keyboard
ADA-like design
“Easy load” 12 line per
second thermal printer
Built for FAST transaction authorization
• Ethernet and IP connectivity capability reduces transaction
authorization time and cost.
• V34 (33.6k bps) modem provides fast transaction authorization
and downloads.
• Long MSR swipe path increases operator first pass read
success.
• Large backlit screen and keypad are easy to see in any lighting.
• 32 bit processor provides power for swift transaction
completion.
• 12 lines per second printer and receipt pre-printing eliminate
customer wait time.
• Dial-up only option to satisfy low transaction volume needs.
Configurable to fit a wide range of payment
needs for maximum investment protection
• V34 modem works in all dial environments.
• Ethernet with dial back-up provides optimal authorization
responsiveness and operational flexibility.
• ADA-like keypad (Americans with Disabilities Act).
Secure
• PCI PED approved for on-line and off-line transactions.
• DES and 3DES integrated PIN pad for secureon-line and
EBT transactions.
• Master/Session and DUKPT key management.
• Secure local and remote software downloading.
• EMV 4.0 Level 1 and 2 approved.
Long MSR swipe path
increases first pass
read success
All rights reserved. This document is not binding and the specifications hereabove
can be modified without prior consent.
Ingenico
5100
03-2008-5100-USA-ING
