Innova IGPCX-35-1 User manual

Model: IGPCX-35-1
ENG
SVE
Important!
The appliance must be installed, operated and stored
in a room with a floor area larger than 15 m2.
Portable air conditioner / Portabel luftkonditionering
Owner’s Manual
Innova Portable air conditioner
Användarhandbok
Innova portabel luftkonditionering
Modell: IGPCX-35-1
Viktigt!
Apparaten måste installeras, användas och förvaras i
ett utrymme med en golvyta större än 15 m2.
Thank you for choosing our product.
Please read this Owner’s Manual carefully before
operation and retain it for future reference.
Tack för att du valt vår produkt.
Läs noga denna bruksanvisning före
användning och spara den för framtida behov.

ENG
1
Operating Notices
The Refrigerant ________________________________________________________________________ 3
Operating Environment _________________________________________________________________ 4
Identification of Parts ___________________________________________________________________ 5
Operating Guide
The Control Panel ______________________________________________________________________ 6
Using the remote control ________________________________________________________________ 8
Buttons on the Remote Control __________________________________________________________ 9
Icons on the Display Screen _____________________________________________________________ 9
Using the Buttons on the Remote Control ________________________________________________ 10
Using Combination Buttons ____________________________________________________________ 13
Operating Guide ______________________________________________________________________ 14
Replacement of Batteries in the Remote Control __________________________________________ 14
Maintenance
Cleaning and Maintenance______________________________________________________________ 15
Malfunction
Malfunction analysis ___________________________________________________________________ 17
Installation Notice
Installation Precautions ________________________________________________________________ 20
Preparation before Installation __________________________________________________________ 21
Installation
Installing the Power Cable Hooks ________________________________________________________ 22
Removing Collected Water _____________________________________________________________ 23
Installation of the Heat Discharge Pipe ___________________________________________________ 25
Disassembly of the Heat Discharge Pipe __________________________________________________ 40
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capa-
bilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use
of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Frequency band(s) in which the radio equipment operates: 2400MHz – 2483.5MHz
Maximum radio-frequency power transmitted in the frequency band(s) in which the radio equipment
operates: 20dBm. This marking indicates that this product should not be disposed of with other
household waste throughout the EU. To prevent possible harm to the environment or human health
from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material
resources. To return your used device, please use the return and collection systems or contact the re-
tailer where the product was purchased. They can take this product for environmentally safe recycling.
R290: 3
Contents

ENG
2
Explanation of Symbols
DANGER
Indicates a hazardous situation that, if not avoided, will result in death or serious injury.
WARNING
Indicates a hazardous situation that, if not avoided, could result in death or serious injury.
CAUTION
Indicates a hazardous situation that, if not avoided, may result in minor or moderate injury.
NOTICE
Indicates important but not hazard-related information, used to indicate risk of property damage.
Indicates a hazard that would be assigned a signal word WARNING or CAUTION.
Exclusion of Liability
The manufacturer will bear no responsibility for personal injury or property
loss due to the following reasons.
1. Damage to the product due to improper use or misuse of the product;
2. Altering, changing, maintaining or using the product with other equipment without abiding by the
manufacturer’s instruction manual;
3. After verification, a product defect is found to have been directly caused by corrosive gas;
4. After verification, defects are found to have been due to improper operation during transportation
of the product;
5. Operating, repairing or maintaining the unit without abiding by the instruction manual or related
regulations;
6. After verification, the problem or dispute is found to have been caused by the quality specification
or performance of parts and components that were produced by other manufacturers;
7. The damage was caused by natural calamities, an inappropriate operating environment or force
majeure.

ENG
3

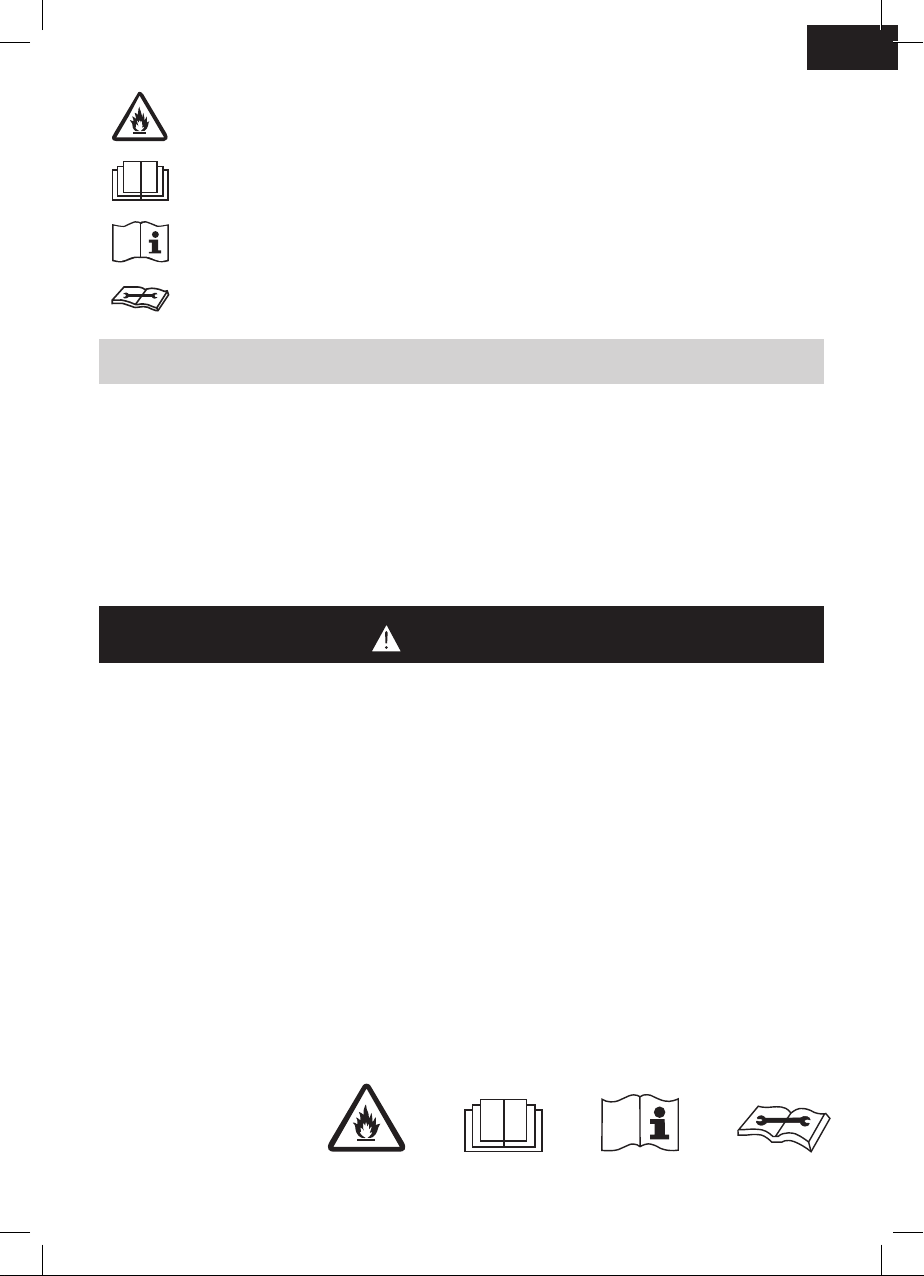

Appliance filled with flammable gas R290.
Before using the appliance, read the owner’s manual first.
Before installing the appliance, read the installation manual first.
Before repairing the appliance, read the service manual first.
• To enable the air conditioner unit to function, a special refrigerant circulates in the system. The
refrigerant used is the fluoride R290, which is specially cleaned.
The refrigerant is flammable and inodorous. Furthermore, it can lead to explosions under certain
conditions.
• Compared to common refrigerants, R290 is a non-polluting refrigerant which does not harm the
ozonosphere. The influence on the greenhouse effect is also lower. R290 has very good ther-
modynamic properties which lead to very high energy efficiency. The units therefore need less
filling.
• Please refer to the nameplate for the charging quantity of R290.
WARNING
• Appliance filled with flammable gas R290.
• The appliance must be installed, operated and stored in a room with a floor area larger than 15 m2.
• The appliance must be stored in a room without continuously operating ignition sources
(for example: open flames, an operating gas appliance or an operating electric heater.)
• The appliance must be stored in a well-ventilated area where the room size corresponds to the
room area as specified for operation.
• The appliance must be stored so as to prevent mechanical damage from occurring.
• Ducts connected to an appliance must not contain an ignition source.
• Keep any required ventilation openings clear of obstruction.
• Do not pierce or burn.
• Be aware that refrigerants may not contain an odour.
• Do not use means to accelerate the defrosting process or to clean, other than those recommend-
ed by the manufacturer.
• Servicing must be performed only as recommended by the manufacturer.
• Should repair be necessary, contact your nearest authorised Service Centre. Any repairs carried
out by unqualified personnel may be dangerous.
• Compliance with national gas regulations must be ensured.
• Read specialist’s manual.
The Refrigerant

ENG
4
• The air conditioner must be operated within the temperature range 16°C – 35°C.
• The appliance is for indoor use only.
• The appliance must be positioned so that the plug is accessible.
• This air conditioner is only for household use, not for commercial or industrial use.
• The reserved space around the air conditioner should be at least 12 inches (30 cm).
• Do not operate the air conditioner in a humid environment.
• Please keep the air inlet and air outlet clean, with no obstacles.
• During operation, close doors and windows to improve the cooling effect.
• Please put the air conditioner on a smooth and flat floor for operation to avoid
noise and vibration.
• This air conditioner is fitted with castors. The castors should roll on a smooth and flat floor.
• Do not incline the air conditioner or turn it over. If there is an abnormality, please discon-
nect the power immediately and contact your dealer.
• Avoid direct sunshine.
Operating Environment

ENG
5

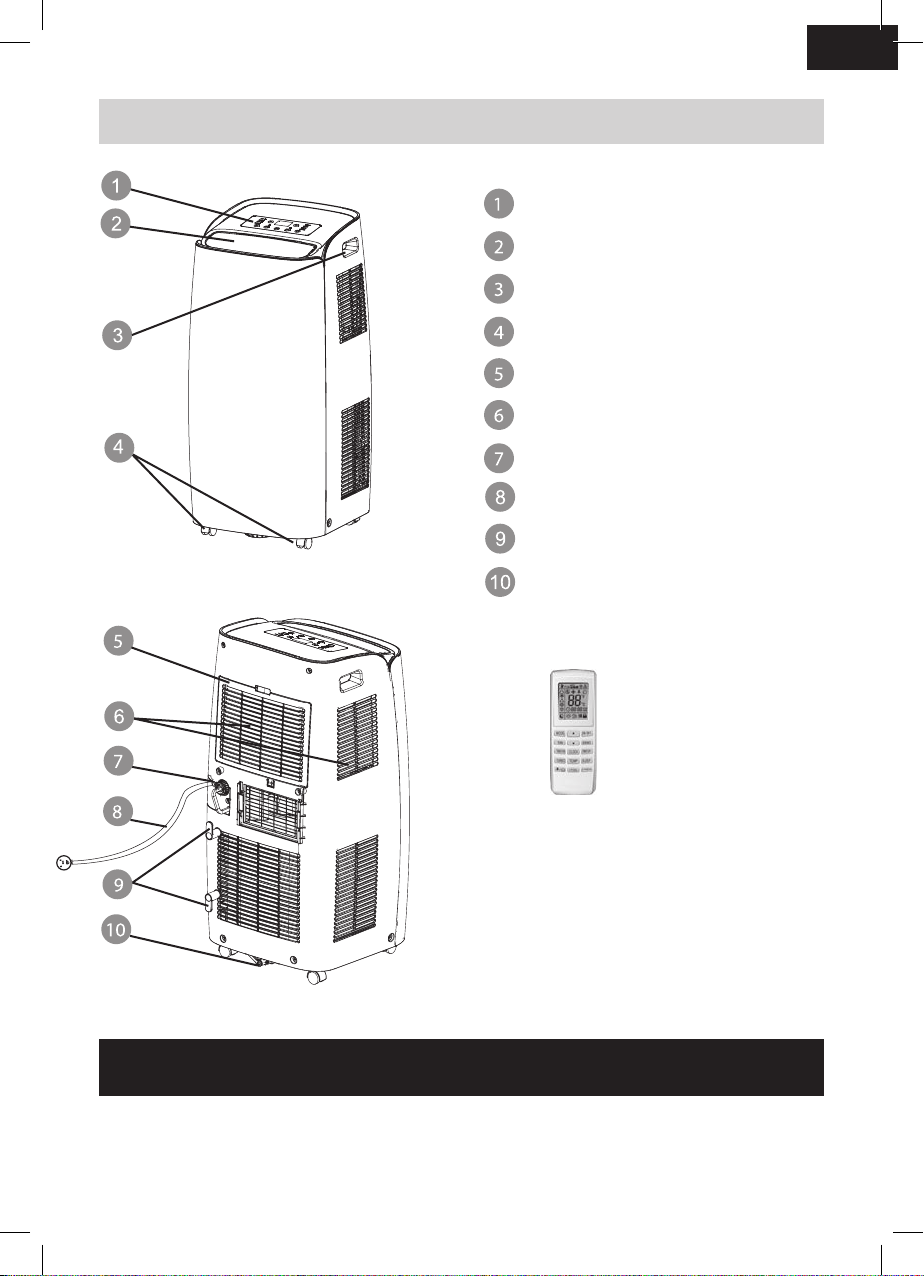

Control panel
Guide louvre
Handles
Castors
Filter
Air inlet
Drainage port (middle)
Power cable
Power cable hooks
Drainage port (lower)
Remote control
Some installation accessories cannot be discarded.
Identification of Parts
NOTICE

ENG
6
Display screen
+ / - buttons
Swing indicator
Cooling mode indicator
WiFi indicator Drying mode
indicator
Fan mode
indicator
Fan speed indicator Fan button
Swing button
ON/OFF button
WiFi button
Mode button
Features of the control panel
Operation of the control panel
1ON/OFF button
Pressing this button turns the air conditioner on or off.
2+ / - buttons
In cooling mode, press the “+” or “-” button to increase or decrease the set temperature by
1°C (or °F). The temperature setting range is 16°C – 30°C. In auto, dry or fan mode, this button
has no function.
The Control Panel
NOTICE
• When the power is switched on, the air conditioner will make a sound. After that, you can
operate the air conditioner using the control panel.
• In ON status, each time a button on the control panel is pressed, the air conditioner will
make a sound. Meanwhile, the corresponding indicator on the control panel will be lit.
• In OFF status, there is nothing displayed on the screen of the control panel.
In ON status, the screen on the control panel will display the set temperature
in cooling mode Cool&Heat Unit only), while there will be no display in other modes.

ENG
7

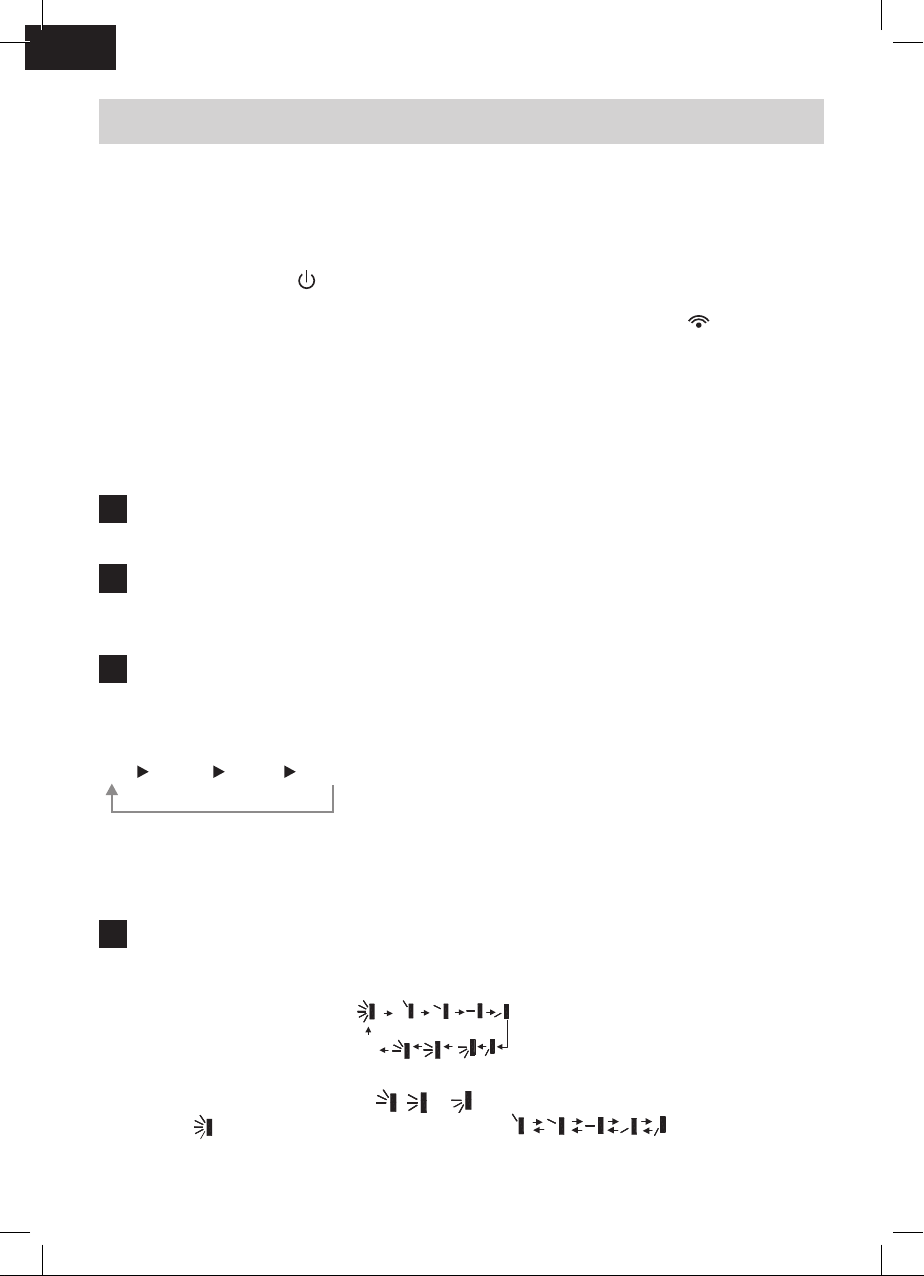

3Mode button
Press this button and the mode will toggle according to the sequence below:
Cool Dry
Fan
Cool: In this mode, the cooling mode indicator is lit. The screen displays the set temperature.
The temperature setting range is 16°C – 30°C.
Dry: In this mode, the drying mode indicator is lit. There is nothing displayed on the screen.
Fan: In this mode, the air conditioner only blows as a fan. The fan indicator is lit. There is nothing
displayed on the screen.
4Fan button
Press this button and the fan speed will toggle as:
low speed medium speed
auto fan high speed
5WiFi
Press the “WiFi” button to turn the WiFi function on or off. When the WiFi function is turned on, the
WiFi indicator will be displayed. Press and hold the button for 10 seconds to reset the WiFi function.
6Swing
When this button is pressed, the vertical louvre of the air conditioner will swing up and down auto-
matically. Press it once to switch between on and off.
The Control Panel

ENG
8
This is a general-purpose remote controller which can be used for different models of air conditioners
with multiple functions. If you press a button corresponding to a function that your model does not
have, the unit will keep its original running status.

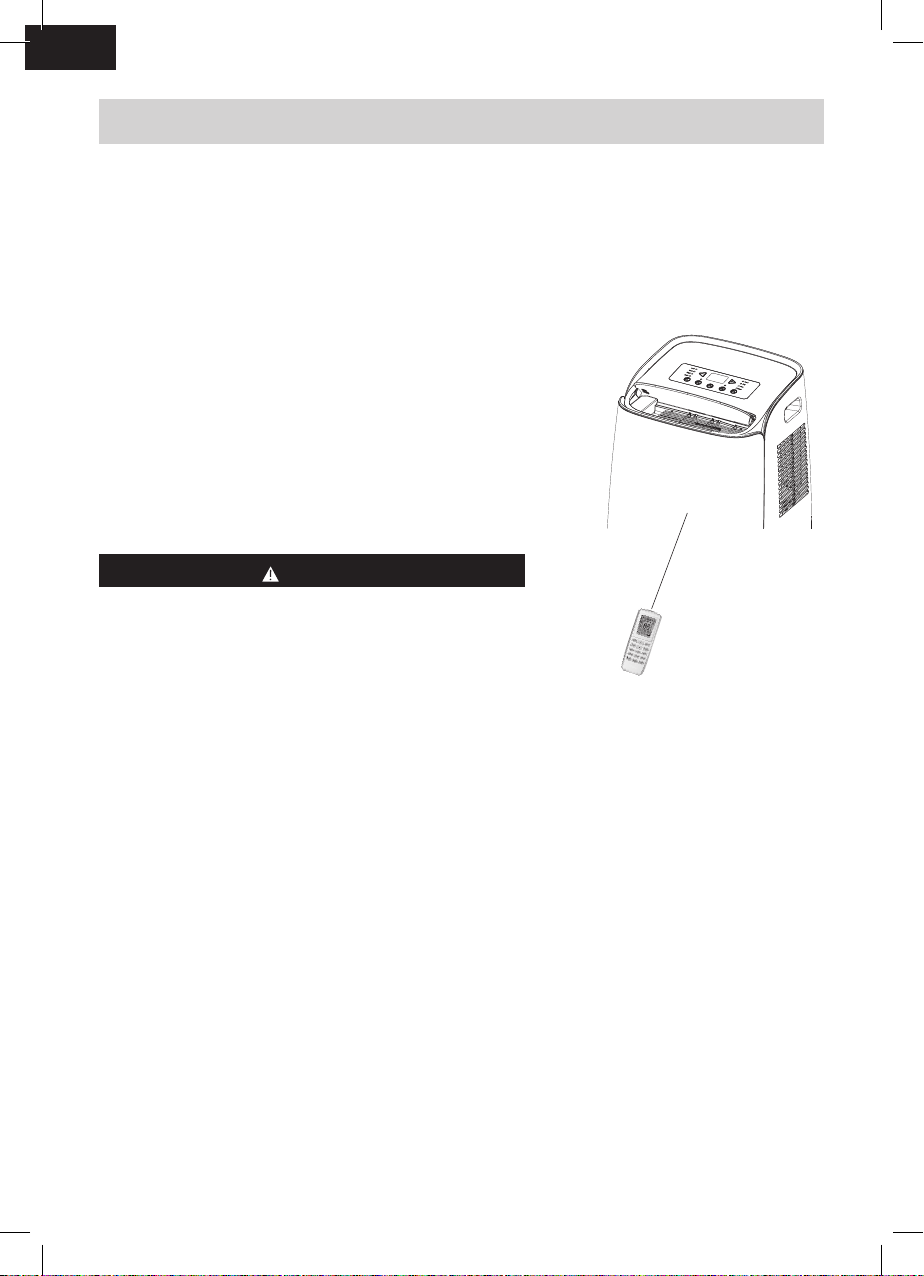

How to use the remote control
Point the remote control towards the signal receiver and
press the desired button. The unit generates a beep when
it receives the signal.
• Make sure nothing, such as curtains, blocks the signal
receiver window.
• The effective signal distance is no more than 8 metres.
CAUTION
• Do not expose the receiver window to direct sunlight.
This may adversely affect its operation.
• Use of certain types of fluorescent lamp in the same room
may interfere with transmission of the signal.
• Do not leave the remote control in direct sunlight or
near a heater. Protect the remote control from
moisture and shock.
Using the remote control

ENG
9

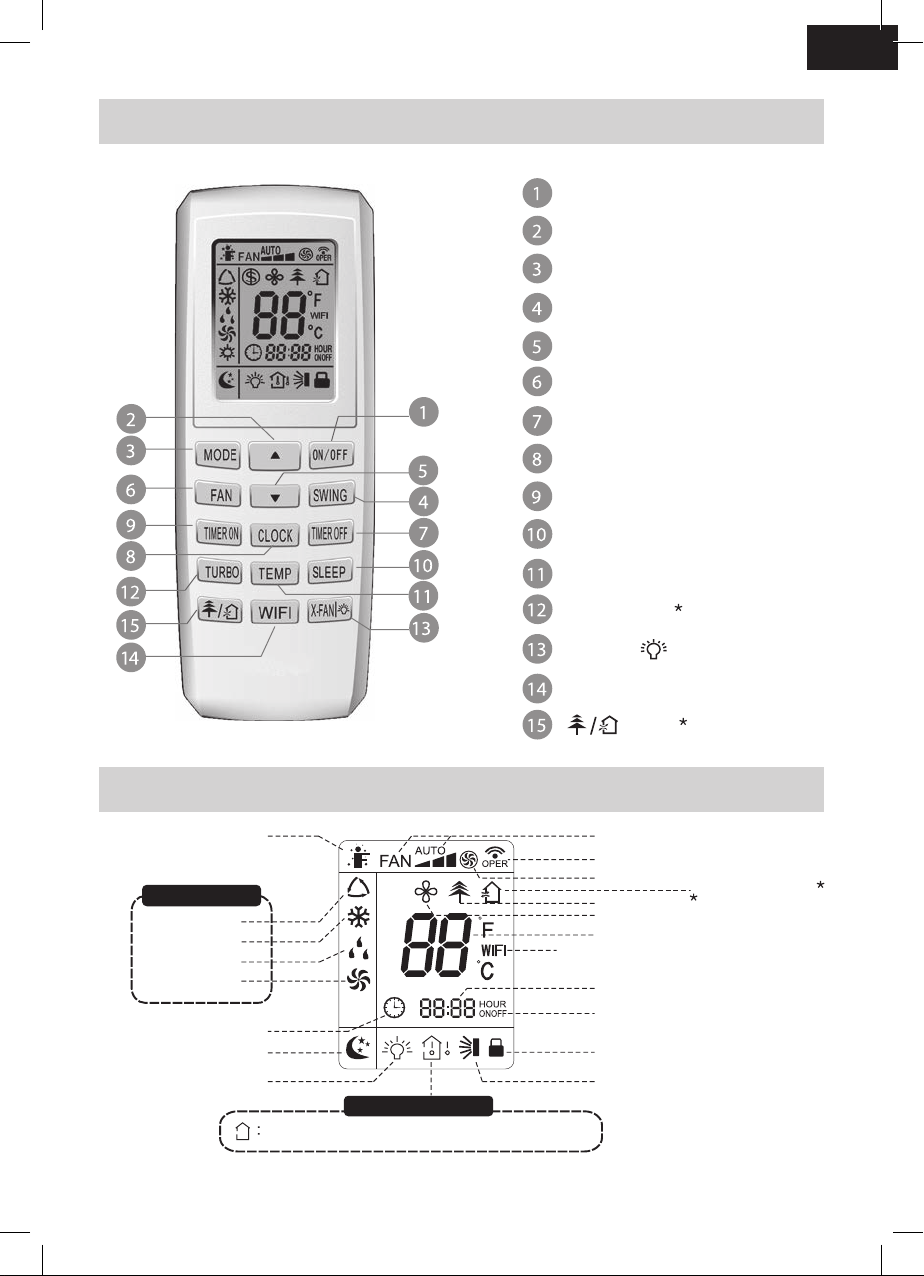

ON/OFF button
▲button
MODE button
SWING button
▼ button
FAN button
TIMER OFF button
CLOCK button
TIMER ON button
SLEEP button
TEMP button
TURBO button
X-FAN |button
WiFi button
button
Temp. display type
Auto mode
Cool mode
Dry mode
Fan mode
Clock
Sleep mode
Light
Set temp.
Buttons on the remote control
Icons on the display screen
I feel Set fan speed
Send signal
Turbo mode Ventilation operation
Health function
X-fan mode
Set temperature
WiFi on/off
Set time
TIMER ON / TIMER OFF
Child lock
Up & down swing
Operation mode
*Not available for this model

ENG
10
Note:
• This is a general-purpose remote controller which can be used for different models of air condition-
ers with multiple functions. If you press a button corresponding to a function that your model does
not have, the unit will keep its original running status.
• When the power is switched on, the air conditioner will make a sound.
The operation indicator “ ” is ON (the colour is different for different models). After that, you can
operate the air conditioner using the remote control.
• In ON status, when the button on the remote control is pressed, the signal icon “ ” on the display
of the remote control will blink once and the air conditioner will “beep”, which means the signal
has been sent to the air conditioner.
• In OFF status, the set temperature the and clock icon will be displayed on the display of the remote
control. (If the timer on, timer off and light functions are set, the corresponding icons will be dis-
played on the display of the remote control at the same time.) In ON status, the display will show
the corresponding set function icons.
1ON/OFF button
Press this button to turn the unit on. Press this button again to turn the unit off.
2▲button
Press this button to increase the set temperature. Holding it down for more than 2 seconds rapidly
increases the set temperature. In AUTO mode, the set temperature is not adjustable.
3MODE button
Each time you press this button,a mode is selected in a sequence that goes from AUTO to COOL,
DRY, and FAN, as follows:
AUTO COOL DRY FAN
After powering up, AUTO mode is the default. In AUTO mode, the set temperature will not be dis-
played on the LCD, and the unit will automatically select the appropriate operation mode in accord-
ance with the room temperature to make the room comfortable.
4SWING button
Press this button to set the up & down swing angle, which toggles as follows:
OFF
This remote control is universal. If any , or command is sent out, the unit will carry out the
command as indicates movement of the guide louvre:
Using the buttons on the remote control

ENG
11
5▼button
Press this button to decrease the set temperature. Holding it down for more than 2 seconds rapidly
decreases the set temperature. In AUTO mode, the set temperature is not adjustable.
6FAN button
This button is used for setting the Fan Speed in a sequence that goes from AUTO , , to ,
then back to Auto.
Low speed Medium speed High speed
Note:
• On AUTO speed, the air conditioner will select the proper fan speed automatically according to the
ex-factory setting.
• The fan speed in drying mode is low.
• X-FAN function: Hold the fan speed button for 2 seconds in COOL or DRY mode. The “ ” icon
is displayed, and the fan will continue operation for a few minutes in order to dry the unit even
though you have turned the unit off. After powering up, X-FAN OFF is the default. X-FAN is not
available in AUTO or FAN mode. This function means moisture on the unit’s evaporator will be
blown off after the unit stops, to avoid mould.
• If the X-FAN function is set to ON: When the unit is turned off by pressing the ON/OFF button,
the fan will continue running for a few minutes at low speed. During this period, hold the fan
speed button for 2 seconds to stop the fan immediately.
• If the X-FAN function is set to OFF: When the unit is turned off by pressing the ON/OFF button,
the complete unit will switch off immediately.
7TIMER OFF button
Press this button to initiate the auto-off timer. To cancel the auto-timer programme, simply press the
button again. TIMER OFF is set in the same way as TIMER ON.
8CLOCK button
Press CLOCK button, blinking. Pressing the ▲or ▼button within 5 seconds adjusts the current
time. Holding down either button for more than 2 seconds increases or decreases the time by 1 min-
ute every 0.5 second and then by 10 minutes every 0.5 second. While the display is blinking after set-
ting, press the CLOCK button again to confirm the setting, and then will be constantly displayed.
9TIMER ON button
Press this button to initiate the auto-ON timer. To cancel the auto-timer programme, simply press this
button again.
After this button is pressed, disappears and “ON ”blinks. 00:00 is displayed for the ON time
setting. Within 5 seconds, press the ▲or ▼button to adjust the time value. Each pressing of either
button changes the time setting by 1 minute. Holding down either button rapidly changes the time
setting by 1 minute and then by 10 minutes. Within 5 seconds after setting, press the TIMER ON
button to confirm.
Using the buttons on the remote control

ENG
12
10 SLEEP button
Press this button to go into the SLEEP operation mode. Press it again to cancel this function. This
function is available in COOL to maintain the most comfortable temperature for you.
11 TEMP button
Press this button to see the set temperature.
12 TURBO button
13 X-FAN | button
X-FAN function: In COOL or DRY mode, the icon is displayed and the fan will continue operation
for a few minutes in order to dry the unit even though you have turned the unit off. After powering
up, X-FAN OFF is the default. X-FAN is not available in AUTO or FAN mode.
function: turn on the display’s light and press this button again to turn off the display’s light. If the
light is turned on, is displayed. If the light is turned off, disappears.
14 WiFi button
Press the “WiFi” button to turn the WiFi function on or off. When the WiFi function is turned on, the
“WiFi” icon will be displayed on the remote control. In unit off status, press the “MODE” and “WiFi”
buttons simultaneously for 1 second, and the WiFi module will be restored to the factory default
setting.
• The WiFi function is only available for some models.
15 / button
Using the buttons on the remote control
*Not available for this model

ENG
13
Combination of the “▲” and “▼” buttons: Lock
Press the “▲” and “▼” buttons simultaneously to lock or unlock the keypad. If the remote control is
locked, is displayed. In this case, if any button is pressed, blinks three times.
Combination of the “MODE” and “▼” buttons:
Switching between Fahrenheit and Centigrade
In unit OFF status, press the “MODE” and “▼” buttons simultaneously to switch between °C and °F.
Combination of the “TEMP” and “CLOCK” buttons:
Energy-saving Function
Combination of the “TEMP” and “CLOCK” buttons:
8°C Heating Function
I FEEL Function
Press the “▲” and “MODE” buttons simultaneously to start the I FEEL function, and “ ” will be
displayed on the remote control. After this function is set, the remote control will send the detected
ambient temperature to the controller, and the unit will automatically adjust the temperature accord-
ing to the detected temperature. Press these two buttons simultaneously again to stop the I FEEL
function, and “ ” will disappear.
• Please put the remote control near user when this function is set. To avoid inaccurate ambient tem-
perature detection, do not put the remote control near an object at high or low temperature. When
the I FEEL function is turned on, the remote control should be put within the area where the unit
can receive the signal sent by the remote control.
Using combination buttons
*Not available for this model

ENG
14
1. After connecting to the power, press the “ON/OFF” button on the remote control to turn the air
conditioner on.
2. Press the “MODE” button to select your required mode: AUTO, COOL, DRY, FAN.
3. Press the “▲” or “▼” button to set your required temperature. (The temperature cannot be adjust-
ed in auto mode).
4. Press the “FAN” button to set your required fan speed: auto, low, medium or high speed.
5. Press the “SWING” button to select the fan blowing angle.
1. Press the back of the remote control marked “ ”, as illus-
trated, and then slide out the cover of the battery compart-
ment in the direction of the arrow.
2. Replace two 7# (AAA 1.5V) dry batteries, and make sure
that the “▲” and “▼” poles are in the correct positions.
3. Replace the cover of the battery compartment.
batteries
replace
remove
Battery compartment cover
• During operation, point the remote control signal sender at the receiving window on the unit.
• The distance between signal sender and receiving window should be no more than 8 metres,
and there should be no obstacles between them.
• The signal is easily disrupted in a room with fluorescent lights or a wireless phone; the remote
control should be close to the unit during operation.
• Insert new batteries of the same model when replacement is required.
• If you will not be using the remote control for a long time, please take out the batteries.
• If the display on the remote control is fuzzy or there is no display, please replace the batteries.
Operating guide
Replacement of batteries in the remote control
NOTICE

ENG
15
WARNING
• Before cleaning the air conditioner, please turn off the unit and disconnect the power.
Otherwise, there is the risk of an electric shock.
• Do not wash the air conditioner with water. Otherwise, there is the risk of an electric shock.
• Do not use volatile liquid (such as thinner or petrol) to clean the air conditioner.
Otherwise, it may damage the appearance of the air conditioner.
Cleaning the outer case and grille
Cleaning the outer case:
If there is dust on the surface of outer case, wipe with a soft cloth. If the
outer case is very dirty (e.g. greasy), use a neutral detergent to wipe it.
Cleaning the grille: Use cleaner or soft brush to clean it.
Cleaning the filter
1. Remove the filter
Press the clasp as shown in the picture, and then remove filter 1;
Pull out filters 2.
filter 1
clasp
2. Clean the filter
Use cleaner or water to clean the filter. If the filter is very dirty (e.g. greasy), use 40°C warm water
and neutral detergent solution to clean the unit, then put the unit in a shady place to dry.
3. Install the filter
After the filter is cleaned and dried, reinstall it correctly.
Cleaning and Maintenance

ENG
16
NOTICE
• The filter should be cleaned about once every three months. If there is a lot of dust in the
operating environment, you can increase the frequency of cleaning.
• Do not dry the filter with fire or a hair dryer. Otherwise, it may be deformed or catch fire.
Clean the heat discharge pipe
Remove the heat discharge pipe from the air conditioner, clean and dry it, and then reinstall it. (For
the method of installation and removal, please refer to the instructions for “Installation and disassem-
bly of the heat discharge pipe”).
Checking before use – season
1. Check whether air inlets and air outlets are blocked.
2. Check whether plug and socket are in good condition.
3. Check whether the filter is clean.
4. Check whether batteries are installed in remote controller.
5. Check whether joint, window bracket and heat discharge pipe are installed tightly.
6. Check whether the heat discharge pipe is damaged.
Checking after use – season
1. Disconnect the power supply.
2. Clean filter and outer case.
3. Remove dust and sundries on the air conditioner.
4. Eliminate accumulated water in chassis (refer to the section of ”Drainage way” for details).
5. Check whether window bracket is damaged or not. If so, please contact your dealer.
Long-term storage
If you are not going to use the air conditioner for a long time, please maintain it by following these
steps for good performance:
• Make sure there is no accumulated water in the chassis and that the heat discharge pipe is disas-
sembled.
• Pull out the plug and wrap the power cord.
• Clean the air conditioner and pack it well to prevent dust.
Recovery
• Many of the packing materials are recyclable. Please recycle as directed locally.
• If you wish to discard the air conditioner, please contact your local recycling department or service
centre for the correct disposal method.
Cleaning and Maintenance

ENG
17
Please check the items below before asking for maintenance. If the malfunction still cannot be elimi-
nated, please contact your local dealer or qualified professionals.
Phenomenon Troubleshooting Solution
Air conditioner does
not operate
• Power failure? • Wait for the power to resume.
• Is the plug loose? • Reinsert the plug.
• Has the air switch tripped off, or
has the fuse blown?
• Ask a professional to
replace the air switch or fuse.
• Is there a circuit malfunction? • Ask a professional to replace
the circuit.
• Does the unit immediately restart
after stopping?
• Wait for 3 minutes, then turn
the unit on again.
Poor cooling
• Is the power too low? • Wait after reconnecting the
power.
• Whether the air filter is too dirty? • Clean the air filter.
• Whether the set temperature is
proper?
• Adjust the temperature.
• Are doors and windows closed? • Close doors and windows.
The air conditioner can-
not receive a signal from
the remote control, or
the remote control is not
connecting
• Check the unit for interference
(e.g. static charge; unstable volt-
age).
• Pull out the plug. Insert the
plug after about 3 minutes, and
then turn on the unit.
• Is the remote control within the
receiving range?
• The receiving range for the
remote control is 8 metres. Do
not exceed this range.
• Is it blocked by obstacles? • Remove the obstacles.
• Is the sensitivity of the remote
control low?
• Check the batteries of the re-
mote control. If the power is low,
please replace the batteries.
• Is there a fluorescent lamp in the
room?
• Move the remote control close
to the air conditioner.
• Turn off the fluorescent lamp
and try again.
Malfunction analysis

ENG
18
Phenomenon Troubleshooting Solution
No air blowed out from
air conditioner
• Is the air outlet or air inlet
blocked?
• Eliminate the obstacles.
• Is the evaporator defrosted?
(Check by pulling out the filter)
• This is a normal occurrence. Air con-
ditioner is defrosting. After defrosting
is finished, it will resume operation.
The set temperature
cannot be adjusted
• Is the unit operating in auto
mode?
• The temperature cannot be adjust-
ed in auto mode.
• Does the required tempera-
ture exceed the temperature
setting range?
• Temperature setting range: 16°C –
30°C.
There is an unpleasant
odour
• There is a bad odour source
in the room, such as furniture,
cigarette smoke, etc.
• Eliminate the source of the odour.
• Clean the filter.
There is an abnormal
sound during operation
• Is there interference with the
unit from thunder, radio, etc.?
• Disconnect power, connect the
power again, and then turn on the
unit again.
You can heard a sound
like water flowing
• Has the unit just been turned
on or turned off?
• There is a sound of refrigerant flow-
ing inside the air conditioner, which is
a normal occurrence.
You can hear a “POP”
• Has the unit just been turned
on or turned off?
• Heat expansion or shrinkage of the
panel due to change of temperature,
causing a rubbing sound.
Malfunction analysis
