Innova IGZF09NO-1 User manual

Split Air Conditioner/ Luftvärmepump med delat aggregat/
Todelt klimaanlæg/ Ilmalämpöpumppu/ Klimatyzator Split
Owner’s Manual............................................................... 1
Innova Split Air Conditioner
Användarhandbok......................................................... 43
Innova Split aggregat
Brugervejledning........................................................... 85
Todelt klimaanlæg fra Innova
Käyttäjän opas............................................................. 127
Innova-ilmalämpöpumppu
Instrukcja użytkownika.............................................. 169
Klimatyzator Innova Split
Model: IGZF09NO-1
IGZF09NI-1
IGZF12NO-1
IGZF12NI-1
ENG
SV
DAN
FIN
POL
Thank you for choosing our product.
Please read this Owner’s Manual carefully before
operation and retain it for future reference.
Tack för att du valt vår produkt.
Läs noga denna bruksanvisning före användning
och spara den för framtida behov.
Tak, fordi du har valgt vores produkt.
Læs denne brugervejledning grundigt før brug,
og behold den til fremtidig reference.
Kiitos tuotteemme valinnasta.
Lue tämä käyttäjän opas huolellisesti ennen käyttöä
ja säilytä se myöhempää käyttöä varten.
Dziękujemy za wybór naszych produktów.
Przed uruchomieniem urządzenia należy uważnie zapoznać
się z niniejszą instrukcją i zachować ją do dalszego użytku.

ENGENG

ENG
1
Content
Operation Notices
The Refrigerant ________________________________________________________________________ 3
Precautions ____________________________________________________________________________ 4
Parts Name ____________________________________________________________________________ 6
ScreenOperation Guide

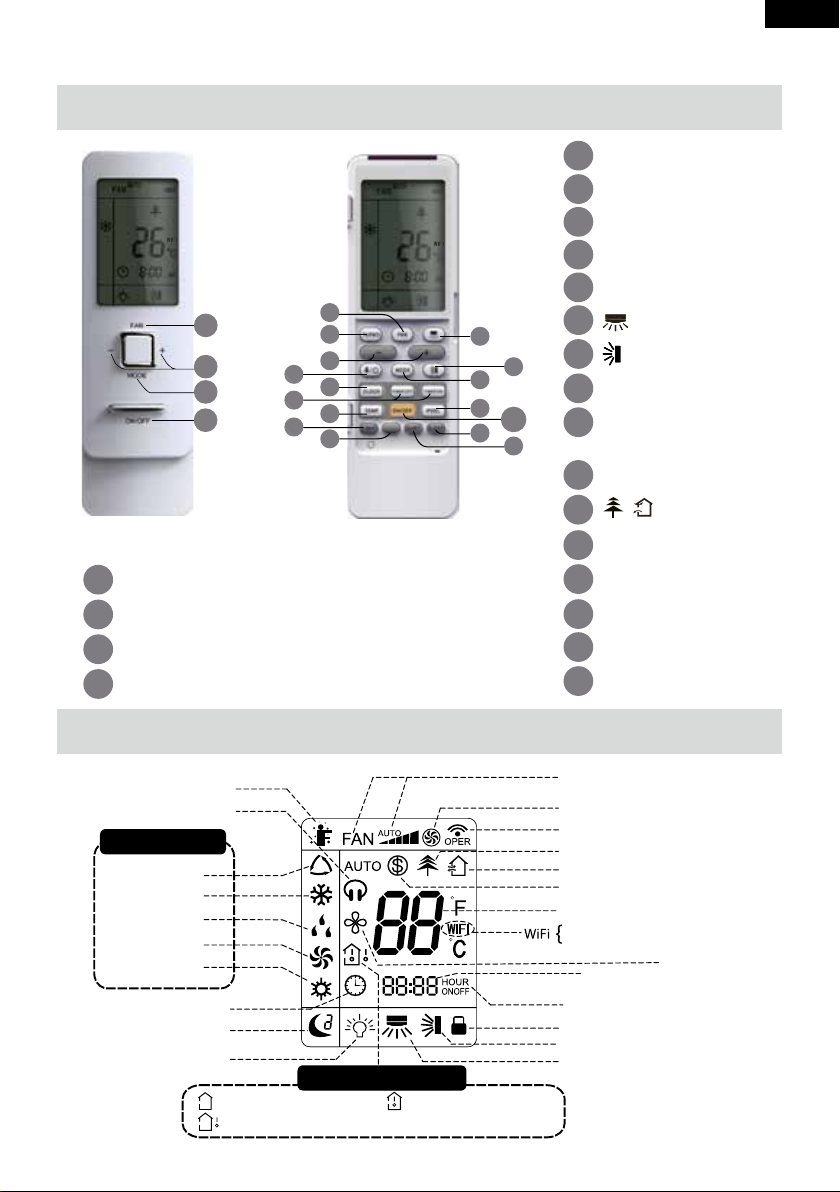

Buttons on remote controller ____________________________________________________________ 7
Introduction for icons on display screen___________________________________________________ 7
Introduction for buttons on remote controller _____________________________________________ 8
Introduction for special function ________________________________________________________ 14
Operation guide ______________________________________________________________________ 16

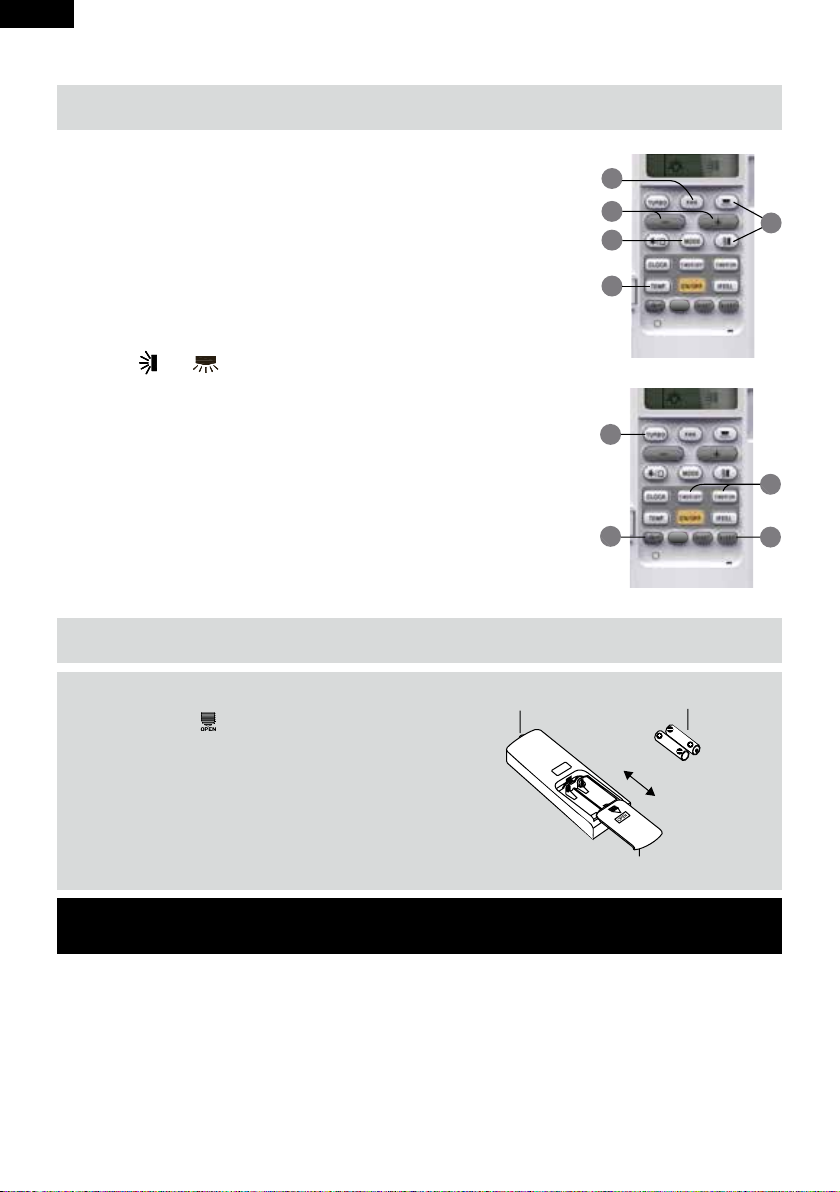

Replacement of batteries in remote controller ___________________________________________ 16
Emergency operation _________________________________________________________________ 17
Maintenance

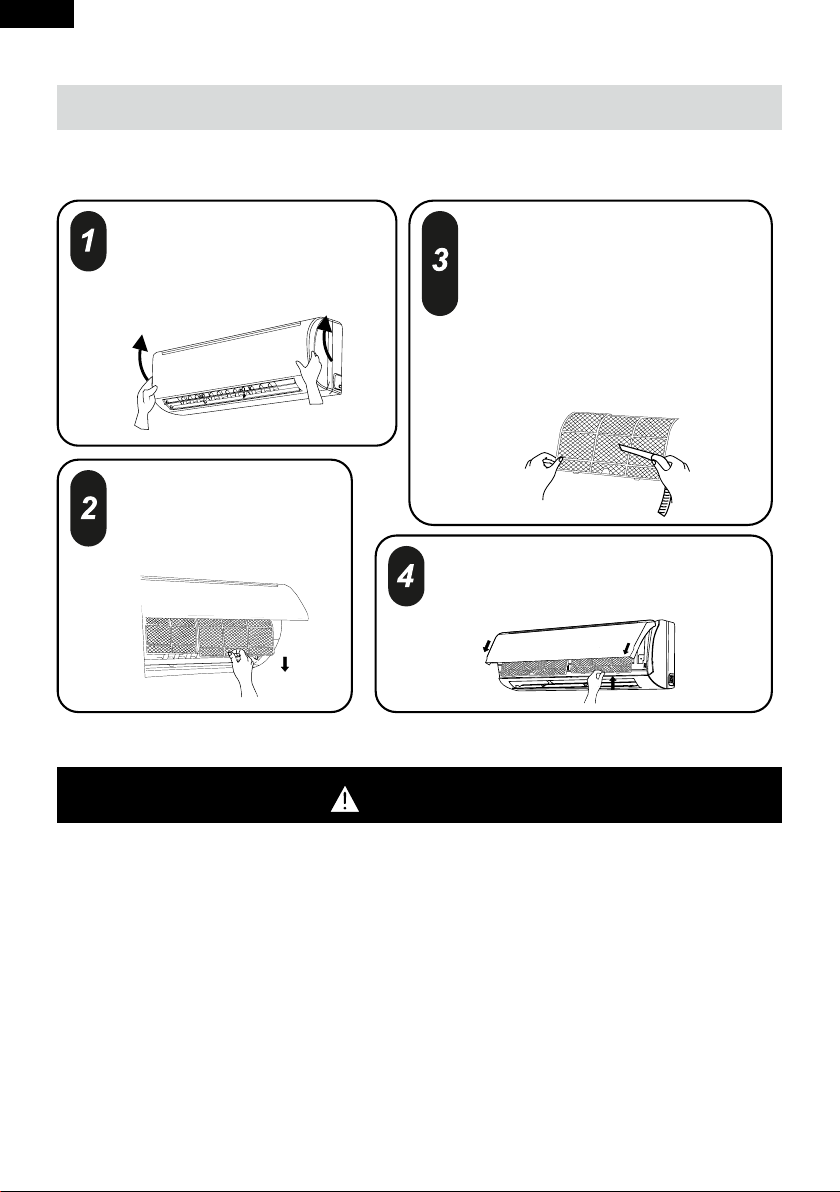

Clean and Maintenance ________________________________________________________________ 17
Malfunction
Malfunction analysis ___________________________________________________________________ 20
Installation Notice
Safety operation of flammable refrigerant________________________________________________ 24
Installation dimension diagram _________________________________________________________ 26
Safety precautions for installing and relocating the unit____________________________________ 27
Tools for installation ___________________________________________________________________ 28
Selection of installation location ________________________________________________________ 28
Requirements for electric connection ___________________________________________________ 29
Installation
Installation of indoor unit_______________________________________________________________ 30
Installation of outdoor unit _____________________________________________________________ 35
Check after installation ________________________________________________________________ 38
Test and operation
Test operation ________________________________________________________________________ 38
Attachment
Configuration of connection pipe _______________________________________________________ 39
Pipe expanding method _______________________________________________________________ 41
This appliance is not intended for use by persons (including children) with reduced physical,sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction con-
cerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure
that they do not play with the appliance.
1) Frequency band(s) in which the radio equipment operates: 2400MHz-2483.5MHz
2) Maximum radio-frequency power transmitted in the frequency band(s) in which the radio equipment opera-
tes: 20dBm
This marking indicates that this product should not be disposed with other household wastes
throughout the EU. To prevent possible harm to the environment or human health from uncontrol-
led waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.
To return your used device, please use the return and collection systems or contact the retailer
where the product was purchased. They can take this product for environmental safe recycling.
R32: 675
If it needs to install, move or maintain the air conditioner, please contact dealer or local service
center to conduct it at first. Air conditioner must be installed, moved or maintained by appointed
unit. Otherwise, it may cause serious damage or personal injury or death.
ENG

ENG
2
Explanation of Symbols
DANGER
Indicates a hazardous situation that, if not avoided, will result in death or serious injury.
WARNING
Indicates a hazardous situation that, if not avoided, could result in death or serious injury.
CAUTION
Indicates a hazardous situation that, if not avoided, may result in minor or moderate injury.
NOTICE
Indicates important but not hazard-related information, used to indicate risk of property damage.
Indicates a hazard that would be assigned a signal word WARNING or CAUTION.
Exception Clauses
Manufacturer will bear no responsibilities when personal injury or property
damage is caused by the following reasons.
1. Damage the product due to improper use or misuse of the product;
2. Alter, change, maintain or use the product with other equipment without abiding by the instruc-
tion manual of manufacturer;
3. After verification, the defect of product is directly caused by corrosive gas;
5. Operate, repair, maintain the unit without abiding by instruction manual or related regulations;
4. After verification, defects are due to improper operation during transportation of product;
6. After verification, the problem or dispute is caused by the quality specification or performance
of parts and components that produced by other manufacturers;
7. The damage is caused by natural calamities, bad using environment or force majeure.

ENG
3
Appliance filled with flammable gas R32.
Before use the appliance, read the owner’s manual first.
Before install the appliance, read the installation manual first.
Before repair the appliance, read the service manual first.
The Refrigerant
• To realize the function of the air conditioner unit, a special refrigerant circulates in the system.
The used refrigerant is the fluoride R32, which is specially cleaned. The refrigerant is flammable
and inodorous. Furthermore, it can leads to explosion under certain conditions. But the flamma-
bility of the refrigerant is very low. It can be ignited only by fire.
• Compared to common refrigerants, R32 is a nonpolluting refrigerant with no harm to the ozonos-
phere. The influence upon the greenhouse effect is also lower. R32 has got very good thermo-
dynamic features which lead to a really high energy efficiency. The units therefore need a less
filling.
WARNING:
Do not use means to accelerate the defrosting process or to clean, other than those recommended
by the manufacture. Should repair be necessary, contact your nea- rest authorized Service Centre.
Any repairs carried out by unqualified personnel may be dangerous. The appliance shall be stored
in a room without continuously operating ignition sources. (for example: open flames, an operating
gas appliance or an operating electric heater.) Do not pierce or burn.
Appliance shall be installed, operated and stored in a room with a floor area larger than X m2.
(Please refer to table “a” in section of “ Safety Operation of Inflammable Refrigerant” for Space X.)
Appliance filled with flammable gas R32. For repairs, strictly follow manufacturer’s instructions only.
Be aware that refrigrants not contain odour. Read specialist’s manual.

ENG
4
Precautions
WARNING
Operation and Maintenance
● This appliance can be used by children aged from 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand the hazards involved.
● Children shall not play with the appliance.
● Cleaning and user maintenance shall not be made by children without supervision.
● Do not connect air conditioner to multi-purpose socket. Otherwise, it may cause fire hazard.
● Do disconnect power supply when cleaning air conditioner. Otherwise, it may cause electric shock.
● If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
● Do not wash the air conditioner with water to avoid electric shock.
● Do not spray water on indoor unit. It may cause electric shock or malfunction.
● After removing the filter, do not touch fins to avoid injury.
● Do not use fire or hair dryer to dry the filter to avoid deformation or fire hazard.
● Maintenance must be performed by qualified professionals. Otherwise, it may cause personal injury or
damage.
● Do not repair air conditioner by yourself. It may cause electric shock or damage. Please contact dealer
when you need to repair air conditioner.
● Do not extend fingers or objects into air inlet or air outlet. It may cause personal injury or damage.
● Do not block air outlet or air inlet. It may cause malfunction.
● Do not spill water on the remote controller, otherwise the remote controller may be broken.
● When below phenomenon occurs, please turn off air conditioner and disconnect power immediately, and
then contact the dealer or qualified professionals for service.
• Power cord is overheating or damaged.
• There’s abnormal sound during operation.
• Circuit break trips off frequently.
• Air conditioner gives off burning smell.
• Indoor unit is leaking.
● If the air conditioner operates under abnormal conditions, it may cause malfunction, electric shock or fire
hazard.
● When turning on or turning off the unit by emergency operation switch, please press this switch with an
insulating object other than metal.
● Do not step on top panel of outdoor unit, or put heavy objects. It may cause damage or personal injury.
Attachment
● Installation must be performed by qualified professionals. Otherwise, it may cause personal injury
or damage.
● Must follow the electric safety regulations when installing the unit.
● According to the local safety regulations, use qualified power supply circuit and circuit break.
● Do install the circuit break. If not, it may cause malfunction.
● An all-pole disconnection switch having a contact separation of at least 3mm in all poles should be
connected in fixed wiring.

ENG
5
WARNING
Attachment
● Including an circuit break with suitable capacity, please note the following table. Air switch
should be included magnet buckle and heating buckle function, it can protect the circuit-short
and overload.
● Air Conditioner should be properly grounded. Incorrect grounding may cause electric shock.
● Don’t use unqualified power cord.
● Make sure the power supply matches with the requirement of air conditioner. Unstable power
supply or incorrect wiring or malfunction. Please install proper power supply cables before using
the air conditioner.
● Properly connect the live wire, neutral wire and grounding wire of power socket.
● Be sure to cut off the power supply before proceeding any work related to electricity and safety.
● Do not put through the power before finishing installation.
● If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar-
ly qualified persons in order to avoid a hazard.
● The temperature of refrigerant circuit will be high, please keep the interconnection cable away
from the copper tube.
● The appliance shall be installed in accordance with national wiring regulations.
● Installation must be performed in accordance with the requirement of NEC and CEC by authorized
personnel only.
● The air conditioner is the first class electric appliance. It must be properly grounding with spe-
cialized grounding device by a professional. Please make sure it is always grounded effectively,
otherwise it may cause electric shock.
● The yellow-green wire in air conditioner is grounding wire, which can’t be used for other purposes.
● The grounding resistance should comply with national electric safety regulations.
● The appliance must be positioned so that the plug is accessible.
● All wires of indoor unit and outdoor unit should be connected by a professional.
● If the length of power connection wire is insufficient, please contact the supplier for a new one.
Avoid extending the wire by yourself.
● For the air conditioner with plug, the plug should be reachable after finishing installation.
● For the air conditioner without plug, an circuit break must be installed in the line.
● If you need to relocate the air conditioner to another place, only the qualified person can perform
the work. Otherwise, it may cause personal injury or damage.
● Select a location which is out of reach for children and far away from animals or plants.If it is unavoi-
dable, please add the fence for safety purpose.
● The indoor unit should be installed close to the wall.
● Instructions for installation and use of this product are provided by the manufacturer.
Working temperature range
Indoor side DB/WB ( °C ) Outdoor side DB/WB ( °C )
Maximum cooling 32/23 52/32
Maximum heating 27/- 24/18
NOTICE:
● The operating temperature range (outdoor temperature) for cooling only unit is
-18°C ~ 52°C ; for heat pump unit is -30°C ~ 52°C .

ENG
6
NOTICE
air inlet
panel
filter
aux.button
horizontal louver
air outlet
temp. indicator
receiver window
(Display content or position may be different from
above graphics, please refer to actual products) remote control
Actual product may be different from above graphics, please refer to actual products.
Indoor Unit
Parts Name
power indicator

ENG
7
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
/
1
15
5
2
6
3
12
16
4
11
8
9
13
7
10
14
WiFi
1
2
3
4
3
4
2
1
ON/OFF button
FAN button
MODE button
+/- button
TURBO button
button
button
CLOCK button
TIMER ON /
TIMER OFF button
TEMP button
button
I FEEL button
LIGHT button
WiFi button
QUIET button
SLEEP button
I feel
Quiet
Operation mode
Auto mode
Cool mode
Dry mode
Fan mode
Heat mode
Clock
Sleep mode
Light Temp. display type
: Set temp.
: Outdoor ambient temp.
: Indoor ambient temp.
Set fan speed
Turbo mode
Send signal
Healthy mode
Scavenging functions
8°C heating function
Set temperature
This is a general remote controller. Some
models have this function while some
do not. Please refer to the actual models.
X-FAN function
Set time
TIMER ON/TIMER OFF
Child lock
Up & down swing
Left & right swing
Buttons on remote controller
Introduction for icons on display screen
ON/OFF button
FAN button
MODE button
+/- button
(before opening cover) (after opening cover)

ENG
8
Introduction for buttons on remote controller
Note:
● This is a general use remote controller, it could be used for the air conditioners with
multifunction; For some function, which the model don’t have, if press the corres-
ponding button on the remote controller that the unit will keep the original running
status.
● After putting through the power, the air conditioner will give out a sound. Operation
indicator “ “ is ON (red indicator). After that, you can operate the air conditioner by
using remote controller.
● Under on status, pressing the button on the remote controller, the signal icon “ “
on the display of remote controller will blink once and the air conditioner will give out a
“de” sound, which means the signal has been sent to the air conditioner.
● Under off status, set temperature and clock icon will be displayed on the display of remote
controller (If timer on, timer off and light functions are set, the corresponding icons will be
displayed on the display of remote controller at the same time); Under on status, the display
will show the corresponding set function icons.
1ON/OFF button
Press this button, the unit will be turned on, press it once more, the unit will be turned off.
Sleep function will be canceled, while unit off.
2FAN button
Press this button, Auto, Low, Medium-low, Medium, Medium-high, High speed can be
circularly selected. After powered on, Auto fan speed is default. Under DRY mode,
Low fan speed only can be set up.
Note:
● It’s Low fan speed under Dry mode.
● X-FAN function: Hold fan speed button for 2s in COOL or DRY mode, the icon ” ” is
displayed and the indoor fan will continue operation for a few minutes in order to dry the
indoor unit even though you have turned off the unit. After energization, X-FAN OFF is
defaulted. X-FAN is not available in AUTO, FAN or HEAT mode.
This function indicates that moisture on evaporator of indoor unit will be blowed
after the unit is stopped to avoid mould.
• Having set X-FAN function on: After turning off the unit by pressing ON/OFF
button indoor fan will continue running for a few minutes. at low speed. In this
period, Hold fan speed button for 2s to stop indoor fandirectly.
• Having set X-FAN function off: After turning off the unit by pressing ON/OFF
button, the complete unit will be off directly.
Auto
Low fan Low-Medium fan Medium fan
Medium-High fan High fan

ENG
9
Introduction for buttons on remote controller
3MODE button
Press this button, Auto, Cool, Dry, Fan, Heat mode can be selected circularly. Auto mode is
default while power on. Under Heat mode, the initial value is 28°C (82°F). Under other modes,
the initial value is 25°C (77°F).
AUTO COOL DRY FAN HEAT
(only for cooling and heating unit. As for cooling only unit, it won’t have any action
when it receives the signal of heating operation.)
4+/- button
Press ” + ” or ” - ” button once increase or decrease set temperature 1°C(°F).
Holding ” + ” or ” - ” button, set temperature on remote controller will change
quickly. On releasing button after setting is finished, temperature indicator
on indoor unit will change accordingly.
When setting TIMER ON, TIMER OFF or CLOCK, press ” + ” or ” - ” button to
adjust time. (Refer to CLOCK, TIMER ON, TIMER OFF buttons).
5TURBO button
Under Cool or Heat mode, press this button can turn on or turn off the Turbo function.
After the Turbo function turned on, the signal of Turbo will display. The signal will be
automatically cancelled if changing the mode or fan speed.
6button
Press this button to set left & right swing angle cycling as below:
ǃǃǃǃ
ǃǃ
7button
Press this button to set swing angle, which circularly changes as below:
ǃǃǃǃ
ǃǃ
This remote controller is universal. If it receives threes kinds of following status, the swing
angle will remain original.
If guide louver is stopped when it is swinging up and down, it will remian its present position.
indicates guide louver swings back and forth in the five places, as shown in the figure.
OFF
OFF

ENG
10
Introduction for buttons on remote controller

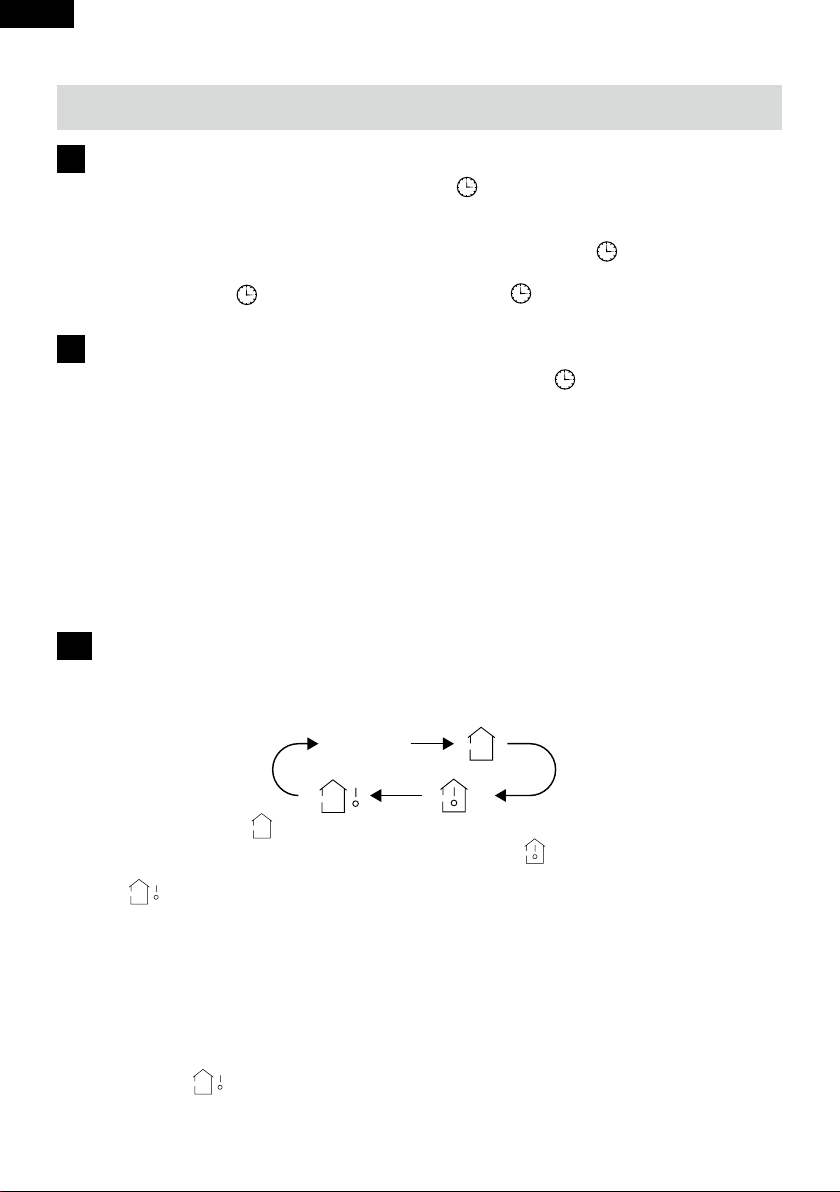

8CLOCK button
Press this button, the clock can be set up, signal blink and display. Within 5 seconds,
the value can be adjusted by pressing + or - button, if continuously press this button for 2
seconds above, in every 0.5 seconds, the value on ten place of Minute will be increased 1.
During blinking, repress the Clock button or Confirm button, signal will be constantly
displayed and it denotes the setting succeeded. After powered on, 12:00 is defaulted to
display and signal will be displayed. If there is signal be displayed that denotes
the current time value is Clock value, otherwise is Timer value.
9TIMER ON / TIMER OFF button
•Timer On setting: Signal “ON” will blink and display, signal will conceal, the numerical
section will become the timer on setting status. During 5 seconds blink, by pressing + or -
button to adjust the time value of numerical section, every press of that button, the value
will be increased or decreased 1 minute. Hold pressing + or - button, 2 seconds later, it
quickly change, the way of change is: During the initial 2.5 seconds, ten numbers change
in the one place of minute, then the one place is constant, ten numbers change in the tens
place of minu te at 2.5 seconds speed and carry. During 5s blink, press the Timer button,
the timer setting succeeds. The Timer On has been set up, repress the timer button,
the Timer On will be canceled. Before sett ing the Timer, please adjust the Clock to the
current actual time.
•One press this key to enter into TIMER OFF setup, in which case the TIMER OFF icon will
blink. The method of setting is the sameas for TIMER ON.
10 TEMP button
•Press this button, you can see indoor set temperature, indoor ambient temperature or
outdoor ambient temperature on indoor unit’s display. The setting on remote controller is
selected circularly as below:
•When selecting “ “ with remote controller or no display, temperature indicator on
indoor unit displays set temperature; When selecting “ “ with remote controller, tem-
perature indicator on indoor unit displays indoor ambient temperature; When selecting
““ with remote controller, temperature indicator on indoor unit displays outdoor
ambient temperature. 3s later it will return to the setting temprature or it depends on the
other received signal within 3s.
Attention: When displaying the outdoor ambient, the displaying range is 0-60°C. When it
goes beyond the range, it keeps the threshold data (the smallest – 0°C and the largest 60°C).
Warm tips: When operating buttons on the cover please make sure the cover is closed
completely.
Note:
•Outdoor temperature display is not available for some models. At that time, indoor unit
receives “ “ signal, while it displays indoor set temperature.
no display

ENG
11
Introduction for buttons on remote controller
11 button
Press this button to achieve the on and off of healthy and scavenging functions in operation
status. Press this button for the first time to start scavenging function; LCD displays ” ”.
Press the button for the second time to start healthy and scavenging functions simulta-
neously; LCD displays ” ” and ” ”. Press this button for the third time to quit healthy and
scavenging functions simultaneously. Press the button for the fourth time to start healthy
function; LCD display ” ” . Press this button again to repeat the operation above.
Note:
•This function is applicable to partial of models.
12 I FEEL button
Press this button once, to turn on the I FEEL function, then the figure of ”I FEEL” will be
displayed, after every press of other function button, every 200ms to send I FEEL once, after
this function started, the remote controller will send temperature to the main un it in every
10 minutes. When repress this button, this function will be turned off. When I FEEL function
is turned on, the remote controller should be put within the area where indoor unit can recei-
ve the signal sent by the remote controller.
13 LIGHT button
Press this button at unit On or Off status, Light On and Light Off can be set up.
After powered on, Light On is defaulted.
14 WiFi button
Press ” WiFi ” button to turn on or turn off WiFi function. When WiFi function is turned on,
the ” WiFi ” icon will be displayed on remote controller; Under status of remote controller
off, press ”MODE” and ” WiFi ” buttons simultaneously for 1s, WiFi module will restore to
factory default setting.
Note:
•This function is only available for some models.
15 QUIET button
Press this button, the Quiet status is under the Auto Quiet mode (display ” “ and ”Auto”
signal) and Quiet mode (display ” “ singal) and Quiet OFF (there is no signal of “ “
displayed), after powered on, the Quiet OFF is defaulted. Under the Quiet mode
(Display “ “ signal).
Note:
•The Quiet function is only available for some models.

ENG
12
Introduction for buttons on remote controller
16 SLEEP button
● Press this button, can select Sleep 1 ( ), Sleep 2 ( ), Sleep 3 ( ) and cancel
the Sleep, circulate between these, after electrified, Sleep Cancel is defaulted.
● Sleep 1 is Sleep mode 1, in Cool modes: sleep status after run for one hour, the main
unit setting temperature will increase 1°C, 2 hours, setting temperature increased
2°C, the unit will run at this setting temperature; In Heat mode:sleep status after run
for one hour, the setting temperature will decrease 1°C, 2 hours, setting temperature
will decrease 2°C, then the unit will run at this setting temperature.
● Sleep 2 is sleep mode 2, that is air conditioner will run according to the presettinga
group of sleep temperature curve.
In Cool mode:
(1) When setting the initial temperature 16°C-23°C, after turned on Sleep function, the
temperature will be increased 1°C in every hour, after 3°C the temperature will be
maintained, after 7hours, the temperature will be decreased 1°C, after that the unit
will keep on running under this temperature;
(2) When setting the initial temperature 24°C-27°C, after turned on Sleep function, the
temperature will be increased 1°C in every hour, after 2°C the temperature will be
maintained, after 7hours, the temperature will be decreased 1°C, after that the unit
will keep on running under this temperature;
(3) When setting the initial temperature 28°C-29°C, after turned on Sleep function,the
temperature will be increased 1°C in every hour, after 1°C the temperature will be
maintained, after 7hours, the temperature will be decreased 1°C, after that the unit
will keep on running under this temperature;
(4) When setting the initial temperature 30°C, under this temperature setting, after
7hours, the temperature will be decreased 1°C, after that the unit will keep on run-
ning under this temperature;
In Heat mode:
(1) Under the initial presetting temperature 16°C, it will run under this setting tempera-
ture all along.
(2) Under the initial presetting temperature17°C-20°C, after Sleep function started up,
the temperature will decrease 1°C in every hour, after 1°C decreased, this tempera-
ture will be maintained.
(3) Under the initial presetting temperature 21°C-27°C, after Sleep function started up,
the temperature will decrease 1°C in every hour, after 2°C decreased, this tempera-
ture will be maintained.
(4) Under the initial presetting temperature 28°C-30°C, after Sleep function started up,
the temperature will decrease 1°C in every hour, after 3°C decreased, this tempera-
ture will be maintained.

ENG
13
Introduction for buttons on remote controller
● Sleep 3 - the sleep curve setting under Sleep mode by DIY:
(1) Under Sleep 3 mode, press ”Turbo” button for a long time, remote controller enters
into user individuation sleep setting status, at this time, the time of remote controller
will display ”1hour”, the setting temperature ”88” will display the corresponding
temperature of last setting sleep curve and blink (The first entering will display
according to the initial curve setting value of original factory);
(2) Adjust ”+” and ”-” button, could change the corresponding setting temperature,
after adjusted, press ”Trubo” button for confirmation;
(3) At this time, 1hour will be automatically increased at the timer postion on the remote
controller, (that are ”2hours” or ”3hours” or ”8hours”), the place of setting tempera-
ture ”88” will display the corresponding temperature of last setting sleep curve and
blink;
(4) Repeat the above step (2)~(3) operation, until 8hours temperature setting finished,
sleep curve setting finished, at this time, the remote controller will resume the origi-
nal timer display; temperature display will resume to original setting temperature.
● Sleep 3 - the sleep curve setting under Sleep mode by DIY could be inquired:
The user could accord to sleep curve setting method to inquire the presetting sleep
curve, enter into user individuation sleep setting status, but do not change the tem-
perature, press ”Turbo” button directly for confirmation.
Note:
•In the above presetting or enquiry procedure, if continuously within10s, there is no
button pressed, the sleep curve setting status will be automatically quit and resume
to display the original displaying. In the presetting or enquiry procedure, press
”ON/OFF” button, ”Mode” button, ”Timer” button or ”Sleep” button, the sleep
curve setting or enquiry status will quit similarly.

ENG
14
Introduction for special function
About AUTO RUN
When AUTO RUN mode is selected, the unit will be in accordance with the room temp.
automatically to select the suitable running method and to make ambient comfortable.
About turbo function
If start this function, the unit will run at super-high fan speed to cool or heat quickly so that the
ambient temp. approachs the preset temp. as soon as possible.
About lock
Press + and - buttons simultaneously to lock or unlock the keyboard. If the remote controller is
locked, the icon ” ” will be displayed on it, in which case, press any button, the mark will flicker
for three times. If the keyboard is unlocked, the mark will disappear.
About swing up and down
1. Press swing up and down button continuously more than 2s, the m ain unit will swing ackand
forth from up to down , and then loosen the button, the unit will stop swing and present posi-
tion of guide louver will be kept immediately.
2. Under swing up and down mode, when the status is switched from off to , if press this but-
ton again 2s later, status will switch to off status directly; If press this button again within
2s, the change of swing status will also depend on the circulation sequence stated above.
About swing left and right
1. Press swing left and right button continuously more than 2s, the main unit will swing back
and forth from left to right, and then loosen the button, the unit will stop swing and present
position of guide louver will be kept immediately.
2. Under swing left and right mode, when the status is switched from off to , if press this
button again 2s later, status will switch to off status directly; if press this button again
within 2s, the change of swing status will also depend on the circulation sequence stated
above.

ENG
15
Introduction for special function
About switch between Fahrenheit and Centigrade
Under status of unit off, press MODE and – buttons simultaneously to switch °C and °F.
Combination of ”TEMP” and ”CLOCK” buttons:
About Energy – saving Function
Press “TEMP” and “CLOCK” simultaneously in COOL mode to start energy-saving function.
Nixie tube on the remote controller displays “SE”. Repeat the operation to quit the function.
About Quiet function
When quiet function is selected:
1. Under cooling mode: indoor fan operates at notch 4 speed. 10 minutes later or when indoor
ambient temperature ≤28°C, indoor fan will operate at notch 2 speed or quiet mode accor-
ding to the comparison between indoor ambinet temperature and set temperature.
2. Under heating mode: indoor fan operates at notch 3 speed or quiet mode according to the
comparison between indoor ambient temperature and set temperature.
3. Under dry, fan mode: indoor fan operates at quiet mode.
4. Under auto mode: the indoor fan operates at the auto quiet mode according to actual
cooling, heating or fan mode.
About Sleep function
Under the Fan, Dry and Auto mode, the Sleep function cannot be set up, Select and enter into
any kind of Sleep mode, the Quiet function will be attached and stared, different Quiet status
could be optional and turned off.

ENG
16
Operation guide
General operation
1. After powered on, press ON/OFF button, the unit will start to run.
(Note: When it is powered on, the guide louver of main unit will
close automatically.)
2.Press MODE button, select desired running mode.
3. Pressing + or - button, to set the desired temperature.
4. Pressing FAN button, set fan speed, can select AUTO FAN,
LOW, MEDIUM-LOW, MEDIUM, MEDIUM-HIGH and HIGH.
5. Pressing and button, to select the swing.
Optional operation
1. Press SLEEP button, to set sleep.
2.Press TIMER ON and TIMER OFF button, can set the scheduled timer
on or timer off.
3. Press LIGHT button, to control the on and off of the displaying part
of the unit (This function may be not available for some units).
4. Press TURBO button, can realize the ON and OFF of TURBO function.
Replacement of batteries in remote controller
NOTICE
• During operation, point the remote control signal sender at the receiving window on indoor unit.
• The distance between signal sender and receiving window should be no more than 8m, and
there should be no obstacles between them.
• Signal may be interfered easily in the room where there is fiuorescent lamp or wireless telepho-
ne; remote controller should be close to indoor unit during operation.
• Replace new batteries of the same model when replacement is required.
• When you don’t use remote controller for a long time, please take out the batteries.
• If the display on remote controller is fuzzy or there’s no display, please replace batteries.
1. Press the back side of remote controller
marked with “ “, as shown in the fig, and
then push out the cover of battery box along
the arrow direction.
2. Replace two 7# (AAA 1.5V) dry batteries, and
make sure the position of “+” polar and “-”
polar are correct.
3. Reinstall the cover of battery box.
4
3
1
2
WiFi
4
3WiFi
5
1
2
4
3
1
2
WiFi
4
3WiFi
5
1
2
signal sender battery
remove
reinstall
cover of battery box

ENG
17
Emergency operation
If remote controller is lost or damaged, please use auxiliary button to turn on or turn off the air
conditioner. The operation in details are as below: As shown in the fig. Open panel, press aux.
button to turn on or turn off the air conditioner. When the air conditioner is turned on, it will
operate under auto mode.
WARNING
Use insulated object to press the auto button
Clean and maintenance
WARNING
• Turn off the air conditioner and disconnect the power before cleaning the air conditioner to
avoid electric shock.
• Do not wash the air conditioner with water to avoid electric shock.
• Do not use volatile liquid to clean the air conditioner.
Clean surface of indoor unit
When the surface of indoor unit is dirty, it is recommended to use a soft dry cloth or
wet cloth to wipe it.
NOTICE
• Do not remove the panel when cleaning it.
panel aux. button

ENG
18
Clean and maintenance
Clean Filter
WARNING
• The filter should be cleaned every three months. If there is much dust in the operation environ-
ment, clean frequency can be increased.
• After removing the filter, do not touch fins to avoid injury.
• Do not use fire or hair dryer to dry the filter to avoid deformation or fire hazard.
Clean Filter
• Use dust catcher or wather to
clean the filter
• the water (below 45°C ) to
clean it, and then put it in a
shady and cool place to dry.
Open panel
Pull out the panel to a certain
angle as shown in the fig.
Remove filter
Remove the filter as
indicated in the fig.
Install filter
Install the filter and then close the
panel cover tightly.
