Innova X90NI User manual
Tack för att du valde ett INNOVA luftkonditioneringsagreggat.
För korrekt användning, läs denna bruksanvisning noggrant innan enheten tas i drift och förvara den lättåtkomligt för senare bruk.
MANUAL/
BRUKSANVISNING/
KÄYTTÖOHJE/
INSTRUKCJA UZYTKOWNIKA
INNOVA – X90NI (Indoor unit)
INNOVA – X90NO (Outdoor unit)
INNOVA – X120NI (Indoor unit)
INNOVA – X120NO (Outdoor unit)
Kiitämme ilmastointilaitteen hankinnasta.
Jotta laite toimisi oikein, lue käyttöohje huolellisesti ja säästä se myöhempää tarvetta varten.
Thank you for choosing INNOVA air conditioner.
For correct operation, please read this owner’s manual carefully before operating the unit and keeps it carefully for consultation.
Dziękujemy za wybór klimatyzatora INNOVA.
W celu zapewnienia prawidłowego działania prosimy o uważne przeczytanie instrukcji użytkownika przed uruchomie-
niem jednostki. Prosimy również o przechowywanie instrukcji użytkownika celem ewentualnej porady technicznej.
Ƶ
Ƶ
Ƶ
Ƶ
Ƶ
Ƶ
Ƶ
Ƶ
Ƶ
Ƶ
Ƶ
CONTENTS
Operation and maintenance
Notices for operation
Notices for use
Names and functions of each

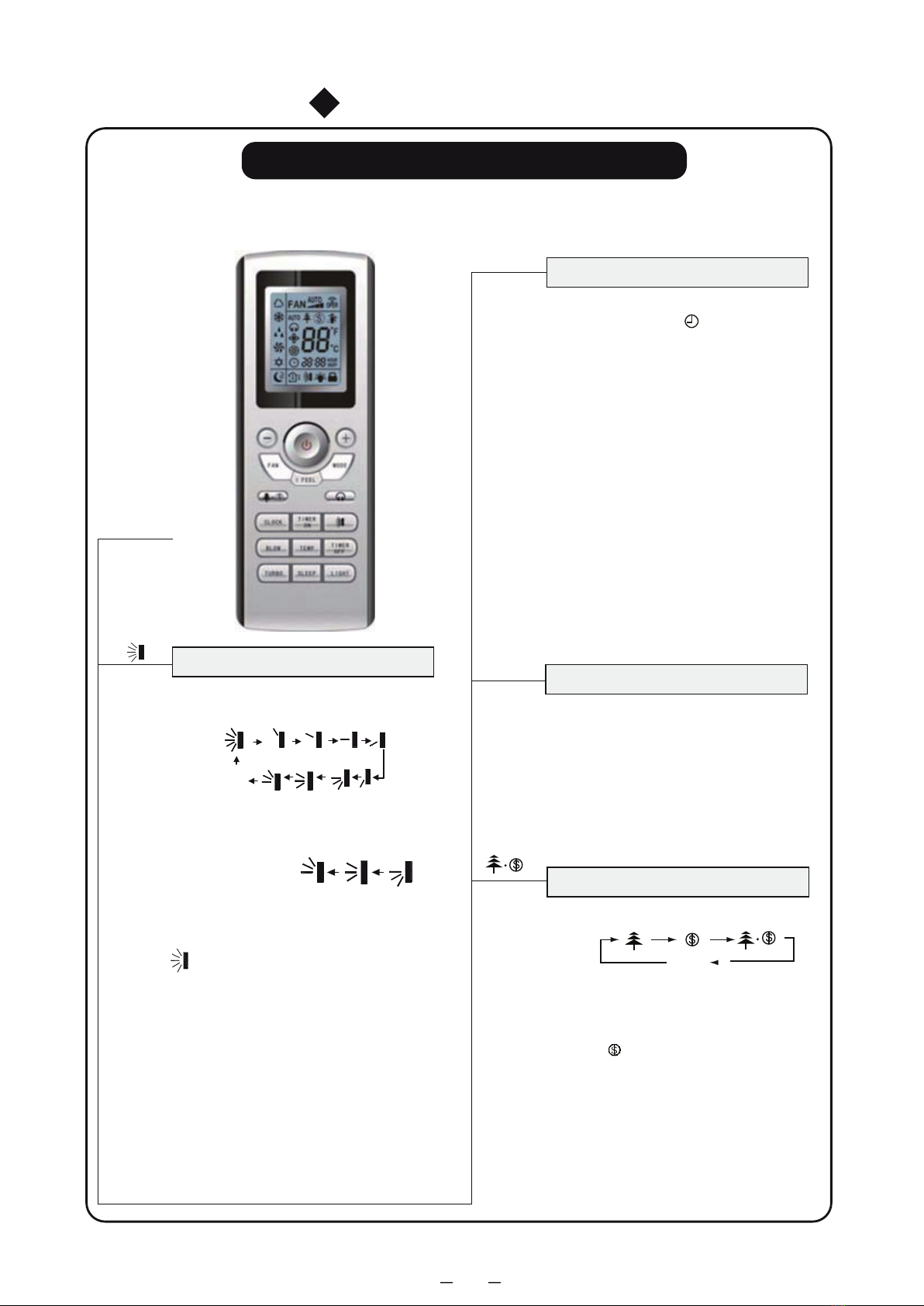

ƵOperation of wireless remote control
Clean and care
Troubleshooting
Installation service
Notices for installation
Installation dimension diagram
Install indoor unit
Install outdoor unit
Test operation and check after installation
This symbol stands for the items
should be forbidden.
This symbol stands for the items
should be followed
The figures in this manual may be different with the material objects,please refer
to the material jobjects for reference.
Emergency operation
ƾƾƾ
ƾƾ
ƾDon't pull the power cord
ƾ
ƾ
220-240V~ 50Hz
ƾ
Operation and maintenance-notices for operation
Please read the following carefully before operating.
WARNING
The power supply must be
inserted tightly.
Otherwise, it can cause an
electric shock, overheating
or fire.
Don't pull out the power
supply during operating.
It can cause an electric shock
or fire.
Never splice the power cord
or use an extended cord.
It can cause overheating or fire.
Don't use longer power lines
and don't share a same socket.
It can cause an electric shock
or fire.
Don't operate the air
conditioner with wet hands.
It can cause an electric shock.
to pull out the power supply.
It can cause an electric shock
or fire.
When cleaning, it is nece-
ssary to stop driving and turn
off the power supply.
It can cause the electric shock.
When having a burning smell
or smoke, please turn off the power
supply and contact with the service
center.
If the abnormity still exists, the unit
may be damaged, and may cause
electric shock or fire.
The air conditioner should be operated
with the voltage fluctuation, when the
voltage is very low, the compressor
vibrates terribly and that will damage
the refrigerant system.
Ƶ
Ƶ
Ƶ
Ƶ
Ƶ
Ƶ
Ƶ
Ƶ
Ƶ
Ƶ
Ƶ
CONTENTS
Operation and maintenance
Notices for operation
Notices for use
Names and functions of each
ƵOperation of wireless remote control
Clean and care
Troubleshooting
Installation service
Notices for installation
Installation dimension diagram
Install indoor unit
Install outdoor unit
Test operation and check after installation
This symbol stands for the items
should be forbidden.
This symbol stands for the items
should be followed
The figures in this manual may be different with the material objects,please refer
to the material jobjects for reference.
Emergency operation
ƾƾƾ
ƾƾ
ƾDon't pull the power cord
ƾ
ƾ
220-240V~ 50Hz
ƾ
Operation and maintenance-notices for operation
Please read the following carefully before operating.
WARNING
The power supply must be
inserted tightly.
Otherwise, it can cause an
electric shock, overheating
or fire.
Don't pull out the power
supply during operating.
It can cause an electric shock
or fire.
Never splice the power cord
or use an extended cord.
It can cause overheating or fire.
Don't use longer power lines
and don't share a same socket.
It can cause an electric shock
or fire.
Don't operate the air
conditioner with wet hands.
It can cause an electric shock.
to pull out the power supply.
It can cause an electric shock
or fire.
When cleaning, it is nece-
ssary to stop driving and turn
off the power supply.
It can cause the electric shock.
When having a burning smell
or smoke, please turn off the power
supply and contact with the service
center.
If the abnormity still exists, the unit
may be damaged, and may cause
electric shock or fire.
The air conditioner should be operated
with the voltage fluctuation, when the
voltage is very low, the compressor
vibrates terribly and that will damage
the refrigerant system.
Notices for operation
Earth: The ground
be connected!
If not, please ask the qualified person-
nel to install. Furthermore, don't conn-
ect each wire to the gas pipe, water
pipe, drainage pipe or any other impr-
oper places.
supply when not using the air
connditioner for a long time.
Otherwise, the accumulated dust
may cause fire or electric shock.
Select the most appropriate tem-
perature.
Keep room cool-
er than outside
about 5 degree.
It can preclude the electricity wasted.
Don't leave windows and
doors open for a long time
while operating the air conditioner.
It can decrease the air conditioning
capacity.
Don't block the air intake or outlet
vents of both the outdoor and indoor
units.
It can decrease the air conditioning
capacity or cause a malfunction.
Keep combustible spray away
from the units more than 1m.
It can cause afire or explosion.
If it is damaged, it may lead to
the fall of the unit and cause
the injury.
Please note whether the installed
stand is firm enough or not.
Don't step on the top of the
outdoor unit or place something
on it.
As falling off the outdoor unit
can be dangerous.
Don't attempt to repair
the air conditioner by yourself.
The wrong repair will lead to
an electric shock or fire, so
you should contact the service
center to repair.
ƾ
ƾ
ƾ
ƾƾBe sure to disconnect power
ƾ
ƾƾ
ƾ
ƾ
ƾ
ƾ
ƾ
ƾ
ƾ
ƾ
ƾ
Notices for operation
The power cords of this air conditioner adopt
Y-type connection, please don't cut off or damage
the power cords and control cords. If they are
damaged, please ask the qualified personnel to
change them.
The airflow direction can be adjusted appro-
priately. At operating, adjust the vertical airflow
direction by adjusting the louvers of upward/do-
wnward direction.
Louver of left/right direction Louver of upward/
downward direction.
Don't insert your hands or stick into the air
intake or outlet vents.
Otherwise it will cause accident.
Don't blow the wind to animals and plants
directly. It can cause a bad influence to them.
Don't apply the cold wind to the body for a
long time.
It can cause the health problems.
Don't use the air conditioner for other purposes,
such as drying clothes, preserving foods, etc.
Splashing water on the air conditioner can
cause an electric shock and malfunction.
Don't place a space heater near the air
conditioner.
Or CO toxicosis may occur for imcomplete burning.
Notices for operation
Earth: The ground
be connected!
If not, please ask the qualified person-
nel to install. Furthermore, don't conn-
ect each wire to the gas pipe, water
pipe, drainage pipe or any other impr-
oper places.
supply when not using the air
connditioner for a long time.
Otherwise, the accumulated dust
may cause fire or electric shock.
Select the most appropriate tem-
perature.
Keep room cool-
er than outside
about 5 degree.
It can preclude the electricity wasted.
Don't leave windows and
doors open for a long time
while operating the air conditioner.
It can decrease the air conditioning
capacity.
Don't block the air intake or outlet
vents of both the outdoor and indoor
units.
It can decrease the air conditioning
capacity or cause a malfunction.
Keep combustible spray away
from the units more than 1m.
It can cause afire or explosion.
If it is damaged, it may lead to
the fall of the unit and cause
the injury.
Please note whether the installed
stand is firm enough or not.
Don't step on the top of the
outdoor unit or place something
on it.
As falling off the outdoor unit
can be dangerous.
Don't attempt to repair
the air conditioner by yourself.
The wrong repair will lead to
an electric shock or fire, so
you should contact the service
center to repair.
ƾ
ƾ
ƾ
ƾƾBe sure to disconnect power
ƾ
ƾƾ
ƾ
ƾ
ƾ
ƾ
ƾ
ƾ
ƾ
ƾ
ƾ
Notices for operation
The power cords of this air conditioner adopt
Y-type connection, please don't cut off or damage
the power cords and control cords. If they are
damaged, please ask the qualified personnel to
change them.
The airflow direction can be adjusted appro-
priately. At operating, adjust the vertical airflow
direction by adjusting the louvers of upward/do-
wnward direction.
Louver of left/right direction Louver of upward/
downward direction.
Don't insert your hands or stick into the air
intake or outlet vents.
Otherwise it will cause accident.
Don't blow the wind to animals and plants
directly. It can cause a bad influence to them.
Don't apply the cold wind to the body for a
long time.
It can cause the health problems.
Don't use the air conditioner for other purposes,
such as drying clothes, preserving foods, etc.
Splashing water on the air conditioner can
cause an electric shock and malfunction.
Don't place a space heater near the air
conditioner.
Or CO toxicosis may occur for imcomplete burning.
If outdoor temperature got lower, please operate with the other heating ventilating
equipments.
When outdoor temperature is low but high humidity, after a long while running, frost will
form in heat exchanger of outdoor unit, which effects heating effect, at this time, auto
defrosting function will act, the heat running will stop for 3-12mins.
During the auto defrosting, the fan motors of indoor unit and outdoor unit will stop.
Notices for use
Working principle and special functions for cooling
Principle:
Air conditioner absorbs heat from indoors and then transmit it outdoors for discharging,
so that indoor ambient temperature can be decreased.By this principle,its heating capacity
will decrease with the increase of outdoor ambient temperature.
Anti-freezing function:
If the unit is running in COOL mode with low temperature, there will be frost formed
on the heat exchanger, when indoor heat exchanger temperature is decreased below 0
degree, the indoor unit microcomputer will stop compressor and outdoor fan running to
protect the unit.
Working principle and special functions for heating
Principle:
Air conditioner absorbs heat from outdoors and then transmit it intdoors for discharging,
so that indoor ambient temperature can be increased.By this principle,its heating capacity
will decrease with the decrease of outdoor ambient temperature.
This heating air circulation system can enhance the indoor temperature in a short time.
Defrosting:
During the defrosting, the indoor unit setting temperature displays H1, �the outdoor
unit may emit vapor. which is due to the defrosting, it isn't malfunction.
After defrosting finished,the heating will recover automatically.
Please do not manually adjust the guide louver board angle. After adjusted, the guide
louver board may not close fully. At this time, it is need to pull out the power plug
of the air conditioner, then wait for 10s later, reinsert the power plug, the guide
Angle of air guide
louver board can reset.
ć
ć
ć
ć
ć
ć
Notices for use
Anti-cool wind function:
In "Heat" mode, under the following three kinds of state, if indoor heat exchanger
doesn't arrive at certain temp., indoor fan will not act, in order to prevent cool wind
blowing(within 2 mins):
1. Heating starts 2.After Auto Defrost finished 3.Heating under the low temperature
The conditions of unit can't normally run
The following temperature range protection device may act, that may cause stop running.
"HEAT"
running
Outdoor temp.
above
Outdoor temp.
below
Indoor temp.
above
"COOL"
running
Outdoor temp.
above
Indoor temp.
below
"DRY"
running Indoor temp.
below
Under the relative humidity above 80% (doors and windows opened) when cooling or
dehumidifying for a long time, there will be dew dripping off near the air outlet.
Gentle Breeze
In the following situation, the indoor unit may blow gentle breeze,
and the guide louver rotate to a certain position:
1. In “Heat” mode, the unit turned on, the compressor doesn’t arrive the starting condition;
2. In “Heat” mode, the temperature arrive at the setting value and the compressor
stop running about 1min.
Under COOL mode, when selecting and entering "Auto Quiet Design" function, within the
initial 10mins, the noise may loud.
Quiet Design:
If outdoor temperature got lower, please operate with the other heating ventilating
equipments.
When outdoor temperature is low but high humidity, after a long while running, frost will
form in heat exchanger of outdoor unit, which effects heating effect, at this time, auto
defrosting function will act, the heat running will stop for 3-12mins.
During the auto defrosting, the fan motors of indoor unit and outdoor unit will stop.
Notices for use
Working principle and special functions for cooling
Principle:
Air conditioner absorbs heat from indoors and then transmit it outdoors for discharging,
so that indoor ambient temperature can be decreased.By this principle,its heating capacity
will decrease with the increase of outdoor ambient temperature.
Anti-freezing function:
If the unit is running in COOL mode with low temperature, there will be frost formed
on the heat exchanger, when indoor heat exchanger temperature is decreased below 0
degree, the indoor unit microcomputer will stop compressor and outdoor fan running to
protect the unit.
Working principle and special functions for heating
Principle:
Air conditioner absorbs heat from outdoors and then transmit it intdoors for discharging,
so that indoor ambient temperature can be increased.By this principle,its heating capacity
will decrease with the decrease of outdoor ambient temperature.
This heating air circulation system can enhance the indoor temperature in a short time.
Defrosting:
During the defrosting, the indoor unit setting temperature displays H1, �the outdoor
unit may emit vapor. which is due to the defrosting, it isn't malfunction.
After defrosting finished,the heating will recover automatically.
Please do not manually adjust the guide louver board angle. After adjusted, the guide
louver board may not close fully. At this time, it is need to pull out the power plug
of the air conditioner, then wait for 10s later, reinsert the power plug, the guide
Angle of air guide
louver board can reset.
ć
ć
ć
ć
ć
ć
Notices for use
Anti-cool wind function:
In "Heat" mode, under the following three kinds of state, if indoor heat exchanger
doesn't arrive at certain temp., indoor fan will not act, in order to prevent cool wind
blowing(within 2 mins):
1. Heating starts 2.After Auto Defrost finished 3.Heating under the low temperature
The conditions of unit can't normally run
The following temperature range protection device may act, that may cause stop running.
"HEAT"
running
Outdoor temp.
above
Outdoor temp.
below
Indoor temp.
above
"COOL"
running
Outdoor temp.
above
Indoor temp.
below
"DRY"
running Indoor temp.
below
Under the relative humidity above 80% (doors and windows opened) when cooling or
dehumidifying for a long time, there will be dew dripping off near the air outlet.
Gentle Breeze
In the following situation, the indoor unit may blow gentle breeze,
and the guide louver rotate to a certain position:
1. In “Heat” mode, the unit turned on, the compressor doesn’t arrive the starting condition;
2. In “Heat” mode, the temperature arrive at the setting value and the compressor
stop running about 1min.
Under COOL mode, when selecting and entering "Auto Quiet Design" function, within the
initial 10mins, the noise may loud.
Quiet Design:
Ņ
ńņ
Ň
ň
Ń
Ł
ʼn
ł
ņ
Ņ
ł
ň
ʼn
ń
Ň
Ń
Ł
Names and functions of each part
Indoor unit
Air in
Air out
Outdoor unit
Wireless
remote control
Air in
Air out
Power plug
Displayer
Front panel
Filter
Guide louver
Wall pipe
Bind tape
Connection wire
Drainage pipe
Slient
CoolHeat
Set Temp
Power/
Run
Sleep
Receiver
Wind Speed
7
Name and function of wireless remote control
ON/OFF button
Remote control
Signal transmitter
AUTO
COOL
DRY
FAN
(only for cooling and heating unit)
Don't drop or throw the remote control; Don't let any liquid in the remote control and
Note: Be sure that there are no obstructions between receiver and remote controller;
put the remote control directly under the sunlight or any place where is very hot.
●Press this button, Auto, Cool,Dry, Fan,
Heat mode can be selected circularly.
MODE button
MODE
Auto mode is default while power on.
Under Auto mode,the temperature will not
be displayed; Under Heat mode, the
●Press this button, Auto, Low, Middle, High
speed can be circularly selected. After
FAN button
FAN
powered on,Auto fan speed is default.
Under Dehumidify mode, Low fan speed
only can be set up.
●Press this button, the clock can be set up,
signal blink and display.Within 5
CLOCK button
CLOCK
seconds, the value can be adjusted by
pressing + or - button, if continuously
press this button for 2 seconds above,
Operation of wireless remote control
●Press this button, the unit will be turned
on, press it once more, the unit will be
turned off. Sleep function will be canceled,
while unit off.
HEAT
initial value is 28 ć;Under other
modes , the initial value is 25 ć.
(oF)
82
(oF)
77
temperature displaying be required that will
keep original display status. and circulate
like this. No signal displayed. Remark: When
operating this button,the setting temperature
is displayed all the time on the wireless
Middle fan
Low fan
High fan
remote control.
●Press this button, can set up and select:
setting temperature (displaying the room),
TEMP button
TEMP
indoor ambient temperature (displaying
indoor temperatur e), outdoor ambient
temperature (displaying outdoor tempe-
r at u r e),i f t h er e n o o u t d o o r am b i en t
and signal will be displayed. If there is
current time value is Clock value, otherwise
in every 0.5 seconds, the value on ten place
of Minute will be increased 1. During blinking,
repress the Clock button or Confirm button,
signal will be constantly displayed and
it denotes the setting succeeded. After
powered on, 12:00 is defaulted to display
is Timer value.
signal be displayed that denotes the
●Press this button at unit On or Off status,
Light On and Light Off can be set up.
LIGHT button
LIGHT
After powered on, Light On is defaulted.
There is no this function
for this unit. If press this key, the main unit
will click, but it also runs under original status.
Ņ
ńņ
Ň
ň
Ń
Ł
ʼn
ł
ņ
Ņ
ł
ň
ʼn
ń
Ň
Ń
Ł
Names and functions of each part
Indoor unit
Air in
Air out
Outdoor unit
Wireless
remote control
Air in
Air out
Power plug
Displayer
Front panel
Filter
Guide louver
Wall pipe
Bind tape
Connection wire
Drainage pipe
Slient
CoolHeat
Set Temp
Power/
Run
Sleep
Receiver
Wind Speed
7
Name and function of wireless remote control
ON/OFF button
Remote control
Signal transmitter
AUTO
COOL
DRY
FAN
(only for cooling and heating unit)
Don't drop or throw the remote control; Don't let any liquid in the remote control and
Note: Be sure that there are no obstructions between receiver and remote controller;
put the remote control directly under the sunlight or any place where is very hot.
●Press this button, Auto, Cool,Dry, Fan,
Heat mode can be selected circularly.
MODE button
MODE
Auto mode is default while power on.
Under Auto mode,the temperature will not
be displayed; Under Heat mode, the
●Press this button, Auto, Low, Middle, High
speed can be circularly selected. After
FAN button
FAN
powered on,Auto fan speed is default.
Under Dehumidify mode, Low fan speed
only can be set up.
●Press this button, the clock can be set up,
signal blink and display.Within 5
CLOCK button
CLOCK
seconds, the value can be adjusted by
pressing + or - button, if continuously
press this button for 2 seconds above,
Operation of wireless remote control
●Press this button, the unit will be turned
on, press it once more, the unit will be
turned off. Sleep function will be canceled,
while unit off.
HEAT
initial value is 28 ć;Under other
modes , the initial value is 25 ć.
(oF)
82
(oF)
77
temperature displaying be required that will
keep original display status. and circulate
like this. No signal displayed. Remark: When
operating this button,the setting temperature
is displayed all the time on the wireless
Middle fan
Low fan
High fan
remote control.
●Press this button, can set up and select:
setting temperature (displaying the room),
TEMP button
TEMP
indoor ambient temperature (displaying
indoor temperatur e), outdoor ambient
temperature (displaying outdoor tempe-
r at u r e),i f t h er e n o o u t d o o r am b i en t
and signal will be displayed. If there is
current time value is Clock value, otherwise
in every 0.5 seconds, the value on ten place
of Minute will be increased 1. During blinking,
repress the Clock button or Confirm button,
signal will be constantly displayed and
it denotes the setting succeeded. After
powered on, 12:00 is defaulted to display
is Timer value.
signal be displayed that denotes the
●Press this button at unit On or Off status,
Light On and Light Off can be set up.
LIGHT button
LIGHT
After powered on, Light On is defaulted.
There is no this function
for this unit. If press this key, the main unit
will click, but it also runs under original status.
Remote control
buttons of this control which are not available to this unit will not be described below.
This wireless remote control is universal, and it could be used for many units, some
ƽPress this button, the Blow On and Blow
Off can be set up. Under the Cool and Dry
BLOW button
BLOW
turned on; When repressing this button
once more, lcon Blow will be concealed,
at this time, the BLOW is turn off. After
powered on, Blow Off is defaulted. If
operating ON/OFF button and changing
mode to Cool, Dry, the status of BLOW
will stay in the original position. If unit
is off, only Blow off can be set up and send
the signal. This function is not available
under the Auto, Fan and Heat mode
and there is no Blow signal displayed.
ƽUnder Cool or Heat mode, press this
button can turn on or turn off the Turbo
TURBO button
TURBO
function.After the Turbo function turned
on, the signal of Turbo will display. The
signal will be automatically cancelled if
changing the mode or fan speed.
ƽPresetting temperature can be increased.
Press this button, the temperature can be
+ button
+
set up, continuously press this button
and hold for two seconds, the relative
contents can quickly change, until unhold
this button and send the order that the ć
R) signal will be displayed all the time.
The temperature adjustment is unava-
ilable under the Auto mode, but the order
can be sent if pressing this button.
Temperature of Celsius degree setting:
16-30 ; for Fahrenheit degree setting:
61-86.
ƽPresetting temperature can be decreased.
Press this button, the temperature can be
- button
-
set up, continuously press this button
and hold for two seconds, the relative
contents can quickly change, until unhold
this button and send the order that the ć
R) signal will be displayed all the time.
The temperature adjustment is unav-
ailable under the Auto mode, but the order
can be sent by if pressing this button.
Names and functions of wireless remote control
Operation of wireless remote control
mode, press this button once, the Icon
Blow will be displayed, and BLOW is QUIET DESIGN BUTTON
ƽPress this button, the Quiet status is
under the Auto Quiet mode (display
"Auto Quiet "signal ) and Quiet mode
(display "Quiet" singal) and Quiet OFF
(there is no signal of "Quiet" displayed),
after powered on, the Quiet OFF is
defaulted. Note: the Quiet function
cannot be set up in Fan and Dry mode;
signal), the fan speed is not available.
Under the Quiet mode (Display "Quiet"
ƽOne press this key to enter into
TIMER OFF setup, in which case
the TIMER OFF icon will blink.
The method of setting is the same
TIMER OFF
as for TIMER ON.
TIMER OFF BUTTON
ƽIf SAVE mode on, press this button,
the unit will not change in TURBO mode,
if want to use TURBO mode, please set
out SAVE mode.
If SAVE mode on, press this button,
the unit will not change in this mode,
if want to use this mode, please set out
SAVE mode.
Healthy function for this unit, but if select
"Healthy" status, the main unit will beep,
and keep the original running status.
ƽSave function only effect in COOL and
HEAT mode.Press this button,SAVE mode
HEALTHY AND SAVE BUTTON
can be set up,setting temperature and fan
the controller display . In this mode,the
controller display temperature and fan
speed,but the value means original status,
again the mode will turn off. T
here is no
speed can not be changed in SAVE mode,
and they can be changed. Press this button
Press this button,the display will circularly
changes as below:
ƽ
OFF
ƽPress this button to set swing angle,
which circularly changes as below:
OFF
This remote controller is universal.If it
receives threes kinds of following status,
the swing angle will remain original.
If guide louver is stopped when it is
swinging up
and down,it will remian its
present position.
indicates guide louver swings back and
forth
in the five places,as shown in the
figure.
SWING UP AND DOWN BUTTON
Timer On setting: Signal “ON” will blink
and display, signal will conceal, the
numerical section will become the timer
on setting status. During 5 seconds blink,
by pressing ˇor ˉbutton to adjust the
time value of numerical section, every
press of that button, the value will be
increased or decreased 1 minute. Hold
pressing ˇor ˉbutton, 2 seconds later,
it quickly change, the way of change is:
During the initial 2.5 seconds, ten numbers
change in the one place of minute, then
the one place is constant, ten numbers
change in the tens place of minute at 2.5
seconds speed and carry. During 5s blink,
press the Timer button, the timer setting
succeeds. The Timer On has been set up,
repress the timer button, the Timer On
will be canceled. Before setting the
Timer, please adjust the Clock to the
current actual time.
TIMER ON TIMER ON BUTTON
ƽ
Remote control
buttons of this control which are not available to this unit will not be described below.
This wireless remote control is universal, and it could be used for many units, some
Name and function of wireless remote control
Operation of wireless remote control
I FEEL BUTTON
ƽPress this button once, to turn on the
I FEEL function, then the figure of "I FEEL"
will be displayed, after every press of
I FEEL
other function button, every 200ms to send
I FEEL once, after this function started,
the remote control will send temperature
to the main unit in every 10 minutes.When
repress this button, this function will be
turned off.
Remote control
buttons of this control which are not available to this unit will not be described below.
This wireless remote control is universal, and it could be used for many units, some
ƽPress this button, the Blow On and Blow
Off can be set up. Under the Cool and Dry
BLOW button
BLOW
turned on; When repressing this button
once more, lcon Blow will be concealed,
at this time, the BLOW is turn off. After
powered on, Blow Off is defaulted. If
operating ON/OFF button and changing
mode to Cool, Dry, the status of BLOW
will stay in the original position. If unit
is off, only Blow off can be set up and send
the signal. This function is not available
under the Auto, Fan and Heat mode
and there is no Blow signal displayed.
ƽUnder Cool or Heat mode, press this
button can turn on or turn off the Turbo
TURBO button
TURBO
function.After the Turbo function turned
on, the signal of Turbo will display. The
signal will be automatically cancelled if
changing the mode or fan speed.
ƽPresetting temperature can be increased.
Press this button, the temperature can be
+ button
+
set up, continuously press this button
and hold for two seconds, the relative
contents can quickly change, until unhold
this button and send the order that the ć
R) signal will be displayed all the time.
The temperature adjustment is unava-
ilable under the Auto mode, but the order
can be sent if pressing this button.
Temperature of Celsius degree setting:
16-30 ; for Fahrenheit degree setting:
61-86.
ƽPresetting temperature can be decreased.
Press this button, the temperature can be
- button
-
set up, continuously press this button
and hold for two seconds, the relative
contents can quickly change, until unhold
this button and send the order that the ć
R) signal will be displayed all the time.
The temperature adjustment is unav-
ailable under the Auto mode, but the order
can be sent by if pressing this button.
Names and functions of wireless remote control
Operation of wireless remote control
mode, press this button once, the Icon
Blow will be displayed, and BLOW is QUIET DESIGN BUTTON
ƽPress this button, the Quiet status is
under the Auto Quiet mode (display
"Auto Quiet "signal ) and Quiet mode
(display "Quiet" singal) and Quiet OFF
(there is no signal of "Quiet" displayed),
after powered on, the Quiet OFF is
defaulted. Note: the Quiet function
cannot be set up in Fan and Dry mode;
signal), the fan speed is not available.
Under the Quiet mode (Display "Quiet"
ƽOne press this key to enter into
TIMER OFF setup, in which case
the TIMER OFF icon will blink.
The method of setting is the same
TIMER OFF
as for TIMER ON.
TIMER OFF BUTTON
ƽIf SAVE mode on, press this button,
the unit will not change in TURBO mode,
if want to use TURBO mode, please set
out SAVE mode.
If SAVE mode on, press this button,
the unit will not change in this mode,
if want to use this mode, please set out
SAVE mode.
Healthy function for this unit, but if select
"Healthy" status, the main unit will beep,
and keep the original running status.
ƽSave function only effect in COOL and
HEAT mode.Press this button,SAVE mode
HEALTHY AND SAVE BUTTON
can be set up,setting temperature and fan
the controller display . In this mode,the
controller display temperature and fan
speed,but the value means original status,
again the mode will turn off. T
here is no
speed can not be changed in SAVE mode,
and they can be changed. Press this button
Press this button,the display will circularly
changes as below:
ƽ
OFF
ƽPress this button to set swing angle,
which circularly changes as below:
OFF
This remote controller is universal.If it
receives threes kinds of following status,
the swing angle will remain original.
If guide louver is stopped when it is
swinging up
and down,it will remian its
present position.
indicates guide louver swings back and
forth
in the five places,as shown in the
figure.
SWING UP AND DOWN BUTTON
Timer On setting: Signal “ON” will blink
and display, signal will conceal, the
numerical section will become the timer
on setting status. During 5 seconds blink,
by pressing ˇor ˉbutton to adjust the
time value of numerical section, every
press of that button, the value will be
increased or decreased 1 minute. Hold
pressing ˇor ˉbutton, 2 seconds later,
it quickly change, the way of change is:
During the initial 2.5 seconds, ten numbers
change in the one place of minute, then
the one place is constant, ten numbers
change in the tens place of minute at 2.5
seconds speed and carry. During 5s blink,
press the Timer button, the timer setting
succeeds. The Timer On has been set up,
repress the timer button, the Timer On
will be canceled. Before setting the
Timer, please adjust the Clock to the
current actual time.
TIMER ON TIMER ON BUTTON
ƽ
Remote control
buttons of this control which are not available to this unit will not be described below.
This wireless remote control is universal, and it could be used for many units, some
Name and function of wireless remote control
Operation of wireless remote control
I FEEL BUTTON
ƽPress this button once, to turn on the
I FEEL function, then the figure of "I FEEL"
will be displayed, after every press of
I FEEL
other function button, every 200ms to send
I FEEL once, after this function started,
the remote control will send temperature
to the main unit in every 10 minutes.When
repress this button, this function will be
turned off.
Save function only effect in COOL and
HEAT mode. Will run with 8° heating function.
Press this button, SAVE mode can be set
up,setting temperature and fan speed can
not be changed in SAVE mode, the controller
display . In this mode,the controller
display temperature and fan speed,but the
value means original status, and they can be
changed. Press this buttonagain the mode
will turn off. There is no Healthy function for
this unit, but if select ”Healthy” status, the
main unit will beep, and keep the original
running status.
6/((3
ƽ
ƽ
Name and function of wireless remote control
Operation of wireless remote control
SLEEP BUTTON
Press this button, can select Sleep 1 ( ), Sleep 2 ( ),
Sleep 3 ( ) and cancel the Sleep, circulate between
these, after electrified, Sleep Cancel is defaulted.
Sleep 1 is Sleep mode 1, in Cool, Dehumidify modes: sleep status
after run for one hour later, the main unit setting temperature will
increase 1ćsetting temperature increased 2 ćlater, the unit will
run at this setting temperature; In Heat mode: sleep status after run
for one hour later, the setting temperature will decrease 1ć, 2
hours later, setting temperature will decrease 2ć, then the unit will
run at this setting temperature.
ƽSleep 2 is sleep mode 2, that is air conditioner will run according to
the presetting a group of sleep temperature curve.
In Cool mode:
(1) When setting the initial temperature 16-23ć, after turned on
Sleep function, the temperature will be increased 1ćin every hour,
after 3ćlater the temperature will be maintained, after 7hours later,
the temperature will be decreased 1ć, after that the unit will keep on
running under this temperature;
(2) When setting the initial temperature 24ć27ć, after turned
on Sleep function, the temperature will be increased 1ćin every hour ,
after 2ćlater the temperature will be maintained, after 7hours later,
the temperature will be decreased 1ć, after that the unit will
keep on running under this temperature;
(3) When setting the initial temperature 28ć 29ć, after turned
on Sleep function, the temperature will be increased 1ćin every
hour, after 1ćlater the temperature will be maintained, after 7hours
later, the temperature will be decreased 1ć, after that the unit will
keep on running under this temperature;
(4) When setting the initial temperature 30ć, under this temper-
ature setting, after 7hours later, the temperature will be decreased
1ć, after that the unit will keep on running under this temperature;
In Heat mode:
(1) Under the initial presetting temperature 16ć, it will run under
this setting temperature all along.
(2) Under the initial presetting temperature17ć 20ć, after Sleep
function started up, the temperature will decrease 1ćin every
hour, after 1ćdecreased, this temperature will be maintained.
6/((3
Name and function of wireless remote control
Operation of wireless remote control
SLEEP BUTTON
(3) Under the initial presetting temperature21ć27ć, after Sleep
function started up, the temperature will decrease 1ćin every hour,
after 2ćdecreased, this temperature will be maintained.
(4) Under the initial presetting temperature 28ć30ć, after
Sleep function started up, the temperature will decrease 1ćin
every hour, after 3ćdecreased, this temperature will be maintained.
Sleep 3- the sleep curve setting under Sleep mode by DIY:
(1) Under Sleep 3 mode, press "Turbo" button for a long time, remote
control enters into user individuation sleep setting status, at this
time, the time of remote control will display "1hour later", the setting
(2) Adjust "+" and "-" button, could change the corresponding
setting temperature, after adjusted, press "Trubo "button for
confirmation;
(3) At this time, 1hour will be automatically increased at the timer
postion on the remote control, (that are "2hours later" or "3hours
(4) Repeat the above step (2)(3) operation, until 8hours-later
temperature setting finished, sleep curve setting finished, at this
time, the remote control will resume the original timer display;
temperature "88" will display the corresponding temperature of last
setting sleep curve and blink (The first entering will display
according to the initial curve setting value of original factory);
later" or "8hours later"), the place of setting temperature "88" will
display the corresponding temperature of last setting sleep curve
and blink;
temperature display will resume to original setting temperature.
ƽ
ƽSleep3- the sleep curve setting under Sleep mode by DIY could
ƽIf SAVE mode on, press this button, the unit will not change in
SLEEP mode, if want to use SLEEP mode, please set out SAVE
mode.
be inquired:
The user could accord to sleep curve setting method to inquire
the presetting sleep curve, enter into user individuation sleep
setting status, but do not change the temperature, press "Turbo"
button directly for confirmation.
Note: In the above presetting or enquiry procedure, if continuously
within10s, there is no button pressed, the sleep curve setting
status will be automatically quit and resume to display the original
displaying. In the presetting or enquiry procedure, press "ON/OFF"
button, "Mode" button, "Timer"button or "Sleep" button, the sleep
curve setting or enquiry status will quit similarly.
6/((3
ƽ
ƽ
Name and function of wireless remote control
Operation of wireless remote control
SLEEP BUTTON
Press this button, can select Sleep 1 ( ), Sleep 2 ( ),
Sleep 3 ( ) and cancel the Sleep, circulate between
these, after electrified, Sleep Cancel is defaulted.
Sleep 1 is Sleep mode 1, in Cool, Dehumidify modes: sleep status
after run for one hour later, the main unit setting temperature will
increase 1ćsetting temperature increased 2 ćlater, the unit will
run at this setting temperature; In Heat mode: sleep status after run
for one hour later, the setting temperature will decrease 1ć, 2
hours later, setting temperature will decrease 2ć, then the unit will
run at this setting temperature.
ƽSleep 2 is sleep mode 2, that is air conditioner will run according to
the presetting a group of sleep temperature curve.
In Cool mode:
(1) When setting the initial temperature 16-23ć, after turned on
Sleep function, the temperature will be increased 1ćin every hour,
after 3ćlater the temperature will be maintained, after 7hours later,
the temperature will be decreased 1ć, after that the unit will keep on
running under this temperature;
(2) When setting the initial temperature 24ć27ć, after turned
on Sleep function, the temperature will be increased 1ćin every hour ,
after 2ćlater the temperature will be maintained, after 7hours later,
the temperature will be decreased 1ć, after that the unit will
keep on running under this temperature;
(3) When setting the initial temperature 28ć 29ć, after turned
on Sleep function, the temperature will be increased 1ćin every
hour, after 1ćlater the temperature will be maintained, after 7hours
later, the temperature will be decreased 1ć, after that the unit will
keep on running under this temperature;
(4) When setting the initial temperature 30ć, under this temper-
ature setting, after 7hours later, the temperature will be decreased
1ć, after that the unit will keep on running under this temperature;
In Heat mode:
(1) Under the initial presetting temperature 16ć, it will run under
this setting temperature all along.
(2) Under the initial presetting temperature17ć 20ć, after Sleep
function started up, the temperature will decrease 1ćin every
hour, after 1ćdecreased, this temperature will be maintained.
6/((3
Name and function of wireless remote control
Operation of wireless remote control
SLEEP BUTTON
(3) Under the initial presetting temperature21ć27ć, after Sleep
function started up, the temperature will decrease 1ćin every hour,
after 2ćdecreased, this temperature will be maintained.
(4) Under the initial presetting temperature 28ć30ć, after
Sleep function started up, the temperature will decrease 1ćin
every hour, after 3ćdecreased, this temperature will be maintained.
Sleep 3- the sleep curve setting under Sleep mode by DIY:
(1) Under Sleep 3 mode, press "Turbo" button for a long time, remote
control enters into user individuation sleep setting status, at this
time, the time of remote control will display "1hour later", the setting
(2) Adjust "+" and "-" button, could change the corresponding
setting temperature, after adjusted, press "Trubo "button for
confirmation;
(3) At this time, 1hour will be automatically increased at the timer
postion on the remote control, (that are "2hours later" or "3hours
(4) Repeat the above step (2)(3) operation, until 8hours-later
temperature setting finished, sleep curve setting finished, at this
time, the remote control will resume the original timer display;
temperature "88" will display the corresponding temperature of last
setting sleep curve and blink (The first entering will display
according to the initial curve setting value of original factory);
later" or "8hours later"), the place of setting temperature "88" will
display the corresponding temperature of last setting sleep curve
and blink;
temperature display will resume to original setting temperature.
ƽ
ƽSleep3- the sleep curve setting under Sleep mode by DIY could
ƽIf SAVE mode on, press this button, the unit will not change in
SLEEP mode, if want to use SLEEP mode, please set out SAVE
mode.
be inquired:
The user could accord to sleep curve setting method to inquire
the presetting sleep curve, enter into user individuation sleep
setting status, but do not change the temperature, press "Turbo"
button directly for confirmation.
Note: In the above presetting or enquiry procedure, if continuously
within10s, there is no button pressed, the sleep curve setting
status will be automatically quit and resume to display the original
displaying. In the presetting or enquiry procedure, press "ON/OFF"
button, "Mode" button, "Timer"button or "Sleep" button, the sleep
curve setting or enquiry status will quit similarly.
timer on or timer off.
Guide for operation- general operation
Operation of wireless remote control
ƾ
This function indicates that moisture on evaporator of indoor unit will be blowed after the unit
About blow function
is stopped to avoid mould.
1. Having set blow function on: After turning off the unit by pressing ON/OFF button
indoor fan will continue running for about 10 min. at low speed. In this period,
press blow button to stop indoor fan directly.
2. Having set blow function off: After turning off the unit by pressing ON/OFF button,
the complete unit will be off directly.
Introduction for special function
When AUTO RUN mode is selected, the setting temperature will not be displayed on the
LCD, the unit will be in accordance with the room temp. automatically to select the suitable
running method and to make ambient comfortable.
About turbo function
If start this function, the unit will run at super-high fan speed to cool or heat quickly so that
the ambient temp. approachs the preset temp. as soon as possible.
ƾ
ƾ
About AUTO RUN
1. Press SLEEP button, to set sleep.
2. Press TIMER ON and TIMER OFF button, can set the scheduled
3. Press LIGHT button, to control the on and off of the displaying part
of the unit (This function may be not available for some units).
4. Press TURBO button, can realize the ON and OFF of TURBO function.
close automatically.)
5. Pressing button, to select the swing.
4. Pressing FAN button, set fan speed, can select AUTO FAN, LOW, MID
and HIGH.
3. Pressing +or - button, to set the desired temperature (It is
unnecessary to set the temp. at AUTO mode.)
2. Press MODE button, select desired running mode, or press COOL
or HEAT mode to enter into the corresponding operation directly.
(Note: When it is powered off, the guide louver of main unit will
1. After powered on, press ON/OFF button, the unit will start to run.
Guide for operation- Optional operation
Press +and - buttons simultaneously to lock or unlock the keyboard. If the remote controller
is locked, the icon
flicker for three times. If the keyboard is unlocked, the mark will disappear.
1. Press swing up and down button continuously more than 2s,the main unit will swing back
and forth from up to down, and then loosen the button, the unit will stop swinging and present
position of guide louver will be kept immediately.
2. Under swing up and down mode, when the status is switched from off to , if press this
button again 2s later, status will switch to off status directly; if press this button again
within 2s,the change of swing status will also depend on the circulation sequence stated above.
It indicates: after starting this function by remote controller and the unit has been under
defrost status, If turn off the unit by remote controller, the unit will not stop defrosting until
it is finished; if change setting mode by remote controller, the function ,which is set last
time, won't be carried out until defrosting finished.
Operation of this function on or off: If remote controller is under off status, press mode button
and blow button simultaneously in order to enter or cancel this new function. If the unit is under
defrost mode, dual eight position on remote controller will display H1.If switch to heat mode,
the position will display H1, which flickers for 5s, in which case, press +/- button, H1 will
disappear and setting temp. be displayed.
After remote controller is powered on, the new defrost function will be defaulted to be closed.
About SAVE function
ƾ
This function only effect in COOL mode and HEAT mode. In COOL mode, the indoor unit
display 30, and it runs under SAVE cooling mode ,setting temperature and fan speed can
not be adjusted. In HEAT mode, the indoor unit display 8, the indoor temperature can keep
in 8 , decrease the energy consumption .
ƾ
ƾ
ƾ
About swing up and down
About lock
About new function of defrosting
will be displayed on it, in which case, press any button, the mark will
Operation of wireless remote control
About switch between Fahrenheit and Centigrade
Under status of unit off, press MODE and - buttons simultaneously to switch ćDQG
ƾ
About the Quiet function
Selecting the Auto Quiet mode, When the indoor temperature be adjusted to the presetting
temperature by user as a prior position,the unit will enter into Quiet running mode,at this
ƾ
time,the fan speed is adjustable.When selecting the Quiet mode,the unit will enter�into Quiet
About Sleep function
Under the Fan and Auto mode, the Sleep function cannot be set up, under Dehumidify
mode, only Sleep 1 can be selected. Select and enter into any kind of Sleep mode, the
ƾ
Quiet function will be attached and stared, different Quiet status could be optional and turned off.
mode immediately ,at this time,the fan speed is not adjustable.
oC
timer on or timer off.
Guide for operation- general operation
Operation of wireless remote control
ƾ
This function indicates that moisture on evaporator of indoor unit will be blowed after the unit
About blow function
is stopped to avoid mould.
1. Having set blow function on: After turning off the unit by pressing ON/OFF button
indoor fan will continue running for about 10 min. at low speed. In this period,
press blow button to stop indoor fan directly.
2. Having set blow function off: After turning off the unit by pressing ON/OFF button,
the complete unit will be off directly.
Introduction for special function
When AUTO RUN mode is selected, the setting temperature will not be displayed on the
LCD, the unit will be in accordance with the room temp. automatically to select the suitable
running method and to make ambient comfortable.
About turbo function
If start this function, the unit will run at super-high fan speed to cool or heat quickly so that
the ambient temp. approachs the preset temp. as soon as possible.
ƾ
ƾ
About AUTO RUN
1. Press SLEEP button, to set sleep.
2. Press TIMER ON and TIMER OFF button, can set the scheduled
3. Press LIGHT button, to control the on and off of the displaying part
of the unit (This function may be not available for some units).
4. Press TURBO button, can realize the ON and OFF of TURBO function.
close automatically.)
5. Pressing button, to select the swing.
4. Pressing FAN button, set fan speed, can select AUTO FAN, LOW, MID
and HIGH.
3. Pressing +or - button, to set the desired temperature (It is
unnecessary to set the temp. at AUTO mode.)
2. Press MODE button, select desired running mode, or press COOL
or HEAT mode to enter into the corresponding operation directly.
(Note: When it is powered off, the guide louver of main unit will
1. After powered on, press ON/OFF button, the unit will start to run.
Guide for operation- Optional operation
Press +and - buttons simultaneously to lock or unlock the keyboard. If the remote controller
is locked, the icon
flicker for three times. If the keyboard is unlocked, the mark will disappear.
1. Press swing up and down button continuously more than 2s,the main unit will swing back
and forth from up to down, and then loosen the button, the unit will stop swinging and present
position of guide louver will be kept immediately.
2. Under swing up and down mode, when the status is switched from off to , if press this
button again 2s later, status will switch to off status directly; if press this button again
within 2s,the change of swing status will also depend on the circulation sequence stated above.
It indicates: after starting this function by remote controller and the unit has been under
defrost status, If turn off the unit by remote controller, the unit will not stop defrosting until
it is finished; if change setting mode by remote controller, the function ,which is set last
time, won't be carried out until defrosting finished.
Operation of this function on or off: If remote controller is under off status, press mode button
and blow button simultaneously in order to enter or cancel this new function. If the unit is under
defrost mode, dual eight position on remote controller will display H1.If switch to heat mode,
the position will display H1, which flickers for 5s, in which case, press +/- button, H1 will
disappear and setting temp. be displayed.
After remote controller is powered on, the new defrost function will be defaulted to be closed.
About SAVE function
ƾ
This function only effect in COOL mode and HEAT mode. In COOL mode, the indoor unit
display 30, and it runs under SAVE cooling mode ,setting temperature and fan speed can
not be adjusted. In HEAT mode, the indoor unit display 8, the indoor temperature can keep
in 8 , decrease the energy consumption .
ƾ
ƾ
ƾ
About swing up and down
About lock
About new function of defrosting
will be displayed on it, in which case, press any button, the mark will
Operation of wireless remote control
About switch between Fahrenheit and Centigrade
Under status of unit off, press MODE and - buttons simultaneously to switch ćDQG
ƾ
About the Quiet function
Selecting the Auto Quiet mode, When the indoor temperature be adjusted to the presetting
temperature by user as a prior position,the unit will enter into Quiet running mode,at this
ƾ
time,the fan speed is adjustable.When selecting the Quiet mode,the unit will enter�into Quiet
About Sleep function
Under the Fan and Auto mode, the Sleep function cannot be set up, under Dehumidify
mode, only Sleep 1 can be selected. Select and enter into any kind of Sleep mode, the
ƾ
Quiet function will be attached and stared, different Quiet status could be optional and turned off.
mode immediately ,at this time,the fan speed is not adjustable.
oC
●
●
●
●
●
●
●
Operation of remote control
Changing batteries and notices
1.Slightly to press the place with , along the arrowhead
direction to push the back cover of wireless remote control.
(As show in Fig 1. )
2.Take out the old batteries.
3.Insert two new AAA1.5V dry batteries, and pay attention
Fig.1
Fig.2
NOTE:
When changing the batteries, do not use the old or
different batteries, otherwise, it can cause the malf-
unction of the wireless remote control.
If the wireless remote control will not be used for a
long time, please take them out, and don't let the
leakage liquid damage the wireless remote control.
It should be placed where is 1m away from the TV
set or stereo sound sets.
The operation should be in its receiving range.
If the remote control cannot operate normally, please
take the batteries out, and then reinsert it 30s later; if
If the main unit needs to be remote controlled, please
aim remote controller at the receiver of main unit in order
to improve the receiving sensitivity of the main unit.
When the remote controller sends out signal, a mark
will flicker for about 1s. The bell will ring if the main unit
receives effective signal.
it is also abnormal ,please replace the batteries.
to the polarity. (As show in Fig 2.)
4. Attach the back cover of wireless remote control.
Sketch map for
changing batteries
If the wireless remote control is lost
or broken, please use the manual switch
Auto mode, but the temperature and fan
button. At this time, the unit will run at the
To open the panel, the manual switch
is on the displayer box.
It's a special selective buttonfor the users ,who are not accustomed to the
light at sleeping.
Get the displayer indicator light on: When setting the light function,the mark will
pressing this button. In which case,the diss-
player indicator light will be on if the AC receives
Get the displayer indicator light off: If cancel the light function,the mark will disap-
per on the remote controller screen by pressing this
button. In which case, the displayer indicator light will
be off if the AC receives this signal.
Displayer indicator light control of indoor unit
ƽ
ƽ
display on the remote controller screen by
this signal.
Emergency operation
Emergency operation
speed cannot be changed. The operation
was shown as below:
Turn on the unit: At unit turned off, press
the button,the unit will run at Auto mode
immediately.The microcomputer will accord
ƽ
to the indoor temperature to select (Cooling,
Heating, Fan) and obtain the comfortable effect.
Turn off the unit: At unit turned on, press the
button, the unit will stop working.
ƽ
0DQXDO6ZLWFK
)LJ
●
●
●
●
●
●
●
Operation of remote control
Changing batteries and notices
1.Slightly to press the place with , along the arrowhead
direction to push the back cover of wireless remote control.
(As show in Fig 1. )
2.Take out the old batteries.
3.Insert two new AAA1.5V dry batteries, and pay attention
Fig.1
Fig.2
NOTE:
When changing the batteries, do not use the old or
different batteries, otherwise, it can cause the malf-
unction of the wireless remote control.
If the wireless remote control will not be used for a
long time, please take them out, and don't let the
leakage liquid damage the wireless remote control.
It should be placed where is 1m away from the TV
set or stereo sound sets.
The operation should be in its receiving range.
If the remote control cannot operate normally, please
take the batteries out, and then reinsert it 30s later; if
If the main unit needs to be remote controlled, please
aim remote controller at the receiver of main unit in order
to improve the receiving sensitivity of the main unit.
When the remote controller sends out signal, a mark
will flicker for about 1s. The bell will ring if the main unit
receives effective signal.
it is also abnormal ,please replace the batteries.
to the polarity. (As show in Fig 2.)
4. Attach the back cover of wireless remote control.
Sketch map for
changing batteries
If the wireless remote control is lost
or broken, please use the manual switch
Auto mode, but the temperature and fan
button. At this time, the unit will run at the
To open the panel, the manual switch
is on the displayer box.
It's a special selective buttonfor the users ,who are not accustomed to the
light at sleeping.
Get the displayer indicator light on: When setting the light function,the mark will
pressing this button. In which case,the diss-
player indicator light will be on if the AC receives
Get the displayer indicator light off: If cancel the light function,the mark will disap-
per on the remote controller screen by pressing this
button. In which case, the displayer indicator light will
be off if the AC receives this signal.
Displayer indicator light control of indoor unit
ƽ
ƽ
display on the remote controller screen by
this signal.
Emergency operation
Emergency operation
speed cannot be changed. The operation
was shown as below:
Turn on the unit: At unit turned off, press
the button,the unit will run at Auto mode
immediately.The microcomputer will accord
ƽ
to the indoor temperature to select (Cooling,
Heating, Fan) and obtain the comfortable effect.
Turn off the unit: At unit turned on, press the
button, the unit will stop working.
ƽ
0DQXDO6ZLWFK
)LJ
ć
ƽ
ƽ
ƽ
ć
ĸClean the air filter
Ĺ
ķ
D
E
Clean and care
Caution
Turn power off and disconnect power supply before cleaning air conditioner, or it may cause
electric shock.
Never sprinkle water on the indoor unit and the outdoor unit for cleaning because it can cause
an electric shock.
Volatile liquid (e.g. thinner or gasoline) will damage the air conditioner. (So wipe the units with a
dry soft cloth, or a cloth slightly moistened with water or cleanser.)
Clean the front panel(make sure to take it off before cleaning)
Clean the air filter (Recommended once every three months)
NOTE: If dust is much more around the air conditioner, the air filters should be cleaned many times.
After taking off the filter, don't touch the fin of indoor unit, in order to avoid hurt your fingers.
Take down the air filter
At the slot of surface panel to open an angle, pull the air filter
downward and take it out, please see the Fig. 4(a, b).
To clean the dust adhering to the filters, you can either
use a vacuum cleaner, or wash them with warm water
the water with the neutral detergent should below 45
degree) ,and dry it in the shade.
NOTE: Never use water above 45 to clean, or it can
cause deformation or discoloration. Never parch it by
fire, or can cause a fire or deformation.
Insert the air filter
Reinsert the filters along the direction of arrowhead, and
then to cover the cover and clasp it.
Fig.4
When cleaning the front panel, please dip the cloth into the water temperature of 45 below,
then to dry the cloth and wipe the dirty part.
Note: Please do not to immerse the front panel in water, due to there are microcomputer components
and circuit diagrams on the front panel.
ķBe sure that nothing obstructs the air outlet and intake vents.
ĸ
ĹCheck that whether the batteries of air conditioner are
changed or not.
ĺCheck that whether the installation stand of the outdoor
unit is damaged or not. If damaged, please contact the dealer.
ķ
ĸ
Ĺ
ĺ
Ļ
Clean and care
Check before use
Check that whether ground wire is properly connected or not.
Maintain after use
Turn main power off.
Clean the filter and indoor and outdoor units' bodies.
Clear dust and obstructions from the outdoor unit.
Repaint the rubiginous place on the outdoor unit to prevent it from
spreading.
Adopt the special shield to cover the outdoor unit, avoid the rain water, dust enter into
the unit and get rust.
ć
ƽ
ƽ
ƽ
ć
ĸClean the air filter
Ĺ
ķ
D
E
Clean and care
Caution
Turn power off and disconnect power supply before cleaning air conditioner, or it may cause
electric shock.
Never sprinkle water on the indoor unit and the outdoor unit for cleaning because it can cause
an electric shock.
Volatile liquid (e.g. thinner or gasoline) will damage the air conditioner. (So wipe the units with a
dry soft cloth, or a cloth slightly moistened with water or cleanser.)
Clean the front panel(make sure to take it off before cleaning)
Clean the air filter (Recommended once every three months)
NOTE: If dust is much more around the air conditioner, the air filters should be cleaned many times.
After taking off the filter, don't touch the fin of indoor unit, in order to avoid hurt your fingers.
Take down the air filter
At the slot of surface panel to open an angle, pull the air filter
downward and take it out, please see the Fig. 4(a, b).
To clean the dust adhering to the filters, you can either
use a vacuum cleaner, or wash them with warm water
the water with the neutral detergent should below 45
degree) ,and dry it in the shade.
NOTE: Never use water above 45 to clean, or it can
cause deformation or discoloration. Never parch it by
fire, or can cause a fire or deformation.
Insert the air filter
Reinsert the filters along the direction of arrowhead, and
then to cover the cover and clasp it.
Fig.4
When cleaning the front panel, please dip the cloth into the water temperature of 45 below,
then to dry the cloth and wipe the dirty part.
Note: Please do not to immerse the front panel in water, due to there are microcomputer components
and circuit diagrams on the front panel.
ķBe sure that nothing obstructs the air outlet and intake vents.
ĸ
ĹCheck that whether the batteries of air conditioner are
changed or not.
ĺCheck that whether the installation stand of the outdoor
unit is damaged or not. If damaged, please contact the dealer.
ķ
ĸ
Ĺ
ĺ
Ļ
Clean and care
Check before use
Check that whether ground wire is properly connected or not.
Maintain after use
Turn main power off.
Clean the filter and indoor and outdoor units' bodies.
Clear dust and obstructions from the outdoor unit.
Repaint the rubiginous place on the outdoor unit to prevent it from
spreading.
Adopt the special shield to cover the outdoor unit, avoid the rain water, dust enter into
the unit and get rust.
Once the air conditioner is stopped, it will
not operate in approximately 3minutes to
protect itself.
ƽ
ƽ
ƽ
ƽ
ƽ
ƽ
Troubleshooting
CAUTION
Don't attempt to repair the air conditioner by yourself, it can cause an electric shock or
fire. Please check the following items before asking for repair, it can save your time and
money.
Phenomenon Troubleshooting
Not operate immediately when the air
conditioner is restarted.
There's unusual smell blowing from the outlet
after operation is started.
The unit has no peculiar smell by itself. If has,
that is due to the smell accumulated in the
ambient.
Solution method: Cleaning the filter.
If problem still has, so need to clean air
conditioner. (Please contact with the authorized
maintenance center.)
Sound of water flow can be heard during
the operation.
The air conditioner is started, when it is
running the compressor started or stopped
running, or the unit is stopped, sometimes
there is swoosh or gurgle, the sound is due
to refrigerant flowing they are not malfuncti-
ons.
In COOL mode, sometimes the mist emitted
from the air outlet vent. When the indoor temperature and humidity
are very high, this phenomenon would
happen. This is caused by the room air is
swiftly cooled down. After running for a while,
indoor temperature and humidity will fall
down, the mist will die away.
Creaking noise can be heard when start or
stop the unit. This is caused by the deformation of plastic
due to the changes of temperature.
Waiting
ƽ
ƽ
ƽ
ƽ
ƽ
ƽ
ƽ
ƽ
ƽ
ƽ
ƽ
ƽ
ƽ
ƽ
ƽ
ƽ
ƽ
ƽ
ƽ
ƽ
ƽ
ƽ
Troubleshooting
Phenomenon Troubleshooting
The unit can not run Has the power been shut down?
Is power plug loosed?
Is the circuit protection device tripped off or not?
Is voltage higher or lower?
(Tested by professionals)
Is the TIMER correctly used?
Breaking off
Cooling(Heating) efficiency is not good. Is Temp. setting suitable?
Were inlet and outlet vents obstructed?
Is filter dirty?
Are the windows and doors clothed?
Did Fan speed set at low speed?
Is there any heat sources in the room?
Wireless remote control is not available The unit is interfered by abnormal or frequent
functions switchover occasionally the controller
cannot operate. At this time, you need to pull out
of the plug, and reinsert it.
Is it in its receiving range? Or obstructed?
To check the voltage in wireless remote control
inside is charged, otherwise to replace the batteries.
Whether the wireless remote control is damaged.
If water leakage in the room The air humidity is on the high side.
Condensing water over flowed.
The connection position of indoor unit drainage
pipe is loosed.
If water leakage in outdoor unit When the unit is running in COOL mode, the
pipe and connection of pipe would be condensed
due to the water cooled down.
When the unit is running in Auto Defrosting
mode the ice thawed and flowed out.
When the unit is running in HEAT mode, the
water adhered on heat exchanger dripped off.
Noise from indoor unit emitted. The sound of fan or compressor relay is switching
on or off.
When the defrosting is started or stop running,
it will sound. That is due to the refrigerant flowed
to the reverse direction.
This manual suits for next models
3
Table of contents
Languages:
Other Innova Air Conditioner manuals
Innova
Innova AirLeaf SL User manual
Innova
Innova 2.0 User manual
Innova
Innova Filomuro SWI 400 User manual
Innova
Innova IGZC09NI/O-1 User manual
Innova
Innova 2.0 10 HP User manual
Innova
Innova Innova Filomuro Incasso SLWI User manual
Innova
Innova IGPCX-27-1 User manual
Innova
Innova IGZCAPS NI Series User manual
Innova
Innova IGPCX-35-1 User manual
Innova
Innova Filomuro SLW Series User manual
Innova
Innova IGZM218NO-1 User manual
Innova
Innova 2.0 User manual
Innova
Innova gazuno bee 600 User manual
Innova
Innova 2.0 Service manual
Innova
Innova IGZF09NO-1 User manual
Innova
Innova 607NT Installation instructions
Innova
Innova Air Leaf ESE645 User manual
Innova
Innova 2.0 User manual
Innova
Innova 3.0 User manual
Innova
Innova IGZC09NI-1 User manual
