INOR IPAQ-H/HX User manual

MEASURE OF SUCCESS
USER INSTRUCTIONS
www.inor.com, www.inor.se
The manual must be read prior to adjustment
and/or installation. All information subject to
change without notice.
86BIQ00015 2003 - 08
The transmitter is configured from a standard IBM compatible PC by
using the IPRO software version 3.05 or later. The latest version of
IPRO can be downloaded from http://www.inor.com. When the trans-
mitter is set from a PC no calibration is needed.
The transmitter must not be connected to a computer,
when the transmitter is in hazardous area.
The transmitter is polarity protected and will not be damaged by
connecting the power supply with the wrong polarity, but the output
will be 0 mA.

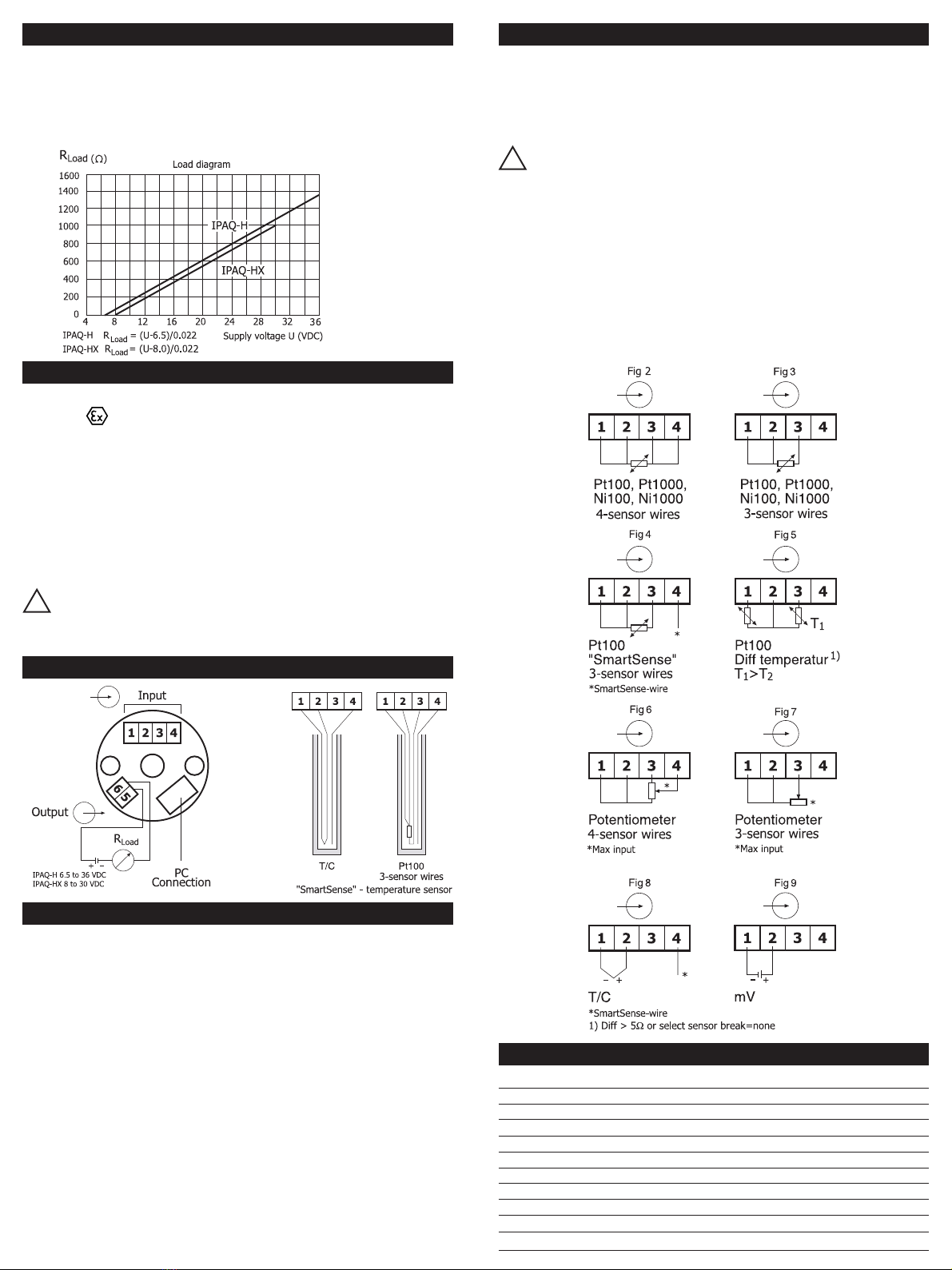

The maximum load in the output loop depends on the supply voltage,
see ”DATA shortform”
The transmitter continuosly supervises the isolation resistance in
thermocouples and 3-wire-connected Pt100 including the connection
wires. If the isolation resistance is low it causes error in the
measurements and consequently a faulty ouptput. The transmitter
indicates low isolation resistance by forcing the output to a preprogram-
med value. This function requires setting by the PC-program IPRO and
the use of a temperature sensor with an extra wire.
Sensor wire check: the transmitter uses a pulsating technique to moni-
tor sensor break or sensor shortened to avoid measuring errors. This
pulsating signal may interfere with some electronic calibrators. By
selecting ”Sensor Break = None” in the IPRO software and download
the configuration into the transmitter the pulsating signal is turned off.
GENERAL INFORMATION
INTRODUCTION
IPAQ-H is a universal and intelligent 2-wire In-head transmitter for
temperature and other measurement applications.
IPAQ-HX is the Intrinsic Safe version for use in Ex-applications.
DIMENSIONS
Intelligent 2-wire
In-head Temperature
Transmitter
ATEX
CONFIGURATION
The IPAQ-H/HX transmitter must be powered, when you configure
the transmitter, (see ”Connections” fig.1). If IPRO (the IPAQ software)
isn’t installed in your PC, install the software (follow the instructions in
”IPRO User instructions”).
For keeping the safety of the internal circuits in the
IPAQ-HX, always use Ex-power supply or a zener barrier
with limitations according to Ex-data and IPRO-X con-
figuration cable when making a configuration with the trans-
mitter in or connected to hazardous area.
When choosing differential temperature measuments with Pt100 be
sure to select ”sensor break” = none.
Configuration from PC is ”on-line”, that is, the transmitter can be
configured while in operation if the area is known to be non-hazardous.
The output is frozen while transmission from PC to IPAQ take place.
When transfer is done the transmitter uses the new parameters.
ADDRESS 1860 Renaissance Blvd.,
Sturtevant, WI 53177
USA
PHONE Domestic 1-888-430-INOR
[phone]
International [phone]
FAX Domestic [phone]
International [phone]
E-MAIL [e-mail]
ADDRESS PO Box 9125
S-200 39 MALMÖ
Sweden
PHONE Domestic 040-31 25 60
International [phone]
FAX Domestic 040-31 25 70
International [phone]
E-MAIL [e-mail]
ADDRESS Rodenbacher Chaussee 6
D-63457 Hanau-Wolfgang
Germany
PHONE Domestic 06181-582940
International [phone]
FAX Domestic 06181-582944
International [phone]
E-MAIL inor[email protected]
ADDRESS Unikkotie 13
FIN-01300 VANTAA
Finland
PHONE Domestic 09-83850210
International [phone]
FAX Domestic 09-83850219
International [phone]
E-MAIL [email protected]
SWEDEN GERMANY
FINLAND USA
MEASURE OF SUCCESS
!
!

Item Part No.
IPAQ-H, isolated 70IPH00001
IPAQ-HX, isolated (ATEX) 70IPHX0001
IPAQ-HX, isolated (FM) 70IPHX1001
Software and cable
IPRO-X (IPRO with cable) 70IPRX0001
Accessories
Surface mounting box 70ADA00008
Rail mounting box 70ADA00009
Head mounting kit 70ADA00012
Rail mounting kit 70ADA00013
LIMITED WARRANTY
INOR Process AB, or any other affiliated company within the Inor Group (hereinafter jointly referred to as
”Inor”), hereby warrants that the Product will be free from defects in materials or workmanship for a
period of five (5) years from the date of delivery (”Limited Warranty”). This Limited Warranty is limited to
repair or replacement at Inor’s option and is effective only for the first end-user of the Product. Upon
receipt of a warranty claim, Inor shall respond within a reasonable time period as to its decision concerning:
1 Whether Inor acknowledges its responsibility for any asserted defect in
materials or workmanship; and, if so,
2 the appropriate cause of action to be taken (i.e. whether a defective
product should be replaced or repaired by Inor).
This Limited Warranty applies only if the Product:
1 is installed according to the instructions furnished by Inor;
2 is connected to a proper power supply;
3 is not misused or abused; and
4 there is no evidence of tampering, mishandling, neglect, accidenta damage, modification
or repair without the approval of Inor or damage done to the Product by anyone other
than Inor.
This Limited Warranty is provided by Inor and contains the only express warranty provided.
INOR SPECIFICALLY DISCLAIMS ANY EXPRESS WARRANTY NOT PROVIDED HEREIN AND
ANY IMPLIED WARRANTY, GUARANTEE OR REPRESENTATION AS TO SUITABILITY FOR
ANY PARTICULAR PURPOSE, PERFORMANCE, QUALITY AND ABSENCE OF ANY HIDDEN
DEFECTS, AND ANY REMEDY FOR BREACH OF CONTRACT, WHICH BUT FOR THIS PROVI-
SION, MIGHT ARISE BY IMPLICATION, OPERATION OF LAW, CUSTOM OF TRADE OR COURSE
OF DEALING, INCLUDING IMPLIED WARRANTIES OF MER-CHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE. EXCEPT AS PROVIDED HEREIN, INOR FURTHER DISCLAIMS
ANY RESPONSIBILITY FOR LOSSES, EXPENSES, INCONVENIENCES, SPECIAL, DIRECT, SEC-
ONDARY OR CONSEQUENTIAL DAMAGES ARISING FROM OWNERSHIP OR USE OF THE
PRODUCT.
Products that are covered by the Limited Warranty will either be repaired or replaced at the option of Inor.
Customer pays freight to Inor, and Inor will pay the return freight by post or other “normal” way of
transport. If any other type of return freight is requested, customer pays the whole return cost.
DATA (shortform)
CONNECTIONS
ORDERING TABLE
IPAQ-HX EX-DATA
Approval Demko 02 ATEX 132033
CE 0539 II 1G EEx ia IIC
Output (current loop) Ui≤30 VDC
Ii≤100 mA
Pi≤900 mW
Li~0 mH
Ci~0 nF
Input (sensor) Uo≤30 VDC
Io≤25 mA
Po≤188 mW
Lo~50 mH
Co~66 nF
IPAQ-HX must be powered from an intrinsic safe power
supply or zener barrier, placed outside the hazardous area.
IPAQ-H/HX are designed to fit inside connection heads type DIN B or
larger.
The larger center hole, dia. 7 mm/0.28 inch (see ”Dimensions”),
facilitates the pulling through of the sensor leads or an insert tube,
greatly simplifying the mounting procedure.
If IPAQ-HX is mounted in a housing (head) made
of light metals and installed in hazardous area make
sure the content of magnesium (Mg) in the light metal is
less than 6%.
If IPAQ-HX is mounted in a housing which is isolated from
ground and can be charged to an ignition capable level,
then the housing shall be electrostatically grounded when
installed in hazardous area.
Connect input, output and power supply acc. to fig. 1-9.
A convinient way to install the transmitter is to use the INOR mounting
kits for in-head and DIN rail mounting, (see ”Ordering table”). In
order to minimize measuring errors make sure the connecting screws
are tightened enough.
INSTALLATION
Fig 10.
Fig 1.
Power supply: IPAQ-H 6.5 to 36 VDC
IPAQ-HX 8 to 30 VDC
Isolation in/out: 1500 VAC
Output: 4-20 mA
Operating temperature: -40 to +50 °C (T6)
-40 to +65 °C (T5)
-40 to +85 °C (T4) !
!
