Parts Listing
The following parts list describes all of the parts
illustrated on the exploded diagram on the following
page. Please note, most of these parts are already pre-
assembled on your unit.
Part# Description Part# Description
01 Front Leg Tube 25 Hex Bolt (M10x30 mm)
02A-R
Right Cross Support Bracket
26
Hex Bolt (M6x50 mm)
02A-L
Left Cross Support Bracket
27
Hex Bolt (M10x25 mm)
03A
Rear Base
28
Hex Bolt (M6x45 mm)
04
Adjustable Ankle Brace
29
Lock Nut (M10)
05A
Height Adjustment Tube
30
Lock Nut (M6)
06
Adjustable Pivot Bar
31
Square Inner Plug (30 mm)
07B
Backrest Frame
32
Curved Washer (M6)
08
Adjustable Foot Tube
33
Washer (M6)
09
Spring
34
Washer (M10)
10
Square Inner Plug (32 mm)
35
Small Pin
11
Bumper
36
Safety Strap with Buckle
12
Ankle Brace Tube
37
Safety Hook
13R
Right Hand Rail
38
Hex Bolt (M10x35 mm)
13L
Left Hand Rail
39
Grip Tape
14
Foam Grip
40
Pivot Bracket
15R
Right Cover
41
Plastic Washer (M6)
15L
Left Cover
42
Safety Lock
16
Round Inner Plug
43
Lock Nut (M8)
17
Plastic Clip
44
Hex Bolt (M8x35 mm)
18
Ankle Brace Lock Pin
45
Washer (M8)
19
Height Selector Lock Pin
46
Inner Plug (40x20 mm)
20
Foam Roller
47
Bolt (M6x15 mm)
21
Round Inner Plug (19 mm)
48
Square Inner Plug (35 mm)
22
Inner Plug (53x23 mm)
49
Safety Lock Pin
23
Knob Bolt
50
Hex Bolt (M6x10 mm)
24B
Back Rest

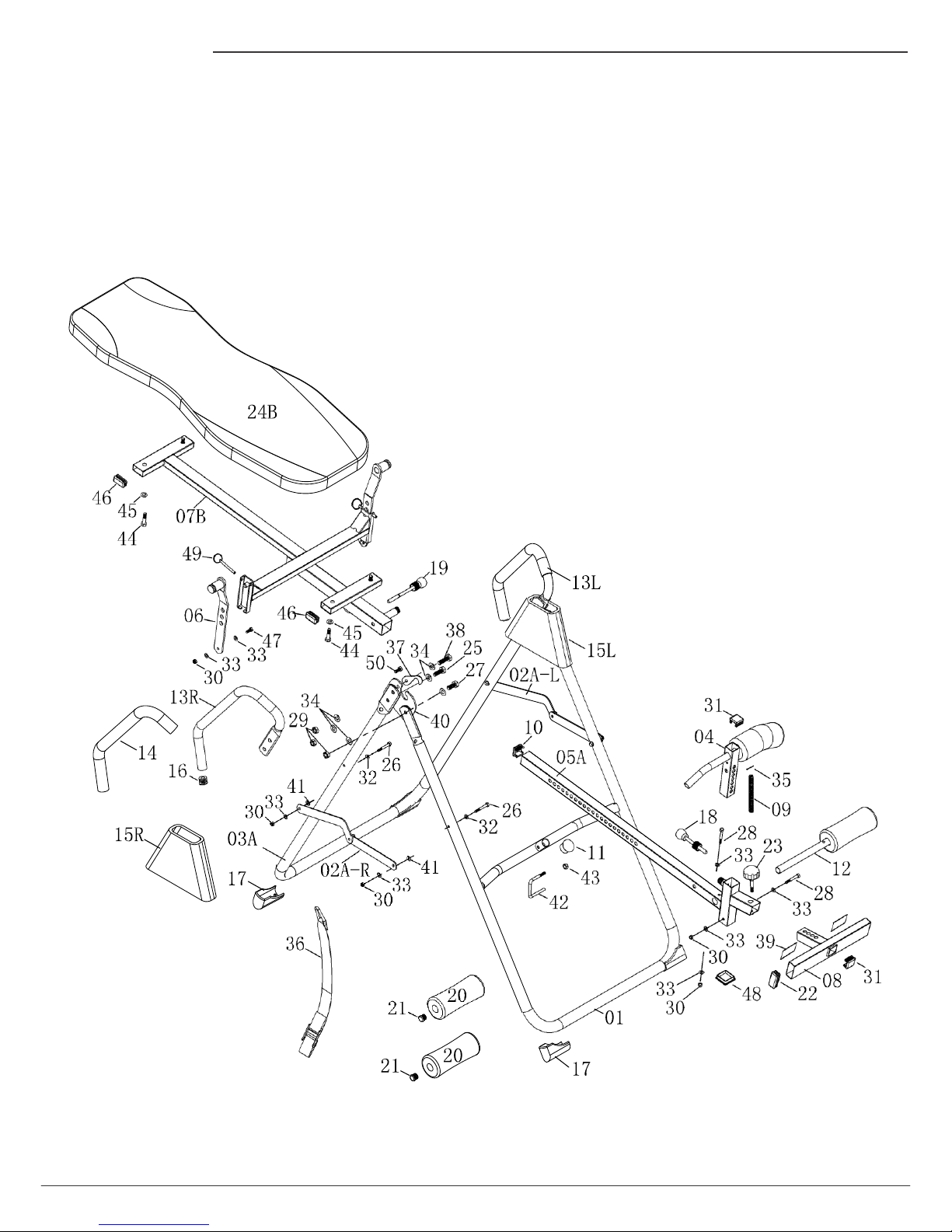

Exploded Diagram
The following diagram is provided to help you familiarize yourself with the parts and hardware
that will be used during the assembly process. Please note that not all of the parts and hardware
you see here will be used while you are assembling the machine because some of these items are
already pre-installed. Please continue to the next page to begin the assembly process and use this
page only as a reference guide for parts and hardware.

Assembly Instructions
A

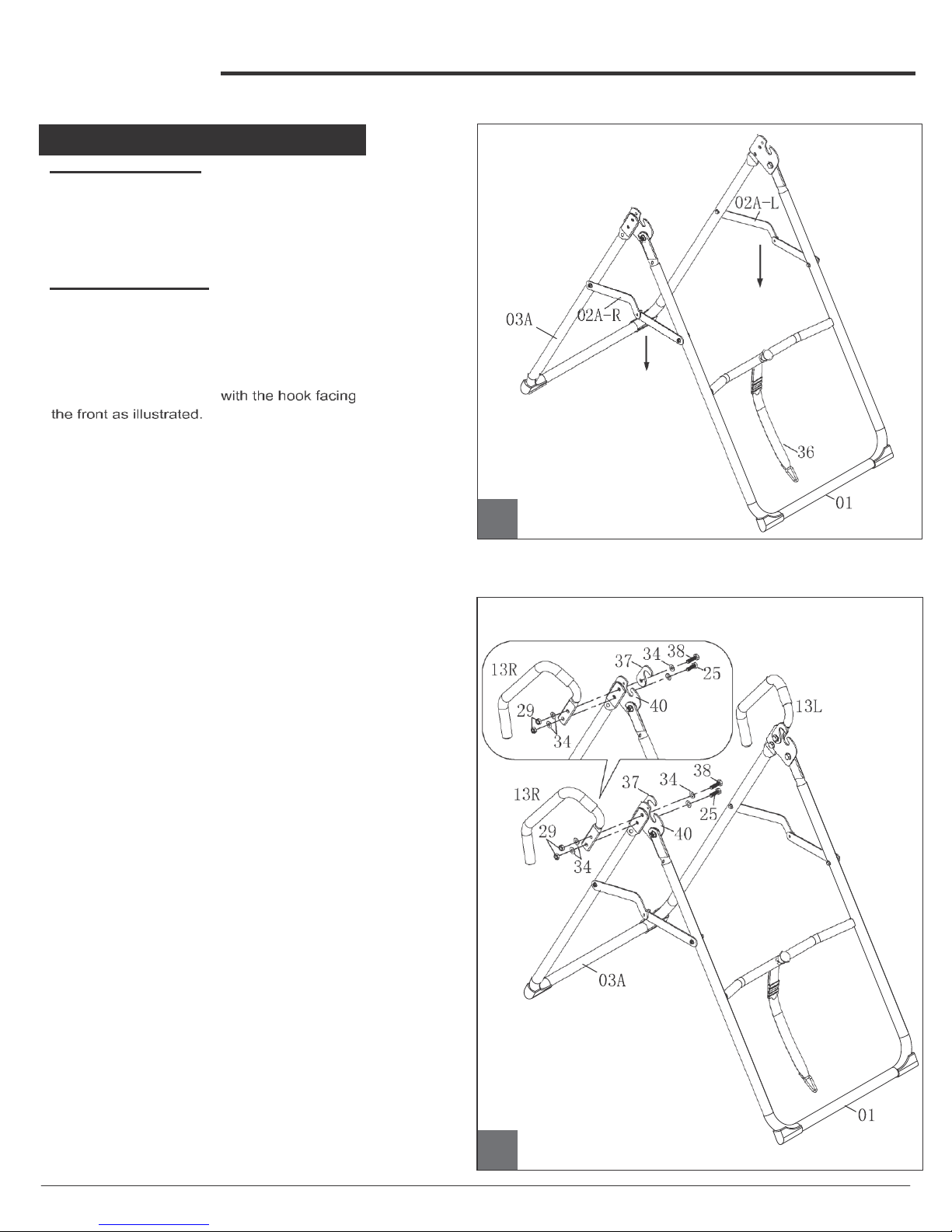

Assembly Step 1
A.) A-Frame Assembly
Open the pre assembled A-Frame, which is composed
of parts (#01), (#02A-R/L) and (#03A). Make sure that
two Cross Support Brackets (#02A-R/L) are fully
extended and firmly locked
in place by pressing down on them.
B.) Hand Rail Assembly
Align the top hole located on the Rear Base (#03A)
with the top hole located on the Pivot Bracket
(#40). Position the Right Hand Rail (#13R)
on the outside of the Rear Base (#03A) and
position one Safety Hook (#37) on the inside
of the Pivot Bracket (#40)
Insert a Hex Bolt
(#38) through a Washer (#34) followed by the
Safety Hook (#37), Pivot Bracket (#40) , Rear Base
(#03A), Right Hand Rail (#13R), Washer
Align the lower hole located on the Rear Base A
(#03A) with the lower hole located on the Pivot
Bracket (#40) and the lower hole located on
the Right Hand Rail (#13R). Insert a Hex Bolt (#25)
through a Washer (#34) followed by the Pivot Bracket
(#40), Rear Base (#03A) , Right Hand Rail (#13R) ,
Washer (#34) and secure it with one Lock Nut (#29).
Repeat this process on the opposite side. Please look at the
diagrams and make sure
you assembled all of the parts as illustrated.
B

Assembly Instructions

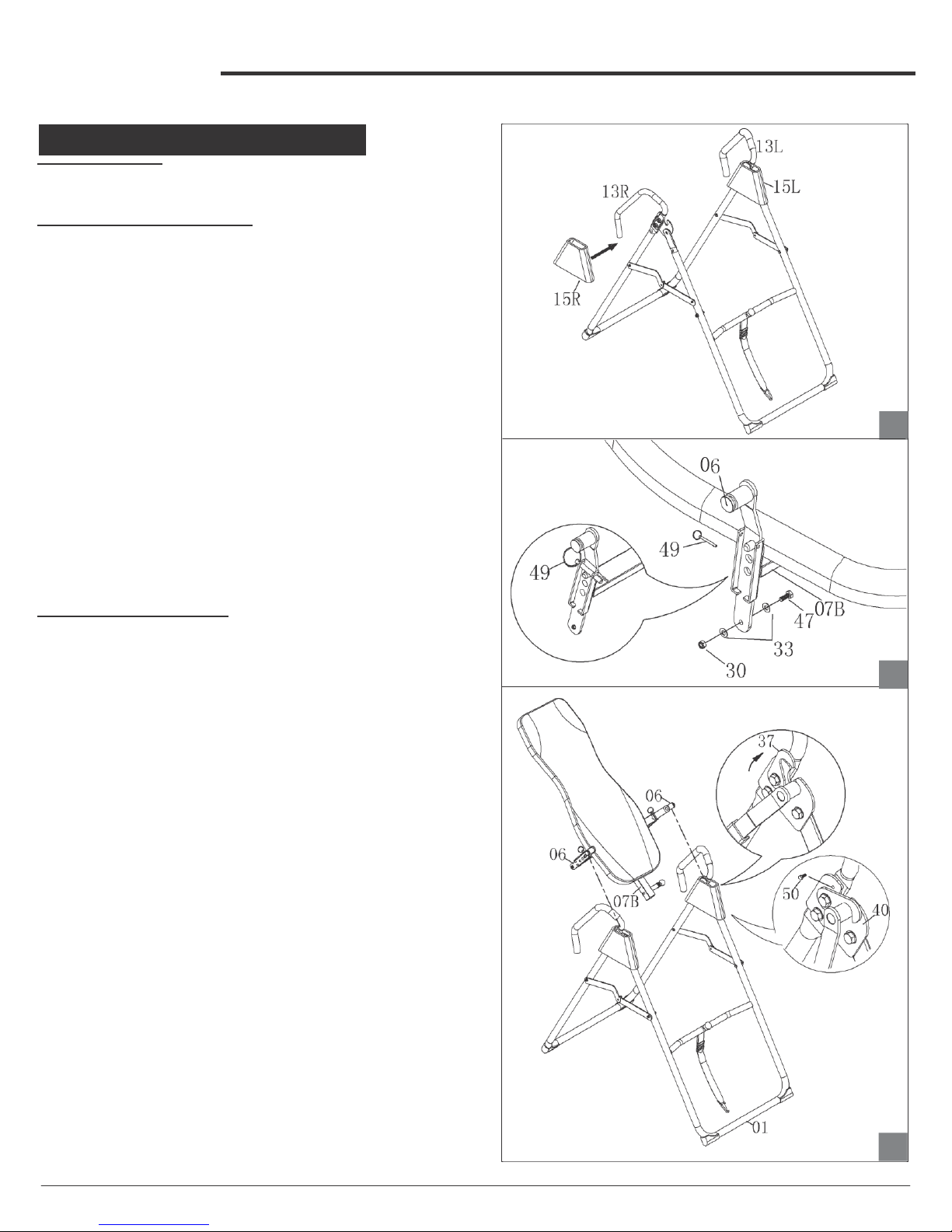

Assembly Step 2
A.) Cover Assembly
Slide the Left Cover (#15L) and Right Cover (#15R) onto
the left and right of the Hand Rail (#13R/L).
B.)
Adjustable Pivot Bar Assembly
Each Adjustable Pivot Bar (#06) has three adjust able holes in it.
These three holes are designed to be a fine -tune adjustment that
will allow you to shift your center of gravity,
so that you can easily control the rate of inversion. Insert each of
the two Adjustable Pivot Bars (#06) into the slots located on the
Back Rest Frame (#07B) ensuring that they both line up to the top
holes. Proceed with these instructions for now and if you are not
satisfied with the amount of control you have during the inversion
process, please return to this step and move the Adjustable Pivot
Bars (#06) down to the
second hole or to the lowest hole and try again. A
NOTE: EACH HANDLE BAR SHOULD BE PROPERLY
SEATED INSIDE EACH BRACKET. A BRACKET PIN
SHOULD ENGAGE THE HOLE OF EACH HANDLE BAR.
BOTH HANDLE BARS SHOULD ALWAYS BE SET TO
THE SAME POSITION.
Insert a Bolt (#47) and a Washer (#33) through the bottom of both
Adjustable Pivot Bars (#06) and secure it with a Washer (#33) and
a Lock Nut (#30). Insert a Lock Pin (#49) on the top of both the
Adjustable Pivot Bars (#06) . This is for an additional safety
measure.
C.)
Back Rest Frame Assembly
Open the Safety Hooks (#37) on the brackets located on the A-
FRAME. With the help of an assistant, lift the Back
Rest Frame (#07B) and align the Adjustable Pivot Bars (#06) B
into the two slots. Make sure both sides are properly seated into each
slots. Do not be alarm if the frame does not fit perfectly in the slot.
Have your assistant pry apart the handle bars to align it for a perfect
fit. Test the Back Rest Frame (#07B) by rocking it back and forth a
few times. After you have ensured that the Back Rest Frame (#07B)
rotates smoothly, lower the Safety Hooks (#37) over the Adjustable
Pivot
Bars (#06) as far as they will go. Once the Safety Hooks (#37) are
secure, insert Hex Bolts (#50) into the Pivot Brackets (#40) to lock
the Safety Hooks (#37) in place.
C

Assembly Instructions
Assembly Step 3

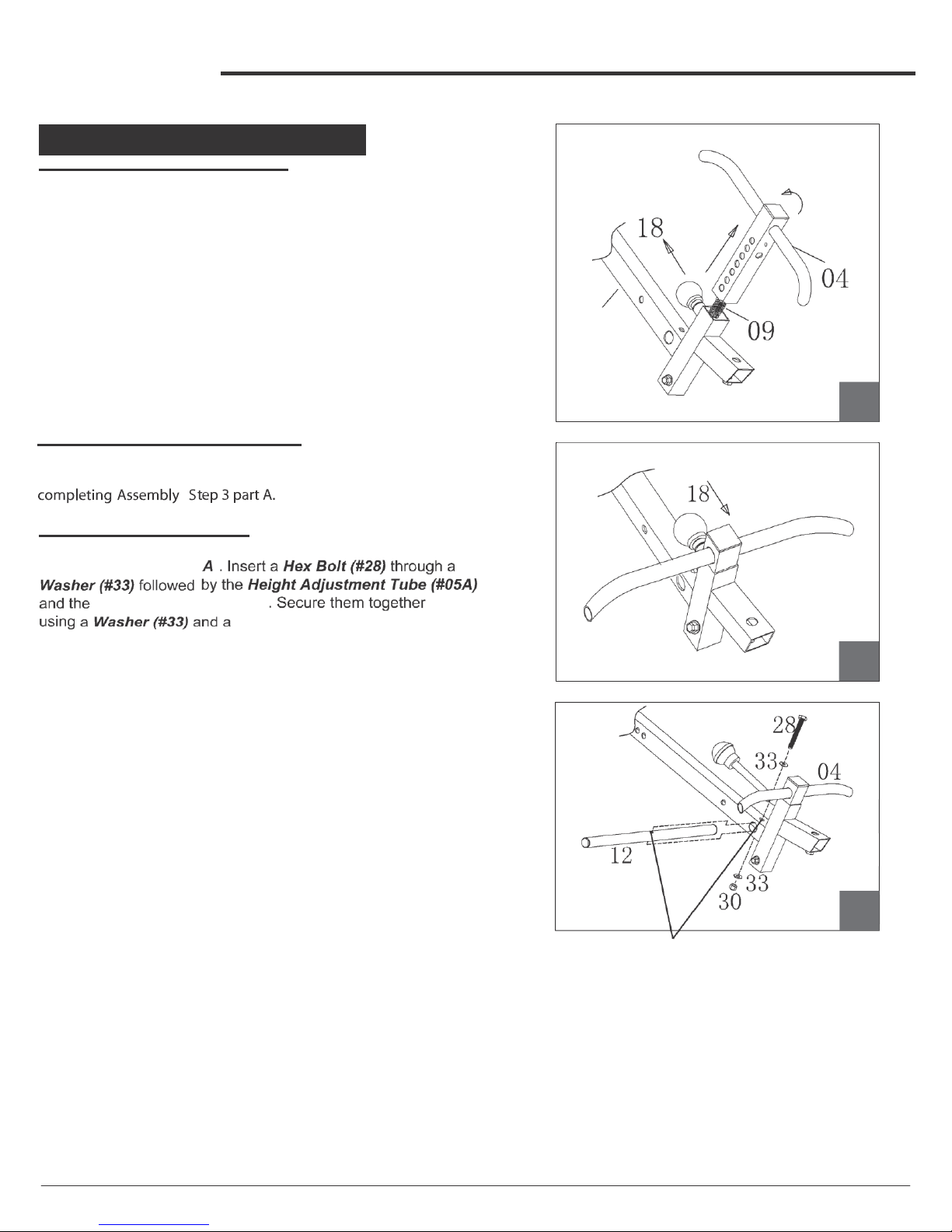

A.) Adjustable Ankle Brace Assembly Take the illustrated
assembly which is composed of parts (#04),(#05A) and (#18)
out of the box. Pull up the Ankle Brace Lock Pin (#18) as
illustrated and, at the same time, pull the Adjustable Ankle
Brace (#04) out
of the Height Adjustment Tube (#05A) SLOWLY. (You will
notice that there is a Spring (#09) that pulls downward as you
pull the Adjustable Ankle Brace (#04) out).
After you get the Adjustable Ankle Brace (#04) out
completely, rotate it 90 degrees counter-clockwise
so that the holes face toward the Ankle Brace Lock Pin
(#18). Insert the Adjustable Ankle Brace (#04) back into
the Height Adjustment Tube (#05A).
B.) Adjustable Ankle Brace Assembly II
Release the Ankle Brace Lock Pin (#18).
The assemblyshould looklike drawing B after
C.) Ankle Brace Tube Assembly
Slide the Ankle Brace Tube (#12) through the Height
Adjustment Tube (#05 )
05A
A
05A
Ankle Brace Tube (#12)
Lock Nut (#30).
B
05A
C
Note: The holes on these parts must line up in
order for the Bolt (28) to go through.

Assembly Instructions
Assembly Step 4

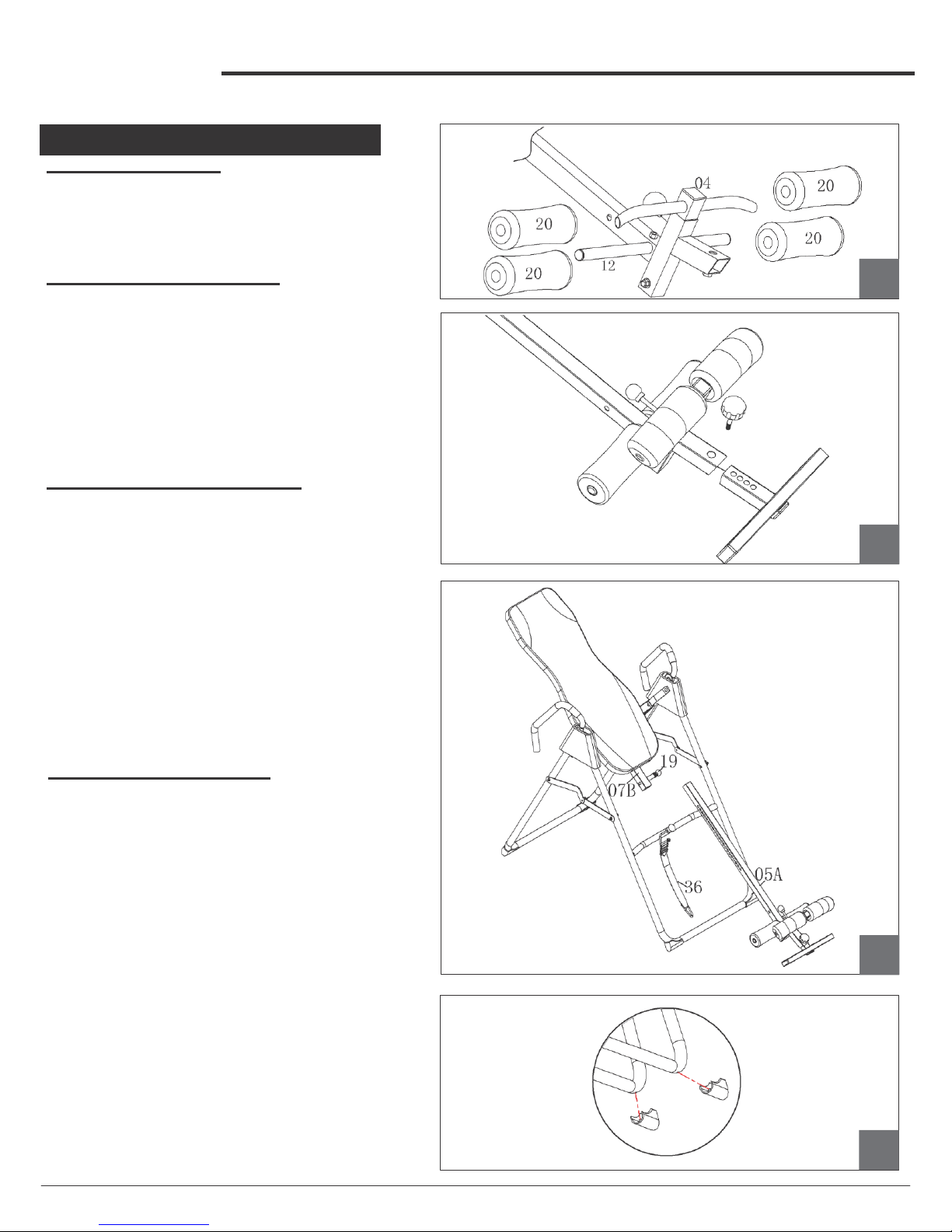

A.) Foam Roller Assembly
Slide the two Foam Rollers (#20) onto the
Adjustable Ankle Brace (#04) and another two on
the Ankle Brace Tube (#12). Apply soapy water to
the tubes if the foam rollers do not slide on easily.
B.) Adjustable Foot Tube Assembly Remove the Knob Bolt
(#23) from the Height Adjustment Tube (#05A) and set it
aside. Slide the Adjustable Foot Tube (#08) in the Height
Adjustment Tube (#05A) and secure it with the Knob Bolt
(#23).
The Adjustable Foot Tube (#08) is designed to accommodate
different shoe sizes by moving up for smaller feet and down
for larger feet. Please adjust it to accommodate your foot size
accordingly before inverting (ALWAYS WEAR ATHLETIC
SHOES BEFORE INVERTING).
C.) Height Adjustment Tube Assembly With the help
of an assistant, attach the Height Adjustment Tube
(#05A) to the Backrest Frame (#07B) by pulling the
Height Selector Lock Pin (#19) out and simultaneously
sliding the Height Adjustment Tube (#05A) in.
Release the Height Selector Lock Pin (#19) at any
setting for now. Please note, the Height Adjustment
Tube (#05A) is designed to accommodate the height of
various users; set it accordingly by pulling the Height
Selector Lock Pin (#19) as you slide the Height
Adjustment Tube (#05A) up or down. The assembly
process is now complete. Please read the rest
of the manual to learn about the safety features and
operation procedures.
05A
05A
A
23
08
B
D.) Plastic Clip Footing Assembly Ensure that
two Plastic Clip (#17) footing is installed on the
Front Leg Tube (#01) and Rear Base (#03$)
before using the unit.
If for any reason they are not installed on the
unit, follow these simple steps to install them. First,
lift the front end up and you will notice that there is a
hole on the bottom. Insert the clip pin on the Plastic
Clip (#17) into the hole on the Front Leg Tube (#01)
and snap it into place. Repeat this process to the
Rear Base (#03 $ )
if neccessary.
C
01
03A 17
17 D

Safety Instructions
WARNING: 250 lb. WEIGHT CAPACITY
DO NOT USE THIS INVERSION TABLE WITHOUT A PHYSICIAN'S APPROVAL IF YOU HAVE ANY OF THE
FOLLOWING CONDITIONS
(this list is for reference only, it is not an exhaustive listing):
Pregnancy, Hiatal Hernia, Ventral Hernia, Glaucoma, Retinal Detachment or Conjunctivitis; High Blood Pressure, Hypertension,
recent Stroke or Transient Ischemic Attack; Heart or Circulatory Disorders for which you are being treated; Spinal Injury; Cerebral
Sclerosis; Acutely Swollen
Joints; Bone Weakness (Osteoporosis), recent unhealed fractures, medulary pins and/or surgically implanted orthopedic supports; the use
of anticoagulants, including high doses of aspirin; Middle Ear Infections; Extreme Obesity.
IF YOUR PHYSICIAN PERMITS YOU TO USE INVERSION THERAPY, DO SO UNDER THEIR DIRECTION AND
HAVE OUR GUIDELINES APPROVED BY YOUR PHYSICIAN.
DO NOT LET CHILDREN USE THE INVERSION TABLE UNSUPERVISED.
THERE ARE CERTAIN PEOPLE WHO SHOULD NEVER INVERT. IF YOU THINK YOU BELONG TO THIS MINORITY,
PLEASE CHECK WITH YOUR PHYSICIAN BEFORE USING THIS INVERSION TABLE.
IMPORTANT:
LOCK SAFETY HOOKS (#37) IN PLACE BEFORE USE.
Safety Lock
There is a Safety Lock
#42 Safety L ock#43
L ock
Nut (M8)
ADJUST TO YOUR HEIGHT
(Start at 2-3" taller than your actual height)
(#42) included to lock the
inversion system when not in
use. This lock slides into the
Height
Adjustment Tube (#05 A ) and then
into the frame. Use a Lock Nut
(#43) to secure the Safety Lock
(#42) and tighten it with a
wrench to keep children
[ 1
piece]
42
05A 43
[ 1
piece]
Secure your ankles by Adjusting top rollers (using pull
pin) as close to bottom rollers as possible.
BE SURE PULL PIN LOCKS INTO PLACE IN
ORDER TO SECURE ANKLES!
from using the inversionsystem.

Usage Guidelines
ATTACH THE SAFETY STRAP TO THE NYLON COVERED STEEL
FRAME.
The buckle of the Safety Strap should be positioned about
KDOIZD\
down the Strap with the concave side facing up. The two ends of
the buckle should show; the middle slot should be covered up by the Strap. Feed the
free end of the Strap through the buckle under one end, over the middle and under the
other end. The buckle should be able to slide on the Strap so that you can adjust the
length of the Strap loop.
The shorter the strap, the less the angle of inversion. The longer the strap, the
greater the inversion angle.
First time users should adjust the tether strap by shortening it for minimal
inversion.
THE FIRST TIME THAT YOU USE THIS INVERSION TABLE, HAVE
SOMEONE WITH YOU TO WATCH YOU. ALTHOUGH THE INVERSION
TABLE IS EASY TO USE, HAVING SOMEONE NEARBY TO “SPOT” YOU
WILL PROVIDE YOU WITH COMFORTAND ENSURE YOU HAVE THE
CORRECT INITIAL SETTINGS.
Before starting, ensure that the Inversion Table is at the correct settings to match your
height and weight. As each individuals’ body type is different, you will need to find
the correct settings for you personally.
ENSURE THATALL PULL PINS ARE TIGHTAND ENTIRELY IN THE
HOLES.
ALWAYS MAKE SURE THAT THE SAFETY STRAP IS
ATTACHED.
AVOID INVERTING AFTER MEALS.

Usage Guidelines
05A
23
The settings for height range from 4'7" (140cms) to 6'5" (196cms).
To adjust the Inversion Table for the correct height setting; Pull out the Height
Selector Lock Pin (#19) and slide the Height Adjustment Tube (#05A) until the
desired height is shown just below the sleeve.
As everyone's body is different, not all 5'9" people will ultimately use the 5'9" setting.
Your correct setting will be determined by a minimal amount of testing (Explained
further in the USAGE section of this manual).
ALWAYS USE THE INVERSION TABLE UNDER SUPERVISION UNTIL
YOU FEEL COMFORTABLE WITH THE PRODUCT.
Set the Height Adjustment Tube (#05A) to your height (or just above
your height).
08
Stand on the Adjustable Foot Tube (#08) with the back of your ankles resting and
centered on the rear foam rollers.The position of the Adjustable Foot Tube (#08)can be
adjusted by removing the Knob.
Bolt (#23)
Adjust the Adjustable Ankle Brace (#04) by adjusting Ankle Brace
18 Lock Pin (#18) so that the Foam Rollers are snug but comfortable across the front of
your ankles and top of your feet.
08
MAKE SURE THAT THE SAFETY STRAP IS ATTACHED.

Usage Guidelines
Follow these instructions in order to confirmthat you have the correct settings. When you lie down with both arms
across your chest the Inversion Table should rotate a few inches UPWARD. If the Inversion Table does not move or if it
tilts all the way back, the settings are incorrect.
As you lift ONE arm upwards over your head, the Inversion Table will continue to rotate further back. To get back up,
bring your arm back to your side. You can increase the angle and speed of rotation by using both arms.
If you have trouble getting back up, bend your knees and slide your bottom down towards your feet. If the Inversion
Table is in the full 90 degree inversion position, grab both sides of the Inversion Table and pull forward. DO NOT TRY
TO GET UP BY LIFTING YOUR HEAD.
START SLOWLY!
We recommend for the first time to invert only to 20 or 30 degrees. Spend no more than 5 minutes at any one time in an
inverted position. We recommend inverting for just a few minutes each time for the first several weeks
LISTEN TO YOUR OWN BODY!
If you show signs of overdoing it such as headaches, dizziness, flushed face or any discomfort in the ankles, knees or
hips, STOP IMMEDIATELY.
ANGLES OF INVERSION
Beginners should start at 20 to 30 degrees. This will provide mild stretching and allow your body to
get used to being upside down.
Once you feel comfortable, adjust the angle to 50 or 60 degrees. This allows full decompression of the spine. It is not
necessary or required for you to invert at more than 60 degrees.
For maximum stretching, invert to 90 degrees.
OSCILLATION
Raise and lower your arms slowly, back and forth. This will rotate your body backwards (raised arms)
and bring you back up (lowered arms).
Getting used to being upside down can take some time. Start out with just a few minutes each day.
After your body is used to being upside down, feel free to invert two or three times a day.

Usage Demo
I. Starting Position:
II. With One Arm Half Raised: III. With One Arm Fully Raised:
IV. With Both Arms Raised: V. Fully Inverted:
