Interlogix TruVision TVR 1516DHD User manual

P/N 1073267-EN • REV A • ISS 14NOV16
TVR 1516DHD Quick Start Guide
Figure
1: Back panel connections
1. Connect to a RS-232 device.
2. Connect up to four alarm inputs.
3. Connect one alarm relay output.
4. Connect four audio inputs to RCA connectors.
5. Connect up to 16 analog cameras to BNC
connectors (depends on model of DVR).
6. Connect to an optional USB device such as a
mouse, CD/DVD burner or HDD.
7. Connect one CCTV monitor (BNC-type
connector).
8. Connect to a HDTV. The HDMI connection
supports both digital audio and video.
9. Connect to a VGA monitor.
10. Connect to speakers for audio output.
11. Connect to a network.
12. Connect to a RS-485 device such as a PTZ
camera or a keypad.
13. Connect to the 12 VDC PSU (enclosed).
14. Power switch (on/off).
15. Connect to ground.
Default user ID and password:
• User ID: admin
• Password: 1234
Default IP address: 192.168.1.82

2 TVR 1516DHD Quick Start Guide
Figure
2: Front panel controls
1 USB port.
2. CD/DVD burner.
3. Eject button: Press to eject CD/DVD disc.
4. Archive button:Press to enter archive mode.
5. Display and Seq buttons: In live view mode,
press Display to toggle through the single and
multiviews. Press Seq to start/stop sequencing
in live view mode.
In menu mode, press Enter to select a menu
window and then Seq to toggle through the tabs
along the top of the menu window.
6. Channel buttons. Switch between different
cameras in live view, PTZ control or playback
modes.
7. Live, Menu and Search buttons: Press Live to
switch to live view mode. Press Menu to enter
the main menu. Press Search to enter the
advanced search menu.
8. Status LEDs.
9. Alarm button: Press to manually acknowledge
an alarm.
10. Enter and arrow buttons: Use to select options
in a menu and to control playback. Press for
Enter.
11. IR receiver.
12. Playback buttons: Press to control playback.
Press to jump back to the oldest available
video and start playback. Press to pause
playback. Press for all-day playback.
Figure
3: Quick access toolbar
1. Pause: Freeze live image of the selected
camera.
2. Start Manual recording: Start/stop manual
recording.
3. Instant Playback: Play back the recorded
video from the last five minutes.
4. Audio On: Enable/disable audio output.
5. Snapshot: Capture a snapshot of a video
image.
6. PTZ Control: Enter PTZ control mode.
7. Digital Zoom: Enter digital zoom mode.
8. Image Settings: Modify the image lighting levels.
9. Auxiliary Focus: Automatically focus the camera
lens
10. Lens Initialization:Initialize the lens of a camera
with a motorized lens
11.Stream Information: Display the real-time frame
rate, bit rate, resolution and video compression.
12. Close: Close the toolbar.

TVR 1516DHD Quick Start Guide 3
Package contents
The TruVision DVR 1516DHD (model
TVR 1516DHD) is shipped with the following
items:
•IR (infrared) remote control
•Two AAA batteries for the remote control
•AC power cords
•12 VDC PSU
•USB mouse
•DVR
•CD with software and manuals
•TruVision DVR 1516DHD Quick Start
Guide
•TruVision DVR 15HD User Manual (on CD)
•TruVision Recorder Operator Guide (on
CD)
Installation environment
Refer to the user manual for detailed
information, but observe these important
requirements:
•Place the unit in a secure location.
•Ensure that the unit is in a well-ventilated
area.
•Do not expose the unit to rain or moisture.
Quick install
Recommended steps for setting up the DVR:
1. Connect all the devices required to the
back panel of the DVR. See Figure 1 on
page 1.
Basic connections:
Connect the cameras to the BNC camera
inputs and monitor A to the BNC, VGA or
HDMI output. Connect the mouse to the
USB port in the front panel.
Optional connections:
All the other connections shown are
optional and depend upon installation
requirements.
2. Connect the power supply to the unit and
turn on the power.
3. Set up the unit with the required settings
using the setup Wizard.
First-time use
The DVR has an express installation wizard
that lets you easily configure basic DVR
settings when first used. It configures all
cameras simultaneously. The configuration
can then be customized as required.
By default, the setup wizard will start once the
DVR has loaded. The wizard walks you
through some of the more important settings
of your DVR. Select the preferred language for
the system and then enter the administrator
password. The default admin password is
1234. It is strongly recommended that this
password is changed.
The wizard will then guide you through the
menus to set the time and date, network
configuration, HDD management, and
recording configuration.
When all the required changes have been
entered, click Finish to exit the wizard. The
DVR is now ready to use. Recording starts
automatically.
Important:
Your TruVision device is
delivered with default user name
and password credentials for initial
access, easy configuration and auto
discovery. For security reasons, it is
highly recommended to change the
default credentials.
Operating the TVR 1516DHD
There are several ways to control the unit:
•Front panel
•IR remote control
•Mouse
•Web browser

4 TVR 1516DHD Quick Start Guide
Front panel
The buttons on the front panel control most
functions. See Figure 2 on page 2 for the
locations of the controls.
IR remote control
The IR remote control buttons are similar to
those on the front panel. Place the two AAA
batteries in the remote control.
To connect the remote control to the DVR:
1. Press Menu on the front panel or right-click
the mouse and select Menu. The main
menu screen appears.
2. Select Display mode settings > Monitor.
3. Check and remember DVR device address
value. The default value is 255. The device
address is valid for all IR controls.
4. On the remote control press the Device
button.
5. Enter the device address value. It must be
the same as that on the TVR 1516HD.
6. Press OK on the remote control or front
panel.
USB mouse
The USB mouse provided with the DVR
operates all the functions of the DVR, unlike
the front panel, which has limited functionality.
The mouse lets you navigate and make
changes to settings in the user interface.
Connect the mouse to the DVR by plugging
the mouse USB connector into the USB port
on the back or front panel. The mouse is
immediately operational and the pointer
should appear.
Web browser control
The DVR Web browser lets you view, record,
and play back videos as well as manage all
aspects of the DVR from any PC with Internet
access. The browser’s easy-to-use controls
give you quick access to all DVR functions.
To access the unit, open a web browser and
enter the IP address assigned to the DVR as a
web address. In the logon screen, enter the
default user ID and password:
• User ID: admin
• Password: 1234
The default values for TVR 1516HD network
settings are:
• DHCP: Enabled by default.
• IP address - 192.168.1.82
• Subnet mask - 255.255.255.0
• Gateway address - 192.168.1.1
• Server Port: 8000
• HTTP Port: 80
• RTSP port: 554
Note: The following ports need to be followed
in the router in order to connect properly:
Server port and RTSP port.

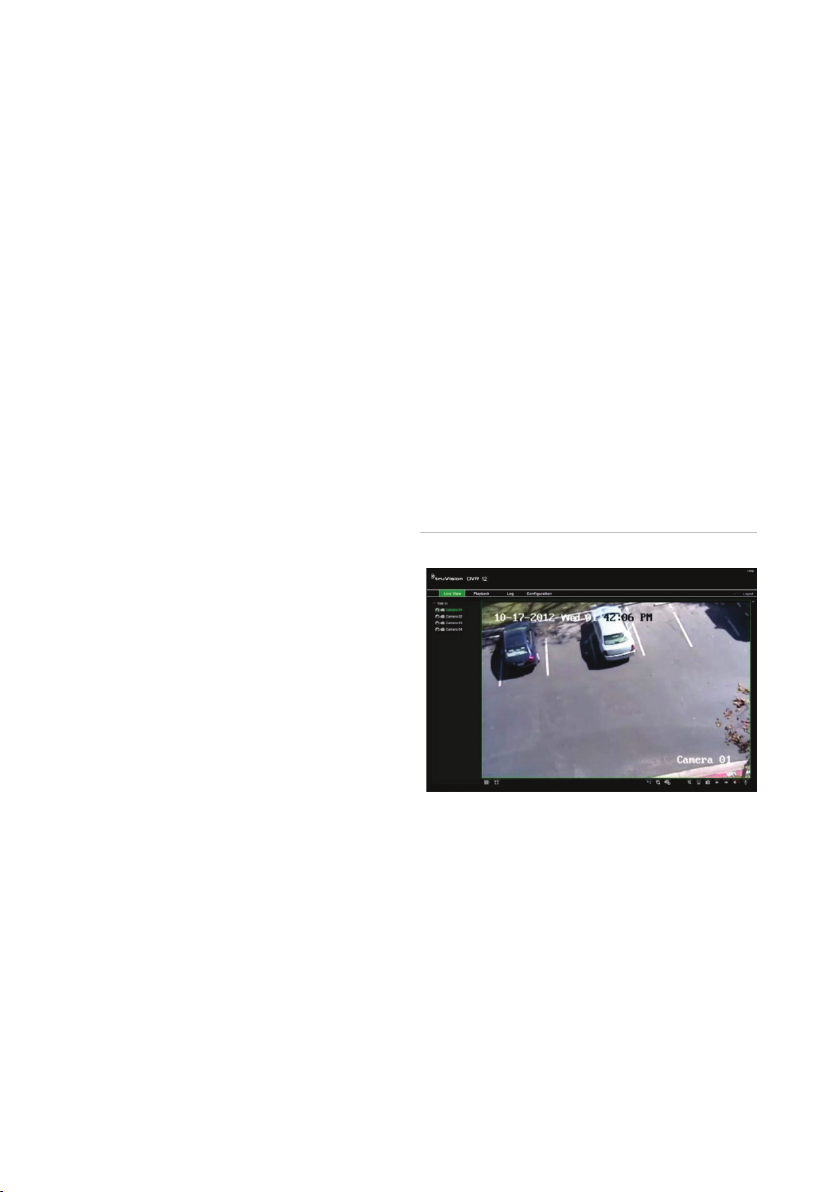

Figure 4: Web browser interface
Live view mode
Live mode is the normal operating mode of the
unit where you watch live pictures from the
cameras.
Regularly used functions in live view can be
quickly accessed by clicking the left-button of
the mouse when its cursor is on the camera
image. The shortcut pop-up toolbar appears.
See Figure 3 on page 2for a description of
the functions available.

TVR 1516DHD Quick Start Guide 5
Configuring the TVR 1516DHD
The DVR has an icon-driven menu structure
that allows you to configure the unit’s
parameters. Each command icon displays a
screen that lets you edit a group of settings.
Most menus are available only to system
administrators.
Refer to the TVR 15HD user manual for
detailed information on configuring the unit.
To access the main menu from live view:
•Press the Menu button on the remote
control or front panel
- Or -
•Right-click the mouse and select Menu
from the pop-up menu.
The main menu screen appears. Move the
mouse over a command icon in the menu
toolbar and click to select it.
Description of the command icons in the
menu toolbar:
Configures display settings.
Configures camera settings.
Configures recording settings.
Configures standard network
settings.
Configures alarm settings.
Configures PTZ settings.
Configures user settings.
Configures system settings.
Provides reference information
to the various toolbars and
menus within the interface.
Provides access to logout,
reboot and shutdown options.
Specifications
Power supply
:12 VDC
Power consumption:
≤ 20 W
Operating
temperature
:
-10 to +55 ºC
(14 to 131 °F)
Relative humidity
:10 to 90%
Dimensions
(W x H x D)
:
362 × 330 × 78 mm
(14.25 × 13.0 × 3.07
in.)
Weight
:≤4 kg (8.8 lb.)
Contact information
For contact information, see
www.interlogix.com,or
www.utcfssecurityproducts.eu

6 TVR 1516DHD Quick Start Guide
Legal and Regulatory information
Copyright
©
2016 United Technologies Corporation. All rights reserved.
Interlogix is part of UTC Climate, Controls & Security, a unit of
United Technologies Corporation. All rights
reserved
Trademarks and patents
Trade names used in this document may be trademarks or registered trademarks of the ma
nufacturers or
vendors of the respective products.
Manufacturer
Interlogix
2955 Red Hill Avenue, Costa Mesa, CA 92626
-5923, USA
Authorized EU manufacturing representative:
UTC Fire & Security B.V.
Kelvinstraat 7, 6003 DH Weert, The Netherlands
FCC
compliance
Class A
:This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operation of this equipment
in a residential area is likely to
cause harmful interference in which case the user will be required to correct the interference at his own expense.
FCC
conditions
This device complies with Part 15 of the FCC Rules. Operation is subject to the followin
g two conditions:
(1) This device may not cause harmful interference.
(2) This Device must accept any interference received, including interference that may cause undesired
operation.
Canada
This Class A digital apparatus complies with CAN ICES
-003 (A)/NMB-3 (A).
Cet appareil numérique de la classe A est conforme à la norme CAN ICES
-003 (A)/NMB-3 (A).
ACMA compliance
Notice! This is a Class A product. In a domestic environment this product may cause radio interference in which
case the user may be
required to take adequate measures.
Certification
EU directives
This product and
- if applicable - the supplied accessories too are marked with "CE" and comply therefore with
the applicable harmonized European standards listed under the EMC Dire
ctive 2014/30/EU, the RoHS Directive
2011/65/EU.
2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal
waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of
equivalent new equipment, or dispose of it at designated collection points. For more information see:
www.recyclethis.info.
2013/56/EU & 2006/66/EC (battery directive
): This product contains a battery that cannot be disposed of as
unsorted municipal waste in the European Union. See the product documentation for specific battery information.
The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or
mercury (Hg). For proper recycling,
return the battery to your supplier or to a designated collection point. For
more information see: www.recyclethis.info.
Contact information
For contact information, see www.interlogix.com or www.utcfssecurityproducts.eu
