Invacare 2GT Instruction Manual

Yes, you can. ™
Tarsys®
Tilt Only (2GT™)
Recline Only (2GR™)
Tilt and Recline (2GTR™)
For
Storm Series® TDX®
Power Wheelchairs
Parts Catalog Issued: Apr 24, 2012

The information contained in this document is subject to change without notice. This catalog contains
service parts for Form No. 03-026. If you have any questions regarding this catalog, please contact one
of our Customer Service Representatives.
For Customer Service Support Call:
1-800-333-6900
For Faxed In Orders Call:
1-800-678-4682 or
1-440-366-0709
For Technical Service Call:
1-800-832-4707
Literature Can Be Found at:
www.invacare.com or
1-800-828-6272
SYMBOL DEFINITION
Throughout this catalog you will notice letters to draw your attention to specific footnotes which are located at the
bottom of the page or below specified charts.
HARDWARE MEASUREMENTS
Examples: = Special Comments
= General information pertaining to that specific page
= No Longer Available
NOTE:
NLA
The measurements for the hardware will be listed as follows:
Screws, Bolts
Washers
Spacers
For your convenience, we have supplied an area for you to list your Invacare Representatives.
A,B,C etc.
Diameter X Thread Count/Pitch X Length
Inside Diameter X Outside Diameter X Thickness
Inside Diameter X Outside Diameter X Length
Name Phone Numbers
© 2012 Invacare Corporation. Elyria, Ohio. Invacare, Yes, you can., the Blue Medallion Design, SureStep, Storm Series, TDX, Tarsys, Silhouette, Contour U
are registered trademarks and 2GT, 2GR, 2GTR, MKIV, MK5, Personal Back, and Infinity are trademarks of Invacare Corporation.
Otto Bock is a registered trademark owned by Otto Bock Orthopaedische Industrie GMBH & Co.. JAY Back is a registered trademark of Sunrise Medical
HHG, Inc. Corporation
Parts Catalog Usage Guide
1
Form No. 03-026
To order call toll free 1-800-333-6900, or www.invacare.com

Accessories - Arm Pads - Otto Bock ........................................................................................ 148
Accessories - Back Mtg. Hardware (Infinity, Personal, JAY, Silhouette, Contour U Backs w/
Extruded Canes) (Profile Back w/ 7/8" Round Canes)
157
Accessories - Headrest Support Assembly - A.B.S. Curved and Profile Back ......................... 150
Accessories - Lateral Support Assembly - (Clamp-On) For Round Canes .............................. 154
Accessories - Lateral Support Assembly - For Extruded Canes .............................................. 152
Accessories - Miscellaneous .................................................................................................... 171
Accessories - Power Wheelchair Tool Kit ................................................................................ 169
Accessories - Vent Tray Assembly without Mounting Hardware .............................................. 160
Accessories - Vent Tray Kit For Extruded & Round Back Canes ............................................. 166
Accessories - Vent Tray Mounting Hardware For Extruded Back Canes ................................. 162
Accessories - Vent Tray Mounting Hardware For Round Back Canes .................................... 164
Arms - 2GR and 2GTR ............................................................................................................. 65
Arms - 2GT ............................................................................................................................... 62
Backs - ABS Curved without Mounting Hardware - 2GR and 2GTR with V.S.R. ..................... 46
Backs - ABS Curved without Mounting Hardware - 2GT .......................................................... 41
Backs - Mounting Hardware - A.B.S. Curved and Profile ......................................................... 54
Backs - Mounting Hardware - A.B.S. Curved Back For (7/8" Round) Back Canes .................. 58
Backs - Profile without Mounting Hardware ............................................................................. 52
Backs - V.S.R. Actuator Motor and Mounting Hardware - 2GR and 2GTR .............................. 60
Battery Box Hardware & Door Assembly ................................................................................. 10
Battery Support Bracket Assembly - TRBKTS Option .............................................................. 12
TABLE of CONTENTS
Description
Page
Number
2
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

Battery Tray Asbly. & Wire Harnesses - Vent Tray (3) 22NF Batteries .................................... 14
Canes - Back - Spreader Bar Assembly - 2GR and 2GTR ...................................................... 39
Canes - Back - Spreader Bar Assembly - 2GT ........................................................................ 33
Canes - Back (7/8" Round-Optional) & Spreader Bar Assembly - 2GT ................................... 35
Canes - Back (7/8" Round-Optional) and Spreader Bar Assembly - 2GR and 2GTR .............. 37
Conversion Kit - 2GR To 2GTR For TDX ................................................................................. 173
Electronics - 4-Way Switch and Mounting Hardware ............................................................... 121
Electronics - MK5 SAC and Mounting Hardware ..................................................................... 123
Electronics - MK5 TAC/TRCM and Mounting Hardware For Extruded Back Canes ................ 125
Electronics - MK5 TAC/TRCM and Mounting Hardware For Round Back Canes .................... 128
Electronics - Quad Link (QLA) After 10/30/05 .......................................................................... 146
Electronics - Quad Link 1/13/04 Thru 10/30/05 ........................................................................ 142
Electronics - Quad Link 10/9/03 Thru 1/12/04 For 1556 Heavy Duty Joystick ......................... 140
Electronics - Quad Link 10/9/03 Thru 1/12/04 For MK5 DPJ Joystick ..................................... 136
Electronics - Quad Link 10/9/03 Thru 1/12/04 For MK5 MPJ Joystick ..................................... 138
Electronics - Quad Link Before 10/9/03 .................................................................................... 133
Electronics - Tilt Recline Single Switch (TRSS) ....................................................................... 119
Electronics - Tilt/ Recline Potentiometers and Hardware ......................................................... 131
Frames - Center Seat Assembly - 2GR (Recline Actuator Included) ....................................... 24
Frames - Center Seat Assembly - 2GT .................................................................................... 22
Frames - Center Seat Assembly - 2GTR (Recline Actuator Included) ..................................... 26
TABLE of CONTENTS
Description
Page
Number
3
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

Frames - Center Seat Mounting Hardware .............................................................................. 28
Frames - Side ........................................................................................................................... 20
Front Riggings - Calf Pads and Mounting Hardware ................................................................ 93
Front Riggings - Center Mount Rigging KIT (CTMT-T/CTMT-TL) ............................................ 108
Front Riggings - Center Mount Rigging Mounting Hardware (CTMT-T/CTMT-TL) .................. 106
Front Riggings - Center Mount Riggings (CTMT-T/CTMT-TL) ................................................. 103
Front Riggings - Footrest and Legrest Accessories ................................................................. 100
Front Riggings - Footrest Supports - 70 Degree Non-Tapered & Tapered .............................. 76
Front Riggings - Footrest Supports - PHW93 (Hemi) ............................................................... 78
Front Riggings - Front Rigging Hanger Assembly - Pin, Sector & Genius Style ...................... 73
Front Riggings - Legrest - Genius - Mechanical ....................................................................... 88
Front Riggings - Legrest Support Push Rod Assembly ............................................................ 91
Front Riggings - Legrest Supports - AT5544 ............................................................................ 83
Front Riggings - Legrest Supports - Mechanical - AT5544P .................................................... 85
Front Riggings - Legrest Supports, Articulating - PHAL4A (Hemi) ........................................... 80
Front Riggings - Pivot/Slide Tube w/ Adjustable Angle Footplates - AT5543 .......................... 98
Front Riggings - Pivot/Slide Tube w/ Footplates - Aluminum - 1650, 1350 .............................. 97
Front Riggings - Pivot/Slide Tube w/ Footplates - Composite - 1651 ....................................... 95
Front Riggings - Power Articulating Legrest - ELRPW/ELRPW22 (After 7/26/04) ................... 114
Front Riggings - Power Articulating Legrest - ELRPW/ELRPW22 (Before 7/27/04) ................ 110
Front Riggings - Power Articulating Legrest Harnesses and Hardware ................................... 117
TABLE of CONTENTS
Description
Page
Number
4
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

Front Riggings - Reference Chart - 70ST TAPER .................................................................... 72
Front Riggings - Reference Chart - AT5544, 70NHD, PHW93 ................................................ 70
Front Riggings - Reference Chart - PHAL4A ........................................................................... 71
Interface Hardware - Attach 2GR To Battery Box .................................................................... 18
Interface Hardware & Tilt Actuator - Attach 2GT, 2GTR To Battery Box ................................. 16
Label Locations For TRBKTS Option ....................................................................................... 6
Packaging & Literature ............................................................................................................. 7
Seat Pans ................................................................................................................................. 30
Seat Pans - Mounting Hardware .............................................................................................. 31
Shroud Covers - Rear, Side, Lower Seat and V.S.R. Actuator ................................................ 68
TRBKTS Option Clarification Reference .................................................................................. 9
TABLE of CONTENTS
Description
Page
Number
5
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

Label Locations For TRBKTS Option
6
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

Packaging and Literature
7
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

Packaging and Literature
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1030364 Carton, Cover 1 11 B 1091514 Insert, Carton 1 12 40131X161 Insert, Plain Pad 1 23 1106472 Carton 1 14 1021149 Bag, Poly Zip-Lip (13" L x 9" W) 1 15 1080876 Carton 1 16 40131X045 Carton 1 17 1091517 Carton 1 18 See Note See Footnote 1 19 D 1030362 Carton, Tray 1 210 1115174 Carton, Corner Reinforcement 1 411 1114809 Owner's Manual, TDX w/ MK5 Electronics 1 1A 00077X031-NLA NLA - Warranty Card 1 1A 1031682 Carton, Cover 1 1A,C 1030362 Carton, Tray 1 1A,C
A - Not Shown
B - All Systems
C - Complete Seating Systems with Chair Base
D - Wood skid not supplied
NOTE:
When adjusting or replacing parts, please refer to you Owner's Manual for assistance.
NOTE:
8
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

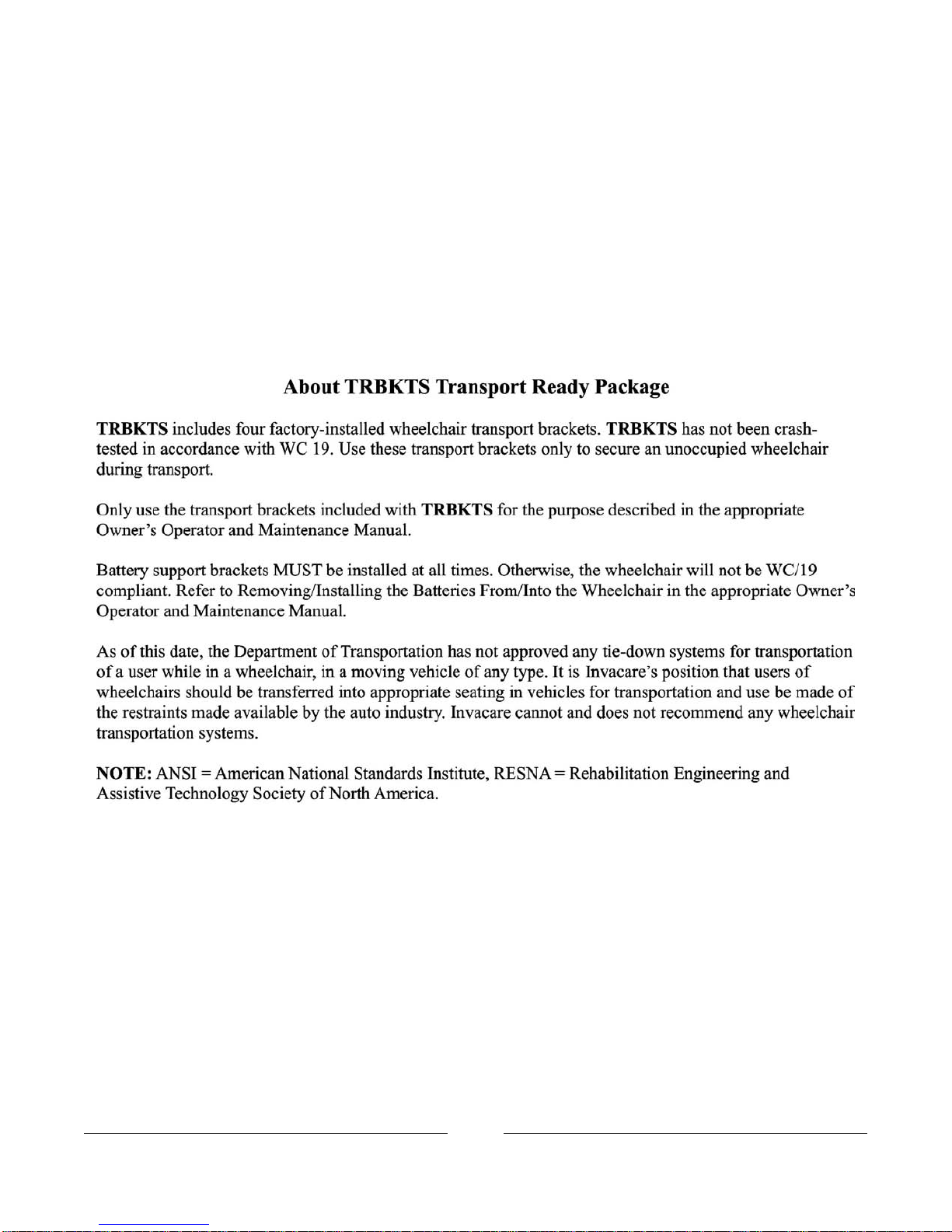

TRBKTS Option Clarification Reference
TRBKTS Option was introduced 12/19/05 as an On-Chair option only.
9
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

Battery Box Hardware and Door Assembly
The Battery Boxes are non-serviceable parts. Call Technical Services for assistance (1-800-832-4707)
10
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

Battery Box Hardware and Door Assembly
The Battery Boxes are non-serviceable parts. Call Technical Services for assistance (1-800-832-4707)
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1133026 Kit, Battery Box Hardware 1 11 A Screw, Phillips Pan Head Tap (#10-32 x 1/2") 1 62 Screw, Socket Head (#10-32 x 1/2") 1 23 Cover, Battery Box Shroud 1 14 1113357 Kit, Battery Box Door Assembly, 22NF Short 1 15 B,D Label, 22NF Terminal Configuration Warning 1 16 NLA - Decal, Blank Logo 1 18 Decal, Invacare Medallion - Large 1 19 Locknut (1/4-20) 1 210 NLA - Sleeve, Door Pivot 1 211 Label, 22NF Battery Install/Remove 1 112 1113127 Kit, Battery Box Door Assembly, GP24 Short 1 15 B,D Label, Terminal Configuration Warning, GP24 1 16 NLA - Decal, Blank Logo 1 18 Decal, Invacare Medallion - Large 1 19 Locknut (1/4-20) 1 210 NLA - Sleeve, Door Pivot 1 211 Label, Battery Install/Remove, GP24 1 112 1121072-NLA Kit, Battery Box Door Assembly, 22NF Long (For
Vent) 1 15 C,D
Label, 22NF Terminal Configuration Warning 1 16 Label, 3 Battery Configuration Warning 1 17 NLA - Decal, Blank Logo 1 18 Decal, Invacare Medallion - Large 1 19 Locknut (1/4-20) 1 210 NLA - Sleeve, Door Pivot 1 211
A - Includes Battery Box Door along w/ Items 2-4.
B - Includes Battery Box Door along w/ Items 6 and 8-12.
C - Includes Battery Box Door along w/ Items 6-11.
D - Blank Logo Decal is no longer available and no longer required for item number 9 Invacare Medallion Decal.
NOTE:
11
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

Battery Support Bracket Assembly
For TRBKTS Option
12
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

Battery Support Bracket Assembly
For TRBKTS Option
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1139537-NLA Kit, Battery Support Bracket Assembly - For 22NF
Batteries 1 11 A
Screw, Hex Head w/ Patch (1/4-20 x 1/2") 1 42 Locknut (1/4-20) 1 43 Bracket, Battery Support, Black 1 14 1139538-NLA Kit, Battery Support Bracket Assembly - For GP24
Batteries 1 11 A
Screw, Hex Head w/ Patch (1/4-20 x 1/2") 1 42 Locknut (1/4-20) 1 43 Bracket, Battery Support, Black 1 14 1139539 Kit, Battery Support Bracket Assembly - For
Invisible Super Low Tilt System w/ 22NF Batteries 1 11 B
Bracket, Battery Support, Black 1 14 Screw, Hex Head w/ Patch (1/4-20 x 1/2") 1 45 1139540-NLA Kit, Battery Support Bracket Assembly - For Vent
"Ready" System w/ 22NF Batteries 1 11 A
Screw, Hex Head w/ Patch (1/4-20 x 5/8") 1 42 Locknut (1/4-20) 1 43 Bracket, Battery Support, Black 1 14 1139541 Kit, Battery Support Bracket Assembly - For Vent
"Option" System w/ 22NF Batteries 1 11 B
Bracket, Battery Support, Black 1 14 Screw, Hex Head w/ Patch (1/4-20 x 1/2") 1 45 1139867-NLA Kit, Battery Support Bracket Assembly - For Elevate
"Option" System w/ 22NF Batteries 1 11 B
Bracket, Battery Support, Black 1 14 Screw, Hex Head w/ Patch (1/4-20 x 1/2") 1 45
A - Includes items 2-4
B - Includes items 4 and 5
NOTE:
13
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

Battery Tray Assembly and Wire Harnesses For Vent Tray
(3) 22NF Batteries
14
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

Battery Tray Assembly and Wire Harnesses For Vent Tray
(3) 22NF Batteries
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1120363 Kit, Battery Wire Harness with Terminal Hardware,
22NF - Rear 1 11 B,A
1120362 Kit, Battery Wire Harness with Terminal Hardware,
22NF - Front 1 12 B,A
1121143 Harness, Battery Wire with Terminal Hardware,
22NF Vent 1 13 B,A
16721X000 Locknut (1/4-20) 1 64 1095502 Package, Tie Wrap (11-1/2" L) 10 15 1096799 Screw, Hex Flange Whiz Lock (1/4-20 x 7/8") 1 46 1121124 Battery Strap Assembly, 22NF and GP24 1 27 1121125 Battery Strap Assembly For Vent, 22NF 1 18 1117186 Bracket, Battery Tray Stop, Black 1 19 90017X000 Screw, Phillips Pan Head (#10-32 x 5/16") 1 210 1121142-NLA NLA - Battery Tray Assembly, TDX 22NF For Vent 1 111 C 1121029 Kit, Vent Battery Harness Assembly with Hardware 1 112 D Harness, Vent Battery 1 113 NLA - Harness, Vent Battery Extension 1 114 Screw, Phillips Pan Head (#8-16 x 5/8") 1 215 Tie Wrap (5-5/8" L) 1 416 Grommet, Rubber 1 117 1139531 Kit, Vent Battery Harness Assembly with Hardware
For TRBKTS Option 1 112 D
Harness, Vent Battery 1 113 Harness, Vent Battery Extension, TRBKTS Option 1 114 Screw, Phillips Pan Head (#8-16 x 5/8") 1 215 Tie Wrap (5-5/8" L) 1 416 Grommet, Rubber For TRBKTS Option 1 117 1095503 Package, Tie Wrap (5-5/8" L) 10 116 1055747 Grommet, Rubber 1 117 1137236 Grommet, Rubber For TRBKTS Option 1 117
A - Individual components are not available for the battery wire harnesses
B - Includes items 4-6
C - Includes items 7-10
D - Includes items 13-17
NOTE:
15
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

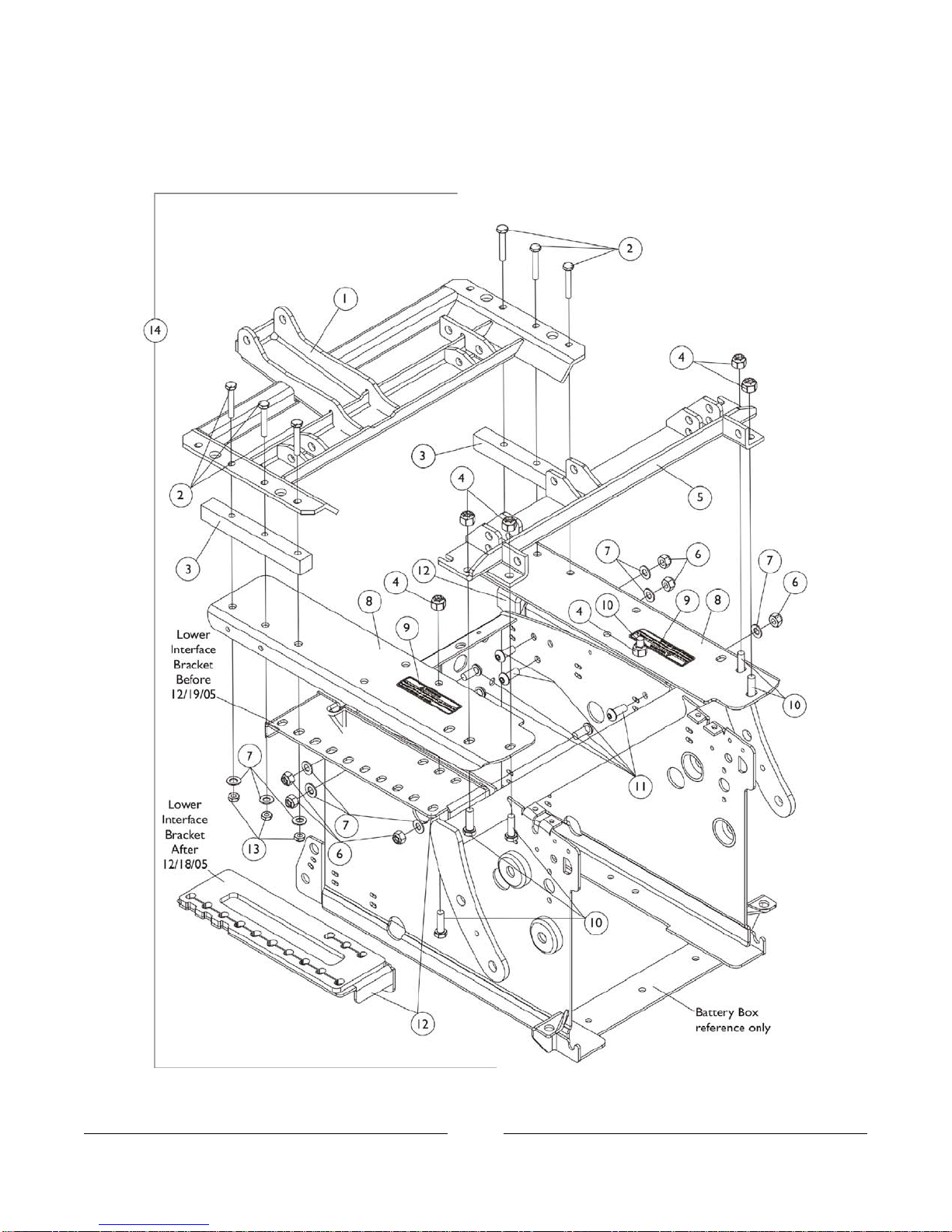

Interface Hardware and Tilt Actuator
(To Attach 2GT, 2GTR To The Battery Box)
Tilt Only (2GT) and Tilt/Recline (2GTR)
16
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

Interface Hardware and Tilt Actuator
(To Attach 2GT, 2GTR To The Battery Box)
Tilt Only (2GT) and Tilt/Recline (2GTR)
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1082778 Actuator Motor Assembly, Tilt 1 11 E 1105039 Bushing (3/8 x 5/8 x 1/2") 1 22 1070411 Bolt, Shoulder (3/8 x 2-1/2") 1 13 1026158 Locknut (5/16-18) 1 84 1082877 Bar, Clamp, Black 1 25 1113618 Guide, Linear - Short 1 26 1113594-NLA NLA - Pivot Assembly, Rear 1 17 1091869 Screw, Socket Flat Head w/ Patch (1/4-20 x 3/4") 1 68 1064267 Locknut (5/16-18) 1 69 1114962 Screw, Socket Head (5/16-18 x 1") 1 410 B 1108429 Screw, Socket Head w/ Patch (5/16-18 x 1-1/4") 1 410 C 1031665 Screw, Shoulder Hex Socket Head (3/8 x 1-1/2",
5/16-18) 1 111
1113604 Pivot Assembly, Front 1 112 1025704 Washer, Flat (5/16 x 5/8 x 1/16") 1 1013 1043629 Screw, Hex Head w/ Patch (5/16-18 x 1-1/4") 1 614 1118370 Decal, Warning, 2GTR Seat Repositioning 1 215 1120348 Kit, Bracket w/ Decal, Black - Right (2GTR) 1 116 1120349 Kit, Bracket w/ Decal, Black - Left (2GTR) 1 116 1071955 Screw, Socket Button Head (5/16-18 x 3/4") 1 617 1028769 Locknut (5/16-18) 1 418 1114964 Bracket, Lower Interface, Black - Right 1 119 B 1114965 Bracket, Lower Interface, Black - Left 1 119 B 1140829 Bracket, Lower Interface, Black - Right 1 119 C 1140830 Bracket, Lower Interface, Black - Left 1 119 C 1121117-NLA NLA - Shim, Short Seat Guide Slide 1 220 D See Note See Footnote 1 121 A,H 1140059 Kit, Actuator Braking Module w/ Instruction Sheet 1 122 F 1141508 Instruction Sheet, Actuator Braking Module 1 1G
A - Includes items 1-20 and used to attach a 2GT or 2GTR to the battery box. When item 21 is ordered, item19 Lower
Interface Bracket made after 12/18/05 will be shipped. The seat to floor height will be raised 1/4".
B - Before 12/19/05
C - After 12/18/05
D - Item 20 is no longer used after 12/18/05
E - Actuator Braking Module added to Tilt Actuator and is backward compatible to all systems manufactured before 5/18/06.
The addition of the braking module eliminated the requirement of a Heavy Duty Tilt Actuator.
F - Actuator Braking Module can be assembled in the field on seating systems manufactured before 5/18/06 as well. Must
verify with an Invacare Technician when a kit is required.
G - Not Shown
H - Part number is no longer available as a service part.
NOTE:
17
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

Interface Hardware
(To Attach 2GR To The Battery Box)
Recline Only (2GR)
18
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

Interface Hardware
(To Attach 2GR To The Battery Box)
Recline Only (2GR)
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1113594-NLA NLA - Pivot Assembly, Rear 1 11 D 1030949 Screw, Hex Head (1/4-20 x 1-1/2") 1 62 B 1024793 Screw, Hex Head (1/4-20 x 1-3/4") 1 62 C 1086943 Bar, Spacer, Black 1 23 1064267 Locknut (5/16-18) 1 64 1113604 Pivot Assembly, Front 1 15 1026158 Locknut (5/16-18) 1 66 1025704 Washer, Flat (5/16 x 5/8 x 1/16") 1 127 1120348 Kit, Bracket w/ Decal, Black - Right (2GTR) 1 18 1120349 Kit, Bracket w/ Decal, Black - Left (2GTR) 1 18 1118370 Decal, Warning, 2GTR Seat Repositioning 1 29 1043629 Screw, Hex Head w/ Patch (5/16-18 x 1-1/4") 1 610 1071955 Screw, Socket Button Head (5/16-18 x 3/4") 1 611 1114964 Bracket, Lower Interface, Black - Right 1 112 B 1114965 Bracket, Lower Interface, Black - Left 1 112 B 1140829 Bracket, Lower Interface, Black - Right 1 112 C 1140830 Bracket, Lower Interface, Black - Left 1 112 C 1025195 Locknut (1/4-20) 1 613 1113603 Interface Hardware - 2GR 1 114 A
A - Includes items 1-13 and used to attach a 2GR to the battery box. When item 14 is ordered, item12 Lower Interface Bracket
made after 12/18/05 will be shipped. The seat to floor height will be raised 1/4".
B - Before 12/19/05
C - After 12/18/05
D - Item No Longer Available. Use part # 1113603 as a replacement.
NOTE:
19
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
