Invacare Discontinued 1/00 Instruction Manual

Yes, you can. ™
Cat Basic
Scooter
(Discontinued 1/2000)
Parts Catalog Issued: Jan 11, 2012

The information contained in this document is subject to change without notice. This catalog contains
service parts for Form No. 95-09. If you have any questions regarding this catalog, please contact one of
our Customer Service Representatives.
For Customer Service Support Call:
1-800-333-6900
For Faxed In Orders Call:
1-800-678-4682 or
1-440-366-0709
For Technical Service Call:
1-800-832-4707
Literature Can Be Found at:
www.invacare.com or
1-800-828-6272
SYMBOL DEFINITION
Throughout this catalog you will notice letters to draw your attention to specific footnotes which are located at the
bottom of the page or below specified charts.
HARDWARE MEASUREMENTS
Examples: = Special Comments
= General information pertaining to that specific page
= No Longer Available
NOTE:
NLA
The measurements for the hardware will be listed as follows:
Screws, Bolts
Washers
Spacers
For your convenience, we have supplied an area for you to list your Invacare Representatives.
A,B,C etc.
Diameter X Thread Count/Pitch X Length
Inside Diameter X Outside Diameter X Thickness
Inside Diameter X Outside Diameter X Length
Name Phone Numbers
©2012 Invacare Corporation. Elyria, Ohio. Invacare, Yes, you can. and the Medallion Design are registered trademarks of Invacare Corporation.
Parts Catalog Usage Guide
1
Form No. 95-09
To order call toll free 1-800-333-6900, or www.invacare.com

Accessories .............................................................................................................................. 24
Accessories - Oxygen Holder Assembly Kit ............................................................................. 26
Arm Assemblies ....................................................................................................................... 22
Battery Boxes, Harnesses and Chargers ................................................................................. 11
Fork Assembly .......................................................................................................................... 13
Motor and Trans-Axle ............................................................................................................... 16
Packaging and Literature ......................................................................................................... 3
Seat Assembly ......................................................................................................................... 18
Seat Plate Assembly ................................................................................................................ 20
Shrouds, Frames and Anti-Tippers .......................................................................................... 5
Tiller Adjustment Assembly ...................................................................................................... 10
Tiller Assembly and Controller ................................................................................................. 8
Wheels ..................................................................................................................................... 14
TABLE of CONTENTS
Description
Page
Number
2
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-09

Packaging and Literature
3
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-09

Packaging and Literature
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1076976-NLA NLA - Carton, Shipper 1 11 1015609-NLA NLA - Bag, Poly (28" W x 44" D x 80" H) 1 12 1076977-NLA NLA - Insert, Carton 1 13 1073445-NLA NLA - Owner's Manual 1 1A 00077X031-NLA NLA - Warranty Card 1 1A
A - Not Shown.
Whe
n adjusting or replacing parts, please refer to the Owner's Manual for assistance.
NOTE:
4
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-09

Shrouds, Frames and Anti-Tippers
5
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-09

Shrouds, Frames and Anti-Tippers
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1057530-NLA NLA - Screw, Phillips Pan Head (#6-32 x 1") 1 41 0204705-NLA NLA - Washer, Flat (#6) 1 42 0143205-NLA NLA - Locknut, Low Profile (#6-32) 1 43 0226400-NLA NLA - Clip, Rear Shroud Fastener 1 24 1056270-NLA NLA - Plug Button, Black (1-1/4") 1 15 1055726-NLA NLA - Tray, Battery 1 26 0230800-NLA NLA - Rivet (1/8 X 1/2" Long) 1 167 H 16348X000 Rivet (3/16 x 7/16") 1 107 I 1055721-NLA NLA - Mat, Floor - Right 1 18 H 1055720-NLA NLA - Mat, Floor - Left 1 18 H 1080966 Mat, Floor - Right 1 18 I 1080967 Mat, Floor - Left 1 18 I 1077138-NLA NLA - Shroud, Front with Decals 1 19 B 1070128-NLA NLA - Decal, Cat Basic 1 410 1081503-NLA NLA - Kit, Front Shroud Hardware 1 111 D,H 1080895-NLA NLA - Kit, Front Shroud Hardware 1 111 E,I 1056269-NLA NLA - Knob, Tee 1 212 0226500-NLA NLA - Knob, Tee 1 212 1055675-NLA NLA - Decal, Brake Release 1 113 1056258-NLA NLA - Decal, Reflector 1 114 1077137-NLA NLA - Shroud, Rear with Decals 1 115 1077793-NLA NLA - Screw, Socket Head (1/4-20 x 3/4") 1 216 1081504-NLA NLA - Kit, Rear Shroud Hardware 1 117 F,H 1080894-NLA NLA - Kit, Rear Shroud Hardware 1 117 G,I 1070575-NLA NLA - Screw, SEMS w/ Washer (#10-32 x 7/8") 1 218 40315X000 Rivet, Nut (#10-32) 1 219 1039773 Screw, Phillips Pan Head (#6-32 x 1-1/8") 1 420 1043599 Washer, Flat (5/32 x 3/8 x 1/32") 1 421 40157X003 Washer, Plain (5/16 x 5/8 x 1/8") 1 422 P0870X050 Nut, Keps (#6-32) 1 423 1060994-NLA NLA - Pad, Battery Tray 1 224 1021742 Screw, Phillips Pan Head (#4-40 x 1/2") 1 225 P0870X000 Nut, Hex Keps (#4-40) 1 226 1086234-NLA NLA - Anti-Tipper Assembly 1 227 C,J 1055665-NLA NLA - Lock, Spring 1 228 1072717-NLA NLA - Frame, Chassis, Black 1 129 H 1080882-NLA NLA - Frame, Long, Black 1 129 A,I 16720X004 Screw, Hex Head (1/4-20 x 1-1/2") 1 230 1055684-NLA NLA - Wheel, Anti-Tip 2" 1 231 1025195 Locknut (1/4-20) 1 232 1055662 Plug Button, Square, Black (1-1/8") 1 233
6
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-09

Shrouds, Frames and Anti-Tippers
A - Order item 33 when a new frame is required.
B - When a new shroud is ordered, shroud hardware needs to be ordered as well.
C - For scooters manufactured before 5/28/99, order in pairs to match.
D - Includes items 4, 7 and 8
E - Includes items 5, 7, 8 and 24
F - Includes items 13, 14
G - Includes items 14, 18, 19
H - Before 10/19/98
I - After 10/18/98
J - After 5/27/99
NOTE:
7
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-09

Tiller Assembly and Controller
8
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-09

Tiller Assembly and Controller
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1055728-NLA NLA - Face Plate Assembly without Throttle Lever -
Right 1 11 D
1081272-NLA NLA - Face Plate Assembly without Throttle Lever
(D.S. 70) - Right 1 11 E
1081414 Face Plate Assembly without Throttle Lever (D.S.
70) - Left 1 11 E
0307200-NLA NLA - Clamp, Throttle - Lower 1 12 0307322-NLA NLA - Clamp, Throttle - Upper 1 12 D 1055672-NLA NLA - Clamp, Throttle - Upper (D.S. 70) 1 12 E 1016301 Washer, Nylon (5/16 x 7/8 x 1/8") 1 13 1056260-NLA NLA - Lever, Throttle - Standard 1 14 1055680 Decal, Forward 1 15 1055667 Decal, Reverse 1 16 1014386 Screw, Phillips Pan Head (#8-32 x 5/8") 1 27 1055740-NLA NLA - Screw, Socket Flat Head (#8-32 x 1/2") 1 28 1055661-NLA NLA - Grip, Hand 1 29 1072707-NLA NLA - Harness Assembly - Tiller 1 110 98007X005 Tie Wrap (11-1/2" L) 1 211 1055679-NLA NLA - Boot 1 112 1081536-NLA NLA - Tiller Assembly - Right 1 113 C,D 1081406-NLA NLA - Tiller Assembly (D.S. 70) - Right 1 113 C,E 1081385-NLA NLA - Tiller Assembly (D.S. 70) - Left 1 113 C,E 1055727-NLA NLA - Controller Assembly 1 114 D 1071456-NLA NLA - Controller Assembly (D.S. 70) 1 114 E,F 1085941-NLA NLA - Controller Assembly (D.S. 70) 1 114 G 0194500-NLA NLA - Keys 2 1B 1056928 Decal, Grey 1 1A,B
A - Decal no longer used after 9/14/98
B - Not Shown.
C - Includes items 1-12
D - Before 5/15/98
E - After 5/14/98
F - 5/15/98 thru 1/27/99
G - After 1/27/99
NOTE:
9
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-09

Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1025736 Locknut (1/4-20) 1 61 1013970 Lockwasher, High Collar (1/4") 1 122 1023901-NLA NLA - Swivel Adjustment, Top 1 13 1083056-NLA NLA - Swivel Adjustment with Stud, Bottom 1 14 1022421 Spring, Coil 1 15 1029950-NLA NLA - Spacer (25/64 x 5/8 x 1-1/4") 1 16 1029991-NLA NLA - Knob, Adjustment 1 17 1072166-NLA NLA - Sleeve, Fork Coupling 1 18 16720X004 Screw, Hex Head (1/4-20 x 1-1/2") 1 69 20105X000 Washer, Flat (1/4 x 5/8 x 1/16") 1 1210

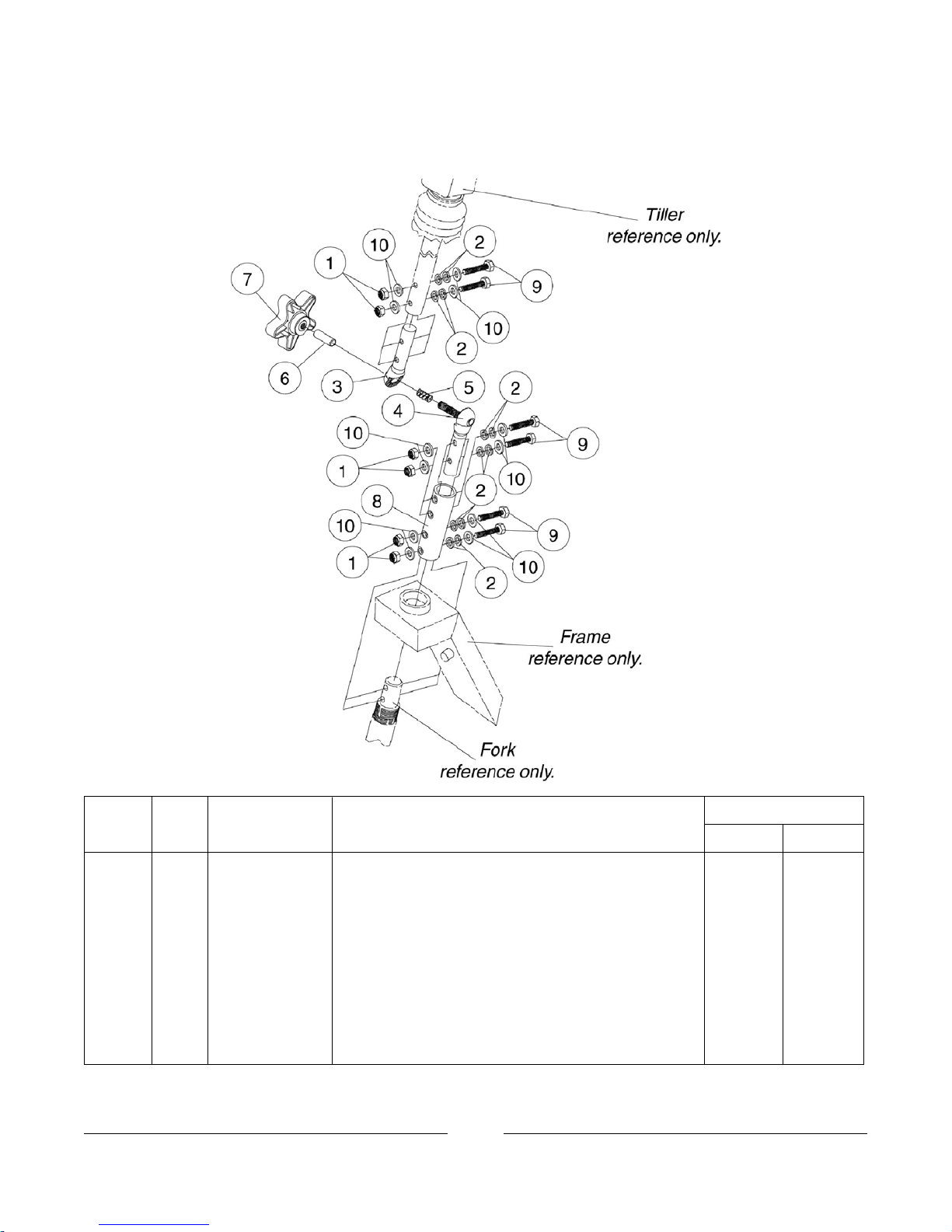

Tiller Adjustment Assembly
10
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-09

Battery Boxes, Harnesses and Chargers
11
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-09

Battery Boxes, Harnesses and Chargers
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1055699-NLA NLA - Harness Assembly, Traditional and Aviation
(Square Plug) 1 11 B
1058062-NLA NLA - Circuit Breaker (30 AMP) 1 12 1072706-NLA NLA - Harness Assembly, DS70 - Chassis/ Battery 1 13 C 1072705 Harness Assembly, DS70 - Charger Plug 1 14 1064512-NLA NLA - Harness, Tiller Chassis 1 15 1072707-NLA NLA - Harness Assembly - Tiller 1 16 1060571-NLA NLA - Horn without Adhesive Pad 1 17 1060999-NLA NLA - Pad, Adhesive Horn 1 1F 1064511-NLA NLA - Motor and Brake Assembly 1 18 D 1085938 Motor and Brake Assembly 1 18 A,E 1058797-NLA NLA - Battery Box Assembly 1 29 1055700-NLA NLA - Harness, Battery Box 1 110 1055714-NLA NLA - Battery Box, Top 1 111 1055686-NLA NLA - Strap, Battery 1 112 1081211 Charger, Battery, Sonell, Round Plug, 3 Amp,
Domestic 1 113
1072727-NLA NLA - Charger, Battery, Sonell, Round Plug, 3 Amp,
U.K. 1 113
1077318 Charger, Battery, Sonell, Round Plug, 3 Amp,
Europe 1 113
A - Motor/brake harness after 1/27/99 will have two separate connectors attached for the transaxle motor.
B - Before 5/15/98
C - After 5/14/98
D - 5/15/98 thru 1/27/99
E - After 1/27/99
F - Not Shown
NOTE:
12
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-09

Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1080888-NLA NLA - Bearing Headset Assembly 1 11 1072164-NLA NLA - Fork Assembly 1 12 1055754-NLA NLA - Screw, Hex Head (1/2-13 x 4-1/2") 1 13 1024296-NLA NLA - Locknut (1/2-13) 1 14

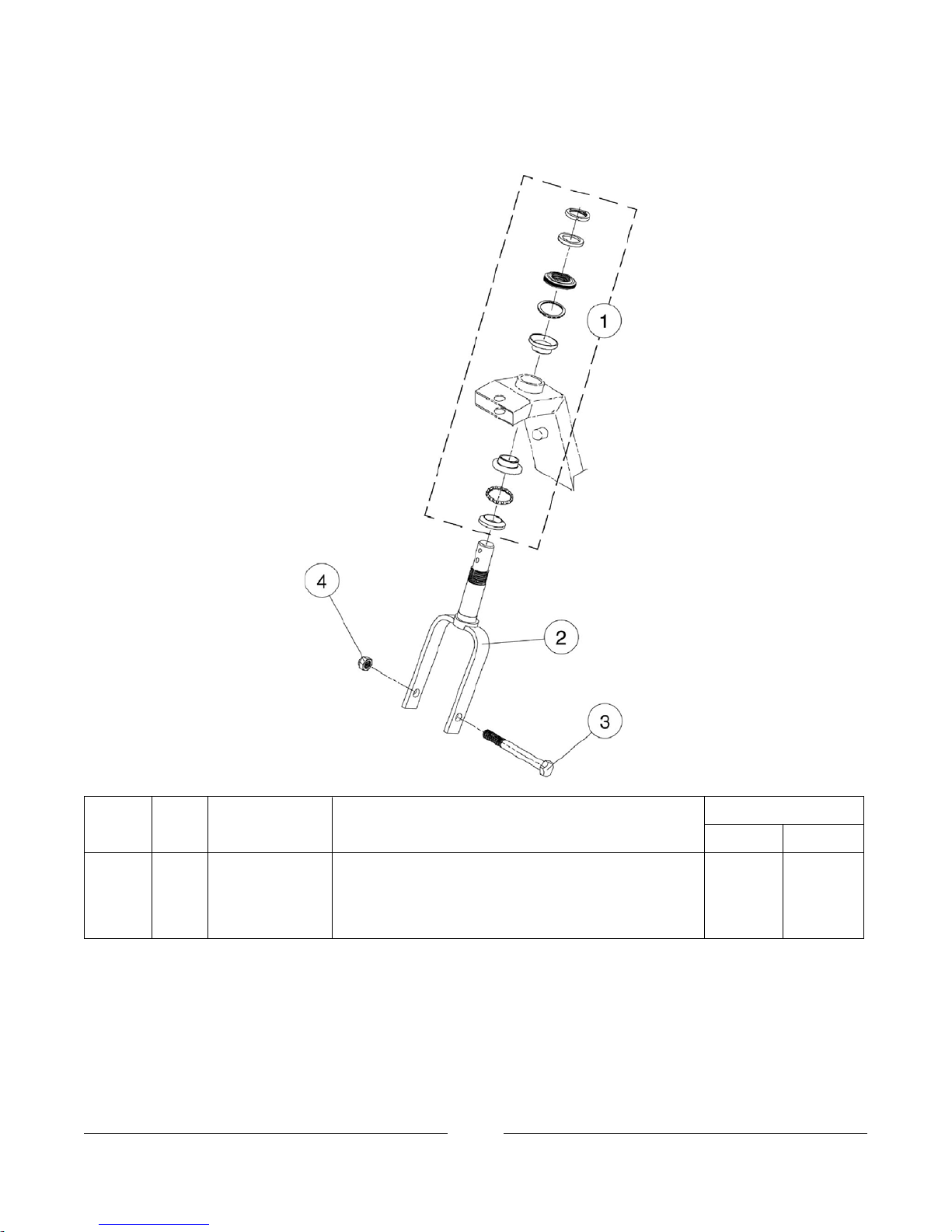

Fork Assembly
13
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-09

Wheels
14
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-09

Wheels
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1055697-NLA NLA - Wheel Assembly, Pneumatic - Front (9") 1 11 1059385-NLA NLA - Wheel Assembly, Foam Filled - Front (9") 1 11 1058031-NLA NLA - Rim, Inner (9") 1 12 1027418 Tire, Pneumatic, Grey (9 x 2-3/4") 1 13 1028896 Tire w/ Foam Filled Insert, Grey (9" x 2-3/4") 1 13 1027417 Tube, Pneumatic Inner (9 x 2-3/4") 1 14 1058032-NLA NLA - Rim, Outer (9") 1 15 1024442 Washer, Lock (5/16 x 9/16 x 1/16") 1 46 1024426 Nut, Hex (5/16-24) 1 47 1055698-NLA NLA - Rear Wheel Assembly, Pneumatic (10") 1 18 1022563-NLA NLA - Rear Wheel Assembly, Foam Filled (10") 1 18 0263200-NLA NLA - Hub, Rear 10" (1 Pair) 2 19 0054105-NLA NLA - Locknut (3/8-16) 1 410 0309300-NLA NLA - Tire, Pneumatic, Rear, Grey (10" x 3") 1 111 1022562-NLA NLA - Tire w/ Foam Filled Insert, Rear, Grey (10" x
3") 1 111
0309400-NLA NLA - Tube, Inner, Black - Rear (10" x 3") 1 112 0068905-NLA NLA - Screw, Hex Head (3/8-16 x 1") 1 413
15
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-09

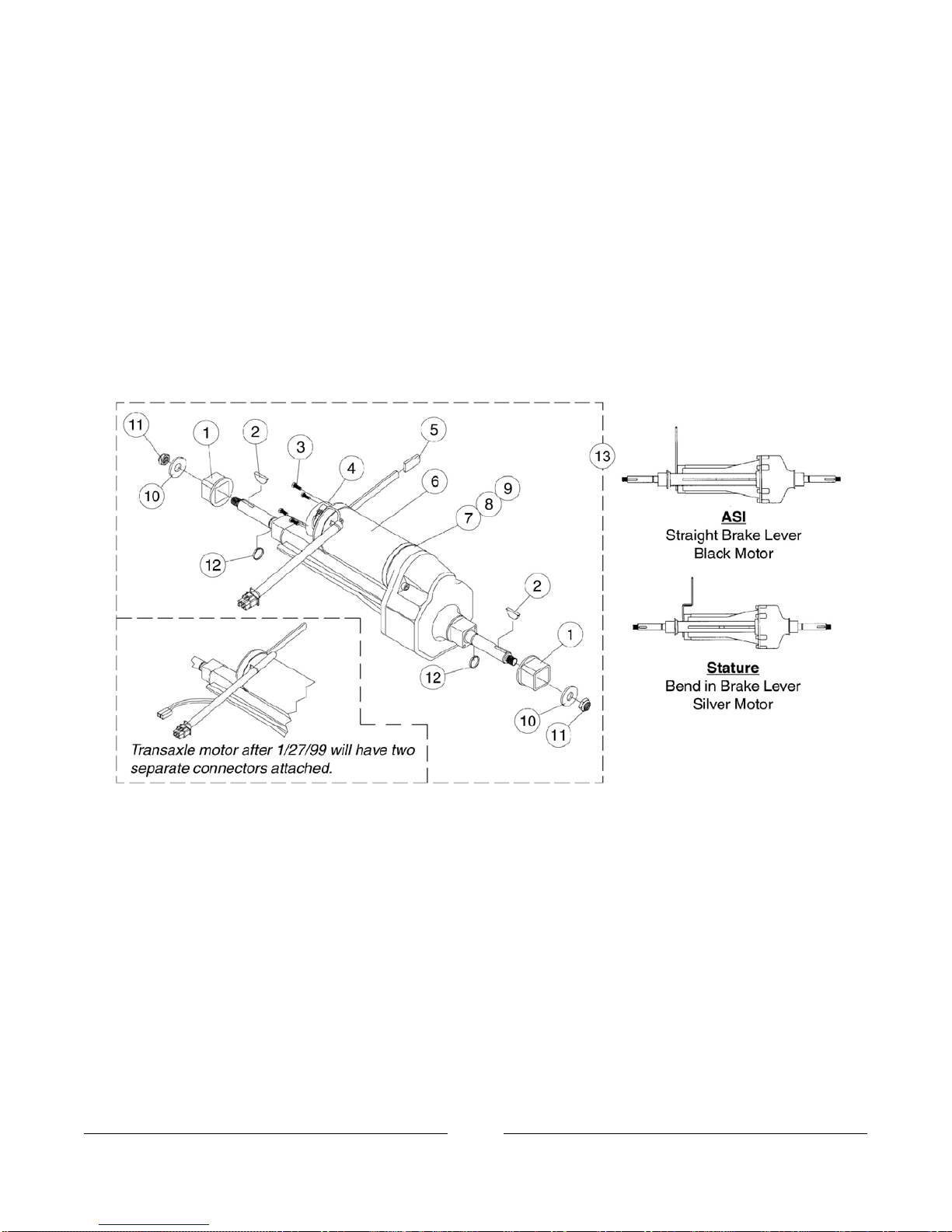

Motor and Trans-Axle
16
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-09

Motor and Trans-Axle
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1058529-NLA NLA - Mount, Vibration 1 21 1058043-NLA NLA - Key, Wheel 1 22 1055767-NLA NLA - Screw, Hex Head (#8-32 x 3/8") 1 43 1055717-NLA NLA - Brake, ASI 1 14 C 1062475 Brake, Stature 1 14 D 1055690-NLA NLA - Cap, Brake Lever 1 15 1058522-NLA NLA - Motor and Brake Assembly, ASI 1 16 C 1070596-NLA NLA - Motor and Brake Assembly, Stature 1 16 E 1086251-NLA NLA - Motor and Brake Assembly, Stature 1 16 F 1058527-NLA NLA - Coupling, ASI 1 17 C 1062477-NLA NLA - Coupling, Stature 1 17 D 1058528-NLA NLA - Key, Motor Gearbox 1 18 1058524-NLA NLA - Kit, Brush, ASI 2 19 C 1062476-NLA NLA - Kit, Brush, Stature 2 19 D 1003766 Washer, Plain (1/2 x 1 x 1/8") 1 210 1001979 Locknut (1/2-20) 1 211 1058042-NLA NLA - Ring, Grip 1 212 B 1058041-NLA NLA - Trans-Axle Assembly, ASI with Brake 1 113 A,C 1062535-NLA NLA - Trans-Axle Assembly, Stature with Brake 1 113 E 1085944-NLA NLA - Trans-Axle Assembly, Stature with Brake 1 113 F
A - Trans-Axle 1058041 is NLA, order Trans-Axle 1062535 as a direct replacement.
B - Includes items 1-12
C - Before 7/27/98
D - After 7/26/98
E - 7/27/98 thru 1/27/99
F - After 1/27/99
NOTE:
17
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-09

Seat Assembly
18
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-09

Seat Assembly
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1081535-NLA NLA - Seat Assembly s/ Back and Seat Pads
(without Attaching Hardware) 1 11 A
1069735-NLA NLA - Seat Assembly w/ Back and Seat Pads
(without Attaching Hardware) 1 11 B
1069732-NLA NLA - Pad, Back - Standard 1 12 1069733-NLA NLA - Pad, Seat - Standard 1 13 1069146-NLA NLA - Seat, Deluxe Vinyl without Attaching
Hardware 1 14
1069147 Seat, Deluxe Cloth without Attaching Hardware 1 14 1070148-NLA NLA - Bolt, Carriage (5/16-18 x 1-1/2") 1 25 1071206-NLA NLA - Bolt, Carriage (5/16-18 x 2") 1 26 1025704 Washer, Flat (5/16 x 5/8 x 1/16") 1 47 1026158 Locknut (5/16-18) 1 48 1073373-NLA NLA - Kit, Seat Attaching Hardware - Standard 1 19 B,C 1073374 Kit, Seat Attaching Hardware - Deluxe Vinyl and
Cloth 1 19 D
A - Before 10/19/98
B - After 10/18/98
C - Includes items 5-8
D - Includes items 7 and 8
NOTE:
19
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-09
