User Manual
User ManualUser Manual
User Manual

Table of Contents
PREFACE ....................................................................................................................................... 1
SAFETY INFORMATION ................................................................................................................. 1
CAUTION ...................................................................................................................................... 2
SPECIFICATIONS ............................................................................................................................ 3
12Gb/s BACKPLANE SPECIFICATIONS ............................................................................................ 4
1 Product I troductio ............................................................................................................. 5
1.1 Box Contents ................................................................................................................. 5
1.2 Accessories Box ............................................................................................................. 6
1.3 General Information ...................................................................................................... 7
1.3.1 Front Panel Controls and Indicators ................................................................................. 8
1.3.2 Rear Panel Configuration ................................................................................................. 9
2 Hardware I stallatio ......................................................................................................... 10
2.1 Mot erboard & Expansion Card Installation ................................................................ 10
2.2 HDD Tray Installation ................................................................................................... 10
2.3 Fan Installation ........................................................................................................... 10
2.4 Power Supply Installation ............................................................................................ 10
2.4.1 Power Supply Ca le Information ................................................................................... 10
2.5 Connecting Cables ....................................................................................................... 13
2.5.1 Connecting Backplane Through SAS Connectors ........................................................... 13
2.5.2 Connecting LED Ca le, Front Control Panel and Front USB I/O Ports ........................... 13
2.6 Installing t e Slide Rail ................................................................................................ 14
2.6.1 Identifying the Slide Rail ................................................................................................ 14
2.6.2 Installing the Slide Rail ................................................................................................... 14
2.6.3 Mounting the chassis onto the ca inet ......................................................................... 15
3 Backpla e I troductio ....................................................................................................... 17

4 Compatibility Lists .............................................................................................................. 18
5 Q & A .................................................................................................................................. 19
6 Tech ical Support ................................................................................................................ 20

1
PREFACE
Thank you for choosing the InWin IW-RS110-07. This manual is written for system technicians who
are responsi le for installation, trou leshooting, managing and repairing this server chassis. This
document provides an overview of all the features of the chassis, a list of accessories or other
components you may need to finish the installation, trou leshooting methods and instructions on
adding and removing components in the InWin IW-RS110-07. For the latest version of this manual,
you may visit InWin’s server we site.
SAFETY INFORMATION
To ensure a safe and smooth operation of your InWin IW-RS110-07, it is essential that you choose
an appropriate location for the system, provide an appropriate operating environment and supply
an adequate amount of power for all components of the system. As you plan for installation, follow
the guidelines elow to ensure that the system and its environment are safely and appropriately
positioned for efficient operation and service. Your system should e installed and serviced only y
a qualified technician.
Environment Selection: The system is designed to operate in a typical office environment:
•The location should e clean, dry and free of air orne particles.
•It should e placed in a well-ventilated room, and away from sources of heat including direct
sunlight and radiators.
•It should e kept away from sources of vi ration or physical shock.
•The space should e accommodated with a properly grounded wall outlet, and with sufficient
space to access the power supply cords.
•The operating environment temperature should e around 0°C to 40°C (32°F to 104°F).
Heed Safety Instructions: Before working with InWin IPC/storage server products, we strongly
recommend you use this guide as a reference and follow the safety instructions. The instructions in
this manual will help you ensure and maintain compliance with existing product certifications and
approvals. Follow the descri ed, regulated components mentioned in this manual. Use of non-UL
listing products or other regulators may not comply with product regulations in the region(s) in
which the product is sold.
System Power On/Off: The power utton DOES NOT totally turn off the system AC power. To remove
the power of the system, you must unplug the AC power cord from the outlet or the system’s power
supply units. Make sure the power cord is unplugged efore you open the chassis, add or remove
any components.
Hazardous Conditions, Devices and Cables: Hazardous electrical conditions can e present on/in
power supply units and their ca les. Disconnect the power cord and any other devices attached to
the server efore opening the case. Failing to follow safety procedures will increase the risk of
personal injury or equipment damage.

2
Electrostatic Disc arge (ESD) and ESD Protection: In most cases, ESD may damage disk drives,
electronic oards and other parts. We recommend that you conduct installation only at an ESD free
space. If not possi le, perform ESD protection protocol y wearing anti-static wrist straps attached
to the ground on any unpainted metal surface on your server during operation.
Installing or Removing Jumpers: A jumper is a short length conductor used to close, open or ypass
part of an electronic circuit. Jumpers on InWin ackplanes have a small ta on top that you can pick
up with your fingertips. Grip the jumper carefully and plug the jumper to cover the jumper pins on
the ackplane. Once you need to remove the jumper, grip the jumper and carefully pull without
squeezing.
CAUTION
To avoid damage and maintain your safety, please read the following terms listed elow:
1. Do not populate hard drives and turn on the power until the system has sta ilized.
Make sure hard drives and other components are properly connected efore
turning on the system.
2. Tighten or loosen all screws with a screwdriver.
3. Apply the correct screws packed in the accessories ox.
4. For your safety, please have at least two people lift and install the unit in its
designated area.
5. Before mounting the unit to the ca inet, make sure the rail is installed correctly.
6. When installing and removing any module or part, please use the handles.

3
SPECIFICATIONS
Model Name RS110-07
Industry Standard EIA-RS310D
M/B Form Factor ATX (12" x 9.6"), CEB (12" x 10.5"), EEB (12" x 13")
Drive Bay Supports external 2.5"screwless hot-swap SSD trays x 10
Power Supply
Supports:
• 750W 1U 1+1 redundant PSU, 80 Plus Platinum
• 650W 1U single PSU, 80 Plus Gold
Indicator Power LED, LAN1/LAN2 LED, System LED, HDD LED, ID LED
Front Control Panel Power on/off, Reset, NMI, ID SW, USB 3.0 x 1
Backplane-
--
-1
• Host: Slimline (internal SFF-8654 x 10 for PCIe protocol)
+ 8643 x 3 for
SAS protocol
• SSD: 8639 x 10 (for NVMe/SAS/SATA device)
Backplane-
--
-2
• Host: Oculink (internal SFF-8611 x 10 for PCIe protocol) + 8643 x 3 for
SAS protocol
• SSD: 8639 x 10 (for NVMe/SAS/SATA device)
Cooling Fan 40 x 56mm PWM easy-swap fans x 6, 21500RPM modular design with
anti-vi ration
Expansion Slot Full-height PCIe slot x 1 (via riser card)
Material • Material: SGCC
• Thickness: 1.0mm
Rail Kit Supports 28" tool-less & all- earing slide rails
Product Dimensions
(D x W x H; C assis Only)
676.5 x 438 x 43.4mm (26.6" x 17.2" x 1.7")
Packaging Dimensions
(D x W x H) 820 x 590 x 175mm
Weig t (C assis Only) • Net weight: 7.32kg
• Gross weight: 10.12kg
Cubic Feet 2.99
Container Information
Single packing with pallets:
• 20': 200pcs
• 40': 460pcs
• 40' HQ: 552pcs
 The actual product is su ject to change without prior notice. InWin Development Inc. reserves the right
to make any final modifications.
 The adjacent image is for reference only. All hardware components and optional parts are not included.

4
Product Dimensions
12Gb/s BACKPLANE SPECIFICATIONS
Backplane-
--
-1 Slimline Backplane
Dimensions (W x H) 400mm x 37.3mm
Backplane Type Passive
Host Interface Slimline (internal SFF-8654 x 10, for PCIe protocol) + 8643 x 3 for SAS
protocol
HDD Interface 8639 x 10 (for NVMe/SAS/SATA device)
Backplane-
--
-2 Oculink Backplane
Dimensions (W x H) 400mm x 37.3mm
Backplane Type Passive
Host Interface Oculink (internal SFF-8611 x 10, for PCIe protocol) + 8643 x 3 for SAS
protocol
HDD Interface 8639 x 10 (for NVMe/SAS/SATA device)

5
1Product Introduction

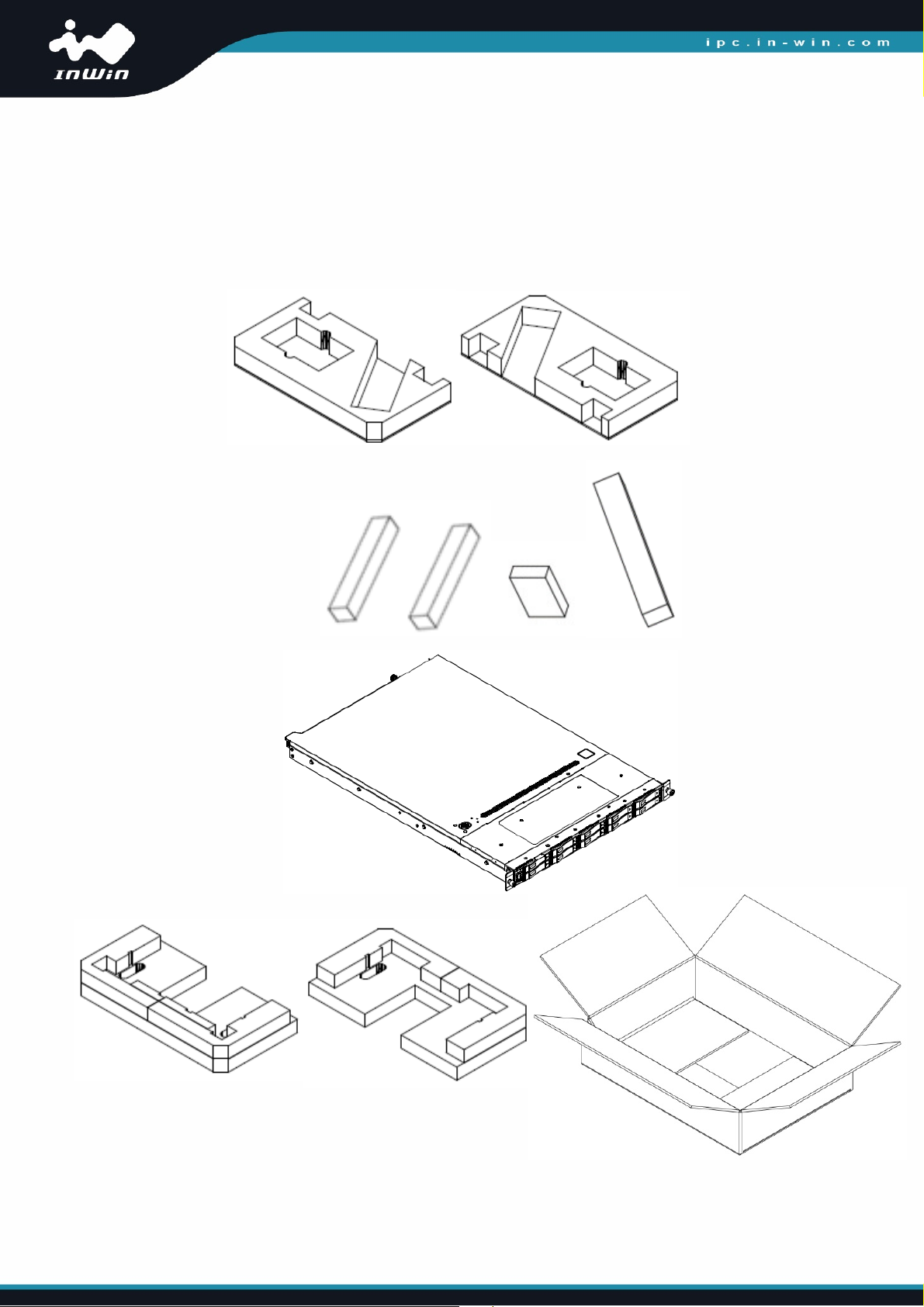

1.1 Box Contents
When you open the IW-RS110-07 ox, the contents should include following:

6
1.2 Accessories Box
No. Name No. Name
1 Accessories Box 6 Mother oard Stand-off Sockets x 11
2 La el x 1 7 Soldera le Standoffs x 2
3 Power LED 3-pin to 2-pin Adapter x 1 8 Backplane Jumper x 1
4 Ca le Ties and Mounts x 5 9
Redundant Power Supply Accessories
a. Screws x 6
. Mounting Brackets x 2
5 Mother oard Screws x 11 10
Single Power Supply Accessories
a. Countersunk Flat Head Screws x 2
. Oval Head Screws x 4
c. Mounting Bracket x 1

7

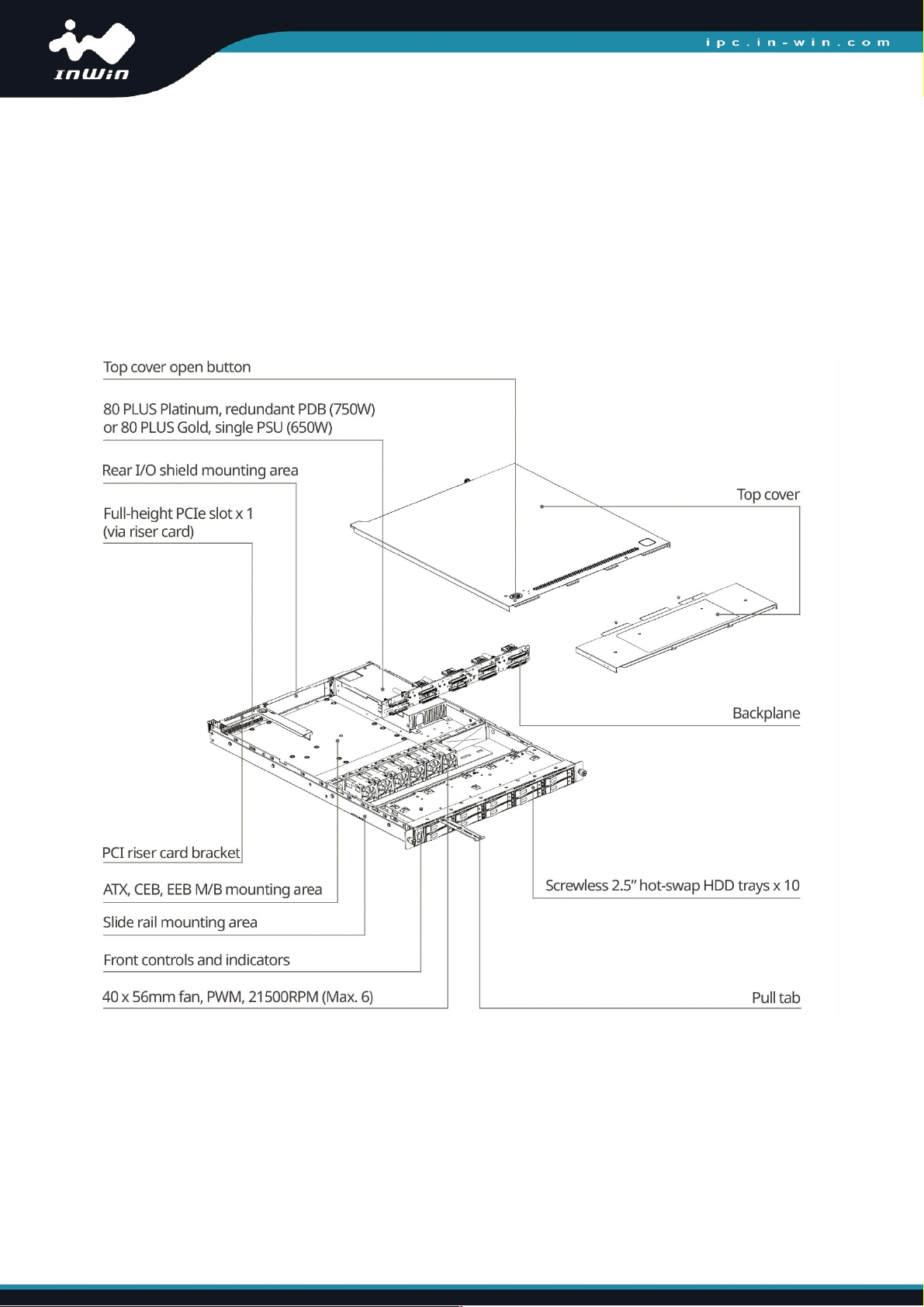

1.3 General Information
When you open the chassis, it should reflect the diagram’s image.

8
1.3.1 Front Panel Controls and Indicators
The IW-RS110-07 supports 2.5" SAS/SATA disk ays x 10 or 2.5" NVMe disk ays x 10.
The control panel, USB I/O ports and indicators are located on the handles.
No.
Name Color Status Description
1
System Reset Button N/A Press the utton to activate system reset.
2
NMI Button N/A Press the utton to activate user-defined function.
3
Power On/Off Button with LED
Green Solid on System is powered on.
N/A Off System is off.
4
Chassis ID Button with LED Blue Solid on Press the utton to activate system identification.
5
Hard Disk LED Am er Blinking System HDD accessing
6
System Fail LED Am er Solid on
System Status ( - , + )
Green Solid on System Status ( + , - )
7
LAN LED (LAN1 – LAN2) Green Blink Link etween system and network.
N/A Off No data transmission or receiving is occurring.
8
USB 3.0 Connector N/A USB devices connection
❶
❷
❸
❹
❺
❻
❼
❼
❽

9
1.3.2 Rear Panel Configuration
No. Name Description
1 Power Supply Window This window is for installing single PSU, please reference InWin’s
compati ility list to select the compati le models.
2 System I/O (Depends on
M/B Specifications)
InWin offers a customized service for 1U I/O shield. For more
information, please contact InWin’s sales reps.
3 Full-Height PCIe Slot x 1 The slot supports standard high profile cards. The racket should e
removed efore using.
❷
❶
❸

10
2Hardware Installation
2.1 Mot erboard & Expansion Card Installation
Before installing the mother oard, please find the I/O shield from your mother oard
package and install it into the system I/O window. If you cannot find the I/O shield, please
check with your mother oard vendor, or contact InWin for I/O shield OEM service.
For a quick installation video, please visit 07 Series Mother oard & Expansion Card
Installation.
2.2 HDD Tray Installation
The IW-RS110-07 features tool-less trays. Users no longer need to use screws to mount
disks, and can swap drives faster.
For a quick installation video, please visit 07 Series HDD Tray Installation.
2.3 Fan Installation
The IW-RS110-07’s uilt-in fan modules feature a tool-less design, which makes it easy to
maintain.
For a quick installation video, please visit 07 Series Fan Installation.
2.4 Power Supply Installation
The IW-RS110-07 has an option of single or redundant power supply units.
For a quick installation video, please visit 07 Series Power Supply Installation, 07 Series 1U
Single Power Supply Installation or 07 Series 1U Redundant Power Supply Installation.
2.4.1 Power Supply Ca le Information

11

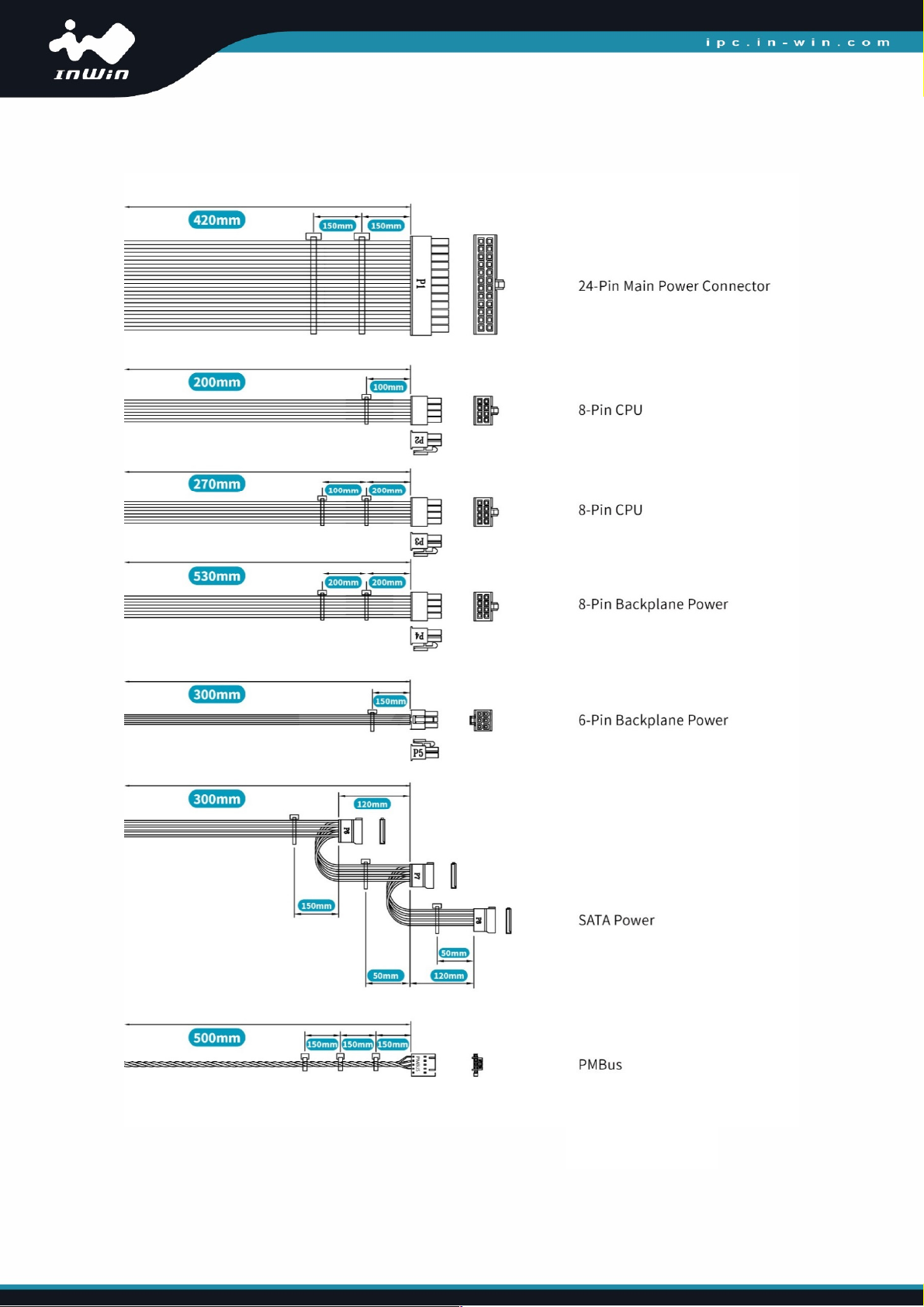

650W Single PSU Cable Information
Length Unit: mm

12

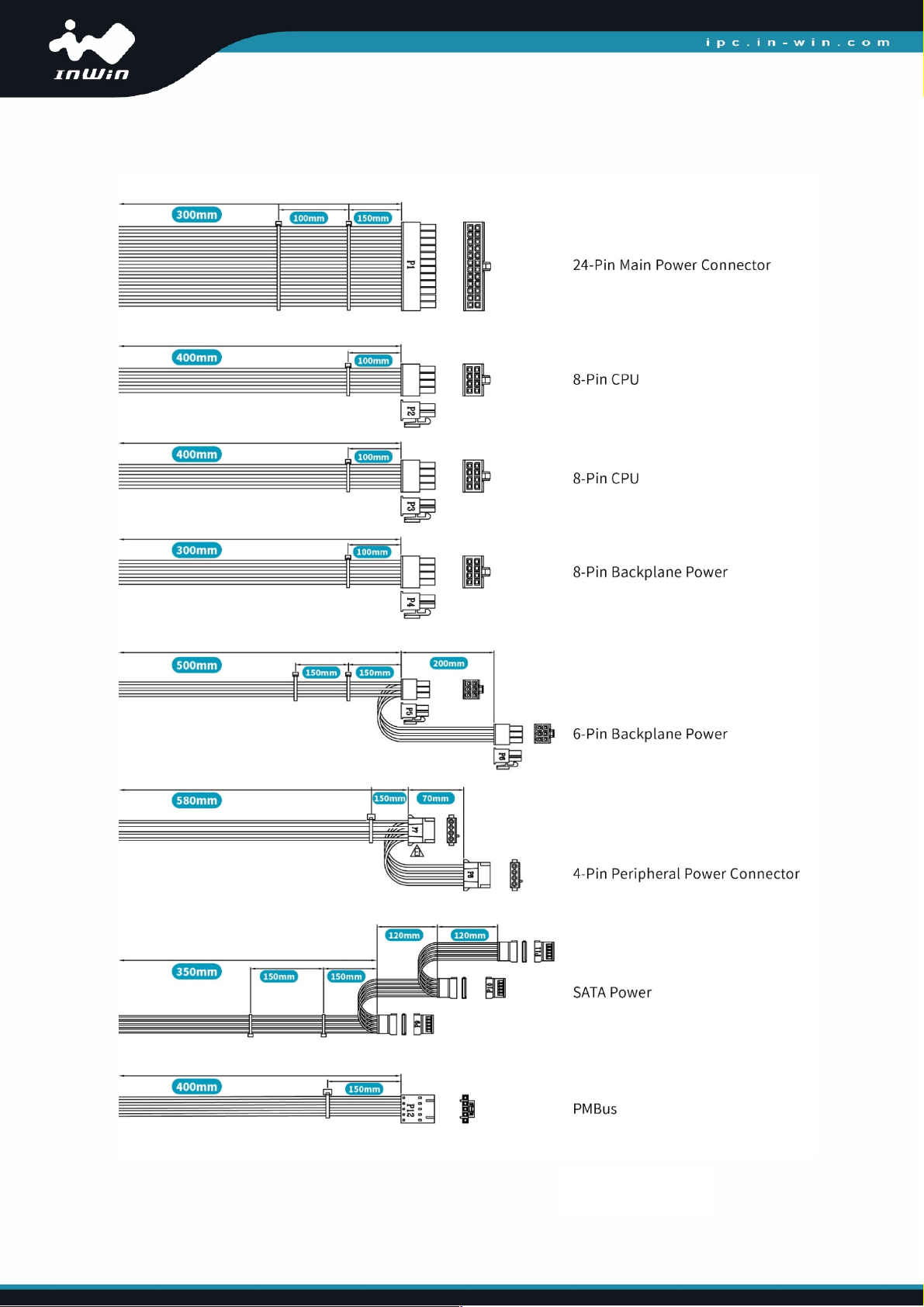

750W Redundant PSU Cable Information
Length Unit: mm

13
2.5 Connecting Cables
InWin ackplanes (without Expander) are high-performance and cost-effective solutions
for supporting Intel® Xeon Scala le family y adding NVMe support. The passive
ackplanes support state-of-the-art SAS3 12G ps HDD/SSD and are also ackward
compati le with SAS 6G ps, SATA 6Gps and SATA 3Gps HDD/SSD. Some of the ackplanes
support NVMe SSDs through either Oculink x 10 or Slimline x 10 connectors.
2.5.1 Connecting Backplane Through SAS Connectors
The InWin IW-RS110-07 needs the SAS ca le to connect to the ackplane and your
mother oard or RAID controller. InWin provides verified SAS ca les for installation,
please contact InWin local partners and sales to get more information.
2.5.2 Connecting LED Ca le, Front Control Panel and Front USB I/O Ports
As 1.2.1 descri es, the InWin IW-RS110-07 has a uilt-in front control panel and USB
access ports. To activate these functions, you should connect the pins to the
mother oard. Please refer to the mother oard’s user guide to make sure the pin
functions and their correct locations efore attempting to connect them.
USB 3.0 LED Connector

14
※ If the motherboard’s led power source is a 3-pin type, please use the 2-Pin to 3-Pin convertor
adapter from the accessories box to connect.
2.6 Installing t e Slide Rail
The InWin IW-RS110-07 is a rackmount model, which supports EIA-RS310D standard
ca inet and chassis racks. InWin provides standard slide rails to allow users to mount the
chassis onto the ca inet.
2.6.1 Identifying the Slide Rail
The slide rail y your order might e different. You can reference the quick installation
guide inside the slide rail package and follow the instructions to mount the rail onto
your ca inet or chassis rack.
2.6.2 Installing the Slide Rail
Step 1: Release the inner rail from the slide.
No. Connector Name Color Front I/O Indication
CN2 ID LED Red/Black Chassis ID Button with LED
CN3 System LED Yellow/Green System Fail LED
CN4 ID Switch Green/Black Chassis ID Button with LED
CN5 Power LED Red/Black Power ON/OFF Button with LED
CN6 LAN LED 1 Red/Black LAN LED
CN7 HDD LED Red/Black HDD Active LED
CN8 Power Switch Brown/Black Power ON/OFF Button with LED
CN9 Reset Switch Yellow/Black Power Reset Button with LED
CN10 LAN LED 2 Red/Black LAN LED
CN11 NMI Switch Blue/Black NMI Button
USB USB 3.0 Connector Black Flat USB 3.0

15
Step 2: Mount the inner rails onto the chassis y the direction which the arrows show.
Step 3: Install the outer rails and the rackets onto the rack.
2.6.3 Mounting the chassis onto the ca inet
Step 1: Make sure the all earing retainer is at the forefront.
Step 2: Insert the inner rail to the outer rail which has already locked up on the ca inet.

16
Step 3: Mount the inner rail onto the chassis y the direction which the arrows show
on the image.
Step 4: Tighten the thum screws to secure the chassis.

17
3Backplane Introduction
The ackplane varies y order. Please reference the ackplane user guide to complete the
installation. The download link is at the download section of each product. Please visit the InWin
we site: ipc.in-win.com.
Oculink Backplane:
Top Side
Bottom Side
Slimline Backplane:
Top Side
Bottom Side
