If you have any issues with this product,
call ANEST IWATA-MEDEA (U.S.A.) 503-253-7308 (M-F 8am-4pm Pacic Time)
or your local ANEST IWATA aliate before returning to your place of purchase.
NEED ASSISTANCE

Congratulations on your purchase of an Iwata Eclipse™ G-Series, a versatile, reliable and high-performance airbrush-gun. The
Iwata Eclipse G-Series Airbrush-Guns are a breakthrough in large-format airbrushes. The ability to control detailed spray and finely
atomize large swathes of paint highlight the airbrush’s unique spray characteristics. It can also adjust spray pattern shapes from round
circles to flattened ovals and everything in between. A stainless steel nozzle, paint passage and heat-tempered needle reflect Iwata’s
unceasing commitment to long-lasting, peak-performance spray equipment.
The G-Series Airbrush-Guns use reliable, easily serviceable air-valve and air-valve packing cartridge sets. Should the need arise, cartridge
sets can be serviced outside the airbrush and can be easily replaced.
Designed for use with the Iwata Studio Series Power Jet, Power Jet Lite or Power Jet Pro compressors, these low air consumption
airbrush-guns provide high atomization while minimizing overspray.
Ideal uses for the G-Series include automotive touch-up, custom automotive painting, motorcycle painting, illustration, background
spraying, large studio work, murals and airbrush tanning.
4
Iwata airbrushes are designed for the demanding professional. Modern precision machining and high quality materials
are used in the manufacturing process to ensure consistent high performance and long life. Each Iwata airbrush is spray-
tested before shipment to assure maximum performance and adherence to Iwata’s strict quality standards. To maintain
your Eclipse G-Series at its peak performance, proper care and attention must be observed.
ONLY FROM IWATA-MEDEA

IWATA ECLIPSE G-SERIES AIRBRUSH-GUNS
These multi-purpose, high paint flow, Eclipse G-Series Airbrush-Guns cover a wide range of uses. Commonly
used to spray pre-mixed or heavier paints, they are well suited for uses that demand precise control of spray
when applying moderate-to-large amounts of paint to a variety of surfaces and to various-sized areas. These
Eclipse Series Airbrush-Guns have established a benchmark for excellence in an all-purpose airbrush.
A unique “Pistol Grip” airbrush, the Eclipse G-Series Airbrush-Guns look like a miniature spray gun, but spray
and perform like a large airbrush with its 0.3-mm to 0.6-mm stainless-steel nozzles.
· Equipped with a long tapered needle that ensures a smooth, wide background spray
· Utilizes a dual-purpose air cap and a fan adjustment valve that lets the airbrush spray a round or oval pattern
· The round pattern is useful for painting graphics, while the oval shape creates a smooth background spray
· Works well with the Iwata Studio Series Power Jet, Power Jet Pro and Power Jet Lite Compressors
NOTE: With the Eclipse G6, only round pattern can be achieved using these air sources.
5

Iwata Eclipse G6
• MAC Valve for precise control of air
and spray
• 0.6-mm stainless-steel nozzle
• Spray width - 1/8” up to 2.5”+
• Long tapered needle for smooth
transition between ne-to-wide
background spray
• Dual-purpose air cap and fan
adjustment valve to spray round
or oval patterns
• Interchangeable with airbrush bottles
– optional gravity-feed cups available
6

Iwata Eclipse G5
• True center-post gravity-feed airbrush
• MAC Valve for precise control of air
and spray
• 0.5-mm stainless steel nozzle
• Spray width - 1/4” up to 3”
• Twilight-chrome nish
Iwata Eclipse G3
• True center-post gravity-feed airbrush
• MAC Valve for precise control of air
and spray
• 0.3-mm stainless steel nozzle
• Spray width - 1/8” up to 2”
• Twilight-chrome nish
7

GETTING STARTED
Pre-Check the Airbrush Settings
1. Close the pattern adjustment knob (#14) fully by gently twisting
it clockwise until it stops. It doesn’t need to be tight.
2. Open the uid-adjustment knob (#22) fully by gently twisting it
counterclockwise. NOTE: You might unscrew the uid adjustment
knob o of the airbrush. Don’t worry. Screw it back on one or
two full turns.
3. Open the air adjustment knob (#23) fully by twisting it counter
clockwise until it stops. It doesn’t need to be tight.
4. Loosen air cap cover ring (#3) to adjust the air cap (#1), specically
the little nger-like projections until they are horizontal to the
ground. Then tighten air cap cover ring (#3).
Assembly
1. Screw the airhose rmly onto the air source outlet.
NOTE: In many cases the air source is a compressor.
2. Screw the air hose rmly onto the G-Series’ air inlet beneath
the handle.
G-6 Spraying
1. When using the G-6, ll a bottle at least 1/2 of the way full of
properly prepared paint.
2. Screw the lid (bottle cap set) onto the bottle.
3. Push the metal nipple of the bottle rmly onto the bottle joint
adaptor (#6). NOTE: Push the bottle rmly into the bottle joint
adaptor ensuring a tight t.
4. Adjust the air source pressure to 35 psi and spray away.
G-3 and G-5 Spraying
1. Screw metal gravity cup onto G-3 or G-5 Airbrush-Gun.
2. Fill cup at least 1/2 of the way full of properly prepared paint.
3. Attach lid to cup.
4. Adjust the air source to 35 psi and spray away.
General Spraying
1. Pull the trigger back slightly and only the air will come out.
2. Pull the trigger back more until paint starts to spray in small
amounts.
3. Pulling the trigger back further releases even more paint until
the trigger is pulled as far as it can go.
8

GENERAL OPERATION
Fine-Line Spray
1. Pull the trigger back slightly to start the air.
2. Position the airbrush close to the surface. About 1 inch
or 2.5 cm.
3. Pull the trigger back a little more to start the ow of paint.
Control line thickness by adjusting the distance between the
airbrush and the surface, and also by adjusting the paint ow
amount.
Background Spraying
1. Position the airbrush further from the surface – 4-6 inches or
10-16 cm is common.
2. Pull the trigger back a lot to release a large amount of paint.
Control spray width by adjusting the distance between the
airbrush and the surface and by opening the pattern adjustment
knob (#14). Opening the pattern adjustment knob changes the
spray pattern shape from a circle to an oval.
Control spray consistency over large areas by setting
the uid adjustment knob (#22) to limit the amount of paint
volume sprayed.
1. Pull the trigger back to the desired amount of spray.
2. Screw the uid-adjustment knob in until it pushes the trigger.
Cleaning
Cleaning the Airbrush-Gun between Colors
1. Replace the color bottle with a bottle containing the appropriate
cleaning solution (when using the G-6). Rinse out gravity cup
(when using G-3 and G-5) and ll with cleaning solution.
2. Spray until the solution sprays clear and clean.
3. Remove the bottle of cleaning solution (when using the G-6).
Dump out remaining solution from gravity cup (when using G-3
and G-5).
4. Spray air until the airbrush sprays dry.
5. Fit a color bottle with the new color and spray or add new color
to gravity cup.
6. Repeat the procedure when nished.
9

Before Each Session
Spray water, or appropriate solvent, through the airbrush to ensure
the airbrush is in proper working order.
After Each Session
Or any time the airbrush becomes clogged:
1. Increase the air pressure.
2. Spray cleaning solution through the airbrush for a short time.
3. Unscrew the uid adjustment knob (#22).
4. Remove the spring (#21).
5. Pull out the needle (#5).
6. Wipe down the needle.
7. Gently reinsert the needle. NOTE: The needle is delicate and
sharp. Be careful not to bend the tip of the needle or hurt
yourself while reinserting it.
8. Place the spring on the needle.
9. Screw the uid adjustment knob onto the airbrush.
The higher air pressure will help to thoroughly clean out the paint.
Safety Tips
•Always spray in a well-ventilated area.
•Do not spray solvent-based (ammable) paints around open ames.
•Use the appropriate respirator to safely lter out the paint vapors
particular to the to the kind of paint you are using.
•Wear eye protection to prevent paint contact with eyes.
•Never use air pressure that exceeds the airbrush-gun’s limit.
(6.8 bar, 10.68 MPa, 98 psi)
10

ECLIPSE G-SERIES DESCRIPTION OF FEATURES
Pattern Adjustment Set (#14)
This adjustment creates a circular- or oval-shaped spray pattern.
When the valve is fully closed, twisted fully clockwise, the spray
pattern will be a round shape. The round pattern is best for doing
graphics in small areas. When the valve is fully opened, twisted
fully counter-clockwise, the spray pattern will be an oval shape,
also known as a fan pattern. The oval fan pattern provides a smooth
background spray.
When using the Power Jet compressor, the pattern adjustment valve
should only be opened a maximum of ½ turn. Using a compressor
with power greater than 1 HP allows the valve to be fully opened,
creating the fan pattern shape.
Air Cap (#1)
The air cap produces a round or an oval fan-shaped pattern
depending on how the pattern adjustment valve is set. Refer to the
Pattern Adjustment Set Instructions if necessary.
Orientation of the oval varies based on where the nger-like
protrusions on the air cap are oriented. The nger-like protrusions
dictate where the fat part of the oval will be. Spray with the fat part
of the oval. If the oval is vertical, spray up and down. If the oval is
horizontal, spray side to side.
Change the orientation by simply twisting the aircap. (Remember to
loosen air cap cover ring rst.)
Fluid Adjustment Knob (#22)
The uid adjustment knob limits how much uid will be sprayed
when the trigger is pulled all the way back. After setting the spray
pattern (see #14 description), the uid adjustment knob sets the
amount of spray delivered to an object’s surface. This feature proves
invaluable each time the trigger is pulled back while spraying large
areas that need precise, repeatable spray output. It’s cruise control
for the long haul.
1. Start spraying with the knob fully opened, but don’t screw it
entirely o the airbrush!
2. Find the best trigger position for the best spray.
3. Screw the knob clockwise until the trigger pull is limited to the
desired position.
Don’t forget! Unscrew the knob when you can’t gure out why you
don’t get as much spray as you used to.
Air Adjusting Set (#23)
The air adjustment knob sets the amount of air owing through the
airbrush. It’s a convenient way to adjust the pressure on the y. It
functions like a MAC Valve*. Start with the knob set at the full open
position by twisting it counterclockwise until it stops. After you’re
familiar with the airbrush, adjust the air pressure to achieve the best
spray pattern as necessary.
*The MAC (Micro Air Control) Valve controls airow to the airbrush-gun.
11

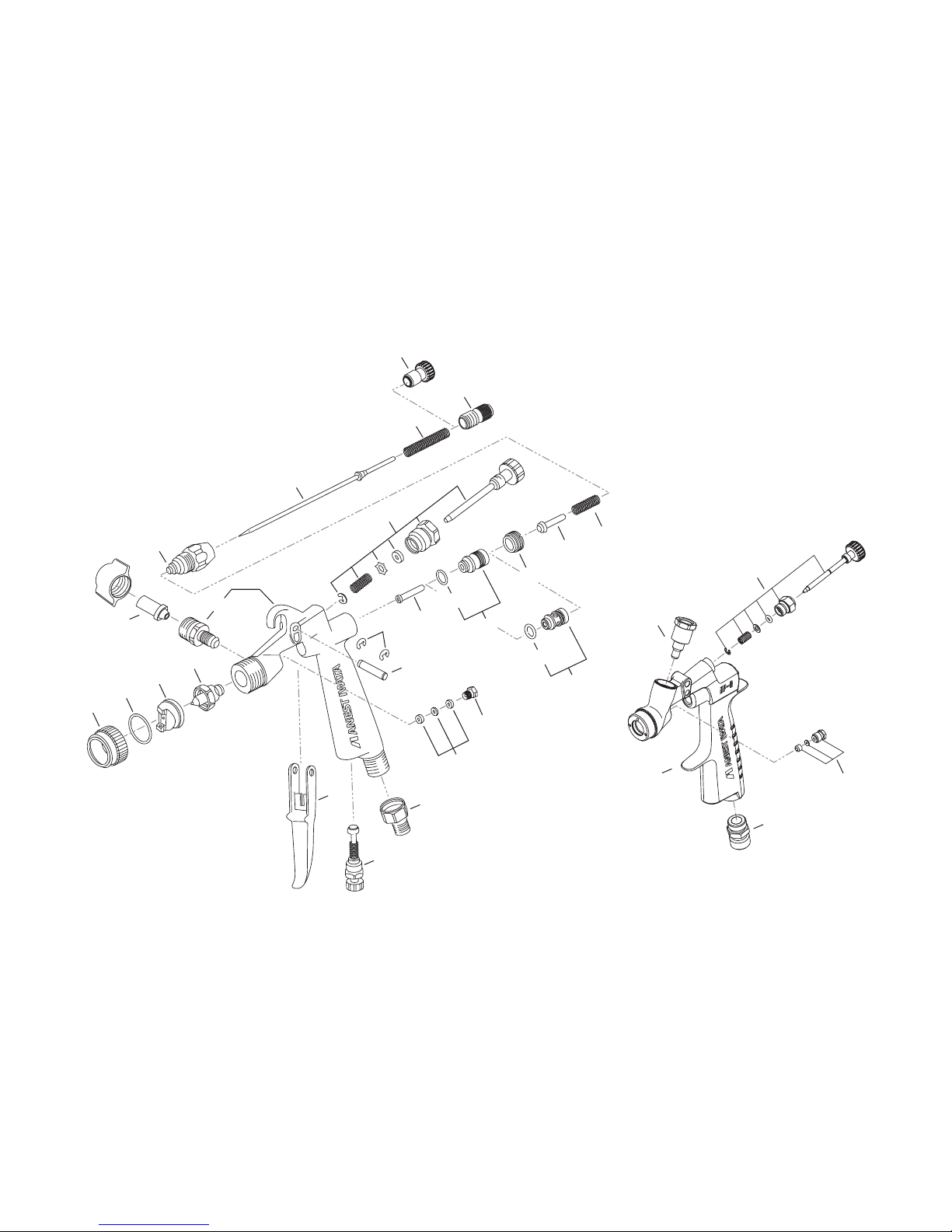

20
7-1
14
5
14
12 15
10
13
16
16-1
17
18
19
6
4
11
23
7-2
24
8
9
1
2
3
6-1
6-2
7
21
22
22
16
16-2
12

— IWATA ECLIPSE G-SERIES SERIES AIRBRUSH-GUNS • MASTER PARTS LIST —
PRICE ITEM ALSO
# ITEM DESCRIPTION CODE # G3 G5 G6 FITS
1 Air Cap 0.6 mm H I 600 1 opt opt n
0.3 mm J I 600 4 nopt opt
0.5 m m J I 600 5 opt nopt
2 Air Cap Packing A I 600 2 nnn
3 Air Cap Cover Ring C I 600 3 nnn
4 Fluid Head 0.6 mm I I 604 4 opt opt n
Nozzle 0.3 mm I I 604 5 nopt opt*
0.5 mm I I 604 6 opt n opt*
5 Fluid Needle 0.6 mm F I 617 4 xxn
Duplex Needle 0.3/0.5 mm I 617 5 nn x
6 Airbrush Body Set (G6) O I 307 1 xxnLPH-50
6-1 Fluid Cup Joint D I 212 2 xxnRG-3/LPH-50
6-2 Bottle Joint Adapter F I 623 1 xxn(Opt) RG-3/
LPH-50
7 Airbrush Body Set (G3/G5) O I 307 2 nnx
7-1 Fluid Nipple D I 650 1 xxn
7-2 Air Nipple B I 680 1 xxn
8 Fluid Needle Packing D I 215 2 xxnRG-3/LPH-50
9 Needle Packing Seat A I 219 2 xxnRG-3/LPH-50
10 Needle Packing Set D I 640 1 nnx
11 Trigger C I 233 1 nnnRG-3/LPH-50
12 E Stopper 2 pcs/pk A I 332 1 nnnLPH-50
13 Trigger Stud A I 234 1 nnnRG-3/LPH-50
14 Pattern Adjustment Set H I 625 2 nnx
G I 625 1 xxn
PRICE ITEM ALSO
# ITEM DESCRIPTION CODE # G3 G5 G6 FITS
15 Air Valve Shaft C I 202 3 nnnRG-3/LPH-50
16 Air Valve Seat Set F I 205 2 xxnRG-3/LPH-50
16-1 Gasket Air Valve Seat I 217 1 x x n
16-2 O-Ring A I 660 1 nnx
17 Air Valve Seat Screw A I 205 3 nnnRG-3/LPH-50
18 Air Valve C I 202 2 nnnRG-3/LPH-50
19 Air Valve Spring A I 206 2 nnnRG-3/LPH-50
20 Fluid Adjustment Guide Set F I 208 2 nnnRG-3/LPH-50
21 Needle Spring B I 225 2 nnnRG-3/LPH-50
22 Fluid Adjusting Knob C I 209 1 xxnRG-3
I 670 1 nn x
23 Air Adjusting Set D I 626 1 xxn
I 626 2 nnx
24 Air Hose Adapter (1/4”-1/8”) D I 624 1 xxn(Opt) RG-3/
LPH-50
3 oz Fluid Bottle I 480 3 xx opt
4 oz Fluid Bottle (PC-61) I 210 1 xxopt
Spanner I 230 1 xxopt
Fluid Cup 4 oz I 210 1 xxopt
7 oz (PC-51) I 210 2 xxopt
8 oz (PC-5) I 210 3 xxopt
Fluid Cup Lid (PC-61) I 211 1 xxopt
(PC-51) I 211 2 xxopt
(PC-5) I 211 3 xxopt
n= yes x= no opt = optional
*You must change the aircap and needle to use optional nozzle sizes.
CA PROP
65
CA PROP
65
CA PROP
65
CA PROP
65
CA PROP
65
CA PROP
65
CALIFORNIA PROP 65 WARNING: Certain products identied with this symbol and oered for sale in this catalog contain lead,
a chemical known to the State of California to cause cancer, birth defects and other reproductive harm.
CA PROP
65
13

Genuine Iwata
All Iwata airbrushes are Warranted against all manufacturing defects of material and manufacture or workmanship for a period of
FIVE years from the date of purchase. This warranty does not cover uid needles or uid nozzles since these parts need to be replaced
occasionally due to normal wear. Any other part or material that is or becomes defective so as not to be usable within this period will be
repaired or replaced. This warranty does not cover damage caused by negligence or airbrushes that have been altered or abused in any
way. Call or email Iwata-Medea before returning an airbrush for the appropriate procedure for warranty repairs.
©2008 Anest Iwata-Medea, Inc. All rights reserved. The Anest Iwata-Medea logo, Anest Iwata-Medea, Power Jet, Power Jet Pro, Power Jet Lite and Medea Super Lube are trademarks of Anest Iwata-Medea Inc. Iwata
Eclipse is a trademark of ANEST IWATA Corporation. Iwata and the Iwata logo are registered trademarks of ANEST IWATA Corporation. All other trademarks are of their respective owners. For more information visit
www.iwata-medea.com
14

www.IWATA-AIRBRUSH.com

4

3

2

1
Part No. ECL 903 Rev5 12/15
