iWave iW-RainboW-G57D User manual

Versal AI Edge/Prime SOM
Development Platform
iW-RainboW-G57D
Quick Start Guide

Disclaimer
iWave Systems reserves the right to change details in this
publication including but not limited to any Product specification
without notice.
No warranty of accuracy is given concerning the contents of the
information contained in this publication. To the extent
permitted by law no liability (including liability to any person by
reason of negligence) will be accepted by iWave Systems, its
subsidiaries or employees for any direct or indirect loss or
damage caused by omissions from or inaccuracies in this
document.
Trademarks
Certification
iWave Systems Technologies Pvt. Ltd. is an ISO 9001:2015
Certified Company.
All registered trademarks, product names mentioned in this
publication are the property of their respective owners and used
for identification purposes only.

Introduction
Quick Start Guide (QSG)
This Quick Start Guide (QSG) is designed for users to quickly
understand the iW-RainboW-G57D-Versal AI Edge/Prime SOM
Development Platform and start the evaluation. It provides the
instructions for setting-up the Development Platform from the
packed box.
Development Platform Description
g Versal AI Edge/Prime SOC with 328,720 Logic Cells
The iW-RainboW-G57D Versal AI Edge/Prime SOM
Development platform incorporates with iWave's Versal AI
Edge/Prime based SOM and REN carrier board with all
necessary interface connectors for developing an embedded
application based on Xilinx Versal AI Edge/Prime.
Some Key Features of the Board Include:
g 16GB eMMC Flash
g Dual Gigabit Ethernet Rj45 Magjack
g USB 2.0 Type-C Connector
g 4GB LPDDR4 Memory
g HDMI IN & OUT Port
g SDI Video In and Video Out Connector
g FMC+ HSPC Connector
g 12 Pin PMOD Connector
g 256MB QSPI Flash
Quick Start Guide
01
g Micro SD Port
g Debug/JTAG USB Type-C Connector
g 60 Pin GPIO Header

This development platform is ESD
sensitive. Handle the product only in
accordance with the installation
instructions given in the manual.
Therefore ESD precautions should be
taken care during transport and
handling.
Safety
i W - R a i n b o W - G 5 7 D - V e r s a l A I
Edge/Prime SOM Development
Platform is designed by using RoHS
and REACH compliant components
and manufactured on lead free
production process.
Check the local regulations for
disposal of electronic products before
disposing.
ESD Protection
Product Disposal
Environmental Compliance
Must use a ESD ground strap or other
grounded source before unpacking or
handling the hardware.
Quick Start Guide
iW-RainboW-G28D
iW-RaniboW-G28D
iW-RainboW-G28DiW-RainboW-G28D
iW-RainboW-G57D
02

Quick Start Guide
Step 1 - Unpacking
Remove the Development platform from anti-static cover and
place it above the ESD free area. Use anti-static pad/mat with
proper grounding to place the Development Platform. Don't
touch inside surface of the circuit board.
iW-RainboW-G28D
Quick Start Steps
Avoid using board in extreme dust, humidity and temperature
conditions. Also this development platform is not water proof.
Keep away from wet surface.
Package Box
Quick Start Guide
iW-RainboW-G28D
Quick Start Guide
03

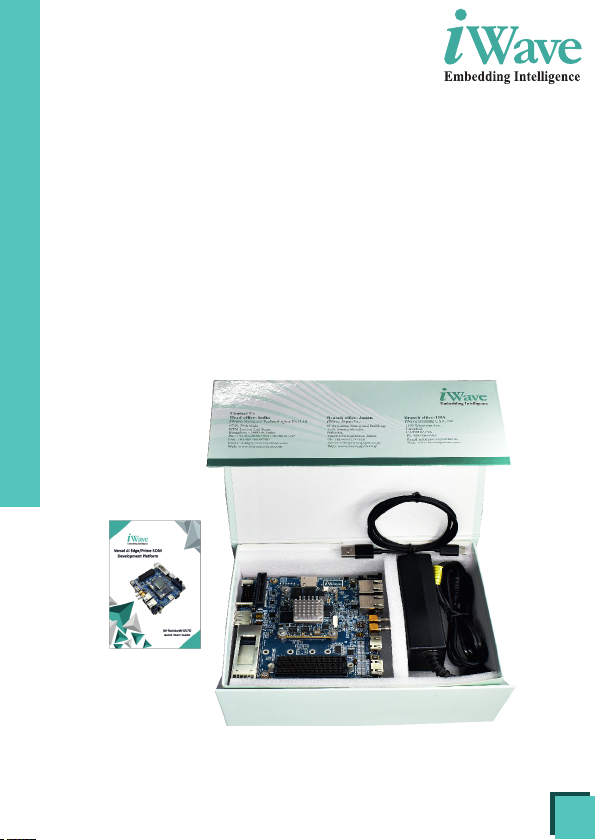

Make sure that, below deliverables are received without any
physical damage.
12V,5A Power Supply USB OTG Cable
Development Platform
Step 2 - What's Inside The Box ?
04
Quick Start Guide
iW-RainboW-G28D
iW-RaniboW-G28D
iW-RainboW-G28DiW-RainboW-G28D
iW-RainboW-G47D
QSG
Make sure that, below deliverables are received without any
physical damage.
Step 2 - What's Inside The Box ?
04
Quick Start Guide
iW-RainboW-G28D
iW-RaniboW-G28D
iW-RainboW-G28DiW-RainboW-G28D
iW-RainboW-G57D
Make sure that, below deliverables are received without any
physical damage.
Step 2 - What's Inside The Box ?
04
Quick Start Guide
iW-RainboW-G28D
iW-RaniboW-G28D
iW-RainboW-G28DiW-RainboW-G28D
iW-RainboW-G47D
Make sure that, below deliverables are received without any
physical damage.
Step 2 - What's Inside The Box ?
04
Quick Start Guide
iW-RainboW-G28D
iW-RaniboW-G28D
iW-RainboW-G28DiW-RainboW-G28D
iW-RainboW-G57D

Step 3 - Download FTP Contents
iW-RainboW-G30D
Hardware
Datasheet
PCB-CAD Files
QuickStartGuide
SOM-Datasheet
DevKit-DataSheet
SOM
DevKit
FPGA-Example-Design
Linux
Tools
FPGAUserGuide
ReleaseNotes
SoftwareUserGuide
Integrated Design
IBERT Design
Heatsink-Datasheet
PCB-CAD Files
Mechanical Files
Compliance Report
VERSAL Name
SOM Part Number
Vivado Version
Documents
Software+FPGA
Hardware
iW-RainboW-G57D
All the technical resources of iW-RainboW-G57D Versal AI
Edge/Prime SOM Development platform is available in iWave
FTP server.
For FTP Credentials, Contact : [email protected]
FTP Folder Structure
Quick Start Guide
05
B2B Connector Pinout
CAD Symbol
Schematic Symbol
Binaries
Patch

Step 4 - Read Documents
Before moving to next step, one must go through all the
documents including Hardware User Guides and get familiar
about iW-RainboW-G57D Versal AI Edge/Prime SOM
Development platform.
Development Platform Documents:
■ Quick Start Guide (This document)
■ SOM Datasheet
■ DevKit Datasheet
■ Release Notes
■ Software User Guide
■ FPGA User Guide
06
Quick Start Guide
iW-RainboW-G28D
iW-RaniboW-G28D
iW-RainboW-G28DiW-RainboW-G28D
iW-RainboW-G57D

Step 5 -Quick View-SOM
TOP View
BOTTOM View
1. Versal AI Edge/Prime SoC
2. 5V FAN Header
3. PMIC Programing Header
4. Board to Board connector 1
5. Board to Board connector 2
Quick Start Guide
07
1
3
2

01. Board to Board Connector 1
02. Micro SD Connector
03. Board to Board Connector 2
04. Power ON/OFF Switch
05. Power IN Connector
06. GEM0 Ethernet MagJack
07. GEM1 Ethernet MagJack
08. Boot Mode Switch
09. SDI Video OUT
10. SDO Video IN
11. HDMI OUT Connector
12. HDMI IN Connector
13. FMC+ HSPC Connector
14. Reset Button
15. Type-C Debug/JTAG Connector
16. USB2.0 OTG Port
17. RTC Battery Holder
18. PMOD Connector
Step 6 - Quick View-Carrier Board
TOP View
BOTTOM View
08
Quick Start Guide
iW-RainboW-G28D
iW-RaniboW-G28D
iW-RainboW-G28DiW-RainboW-G28D
iW-RainboW-G57D
Note : Connectors which are not highlighted is not supported by the Versal
AI Edge/Prime Development Kit
2 4
5
6
7
9
10
11
12
13
16
15
14
8
1 3
17 18

Install the driver for Debug Port in Host PC/Laptop using the
below link.
https://ftdichip.com/products/ft232rq/

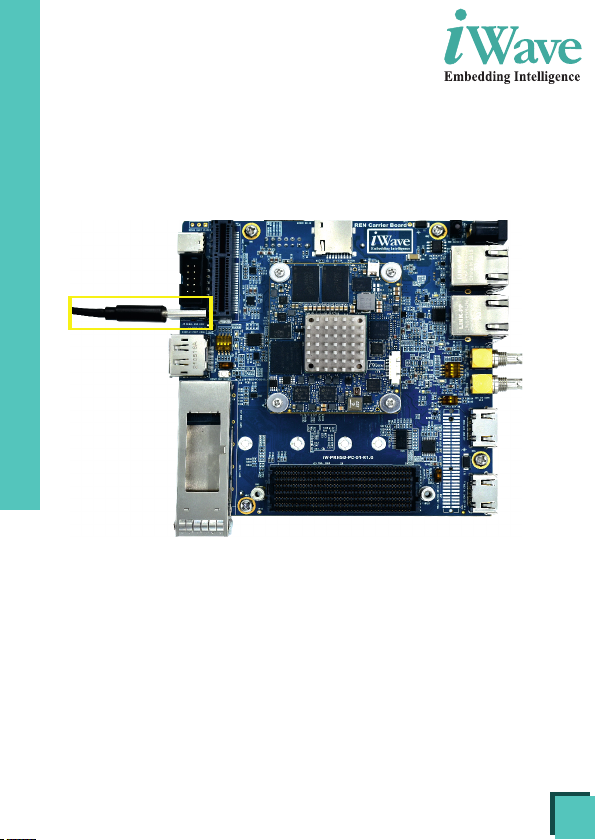

Connect TypeA end of USB cable to PC and Type-C end of USB
cable to Development platform's Debug USB Type-C Port (J8) as
shown below.
Step 8 - Debug Port Setting
Setup the Debug Terminal parameters.
Baud Rate : 115200
Data bits : 8
Parity : None
Stop Bits : 1
Flow Control : None
Quick Start Guide
iW-RainboW-G28D
iW-RaniboW-G28D
iW-RainboW-G28DiW-RainboW-G28D
iW-RainboW-G57D
Quick Start Guide
09

Step 8 - Power-ON the Development Platform
Connect the 12V power supply plug to the power connector (J2)
of the Development platform as shown below and switch ON
the power supply.
Warning :
1. Do not try to connect any other power supply other than supplied along
with the Development platform.
2. Do not plug or remove the Versal AI Edge/Prime SOM from carrier board
with live power.
3. Contact iWave if any LEDs are not glowing or SOM Error Out LEDs glowing.
Once power is applied to the Development platform, the power
LEDs in Versal AI Edge/Prime SOM and Ultra High Speed Carrier
Board will glow as shown in the below image.
Quick Start Guide
iW-RainboW-G28D
iW-RaniboW-G28D
iW-RainboW-G28DiW-RainboW-G28D
10
Quick Start Guide
iW-RainboW-G28D
iW-RaniboW-G28D
iW-RainboW-G28DiW-RainboW-G28D
iW-RainboW-G57D

Debug Terminal
Step 9 - Test Environment setup
Once power is applied to the Development Platform as
explained in the previous section, boot messages being
displayed in the debug terminal of the PC/Laptop which is
connected to the Development platform. Press any key in
terminal immediately to see the command prompt of the Boot
loader or wait until OS boots.
After OS boots, Login prompt being displayed in the debug
terminal.
Quick Start Guide
iW-RainboW-G28D
iW-RaniboW-G28D
iW-RainboW-G28DiW-RainboW-G28D
iW-RainboW-G57D
Quick Start Guide
11

iW-RainboW-G57D Versal AI Edge/Prime SOM Development
platform comes with Heat Sink mounted on SOM. Makesure to
power up the platform only with Heatsink attached.
Heatsink
Below is the Heatsink integration procedure for reference.
Fix the heatsink in to SOM
Heat Sink
Heat Sink Integration
12
Quick Start Guide
iW-RainboW-G28D
iW-RaniboW-G28D
iW-RainboW-G28DiW-RainboW-G28D
iW-RainboW-G57D

Quick Start Guide
iW-RainboW-G28D
iW-RaniboW-G28D
iW-RainboW-G28DiW-RainboW-G28D
iW-RainboW-G57D
JTAG Connection

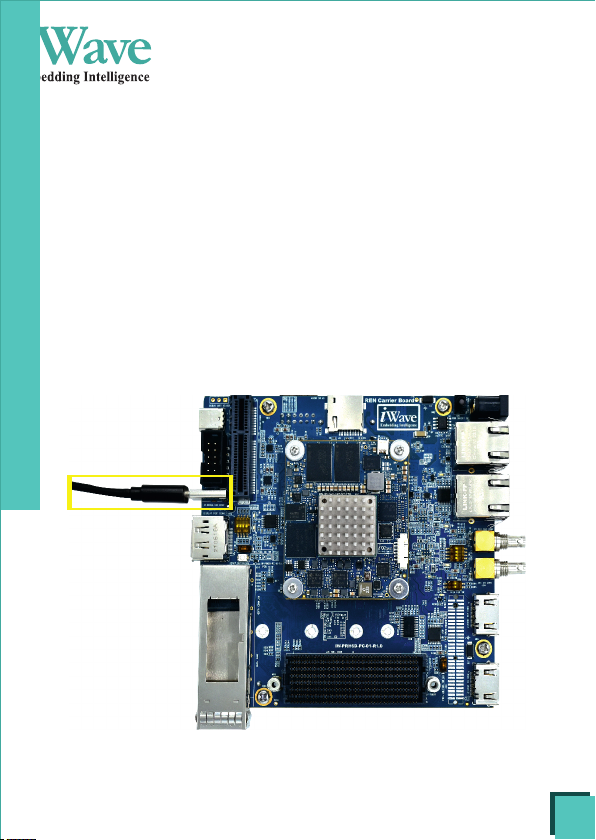

Example JTAG Programming through Type-C Cable which is
tested with this Platform is mentioned below.
iW-RainboW-57D Versal AI Edge/Prime SOM Development
Platform Support Single Type-C Connector (J8) for both JTAG
programing and Debugging.
Quick Start Guide
13

iWave’s Other Products
Product Name: Zynq US+ MPSoC
(4/5/7-EV/EG/CG) SOM
Processor: Xilinx’s Zynq US+ MPSoC
(4/5/7-EV/EG/CG)
RAM: 4GB PS DDR4*
1GB PL DDR4*
Application: Industrial Motor Control &
IoT, Sensor Fusion, ADAS/Embedded
Vision, Data Center, Medical Endoscopy
* RAM size is expandable. Contact iWave team for further details
Product Name: Zynq UltraScale+ RFSoC
(ZU49/ZU39/ZU29DR)
Processor: Xilinx’s Zynq US+ RFSoC
RAM: 8GB PS DDR4*
8GB PL DDR4*
Application: 5G and LTE Wireless, Satelite
Communication, Aerospace & Defence
Product Name: Zynq US+ MPSoC
(11/17/19-EG) SOM
Processor: Xilinx’s Zynq US+ MPSoC
(11/17/19-EG)
RAM: 4GB PS DDR4*
4GB Dual PL DDR4*
Application: Video Surveillance, Cloud
Computing, Artificial Intelligence/Machine
Learning, 5G Wireless, High Precision Test
Instrument.
14
Quick Start Guide
iW-RainboW-G28D
iW-RaniboW-G28D
iW-RainboW-G28DiW-RainboW-G28D
iW-RainboW-G57D

Need More Help ?
iWave Systems Provides Technical Support to all Customers
Worldwide.
gEmail
Write your technical queries to [email protected]
gPhone
Call us on : [phone], 26781643, 26786245
gLive Chat
We provide Live Chat technical support to our customers.
Contact iWave to enable Live Chat support.
iW-PRHRZ-UM-01-R1.1-REL1.0-QSG
Warranty support for Hardware: 1 Year from iWave or iWave's
EMS partner.
Warranty & RMA
03
For Return Merchandise Authorization
(RMA),scan the QR code or go to :
https://www.iwavesystems.com/support/rma/
For Warranty terms & Registration, scan
the QR code or go to :
https://www.iwavesystems.com/support/
warranty/
Quick Start Guide
iW-RainboW-G28D
iW-RaniboW-G28D
iW-RainboW-G28DiW-RainboW-G28D
iW-RainboW-G57D
Quick Start Guide
15

USA
JAPAN
iWave Japan, Inc.
8F-B, Kannai Sumiyoshi Building,
3-29, Sumiyoshi-cho, Naka-ku, Yokohama,
Kanagawa, Japan.
Email: [email protected]
Ph: [phone], 26781643
Israel
Value Technologies Ltd.
P.O. BOX 3161, Tel-Mond, Israel
4060000
Tel: [phone]
Fax: [phone]
Email: [email protected]
FRANCE
EUROPE
iWave Europe.
International Sales and Marketing,
Europe.
Venkelbaan 55 2908KE Capelle
aan den Ijssel
Email: [email protected] Our Partners
Across The Globe
RUSSIA KOREA
J.S Communications
#913, Dojung Tower, Anyang-ro 115,
Manan-gu, Anyang-si, Gyeonggi-do, Korea
Tel : [phone]
Email: [email protected]
Headquarters: INDIA
iWave Systems Tech. Pvt. Ltd.
7/B, 29th Main, BTM Layout 2nd Stage,
Bengaluru-560076,India.
Ph: [phone], 26781643
Email: [email protected]
www.iwavesystems.com
FRANCE
EUROCOMPOSANT
1, rue Rene Caudron - BP 15
78960 Voisins-le-Bretonneux,
France
Tel: [phone]
Fax: [phone]
Email: [email protected]
Symmetron
Business-Park River City,
Leningradskoe Shosse 69,
Building 1, Moscow, Russia, 125445.
Tel: [phone]
Email: [email protected]
SWEDEN
Acte Solutions AB
Box 4115,
SE-171 04 Solna,
Sweden.
Tel: [phone] / 46
Email: [email protected]
GLOBAL
Arrow Electronics, Inc.
9201 East Dry Creek Road
Centennial, CO 80112 USA
NA: [phone]
[email protected]
EMEA: [phone]
[email protected]
Asia: [phone]
[email protected]
GLOBAL
Future Electronics
237 Hymus Blvd.,
Pointe Claire, Quebec,
Canada H9R 5C7.
Tel: [phone]
Email: [email protected]
EMEA: [phone]
[email protected]
Asia: [email protected]
GLOBAL
Mouser Electronics, Inc.
1000 North Main Street
Mansfield, Texas 76063,USA
Tel: [phone]
E-mail: [email protected]
TURKEY
ÖZDİSAN ELEKTRONİK A.Ş.
DES Sanayi Sitesi 104 Sokak A07
Blok No: 54-56 Upper Dudullu / Ümraniye
Istanbul - Turkey
Tel: [phone]
E-mail: [email protected]
UNITED STATES
iWave USA
1692 Westmont Ave., Campbell,
CA95008 USA
Ph: 408-206-5958
Email: [email protected]
Batenburg Adelco Electronics
Venkelbaan 55
2908 KE Capelle aan den Ijssei,
The Netherlands
Tel: [phone],
[phone]
Email: [email protected]
NETHERLANDS, BELGIUMONLINE
Digi-Key Corporation
701 Brooks Avenue South
Thief River Falls,
MN 56701-0677
Tel: [phone]
E-mail: [email protected]
Embedded Technologies, Inc
2870 Scott St, Suite 101,
Vista, CA USA,
Tel:[phone],
E-mail: [email protected]
SPAIN
Anatronic
Paseo de los Melancólicos, N° 9-2° A
28005 MADRID, Spain
Tel : [phone]
Email: [email protected]
