IWILL P4R533 User manual

IWILL P4R533/P4R533-N Motherboard
User’s Manual

P4R533/P4R533-N Motherboard
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
User’s Manual
II
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

P4R533P4R533-N Motherboard
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
User’s Manual III
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Federal Communications Commission (FCC) Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reason-
able protection against harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communica-
tions. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television re-
ception, which can be determined by turning the equipment off and on, the user is encour-
aged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment onto an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Shielded interconnect cables and shielded AC power cable must be employed with this
equipment to insure compliance with the pertinent RF emission limits governing this
device. Changes or modifications not expressly approved by the system’s manufacturer
could void the user’s authority to operate the equipment.
Declaration of Conformity
This device complies with part 15 of the FCC rules. Operation is subject to the following
conditions:
• This device may not cause harmful interference, and
This device must accept any interference received, including interference that may cause
undesired operation.

P4R533/P4R533-N Motherboard
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
User’s Manual
IV
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Disclaimer
The information in this document is subject to change without notice. The manufacturer
makes no representations or warranties with respect to the contents hereof and specifically
disclaims any implied warranties of merchantability or fitness for any particular purpose.
Furthermore, the manufacturer reserves the right to revise this publication and to make
changes from time to time in the content hereof without obligation of the manufacturer to
notify any person of such revision or changes.
Trademark Recognition
Microsoft and Windows are registered trademarks of Microsoft Corp.
Intel and Xeon are registered trademarks of Intel Corporation.
Other product names used in this manual are the properties of their respective owners and
are acknowledged.
Copyright
• Portions © Intel Corporation
This publication, including all photographs, illustrations and software, is protected under
international copyright laws, with all rights reserved. Neither this manual, nor any of the
material contained herein, may be reproduced without the express written consent of the
copyright holders.
© April 2002

P4R533P4R533-N Motherboard
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
User’s Manual V
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Contents
1: Introduction.................................................................... 1.1
Manual Structure............................................................................. 1.1
Manual Features.............................................................................. 1.2
If The Motherboard Is Already Installed ............................................1.2
If You Need To Install This Motherboard............................................1.2
Critical Topics ................................................................................. 1.3
Packing List.................................................................................... 1.4
Pre-Use Checklist ............................................................................ 1.4
2: Key Features & Components.............................................. 2.1
Motherboard Layout ........................................................................ 2.2
Key Features & Components ............................................................. 2.4
Intel 850E Chipset......................................................................2.5
CPU Socket ...................................................................................2.5
System Memory Sockets ..................................................................2.6
The AGP Slot.................................................................................2.7
PCI Expansion Slots .......................................................................2.8
Drive Connectors ...........................................................................2.9
IDE Drive Connectors...................................................................2.9
Floppy Disk Drive Connector..........................................................2.9
Other Internal Connectors............................................................. 2.10
ATX Power Connectors ...............................................................2.10
CPU & System Cooling Fan Connectors J39, 40, 41, 42....................2.10
WOL: Wake On LAN Connector J46 ............................................... 2.11
CD-In & AUX Audio Connectors J54 & J53.....................................2.12
IR Connector J45 ..................................................................... 2.12
6-Channel Audio Option Connectors J61 & J78...............................2.13
Smartcard Reader Connector J59 .................................................2.14
Memory Stick Reader Connector J60............................................. 2.14
System Management Bus Connector J48 .......................................2.14
Front Panel Connectors.............................................................. 2.15
Battery Housing....................................................................... 2.15
External I/O Ports ......................................................................... 2.16
PS/2 Ports ..............................................................................2.16
USB Ports ...............................................................................2.16
LAN Port (P4R533-N Only)......................................................... 2.17

P4R533/P4R533-N Motherboard
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
User’s Manual
VI
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Parallel Port ............................................................................ 2.17
Serial (COM) Ports....................................................................2.18
Audio Jacks & Connectors .......................................................... 2.18
Jumpers ..................................................................................... 2.19
JP6 Clear CMOS........................................................................ 2.19
JP8 Audio Chip ........................................................................ 2.19
JP16 Flash Protect ................................................................... 2.19
P17 LAN Chip .......................................................................... 2.19
Software Features.......................................................................... 2.20
Using the Power Installer Disc ....................................................... 2.20
Driver Software ...........................................................................2.21
Utility Software...........................................................................2.22
3: Motherboard Configuration ............................................... 3.1
The Default Configuration................................................................ 3.1
Hardware Configuration: Jumper Settings ..........................................3.1
Jumper JP6: Clear CMOS Memory ...................................................3.2
Jumper JP16: BIOS Flash Protect ..................................................3.4
Jumper JP8: Audio Chip ..............................................................3.6
Jumper JP17: LAN Chip ...............................................................3.6
Firmware Configuration: The CMOS Setup Utility .................................3.7
Using the CMOS Setup Utility........................................................3.7
Reconfiguring the Motherboard........................................................ 3.9
Hardware Reconfiguration ...............................................................3.9
Firmware Reconfiguration ...............................................................3.9
4: Installing the Motherboard ............................................... 4.1
Pre-installation Preparation............................................................. 4.1
Installing A CPU............................................................................4.2
Processor Selection .....................................................................4.2
Installing The Processor...............................................................4.3
Installing the Heatsink................................................................4.5
Installing System Memory ...............................................................4.8
Memory Specifications.................................................................4.8
Memory Configuration Options ......................................................4.8
Installing Memory Modules......................................................... 4.10
PC1066 Memory Configuration .................................................... 4.11
System Memory Recognition .......................................................4.11

P4R533P4R533-N Motherboard
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
User’s Manual VII
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Installing the Motherboard in a System Housing...............................4.12
Motherboard Installation Procedure .............................................4.12
Connecting Front Panel Components ............................................4.14
Completing System Configuration................................................... 4.14
5: System Configuration ....................................................... 5.1
Installing or Connecting Internal Peripherals .................................... 5.1
Installing an AGP Card....................................................................5.2
AGP Configuration ......................................................................5.2
Display Drivers...........................................................................5.2
Connecting Internal Devices ............................................................5.3
Connecting IDE Devices ...............................................................5.3
Connecting a Floppy Disk Drive......................................................5.4
Connecting a Smartcard or Memory Stick® Reader.............................5.4
Connecting External System Peripherals............................................ 5.6
Connecting a Display Monitor ..........................................................5.6
Connecting a Keyboard & Mouse.......................................................5.6
Configuring the CMOS Setup Utility .................................................. 5.8
The CMOS Setup Utility User Interface...............................................5.8
Running the CMOS Setup Utility ....................................................5.8
CMOS Setup Utility Program Sections ..............................................5.10
Standard CMOS Features ............................................................ 5.12
Advanced BIOS Features ............................................................5.13
Advanced Chipset Features.........................................................5.14
Integrated Peripherals...............................................................5.15
Power Management Setup.......................................................... 5.16
PnP/PCI Configurations.............................................................5.17
PC Health Status...................................................................... 5.18
IWILL Smart Setting .................................................................5.19
Load Fail-Safe Defaults..............................................................5.20
Load Optimized Defaults............................................................5.20
Set Supervisor/User Password .....................................................5.21
Save & Exit Setup.....................................................................5.21
Exit Without Saving ..................................................................5.21
Installing an OS & Support Software ............................................... 5.23
Installing an Operating System ...................................................... 5.23
Installing the Support Software ..................................................... 5.23
Installing Windows Drivers .........................................................5.24
The Make Driver Utility ..............................................................5.26

P4R533/P4R533-N Motherboard
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
User’s Manual
VIII
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Making & Installing Linux Drivers ................................................ 5.27
Installing the Utility Software .......................................................5.27
6: Using the Motherboard..................................................... 6.1
Using System Features..................................................................... 6.1
Front Panel System Controls & Indicators ..........................................6.1
System Controls .........................................................................6.1
Indicator LEDs ..............................................................................6.3
LAN Features.................................................................................6.3
P4R533-N LAN Indicator LEDs.......................................................6.3
Wake-on LAN (WOL)....................................................................6.3
Installing & Configuring An IR Port .................................................. 6.4
Performance Optimization ............................................................... 6.6
System Memory .............................................................................6.6
Disk Subsystems ............................................................................6.6
Processor Upgrades & Adjustments ...................................................6.6
Troubleshooting.............................................................................. 6.7
Hardware Problems.......................................................................... 6.7
General Hardware Troubleshooting....................................................6.7
Hardware Configuration Problems .....................................................6.8
Plug and Play Problems ...............................................................6.9
Replacing the System Configuration Record .......................................6.9
Loading Optimized Defaults.............................................................6.9
7: Technical Specifications ................................................... 7.1

1: Introduction
User’s Manual 1•1
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
1: Introduction
This is the User’s Manual is for the P4R533 motherboard.
Please read this chapter before you use your motherboard
and identify which parts of the manual you will need to
refer to, if any. Please pay particular attention to the Criti-
cal Topics section.
Manual Structure
This manual has seven chapters covering the following
topics:
Chapter 1: Introduction
Explains the manual structure and conventions and indi-
cates the most important topics in the manual. In addi-
tion, there is a list of what you should find in the
motherboard package and some pointers on things to do
before you configure or install the board.
Chapter 2: Key Features & Components
Details the motherboard’s hardware features and impor-
tant components and indicates their locations. Describes
the support software that comes with the board on the
Power Installer support CD-ROM disc.
Chapter 3: Motherboard Configuration
Lists the motherboard’s default configuration and con-
figuration options.
Chapter 4: Installing The Motherboard
Has information on how to prepare and install the
motherboard. Includes installing a CPU and system
memory and housing installation considerations.
What’s In This Chapter:
Introduction
Manual Structure
Manual Features
Critical Topics
Packing List
Pre-Use Checklist

P4R533/P4R533-N Motherboard
User’s Manual
1•2
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Chapter 5: System Configuration
Covers connecting system peripherals to the motherboard,
initial BIOS configuration using the CMOS Setup utility,
OS options and software installation.
Chapter 6: Using The Motherboard
Explains system operation features that derive from the
motherboard. Has information on performance optimi-
zation and troubleshooting.
Chapter 7: Technical Information
Lists the motherboard’s technical specifications.
Manual Features
This User’s Manual is intended to be useful and informa-
tive while also making it easy to quickly find specific
information or specifications. The manual has icons and
notes in the sidebar to note important topics, indicate
warnings or further explain and illustrate points. We
suggest that most users review the manual to become
familiar with the motherboard. Expert users may want to
review topics selectively, as needed.
If The Motherboard Is Already Installed
You may receive the motherboard installed in a working
system. If this is the case, you should still probably re-
view the sections on configuring and using the board,
especially if an Operating System is not installed yet.
If You Need To Install This Motherboard
We recommend that only experienced users and techni-
cians install this motherboard. Otherwise, we suggest
having a qualified computer technician install and con-
figure the system. This service is usually provided at a
nominal fee by better computer stores and service com-
panies.

1: Introduction
User’s Manual 1•3
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Critical Topics
Many users do not read through the entire User’s Manual.
While this may not be necessary for experienced users or
if the motherboard is already installed, there are some
topics which are particularly important and deserve your
specific attention. These topics cover information critical
to the proper installation and use of the motherboard.
For this motherboard, please review the sections on the
following topics:
• Jumper Configuration
Please see Chapter 3.
• CPU installation
Please see Chapter 4.
• System memory installation
Please see Chapter 4.
• AGP card installation
Please see Chapter 5.
• Required BIOS configuration
Please see Chapter 5.
• Support software installation
Please see Chapter 5.

P4R533/P4R533-N Motherboard
User’s Manual
1•4
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Packing List
The P4R533 motherboard package includes the follow-
ing items:
• P4R533 or P4R533-N motherboard
• ATA-66/100 IDE connector cable
Connects IDE devices to one of the onboard IDE
connectors.
• Floppy Disk Drive connector cable
Connects floppy disk drives to the onboard floppy
disk connector.
• Rear I/O Panel Shield
For use in ATX system housings.
• 2 CRIMM modules
Conitnuity RIMM modules for unused system
memory RIMM sockets.
• 3 Jumper Caps
Extra caps in case original caps are lost.
• Power Installer support CD-ROM disc
Includes support software, drivers and bundled soft-
ware utilities.
• User’s Manual
• Quick Installation Guide
Pre-Use Checklist
Before you install and use the motherboard, please do
the following:
• Check Package Contents
Please compare the package contents to the Packing
List on the previous page and confirm that all items
are present and undamaged.
• Missing or Damaged Accessories
If anything is missing, please contact your vendor.

1: Introduction
User’s Manual 1•5
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
• Motherboard Damage
If the motherboard has been visibly damaged, re-
turn the complete package to your vendor with proof
of purchase.
• Prepare Minimum System Components
If you are installing the board in a new system, you’ll
need at least the following internal components;
• Intel Pentium 4 processor
• At least two Rambus RIMM memory module
• 1.5V AGP video display card
• Desired storage devices (hard disk, CD-ROM, etc.)
You will also need whatever external system peripherals
you intend to use, which will normally include at least a
keyboard, a pointing device and a video display monitor.

P4R533/P4R533-N Motherboard
User’s Manual
1•6
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

2: Key Features & Components
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
User’s Manual 2•1
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
2: Key Features & Components
This chapter explains the location and function of this
motherboard’s key features and components. In addition,
it details the software that comes on the Power Installer
support CD-ROM disc. Please review this chapter if you
are installing the motherboard. It is also useful for refer-
ence regarding feature functions after the board is in-
stalled in a working system.
Chapter Topics:
Hardware Features
Motherboard Layout
Key Features & Components
Software Features
Driver Software
Utility Software

P4R533/P4R533-N Motherboard
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
User’s Manual
2•2
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

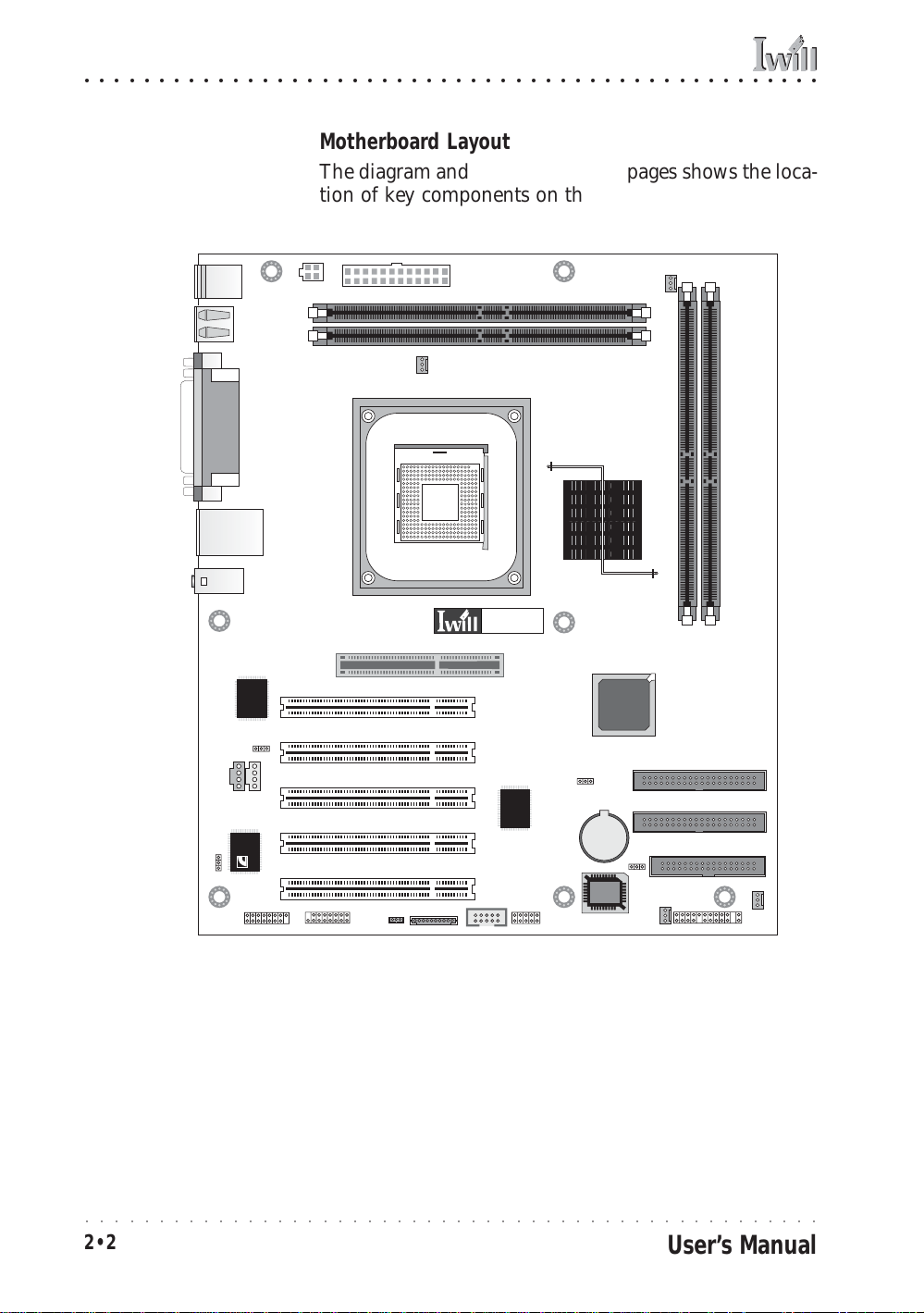

Motherboard Layout
The diagram and key on these two pages shows the loca-
tion of key components on the motherboard.
Rear
I/O Panel
mPGA478B
C3DX HSP56
CMI8738 LAN Controller
SMART I/O
RIMM(J6)
RIMM(J5)
RIMM(J3/J4)
IDE1(J29)
IDE0(J28)
FDD(J30)
Front Panel(J43)
J41
J42
IR(J45)
SMART CARD
(J59)
MS CARD(J60)
J46
SPDIF(J61)
GAME PORT
(J78)
(JP8)
CD_IN
(J54) AUX_IN(J53)
JP17
PCI(J12)
PCI(J13)
PCI(J14)
PCI(J15)
PCI(J16)
JP6
JP16
AGP(J11)
P4R533-N
J39
ATX 12V(J37)
J37A
J40

2: Key Features & Components
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
User’s Manual 2•3
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Motherboard Layout Key
Component Function
CPU mPGA478 CPU socket
J37, J37A Power connectors for ATX power supply
J3, J4, J5, J6 RIMM memory sockets for Rambus RIMM modules
J11 AGP connector for 1.5V AGP 4X display card
J12-16 32-bit PCI 2.2 expansion slots
Connectors
J28, J29 IDE0 & IDE1 ATA drive connectors
J30 Floppy disk drive connector
J40 CPU cooling fan connector
J39, J41, J42 Housing cooling fan connectors
J43 Housing front panel feature connector
J45 IR port module connector
J46 WOL – Wake-On-LAN connector
J53 AUX – auxiliary audio-in connector
J54 CD–In CD-ROM drive audio-in connector
J59 Smart Card Reader connector
J60 Memory Stick Reader connector
J61 Optional 6-channel audio port bracket connector
J78 Game port connector
Jumpers
JP6 Clear CMOS jumper
JP8 Audio subsystem jumper
JP16 BIOS Flash Protection jumper
JP17 LAN subsystem jumper (P4R533-N only)
Rear panel I/O ports See figure on next page

P4R533/P4R533-N Motherboard
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
User’s Manual
2•4
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Key Features & Components
This section explains the function and use of key fea-
tures and components on the motherboard. It also indi-
cates where to look in the manual for additional infor-
mation on configuring and using them.
This motherboard uses an ATX form factor PCB in a
design that integrates many features onto the board in-
cluding several external ports.

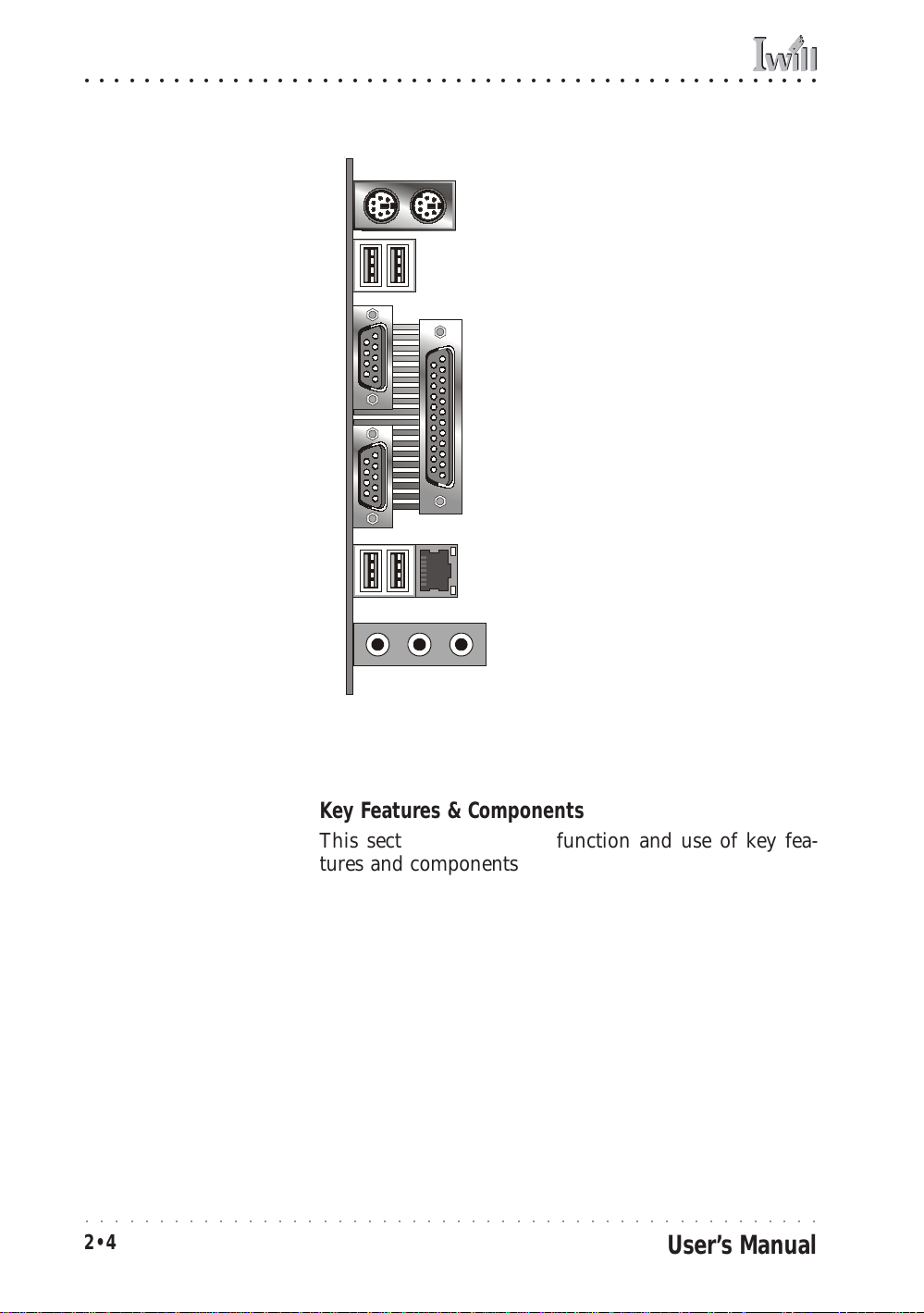

Rear I/O Panel Ports:
This figure show the ports
on the rear I/O panel. The
ports include, from top to
bottom:
PS/2 ports
2 USB ports
Parallel & Serial ports
2 USB ports (& LAN port)
Audio ports
The ports have standard
color-coding as follows:
PS/2 Keyboard: Purple
PS/2 Mouse: Green
USB Ports: Black
LAN jack: None
Serial Ports: Teal
Parallel Port: Burgundy
Line Out jack: Lime
Line-In jack: Light Blue
Microphone jack: Pink
Game/MIDI: Gold*
Note:
This figure illustrates the
P4R533-N ports. The stan-
dard P4R533 does not
have the onboard LAN fea-
ture or jack.
*The Game port connector
is on the motherboard and
connects to the optional
6CHG6-channelaudioport
bracket that mounts in an
expansion slot opening.
The colored port is on the
port bracket.
PS/2 Keyboard, PS/2 Mouse
USB2, USB1
Serial 1 (COM1)
Serial 2 (COM2)
Parallel
USB4, USB3, LAN RJ-45
Line Out, Line In, Mic

2: Key Features & Components
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
User’s Manual 2•5
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
mPGA478B Socket:
This socket is for 478-pin
Pentium 4 CPUs only. Heatsink/fan assembly
mounting frame
Intel 850E Chipset
This motherboard uses the Intel 850E Chipset. It is a multi-
function chipset for higher-end performance and main-
stream systems. The components of the Intel 850E Chipset
include the following devices mounted on the board:
•82850E Memory Controller Hub (MCH)
•82801BA I/O Controller Hub (ICH2)
The chipset provides host bus, memory, AGP, and I/O
interfaces and supports both 400MHz and 533MHz
Frontside Bus speeds.
CPU Socket
Function: The system CPU installs in this socket.
Description: ThemPGA478BCPU socketsupports all 478-
pin Intel Pentium 4 CPUs that use this socket. The
motherboard comes with a mounting frame mounted on
the board to attach the heatsink and cooling fan assem-
bly required by the Pentium 4 CPU.
More Information: See the section in Chapter 4 on “In-
stalling CPUs” for information supported CPUs and their
installation procedure. Technical specifications are listed
in Chapter 7.
mPGA478B
CPU
Note:
Thismotherboardsupports
Pentium 4 CPUs that use
aquad-pumped400MHz or
533MHzFrontsideBus.the
CPUsettingsare automati-
cally detected by the sys-
tem BIOS.

P4R533/P4R533-N Motherboard
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
User’s Manual
2•6
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
System Memory Sockets
Function: The RIMM system memory sockets are for in-
stalling DRDRAM system memory modules.
Description: There are four RIMM memory module sock-
ets on the motherboard. These sockets are for PC800 or
PC1066 ECC DRDRAM memory modules (RIMMs). The
sockets function independently, allowing a variety of
memory configurations up to a total of 2GB.
More Information: See the section on Installing System
Memory in Chapter 4 for configuration specifications and
installation instructions. Technical specifications are listed
in Chapter 7.
RIMM Sockets:
Systemmemorysocketsfor
PC800 or PC1066 RIMM
modules.
See Chapter 4 for impor-
tant installation informa-
tion.
RIMM(J6)
RIMM(J3/J4)
Note:
The four RIMM sockets
must be used in pairs:
J3 & J5
J4 & J6
Note:
The default memory speci-
fications are:
400MHz FSB use PC800
533MHz FSB use PC800
If you switch to PC1066
for the 533MHz FSB, you
have to manually set the
RDRAM Bus Frequency
configuration to X4 in the
IWILL Smart Setting sec-
tion of the Award BIOS
CMOS Setup Utility.
