IWILL DS133R User manual

1
DS133R SERIES Rev 1.3A FB2A315211300
Contents
Chapter 1 Quick Installation .................... 3
1.1 Layout ......................................................................................3
1.2Jumpers ....................................................................................4
1.3 Expansion Slots / Sockets ....................................................... 8
1.4 Connectors ............................................................................. 10
1.5Form Factor ........................................................................... 17
Chapter 2 Overview................................. 19
Chapter 3 Features.................................. 22
3.1 Motherboard Components Placement.................................. 22
3.2 Back Panel ............................................................................. 24
3.3 Block Diagram ....................................................................... 25
3.4 Specifications ......................................................................... 26
Chapter 4 Hardware Setup..................... 29
4.1 Before Installation.................................................................29
4.2 Jumper setting ....................................................................... 29
4.3 Install the Processor..............................................................35
4.4 Install Memory Modules ....................................................... 38
4.5 Install PCI Expansion Cards ................................................. 39
4.6 Usage of the AMR slot..........................................................40
4.7 Usage of the AGP slot...........................................................41
4.8 Connect Devices and Power Supply ..................................... 41

2
Chapter 1 Quick Installation
DS133R Series
Chapter 5 BIOS Setup............................ 51
5.1Introduction............................................................................ 51
5.2 Main Menu ............................................................................. 52
5.3 Standard CMOS Features .................................................... 53
5.4 Advanced BIOS Features ..................................................... 55
5.5 Advanced Chipset Features ..................................................60
5.6 Integrated Peripherals .......................................................... 61
5.7 Power Management Setup.................................................... 67
5.8 PnP/ PCI Configurations....................................................... 70
5.9 PC Health Status ................................................................... 72
5.10 IWILL Smart Setting .......................................................... 72
5.11 Load Fail-Safe Defaults ...................................................... 75
5.12 Load Optimized Defaults.................................................... 75
5.13 Set Supervisor / User Password Setting ............................ 76
5.14 Save & Exit Setup ............................................................... 76
5.15 Exit Without Saving ............................................................ 76
Chapter 6 Power Installer CD................ 77
6.1 Software Installation ............................................................. 77
6.2 How to use the Power installer CD ...................................... 77
6.3 Installing Operating Systems................................................ 79

3
Chapter 1 Quick Installation
DS133R Series
Chapter 1
Quick Installation
Several easy installation steps will be described in this chapter to help the experienced users with
quick installation. If you are a beginner, or need to know more about this product, please refer
to Hardware Setup.
1.1 Layout

4
Chapter 1 Quick Installation
DS133R Series
1.2 Jumpers
1.2.1 JP1(CMOS)Clear CMOSjumper
1.2.2 JP3 CPU FSB select jumper (FSB)
This jumper allow the selection of the CPU’s based external frequency. The
CPU “External Frequency” multiplied by the “Frequency Multiple” equals the
CPU’s “Internal Frequency”. Currently, most of the processors have the Fre-
quency Multiple locked, so you only need to select the External Frequency.
Most of the time, you can leave these jumpers on their default setting and the
based external frequency will be determined by CPU automatically.

5
Chapter 1 Quick Installation
DS133R Series
1.2.3 JP5PCIcompatibilityjumper(JP5)
JP5 is designed to solve the compatibility problem for older PCI VGA cards.
Using some older PCI VGA cards on PCI Rev2.1 compliant motherboards,
particularly PCI 2.0 specification cards, may cause some of the screen’s pixels
to function improperly.
1.2.4 JP6(PS2_SB) PS/2 power standbyjumper
This jumper is used to select the power well of PS/2 ports. The feature “power
on by keyboard / mouse” can be enabled or disabled by this jumper.

6
Chapter 1 Quick Installation
DS133R Series
1.2.5 JP9&JP9A (Vcore0+ & Vcore1+) Vcore booster jumper
This jumper is used to select the CPU core voltage.
1.2.6 JP10(VIO)VIOselectjumper
This jumper is used to select the VIO voltage.

7
Chapter 1 Quick Installation
DS133R Series
1.2.7 JP13(AC97) AC97 Codec Enabled/Disabledjumper
This jumper is used to enable / disable the onboard audio CODEC.
1.2.8 JP14 Speaker Souce Select jump(S-spkr)
This jumper is used to select the Speaker source protected mode.

8
Chapter 1 Quick Installation
DS133R Series
1.2.9 JP15LANEnabled/Disabledjumper(LAN)
This jumper is used to enable / disable the onboard LAN chip.
1.2.10JP16 Flash protect jumper (FLASH)
This jumper is used to select the Flash ROM protected mode.
Do not leave JP16 withoutany cap.

9
Chapter 1 Quick Installation
DS133R Series
1.3 Expansion Slots / Sockets
1.3.1 J1&J2 (Slot1) Processor connector
Slot1 is Single Edge Contact (SEC) CPU slot. The slot1 connectors located on J1&J2.
1.3.2 J3-J4(RM0—RM1) 184-Pin RIMM Sockets

10
Chapter 1 Quick Installation
DS133R Series
1.3.3 J11 (AGP) AGP Slot
1.3.4 J12-J16 (PCI 1—PCI 5) PCI expansion slots
The connectors are Bus Master PCI Expansion Slots.
1.3.5 J27 (AMR) AMR Slot

11
Chapter 1 Quick Installation
DS133R Series
1.4 Connectors
1.4.1 J28 (IDE0) Primary ATA/66 IDE channels
1.4.2 J29(IDE1)SecondaryATA/66IDEchannels
1.4.3 J30(FDC)Floppyconnector

12
Chapter 1 Quick Installation
DS133R Series
1.4.4 J37 ATX power connector
1.4.5 J39 (Fcpu0) & J40 (Fcpu1) & J41 (Fsys)
There are three fan connectors on this motherboard. The J39&J40 (Fcpu0 & Fcpu1) is
designed to support CPU fan; the J41 (FSYS) is for system fan used .

13
Chapter 1 Quick Installation
DS133R Series
1.4.6 System temp. sensor header (Tsys) (J41A)
1.4.7 Chassis Intrusion Connector (CASE) (J42)
1.4.8 J43
This connector is composed of all the headers that may be connected to the front
panel of the chassis.

14
Chapter 1 Quick Installation
DS133R Series

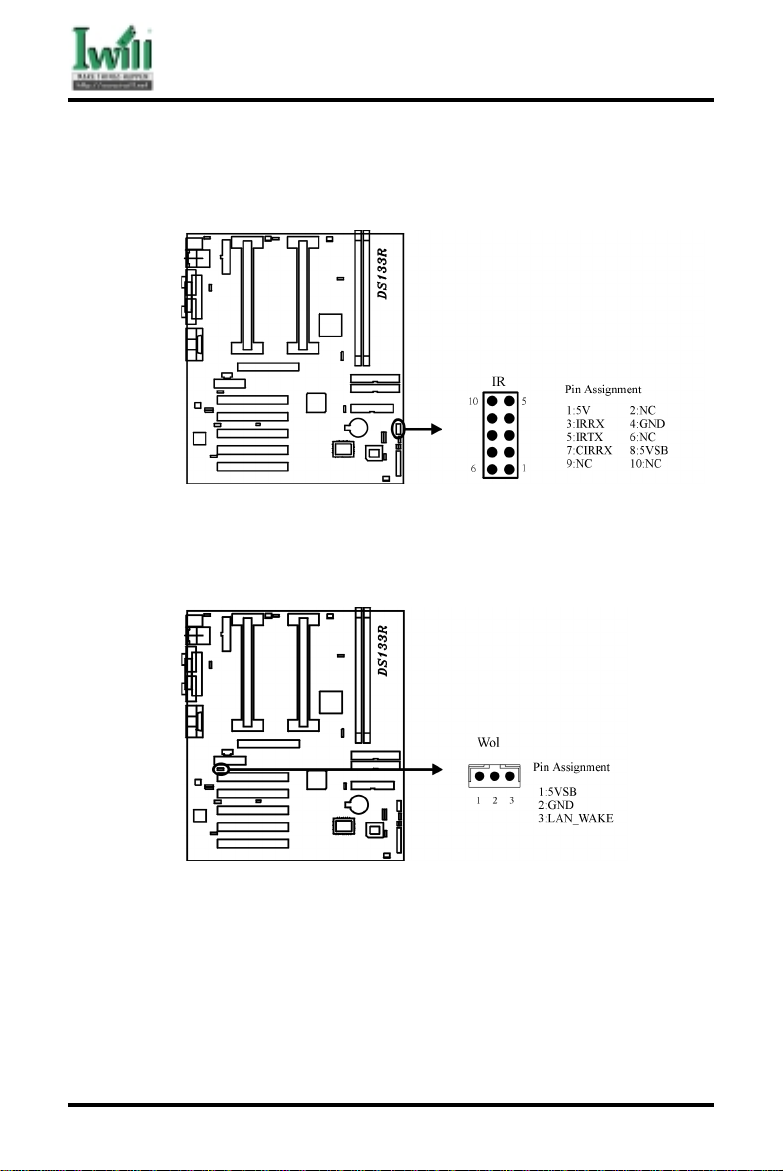

1.4.9 J45(IR)
This connector is designed for theFIR/CIR devices.
1.4.10J46 (WOL)
This is the Wake-on-LAN connector. In order to wake up the system through a plug-
in network card, the card must provide a high active wake signal.
1.4.11 J47 (Mdm)
1.4.12J48 (SMBUS)

15
Chapter 1 Quick Installation
DS133R Series
1.4.13Aux_IN&Video _IN (J53)
1.4.14J54 (CD_IN)
The audio output can be transfered form CD-ROM to the audio systme.

16
Chapter 1 Quick Installation
DS133R Series

17
Chapter 1 Quick Installation
DS133R Series
1.5 FormFactor

18
Chapter 1 Quick Installation
DS133R Series

Chapter 2 Overview
19
DS133R Series
Chapter 2
Overview
Thank you for purchasing the IWILL DS133R motherboard. This operation manual will instruct you
how to configure and install the system properly. It contains an overview about the engineering design
and features of this product. Also, this manual provides useful information for later upgrades or
configuration changes. Keep this for your future reference.
About This Manual
This manual will introduce to the user how this product is installed. All useful information will be
described in later chapters. Keep this manual for future upgrades or system configuration changes.
Chapter 1 Quick Installation The quick reference for experienced user
Chapter 2 Overview An overview of this motherboard
Chapter 3 Features Information and specifications
Chapter 4 Hardware Setup Information for setting up the motherboard
Chapter 5 BIOS Setup Information for setting up the system BIOS
Chapter 6 Power Installer CD Information for the Power Installer CD
Item Checklist
You should find the following components when opening the box:
[Ô] Iwill motherboard
[Ô] This operation manual
[Ô] One 40-pin/80-thread ATA/66 IDE cable with three heads
[Ô] One 34-pin Floppy cable with four heads
[Ô] One Continuity Module (C-RIMM)
[Ô] One Iwill Power Installer CD
[Ô] Bag of spare jumper caps
[Ô] One Standard ATX IO Shield(DS133R-N only)
[Ô] two in 1 Retention Kit
Optional
[ ] Thermal Sensor for HDD
[ ] Thermal Sensor for System
[ ] IwillSIDE-Pro66PCIATA/66IDEcontroller
[ ] IwillSIDE-2930CPCIFastSCSIcontroller
[ ] IwillSIDE-2930U+ PCIUltra SCSIcontroller
[ ] IwillSIDE-2936UWPCI Ultra WideSCSIcontroller
[ ] IwillSIDE-2935LVDPCIUltra2SCSIcontroller
[ ] IwillSIDE-DU280PCIDualchannelUltra2SCSIcontroller
[ ] IwillSIDE-DU3160PCI Dual channel Ultra160SCSIcontroller
[ ] MR card

Chapter 2 Overview
20 DS133R Series
Introduction
The DS133R motherboard is the most flexible platform in today’s market based on the newest Intel® 820
chipset. A major advancement in chipset technology, 820 chipset support single Direct RAMBUS
channel for up to 32DRDRAM devices.
This motherboard supports single and dual the Deschutes / Katmai / CuMine processors. It can support
the processors that packed as a SEPP/SECC/SECC2 CPU package. In other words, no matter what kind
of processors you have, the DS133R motherboard always provides you an adequate solution.
There are two RIMM sockets on the motherboard, using 256M/128M/64M technology maximum
memory up to 1G/512MB/256MB. The 820 chipset support AGP 4X/2X/1X AGP mode. The origi-
nal investment can be guaranteed by five bus-master PCI slots design. The PC99 compliant colorful
connectors and the easy jumper setting provide the user more convenience. Besides that, the robust
feature, well-prepared documents and the powerful software CD support make this motherboard the
best choice of the value segment.
Copyright
This manual contains information protected by copyright law. All rights are reserved. No part of this
document may be used or reproduced in any form or by any means, or stored in a database or re-
trieval system without prior written permission from Iwill Corporation.
Trademark
Intel® / Pentium® / Celeron™ are trademarks of Intel Corporation.
Iwill and Iwill logo are trademarks of Iwill Corp.
All other product names are trademarks and registered trademarks of their respective owners.
Warning
Most of the features of this product have passed strict verification tests, and are subject to change at
any time without prior notice. If any malfunction occurs due to the future technical changes made by
the respective component manufacturers, Iwill assumes no responsibility or liability for it.
Notice
Information furnished in this manual is believed to be accurate and reliable. However, Iwill Corporation
assumes no responsibility for its use, nor for any infringements of patents or other rights of third
parties which may result from its use. Iwill Corporation reserves the right to change product
specifications at any time without notice. Applications described in this document for any of these
products are for illustrative purposes only. Iwill Corporation makes no representation nor warranty
that such applications are suitable for the specified use without further testing or modification. Iwill
Corporation assumes no responsibility for any errors that may appear in this document.
