IWILL P55TV User manual

i
EC Declaration of Conformity
We
Iwill Corp.
No. 9-1, Kong 6th RD.,
Lin Kou 2nd Industrial
Park, Taipei, Taiwan R.O.C.
declare under sole responsibility that the
P55TV Lite motherboard
meets the intent of Directive 89/336/ECC for Electromagnetic Compatibility.
Compliance was demonstrated to the following specifications as listed in the
official Journal of the European Communities:
EN 50081-1 Emissions:
EN 55022 Radiated, Class B
EN 55022 Conducted, Class B
EN 60555-2 Power Harmonics
EN 50082-1 Immunity:
IEC 801-2 Electrostatic Discharge
IEC 801-3 RF Radiat
IEC 801-4 Fast Transient

ii
About This Manual
This P55TV/TVS Lite EIDE Motherboard is the newest member to our EIDE
Motherboard solution products families. It incorporated with Intel 4th generation
430VX Chipset. In order to support fully plug and play Ultra I/O , an Ultra I/O that
contain keybaord and real time clock is used for users to enjoy the plug and play
function.
Run with faster CPU is very important function that this EIDE Motherboard
support. It support both P54C up to 200 MHz* and Intel’s next generation P55C
processor that support MMX technology.
Run with faster system memory is another plus on this EIDE Motherboard to
outperform the whole system performance. It equipe 4 of the 72 pin SIMM that
support both fast page and EDO DRAM also with two of the 168 pin DIMM
memory socket that support the new synchonous DRAM.
This manual is subject to change without notice.
This manual contains information protected by copyright law. All rights are
reserved. No any part of this document may be used or reproduced in any forms
or by any means, or stored in a database or retrieval system, without prior written
permission.
Trademark
Intel
®
/ Pentium is trade mark of Intel
®
Corporation and allother product names
are trademarksand registered trademarksof their respective owners.
Warning
This motherboardis carefully designed with Intel
®
spec. to fully support P54C
processor up to 200Mhz and thenew P55C. Since Intel
®
is not shiping the P54C
with 200Mhz and the new P55C CPU at the point that we deliver this
motherboard so we hold the responsibility on if Intel changeany spec. that cause
the new processor not function properly in this motherboard.

iii
Contents
Chapter 1- Overview
1.1 Features P1
1.2 Specifications P3
Chapter 2- Quick Installation P4
Chapter 3- Hardware Installation
3.1 Preparation and Inspection P6
3.2 Placement P8
3.3 CPU group P11
3.4 Cache Memory P14
3.5 D-RAM Configuration P14
3.7 Creative Sound P17
3.8 IDE Interface P19
3.9 USB P19
3.10 Enhanced Multi-IO P20
3.11 Other P21
Chapter 4- Award BIOS Setup P24
4.1 Entering Setup P28
4.2 Standard CMOS Setup P31
4.3 BIOS Features Setup P35
4.4 Chipset Feature Setup P41
4.5 Power Management Setup P48
4.6 PNP/PCI Configuration P51
4.7 Integrated Peripherals P54
4.8 Load Setup Defaults P56
4.9 Supervisor/User Password P56
4.10 IDE HDD Auto Detection P57
4.11 HDD Low Level Format P57
4.12 Save & Exit Setup P57
4.13 ExitWithout Saving P57

1
CHAPTER1
Overview
Thank you for purchasing this P55TV/TVS Lite EIDE Motherboard. This
operation manual will guide you to proper configure and install. It has an
overview of the engineer design and feature of this board. Also, this manual
provides useful information for your later upgrade or change the configuration.
Keep this, for your future need.
1.1 Features
This P55TV/TVS Lite EIDE Motherboard is a powerful combination of
performance, quality and innovative design to address the need of today’s market.
With current Intel P54C, Cyrix 6x86, AMD 5k86 and next generation on Intel
P55C with MMX technology supported, 512K external Level 2 Pipelined burst
fast Write-Back Cache, 64 bit Burst Bus DRAM, fully plug and play Ultra I/O,
this EIDE Motherboard brings exceptional processing power that could only be
achieved by Mini-computer. Incorporating the new emerging industrial standard
Peripheral Component interconnect (PCI) Local Bus together with the standard
16-bit Industrial Standard Architecture (ISA), this EIDE Motherboard
dramatically boots system I/O through for even the most demanding application
in today’s market.
◼CPU:
CPU socket (socket 7) supports the flexibility of different typeof current
and futureIntel Pentium, AMD (K5) and Cyrix (M1) processor. One easy
jumperdesign, while choosing your CPU speed from 75 to 200MHz.
◼Cachememories:
High performance write back secondary cache.This supports Pipelined
Burst Cache 512K on-board to achieve the highest performance.
◼BIOS:
Award BIOS, on-screen "Plug & Play" setup for Enhanced IDE, and Ultra
multi-IO. Support Flash ROM ( This ROM provides betterupgrade
ability for user to updatetheirBIOS data on thesystem board,user can
down-load newer version BIOS from Internet or diskette file.
◼Expansion slots:
5 X 16-bits ISA slots for P55TV, 4 X 16-bits ISA slots forP55TVS .

2
3 X 32-bits PCI slots for PCI compatible add-on cards.(PCI Rev 2.1)
◼Memories:
4 X 72-pin SIMM(Single In Line Memory Module)
2 X 168-pin DIMM(Dual In Line Memory Module) (Rev 1.1)
Support up to 128MB (minimum of 8MB ) on board.for both the Fast
Page Mode and Extended Data Output (EDO) module.
◼Creative Sound (P55TVS Lite only):
Built in Creative Vibra CD quality stereo sound on board.(CT2505)
Wave table option.Reference to Chapter3.7 for more detail.
◼IDE functions:
Built in dualPCI Bus EIDE Channels.
Support ATAPI (AT Attachment Packet Interface)
◼USB interface (Universal Serial Bus):
Plug and Play outside the box
Up to 12Mbit
Easy of use
◼Floppy Interface:
Support both 3 1/2"and 5 1/4" floppy disk drives and Tape Drive
(360K / 720K/ 1.2M / 1.44M / 2.88MB)
Enabled/Disable selectable from system BIOS
Non-Burst ModeDMA Option,16 Byte Data FIFO
3 Mode Driver (option)
◼Serial Port
Two high speed 16550 UART serial port
IRQ selectable from BIOS.
Address changeableform system BIOS
NS16C550 compatible,Programmable Baud Rate Generator
◼Parallel Port
IRQ selectable for IRQ5(278h), IRQ7(378h) from system BIOS.
Standard mode--Compatiblewith IBM PC/AT Printer port
EPP Mode --Enhanced Parallel Port compatible(EPP) compatible
IEEE 1284
ECP Mode --Microsoft & Hewlett Packard Extended Capabilities Port
(ECP) Compatible
IncorporatesChiProtect Circuit for protection against damage due to
printer power-on
1.2 Specifications
◼Physical Dimensions:Length: 330mm / Width: 220mm
◼Environmental Requirements:

3
Temperature0-55 degrees C (operating or storage)
5% to 95% non-condensingrelative humidity

4
CHAPTER2
Quick Installation
This EIDEMotherboard isshippedwith
manufacturepresetat :
1. CPU Clock at 100 MHz
2. 512K Pipeline Burst Cache on board
3. Printer ECP Mode at DMA3
4. Printer at IRQ7, Address at 378h
5. Serial 1 at IRQ4, Serial 2 at IRQ3
6. PS/2 MOUSE at IRQ 12
Referenceto the Chapter 3 & Chapter 4, if you
havedevices conflictwith themanufacturedefault.
Step 1. Install CPU and Cooler
Make sure the Clock Frequency is set to the same as theCPU
installed. (Choose the CPU speed by one jumperon JP15)
Step 2. Install the memory
Plug at least 2 PCS of 72 pins Micro Edge DRAM modules
or at least 1 piece of 168 pins DIMM.
Step 3. Install display controller and connect I/O ports
This system board is designed using PCI (Peripheral Component
Interconnect)and ISA (Industry Standard Architecture) interface
controller. This support +5Volt interface slots. All PCI interface
controllers must be PCI Rev 2.1 compliant.
Step 4. Connect the power supply
Connect P8 and P9 from power supply output.
Step 5. Power on the system
Turn on the Computerpower.
Step 6. Setting up the system
Enter the "Setup Menu" screen by press the " Del " key while
power on or warm reset the system.Always "LOAD SETUP
DEFAULT" at first and select others necessary that your
system require.

5
Step 7. Save the setup data to the CMOS
Exit the "Setup Menu " screen and then write to CMOS RAM.
And enjoy the high performance system board.
CHAPTER3
Hardware Installation

6
3.1 Preparation and Inspection
The P55TV/TVS Lite EIDE Motherboard,like all electronic equipment is static
sensitive. Please take theproper precautionswhen handling this board.You
should avoid static up. If possible, You should ground yourself by touching a
metaltableor yourcomputerframe.Keep the boardin its conductive wrapping
until it is configured and ready to be installed in yoursystem.
For installation, you may need some or all of the following tools:
‧IDE HDD drive/devices and floppy drive manual(s).
‧Peripherals that connect to yoursystem's manual(s).
‧MS DOS diskettes with FDISK and FORMAT programs.
‧Medium size flat blade screwdriver.
‧Medium sized Phillips head screwdriver.
‧A 3/16 inch nut driver or wrench.
You should find the Following components when open thebox :
1. P55TV/TVS Lite EIDE Motherboard.
2. This Operation Manual
3. Sound Input/Output adaptor(P55TVS Lite only).
4. Softwaredriver for CeartiveVibra sound.(P55TVS Lite only).
5. 40 pins internal IDE signal cable.
6. 34 pins internal Floppy Disk Drive signal cable.
7. 10 pins IDC flat cable to 9 pins D-Sub maleRS-232 connector.
8. 26 pins IDC flat cable to 25 pins D-Sub female printer signal flat
cable.
9. 10 pins IDC flat cableto 25 pins D-Sub male RS-232 connector.
10. 1 x 5 pins IDC flat cableto L-frame 5 pins PS-2 mouseport.
11. Musical CPU Cooler(optional).
12. External SCSI-2 port expansion kit (optional).
13. High speed printer port software driver(optional).
14. 3 Mode Driver (optional)
3.2 Placement

7

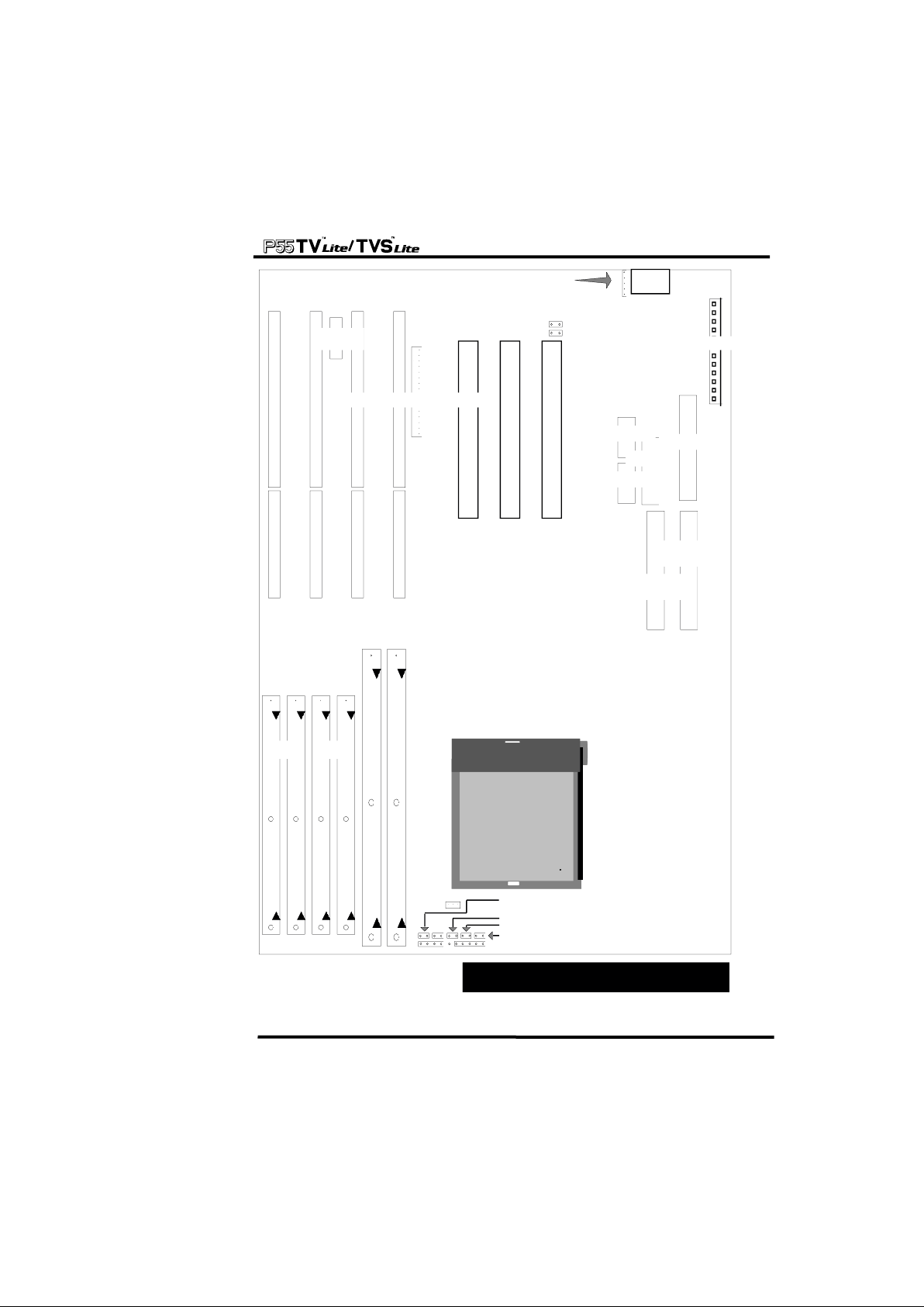

Placement & Connector
J3
1
J1
P55TV Lite
PCI#4
Keyboard
PS2 mouse
PCI#3
PCI#1
1
Soocket 7
CPU
FAN
Speaker
Reset SW
IDE LED
SMI SW
Turbo LED
Bank0
Bank1
Power CONN.
Primary
IDE
Secondary
IDE
Floppy
COM#B
COM#A
Printer
USB
CONN.
Keylock

8
Placement & Connector
J3
1
J1
P55TVS Lite
PCI#4
Keyboard
PS2 mouse
ISA
PCI#3
PCI#1
1
Soocket 7
CPU
FAN
Speaker
Reset SW
IDE LED
SMI SW
Turbo LED
Bank0
Bank1
Power CONN.
Primary
IDE
Secondary
IDE
Floppy
COM#B
COM#A
Printer
USB
CONN.
Sound AdaptorConnector
Keylock

9

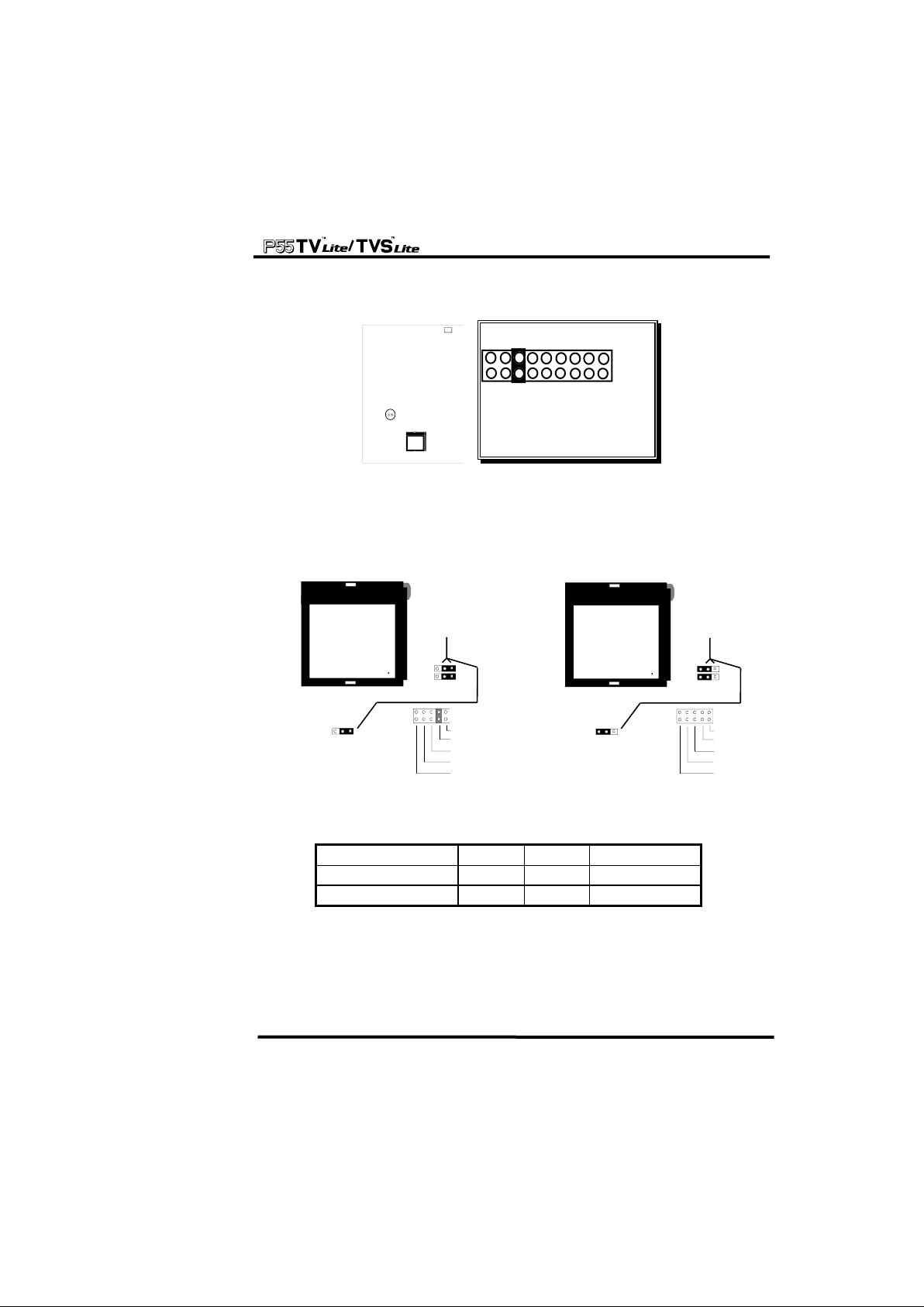

Jumpers
1J1
P55TV Lite /P55TVS Lite
1
Soocket 7
7
59 0
1
0
0
1
2
0
1
3
3
1
5
0
1
6
6
1
8
0
2
0
0
1
JP3
JP5
1
P54C
P55C
JP10
1
JP17
1-2: Terminator alw ays On
Off: Terminator alw ays Off
2-3: Terminatorcontrol by BIOS
3.
5
2V
3.
3
8
2.
8
3
2.
7
0
2.
5
0
1-2: 12V Flash ROM(28xxx)
2-3: 5V Flash ROM(29xxx)
1
JP20

10
3.3 CPU group

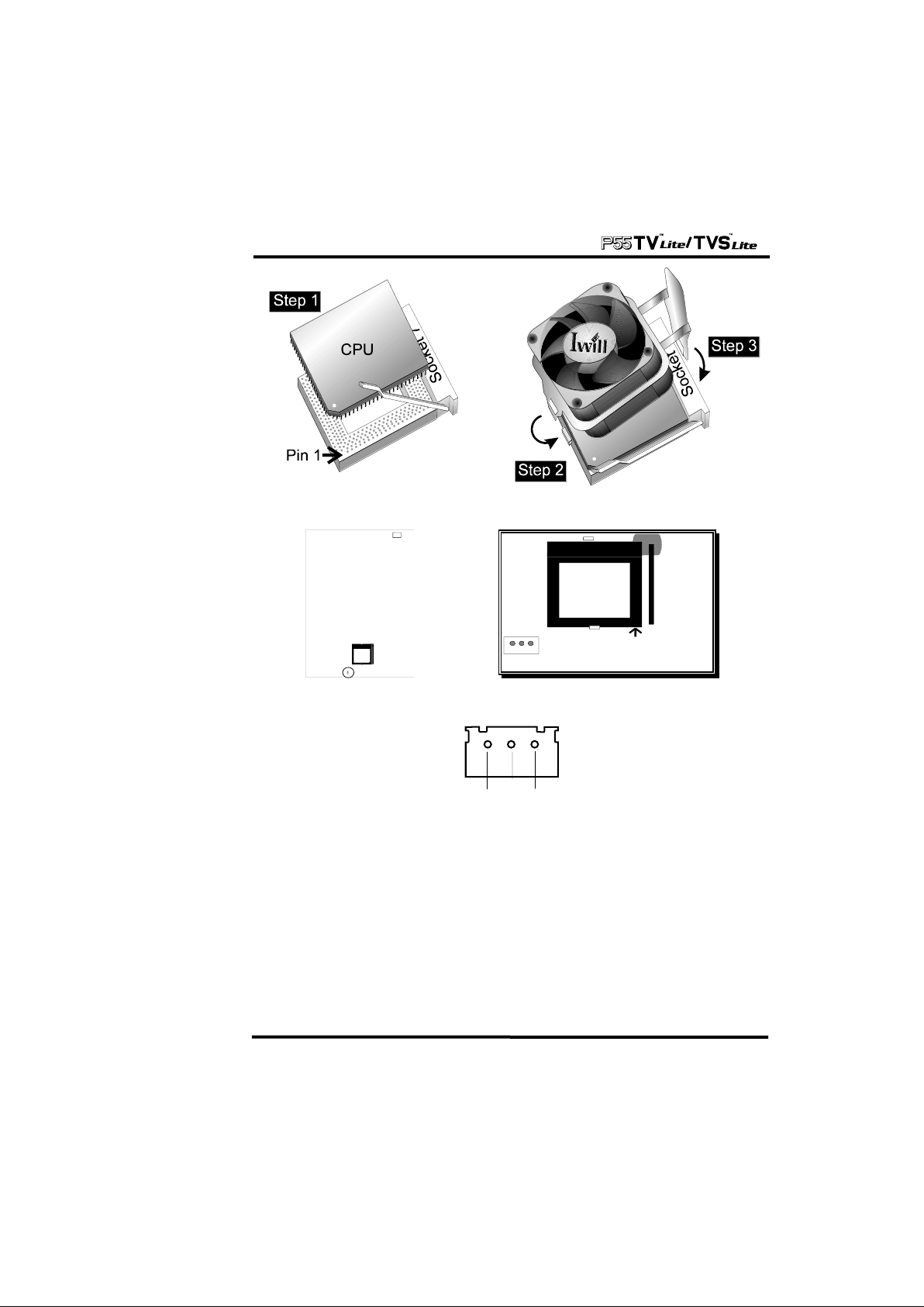

3.3.1 CPU Socket
This CPU socket provides flexibility for Intel Pentium , Pentium
OverDrive, Pentium futureprocessors, AMD K5(5k86) and Cyrix
M1(6x86)processor. When installing the CPU into the Zero Insertion
Force ( ZIF ) socket should be very carefully. Lift the handleof this 321
Pin ZIF socket up carefully and insert the CPU into ZIF socket. And make
sure the CPU Pin 1 is with the squarebase and it goes to particularhole on
the ZIF socket. Once you match the hole with Pin 1 then gently insert the
CPU and press socket handle down.
Pentium
pin #1
Socket 7
3.3.2 J17 CPU Cooler Fan PowerConnector
Warning !!! Warning !!! Warning !!!
CPU Cooler is required to be placed on top of
the CPU all the times to prevent CPU over-heat.

11
The CPU fan power connector is a 1 x 3 pin.
Pentium
pin #1
Soocket 7
J17
J17 Pin
+12V
GND
Control
3.3.3 CPU Clock Select
JP15 is a 2 X 9 pin jumper, with one"colored" jumpercap on it. One and
only one jumpercap need to put on this connectorforselecting the CPU

12
clock. Just put the colored yellow jumpercap to the speed yourCPU really
is (the CPU internal/externalclock ratio and ISA clock will be
automatically selected by setup the JP15)
JP15
7
5
9
0
1
0
0
1
2
0
1
3
3
1
5
0
1
6
6
1
8
0
2
0
0
MHz
Regarding Cyrix CPU clock setting, please referto Appendix A for detail.
3.3.4 CPU Voltage Select (JP10)
The default 3.38V is for most CPU that runs 3.3V. Others voltage is
reserved forfuture and otherbrand CPU use. Check your CPU vendorfor
more information.
Pentium
Socket 7
3.38 (default)
3.52V
2.83
2.70
2.50
JP10
JP5
P54C
1
JP20
1
(default)
or
Pentium
Socket 7
3.38
3.52V
2.83
2.70
2.50
JP10
JP5
P55C
1
JP20
1
3.3.5 P54C/P55C Select (JP5 & JP20)
CPU
JP5
JP20
Note
P54C/P54CS/P54CT
2-3, 2-3
2-3
*Default
P55C
1-2, 1-2
1-2
3.4 Cache Memory
The cache memory support for pipilined burst SRAM, this will peerform at
least 10% fasterthan traditionalasynchronousSRAM. Manufacture default is
512K on-board.

13

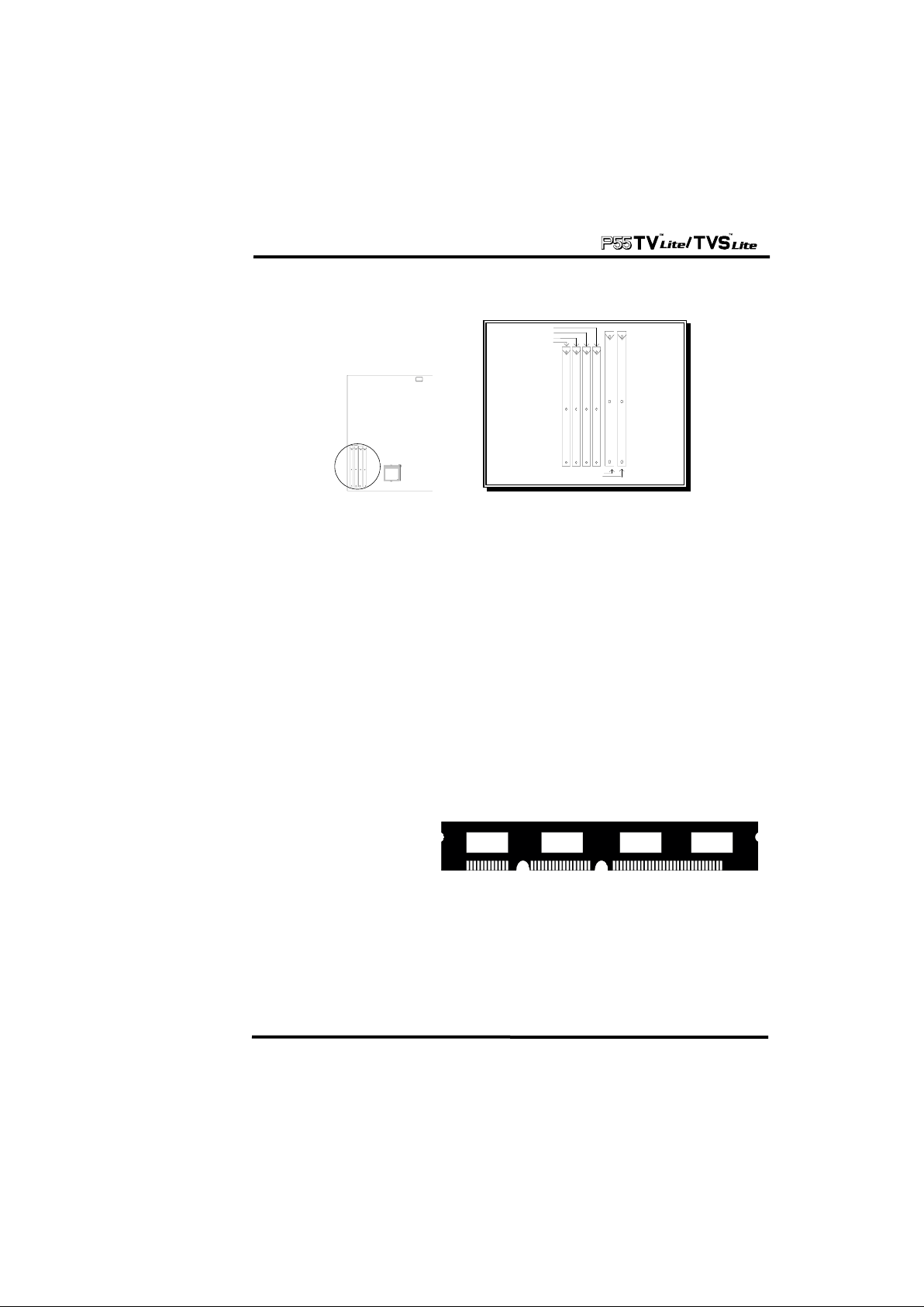

3-5 D-RAM Configuration
M1
M2
M3
M4
BANK 0 Socket 1
BANK 0 Socket 2
BANK 1 Socket 3
BANK 1 Socket 4
BANK 0 Socket 5
BANK 1 Socket 6
D
I
M
M
1
D
I
M
M
2
The P55TV Lite/TVS Lite supports different type of system memory. No jumper
needed for this function or configure. This mainboard separatesfourpieces of 72
pins SIMM(Single In Line Memory Module) into two banks,and also two pieces
168 pins DIMM(Dual In Line Memory Module) into two banks,they use the same
address. This means the Bank 0 and Bank 1 only can recognize either two pieces
of 72 pins SIMM or one pieces of 168 pins DIMM on each bank.
NOTE:
1
. P55TV Lite/TVS Lite support both Fast Page DRAM or EDO
DRAM SIMM/DIMMs also the ECC are supported,but they
cannot be mixed within the same memory bank.
2
. They are the same in Bank 0 or Bank 1. Socket 1,2 and
socket 5 are using the same memory block (Bank 0). They
can not install in the same time. Socket 3,4 and socket 6 are
using the same memory block (Bank 1).
3
. The 70 ns Fast Page Mode or 60 ns EDO DRAM is
recommended.
4
. DIMM specification: 3.3V/ Unbuffered
5. This motherboard supports 4 Clock for each DIMM Socket
Left Key Zone
(Unbuffered)
Center Key Zone
(3.3V DRAM)
Make sure the DIMM module is 3.3V/ Unbuffered and support the Intel Pentium
processor while you insert into theDIMM socket.
Note: End user should not populate both 5V SIMM modules & 3.3V DIMM
modules at the same time.

14

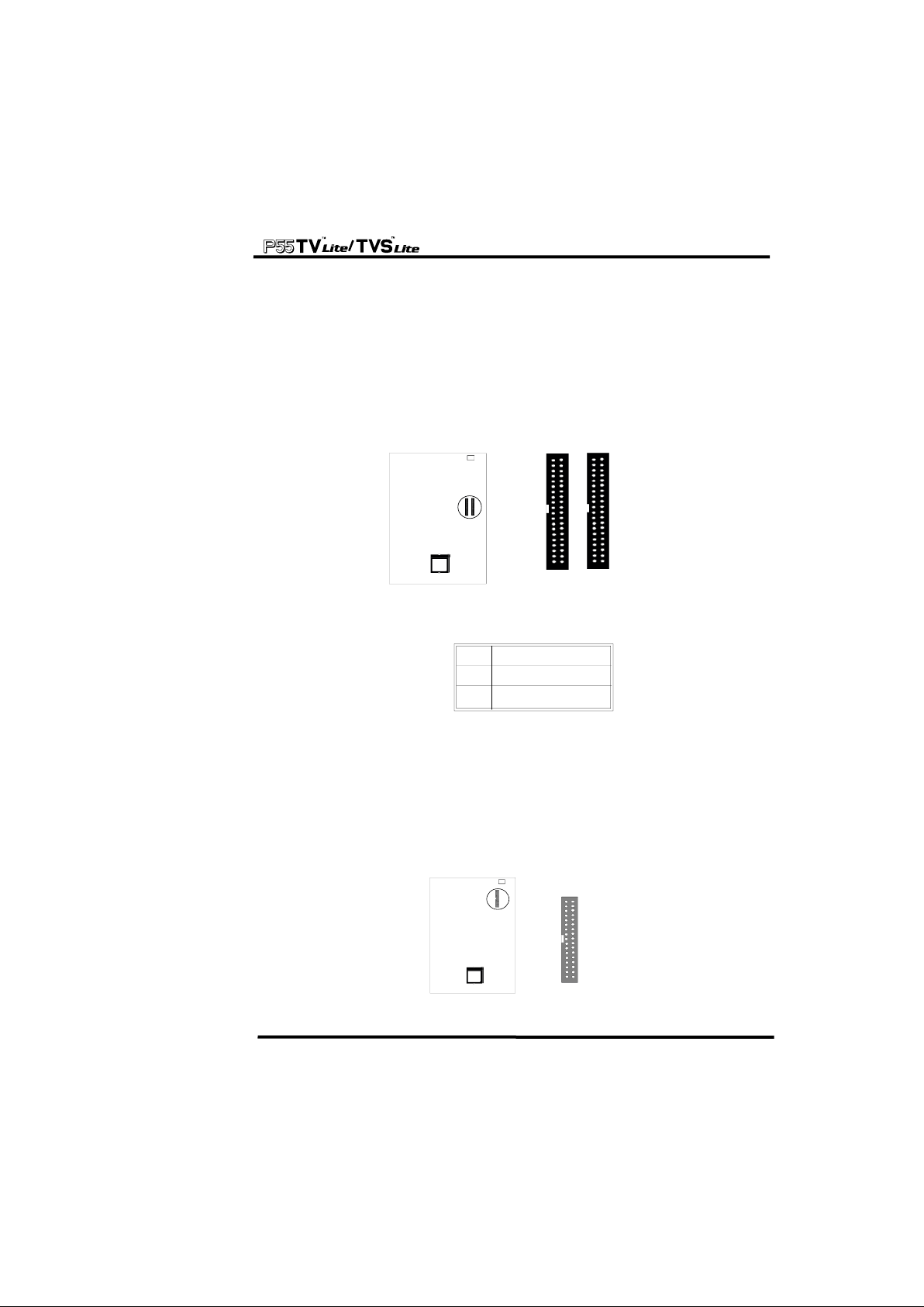

3.6 IDE Interface
3.6.1 Primary, SecondaryIDE Connectors
Primary / SecondaryIDE are40 pins internal IDE port connectors. Use a
40 pins flat cable to connect between this connectorand the IDE devices.
Normally put the boot-up hard disk at the primary IDE channeland other
IDE devices at the secondary IDE channel(like CD-ROM). Each IDE
connectorcan connect fortwo IDE devices and do not forget to set the
first IDE device to "Master" and second IDE device to "Slave" when you
connect two IDE devices in one connector.
P
R
I
M
A
R
Y
I
D
E
S
E
C
O
N
D
A
R
Y
I
D
E
P
R
I
M
A
R
Y
I
D
E
S
E
C
O
N
D
A
R
Y
I
D
E
1
2
1
2
39
40
39
40
3.6.2 IDE LED
A 2 pins LED connector.
Pin
1
2
Assignment
LED anode (+)
LED cathode (-)
3.7 USB (Unversal Serial Bus)
J11 is a 2 x 8 pin connector,this featureis reserved for futureUSB use.
3.8 Enhanced Multi-IO
3.8.1 J3 FDC Connector
J3 is a 34 pins internal Floppy port connector.Use 34 pins flat cableto
connect between this connectorand floppy drives.
F
D
C
F
D
C
1
2
33
34

15
3.8.2 J8 Printer Connector
J8 is a 26 pins connectorfor parallel port. Use a 26 pin IDC flat cable to
convert internal port to a standard 25 pin externalD-Sub connector.
JP8
1
1
J
P
3
J
P
4
J
P
5
P
R
I
N
T
P
R
I
N
T
1
14
13
26
Following selection is all controled by the BIOS:
ECP Mode DMA Channel Select by BIOS
printer Port Address and IRQ Select by BIOS
(378h/3BC with IRQ7, 278h with IRQ5.)
Printer andIEEE 1284cable
The IEEE 1284compliantcables have better features on the
following:
Twisted pairs of conductors
Full foil shield
Wire braid
Controlled impedance -- 62 ohm
Limited cross-walk
With these featureswill guaranteetheIEEE 1284 cable perform at
much higher bandwidth rates that the fast Centronics, EPP and ECP
modesperform at.
If you areusing the ordinary parallel cables running at the EPP or ECP
mode that this controller provided, you may experience that the data
efforts.
3.8.3 J9/J10 Serial Port & IRQ Select
J9/J10 are 10 pins internal Serial 1/Serial 2 portconnector. This system
board provides two flat cable to convert internal Serial ports to a
standard 9 and 25 pins external RS-232 port.

16
JP1
S2
JP2
JP6
JP7
3
4
10
12
S1
Serial1
Serial2
1
2
3
4
5
6
7
8
9
10
Serial 1
Serial 2
1
2
3
4
5
6
7
8
9
10
3.9 Others
3.9.1 Keyboard Connector
The keyboard connectoris a 5-pin, circular-type DIN socket. It is used to
connect the system board keyboard interface to any standard AT-
compatible keyboard (84 or 101key type keyboards). The pin assignment
are asfollows:
1
2
3
4
5
Keyboard clock
Keyboard data
n/c
Ground
VCC
Pin
Assignmemnt
3.9.2 Power SupplyConnector
The power supply connectoris 12-pin AT standardpowerconnectors.
They areused to connect power lines and power good signal from the
power supply's P8 and P9 headersto the system board. The pin
assignments forP8 and P9 are indicated below:
POWERCONNECTOR
1
2
3
4
5
6
Power Good
+5VDC
+12VDC
-12VDC
Ground
Ground
Ground
Ground
-5VDC
+5VDC
+5VDC
+5VDC
Pin
P8 Description
P9 Description
7
8
9
10
11
12
Pin
3.9.3 Keylock, Speaker Turbo Switch, Turbo LED SMI
Switch Connectors
Note: This motherboard does not support both the “Keylock” &
“Turbo” function.The Turbo LED will active aspower indicator.
