IWILL XP333 User manual

1
XP333-R/XP333Version1.1
Table of Contents
FB11324040000
Quick Installation ....................................................... .3
Item Checklist...............................................................................3
Before Installation........................................................................3
Layout...........................................................................................4
Jumpers/ Connectors..................................................................6
Features ..................................................................... 16
Motherboard Component Placement ...................................... 16
Block Diagram..............................................................................18
Specifications..............................................................................19
Hardware Setup......................................................... 21
Install the Processor..................................................................21
Install Memory Modules..............................................................22
IWILL 6-Channel Audio/SuperAudio(Optional)..........................23
ATX Power Supply Connector....................................................26
Rear I/O Panel.................................................................................27

Chapter 1 Quick Installation
2
BIOS Setup ................................................................ 28
BIOS Setup.................................................................................28
Main Menu...................................................................................30
Standard CMOS Features..........................................................30
Advanced BIOS Features ...........................................................34
Advanced Chipset Features........................................................37
Integrated Peripherals...............................................................40
Power Management Setup..........................................................44
PnP/ PCI Configurations.............................................................47
PC Health Status.........................................................................49
IWILL Smart Setting....................................................................49
Load Fail Safe Defaults..............................................................52
Load Optimized Defaults............................................................52
Set Supervisor/ User Password Setting....................................53
Save & Exit Setup.......................................................................54
Exit Without Saving....................................................................54
On Board Audio......................................................... 55
Audio Features............................................................................55
Driver Installation.......................................................................57
The Audio Rack..........................................................................59
Installing Support Software ..................................... 61

3
Chapter 1 Quick Installation
[ ] The Motherboard
[ ] Operation manual
[ ] ATA 66/100 IDE cable
[ ] Floppy cable
[ ] Power Installer CD
[ ] 6-Channel Audio Port Bracket
Optional
IWILL SuperAudio (for SPDIF)
USB riser kit
Thermal Sensor for System
Infrared port cable
Item Checklist
Before Installation
Quick Installation
Users must follow these guidelines to ensure the
motherboard is protected during installation:
1.Make sure your computer is powered-off and unplugged
whenever working inside the computer.
2.The motherboard, like all other electronic equipment, is
sensitivetostatic. Please take the proper precautions when
handling it. If possible, ground yourself by touching a metal
table or desk. Keep the board in its anti-static bag until it is
ready to be installed in your system.
3.Keep all magnets away from both your hard and floppy
disk drives, especially magnetic screwdrivers.
4.Keep water and liquids away from your computer and its
components.

Chapter 1 Quick Installation
4
XP333-R Motherboard Layout
C3 D X HS P 5 6
CMI8738
Ul tr a ATA 133
PCI1
AGPPWR
IDE-RAID0 IDE-RAID1
PCI2
PCI3
PCI4
J41
FDC
IDE1
IDE0
J43
J45
JP32
J64
JP20
JP31
JP10
J39
J42
JP25
J54
J69 J46
JP1
J34A
PCI5
RAID133
XP333-R
DIMM0 DIMM1 DIMM2

5
Chapter 1 Quick Installation
Jumpers & Connectors
JP1 Clear CMOS Jumper
JP10 VIO Selection Jumper
JP20 Audio Jumper
JP25 Keyboard Power On Jumper
JP31 Front Side Bus Jumper
JP32 Onboard RAID Jumper
J34A EXT USB Connector
J39 CPU Fan Connector
J41 System Fan Connector
J42 Auxiliary Fan Connector
J43 Front Panel Connector
J45 Infrared Connector
J46 Wake-ON-LAN Connector
J54 CD-IN Connector
J64 SPDIF or 6-Channel Audio Port Bracket
Connector [Bracket Optional]
J69 Wake-ON-MODEM Connector
Please Note: The XP333 motherboard does not have
the onboard RAID feature or its connectors.

Chapter 1 Quick Installation
6
Jumpers/Connectors
JP1
JP1 controls the Clear CMOS feature.
JP32
JP32 controls the onboard RAID feature on the XP333-R. If you have the
XP333-R and will use the RAID feature, please refer to the additional
RAID Administrator User’s Manual supplied with the XP333-R for infor-
mation on setting up and using a RAID array.
XP333-R
1
2
3
Normal Clear CMOS
1
2
3
(Default)
JP32 RAID(XP333-R)
1
2
3
1
2
3
Enabled Disabled
(
Default
)

7
Chapter 1 Quick Installation
JP10
JP10 sets the VIO setting. make sure this is correct for your CPU.
JP10 VIO
1 2 3 1 2 3 1 2 3
4 5 6 4 5 6 4 5 6
2.5V 2.6V 2.7V
(
Default
)

Chapter 1 Quick Installation
8
JP25
JP25 configures the Keyboard Power On feature in hardware. This must
be set to be Enabled for the Keyboard Power On features in the BIOS
CMOS Setup Utility to have effect.
JP31
JP31 sets the Front Side Bus speed. make sure the setting conforms to
your CPU’s specifications.
JP25 Keyboard Power_ON
1 2 3 1 2 3
Enabled Disabled
(
Default
)
JP31 Front Side Bus
1 2 3 1 2 3
100MHz 133MHz
(
Default
)

9
Chapter 1 Quick Installation
JP20
JP20 controls the onboard audio feature. If you want to use an alternate
audio expension card, set this to Disabled.
J45
J45 is a connector for an optional IR port module. The lead from the
module plugs onto this connector. Refer to the module installation in-
structions for more information.
JP20 Audio
1 2 3 1 2 3
Enabled Disabled
(Default)
J45 FIR
1: VCC
2: NC
3: IR
4: GND
5: IRT

Chapter 1 Quick Installation
10
J64
[SPDIF & 6 Channel
(
Optional
)
]
Pin Assignment
1: +12V 2: NC
3: NC 4: SPDIFO
5: SPDIFI 6: GND
7: NC 8: SPGPIO
9: NC 10: NC
11: BASS 12: XREARR
13: GND 14: GND
15: CENTER 16: XREARL
1 3 5 7 9 11131 5
2 4 6 8 10121416
SPDIF
6 CH bracket
J64
J64 is a connector for the supplied 6-Channel Audio port bracket that
comes with this motherboard or for the optional Super Audio port bracket
that provides additional digital audio connections.
J64 6-ch & SPDIF
SuperAudio6-Channel Audio
1
12
There are two options to up
g
rade
to 6-channel hardware sound
1. IWILL 6-channel Audio (bracket)
2. IWILL SuperAudio
(bracket with SPDIF)

11
Chapter 1 Quick Installation
J54
J54 is an audio-in connector for an audio cable from an external device
with an audio connection such as a CD-ROM drive.
J34A
J34A is a connector for an optional dual USB 1.1 port module. The con-
nector cable from the module plugs onto the J34A connector.
J54 CD_IN
J54 CD_In
4 3 2 1
1: Left channel
2: GND
3: GND
4: Right channel
J34A Externel USB
1 3 5 7 9
2 4 6 8
1: VCC
3: Data-
5: Data+
7: GND
9: GND
2: VCC
4: Data-
6: Data+
8: GND

Chapter 1 Quick Installation
12
J69
J69 is a connector for the lead from an internal modem that supports the
Wake-On-Modem feature.
J46
J46 is a connector for the lead from an internal Network Interface Card
that supports the Wake-On-LAN feature.
J46/J69 WOL/WOM
J46 WOL
1 2 3
1: 5VSB
2: GND
3: LAN Wake
J69 WOM
1 2 3
1: 5VSB
2: GND
3: Control PIN

13
Chapter 1 Quick Installation

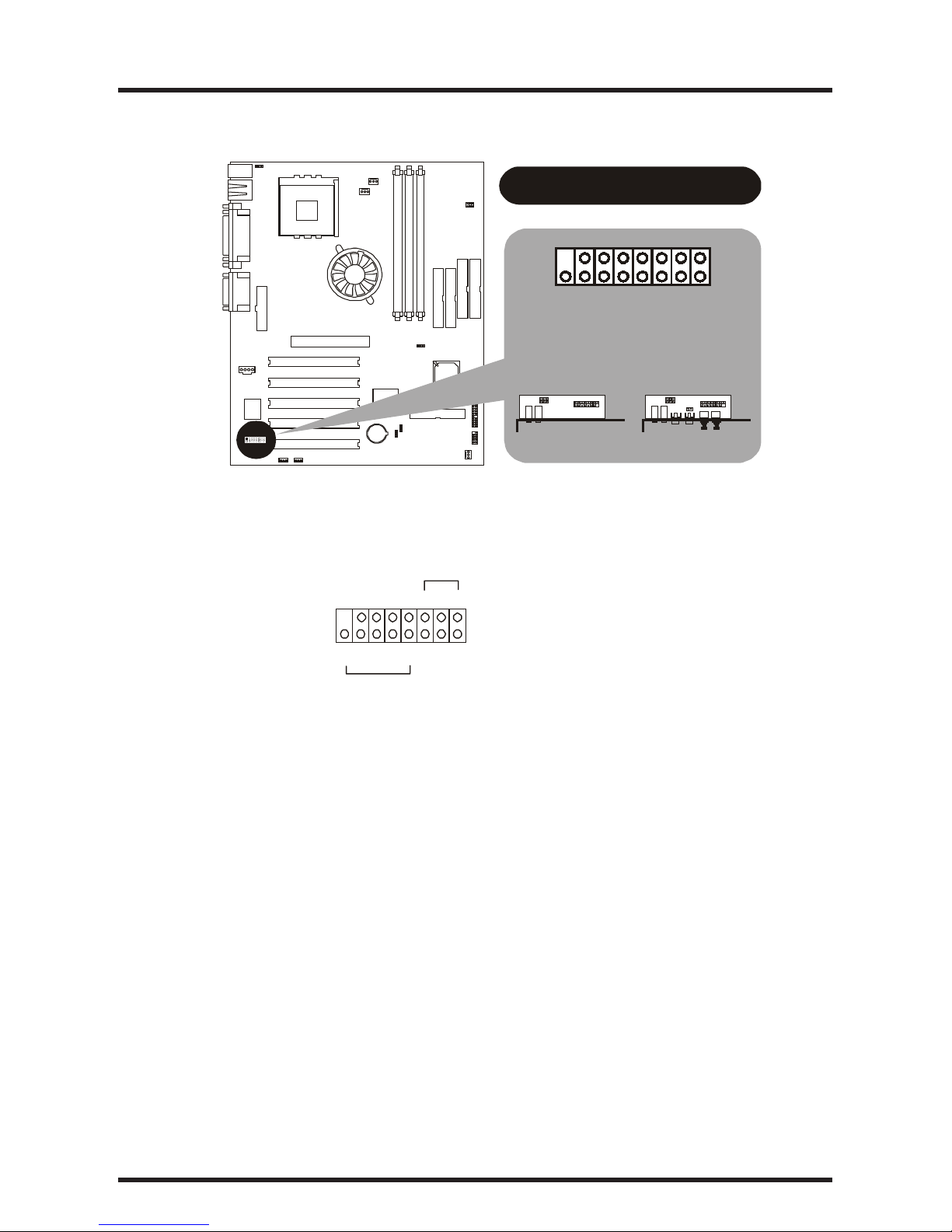

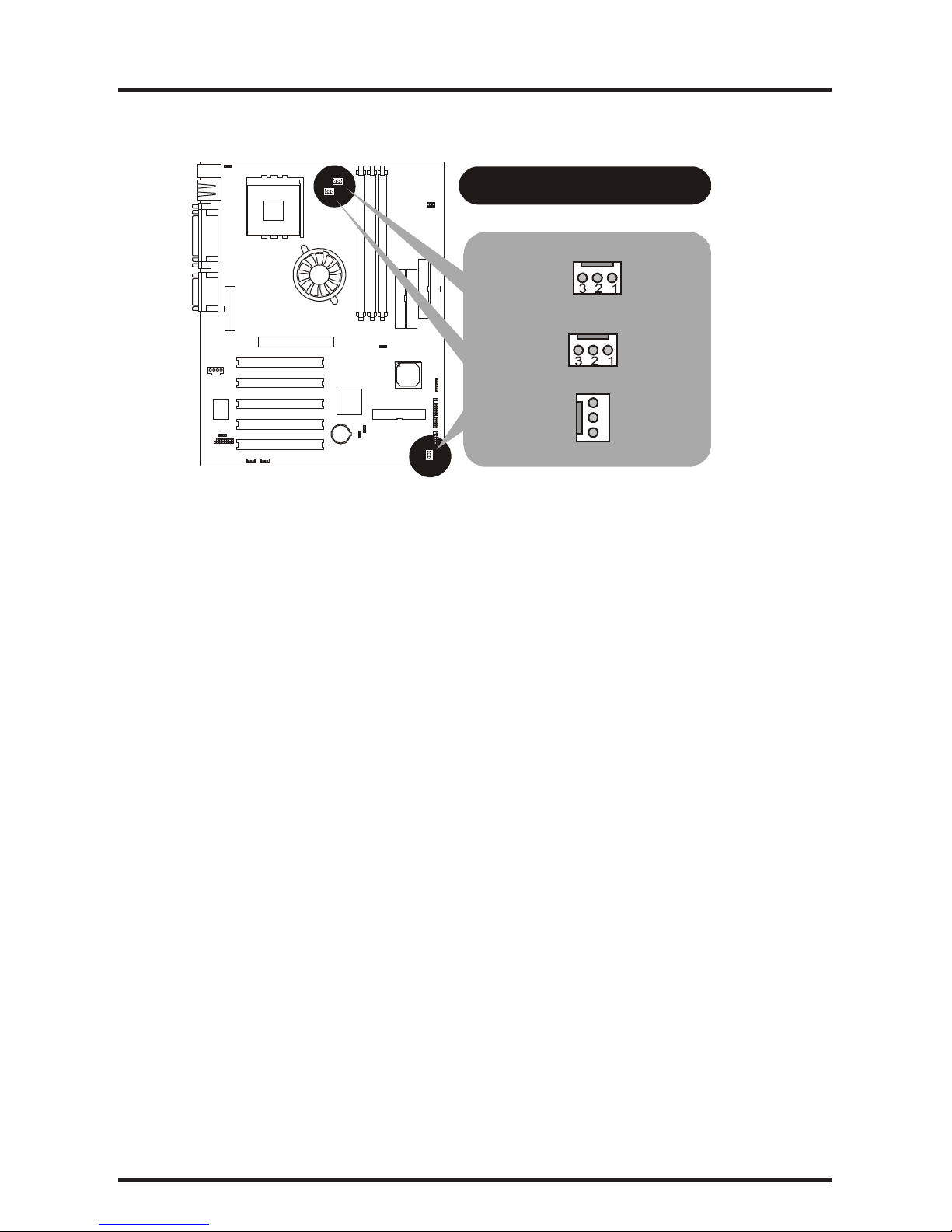

J39
J39 is a power connector for the cooling fan from a heatsink/fan CPU
cooler. The power cable from the fan plugs onto the connector.
J41 & 42
J41 & J42 are power connectors for cooling fans mounted on the system
housing. The power cable from a fan plugs onto the connector.
J39/J41/J42 FAN
Fan CPU
J39 1: GND
2: 12V
3: Sensor
Fan Aux
J42 1: GND
2: 12V
3: NC
Fan Sys
J41 1
2
3
1: GND
2: 12V
3: Sensor

Chapter 1 Quick Installation
14

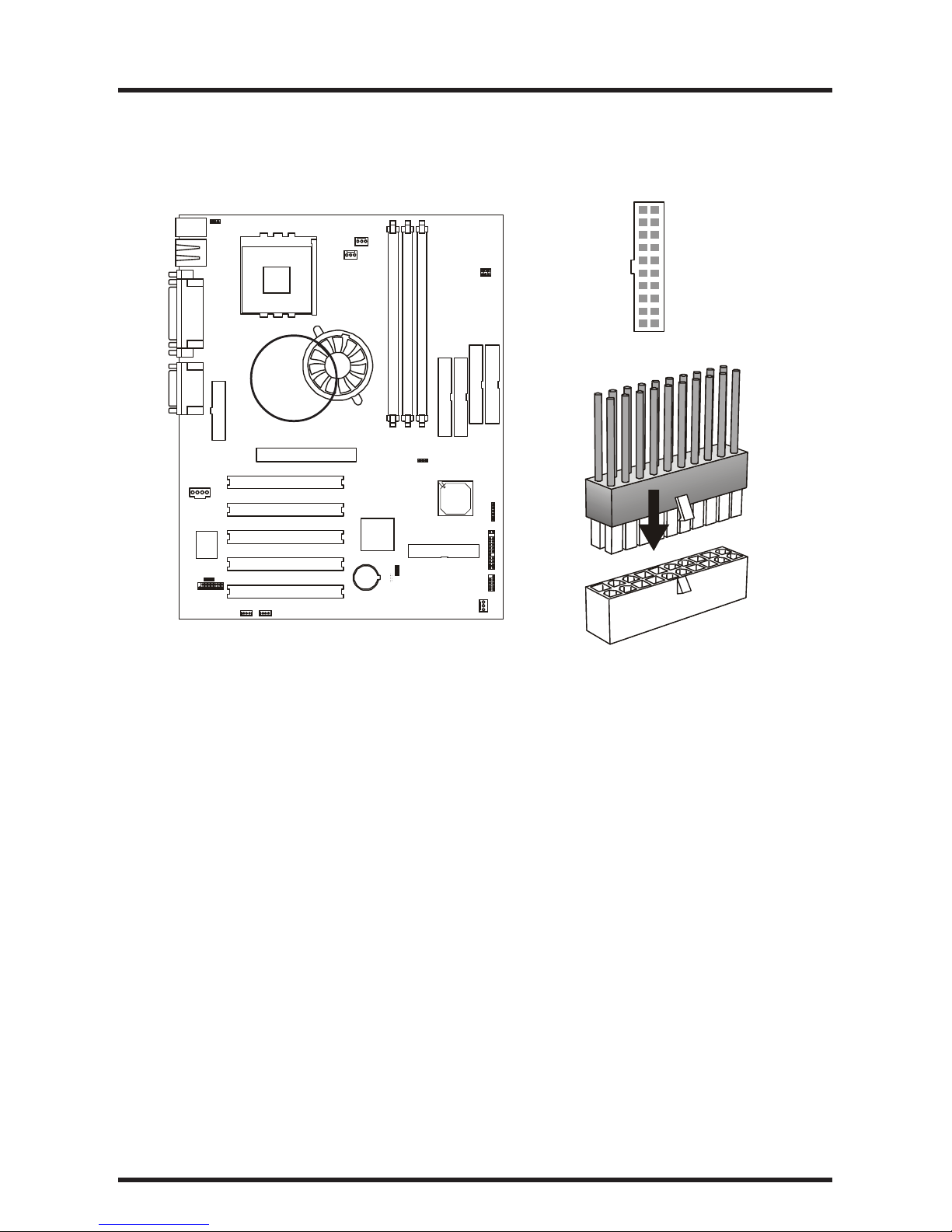

J37 ATX Power Connector
J37
J37 is a connector for the power connector from a standard ATX power
supply.
1
11
10 20
XP333-R

15
Chapter 1 Quick Installation
J43 Front Panel Connector
J43
J43 is a connector for connecting cables from system housing switches
amd indicator lights in addition to a housing mounted system speaker.
J43 Front Panel
1
12
13
24
Power_ON 1,13
ACPI LED 3,4 PIN 3: Anode
PIN 4: Cathode
IDE LED 7,8 PIN 7: Anode
PIN 8: Cathode
Reset 11,12 PIN 11: RST
PIN 12: GND
Power LED 15,16,17
PIN 15: VCC
PIN 16: NC
PIN 17: GND
Speaker 21,22
23,24
PIN 21: VCC
PIN 22: NC
PIN 23: NC
PIN 24: Speak

16
Chapter2 Feature
Features
Motherboard Component Placement
C3 D X HS P 5 6
CMI8738
Ul tr a ATA 1 33
PCI1
AGPPWR
IDE-RAID0 IDE-RAID1
PCI2
PCI3
PCI4
J41
FDC
IDE1
IDE0
J43
J45
JP32
J64
JP20
JP31
JP10
J39
J42
JP25
J54
J69 J46
JP1
J34A
PCI5
RAID133
XP333-R
DIMM0 DIMM1 DIMM2
12
3
4
5
6
7
8
9

17
Chapter2 Feature
[
Components
1 CPU Socket
2 DIMM sockets
3 ATX Power connector
4 IDE connectors
5 FDC connector
6 Onboard RAID IDE Connectors (XP333-R)
7 PCI slots
8 AGP slot
9 Rear I/O Panel
PS/2
Mouse
Keyboard
USB Parallel & 2 Serial Game/MIDI & Audio

18
Chapter2 Feature

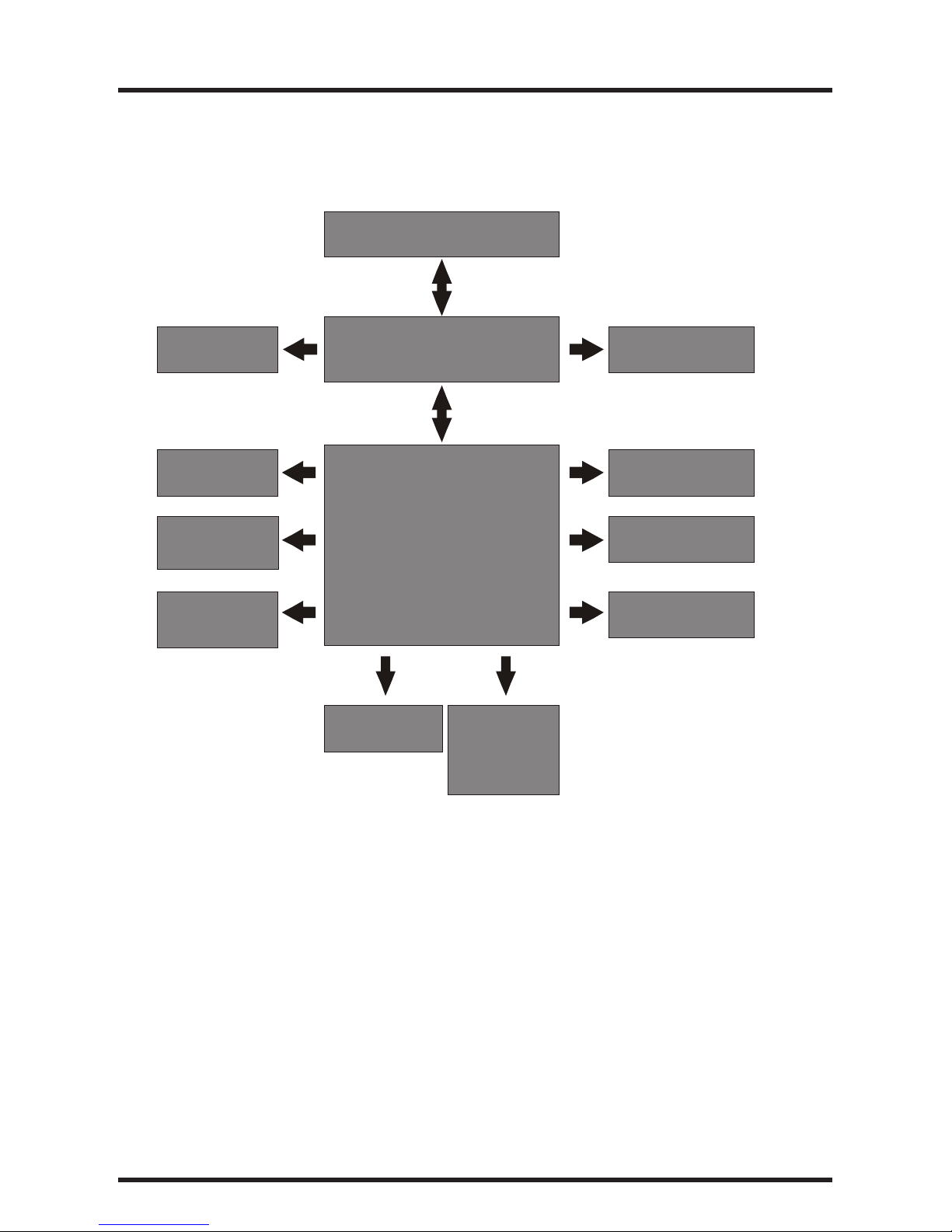

Block Diagram
AGP 4X DDR
IDE Channel x 2
IDE RAID
Socket 462 CPU
ALi M1647 chipset
(North Bridge)
ALi M1535D+
(South Bridge)
PCI x 5
6 Channel Sound
H/W Monitoring Serial Port x 2
Infrared Port
Parallel Port
FDC
USB Port 1&2
Internal USBx2
Ke
y
board & Mouse

19
Chapter2 Feature
Specifications
Processor I/F (Socket A)
-Supports Socket A Processors
-Supports 66M/100M/133/166M FSB (Front Side Bus)
-Supports Single Athlon / Duron /Athlon XP /Mogon series
CPU Frequency/Voltage Select
-Supports Vcore Multiplier selection by BIOS(1.050V to 1.825V)
-Supports increase 10% CPU Voltage
-Supports CPU External Frequency selection (up to 225 MHz)
ChipSet (Marking, Packing)
North Bridge ALI 1647 VER C
South Bridge ALI 1535D plus
Memory
-Supports DDR Memory (PC2700/PC2100/PC1600 DDR)
-Supports 6 banks up to 3GB DRAM (512Mb x 8 or x 16 DRAM) for
Nonregistered or Unbuffered DDR modules
Graphics
-Supports AGP2X/AGP4X/AGP Pro Slot
General I/O
-PCI 2.2 compliance
-Supports 32-bit/33MHz PCI interface
-Supports LPC interface
-Supports ATA33/ATA66/ATA100 IDE interface
-Supports Floppy interface
-Supports 16550A UART interface
-Supports ECP/EPP interface
-Supports PS2 interface
-Supports SIR/CIR interface
-Supports USB interface
RAID Support
-Supports 2 ATA66/ATA100 channels
-Supports RAID Level 0/1/0+1
-Supports “SPARE” feature
-Supports Win9X/WinNT/Win2K
Sound support
-C-Media CMI8738-6CH Sound Chip on board
-Supports Game/MIDI interface
-Supports Audio interface
-Supports Win9X/WinNT/Win2K
Management
-Supports voltage monitoring (Vcore/Vsb)
-Supports fan control signal (CPU/SYS)
-Supports temperature sensor (CPU/SYS)
-Supports CPU Over Temperature Shutdown

20
Chapter2 Feature
-Supports Power on by Ext. Modem/Int. Modem/RTC/
PME(Wake on Ring)
-Supports Resume by Lan/Ext. Modem/Int. Modem/PS2
Keyboard/PS2 Mouse/RTC/PME
-Supports ACPI
-Supports APM
-Supports DMI
-Supports SMBUS
-Supports PnP
-Supports BIOS ROM Flash Control (jumper provides H/W
protection)
-Supports Manually Assigning PCI IRQs
Power Requirements
-Onboard DC/DC switching voltage regulator supports Vcore
up to 45A current-
-Discrete voltage regulator for AGP port
-Supports adjustable Vcore by BIOS
Expansion Slot, Sockets and Connectors
-Two Socket370 socket
-Three DDR sockets
-One AGP Pro slots
-Five 32bit/33MHz Bus Master PCI slots
-Two IDE connectors
-Two IDE RAID connectors
-One FDC connector
-Two External Serial Port connectors
-One External Parallel Port connectors
-One External PS/2 Mouse & Keyboard connector
-One External Game/MIDI/AUDIO connector
-One Internal CD-in connector
-One External USBx2 connectors
-Two Internal USBx2 connectors
-One Internal IR connector
-One Internal WOL connector
-One System temperature sensor
-One CPU fan connector with PWM control
-Tow fan sencer connector
-One Chassis Intrusion header
-One Internal WOM connector
-One Internal SMBus connector
-One ATX 20-pin power connector
Others -ATX Form Factor 305mm x 226mm
-4 Layer design
