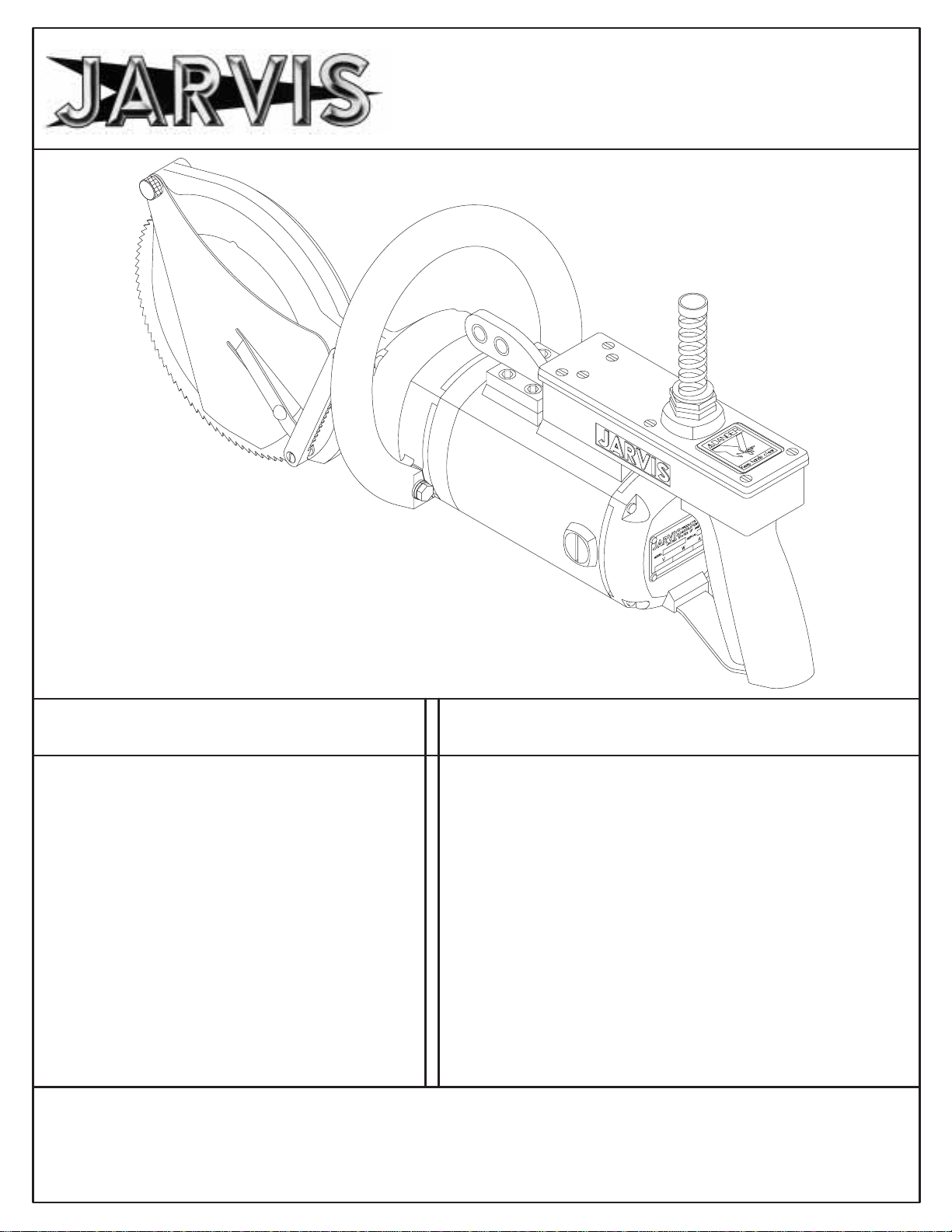

Model SEC 180
Circular Breaking Saw
EQUIPMENT
SELECTION Ordering No.
. . . . . . . . . .
•Notice to Employer and Safety
Director 2.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
•Notice to Operators, Maintenance
and Cleanup Personnel 3.
. . . . . . . . . . . . . . . . . .
•Parts Diagram and List 4. . . . . . . . . . . . . . . . . . . .
•Special Tools 10. . . . . . . . . . . . . . . . . . . . . . . . . . .
•Specifications 11 . . . . . . . . . . . . . . . . . . . . . . . . . . .
•Installation Instructions 11. . . . . . . . . . . . . . . . . . .
•Operating Instructions 12. . . . . . . . . . . . . . . . . . . .
•Maintenance Instructions 13. . . . . . . . . . . . . . . .

JARVIS
6204012::.

notice to employer
and safety director
Model SEC 180
page 2 of 16
JARVIS PRODUCTS CORPORATION
33 ANDERSON ROAD, MIDDLET OWN, CONNECTICUT 06457–4926
UNITED ST A TES OF AMERICA
TEL. [phone] FAX. [phone]
6204012::.

1. Remove and repair any tool that malfunctions. All personnel must be instructed to remove any mal -
functioning equipment.
2. Ensure
that all employees who use this tool are trained in the proper use of this tool and are aware of
the dangers that may arise if they do not follow procedures outlined in this brochure.
3. Ensure that all employees are instructed not to walk in front of the tool during its use.
4. Enclosed
are four (4) copies of “NOTICE T O OPERA T ORS, MAINTENANCE AND CLEANUP
PERSONNEL.” Post one copy on the employees’ bulletin board; give one copy to the operator(s);
give one copy to the maintenance foreman; and give one copy to the sub-contract cleanup / internal
cleanup foreman. Additional copies will be provided upon request.
5. The
tool is designed and intended to be powerful. This fact should be obvious to your employees, but
you must emphasize it to them.
6. Never make modifications or alterations to the tool. Replace any missing or illegible labels.
7. Ensure
that proper procedures are established in accordance with OSHA ’ s lockout/tagout procedures
(29 CFR 1910.147) to prevent accidental startup or release of stored energy.
8. Follow our installation and maintenance instructions for proper installation and care of the tool.
9. Avoid injury. Do not permit the tool to be misused.
10. If
you resell or distribute a Jarvis product, you must provide the purchaser with the appropriate safety
sheets and tool brochure. Additional copies of safety sheets and tool br ochur es will be pr ovided upon
request.
NOTICE T O EMPLOYER AND SAFETY DIRECT OR
AVOID INJUR Y
Keep hands clear .

notice to operators, maintenance
and cleanup personnel
Model SEC 180
page 3 of 16
JARVIS PRODUCTS CORPORATION
33 ANDERSON ROAD, MIDDLET OWN, CONNECTICUT 06457–4926
UNITED ST A TES OF AMERICA
TEL. [phone] FAX. [phone]
6204012::.

1. Disconnect the power supply in accordance with OSHA’s lockout/tagout procedures (29 CFR
1910.147) before making any blade changes.
2. Disconnect the power supply in accordance with OSHA’s lockout/tagout procedures (29 CFR
1910.147) before performing any repair or maintenance.
3. Disconnect
the power supply - or have the power supply disconnected - in accordance with OSHA’s
lockout/tagout procedures (29 CFR 1910.147) before performing any cleanup.
4. Disconnect the power supply when the tool is not being used.
5. Never
put fingers, hands or other parts of the body on the cutting edge or within the cutting path of the
tool.
6. Never allow people to walk in front of the tool during its use.
7. Never allow people to hold / restrain the carcass while operating the tool.
8. Test
the tool prior to use or daily . For single trigger tools: Depr ess the trigger and the tool should start.
Release the trigger and the tool should stop. For dual trigger tools: Depress each trigger individually
and the tool should not start. Depress both triggers simultaneously and the tool should start. Release
either
trigger and the tool should stop. If the tool malfunctions, r emove it from service and r eport or
repair it immediately.
9. Test
the brake prior to use or daily . After releasing either or both triggers, the tool should stop within
2.5 seconds. If the tool malfunctions, remove it from service and r eport or r epair it immediately.
10. Never depress the trigger unless you want to use or test the tool.
11. Never
make modifications or alterations to the tool. Report or r eplace any missing or illegible labels.
12. Always use both hands when starting and operating the tool to avoid the risk of possible “kick back”
or “recoil.” Continue holding the tool with both hands until the saw blade comes to a complete stop.
NOTICE T O OPERA T ORS, MAINTENANCE AND CLEANUP PERSONNEL
REMOVE ANY MALFUNCTIONING T OOL FROM SER VICE
REPORT ANY PROBLEMS TO YOUR SUPERVISOR
Keep hands clear .

parts diagram and list
Model SEC 180
page 4 of 16
JARVIS PRODUCTS CORPORATION
33 ANDERSON ROAD, MIDDLET OWN, CONNECTICUT 06457–4926
UNITED ST A TES OF AMERICA
TEL. [phone] FAX. [phone]
6204012::.

1 1055901Oval Head Screw 2
2 1033013Index Block 1
3 3025011Depth Gage Assy
, Index 1
1025031
Depth Gage, Non–index
4 1054172 Thumb Screw 1
1055609* Hex Screw
5 1004286* Washer 2
1036222*
Bushing (not shown)
6 1055964** Blade Retaining Screw 2
1054139*
Blade Retaining Screw 1
7 1004317
Blade Retaining W asher 1
1004252*
Blade Retaining W asher 1
8 1023439
Saw Blade, 98 T eeth
1023440
Saw Blade, 48 T eeth
(with Round Hub and Pins)
1023272* Saw Blade, 98 T eeth 1
1023332*
Saw Blade, 48 T eeth
(with Square Hub*)
9 1024144 Blade Guard, Non–index 1
1024169
Saw Blade Guard, Index
10 1004258 Slinger 1
11 1055835
Flat Head Slotted Screw 3
12 1002327 Gear Housing Cover 1
13 1035416 O–ring 1
14 1035460
Shaft Seal 1
15 1021359
Ball Bearing 1
16 1010452
Dowel Pin (with item 17) 4
1010446*
Dowel Pin
17 1026197 Crown Gear with Pins 1
1026192* Crown Gear without Pins
1026158* Crown Gear (one screw) 1
18 1020355
Gear Shaft (with item 17) 1
19 1021351
Ball Bearing 1
20 3016279 Gear Housing (incls. items 1
21, 23, 42 and 45)
21 1038006 Grease Fitting 2
ITEM PART NO. PART NAME QTY 22 1055854 Cheese Head Screw 4
23 1021360
Needle Bearing 1
24 1026157
Spiral Bevel Pinion Gear 1
25 1030061 Key 2
26 1021361
Needle Bearing Race 1
27 1029310 Spacer 1
28 1021155
Ball Bearing 1
29 1004255
Bearing Retaining W asher 1
30 1055781 Oval Head Screw 3
31 1026156 Helical Gear 1
32 1004253 Washer 1
33 1055852 Flat Head Socket Screw 1
34 1035468 Gear Housing Gasket 1
35 1010366
Dowel Pin 1
36 3002034 Front Motor Cover Assy. 1
(incls. items 35, 41 and 42)
37 1019142 Front Handle 1
38 1055613 Hex Head Screw 6
39 1004231 Split Lock Washer 2
40 1055856 Oval Head Screw 3
41 1004363 Thrust Washer 1
42 1021362
Needle Bearing 2
43 1026154 Helical Gear 1
44 1026155 Helical Gear 1
45 1004364 Thrust Washer
, .15 thick 1
1004254* Thrust Washer
, .03 thick
46 1014159* Locking Washer 1
47 1027060Stud 1
48 1006047
Gage Locking Lever 1
49 1055873
Flat Head Slotted Screw 2
50 8039099
Blade Locking Pin 1
3026064
Spiral Bevel Gear Set
(incl. items 16–18, 24 & 26)
3026060* Two Screws w/o Pins Arbor
3026051* One Screw Arbor
3026052 Helical Change Gear Set 1
(incls. items 25, 31 and 44)
ITEM PART NO. PART NAME QTY
*
*
*
*
** W rench 8039146 is provided
Figure A






 For non–indexing models only
 For indexing models only
* Not used in current tools
**
*

parts diagram and list
Model SEC 180
page 5 of 16
JARVIS PRODUCTS CORPORATION
33 ANDERSON ROAD, MIDDLET OWN, CONNECTICUT 06457–4926
UNITED ST A TES OF AMERICA
TEL. [phone] FAX. [phone]
6204012::.

51 3026053 Helical Pinion Gear Assy 1
(incl. items 25, 43, 52 & 53)
52 1029309 Helical Pinion Spacer 1
53 1013150
Retaining Ring 1
54 1021363 Ball Bearing 1
55 1004297 Washer 1
56 1004256
Bearing Retaining W asher 1
57 1061560 Fan 1
58 3063100 Armature Assembly
, 42 V 1
3063194 Armature Assembly
, 1 15 V 1
3063195 Armature Assembly
, 220 V 1
(includes items 57 and 59)
59 1021364 Ball Bearing 1
60 1055855 Cheese Head Screw 2
61 1016391
Fan Housing 1
62 1063470 Stator
, 42 V 1
1063801 Stator , 1 15 V 1
1063802 Stator
, 220 V 1
63 1036197
Motor Housing Bushing 1
64 3016281
Motor Housing (includes 1
items 63 and 67)
65 1002326 Brush Cover 2
66 1047012
Motor Brush, 42 V 2
1047010
Motor Brush, 1 15 V 2
1047008 Motor Brush, 220 V 2
67 1061559 Brush Holder 2
68 1007296 Hex Nut 4
69 1002330 Rear Motor Cover 1
70 1055914 Hex Head Screw 2
71 1055716 Hex Head Screw 1
72 1024172 T
rigger Guard 1
73 1055895 Pan Head Screw 4
74 1017188
Label Plate 1
75 1055725 Pan Head Screw 4
76 1035469 Rear Handle Gasket 1
77 1042281
Hanger Bkt. (incl. item 109) 1
78 1014085 Spring 1
79 1019188
Rear Handle with Brake 1
1019141G
Rear Handle A TD
1019164G
Rear Handle 42 V
ITEM PART NO. PART NAME QTY
Figure B
G
♦
Y
V
Y
Y
Used on models with dual cord connections only
Y
Used on models with single cord connections only
♦
Used on external brake models only
G
V
Used on internal brake models only
Y
YG

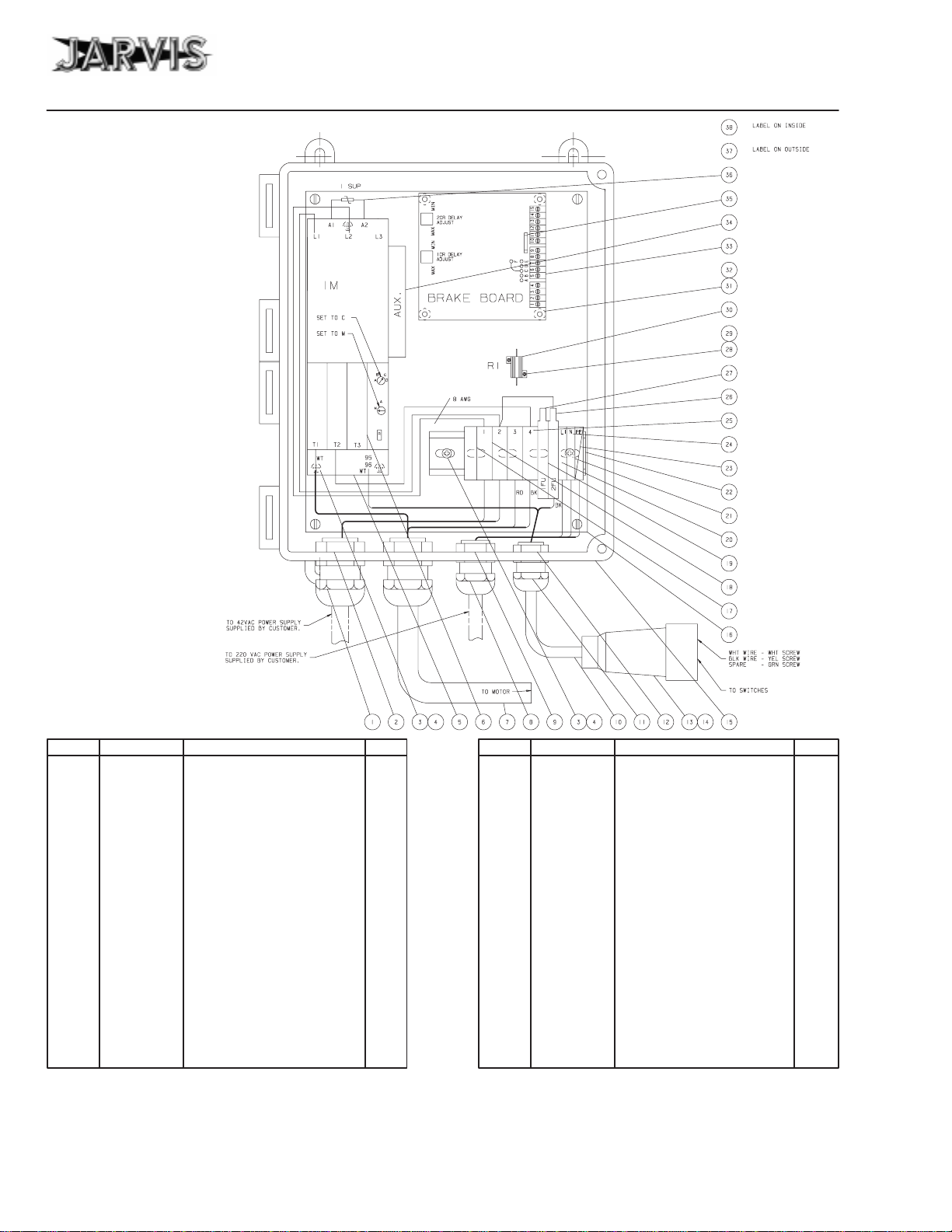

See p arts lis t on p ag e 6 f o r p ar t n umbers t o i tems 80–109.
V

parts diagram and list
Model SEC 180
page 6 of 16
JARVIS PRODUCTS CORPORATION
33 ANDERSON ROAD, MIDDLET OWN, CONNECTICUT 06457–4926
UNITED ST A TES OF AMERICA
TEL. [phone] FAX. [phone]
6204012::.

80 1055913 Self T apping Screw 2
81 1010167
Roll Pin 2
82 1018126
Switch Actuating Lever 1
83 1010356
Dowel Pin 1
84 1042373VSwitch Holder for Brake 1
1042282GSwitch Holder
85 1055834 Pan Head Screw 1
86 1005126VElectric Switch for Brake 2
1005104GElectric Switch
87 1004257
Ring W asher 1
88 1013220
Retaining Ring 1
89 1035414 Handle Cover Gasket 1
90 1002329♦
Handle Cover (incl. item 91) 1
1002339Y
Handle Cover , 1 15V & 220V
1002370Y Handle Cover , 42 V
91 1017083 Danger Label 1
92 1011260 Connector
, 1 15 V & 220 V 1
1011328 Connector
, 42 V 1
93 1001099
Spiral Cord, 1 15 V & 220 V 1
1001039 Electric Cord, 42 V
1001081V
Spiral Cord for brake
94 1063560G Rubber Grommet 1
ITEM PART NO. PART NAME QTY
95 1063505G Plug 1 15 V and 220 V 1
96 1063549Y
Rubber Grommet 1
97 1063209Y
Signal Cord Plug 1
98 1001100Y
Spiral Cord 1
99 1011279YConnector
, 42 V and A TD 1
100 1055832 Oval Head Screw 2
101 1035413
Diaphragm Seal 1
102 1063820V
Brake Board, 1 15 V 1
1063821V
Brake Board, 220 V 1
103 1029341V
Circuit Board Spacer 2
104 1055777 Cheese Head Screw 4
105 1029342 Hex Spacer 2
106 1018162 T
rigger Lever (incl. item 78) 1
107 1010362
Dowel Pin 1
108 1055894 Socket Head Cap Screw 4
109 1036209
Bushing (with item 77) 2
110 1044060
Handle Mounting Flange 1
111 1014096 Spring 1
112 1018113 T
rigger Lever 1
113 1010395
Threaded Pin 2
114 1019163
Front Handle 1
115 3005017 Switch Assembly 1
116 1035282 O–ring 1
117 1002367 Switch Cover 1
118 1042343 Handle Bracket 1
119 1011309
Strain Relief Connector 1
120 1001050 Electric Cord 1
121 1011310
Strain Relief Connector 1
122 1007303 Locking Nut 1
123 1055746 Socket Head Cap Screw 4
ITEM PART NO. PART NAME QTY
Figure C
Used on models with dual cord connections only
Y
Used on models with single cord connections only
♦
Used on external brake models only
G
V
Used on internal brake models only
See Figure B on page 5 for items 80–109.
Anti–tie Down
Handle Assembly

parts diagram and list
Model SEC 180
page 7 of 16
JARVIS PRODUCTS CORPORATION
33 ANDERSON ROAD, MIDDLET OWN, CONNECTICUT 06457–4926
UNITED ST A TES OF AMERICA
TEL. [phone] FAX. [phone]
6204012::.

1 1016445 Electrical Enclosure 1
2 1063393 T erminal Rail 1
3 1032436 Mounting Plate 1
4 1063496 Y ellow/ Green T erm. Block 1
5 1063455 Fuse T erminal Block 1
6 1063542 Fuse 1
7 1063494 Gray T erminal Block 5
8 1063363 T erminal Marker 7
9 1055803 Pan Head Screw 2
10 1004247 Washer 4
1
1 1011249 Cord Connector 2
12 1007256 Locking Nut 2
13 1063362 End Clamp T erminal 1
14 1063723 Aux. Contact 1
15 1063089 Wire Ring T erminal 2
16 1063722 Contactor , 220 V 1
1063726 Contactor
, 1 15 V 1
17 1063079 Wire Ring T erminal 2
18 1001188 Cord ft
ITEM PART NO. PART NAME QTY
19 1061545 Ferrule 8
20 1042341 Resistor Bracket 2
21 1055779 Cheese Head Screw 2
22 1004241 Lock Washer 2
23 7800565 Insulating T ubing 2.5 in
24 1063724 Power Resistor , 220 V 1
1063727 Power Resistor
, 1 15 V 1
25 1063619 Brake Board 1
26 1029302 Spacer 4
27 1004244 Washer 4
28 1063725 Fuse 4
29 1055974 Pan Head Screw 2
30 1063533 Fem. Wire T erminal 2
31 1063506 Outlet 1
32 1063560 Grommet 1
33 1017085 Danger Label 1
34 1017237 Conn. Diagram, 220 V 1
1017238
Conn. Diagram, 115 V 1
ITEM PART NO. PART NAME QTY
Single Trigger
Remote Electronic Brake
3063121 (220V)
3063130 (1 15V)
Figure D

parts diagram and list
Model SEC 180
page 8 of 16
JARVIS PRODUCTS CORPORATION
33 ANDERSON ROAD, MIDDLET OWN, CONNECTICUT 06457–4926
UNITED ST A TES OF AMERICA
TEL. [phone] FAX. [phone]
6204012::.

Single Trigger
Electronic Brake
3063210 (42V)
1 1011262 Cord Connector 2
2 1007266 Locking Nut 2
3 1055803 Pan Head Screw 5
4 1004247 External Lock Washer 5
5 1063799
Magnetic Starter 1
6 1063800 Heater Pack 1
7 1001189 Cord ft
8 1011249
Cord Connector 1
9 1007256 Locking Nut 1
10 1001039 Cord ft
11 1011248
Cord Connector 1
12 1007249 Locking Nut 1
13 1063208 Outlet 1
14 1063623 Black Grommet 1
15 1016514 Electrical Enclosure 1
16 1032485
Mounting Plate 1
17 1063362 T
erminal End Clamp 1
18 1063520 Gray T
erminal Block 4
19 1063390 Fuse T
erminal Block 2
ITEM PART NO. PART NAME QTY 20 1063494 Gray T
erminal Block 1
21 1063495
Blue T erminal Block 1
22 1063554 T
erminal Rail 1
23 1063496 Y
ellow/Green T erm. Block 1
24 1063363 T
erminal Marker 5
25 1063456 T
erminal Marker 4
26 1063814 Fuse 1
27 1063763 Fuse 1
28 1055971 Pan Head Screw 2
29 1004325 Split Lock Washer 2
30 1063812 Power Resistor 1
31 1029302 Spacer 4
32 1004244
Internal Lock W asher 4
33 1063813 Brake Board 1
34 1063528 Auxiliary Contact Block 1
35 1063725 Fuse 1
36 1063816 Suppressor 1
37 1017085
Danger Label 1
38 1017298
Connection Diagram Label 1
ITEM PART NO. PART NAME QTY
Remote
Figure E

parts diagram and list
Model SEC 180
page 9 of 16
JARVIS PRODUCTS CORPORATION
33 ANDERSON ROAD, MIDDLET OWN, CONNECTICUT 06457–4926
UNITED ST A TES OF AMERICA
TEL. [phone] FAX. [phone]
6204012::.

Dual Trigger
1 1016408 Electrical Enclosure 1
2 1032447
Mounting Plate 1
3 1029302 Spacer 8
4 1004244
Int. T ooth W asher 8
5 1063533
Female Wire T erminal 2
6 1063089
Wire Ring T erminal 2
7 1063079
Wire Ring T erminal 2
8 1063723 Auxiliary Contact 1
9 1063722 Contactor 1
10 1004247 Ext. T
ooth W asher 4
11 1055974 Phillips Screw 2
12 1007266 Locking Nut 1
13 1055803 Pan Head Screw 2
14 1063393 T
erminal Rail 1
15 1011248
Cord Connector 1
16 1011249
Cord Connector 1
17 1011306
Cord Connector 1
18 1001188 Cord ft
19 1061545 Ferrule 6
20 1063506 Outlet 1
ITEM PART NO. PART NAME QTY
21 1063560 Grommet 1
22 1063208 Outlet 1
23 1001014 Cord ft
24 1007249 Locking Nut 1
25 1007256 Locking Nut 1
26 1063496 Y
ellow/Green T erm. Block 1
27 1063455 Fuse T
erminal Block 1
28 1063542 Fuse 1
29 1063494 Gray T
erminal Block 5
30 1063363 T
erminal Marker 7
31 1063362 T
erminal End Clamp 1
32 1063725 Fuse 1
33 1063741 Brake Board 1
34 1063312 Fuse 1
35 1063502 Fork Wire Terminal 8
36 1063296 Anti–T
ie Down Board 1
37 1017085
Danger Label 1
38 1017252
Connection Diagram 1
ITEM PART NO. PART NAME QTY
3063141 (220V)
Figure F
Remote Electronic Brake

special tools
Model SEC 180
page 10 of 16
JARVIS PRODUCTS CORPORATION
33 ANDERSON ROAD, MIDDLET OWN, CONNECTICUT 06457–4926
UNITED ST A TES OF AMERICA
TEL. [phone] FAX. [phone]
6204012::.

Figure G
THE FOLLOWING TOOLS ARE RECOMMENDED FOR PROPER AND EFFECTIVE
ASSEMBLY
AND DISASSEMBL Y OF THE JAR VIS SEC180 CIRCULAR BREAKING
SAW.
BEARING EXTRACTION
T OOL 80391 11
Special Tools
BEARING EXTRACTION
T OOL 8039171
BEARING EXTRACTION and
INSTALLATION T
OOL 8039140
BEARING INSERTION
T OOL 8039170

specifications and
installation instructions
Model SEC 180
page 11 of 16
JARVIS PRODUCTS CORPORATION
33 ANDERSON ROAD, MIDDLET OWN, CONNECTICUT 06457–4926
UNITED ST A TES OF AMERICA
TEL. [phone] FAX. [phone]
6204012::.

SPECIFICATIONS
Voltage 220, 115 and 42 V Single Phase
Power Output 1.6 hp 1200 Watts
Blade Speed 1350 rpm
Control Handle(s) Single or Dual Trigger Electric
Overall Length 21.7 in 550 mm
Cutting Depth up to 2.6 in 65 mm
Blade Diameter 7.1 in 180 mm
Weight 13.2 lb 6 kg
Vibration less (<) 120 dB < 1 m/sec2
Noise ( 1 meter from tool ) 92 dB
INSTALLATION INSTRUCTIONS
ALWAYS DISCONNECT THE POWER SUPPLY IN ACCOR-
DANCE WITH OSHA’S LOCKOUT/TAGOUT PROCEDURES
(29
CFR 1910.147) BEFORE PERFORMING ANY REP AIRS OR
MAINTENANCE.
ALL WIRING MUST BE DONE IN ACCORDANCE WITH
NATIONAL, STATE AND LOCAL ELECTRICAL CODES.
1 Install the electrical control box in a convenient
location.
2 Wire the electrical control box, if applicable.
Note:
Electrical contr ol boxes ar e differ ent for differ ent
power
supplies. Y ou must have the pr oper contr ol box for
your power supply . Refer to Figur es D–F on pages 7–9
for control box numbers for SEC 180 external brake
models.
For all other SEC 180 models, r efer to Figur e
1 below.
2.1 Attach
terminals to the appropriately rated pow -
er supply. See wiring diagram inside control
box cover for external brake models or refer to
Figure 1 below.
3 Install
a balancer above the work station on a trolley .
3.1 The
trolley should have suf ficient travel to allow
the operator access to the entire work area.
4 Suspend the SEC 180 from the balancer.
4.1 Adjust
the balancer to the operator ’ s preference.
Figure 1
Wiring Diagram

installation and
operation instructions
Model SEC 180
page 12 of 16
JARVIS PRODUCTS CORPORATION
33 ANDERSON ROAD, MIDDLET OWN, CONNECTICUT 06457–4926
UNITED ST A TES OF AMERICA
TEL. [phone] FAX. [phone]
6204012::.


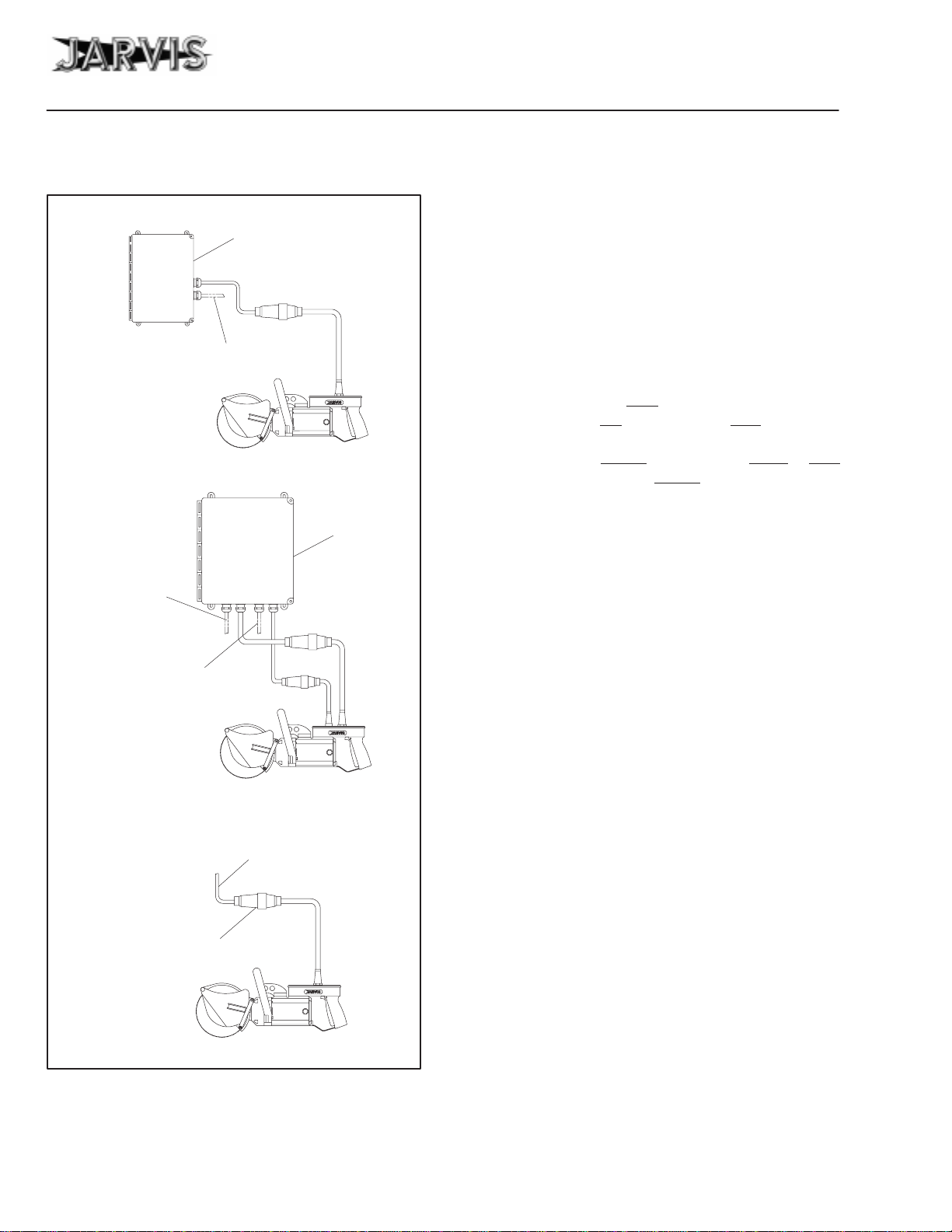

5 Plug the SEC 180 into the appropriate control box or
power supply outlet. See Figur e 2 below as a guide.
Figure 2
Power Cord Supplied
by Customer
Control Box
SEC 180 Models with remote brake (single cord)
Power Cord
Supplied by Customer
Plug Connections
Supplied by Customer
Control Box
Power Cord
supplied by
Customer
SEC 180 Models with remote brake (dual cord)
and 42 V models
SEC 180 Models with internal brake (single cord)
Power Cord
for 42 V models
only . Supplied by
Customer
OPERATION INSTRUCTIONS
1 Plug in the SEC 180.
2 Each day, before you begin operation, perform the
following:
2.1 Make
sure that the SEC 180 moves freely on the
balancer.
2.2 Make sure that the control handle or handles
work
correctly . For single trigger tools: depress
the
trigger and the tool should start. Release the
trigger and the tool should stop. For dual trigger
tools: depress each trigger separately and the
tool should not start; depress both triggers si-
multaneously
(within one second of each other)
and the tool should start. Release either or both
triggers and the tool should stop. If the tool mal -
functions,
r emove it fr om service and r eport the
problem to your supervisor immediately .
Always
operate the tool with both hands on the
handles. Continue to hold the tool with both
hands
until the saw blade comes to a complete
stop.
2.3 Make sure that the electronic brake is working
correctly.
Depress the trigger / triggers to start
the saw; release a trigger and the saw blade
should
stop within 2.5 seconds. If the tool mal -
functions, r emove it fr om service and r eport the
problem to your supervisor immediately .
3 Make the cut.
3.1 Position the SEC 180 saw.
3.2 Depress
the trigger / triggers. Always use both
hands when operating the tool. Continue to
hold the tool with both hands until the saw
blade comes to a complete stop.
3.3 When
the desired cut is achieved, release a trig -
ger. This will stop the blade.
3.4 Withdraw the SEC 180 from the carcass.
4 Unplug the SEC 180.

maintenance instructions
Model SEC 180
page 13 of 16
JARVIS PRODUCTS CORPORATION
33 ANDERSON ROAD, MIDDLET OWN, CONNECTICUT 06457–4926
UNITED ST A TES OF AMERICA
TEL. [phone] FAX. [phone]
6204012::.

MAINTENANCE INSTRUCTIONS
IMPORTANT: ALWAYS DISCONNECT THE POWER SUPPLY
IN ACCORDANCE WITH OSHA’S LOCKOUT/TAGOUT PRO-
CEDURES (29 CFR 1910.147) BEFORE INSTALLING OR RE-
MOVING A BLADE., OR BEFORE PERFORMING ANY RE-
PAIR OR MAINTENANCE.
Refer to Figures A–C on pages on 4–6 for referenced
items.
1 PRIOR TO USE OR DAILY:
1.1 Make sure that the control handle or handles
work
correctly . For single trigger tools: depr ess
the
trigger and the tool should start. Release the
trigger and the tool should stop. For dual trigger
tools: depress each trigger separately and the
tool should not start; depress both triggers si-
multaneously
(within one second of each other)
and the tool should start. Release either or both
triggers and the tool should stop. If the tool mal -
functions, repair or remove it from service im-
mediately .
Always
operate the tool with both hands on the
handles. Continue to hold the tool with both
hands
until the saw blade comes to a complete
stop.
1.2 Make sure that the electronic brake is working
correctly. Depress the trigger to start the saw;
release
the trigger and the saw blade should stop
within 2.5 seconds. If the tool malfunctions, r e-
pair or remove it fr
om service immediately .
1.3 Check all electrical plugs and cords (over their
entire
length) for cuts and abrasions, and replace
if necessary .
1.4 Add
Jarvis 1315 White Gr ease to grease fittings
(item 21) on the gear housing (item 20).
2 AS NECESSARY:
2.1 Inspect
circular blade and sharpen or replace as
necessary. Refer to sections 3 and 4 as a pr oce-
dural guide.
2.2 Disassemble,
clean and inspect right angle gear
housing. Refer to sections 5 and 6 as a proce-
dural guide.
2.3 Disassemble, clean and inspect motor housing
assembly.
Refer to sections 7 and 8 as a pr oce-
dural guide.
2.4 Disassemble, clean and inspect rear handle as-
sembly. Refer to sections 9 and 10 as a proce-
dural guide.
3 CIRCULAR BLADE REMOVAL:
3.1 Non–Indexing Gage Models
3.1.1 Remove
the depth gage locking lever (item
48) and rotate the depth gage (item 3) out of
the way. Continue to step 3.3.
3.2 Indexing Gage Models
3.2.1 Remove thumb screw (item 4) and washer
(item 5).
3.2.2 Remove depth gage (item 3). Continue to
step 3.3.
3.3
Both Gage Models
3.3.1 Use Jarvis wrench 8039146 to remove the
blade retaining screws (item 6). Keep the
blade from rotating by inserting the blade
locking pin (item 50) through the hole in the
blade and guard.
3.3.2 Remove
the blade retaining washer (item 7).
3.3.3 Remove the saw blade (item 8).
3.3.4 Inspect
all parts for wear and replace if nec -
essary.
3.3.4.1 Inspect blade for wear and sharpen or
replace
as necessary .

maintenance instructions
Model SEC 180
page 14 of 16
JARVIS PRODUCTS CORPORATION
33 ANDERSON ROAD, MIDDLET OWN, CONNECTICUT 06457–4926
UNITED ST A TES OF AMERICA
TEL. [phone] FAX. [phone]
6204012::.

4 CIRCULAR BLADE INSTALLATION:
4.1 Reverse
steps and procedures outlined in section
3. See notes below . Refer to Figur e 3 below as
a guide.
4.1.1 To
ensure proper fit and safe operation, the
notches on the saw blade (item 8) must align
with dowels pins (item 16) and the center
hole
of the blade must fit securely on the lip
of the crown gear (item 17).
4.1.2 The
holes in retaining washer (item 7) must
align with the dowel pins (item 16) on the
crown gear (item 17).
4.1.3 The teeth at the bottom of the blade should
point toward the operator and rotate count-
er–clockwise. Refer to Figure 3 below for
blade rotation direction.
4.1.4 Tighten blade retaining screws with Jarvis
wrench
8039146. Prevent blade from turn -
ing
by inserting blade locking pin (item 50)
through one of the outer holes in blade.
Figure 3
SAW BLADE
RETAINING
WASHER
SCREWS
CROWN GEAR
DOWEL
PINS (4)
HOLES
(4 PLACES)
FOR PINS LIP
NOTCHED
AREA (4 PLACES)
OUTER
HOLE
Blade Installation
SAW BLADE
ROTATION DIRECTION
5 RIGHT ANGLE GEAR HOUSING DISASSEM-
BLY:
5.1 Remove blade as described in section 3.
5.2 Remove
flat head screws (item 49) and remove
blade guard (item 9).
5.3 Remove cheese head screws (item 22) and re-
move right angle gear housing assembly from
motor
assembly .
5.3.1 Place
the gear housing assembly on a clean
work surface.
5.4 Remove flat head screws (item 11), gear hous-
ing
cover (item 12), o–ring (item 13), shaft seal
(item 14) and slinger (item 10) from gear hous -
ing.
5.5 Lightly
tap the gear housing on the guard mount -
ing area with a nylon mallet until the crown gear
assembly (items 15–19) slides out of the gear
housing.
5.6 Place
crown gear (item 17) in an arbor press and
remove ball bearing (item 15). Place a 7 mm pin
in the threaded hole of the gear and press gear
shaft and ball bearing (items 18 and 19) from
crown
gear . Press gear shaft (item 18) out of ball
bearing (item 19 ).
5.7 Remove oval head screws (item 30).
5.8 Lightly
tap the gear housing in the face mount -
ing
area with a nylon mallet until the pinion gear
assembly (items 24–33) slides out of the gear
housing.
Note:
Never use a metal hammer on the gear housing or
place it in a vise. The mounting faces ar e pr ecisely ma -
chined and must not be damaged.
5.9 Grip the pinion gear shaft in a vise using soft
jaws only. See note below.
Note: Never grip the pinion gear on the gear teeth or
bearing
mounting diameters. Grip only the shaft portion
with enough for ce to keep it fr om r otating when r emoving
the flat head screw.
5.10 Remove flat head screw (item 33) and washer
(item 32).
5.11 Remove helical gear (item 31), shaft key
(item
25) and bearing retaining washer
(item 29).

maintenance instructions
Model SEC 180
page 15 of 16
JARVIS PRODUCTS CORPORATION
33 ANDERSON ROAD, MIDDLET OWN, CONNECTICUT 06457–4926
UNITED ST A TES OF AMERICA
TEL. [phone] FAX. [phone]
6204012::.

5.12 Place pinion gear assembly in an arbor press and
remove ball bearing (item 28). Remove spacer
(item 27). If necessary, also remove needle
bearing inner race (item 26).
5.13 Remove needle bearing (item 23) from gear
housing.
Jarvis tool 80391 1 1 is available. See
Figure G on page 10.
5.14 Remove needle bearing (item 42) from gear
housing.
Jarvis tool 8039171 is available. See
Figure G on page 10.
5.15 Clean
and inspect all parts for wear and replace
if necessary .
6 RIGHT ANGLE GEAR HOUSING ASSEMBLY:
6.1 Reverse steps steps and procedures outlined in
section 5. See notes below.
6.1.1 Make sure bearing retaining washer
(item 29)
is in place before installing helical
gear (item 31).
6.1.2 Use removable thread locking compound
on flat head screw (item 33).
6.1.3 When installing needle bearings always
press on the lip with the part number en-
graved on it. This lip is hardened and will
resist being
damaged by the assembly tool.
Installing needle bearings the opposite way
will deform the case and damage the bear-
ing. Jarvis tool 8039170 is available for
installing
needle bearing (item 23). See Fig -
ure G on page 10.
7 MOTOR DISASSEMBLY:
7.1 Remove the blade as described in section 3.
7.2 Remove the right angle gear housing as de-
scribed in section 5, steps 5.1–5.3.
7.3 Remove the helical change gear assembly
(items 25, 31 and 44).
7.4 Remove the gasket (item 34).
7.5 Remove
the brush covers (item 65) and brushes
(item 66).
7.6 Remove the motor front cover assembly (item
36)
and armature assembly (item 58) as a com -
plete unit from motor housing (item 64).
7.7 Remove
screws (item 38), washers (item 39 and
5) and front handle (item 37) from the motor
cover (item 36).
7.8 Remove
oval head screws (item 40) and remove
the armature shaft assembly from the motor cov -
er.
7.9 Remove bearing retaining washer (item 56).
7.10 Remove
the needle bearing (item 42) and thrust
washer (item 41) from motor cover . Jarvis tool
8039140 is available. See Figur e G on page 10.
7.11 Remove retaining ring (item 53).
7.12 Using
a bearing extractor , remove ball bearings
(items 54 and 59) from the armature shaft.
7.13 Grip the armature assembly (item 58) so as not
to damage it or the windings, and unscrew the
helical
pinion gear assembly (item 51) from the
shaft.
Note:
Do not r emove motor fan (item 57) fr om armatur e
shaft. The motor fan (item 57) is integrally balanced
with the armature and should never be removed.
7.14 Remove
the fan housing (item 61) from the mo -
tor housing (item 64).
7.15 Remove socket head screws (item 108) and
hanger bracket (item 77).
7.16 Remove oval and pan head screws (items 100
and 85) and rear handle cover (item 90) from
rear handle (item 79).
7.17 Disconnect wiring from motor, switches and
cord.
7.18 Remove brake board (item 102) from circuit
board spacers (item 103).
7.19 Remove cheese head screws (item 104). Re-
move rear handle assembly from motor and set
aside.
7.20 Remove cheese head screws (item 60) and pry
garter
springs on motor leads from brush holders
(item 67). Remove stator (item 62) from motor
housing (item 64).
7.21 Remove pan head screws (item 75) and motor
rear cover (item 69).
7.22 Clean
and inspect all parts for wear and replace
if necessary .

maintenance instructions
Model SEC 180
page 16 of 16
JARVIS PRODUCTS CORPORATION
33 ANDERSON ROAD, MIDDLET OWN, CONNECTICUT 06457–4926
UNITED ST A TES OF AMERICA
TEL. [phone] FAX. [phone]
6204012::.

‘8 MOTOR ASSEMBLY:
8.1 Reverse
steps and procedures outlined in section
7. See notes below.
8.1.1 Ensure correct motor rotation by attaching
the garter springs to their original brush
holder.
8.1.2 Jarvis tool 8039140 is available for instal-
lation
of needle bearing (item 42) and thrust
washer (item 41) into motor cover . See Fig -
ure G on page 10.
8.1.3 Use
thread locking compound when instal -
ling helical pinion gear (item 51) on shaft.
8.1.4 Evenly tighten screws (item 40) into bear-
ing
retaining washer (item 56) so that is rests
flat against the outer bearing race.
9 REAR HANDLE DISASSEMBLY:
9.1 Remove rear handle cover (item 90) and rear
handle
(item 79) from motor as outlined in sec -
tion 7, steps 7.17–7.21.
9.2 Remove
self tapping screws (item 80) from rear
handle (item 79).
9.3 Remove switch and lever assembly (items
82–86).
9.3.1 Remove dowel pin (item 83).
9.3.2 Remove pan head screw (item 85).
9.3.3 Remove switch activating lever (item 82)
and switches (item 86) from switch holder
(item 84).
9.4 Remove internal retaining ring (item 88), ring
washer (item 87) and diaphragm seal (item
101).
9.5 Press
dowel pin (item 107) from handle and re -
move trigger lever (item 106) and spring (item
78).
9.6 Clean
and inspect all parts for wear and replace
if necessary .
10 REAR HANDLE ASSEMBLY:
10.1 Reverse
steps and procedures outlined in section
9.
