OWNER’S MANUAL
RC/RE630PS & RC553PS forma®Soaking Baths
INSTALLATION, OPERATION, AND MAINTENANCE
Jason International, Inc.
8328 MacArthur Drive
North Little Rock, AR 72118
www.jasoninternational.com
OWNER’S RECORD
Dealer:
Date Purchased:
Date Installed:
Installer:
PLACE SERIAL NUMBER CARD WITH
PRODUCT CONFIGURATION IN THIS BOX
CAUTION: DO NOT LIFT OR HANDLE THE BATH BY ITS PLUMBING.
INSPECTION
Inspect the unit prior to installation. In the event of a
problem, DO NOT install the unit.
All components are factory assembled to the bath and the
unit is water tested and inspected prior to leaving Jason
International, Inc.
If the carton shows sign of damage, inspect the product
before accepting and describe the problem on the Bill of
Lading.
NOTE: Transportation and insurance from Jason’s
factory are the buyer’s responsibility.
Damage sustained in transit is the responsibility of
the carrier. If damage is discovered, The carrier must
be immediately notified in writing with a request for a
representative to inspect the unit. Failure of the carrier
to respond should be reported to the seller and carrier.
Always file a freight claim promptly.
If the carton shows sign of damage, inspect
the product before accepting and describe the
problem on the Bill of Lading.
The installer is responsible for insuring that the unit is
free from defects or shipping damage. In the event of a
problem, DO NOT install the unit.
Jason International is not responsible for damage that
might have been avoided by inspection or testing prior to
installation.
Damage to the unit during installation will not be covered
by warranty and is the responsibility of the installer. ALL
WARRANTY CLAIMS ON ACRYLIC SURFACE DAMAGE
MUST BE MADE PRIOR TO INSTALLATION. Inspect
plumbing and bath surface for missing or damaged
components. Alert your dealer of any discrepancies.
To protect the unit from damage keep the bath in the
carton until ready for installation.
EQUIPMENT ACCESS
In accordance with Building Codes, service access to all
therapy bath equipment, controls and electrical connections
must be provided during installation. Insufficient access will
hinder repair and maintenance. Warranty service will not
cover the cost of providing equipment access.

Jason International, Inc. • 501.771.4477 Page 2 of 8 Customer Service : 800.255.5766
Copyright © 2011 Jason International.
INSTALLATION
See the USER MAINTENANCE INSTRUCTIONS section of this
owner’smanualpriortoinstallationfor humidityandmold prevention
suggestions.
1. Remove the packing board from the skirt by placing the bath
and skirt assembly upside down and remove the four
press-in fasteners. See Figure1.
CAUTION: Place bath deck on a surface that will not scratch the
acrylic surface of the bath.
2. Disassemble the bath from its skirt by removing the four nuts
and washers located at the bottom of the bath with a 1/2”
open ended wrench. Lift the skirt out of the bath. Place
the skirt and the bath in an upright position next to each
other. See Figure 1.
FIGURE 1
INSTALLATION INSTRUCTIONS
3. Set aside the template and locating stud kit, these will be used
later.
4. Cardboard bath-well protector. Each bath is provided with a
cardboard bath-well protector that should be kept in the
unit throughout the bathroom construction process.
NOTE: Overflow drains, fill spouts, and valves must be
installed according to the instructions herein.
5. Installation template. An installation template is provided to
locate the floor drain position, sump area position, water
inlet stub-out position, and skirt center lines. Tape the
template to the sub-floor in the desired location.
6. Mark on the sub-floor the sump area position and the water
inlet stub-out position. Three (3) water inlet stub-out
positions have been indicated on the template. Choose
the water inlet stub-out position that is preferable for your
installation.
7. Remove the template and cut out the floor.
CAUTION: The floor drain location must be installed according
to the template. This location is critical to the proper installation
of this product.
NOTE: You must keep the template, it will be needed
during the next step of the installation process. See
Figure 2.
NOTE: The skirt is designed to accommodate both an
end drain (RE630PS) and a center drain (RC630PS)
model. Refer to Figure 2 to determine which cut-outs
Operating
Capacity
Floor
Loading
lbs/ft2
kg/ M2
72 x36 x22 53 52
183 x91 x56 201 254
72 x36 x22 50 50.5
183 x91 x56 189 247
66 x36 x22 45 50.9
168 x91 x56 170 249
L x W x H (in.)
Gallons
Liters
L x W x H (cm.)
RE630PS
RC630PS
RC553PS
forma RE/RC 'PS' (Soaking Bath)
Model
Overall Dimensions
TABLE 1 - SPECIFICATIONS
Bath-Well Protector
Template
Packing Board
Skirt
Bath
Locating
Studs Kit
5/16" Nut and
Washer (x4)
Press-in
Fasteners (x4)
Stabilizing Nut
and Washer (x4)

Jason International, Inc. • 501.771.4477 Page 3 of 8 Customer Service : 800.255.5766
Copyright © 2011 Jason International.
FIGURE 2 FIGURE 3
FIGURE 4
INSTALLATION INSTRUCTIONS (cont.)
Skirt
Template
Locating Stud
Pilotholes (x4)
3/8" Holes (x4)
FIGURE 5
8"6"
Locating Stud Bolts (x4)
Water Inlet
Stub-Out
Location
Stub-Out (x2)
Sump Area
Location
Drain
Overflow
(PVC Flex Pipe)
Overflow
Floor

Jason International, Inc. • 501.771.4477 Page 4 of 8 Customer Service : 800.255.5766
Copyright © 2011 Jason International.
FIGURE 6
are designed for use with your particular model.
8. After the finished floor is installed, position the installation
template on the finished floor. Place the template to line
up with the existing floor drain location and orient the
template to the desired position.
NOTE: The sump area location cutout, and water inlet
stub-out location must line up with the template.
9. Tape the template to the finished floor using care to align both
center lines and assure that the template is laying flat on
the floor.
10.Transfer the center lines of the template to the finished floor.
CAUTION: Use a marker that can be removed from the
finished floor after installation.
11.Position the Skirt (only) and align it with the centerlines on
the finished floor. Use the four existing 3/8” holes located
in the bottom four corners of the skirt to mark where to
drill the pilot holes for the four locating studs. If installing
on a wooden floor, 1/4” [6mm] holes are required, and a
5/16” nut to install the locating studs into the wooden floor.
When installing on a cement slab, 3/8” [9.5mm] holes are
required. See Figure 3. After marking the hole locations,
remove the skirt and set aside.
12.Dry fit the drain and overflow to the bath.
a. Dry fit the drain and overflow to the bath. Use the
instructions included with the drain and overflow to
determine proper fit. It is recommended that flex PVC
pipe be used between the overflow and drain. This will
assure there is enough clearance between the bath
shell and the skirt for the drain.
b. Position bath in place and attach the drain and overflow
to the floor drain “P” trap. CAUTION: Only dry fit
the drain and overflow tee to the “P” trap at this
time.
c. Disconnect the drain and overflow from the bath and
leave the drain assembly free standing in the “P”
trap.
13.Align the drain with the center line on the template. Refer to
Figure 4.
14. Permanently attach the drain tee to the “P” trap.
15. Remove the template from the floor.
16.Install the skirt locating studs into the four positions in the
floor. See Figure 5.
17.Attach faucet accessories to the bath (if applicable).
CAUTION: There is not enough room to mount a deck
mounted diverter valve on the deck of the bath.
If a hand-held shower is desired consider a floor mounted
faucet or a faucet with an above deck diverter.
If a floor mounted faucet is desired, be sure to install
the faucet to allow for sufficient overhang into the well
of the bath. This will ensure an unobstructed water flow
out of the faucet when filling the bath. Follow the faucet
manufacturers installation instructions.
INSTALLATION INSTRUCTIONS (cont.)
8"6"
Bath
Skirt
Sump Area
Location
Water Inlet
Stub-Out
Location
Raised Blocks (x4)
Locating Stud Bolts (x4)
Stubouts (6" and
8" Above Floor)
Overflow
(PVC Fllex Pipe)
Drain
Stainless Steel
Flex Plumbing (x2)
RC630PS Shown
Floor

Jason International, Inc. • 501.771.4477 Page 5 of 8 Customer Service : 800.255.5766
Copyright © 2011 Jason International.
18. Flex plumbing. Attach stainless steel flex plumbing to deck
mounted faucet (if applicable). Faucetry connections
should be tested for leaks at this time.
NOTE: Flex plumbing lines must be long enough so
the bath can be removed from the skirt if access is
required in the future.
1/2” [12 mm] 4 foot [122 cm] stainless steel flex hoses
may be purchased from Jason International, Inc.
19. Test all connections for leaks.
20. Reattach the skirt to the bath by positioning the skirt on the
bath and fastening the 5/16” nut and washers to the 5/16”
leveling bolts, nuts and washers attached to the bath. Be
sure that the skirt is positioned correctly allowing the PS
skirt clips to rest against the back of the skirt.

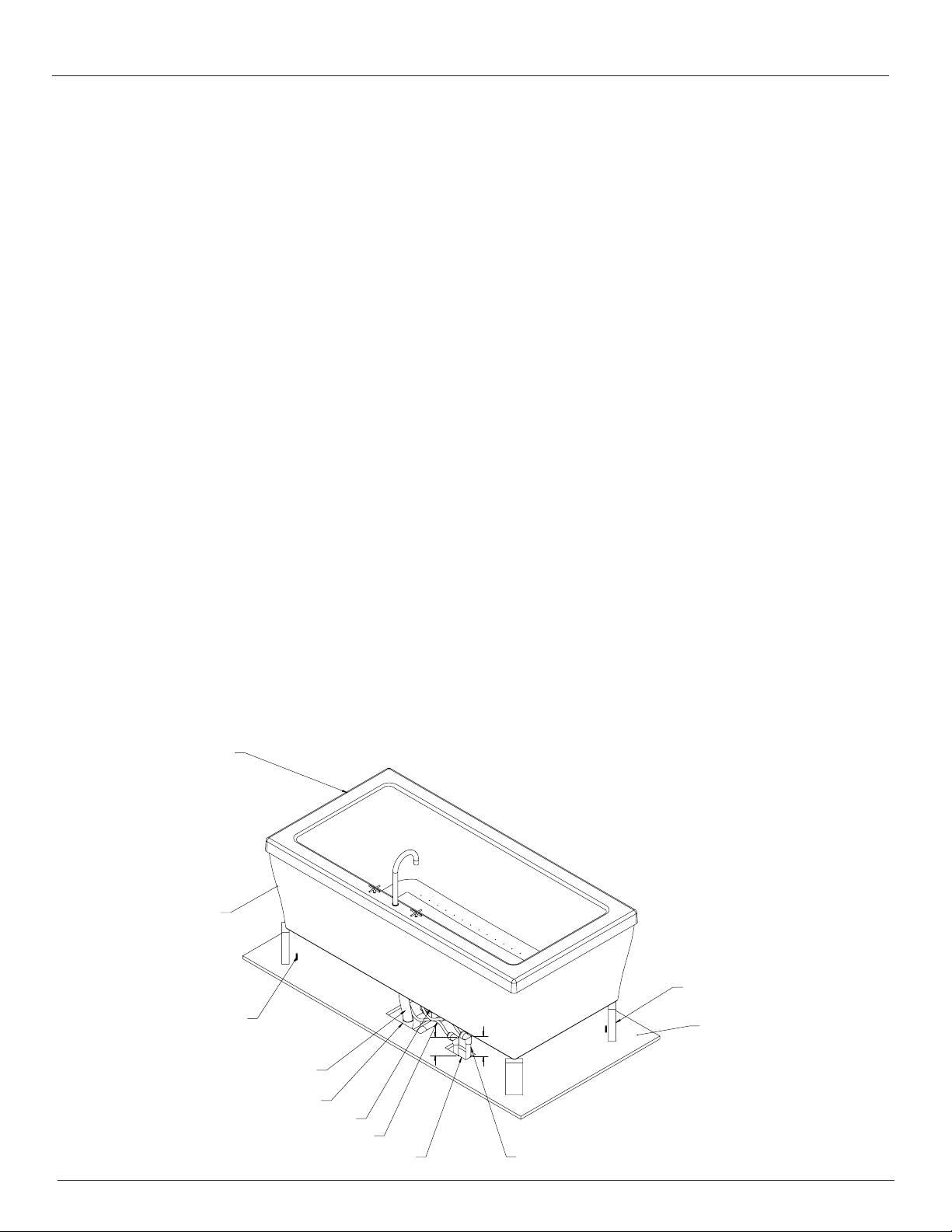

21. Position the bath and skirt assembly over the four locating
studs. Align the drain and overflow with the corresponding
bath holes. See Figure 6.
Place bath and skirt assembly on raised blocks
approximately 8” tall.
22. Attach hose. Attach the other end of the hose to the 1-1/2”
[38mm] PVC pipe that is plumbed to the blower with the
included clamp.
23. Flex Plumbing. Attach stainless steel flex plumbing to
stubouts (if applicable). Faucetry connections should be
tested for leaks at this time
24.Remove blocks and place bath and skirt assembly in
position.

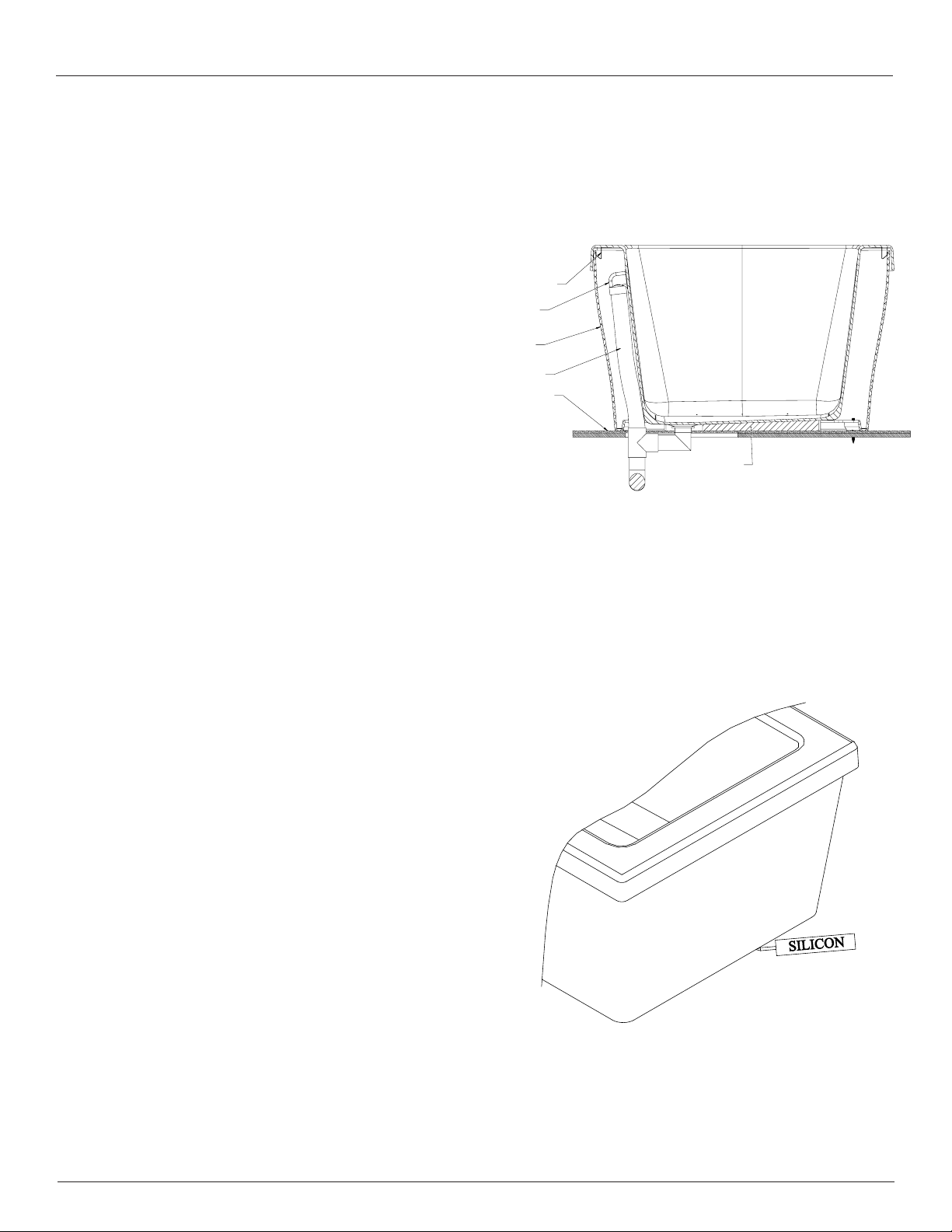

Jason baths are designed to be supported at the base of
the bath. If the floor is smooth and level the bath’s Level
Form™ Base will provide proper drainage and support.
See Figure 7.
NOTE: Do not use a sand bed to install or level the
bath.
NOTE: The bottom of the bath’s Level Form™ Base
must be 1/8” lower than the bottom of the skirt.
25. Drain and overflow. Complete the installation of the drain
and overflow per the instructions included with the drain
and overflow.
26.Seal the joint between the skirt bottom and the floor with a
silicone caulk (See Figure 8) .
FIGURE 7
INSTALLATION INSTRUCTIONS (cont.)
FIGURE 8
LEVELFORM BASE
PS SKIRT CLIP
SKIRT
PVC FLEX PIPE
FINISHED FLOOR
OVERFLOW

Jason International, Inc. • 501.771.4477 Page 6 of 8 Customer Service : 800.255.5766
Copyright © 2011 Jason International.
ClEANINg
1. Remove all loose debris. Construction plaster or
excess grout can be removed with the use of a wood
(edge) trowel.
2. Paint or tar stains may need to be removed with a
cleaner such as paint thinner, turpentine, or isopropyl
alcohol (rubbing alcohol). Never allow the cleaner to
soak against the acrylic surface for long periods of time.
Always rinse the surface immediately following the
use of cleaners.
Note: Follow the manufacturers instructions for safe use
of cleaning products. If the surface becomes scratched or
dulled, it may be restored by using a quality plastic polish,
like Novus Plastic Polish No. 2 (available from the Jason
Dealer). It is always preferable to protect the acrylic
surface during installation to minimize cleanup and
prevent surface damage.
INSTALLATION INSTRUCTIONS (cont.)
wATEr TESTINg
Before finishing the installation, it is recommended that the
bath be water tested and the plumbing tested for leaks.
1. Before water testing the bath, makesurethatallplumbing
connections are tight. DO NOT OVERTIGHTEN.
2. Fill and operate the bath. Close the drain and fill the bath
with water to at least 10 inches [25 cm] below the bath deck.
The inlet temperature should not exceed 104°F (40°C) as
this could damage the acrylic surface.
3. Inspect the plumbing for leaks.

Jason International, Inc. • 501.771.4477 Page 7 of 8 Customer Service : 800.255.5766
Copyright © 2011 Jason International.
USEr MAINTENANCE INSTrUCTIONS
HUMIDITY
WARNING: AVOID HIGH HUMIDITY LEVELS IN YOUR HOME.
MOLD, MILDEW, FUNGI, AND BACTERIA WHICH MAY BE
HARMFUL TO HEALTH THRIVE IN AREAS WITH CONTINUED
HIGH HUMIDITY LEVELS; THEREFORE, EVERY PRECAUTION
SHOULD BE TAKEN TO MAKE SURE YOUR PLUMBING FIXTURES,
INCLUDING BATHTUBS, THERAPY BATHS, OR SHOWERS DO
NOT BECOME A SOURCE OF HIGH HUMIDITY DUE TO IMPROPER
INSTALLATION OR LEAKS.
To avoid having your plumbing fixtures become a source
of unwanted humidity, please make sure the following
steps are taken prior to installation.
1. Make sure the area where the bathtub or shower is
installed is well vented and allows enough ventilation
and air circulation to dry the bathroom environment
within a short time after taking a bath or shower.
2. If your bath or shower unit is tiled-in, use units with an
integral tile flange or make sure a tile flange kit or a
similar mechanical barrier is installed to prevent shower
spray, splash, or overflow to leak behind the bathtub.
3. Make sure the plumber properly tests your therapy bath
before it is roughed in to make sure there are no leaks
and it is installed with proper access to bath equipment.
4. Make sure that all the plumbing and fixtures in the
bathroom are in good working order and have no leaks.
5. Do not use carpeting or other materials or furniture,
which can hold moisture, in your bathroom.
6. Use disinfectant to clean any bathroom surfaces, which
are regularly exposed to moisture.
7. Clean and disinfect humidifier and dehumidifiers as
recommended by the manufacturer. Replace the air
filter on the HVAC unit once a month.
8. Clean moldy surfaces as soon as any mold appears
by using a detergent/soapy solution and appropriate
household cleaner. Always use gloves during cleaning.
Dispose of any sponges or rags used to clean mold.
ClEANINg
With minimum care, your acrylic-surfaced bath will retain
its high-luster finish for many years. For regular cleaning
use Jason Bath Cleaner or a mild NONABRASIVE liquid
detergent solution (i.e. glass cleaner) and a soft, wet cloth
or sponge. Do not run the air system with foaming cleaners
or soaps. Rinse the bath thoroughly after cleaning.
SUrFACE MAINTENANCE
Areas with minor scratches or dull surfaces can be
restored by applying commercially available plastic
polish (i.e. Novus Plastic Polish No. 2, available at your
Jason dealer), followed by an application of acrylic paste
wax. Buff the surface with a clean soft cloth. Do not use
sandpaper, steel wool, or abrasive rubbing compounds.
If scratches are too deep to rub out, or if the damage
penetrates the acrylic surface, consult your dealer for
recommendations on surface repair.
FlUSHINg / SANITIZINg
Upon start-up and not to exceed 90 days, your
AirMasseur®bath and plumbing system should be flushed.
Follow the Sani-Design™ Cleaning instructions provided
with the bath.
rEPAIr
Refer all plumbing or electrical repair to a qualified service
technician. DO NOT ATTEMPT TO RESOLVE THE
PROBLEM. This can result in danger of electrical shock
or damage to the unit and will VOID THE WARRANTY.
Remember, when contacting your dealer or service
representative; always have your serial number, proof
of purchase, and model number. This will insure a quick
response on warranty items. The serial number can be
found on the front page of this manual or on the small card
adhered to the back of the bath just above the blower.

Jason International, Inc. • 501.771.4477 Page 8 of 8 Customer Service : 800.255.5766
Copyright © 2011 Jason International.
IMPORTANT SAFETY INSTRUCTIONS
INSTRUCTIONS PERTAINING TO THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO
PERSONS.
WARNING: When using this unit, basic precautions should always be followed, including the following:
This manual contains information and instructions for proper operation and maintenance of your bath. Failure to follow
these instructions could result in personal injury, electrical shock or fire.
READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY
DANGER: TO REDUCE THE RISK OF INJURY FOLLOW THESE PRECAUTIONS:
A. Do not permit children to use this product unless they are closely supervised at all times.
B. Use this unit only for its intended use as described in this manual. Do not use attachments not recommended by the
manufacturer.
C. The water in a bath should never exceed 40°C (104°F). Water temperatures between 38°C (100°F) and 40°C (104°F)
are considered safe for a healthy adult. Use time should be limited to approximately 30 minutes, followed by a shower
to cool down. Longer exposures may result in hyperthermia. The symptoms of this condition are nausea, dizziness,
and fainting, and it can be fatal. Lower water temperatures are recommended for extended use (exceeding 10 -15
minutes) and for young children.
D. Since excessive water temperatures have a high potential for causing fetal damage during the early months of preg-
nancy, pregnant or possibly pregnant women should limit bath water temperatures to 38°C (100°F).
E. The use of drugs or alcoholic beverages before or during bath use may lead to unconsciousness with the possibil-
ity of drowning. Never use the bath while under the influence of alcohol, anticoagulants, stimulants, antihistamines,
vasoconstrictors, vasodilators, hypnotics, narcotics, or tranquilizers.
F. Persons with a medical history of heart disease, low or high blood pressure, circulatory system problems, or diabetes
should consult a physician before using a soaking bath.
G. Persons using medication should consult a physician before using a soaking bath since some medication may induce
drowsiness while other medication may affect heart rate, blood pressure, and circulation.
DANGER: To reduce the risk of injury, enter and exit the bath slowly.
WARNING: Never operate electrically connected devices in or near the bath.
Electrical outlets in the bath area must be connected to a supply circuit that is protected by a GFCI. Such a device should
be installed by a licensed electrician and should be tested on a regular basis (at least monthly). To test the GFCI, push the
TEST button. The GFCI should interrupt the power. Push the RESET button and the power should be restored. If the GFCI
fails to operate in this manner, there is the possibility of an electric shock. DO NOT USE. Disconnect the unit and have the
problem corrected by a qualified service technician.
To avoid the possibility of personal injury and discoloration of the acrylic surface, the inlet water temperature should not
exceed 40°C (104°F). The bath should be drained after each use. Each bather should start their bath with fresh water. Do
not use oil base additives in your whirlpool bath.
CAUTION: Do not use harsh abrasives or solvents for cleaning this unit.
INSTALLER/OWNER BEARS ALL RESPONSIBILITY TO COMPLY WITH ALL STATE
AND LOCAL CODES WHEN INSTALLING THIS PRODUCT.
SAVE THESE INSTRUCTIONS
Jason InternatIonal, Inc.
8328 MacArthur Drive • North Little Rock • Arkansas • 72118
www.jasoninternational.com
