jbc CD-2BHE User manual

www.jbctools.com
精简焊接台
Ref. CD-2BHE
English 22
Page
中文 2

www.jbctools.com
2 3
精简焊接台
Ref. CD-2BHE
www. jbc to ols .com
产品描述
需包含以下部件：
电源线.........................................................1件
Ref.0009401(230V)
说明书 ...........................1件
Ref.0017069
CD 控制主机 ............................................1件
Ref.CD-2HE(230V)

铜丝球 ...........................1件
Ref.CL6210
烙铁头 .........................................................2件
Ref.C245903(x1)
C245741(x1)
带有柔软隔热层的普通用途手柄 .......... 1 件
Ref.T245-A
海绵 ...............................1件
Ref.S0354
电源插座
主开关
保险丝
集线器
快捷烙铁头更换器
焊嘴清洁系统
操作控制
可调式支架:
智能热管理
电位连接
USB-B接口
产品特性
带有柔软隔热层的普通
用途手柄
Ref.T245-A

www.jbctools.com
4 5
可调式支架 集线器 (Ref.CC3702)
调节工具支架，满足工作位
置需求。
将电线放置在集线器上，避免工作位置受到电线干扰。
焊嘴清洁系统
选择最适合您的焊接清洁需求的选择。
铜丝球
Ref.CL6210
有效清洁方法。在清洁
后到下次焊接前对焊
嘴加锡保养，以防焊嘴
氧化。
防溅罩
Ref.0017576
可防止在使用铜丝清洁球
的时候残锡的飞溅。
防溅层
Ref.0017574
防止溅锡确保工作环境的整洁。
擦板
Ref.CL0160
耐高温凹槽可以让操作者通过轻轻拍打
或擦拭去除多余的焊锡。
如果烙铁头非常脏，建议
先刮掉多余的锡。
其他防溅罩选项（不包括）:
不锈钢丝球
Ref.CL6205
为焊嘴提供更深层的
清洁
金属刷
Ref.CL6220
如果使用得当，
可提供更彻底的清洁。
海绵
Ref.S0354
最温和的清洁方法。
工作时用蒸馏水润湿海绵避
免焊嘴磨损。
敲击

轻轻敲击除去多余的残锡。
擦拭
使用槽口擦拭任何残留的锡粒。
擦板
如果需要拆下保护罩，请按照以下步骤进行：
1. 松开保护罩扣锁。 2. 撤走保护罩。

柔软海绵 (Ref. 0016057)
防滑柔软触感
蓝色手柄可快速与其他手柄区分开来
将滑动标签插入新握套内。 顺着标签将握套套上手柄。 要移去标签，握住手柄并向
外拉。
标签
新握套
www.jbctools.com
6 7
使用滑动标签可轻松更换T245-A握套（型号0016057共四个握套）。
1. 插入标签 2. 套上手柄 3. 移去标签

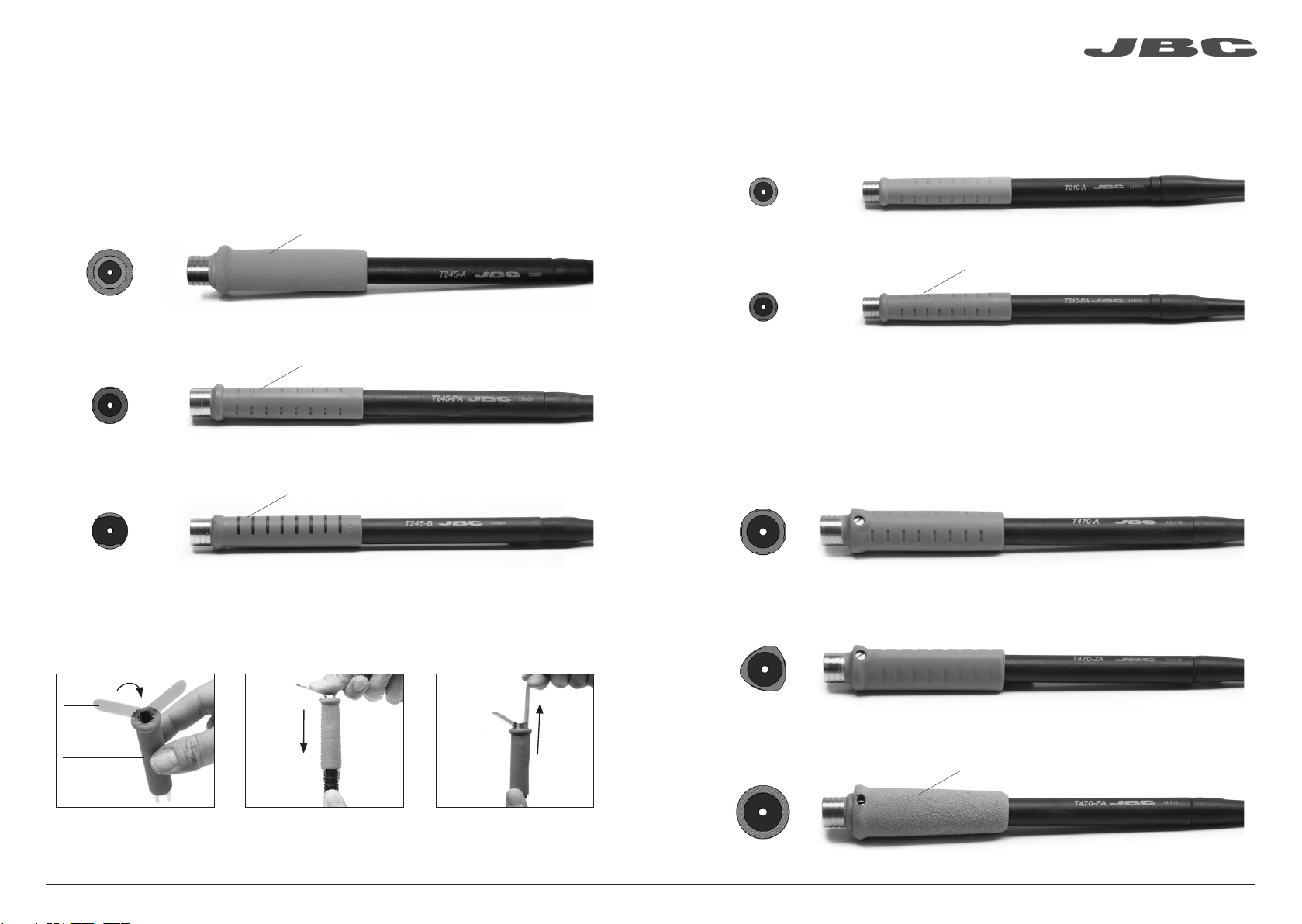

蓝色普通用途手柄
Ref.T245-PA
防滑手柄
Ref.T245-B
普通用途
与 C245 烙铁头系列兼容
兼容手柄
带有柔软隔热层的普通用途手柄
Ref. T245-A
用于精确操作
与 C210 烙铁头系列兼容
更高要求
重要:仅与 C245 焊头兼容于 CD 台。
精确用途手柄
Ref. T210-A
蓝色精确手柄
Ref. T210-PA

高精度焊接工作需要持续的高导热。它们提供良好的隔热条件，其中还有一个螺丝固定住烙铁头
以防止打滑。
普通用途HD手柄 普通用途HD手柄，带3米电线
Ref. T470-A   Ref. T470-SA
三叶型手柄
Ref. T470-ZA
更好地握持工具。
隔热HD手柄 隔热HD手柄，带3米电线
Ref. T470-FA Ref. T470-MA
注意:所有型号都配有1.5米电线，配有3米电线的型号除外。
蓝色手柄可快速与其他手柄区分开来
海绵
注意:所有型号都配有1.5米电线。

ø 1
ø 1,5
ø 3,5
A
AB
www.jbctools.com
B
CA
8 9

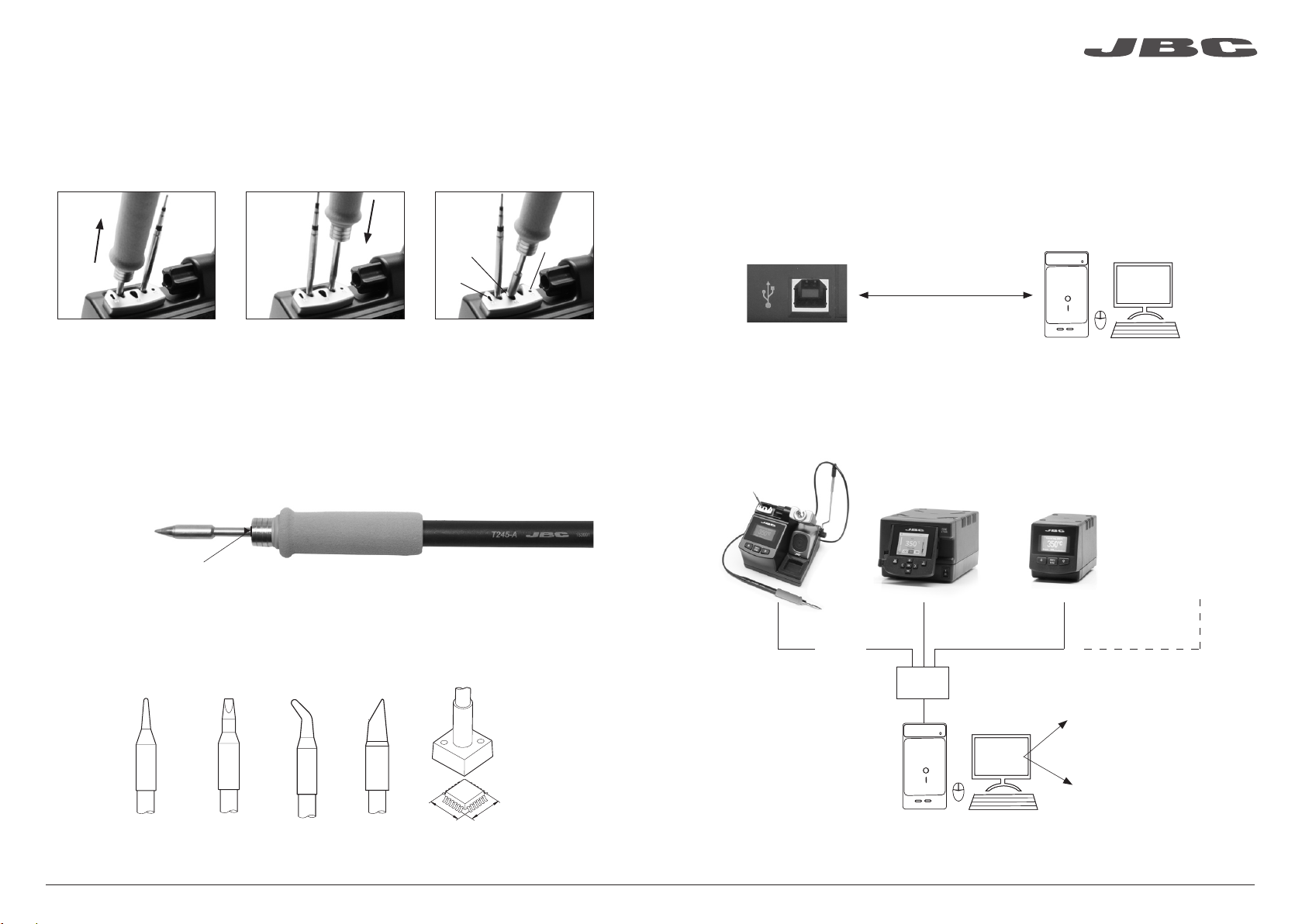

快速烙铁头更换器
圆头 凿形 圆形弯曲 斜角 特殊型号
兼容烙铁头
CD主机使用C245烙铁头及T245/T470手柄或C210烙铁头及T210手柄。找到最适合你的焊接
需求的款式，请登录www.jbctools.com
节省时间，安全更换烙铁头，主机无需断电。
1. 移除 2. 插入 3. 固定
将手柄放置在插拔座上，拔
出烙铁头。
将手柄置在新烙铁头顶端，
轻轻下压。
使用孔洞来固定烙铁头*，操
作如下：
A. 直线 C210.
B. 弯曲 C210.
C. C245.
*重要
切记尽量将烙铁头插入到标识处，以确保正确的连接。
标识
JBC 更新程序 (JBC Updater)
www.jbctools.com/software.html

通过USB接口更新软件。
USBAB连接线
JBC
Manager
JBC
Updater
JBC 管理员 (JBC Manager)
www.jbctools.com/manager.html

通过该程序使用电脑管理和跟踪多台焊台。可将数据导出到其他电脑上。
记录设置
创建实时焊接过程图表，
包括功率和温度数据
管理员设置
同时更换一组JBC焊台设置
任何JBC
焊台
USB
端口

USBAB
连接线
自我们官网下载最新软件，确保您的焊台处于最佳状态。
USB 接口

-10
睡眠温度 15 0
o
C
睡眠
焊笔置架上不热
休眠
0
功 率 5%
被選溫度 350
o
C
00
cc
350 350
c
350
0
被選溫度 350
o
C
功 率 5%
鎖定溫度 350
o
C
等级ºC 270 350 400
-10
c
350
Main menu
4 Counters
5
Program version
Exit
1 Reset settings
2
Station settings
3 Tool settings
4 Hibernation hours 0
5 No tool hours 0
6 Sleep cycles 0
Back
Back
1 Plugged hours 0
2 Working hours 0
3 Sleep hours 0
Counters
Station settings
5 Help text OFF
6 Beep ON
7 Change PIN
1 Temp unit Celsius
2 Maximum temp 400
0
C
3 Minimum temp 200
0
C
4 Metronome ----
Back
4 Sleep temp 150
0
C
5 Hibernationdelay 10 min
6 Temp adjust + O
O
C
Tool 245
Back
1 Fix one temp -----
2 Temp levels set OFF
3 Sleep delay 0 min
Tool settings
www.jbctools.com
10 11

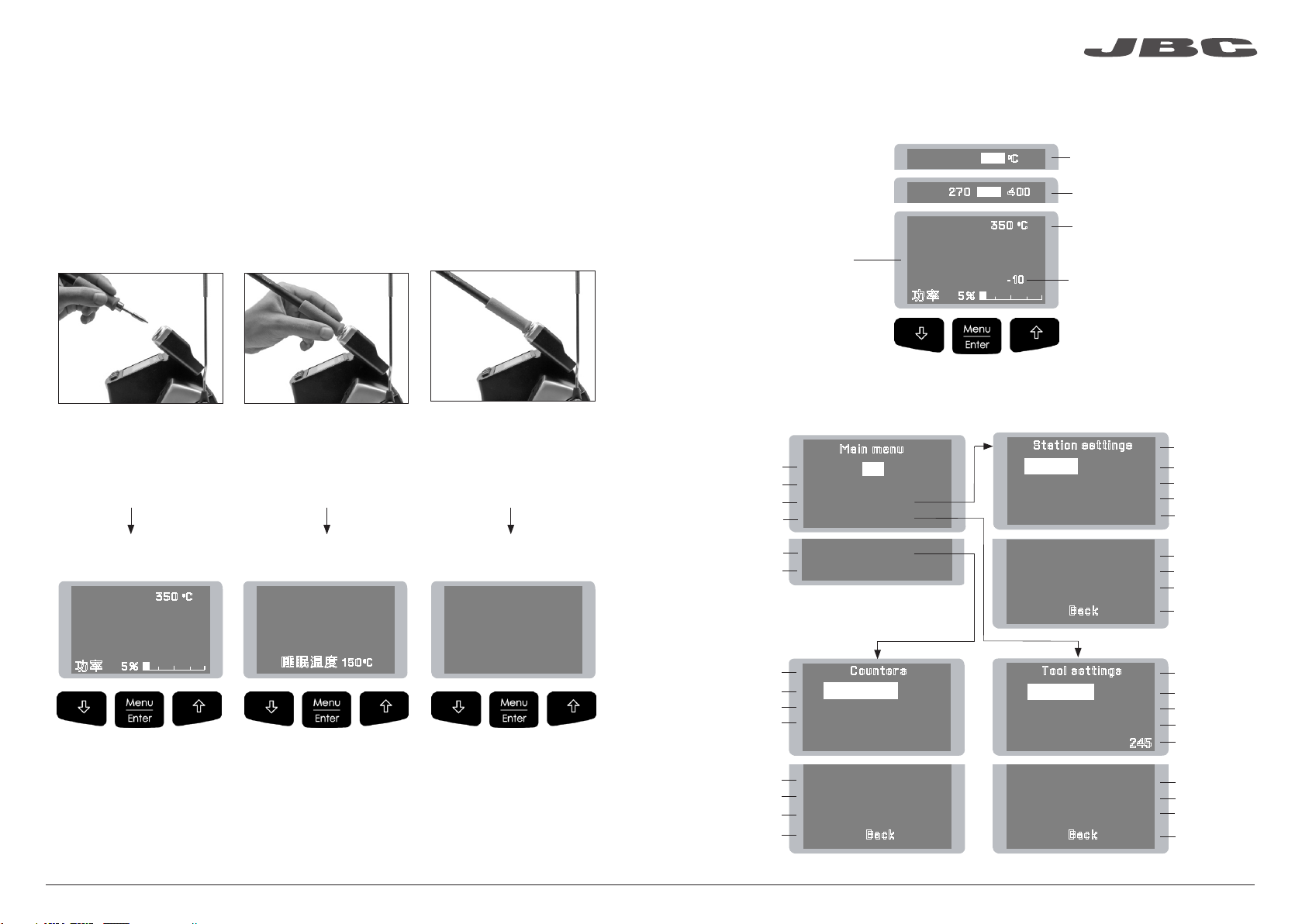

操作
JBC 专属加热系统
革命性技术，可以令烙铁头温度快速回升。
这意味着用户可以在较低温度下操作，并提高焊接质量。
之后，烙铁头温度在睡眠和休眠模式下降低，可令其寿命延长五倍。
•更改温度
(自90至450ºC)
•选择温度等级
•固定一个温度
•设置睡眠温度
•设置睡眠延迟
(从0到9分钟或永不睡眠)
•设置休眠延迟
(从0到35分钟或永不休眠)
1. 工作
当工具从支架下取下时，
烙铁 头温 度会加热到选定温
度。
长时间放置
在支架上
菜单屏
原始密码:0105
工作屏提供工具
实时有用信息。
固定温度
显示已选温度等级
显示特定固定温度
工作屏
流程控制
温度修正
提供所选温度和实际温度之
间的更精确的修正。
2. 睡眠 (Sleep)
当工具放置在支架上时，
温度会下降到
预置睡眠温度。
3. 休眠 (Hibernation)
长时间没有使用后，电源会切
断，工具会冷却到室温。
主机设置
工具设置
返回
返回
计数器
程序版本
重置设置
退出 温度单位
插入小时数
最高温度
工作小时数
最低温度
睡眠小时数
休眠小时数
无工具小时数
睡眠周期小时数
主机设置
计数器
节拍器
更换密码
嘀音
返回
固定一个温度
温度等级设置
睡眠延迟
工具
睡眠温度
休眠延迟
温度调节
工具设置
帮助文本

www.jbctools.com
12 13
参数
主机设置
最低温度
设定进行工作的最低温度。
默认的最低温度为200ºC
(392ºF).。对于有铅应用来说
这被视为适当的起始温度。
最高温度
设定进行工作的最高温度。
默认的最高温度为400°C
(750°F)。对于大多数无铅应
用来说这已被视为足够高温。
温度单位
摄氏度(ºC)或者华氏度(ºF)
节奏提示
在每1-50秒重复的一种蜂鸣
声。
帮助文本
激活此参数可以从系统中获
得的信息。
提示音
开启/禁用按键的提示音。
修改个人密码
修改默认的安全密码（0105）。
建议参数描述
每次更改参数必须输入个人
密码。
可用来设定在重复作业时的
工作速率。蜂鸣声提醒您必须
开始焊接的时间段。
不适用
不适用
不适用
警告
主机的温度范围在90-450ºC
(190-840ºF)。更改温度限
制用于不常见的应用，如低/
高熔点锡焊（HMP）或者塑料
应用（比如铆合）。
不适用
不适用
不适用
不适用
 在大多数情况下，工作
温度超过400°C(750°F)
会损坏电路板及其组件。
甚至于焊嘴与焊点更短时
间的接触，使助焊剂无法
发挥正常功效，严重降低
烙铁头寿命。如果焊点需
要更大功率（比如多层板
或者高散热板），JBC强烈
推荐配合使用其他辅助产
品如预热台。
请注意如果这些参数使用不当可能会导致焊嘴寿命的减少。请遵循推荐的准则：
工具设置
睡眠延时
设置工具在置放架上起并保
持所选温度到进入睡眠模式
的时间。焊嘴温度随即降到
睡眠温度（默认150ºC/302ºF
或者260ºC/500ºF只适用于
拆焊)。
睡眠温度
当工具在置放架时，焊嘴将达
到的设定温度。
固定一个温度
固定一个温度值范围在
（90-450ºC/190-840ºF）。
温度等级设置
类似于“固定一个温度”的参
数。在这种情况下，用户可以
根据不同的功率要求设置最
多3个温度值。
在防氧化和几秒内快捷升温
到工作温度，睡眠温度的设
置实现了两者之间的一种折
中方案。
非常适合需要在特定温度下
焊接多个组件。主机将拒绝
任何更改温度的意图。
这允许在3个不同温度之间快
速切换。根据您的焊接应用
允许的温度值来设置。
因为我们的工具可以仅在2
秒内从默认睡眠模式升到工
作温度，此参数预设为0分
钟。一旦工具被回放到置放
架上，温度将自动降到睡眠
温度，延长焊嘴寿命并防止
氧化。工具在放置到置放架
上之前做加锡保养可防止涂
层的磨损。
建议
参数描述 警告
不适用
不适用
 没必要将这些参数设
置过高，会导致焊嘴加速
氧化并缩短焊嘴寿命，特
别是在450°C（840°F)的
温度下作业。

www.jbctools.com
14 15
在维护或储存之前需确保设备已经冷却。
-用玻璃清洁剂或抹布清洁主机屏幕。
 使用抹布清洁外壳和工具。
酒精只可用来清洁金属部件。
定期清洁
-定期检查工具金属件及支架，确保清洁，
确保主机可以保持探测到工具状态。
-储存前，保持烙铁头清洁并加锡保养以防
氧化。
生锈或航脏的表面会减少传递到焊点的热
量。
-定期检查电线和管子。

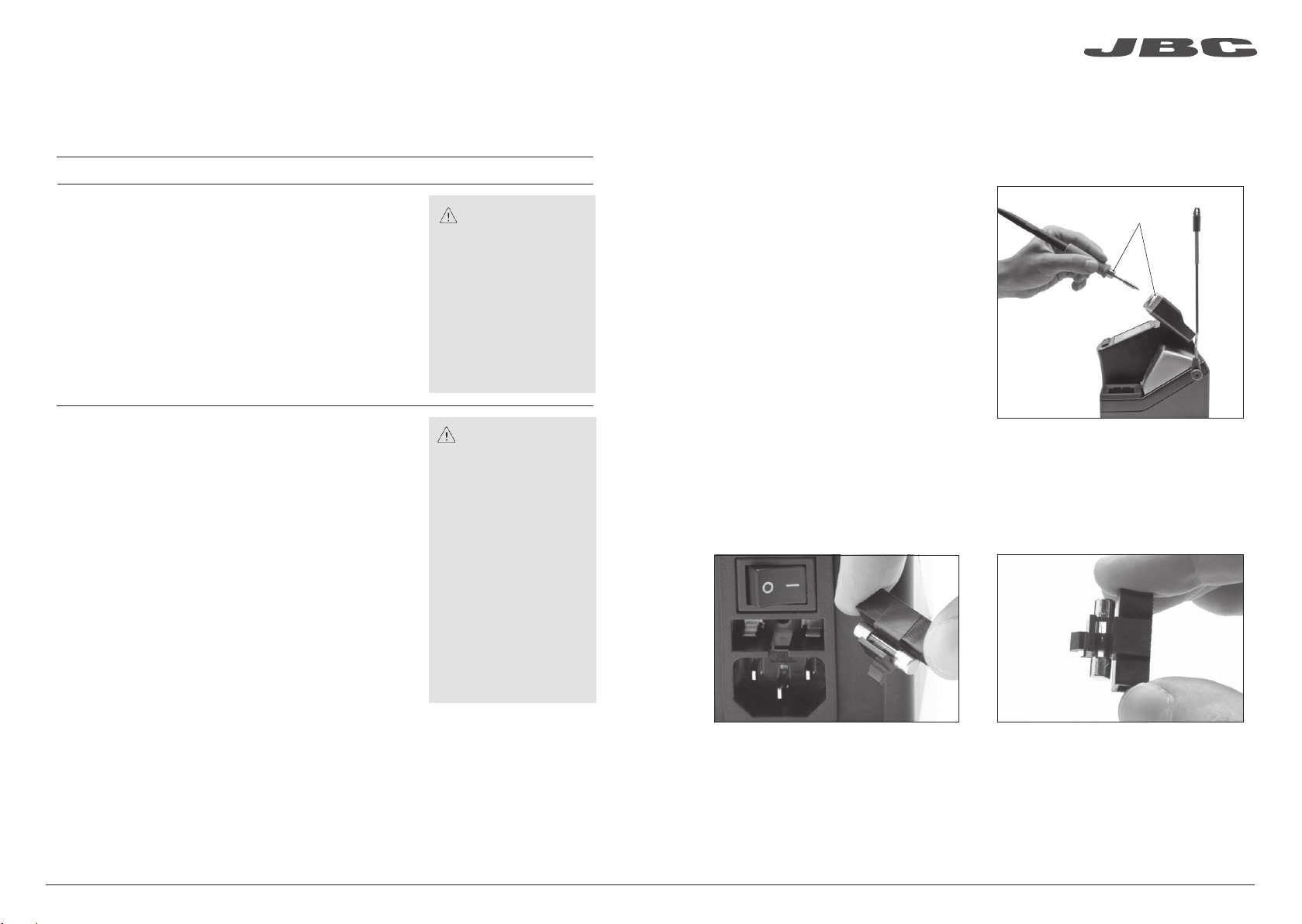

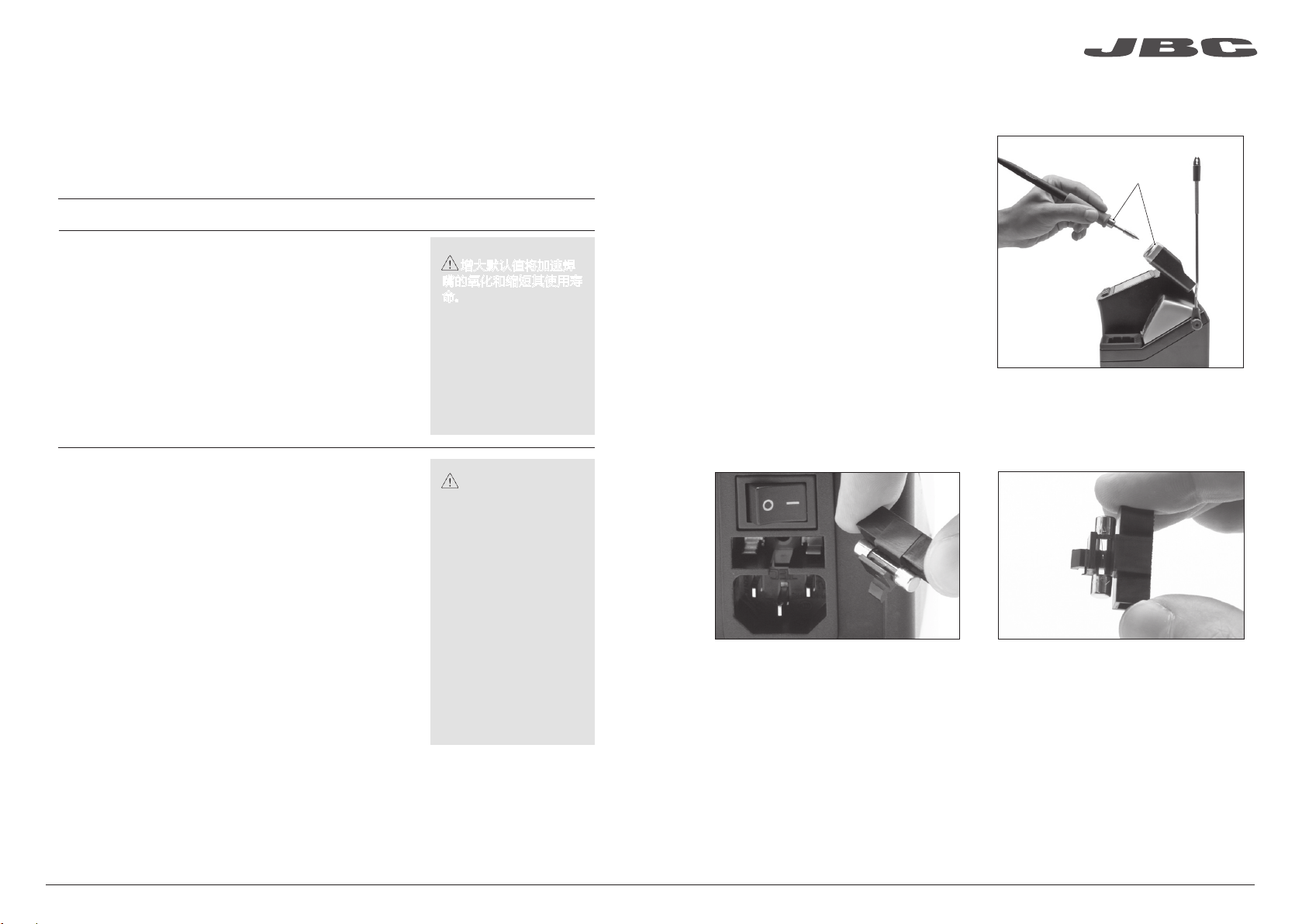

维护
1.推动黑色盖子取下保险丝。如有必要可使
用工具。
2. 将新的保险丝放入保险丝盒，并将其放入
工作台。


-按如下图示更换熔断保险丝：

-更换任何受损的元件。仅使用JBC原装配件。

-修理必须由JBC专业技术服务人员进行。
休眠延时
设置工具从睡眠温度进入休
眠模式的时间。默认设置
为10分钟。这段时间之后，
电源被切断，焊嘴温度降至
室温。
温度修正
提供所选温度和实际温度之
间的更精确的修正。
此功能完全防止工具在置放
架上长时间不使用而产生的
氧化。
放置到置放架之前对工具
做加锡保养也有助于保护涂
层，防止焊嘴氧化，延长焊嘴
寿命。

设置数值在±50°C(±90°F)
以实现零失误。JBC强烈推荐
使用TID-A或TIA-A测温仪以
获得精确的读数。
焊嘴设置
建议参数描述 警告
增大默认值将加速焊
嘴的氧化和缩短其使用寿
命。
 当用户更换烙铁头
类型，此参数须重设至
0°C/F或者适合该烙铁
头的温度值。比如，为
C245966（粗类型）设置的
修正值为+20°C(+36°F)，
之后用户更换到C245030
（较细类型）而没有重设修
正值，在C245030不需要
调整温度的情况下，用户
实际上在低20°C(+36°F)
的温度下作业。

www.jbctools.com
16 17
-不要使用本产品用于焊接或返修以外的任何目的。不正确使用可能造成火灾。
-电源线必须插入核准的电源。确保使用前妥善接地。拔掉电源时握住插头，而不是电线。
-请勿在带电部件上操作。
-该工具在不使用时应放置在支架上，以激活休眠模式。
 烙铁头，金属部分和支架即使在焊台被切断电源时仍旧是热的。
 小心轻放，包括调整支架位置时。
-设备开着时，切勿无人看管。
-请勿覆盖通风口。热量可引起易燃物品引燃。
-使用“无残渣”类锡丝，避免与皮肤或眼睛接触，以防刺激。
-小心焊接时产生的烟雾。
-保持工作场所干净整洁。操作时，为避免造成人身伤害，请穿戴适当的防护眼镜和手套。
-残锡液易引起灼伤，请小心处理。
-本产品允许八岁以上儿童，肢体，感官或心智有残缺的人士，以及缺乏经验的人士使用，
 但必须提供必要的监护及指导，并且了解本产品可能涉及的危险。切勿让儿童把玩。
-没有监管，儿童不得对本产品进行维护。
安全
必须遵守安全准则，以防止电击，人身伤害，火灾或爆炸。
技术规格
CD-2BHE230V50/60Hz.输入保险丝:1A.输出:23,5V.主机款式:CD-2HE
-重量:2.6Kg(5.7lb)
-尺寸:150x175x145mm
-最高输出功率CD-2BHE:130W
-温度范围:90-450°C(190°-840°F)(±5%)
- 空置温度稳定性(静止空气):±1.5ºC/±3ºF
-焊接接地电阻:<2ohms
- 焊接接地电压:<2mVRMS
- 工作室温:10-40ºC/50-104ºF
-USB连接焊台-PC
符合CE标准
防静电“趋肤效应”保护外壳

www.jbctools.com
18 19
分解图

www.jbctools.com
20 21

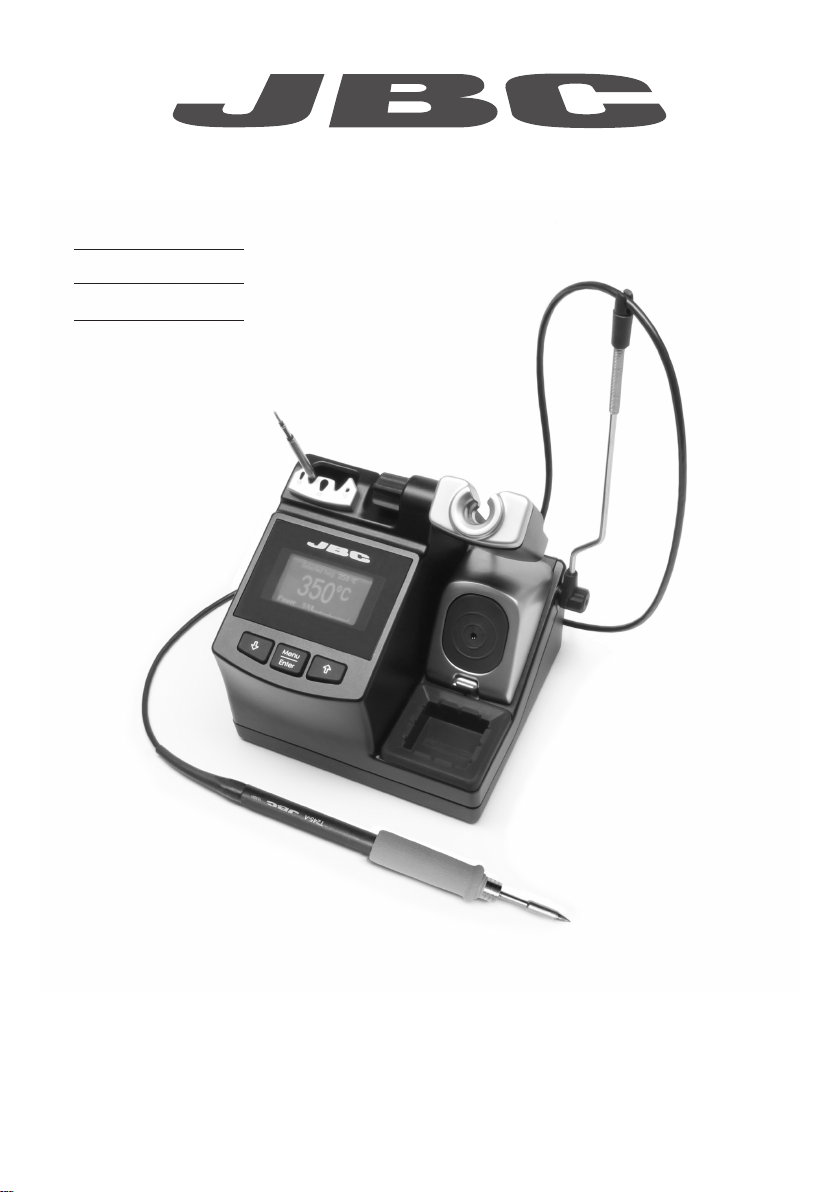

Compact Soldering
Station
Ref. CD-2BHE

www.jbctools.com
22 23
Packing List
The following items should be included:
Power Socket
Main switch
Fuse
Equipotential connection
USB-B connector
Features
General Purpose
Handle
Ref. T245-A
Power Cord .............................................. 1 unit
Ref. 0009401 (230V)
Manual ........................ 1 unit
Ref. 0017069
CD Control Unit ..................................... 1 unit
Ref. CD-2HE (230V)
Brass Wool ................ 1 unit
Ref. CL6210
Cartridges .............................................. 2 units
Ref. C245903 (x1)
C245741 (x1)
General Purpose Handle ................. 1 unit
Ref. T245-A
Sponge ....................... 1 unit
Ref. S0354
精简焊接台
Ref. CD-2BHE
www. jbc to ols .com
Cable collector
Quick Tip Changer
Tip Cleaner
Process
Screen
Adjustable Stand:
Intelligent Heat
Management

www.jbctools.com
24 25

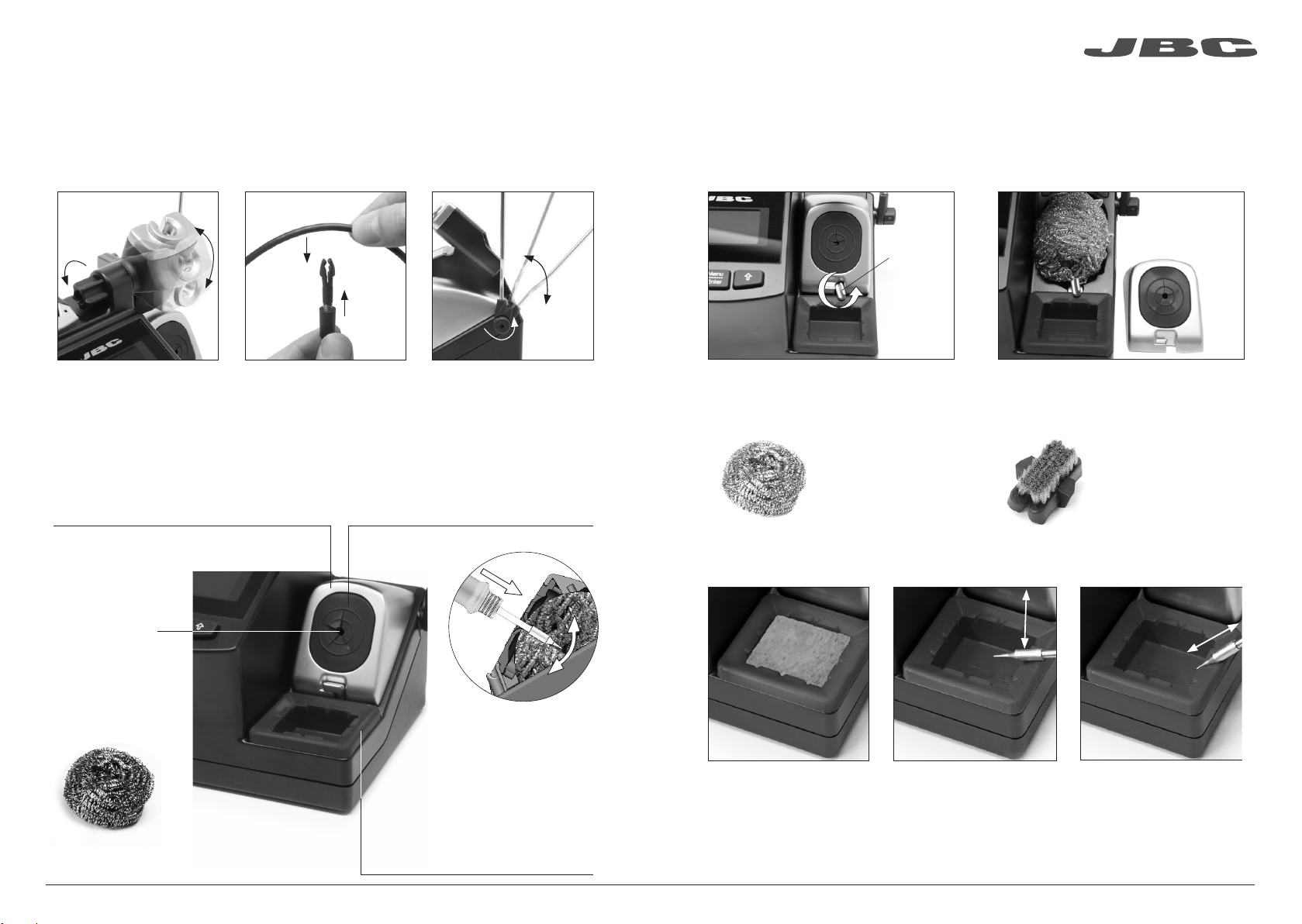

Adjustable stand Cable collector (Ref. CC3702)
Adjust the tool stand to suit
your work position.
Place the cable on the collector so that the working area is free
of cable.
Tip Cleaner
Brass Wool
Ref. CL6210
Very effective
cleaning method.
Leaves a small layer
of solder on the tip
preventing oxidation
between cleaning
and rewetting.
Select the option to suit your needs and improve the thermal transfer of the tip.
Splashguard
Ref. 0017576
It prevents splashing of solder particles
when using the brass wool.
Antisplash Membrane
Ref. 0017574
Prevents splashing to maintain the work area
clean.
Removing the splashguard:
1. Unlock the splashguard. 2. Remove it.
Lock
More cleaning options (not supplied):
Inox Wool
Ref. CL6205
Provides a superior
cleaning of the tip.
Metal Brush
Ref. CL6220
When used carefully, it
provides a more thorough
cleaning.
Wiper
Ref. CL0160
A temperature resistant receptacle
for removing excess solder by gently
tapping or wiping.
Sponge
Ref. S0354
The least harmful cleaning
method. Keep the sponge
damp with distilled water
when working to avoid tip
wear.
Tapping:
Tap gently to remove excess
solder.
Wiping:
Use the slots to remove
remaining particles.
Wiper
If the tip is very dirty,
JBC recommends first
cleaning it with the wiper
to remove excess solder.

Blue grip to quickly distinguish
from other handles
Foam
Soft foam (Ref. 0016057)
Non-slip soft touch
Blue grip to easily distinguish it from other handles
Insert the slide-on tabs into
the new grip.
Push the grip with the tabs
onto the handle.
To remove the tabs, hold the
grip and pull them out. Use a
pliers if necessary.
tabs
new grip
www.jbctools.com
26 27

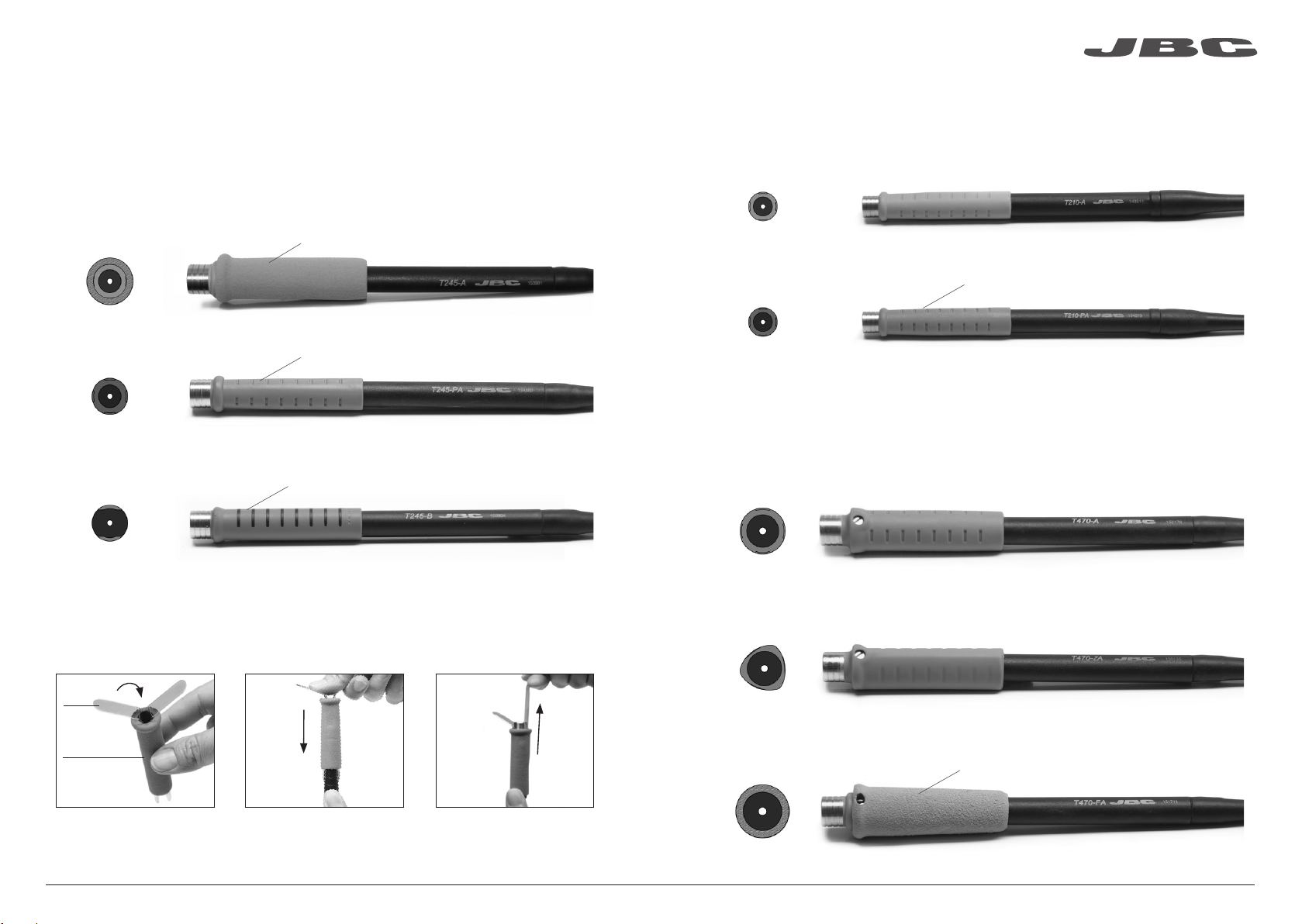

For precision use
Works with C210 Cartridge range
For greater demands
Important: Only work with C245 cartridges when used with a CD station.
Precision Purpose Handle
Ref. T210-A
Blue Precision Handle
Ref. T210-PA
For intensive soldering jobs requiring continued high thermal power. They feature good thermal
insulation and a screw which fixes the cartridge and prevents its rotation.
HD Purpose Handle HD Purpose Handle + 3m cable
Ref. T470-A Ref. T470-SA
Tri-lobed HD Handle
Ref. T470-ZA
For better handling of the tool.
Thermal Insulator HD Handle Thermal Insulator HD Handle + 3m cable
Ref. T470-FA Ref. T470-MA
Note: All models are supplied with a 1.5 m cable except those specified with 3 m.
For general use
Works with C245 Cartridge range
Compatible Handles
General Purpose Handle
Ref. T245-A
Note: All models are supplied with a 1.5 m cable.
Easily replace the Grips for T245-A using the slip-on tabs (Ref. 0016057 Supplied with 4 grips).
1. Inserting tabs 2. Inserting handle 3. Removing tabs
Blue Handle
Ref. T245-PA
Non-slip Handle
Ref. T245-B

ø 1
ø 1,5
ø 3,5
A
AB
www.jbctools.com
B
CA
28 29
USB Connector
Download the latest software from our website to improve your soldering station.
JBC Updater
www.jbctools.com/software.html
Update the station software via USB connection:
Cable USB AB
JBC
Manager
JBC
Updater
JBC Manager
www.jbctools.com/manager.html
Manage and monitor as many stations as your PC can handle by using the JBC Manager. You can
export data to another PC.
Register Settings
Create graphs of the
soldering process in real
time with power and
temperature data.
Manager Settings
Change settings for a
group of JBC stations at
the same time.
any JBC
station
USB
Hub
Cable
USB AB
Quick Tip Changer
Round Chisel Round
bent
Bevel Special models
Compatible cartridges
The CD stations work with C245 cartridges and T245/T470 handpieces or C210 cartridges with
T210 handpieces. Find the model that best suits your soldering needs in www.jbctools.com
Save time and change cartridges safely without switching the station off.
1. Removing 2. Inserting 3. Fixing
Place the handpiece in the
extractor and pull to
remove the cartridge.
Place the handpiece on top
of the new cartridge and
press down slightly.
Use the holes for fixing the
cartridge* as follows:
A. For straight C210.
B. For curved C210.
C. For C245.
*Important
It is essential to insert the cartridges as far as the mark for a proper connection.
Mark

-10
睡眠温度 15 0
o
C
睡眠
焊笔置架上不热
休眠
0
功 率 5%
被選溫度 350
o
C
00
cc
350 350
c
350
0
被選溫度 350
o
C
功 率 5%
鎖定溫度 350
o
C
等级ºC 270 350 400
-10
c
350
Main menu
4 Counters
5
Program version
Exit
1 Reset settings
2
Station settings
3 Tool settings
4 Hibernation hours 0
5 No tool hours 0
6 Sleep cycles 0
Back
Back
1 Plugged hours 0
2 Working hours 0
3 Sleep hours 0
Counters
Station settings
5 Help text OFF
6 Beep ON
7 Change PIN
1 Temp unit Celsius
2 Maximum temp 400
0
C
3 Minimum temp 200
0
C
4 Metronome ----
Back
4 Sleep temp 150
0
C
5 Hibernationdelay 10 min
6 Temp adjust + O
O
C
Tool 245
Back
1 Fix one temp -----
2 Temp levels set OFF
3 Sleep delay 0 min
Tool settings
www.jbctools.com
30 31
The work screen provides
useful information of tool
status in real time.
Work Screen
Control Process
Displays a specific fixed temp.
Shown when you have
selected temp. levels. The
values must be adjusted
according to the work needs.
“Temp. Adjust” parameter.
It provides a more precise
adjustment between the
selected temp and the
actual one.
Operation
The JBC Exclusive Heating System
This revolutionary technology is able to recover tip temperature extremely quickly.
This allows the user to work at a lower temperature.
As a result, tip life increases up to 5.
· Change temperature
(from 90 to 450ºC)
· Select temperature levels
· Fix one temperature
· Change Sleep temperature
· Set Sleep delay
(from 0 to 9 min or no Sleep)
· Change Hibernation delay
(from 0 to 35 min)
Long time in
the stand
1. Work
When the tool is lifted from the
stand the tip will heat up to the
selected temperature.
2. Sleep
When the tool is in the stand,
the temperature falls to the
preset sleep temperature.
3. Hibernation
After longer periods of
inactivity, the power is cut off
and the tool cools down to
room temperature.
Menu Screen
Original PIN: 0105
Temp levels
Fixed temp
Sleep Hibernation
Selected temp
Tool in the
stand,
no heat
Power

www.jbctools.com
32 33
Tool Settings
Sleep delay
Set the time that the tool will
remain at the selected tempe-
rature when in the stand be-
fore entering sleep mode. The
tip temperature will then drop
to the Sleep temperature.
Sleep temperature
This is the set temperature the
tip reaches when returned to
the stand.
Fix one temperature
Fix a value within the
temperature range of the sta-
tion (90-450ºC/190-840ºF).
Temperature levels set
Similar to “Fix one temp”
parameter. In this case, the
user can set up to 3 values for
different power requirements.
The sleep temperatures
are set to achieve a ba-
lance between preventing
oxidation and reaching the
working temperature in a few
seconds.
Ideal for soldering more than
one component at a specific
temperature. The station will
reject any attempt to change
the temperature.
This allows a quick change
between 3 different tempe-
ratures. Set them according
to the allowed values for your
soldering applications.
Because our tools reach the
working temperature from the
deafult Sleep mode in only a
few seconds, this parameter
is preset to 0 min. Once the
tool is returned to the stand
the temperature will automati-
cally drop to the sleep tempe-
rature, extending tip life and
avoiding oxidation. Retinning
the tip before placing the tool
in the stand will protect the tip
and extend its life.
Recommendations
Parameter description Warnings
N/a
N/a
Setting these
parameters to higher
values will unnecessarily
accelerate oxidation
and shorten tip life
especially when working
with temperatures up to
450°C (840°F).
Parameters
Station Settings
Minimum temperature
Set the minimum
temperature to work with.
Min. temp. by default is
200ºC (392ºF). This is consi-
dered to be a proper starting
point for leaded applications.
Maximum temperature
Set the maximum
temperature to work with.
Max. temp by default is 400°C
(750°F). This is considered
high enough to work with
most lead-free applications.
Temperature unit
Celsius (ºC) or Fahrenheit (ºF)
Metronome
This activates a beep sound.
Frequencies vary from 1 to 50
seconds.
Help text
Activate this parameter to
receive info from the system.
Beep
Enable/disable the beep
sound of the keypad.
Change pin
Change the default security
PIN number (0105).
Recommendations
Parameter description
The PIN must be entered
every time a parameter is
changed.
Useful for setting a work rate
in repetitive jobs. The beep
lets you know the length of
time the tip must be in con-
tact with the soldering joint.
N/a
N/a
N/a
Warnings
The station temperature
range is 90-450ºC
(190-840ºF). Change the
temperature limits when
working with less common
applications such as low /
high melting point solde-
ring (HMP) or plastics (e. g.
riveting).
N/a
N/a
N/a
N/a
In most cases,
working with temperatures
over 400°C (750°F) can
damage the PCB and its
components. Even in short
time periods of tip contact
with the soldering joint, the
flux may not work properly
and could seriously reduce
tip life.
If the solder joint requires
more power (e.g. multila-
yered or high dissipation
boards), JBC strongly
recommends using other
aids like preheaters.
Be careful when using these parameters as they may reduce the tip life if not used properly. Please
follow the recommended guidelines:

www.jbctools.com
34 35
Before carrying out maintenance, always allow the equipment to cool.
- Clean the station screen with a glass cleaner
or a damp cloth. Clean
periodically
- Use a damp cloth to clean the casing and
the tool. Alcohol can only be used to clean
the metal parts.
- Periodically check that the metal parts of
the tool and stand are clean so that the
station can detect the tool status.
- Maintain tip surface clean and tinned prior
to storage in order to avoid tip oxidation.
Rusty and dirty surfaces reduce heat
transfer to the solder joint.
- Periodically check all cables and tubes.
Maintenance
1. Pull off the fuse holder and remove the
fuse. If necessary use a tool to lever it off.
2. Press the new fuse into the fuse holder
and replace it in the station.
- Replace a blown fuse as follows:
- Replace any defective or damaged pieces. Use original JBC spare parts only.
- Repairs should only be performed by a JBC authorized technical service.
Hibernation Delay
Set the time the tool will
remain at Sleep temperature
before entering the Hiber-
nation mode. At this time,
the power supply is cut off
and the tip remains at room
temperature.
Temp Adjustment
It provides a more precise
adjustment between the
selected temperature and the
actual one.
This function completely
protects the tip from oxida-
tion during long periods of
inactivity while the tool is in
the stand.
Retinning the tip before pla-
cing the tool in the stand also
helps prevent oxidation and
extends the life of the tip.
Set values within ±50°C
(± 90°F) to achieve zero error.
JBC strongly recommends
the use of TID-A or TIA-A
Thermometers to obtain
precise readings.
Tool Settings
RecommendationsParameter description Warnings
Increasing the default
value will accelerate oxi-
dation and shorten the tip
life.
When the user chan-
ges the cartridge type, the
parameter should be reset to
0°C/F or to the value needed
for this cartridge. E.g. If a
correction of +20°C (+36°F)
is set for the C245966 (thick
type) and then the user
changes the cartridge for a
C245030 (which is thinner)
without resetting, they would
be working at a temperature
of +20°C (+36°F) lower for
the C245030 which does
not need any temperature
adjustment.

www.jbctools.com
36 37
Specifications
CD-2BHE 230V 50/60Hz. Input fuse: 1A. Output: 23,5V. Control Unit model: CD-2HE
- Weight: 2.6 Kg (5.7 lb)
- Dimensions: 150 x 175 x 145 mm
- Output Peak Power CD-2BHE: 130W
- Temperature Range: 90-450°C (190°-840°F) (±5%)
- Idle Temp. Stability (still air): ±1.5 ºC / ±3 ºF
- Tip to ground resistance: <2 ohms
- Tip to ground voltage: <2mV RMS
- Ambient operating temp: 10-40 ºC / 50-104 ºF
- USB connector station-PC
Complies with CE standards
ESD protected housing “skin effect”
It is imperative to follow safety guidelines to prevent electric
shock, injury, fire or explosion.
- Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire.
- The power cord must be plugged into approved bases. Be sure that it is properly grounded
before use. When unplugging it, hold the plug, not the wire.
- Do not work on electrically live parts.
- The tool should be placed in the stand when not in use in order to activate the sleep mode.
The soldering tip, the metal part of the tool and the stand may still be hot even when the station is
turned off. Handle with care, including when adjusting the stand position.
- Do not leave the appliance unattended when it is on.
- Do not cover the ventilation grills. Heat can cause inflamable products to ignite.
- Use a “non residue” classified flux and avoid contact with skin or eyes to prevent irritation.
- Be careful with the fumes produced when soldering.
- Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when
working to avoid personal harm.
- Utmost care must be taken with liquid tin waste which can cause burns.
- This appliance can be used by children over the age of eight and also persons with reduced
physical, sensory or mental capabilities or lack of experience provided that they have been given
adequate supervision or instruction concerning use of the appliance and understand the hazards
involved. Children must not play with the appliance.
- Maintenance must not be carried out by children unless supervised.
Safety

www.jbctools.com
38 39
Exploded View
