jbc GALE08V-A User manual
GALE
Guide Kits for ALE250
INSTRUCTION MANUAL
Allen Screws* ......................................... 2 units
Headless Screws* ................................ 3 units
Manual ....................................................... 1 unit
Ref. 0028365
Packing List
The following items are included:
Without Solder Wire Perforation:
GALE04D-A for wire Ø 0.4 mm / Ø 0.016 in
GALE05D-Afor wire Ø 0.5 mm / Ø 0.020 in
GALE06D-A for wire Ø 0.6 mm / Ø 0.025 in
GALE07D-A for wire Ø 0.7 mm / Ø 0.028 in
GALE08D-A for wire Ø 0.8 mm / Ø 0.032 in
GALE10D-A for wire Ø 0.9 - 1.0 mm / Ø 0.035 - 0.040 in
GALE12D-A for wire Ø 1.1 - 1.2 mm / Ø 0.043 - 0.047 in
GALE15D-A for wire Ø 1.3 - 1.5 mm / Ø 0.051 - 0.059 in
GALE16D-A for wire Ø 1.6 mm / Ø 0.063
GALE18D-A for wire Ø 1.7 - 1.8 mm / Ø 0.067 - 0.071 in
This manual corresponds to the following references:
With Solder Wire Perforation:
GALE08V-A for wire Ø 0.8 mm / Ø 0.032 in
GALE10V-A for wire Ø 1.0 mm / Ø 0.040 in
GALE12V-A for wire Ø 1.2 mm / Ø 0.047 in
GALE15V-A for wire Ø 1.5 mm / Ø 0.059 in
GALE16V-A for wire Ø 1.6 mm / Ø 0.063 in
GALE Guide Kits for ALE250 with Solder Wire Perforation
Intermediate Nozzle
Guide Set* ............................................. 1 unit
Inlet Nozzle* ............................................. 1 unit
Guide Wheel* ........................................... 1 unit
Counter Wheel* ....................................... 1 unit
Blade Clamp* ........................................... 1 unit
Blade* ......................................................... 1 unit
Intermediate Nozzle* ............................. 1 unit
Outlet Nozzle* .......................................... 1 unit
*see reference table on page 4
Guide Set
Inlet Nozzle Guide Wheel
Outlet Nozzle
Blade Clamp
Blade
Counter Wheel
Headless Screws
Allen Screws
2
The following items are included:
Packing List
Guide Set* ............................................. 1 unit
Inlet Nozzle* ............................................. 1 unit
Traction Wheel* ....................................... 1 unit
Support Wheel* ....................................... 1 unit
Counter Wheel* ....................................... 1 unit
Intermediate Nozzle* ............................. 1 unit
Outlet Nozzle* .......................................... 1 unit
*see reference table on page 5
GALE Guide Kits for ALE250 without Solder Wire Perforation
Intermediate Nozzle
Traction Wheel
Outlet Nozzle
Counter Wheel
Support Wheel
Headless Screws
Guide Set
Inlet Nozzle
Allen Screws
Allen Screws ......................................... 2 units
Headless screws ................................. 3 units
Manual ....................................................... 1 unit
Ref. 0028365
3
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm 130 mm
para manuales - color gris
200 mm
300 mm

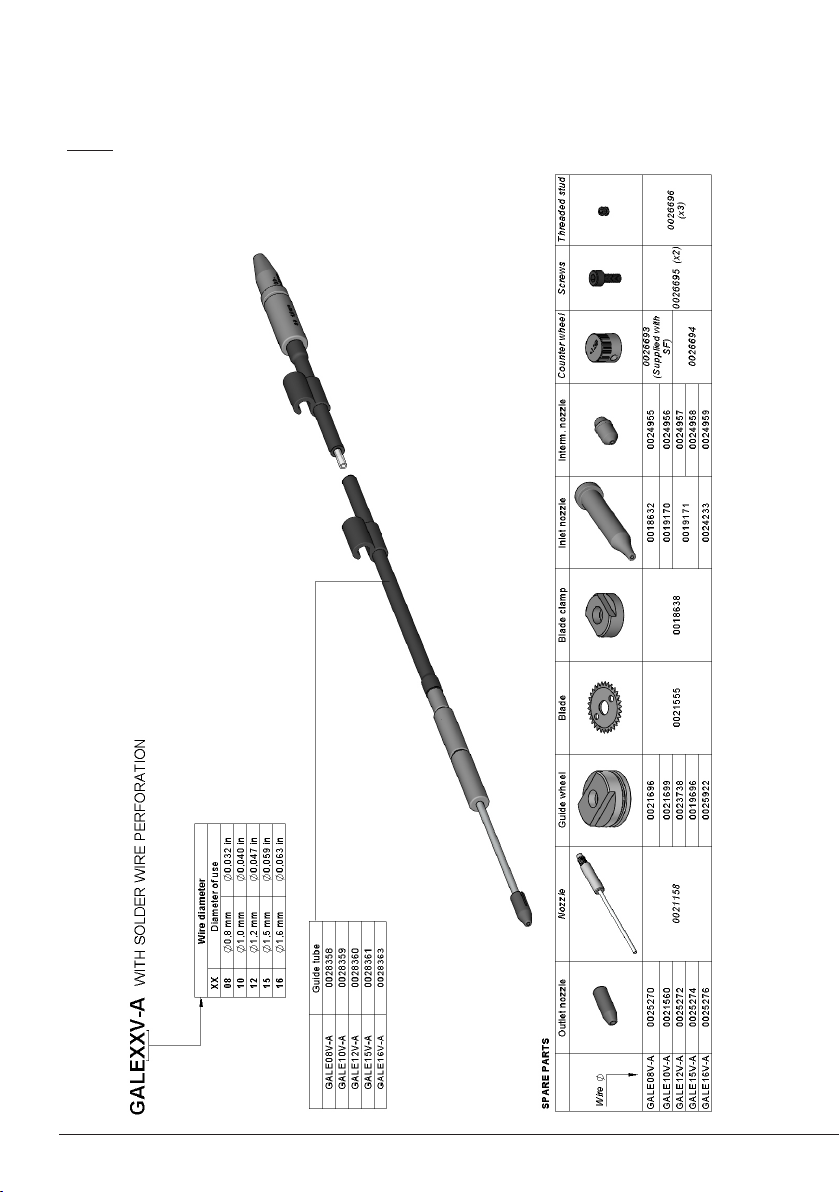

GALE Guide Kits for ALE250
with Solder Wire Perforation
4

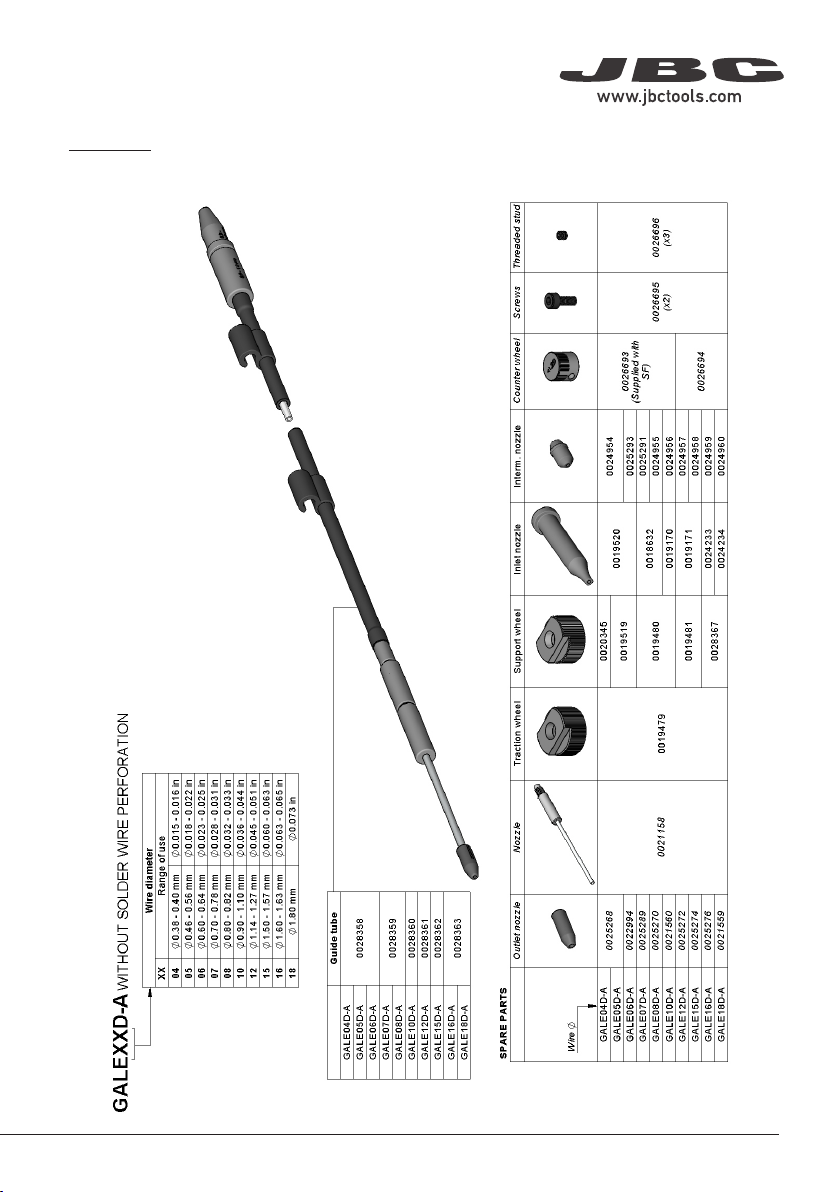

GALE Guide Kits for ALE250
