USER MANUAL - ORIGINAL INSTRUCTIONS
Model: JE-C28L
CITY ELECTRIC BIKE

2
ENG page 3
NL page 35

3
WARNING
This appliance can be used by children aged from 12 years old and above, and by persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been given
supervision or instructions concerning use of the appliance in a safe way and understand the hazards
involved.
Children shall not play with the appliance.
WARNING FOR BATTERY
This appliance is not a toy.
Children shall not play with the appliance. Keep the battery out of the reach of small children.
Adult supervision is required for minors.
This appliance can be used by children aged from 12 years old and above, and by persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been given
supervision or instructions concerning use of the appliance in a safe way and understand the hazards
involved.
Cleaning and user maintenance shall not be made by children without supervision.
The battery must be moved from the appliance before it is scrapped.
The battery is to be disposed of safely.

4

5
AT FIRST
Carefully read this user manual before using the bike. Keep this user manual for future references.
In order to avoid damage, carefully read and follow the instructions of this user manual.
The Retailer and the Distributor are not responsible of damages to objects and/or people caused by the incorrect use
of the bike.
Please check whether the tires are damaged. If anything abnormal, please provide for maintenance.
Please use the product if in good condition only.
Before riding the bike, the battery must be fully charged or almost fully charged. Follow the instructions on this user
manual to avoid technical problems.
ATTENTION
The battery is the source of the energy of the bicycle. Pay attention to its habit when using the battery.
The battery cannot be discharged and should be fully powered before each use.
Avoid deep current discharge. Recharge the battery in time, before it is empty.
Fully charge the battery every 2 months, even when the bike is not used. The charge must last 4-6 hours.

6
CAUTION
•Please read the Instruction book and check the parts are perfect before use. Ensure your safety. In case of any
quality problem, contact the Dealer in time.
•Please observe the transportation laws.
•Reduce the speed in case of snow and rain.
•Keep a long distance when using brakes to ensure your safety.
•The bike can be used when snowing or raining, but the deep water could damage the motor or the control parts. In
case it happens, carefully dry the water immediately after use.
•Use 36V power. Do not touch the two-stage of the battery when your hand is wet, otherwise it will cause shout
circuit.
•Do not dismantle the bike by yourself. If need to change parts, please contact your Dealer.
•In matter of safety of the bicycle, please do not borrow it to people who does not know how to operate it.

7
THE STRUCTURE OF THE E-BIKE

8
1. Tyre and tube 20. Crank arm and crankset
2. Wheel rim 21. Pedals
3. Range 22. Crankcase
4. Fork 23. Chain
5. Front brake 24. Front engine hub
6. Front mudguard 25. Range
7. Handlebars and handlebar stem
8. Frame
9. LCD display
10. Brake levers
11. Rear brake
12. Seat lock
13. Seat and seat post
14. Battery Monitor
15. Battery
16. Rear luggage rack
17. Rotation sensor
18. Rear mudguard
19. Kickstand

9
THE DISPLAY
Functions
1Battery output voltag indicator during use (36V/48V).
2PAS indication (0-9).
3Headlight Indication.
4Speed Indication (km/miles).
5Total Mileage (ODO), Single Mileage (Trip), Maximum Speed (MAXS), Average Speed (AVG) indication.

10
6Error indication (brake system, motor, controller, handlebar).
7Bluetooth indicator (not available with this product).
8Parameter setting function.
Power on/off
Hold pressing M button to turn-on the display of the bike.
Press again the same button to turn-off the display.
Inside “PF” setting, please set when the display will automatically turn off in case of no-use of the bike (00 means the
auto-switch off is not activated; 01-60 are the minutesbefore auto-switch off).
Front Light
Press the button nearby the display to turn on the front light.
The icon on the display will turn-on.
Press it again to turn the light off. The icon on the display will turn-off too.
PAS Level
When the display is turned-on, press “+” and “-“ buttons to select the desired motor assistance level.
The display will show the current motor assistance level.
There are 9 different speed mode.

11
When the display is turned-on, in interface menu, shortly press M button to switch from Single mileage in km or miles
(TRIP) to Total Mileage in km or miles (ODO) to Maximum speed in Km/h or Mph (MAXS) to Average speed in Km/h or
Mph (AVG).
Change the unit in “P1” setting: select 00 for kilometers and 01 for miles, using “+” and “-“ buttons.
The current real speed is displayed by default whilst pressing M button.
Push-assistance Mode
Press the “-“ button to activate the push-assistance mode (6Km/h), when the display is turned-on already.
The bike will move forward.
The push-assistance mode may only be used when the user needs to push by hand the bike.
Danger of injury when the wheels of the eBike do not have ground contact while using the push-assistance function.
Pay attention when using this function.
The push-assistance function switches off as soon as you release the “-“button.
Battery
There are 5 lights that show the level of charge of the battery.
If all lights are on means the battery power is around 80%-100%.
Four light on mean the battery power is around 60%-80%. Three lights on mean the battery power is around 40%-60%.
Two lights on mean battery power is around 20%-40%.
Just one light on means the battery power is around 0%-20%. When only one light is on, battery needs to be charged
soon. We suggest stopping soon and charge the battery.

12
Error codes
The Error code is displayed in the mileage display area in the format “E0**”.
When one of these error codes appear on the display, kindly contact your retailer or after-sale-service for immediate
assistance.
The error is probably due to a communication problem between the controller and the display.
The bike will probably not work, but the bike can be used as a normal bike.
You are responsible of any adjust of these settings.
Contact your retailer or the after-sale-service for immediate support.
Code
Description
E001
Controller failure
E002
Communication failure
E003
Hall fault
E004
Handle failure
E005
Motor error
E006
Missing phase of motor

13
SHIFT GEARS
Press outward with you thumb on the derailleur switch.
Press the derailleur downshift button to go back down one
gear at a time.
TIRE PRESSURE
The tire pressure will affect the driving mileage and riding comfort. It is suggested that you check the tire pressure
regularly and fully inflate the tires in time.
The pressure should be adjusted according to the user’s weight.
Check with your retailer for any assistance.
Size of the bicycle
Size of the tube
Size of the tyres
PSI
Bar
28“
28 x 1,75
28 x 1,75
40 - 65
2.8 - 4.5

14

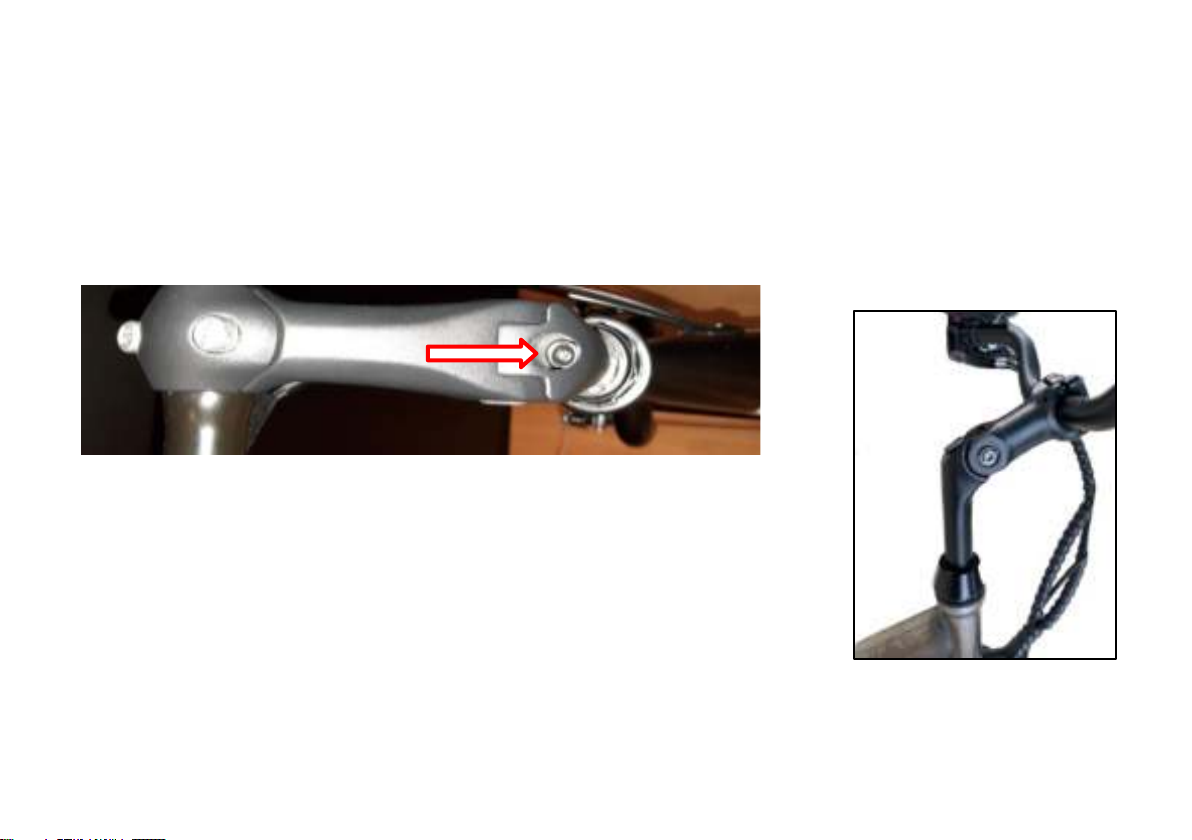

HANDLEBAR ADJUSTMENT
Your bicycle’s handlebars can be adjusted up and down.
Screw stem: Your bicycle is equipped with an “immersion” stem, and you can change the height by changing the
insertion of the stem in the frame pivot tube.
To adjust the height of the handlebar, loosen the clamping screw with a 6 mm hex wrench and raise or lower the stem
to the desired height.
Be careful not to exceed the minimum insertion mark. This insertion mark should never
be visible when using the bicycle.
Tighten the immersion screw, making sure that the stem is in the correct position.

15

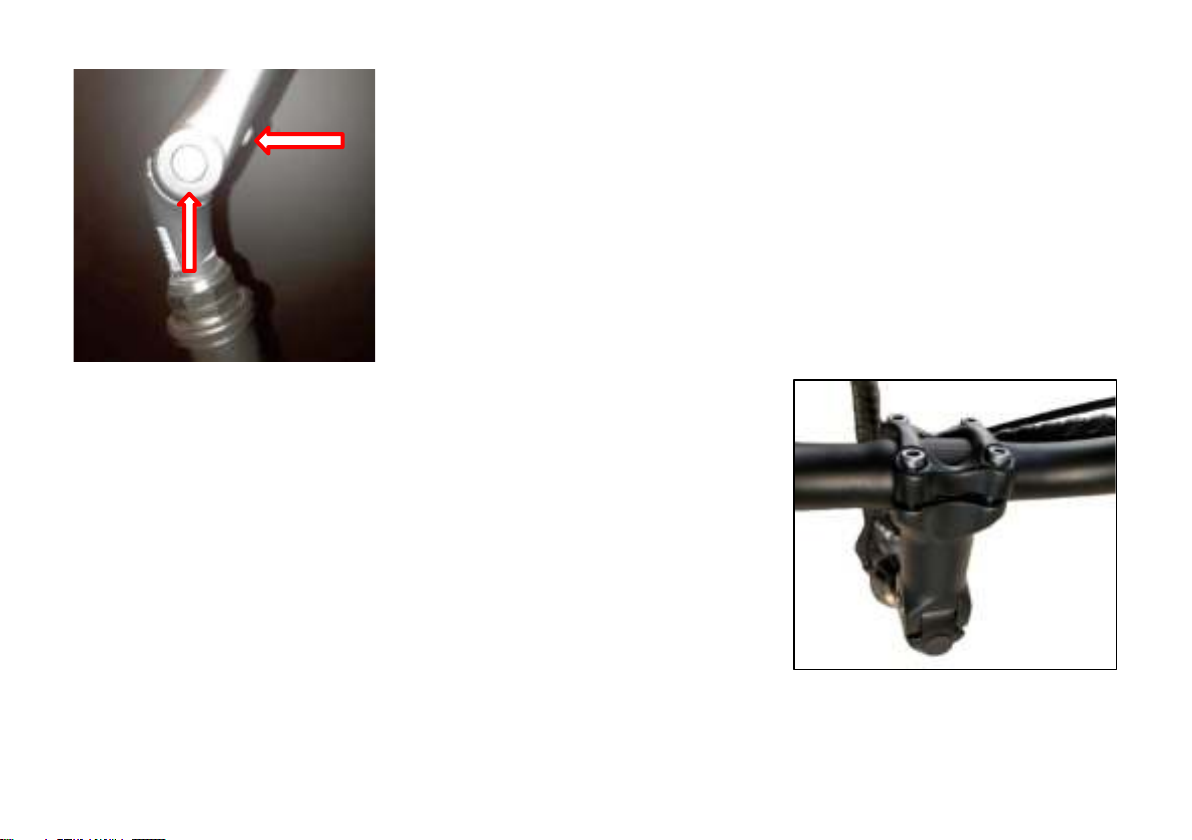

To adjust the tilt of the handlebar, loosen the stem screw-pivot shown
in the picture below with a 5 mm hex key, select the position and
tighten it.
You may then need to adjust the position of the handlebars on the stem by
loosening the screws of the stem cover, turn the handlebars at your convenience
and tighten these same screws.
Take care that the handlebars are correctly centered.

16
BRAKE ADJUSTMENT
When adjusting the brake, make sure that the brake surface contacts the brake disc tightly when the handlebar is
clenched to the middle.
If you feel the brakes are not working well, you can use the brake cable tension adjusting screw to adjust the brake
stroke.
This screw is located at the brake handle (see “A”). Turn the brake cable screw inward to relax it and the brake shoe
will be farther away from the rim; turn the brake cable screw outward to tighten it and the brake shoe will be closer to
the brake disc.
Contact your retailer or the after-sale-service in case of need.
A

17
1. When the braking system is too weak or too strong,
use the tool to loosen the screw (C point in the
picture), frap or relax the length of cable to adjust the
brake effect.
2. When adjusting the brake, please pay attention to brake pad and brake disc (D point) for
clearance uniformity. Keep vertical and lateral parallel distance, loose the screw to adjust (A point
in the picture). The brake must be adjusted so that it can be activated by force by 6-8N/m.
D

18
LUGGAGE RACK
Your bicycle is sold with a luggage rack.
It is already fixed above your rear wheel. The fasteners must be tightened and checked regularly at a torque of 4 - 6
Nm. Your luggage rack is designed for a maximum load of 25 kg, it is possible to attach a child seat.
As a safety measure, luggage must only be carried on the luggage rack. All luggage must be firmly secured to the
luggage rack before each use it is important to check that nothing is left hanging over an edge which may become caught
in the rear wheel of the bicycle. Do not adjust the rack arbitrarily, please consult your dealer for adjustment if necessary.
Do not modify the luggage rack, any modification of the rack by the user leads to the invalidity of this user guide. The
luggage should not obscure your bicycle's the reflectors and lights.
WARNING
Your luggage rack is not designed to pull a trailer.

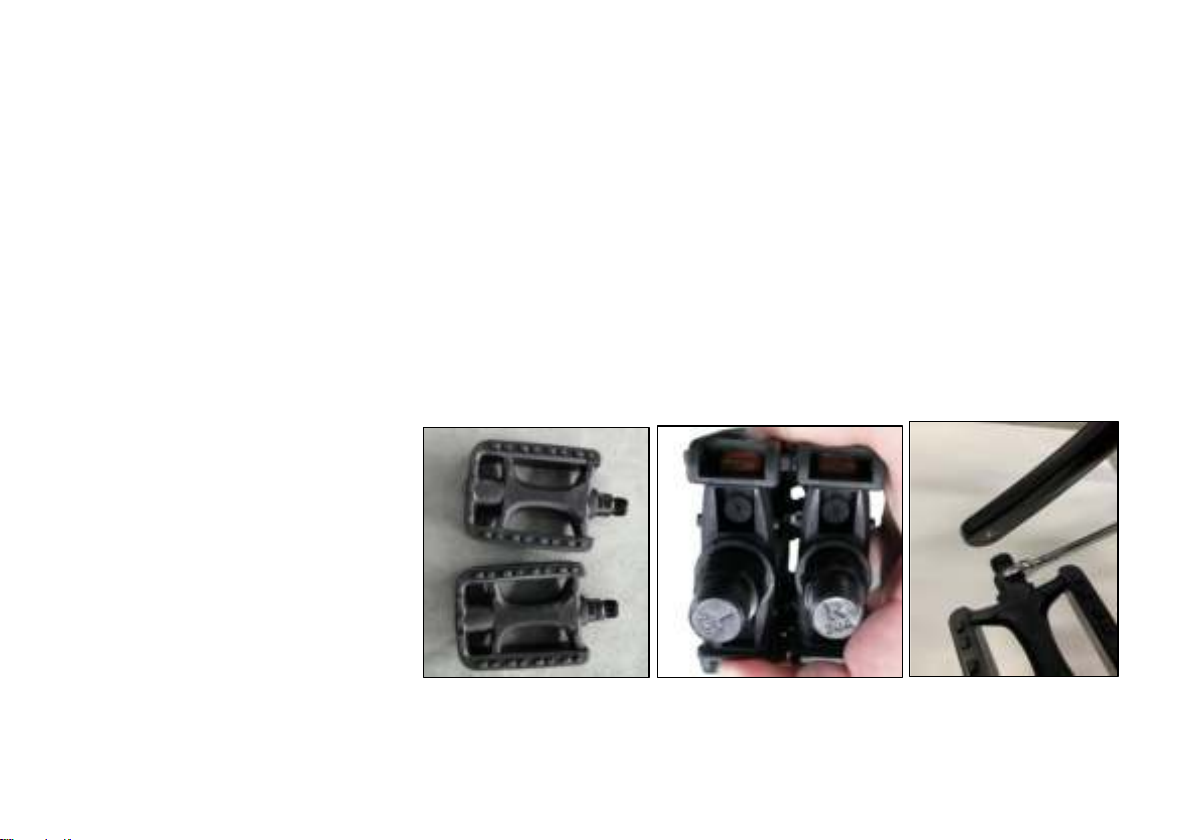

PEDAL ASSEMBLING
“L” is the left pedal, “R” is the right
pedal; both of them should tight
together by forward position.

19
SADDLE ADJUSTMENT
For the riding height, please pay attention to the distance between the seat saddle and the pedal at the lowest position.
You can adjust the seat height by loosening the seat holder pipe clamp.
When positioning the seat in its lowest position, make sure that it does not touch any components of the bicycle such as
the luggage rack.
Likewise, make sure you do not exceed the minimum insertion mark of the seat tube.
This insertion mark should never be visible when using the bicycle.
The riding height has been well adjusted if your knee joint can bend slightly when your foot is placed on the pedal (at
the bottom). To check the seat’s correct height, you should be sitting with straight legs and your heel on the pedal
(illustration B).
When pedalling, the knee should be lightly bent with the foot pointing down (illustration A). If any questions, please
consult your bicycle dealer.

20
WARNING
It is important to protect the seat springs if installing a child seat in order to avoid the risk of getting your fingers caught.
PEDALLING POWER
The electric power system is working according to the speed of your pedalling.
The faster you are pedalling, the stronger the electric power will be within its limit speed of 25km/h; if you’re not
pedalling, the motor will stop.
The user must rotate the pedal forward to receive the motorized assistance. This is an important safety feature. This
power-assisted bicycle provides motorized assistance up to a speed of 25 km/h. Beyond that, the engine will stop. You
can go faster, but you will have to do it on your own, without any electrical assistance.
