Jet JMD-50LPFD User manual

1
Keep for future referen

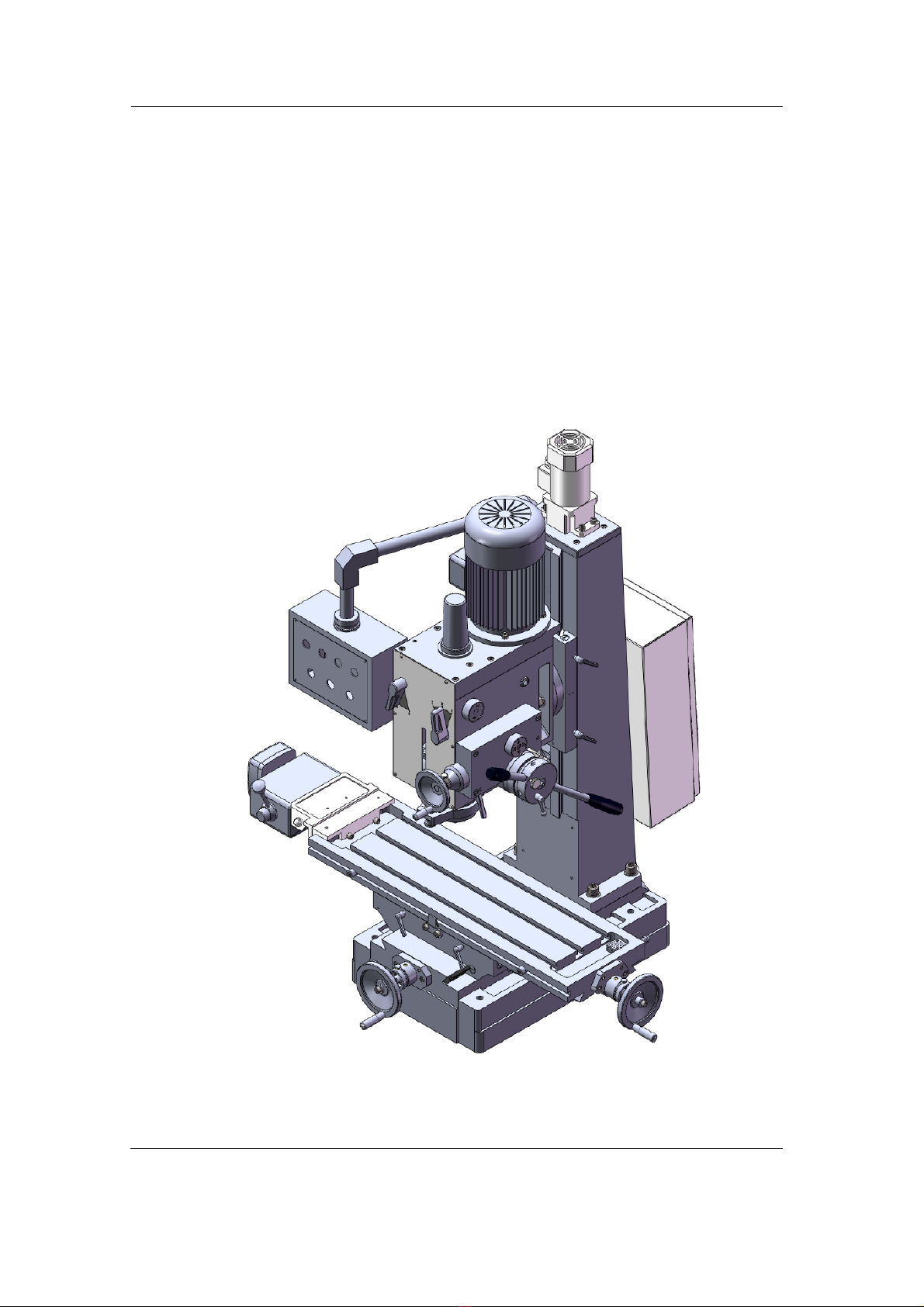

OWNER’S MANUAL
GEARED HEAD
MILLING & DRILLING MACHINE
Model JMD-50LPFD
READ ALL INSTRUCTIONS CAREFULLY

2
WARNING:FAILURE TO FOLLOW THESE RULES
MAY RESULT IN SERIOUS PERSONAL INJURY
As with all machinery there are certain hazards involved with operation and use
of the machine. Using the machine with respect and caution will considerably
lessen the possibility of personal injury. However, if normal safety precautions
are overlooked or ignored, personal injury to the operator may result.
This machine was designed for certain applications only. We strongly
recommends that this machine. NOT be modified and/or used for any application
other than for which it was designed. If you have any questions relative to its
application DO NOT use the machine until you have had detail instruction form
your dealer.
SAFTEY RULES FOR ALL TOOLS
1.FOR YOUR OWN SAFETY , READ THIS INSTRUCTION MANUAL
BEFORE OPERATING THE TOOL. Learn the tool’s application and
limitations as well as the specific hazards peculiar to it.
2.KEEP GUARDS IN PLACE and in working order.
3.GROUND ALL TOOLS. If tool is equipped with three-prong plug, it should be
plugged into a three-hole electrical receptacle. If an adapter is used to
accommodate a two-prong plug receptacle, the adapter lug must be attached to a
know ground . Never remove the thrid prong.
4.REMOVE ADJUSTING AND WRENCHES.
Form habit of checking to see that keys and adjusting wrenched are removed
form tool before turning it “on.”
5.KEEP WORK AREA CLEAN. Cluttered areas and benches invite accidents.
6.DON’T USE IN DANGEROUS ENVIRONMENT. Don’t use power tools in
damp or wet locations, or expose them to rain. Keep work area well-lighted.
7.KEEP CHILDER AND VISITORS AWAY. All children and visitors should be
keep a safe distance form work area.
8.MAKE WORKSHOP CHILDROOF-with padlocks, master switches, or by
removing starter keys.
9.Don’t force tool. It will do the job better and be safer at the rate for which it
was designed.
10.USE RIGHT TOOL. Don’t force tool or attachment to do a job for which it
was not designed.

3
11.WEAR PROPER APPAREL. No loose clothing , gloves , neckties , rings ,
bracelets, or other jewelry to get caught in moving parts. Nonslip foot wear is
recommended . Wear protective hair covering to contain long hair.
12.ALWAYS WEAR EYE PROTECTION. Refer to ANSIZ87.1 Standard for
appropriate recommendations . Also use face or dust mask if cutting operation is
dusty.
13.SECURE WORK. Use clamps or a vise to hold work when practical. It’s safer
than using your hand and frees both hands to operate tool.
14.DON’T OVERREACH. Keep proper footing and balance at all times.
15.MAINTAIN TOOLS IN TOP CONDITION.
Keep tool sharp and clean for best and safest performance. Follow instructions
for lubricating and changing accessories.
16.DISCONNECT TOOLS before servicing and when changing accessories such
as blades,bitscutters,etc.
17.USE RECOMMENDED ACCESSORIES.
Consult the owner’s manual for recommended accessories. The use of improper
accessories may cause hazards.
18.AVOID ACCIDENTAL STARTING. Make sure switch is in “OFF”postion
before plugging in power cord.
19.NEVER STAND ON TOOL. Serious injury could occur if the tool is tipped or
if the cutting tool is accidentally contacted.
20.CHECK DAMAGED PARTS. Before further use of the tool, a guard or other
part that is damaged should be carefully checked to ensure that it will operate
properly and perform its intended function check for alignment of moving parts
binding of moving parts,breakage of parts mounting , and any other conditions
that may affect its operation.A guard or other part that is damaged should be
properly repaired or replaced.
21.DIRECTION OF FEED. Feed work into a blade or cutter against the
direction of rotation of the blade or cutter only.
22.NEVER LEAVE TOOL RUNNING UNATTENDED.TURN POWER OFF.
Don't leave tool until it comes to a complete stop.
23.DRUGS ALCOHOL, MEDICATION. Do not operate tool while under the
influence of drug,alcohol or any medication.
24.MAKE SURE TOOL IS DISCONNECTED FORM POWER SUPPLY while
motor is being mounted, connected or reconnected.

4
ADDITIONAL SAFETY RULES FOR MILL DRILL
1. BE SURE drill bit or cutting tool is securely locked in the chuck.
2. BE SURE chuck key is remove form the chuck before turning on power .
3. Adjust the table or depth stop to avoid drilling into the table.
4. SHUT OFF the power , remove the drill bit or cutting tool, and clean the
table before leaving the machine.
5. CAUTION. When practical, use clamps or a vise to secure workpiece to keep
the workpiece form rotating while the drill bit or cutting tool.
6. WARNING: FOR Your Own Safety Don’t wear gloves when operating a
mill/drill.
SPECIFICATION
Model JMD-50LPFD
cast iron 45mmDrilling capacity
mild steel 32mm
Face mill capacity 80mm
End mill capacity 32mm
Working table size 1000mm×240mm (800mm×240mm)
Working table cross travel 190mm
Working table longitudinal travel 760mm (560mm)
T-slot size 14mm
Head tilt left right ±45º
Head swivel
Spindle taper(option) ISO30
Max distance spindle to table 450mm
Spindle stroke 120mm
I 75180 280 6001000 1600
Motor 1.1KW/1.5KW/50Hz II 150 360 560 1200 2000 3200
I 115 205 345 530 940 1575
Spindle speed(rpm)
(option) Motor 1.1KW/1.5KW/60Hz II 230 410 690 1060 1880 3150
Overall dimension 1250mm×960mm×1320mm
Packing dimension 900mm×880mm×1150mm
NW/GW Weight 320/360Kg
WARNING: CHANGE SPEED ONLY WHEN MACHINE IS STOPPED
CHANGING THE GEAR BOX OIL

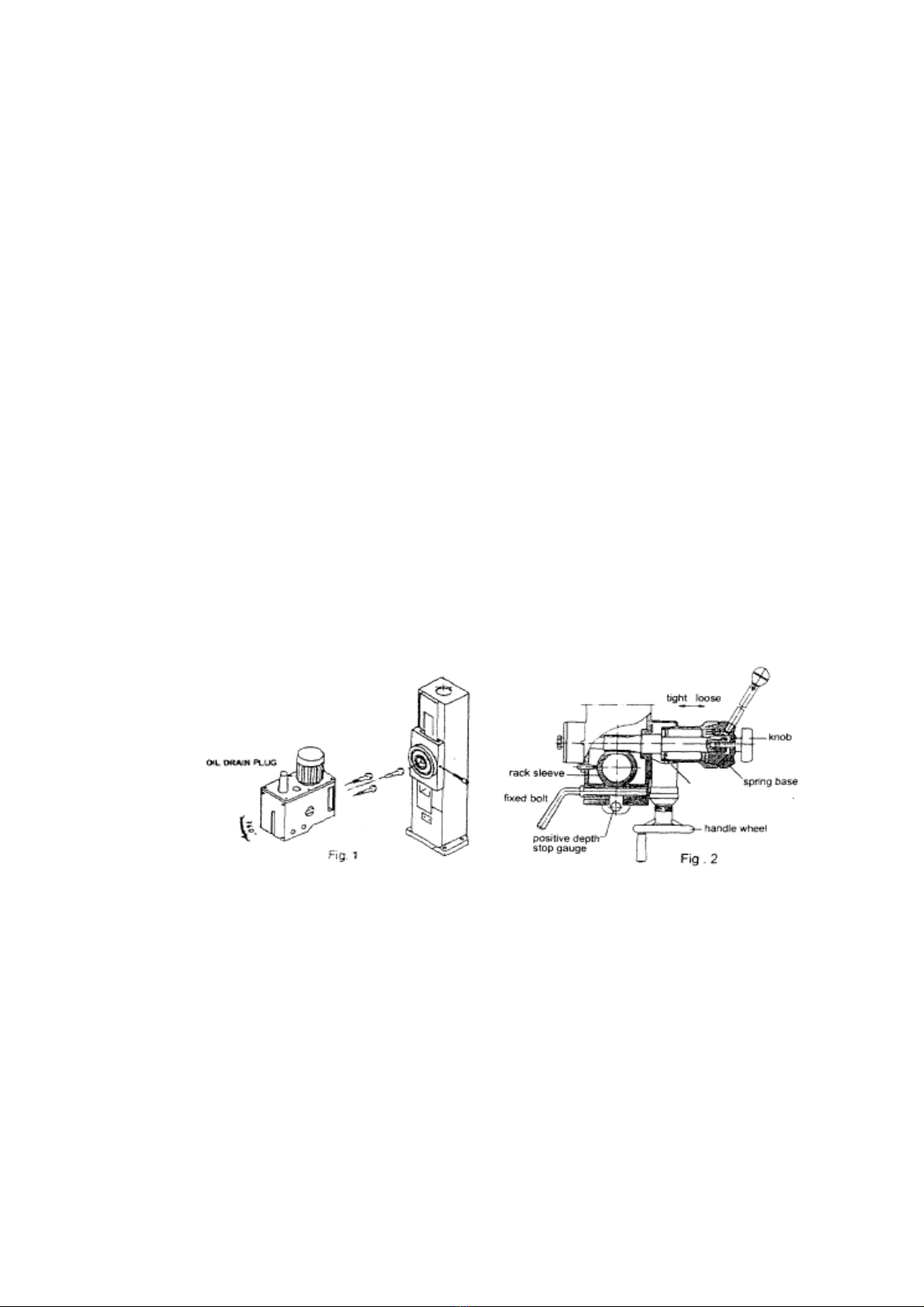

Tilt the head stock over as shown in Fig 1. Open the drain plug to allow the oil to
drain form the opening completely. Then lock the oil drain plug and turn the
head to be upright position. Remove the oil filler plug fill the oil to the gear until
the oil lever reach the middle of oil fluid lever indicator. Then lock the plug.
IMPORTANT: The gear boxlubrication oil: 32# mechanical oil, 3L.
CHANGE OIL EVERY ONE YEAR.

5
CLEANNING
(1) Your machine has been coated with a heavy grease to protect it in shipping.
This coating should be completely removed before operating the machine.
Commercial degreaser , kerosene or similar solvent may be used to remove
the grease form the machine, but avoid getting solvent ob belts or other
rubber parts.
(2) After cleaning , coat all bright work with a light lubrication. Lubricate all
points with a medium consistency machine oil.
LUBRICATION:
All ball bearings in your mill/drill are sealed for lift,requiring no lubrication.
Points requiring lubrication are:
(1) Internal spline drive assembly. Keep this area well lubricated with a good
grade grease, insert grease in the hole at the top of spindle pulley spline
driver, lube twice yearly.
(2) A light film of oil applied to the quill and column will reduce wear,prevent
rust, and assure ease of operation.
(3) Quill return spring should receive oil (sae 20) once yearly. Remove cover
plate and apply oil with squirt can or small brush.
(4) IMPORTANT: The gear box lubrication oil: 32# mechanical oil, 3L.
CHANGE OIL EVERY ONE YEAR
(5) Apply lubriplate to quill pinion every 90 days.
NOTE: use extreme care when performing this operation and keep hands clear
of pinch points. When using paraffin bar , do this only by turning the sheaves by
hand. Do not apply with motor running.
USE OF MAIN MACHINE PARTS
(1) To raise and lower the head by head handle.
(2) Equipped with an electric switch for tapping operation clockwise or
counterclock wise.
(3) To adjust the quick or slow feeding by feed handle.
(4) To adjust the table left and right travel by table handle wheel.
(5) To adjust the table fore and after travel by table handle wheel.
(6) To operate the spindle handle wheel for micro feed.
(7) To adjust the scale size according to working need.
PRECAUTION OPERATION
Check all parts for proper condition before operation ; if normal safety
precautions are nnoticed carefully, this machine can provide you withstanding of
accurate service.

6
(1) Before Operation
(a) Fill the lubricant
(b) In order to keep the accurate precision, the table must be free form dust
and oil deposites.
(c) Check to see that the tools are correctly set and the workpiece is set
firmly.
(d) Be sure the speed is not set to fast.
(e) Be sure everthing is ready before use
(2) After Operation
(a) Turn off the electric switch.
(b) Turn down the tools.
(c) Clean the machine and coat it with lubricant.
(d) Cover the machine with cloth to keep out the dust.
(3) Adjustment of head
(a) To raise and lower the head,loosen the leaf screw located on the right side
of the raise and lower base.When the desired height is reached tighten
leaf screw to avoid vibration.
(b) Unscrew 3 nuts while the workpiece needs to be bevel turn to the degrees
you wish on the scale,then screw the 3.
QUILL RETURN SPRING ADJUSTMENT:
Spring tension for return of spindle , after hole drilling,has been pre-set at
the factory.Nofuther adjustment should be attempted unless absolutely
necessary. Adjustment will probably br required if a multiple spindle drilling
or tapping head is used.If adjustment is necessary , loosen lock screw while
holding quill spring housing. Do not allow the housing to turn in your hand ,
or spring will unwind.Turn entire housing assembly clockwise the number of
turns necessary to cause the quill to return to its uo position.(NOTE:The flat
of the spring housing pilot is lined up with the spring loading hole on the

7
body of the spring housing.) Reset lockscrew make sure point of screw mates
the flat on the housing journal.
(1) Preparing for Drilling (see fig.2)(Except addition power feed system).
Turn of the knob make loose the taper body of worm gear and spring
base. Then we decide spindle stroke setting the positive depth stop gauge
for drilling blind hole or free state for pass hole.
(2) Preparing for milling(see fig.2)(Except addition power feed system)
(a) Adjust the positive depth stop gauge to highest point position.
(b) Turn tight of the knob be use to taper friction force coupling the
worm gear and spring base. Then turning the handle wheel by micro
set the spindle of work piece machining height.
(c) Lock the rack sleeve at the desired height with fixed bolt.
ADJUSTING TABLE SLACK AND COMPENSATE FOR WEAR(see fig.3)
(1) Your machine is equipped with jib strip adjustment to compensate for wear
and excess slack on cross and longitudinal travel.
(2) Clockwise rotation the job strip bolt with a big screw for excess slack
otherwise a little counter cloclwise if too tight.
(3) Adjust the jib strip bolt until feel a slight drag when shifting the table.
CLAMPING TABLE BASE AND MACHINE BASE (See Fig.3)
(1)When milling longitudinal feed.It is advisable to lock the cross feed table
travel to insure the accuracy of your work. To do this , tighten the small leaf
screw located on the right side of the table base.

8
(2)To tighten the longitudinal feed travel of the table for cross feed
milling,tighten the two small leaf screw on the front of the table base.
(3)Adjustable travel stops are provide on the front of the table for control of
cross travel and the desired milling length.
TO CHANGE TOOLS
(1) Removing Face Mill or Drill Chuck Arbor
Loosen the arbor bolt at the top of the spindle shaft approximately 2 turns
with a wrench.Rpa the top of the arbor bolt with a mallet.
After taper has been broken loose,holding chuck arbor on hand and turn
detach the arbor bolt with the other hand.
(2) To install Face Mill or Cutter Arbor
Insert cutter and cutter arbor bolt detach securely, but do not over-tighten.
(3) Removing Taper Drills
(a)Turn down the arbor bolt and insert the taper drill into the spindle shaft.
(b)Turn the rapid down handle rod down until the oblong hole in the rack
sleeve appears.Line up this hole with the hole in the spindle.Insert key punch key
through holes and strike lightly with a mallet. This will force the taper drill out.
SPECIFICATION OF T-SLOT
The size of T-Solt on table as fig.4

9
TROUBLE SHOOTING HINTS
TROUBLE PROBABLE CAUSE REMEDY
Excessive
Vibration
1.Motor out of balance
2.Bad motor
1.Balance or replace problem motor.
2.Replace motor
Motor stalls 1.Over feeding.
2.Dull drill.
3.Motor not building up to
running speed.
4.Bad motor
1.Replace feed rate.
2.Sharpen drill and keep sharp.
3.Replace or repair motor .Check fuses in all
three legs on three phase motors and replace
if necessary.
4.Replace motor
Noisy Operation 1.Excessive vibration
2.Improper quill adjustment.
3.Nosiy spline.
4.Noisy motor
1.Check remedy under excessive vibration.
2.Adjust quill.
3.Lubricate spline.
4.Check motor bearing or for loose motor fan.
Drill or Tool heats
up or burns work
1.Excessive speed.
2.Chips not clearing.
3.Dull tool.
4.Feedreate too slow.
5.Rotation of drill incorrect.
6.Failure to use cutting oil or
coolant (on steel)
1.Readuce speed.
2.Use pecking operation to clear chips.
3.Sharpen tool or replace.
4.Increase feed enough to clear chips.
5.Reverse motor rotation.
6.Use cutting oil or coolant on steel
Drill leads off 1.No drill spot.
2.Cutting lips on drill off center.
3.Quill loose in head.
4.Bearing play.
1.Center punch or center drill workpiece.
2.Regrind drill.
3.Tighten quill.
4.Check bearings and reseat or replace if
necessary.
Excessive drill
runout or wobble
1.Bent drill.
2.Bearing play.
3.Drill not seated properly in
chucks.
1.Replacedrill.Do not attempt to straighten.
2.Replace or reseat bearings.
3.Loosen , reseat and tighten chuck.
Work or fixture
comes loose or
spins
1.Failure to clamp workpiece or
work holding device to table.
1.Clampworkpiece or work holding device to
table surface.

10

11
JMD-50LPFD
NO Electrical
code Model and Specification Function description Supplier
1 QS1 JCH13-20 20/41000 Change-over switch JUCHE
2 TC JBK5-63VA Transformer AOHENG
3 QF1 JCM6-25 Circuit breaker JUCHE
4 QF2 NXB-63 C2 Circuit breaker CHNT
5 SB1 LA125H-BS542 Emergency stop button MINGER
6 SB2 LA125J-11D/206A Start button MINGER
7 HL Green Indicator light Power on MINGER
8 SB3 LA125H-BA31 Forward MINGER
9 SB4 LA125H-BA31 Reverse MINGER
10 SB5 LA125H-BA42 stop button MINGER
11 SA1 LA125H-BD33 Drilling milling /Tapping MINGER
12 SA2 LA125H-BD33 Spindle box UP/DOWN MINGER
13 SA3 LA125H-BD21 Cooling pump button MINGER
14 SQ1 KW-7 Spindle protect LEMA
15 SQ2 KW3-0Z Tapping limit switch BINGSHUANG
16 SQ3 KW3-0Z Tapping limit switch BINGSHUANG
17 SQ4 YBLX-JW2/11H/L Spindle box UP Limit CHNT
18 SQ5 YBLX-JW2/11H/L Spindle box DOWN Limit CHNT
19 KM1 3TB41 Contactor SIEMENS
20 KM2 3TB41 Contactor SIEMENS
21 KM3 3TB41 Contactor SIEMENS
22 KM4 3TB41 Contactor SIEMENS
23 KM5 3TB41 Contactor SIEMENS
24 KA HH52P-L Auxiliary relay E&E
25 KT H3Y-2 Time relay OMRON
26 DRO SDS6 DRO SINO
27 EL JC35A Halogen working lamp JINYE
28 K1 LW28-20/4 Double Speed JUCHE
29 M1 YD90L-4/2 MOTOR DONGTAI
30 M2 DB-12 Cooling pump DONGYANG
31 M3 90YYJ-90 Spindle box UP/DOWN Motor DONGYANG

12

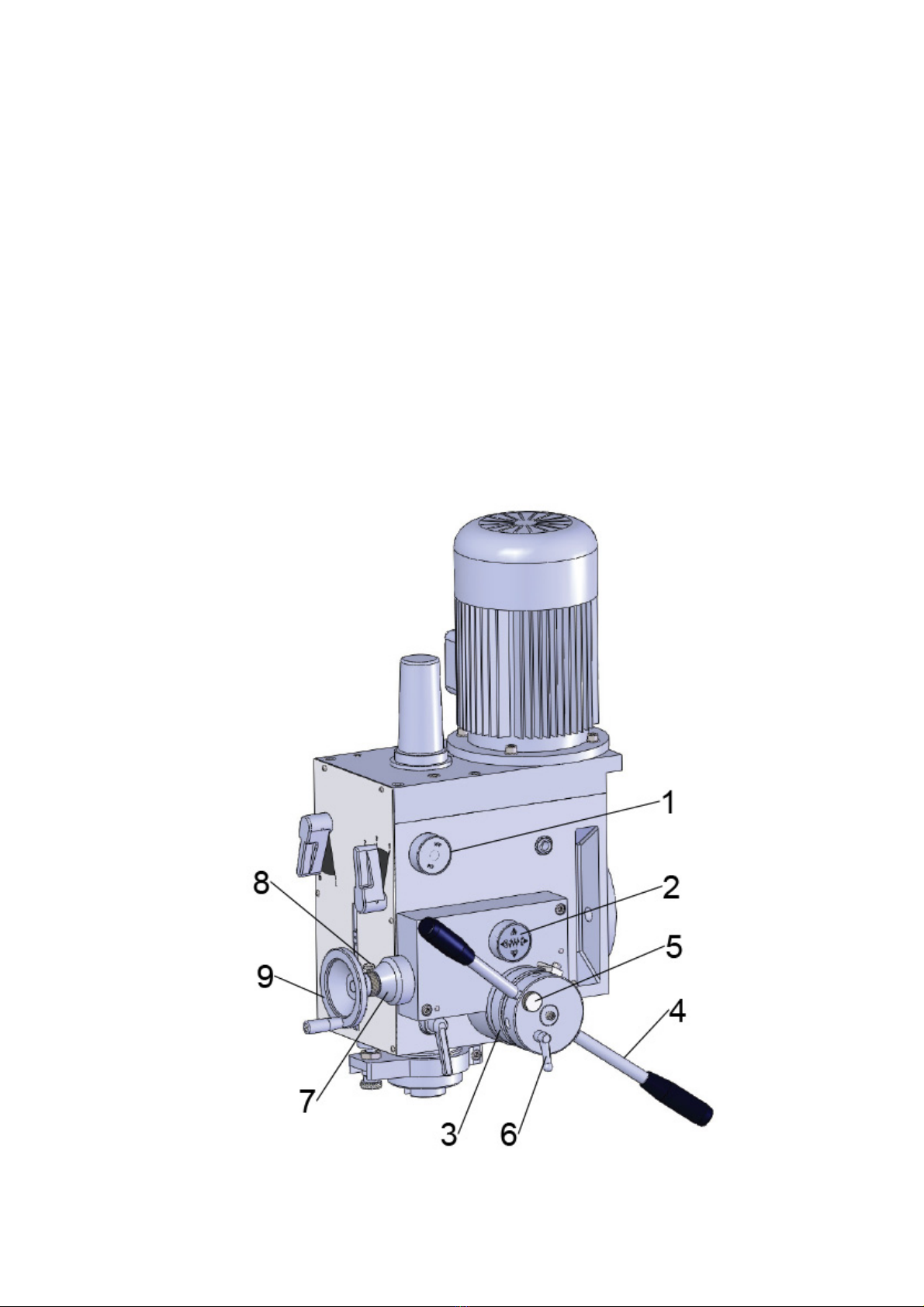

Power feed device
This machine be equipped with the power feed device see Fig.1.
1.Power feed switch
2.Speed lever
3.Spindle stroke dial
4.Handle
5.Limited screw
6.Locked nut
7.Micro feed dial
8.Locked screw
9.Hand wheel

13
OPERATION PROCEDURE
Manual feed
Turn the power feed switch 1 off, handle 4 with be vertical with the axis of
Spindle stroke dial 3, rotate limited screw 5 and be contacted with handle 4, then
can be manually feed spindle.
When the power feed switch 1 on, make handle 4 vertical , locked limited screw 5,
rotate Speed leve 2 to “0” , then can be manually feed spindle.
When want to trade off manually feed and power feed, stop the machine and
turn on power feed switch 1 and speed lever 2. Make handle 4 vertical can be
manually feed Spindle, Push handle 4 right can be power feed Spindle.
Power feed
Turn on Power feed switch 1 and Speed lever 2, Start the machine and push
handle 4 right can be power feed spindle , the machine can be automatically shut
down when spindle arrived at the designed Depth.(max Depth
120mm,availability Depth 115mm), and spindle send back.Turn Speed lever 2
can realize 0.10, 0.18, 0.26 three kinds depth feed to choose.
Want to make the machine spindle direct into power fed,loose locket nut 6, make
Spindle stroke dial 3 to max stroke depth dial position, tighten locked nut 6 form
Spindle stroke dial 3 can read spindle the position.
Adjustment power feed depth
Move spindle to the designed position , shut down the machine . Push handle 4
right , loose locked nut 6, adjusted Sindle stroke dial 3, make the deisgned dial
level with “0”,locked Spindle stroke dial 3, start the machine can power feed.
Automatically shut down when spindle arrived at the designed Depth, and
spindle send back. During power feed, make handle 4 vertical can stop power
feed. Make handle 4 vertical can stop power feed. Need to use micro feed device,
rotate Speed lever 2 to “0”, push handle 4 right, loose locked screw 8, adjust
mirco feed dial 7 to “0”, tighten locked screw 8, totate hand wheel 9 can realize
micro feed.
The system have safety clutch device, and be on use estate before leave factory.
When clutch invalidation because of fray, and want to adjustment, can take
away the panel and adjust spring can immediately recover the function.

14

15
No Code Qty. Name No Code Qty. Name
1 20102 1 Feed box 38 20201 1 Speed lever
2 20234 1 Pinion shaft 39 1 Steel ball 8
3 20243 1 Spindle stroke dial 40 2 Retainer ring 12
4 20242 1 Clutch bushing set 41 1 Spring
5 20241 1 Backing pin 42 1 Screw M6 X 20
6 1 Pin 6 X 12 43 20303 1 Plate
7 20247 1 Ball head pin 44 20206 2 pin
8 2 Pin 4 X 10 45 20204 1 Limited screw
9 20239 1 Square thread set 46 20233 1 Worm shaft
10 20240 1 Square thread nut 47 20306 1 Bush
11 20244 1 Handle body 48 1 Key
12 20245 1 Washer 49 20228 1 Gear
13 20203 2 Handle 50 20229 1 Gear
14 20237 1 Clutch key base set 51 20230 1 Gear
15 20236-2 1 Bush 52 20106 1 Bush
16 20236-1 1 Worm gear 53 20227 1 Worm cover
17 20231 2 Clutch screw set 54 20305 1 Bush
18 20235 2 Screw 55 2 Screw M6 X 12
19 20232 2 Sping 56 2 Screw M6 X 25
20 20223 1 II shaft 57 20107 1 Plate
21 2 Bearing 6003 58 20226 1 Mirco feed dial
22 20215 1 Change gear lever set 59 20105 1 Hand wheel
23 20220 1 Spring 60 1 Hand
24 20222 1 Pull key 61 1 Screw M5 X 8
25 2 Pin 2 X10 62 1 Locked screw M5 X 12
26 20304 1 Worm gear 63 20307 1 Bushing
27 1 Key 8 X 16 64 20301 2 Knob
28 20217 2 Bushing 65 1 Screw M5 X 12
29 20218 1 Gear 66 1 Oil cup
30 20219 1 Gear 67 20246 1 Screw
31 20221 1 Gear 68 20308 2 Pin
32 20216 1 Bushing bracket 69 1 Locked handle
33 2 Retainer ring 24 70 4 Screw M8 X 50
34 1 Retainer ring 35 71 2 Taper pin 6X 60
35 2 Key 4 X 8 72
36 3 Screw M4 X 12 73
37 20202 1 Gear 74

16

17

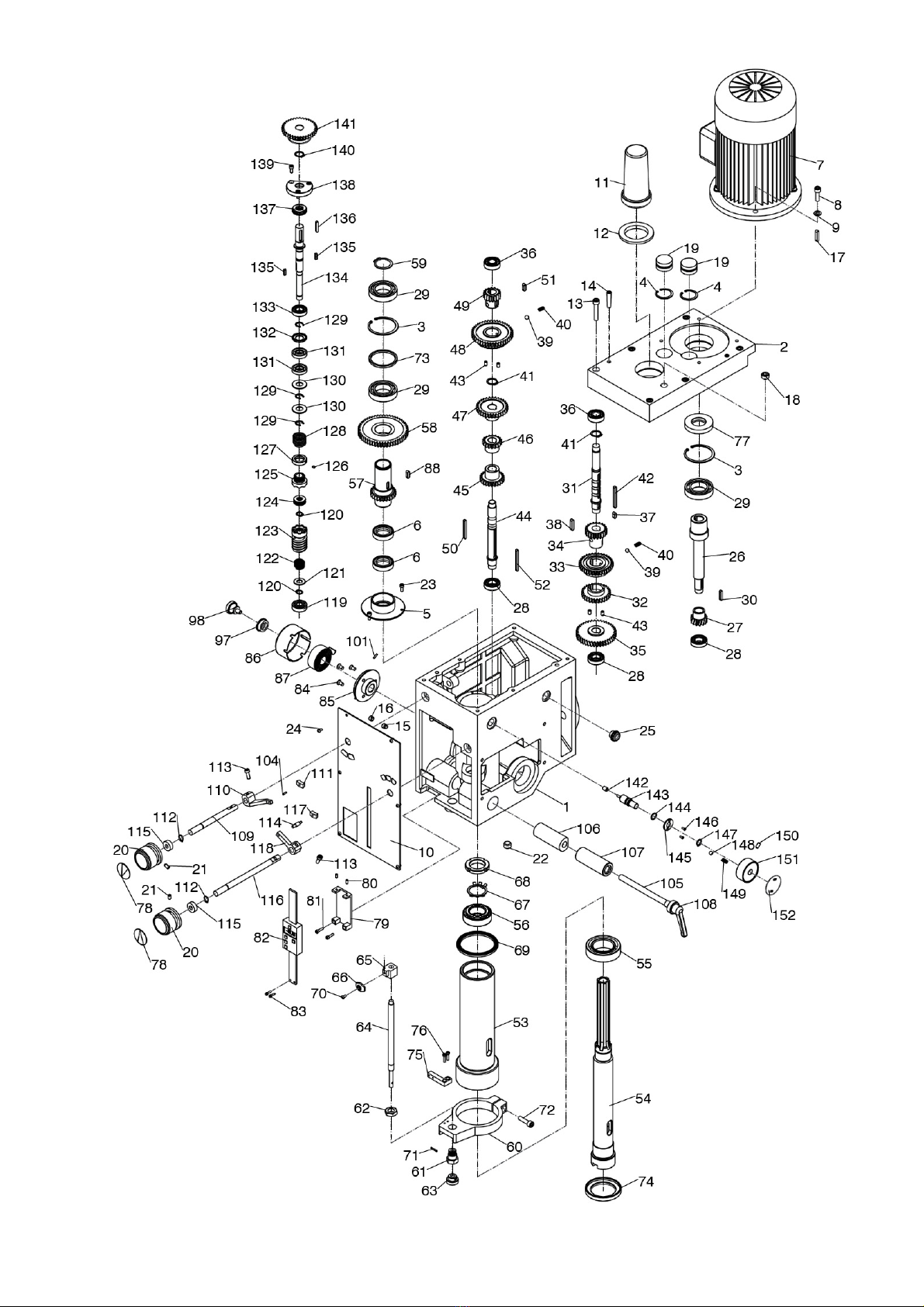

Head parts for spindle power feed
No Qty. Code Name No Qty. Code Name
1 1 20010B Head body 37 1 6x14 Key
2 1 20011B Head body cover 38 1 6x28 Key
3 2 62 Retaining ring 39 2 8 Ball
4 2 35 Retaining ring 40 2 Spring
5 1 20018B Airtight base 41 2 18 Retaining ring
6 2 FB45x35x10 Airtight ring 42 1 5x50 Key
7 1 Motor 43 4 M6x8 Screw
8 4 M8x25 Screw 44 1 20107B III shaft
9 4 8 Washer 45 1 20109-B Gear
10 1 20201 Plate 46 1 20110-2-B Gear
11 1 20304-1B Arbor bolt cover 47 1 20112-B Gear
12 1 20304-2B Arbor bolt cover base 48 1 20113-B Gear
13 6 M8x45 Screw 49 1 20115-B Gear
14 2 8x40 Pin 50 1 5x50 Key
15 1 M10x10 Screw 51 1 6x18 Key
16 1 M10x8 Screw 52 1 6x75 Key
17 1 8x28 Key 53 1 20019 Spindle sleeve
18 1 ZG3/8 Bolt 54 1 20104B Spindle
19 2 20020B Cap 55 1 33009-P5 Bearing
20 2 20307B Speed lever 56 1 33007-P5 Bearing
21 2 M6X12 Screw 57 1 20114-B Splined sleeve
22 1 ZG3/8 Oil plug 58 1 20116-B Gear
23 3 M5x10 Screw 59 1 35 Retaining ring
24 6 M4x8 Screw 60 1 20012 Feed base
25 1 M18x1.5 Oil pointer 61 1 20128 Support base
26 1 20105B I shaft 62 1 20129 Nut
27 1 20105-1-B Gear 63 1 20130 Knob
28 3 6003-P5 Bearing 64 1 20131 Graduated rod
29 3 6007-P5 Bearing 65 1 20021 Fixed bolt
30 1 5x25 Key 66 1 20132 Scale board
31 1 20106B II shaft 67 1 35 Lock washer
32 1 20108-B Gear 68 1 M35x1.5 Lock nut
33 1 20110-1-B Gear 69 1 20308 Rubber washer
34 1 20111-B Gear 70 1 M4x8 Screw
35 1 20106-1-B Gear 71 1 3x18 Split pin
36 2 6202-P5 Bearing 72 1 M8x30 Bolt

18
No Qty. Code Name No Qty. Code Name
73 1 20024B Separating ring 119 1 6201 Bearing
74 1 20133B Oil tight cover 120 2 12 Retaining ring
75 1 20010C3 Connecting rod 121 1 12 Washer
76 2 M4X12 Screw 122 1 20209 Spring
77 1 FB62X35X10 Oil seal 123 1 20207A Worm shaft
78 2 20307C2 Plate 124 1 51101 Bearing
79 1 20010C2 (Stents ) 125 1 20208B Clutch base
80 2 M4X10 (Screw) 126 1 M4x5 Screw
81 2 M4X16 (Screw) 127 1 M22x1.5 Locked out
82 1 (Digital display 128 1 20205B Spring
83 2 X3X10 (Screw) 129 3 15 Retaining ring
84 3 M6X12 Screw 130 2 20108A Washer
85 1 20118 Spring base 131 2 FB15x32x7 oil seal
86 1 20123 Spring cap 132 1 20103A Fixed sleeve
87 1 20122 Spring plate 133 1 6002 bearing
88 1 6X18 key 134 1 20213A I shaft
97 1 203063 Washer 135 2 4x16 key
98 1 203066 Bolt 136 1 5x30 key
100 137 1 51103 bearing
101 2 3x12 Pin 138 1 20104A flange
104 1 3x12 Pin 139 3 M5x16 screw
105 1 20124B Fxed bolt 140 1 17 retaining ring
106 1 20203B Fixed tight block 141 1 20212A gear
107 1 20202B Fixed tight block 142 1 20109A quil
108 1 Adjust handle 143 1 20214A lever shaft
109 1 20125B Llever shaft 144 1 12x2.4 O-airtight
110 1 2022-1B Lever 145 1 20250 flange cover
111 1 20204-2B Lever bracket 146 2 M3x8 screw
112 2 12 Retaining ring 147 1 12 retaining ring
113 2 M6x16 Screw 148 1 8 steel ball
114 1 20204-3B Lever rod 149 1 spring
115 2 12x22x8 Oil seal 150 1 M6x18 screw
116 1 20216B Long lever shaft 151 1 20201 speed lever
117 1 20204-1B Lever bracket 152 1 20303 label
118 1 20022-2B Lever

19

20
No Qty Code Name No Qty Code Name
1 1 10010 base 45 2 M5X20 screw
2 1 10013 column 46 1 M8X45 screw
3 1 10021 square flange 47 2 135LBS （Power feed）
4 1 10016 raise and lower base 48 1 10022 gib strip
5 1 10025 gib strip 49 6 M8X25 screw
6 6 10106 screw 50 2 10108 movable fixed block
7 4 51103 bearing 51 2 10109 fixed block support
8 1 10104 table screw 52 2 M6X16 screw
9 3 10102 dial clutch 53 1 10023 gib strip
10 3 10111 graduated plate 54 1 10017 raise and lower base
11 2 10301 wheel 55 1 10113 shaft
12 2 20305-1B turn handle 56 2 20109 gear
13 2 20305-2B screw 57 2 6004 bearing
14 1 10024 nut 58 1 450209 dial clutch
15 1 10117 nut bracket 59 1 10015 flange
16 3 6 washer 60 1 10016 raise and lower screw
17 3 M6X16 screw 61 2 51104 bearing
18 2 M8X25 screw 62 2 6 X 20 key
19 3 5X35 pin 63 1 20 lock washer
20 3 10107 screw 64 2 M20X1.5 lock nut
21 4 8 oil cup 65 7 M6 X 25 screw
22 6 M8 fixed handle 66 1 5 X 40 pin
23 4 16 washer 67 1 10018 heaf handle
24 4 16 washer 68 1 10018.1 turn handle
25 4 M16X60 bolt 69 1 10018.2 Screw M10
26 1 10120 washer 70 1 Electrical box
27 1 M12X35 screw 71 1 5X22 key
28 6 M6x12 screw 72 2 30 retaining ring
29 1 10124 protecting cover 73 2 10152 washer
30 1 10119 Electrical box 74 2 10150
31 6 8X30 pin 75 4 10151
32 1 Pipe joint 76 1 5X25 key
33 1 Filter screen 77 1 Motor 90W220V60Hz1ph
34 2 M3X25 table nut 78 4 M8X25 screw
35 1 10011 center base 79 4 8 washer
36 1 10012 table 80 1 10014 motor mount
37 1 10202 table nut 81 4 M8 X 25 screw
38 1 10203 table base nut 82 1 8 washer
39 1 10020 right flange 83 1 M8 X 25 screw
40 1 10019 left flange 84 1 450209.2 Spring
41 1 10103 table screw 85 1 10102.2 Spring
42 1 10105 fixed block 86 3 M14x55 T-screw
43 2 M8x16 screw 87 3 14 washer
44 1 Gear 88 3 M14 nut
