Jetson Jupiter Jumbo User manual

Jupiter Jumbo
Light-Up Kick Scooter.
A guide for your ride.
IMPORTANT: READ CAREFULLY AND RETAIN FOR FUTURE REFERENCE.
MODELS: JJUPBWBLK  JJUPBWBLU  JJUPBWRED  JJUPBWPNK
Designed in Brooklyn | Made in China

Jetson's top two riding rules:
Be safe. Have fun!

3
Table of Contents
Safety Warnings
Product Overview
Specs & Features
Unfolding/Folding the Jupiter Jumbo
Assembly
Adjusting the Handlebar
Inserting the Batteries
Using the Brake
Helmet Safety
Riding the Jupiter Jumbo
Using the LED Lights
Care, Maintenance, & Warranty
...............................................................................................................4
.............................................................................................................6
.............................................................................................................8
....................................................................................9
......................................................................................................................12
....................................................................................................13
......................................................................................................15
...............................................................................................................16
................................................................................................................17
...................................................................................................18
.......................................................................................................19
...........................................................................................20

4
Safety Warnings
• Before use, please read the user manual and safety warnings carefully, and make sure you understand and accept all the safety
instructions. The user will be responsible for any loss or damage caused by improper use.
• Before each cycle of operation, the operator shall perform the preoperation checks speciied by the manufacturer: That
all guards and pads originally supplied by the manufacturer are in proper place and in serviceable condition; That the
braking system is functioning properly; That any and all axle guards, chain guards, or other covers or guards supplied by the
manufacturer are in place and in serviceable condition; That tires are in good condition, inlated properly, and have suicient
tread remaining; The area that the product is to be operated should be safe and suitable for safe operation.
• Components shall be maintained and repaired in accordance with the manufacturer’s speciications and using only the
manufacturer’s authorized replacement parts with installation performed by dealers or other skilled persons.
• Warning against recharging non-rechargeable batteries.
• Don’t allow hands, feet, hair, body parts, clothing, or similar articles to come in contact with moving parts, wheels, or drive
train, while the motor is running.
• This product should not be used by children or persons with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or instruction (IEC 60335-1/A2:2006).
• Unsupervised children should not play with the product (IEC 60335-1/A2:2006).
• Adult supervision is required.
• The rider should not exceed 165 lb.
• Units shall not be operated to perform racing, stunt riding, or other maneuvers, which may cause loss of control, or may cause
uncontrolled operator/passenger actions or reactions.
• Never use near motor vehicles.
• Avoid sharp bumps, drainage grates, and sudden surface changes. Scooter may suddenly stop.
• Avoid streets and surfaces with water, sand, gravel, dirt, leaves, and other debris. Wet weather impairs traction, braking, and visibility.
• Avoid riding around lammable gas, steam, liquid, or dust that could cause ire.
• Operators shall adhere to all of the manufacturer’s recommendations and instructions, as well as comply with all laws and
ordinances: Units without headlights shall be operated only with adequate daylight conditions of visibility, and; Owners shall
be encouraged to highlight (for conspicuity) using lighting, relectors, and for low-riding units, signal lags on lexible poles.
• Persons with the following conditions shall be cautioned not to operate: Those with heart conditions; Pregnant women;
Persons with head, back, or neck ailments, or prior surgeries to those areas of the body; and persons with any mental or
physical conditions that may make them susceptible to injury or impair their physical dexterity or mental capabilities to
recognize, understand, and perform all of the safety instructions and to be able to assume the hazards inherent in unit use.
• Do not ride at night.
• Do not ride after drinking or taking prescription medication.
• Do not carry items when riding.
• Never operate the product barefooted.
• Always wear shoes and keep shoelaces tied.
• Make sure your feet are always placed securely on the deck.

5
• Operators always shall use appropriate protective clothing, including but not limited to a helmet, with appropriate certiication,
and any other equipment recommended by the manufacturer: Always wear protective equipment such as helmet, knee pads,
and elbow pads.
• Always give way to pedestrians.
• Be alert to things in front and far away from you.
• Do not allow distractions when riding, such as answering the phone or engaging in any other activities.
• The product cannot be ridden by more than one person.
• When you ride the product along with other riders, always keep a safe distance to avoid a collision.
• When turning, be sure to maintain your balance.
• Riding with improperly adjusted brakes is dangerous and can result in serious injury or death.
• The brake may become hot while operating, do not touch the brake with your bare skin.
• Applying brakes too hard or too suddenly can lock up a wheel, which could cause you to lose control and fall. Sudden or
excessive application of the brake may result in injury or death.
• If the brake loosens, please adjust with the Jupiter Jumboagon wrench, or please contact the Jetson Care Team.
• Replace worn or broken parts immediately.
• Check whether all safety labels are in place and understood before riding.
• The owner shall allow the use and operation of the unit after a demonstration that such operators can understand and operate
all components of the unit before use.
• Do not ride without proper training. Do not ride at high speeds, on uneven terrain, or on slopes. Do not perform stunts or
turn abruptly.
• Recommended for indoor use.
• Prolonged exposure to UV rays, rain and the elements may damage the enclosure materials, store indoors when not in use.
MODIFICATIONS
Do not attempt to disassemble, modify, repair, or replace the unit or any components of the unit without instruction from the
Jetson Care Team. This will void any warranty, and can lead to malfunctions which may cause injury.
ADDITIONAL OPERATION PRECAUTIONS
Do not lift the product o the ground while it is on and the wheels are in motion. This can result in freely spinning wheels, which
may cause injury to yourself or others nearby. Do not jump on or o the product, and do not jump while using it. Always keep
your feet firmly planted on the foot rest while in operation. Always check the battery charge before using.
California Proposition 65
WARNING:
Thisproductcanexposeyoutothechemical Chromium(hexavalentcompounds),whichisknowntotheStateofCalifornia
tocausecancerandbirthdefectsorotherreproductiveharm.Formoreinformation,gotowww.P65warning.ca.gov.

6
Product Overview
1. HANDLEBAR
2. STEM CLAMP
3. STEM LED LIGHTUP
4. FRONT WHEEL
5. FOLDING MECHANISM
6. LOCKING LEVER KNOB
LOCKING LEVER LOCATED ON OPPOSITE SIDE
7. DECK LED LIGHTUP
8. LIGHTING CONTROL BUTTON
9. BATTERY COMPARTMENT
10. REAR FOOT BRAKE
11. REAR WHEEL
* ADULTS MUST ASSIST CHILDREN IN THE INITIAL ASSEMBLY AND ADJUSTMENT PROCEDURES TO FOLDUNFOLD PRODUCT AS
WELL AS ADJUSTING HANDLEBAR TO HEIGHT.
HARDWARE INCLUDED:
BOLT
PREATTACHED
NUT
PREATTACHED
2BIT PHILLIPSHEAD
SCREWDRIVER AND ALLEN KEY TOOL

7
5 6
NOTE: IMAGES MAY NOT REFLECT EXACT APPEARANCE OF ACTUAL PRODUCT.
1
2
3
4
7
8 9
11
10

8
• WEIGHT LIMIT: 165 LBS
• PRODUCT WEIGHT: 10 LBS
• RECOMMENDED AGE: 8+
• FOLDED DIMS: 31.5”L × 15.7”W × 10.5”H
• UNFOLDED DIMS: 31.5”L × 15.7”W × 36”H
• HANDLEBAR HEIGHT: 32”  36”
• DECK DIMS: 23.6” × 6”
• WHEEL SIZE: 8”
• 3 AA BATTERIES REQUIRED NOT INCLUDED
• 7 LIGHT PATTERNS
• EASY FOLDING MECHANISM
Specs & Features

9

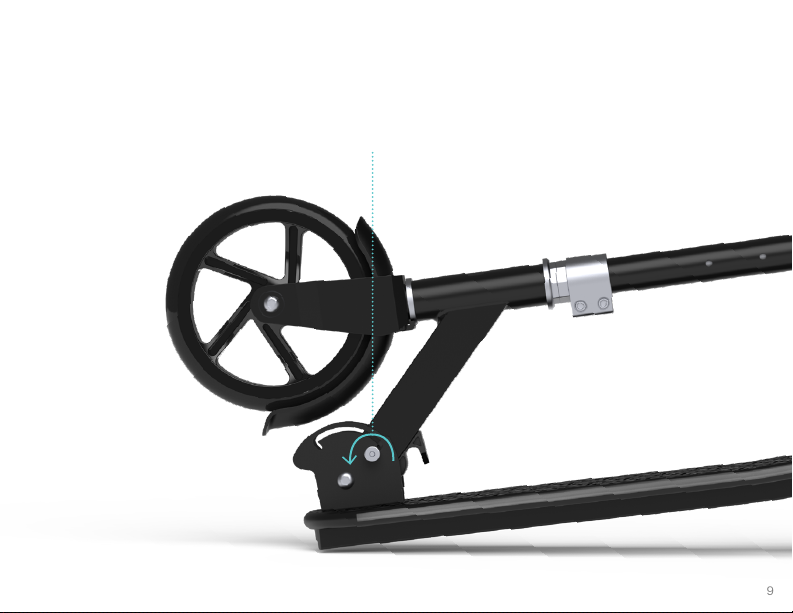

1.1 Unfolding/Folding the Jupiter Jumbo
LOOSEN KNOB
1. Getting Started

10

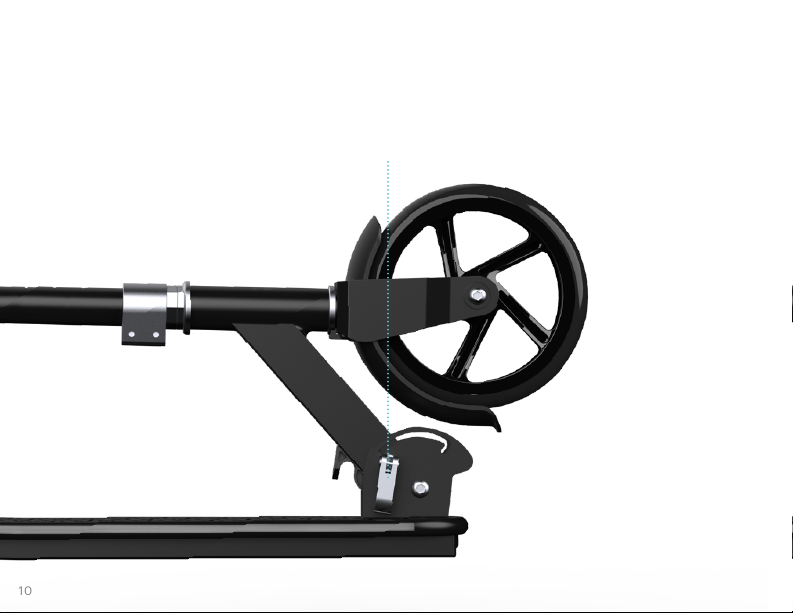

OPEN THE LOCKING LEVER
LOCATED ON THE OPPOSITE SIDE OF THE KNOB

11
PULL UP THE FOLDING MECHANISM
TO UNFOLD:
• WHILE PULLING UP THE FOLDING MECHANISM, RAISE THE STEM UP UNTIL IT "CLICKS" INTO THE UPRIGHT POSITION.
• CLOSE THE LOCKING LEVER AND TIGHTEN THE KNOB.
TO FOLD:
• WHILE PULLING UP THE FOLDING MECHANISM, LOWER THE STEM UNTIL IT "CLICKS" INTO THE FOLDED POSITION.

12

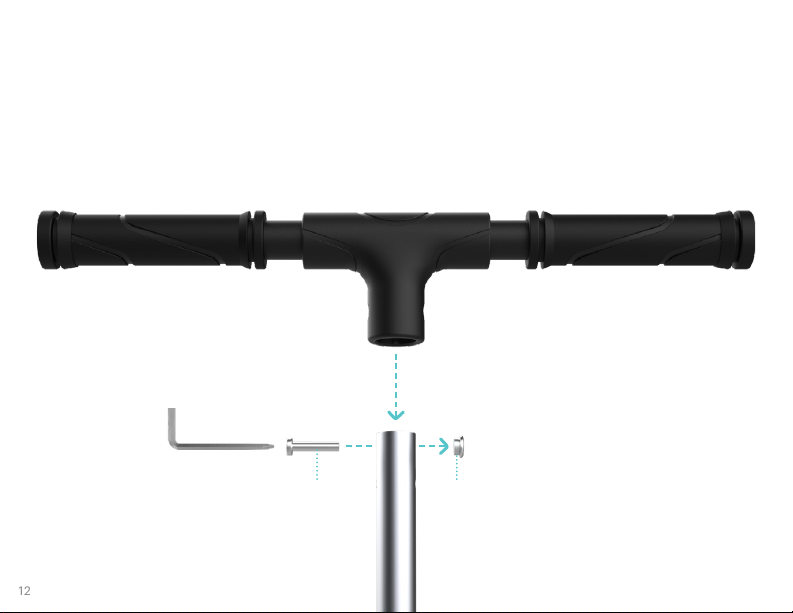

1.2 Assembly
NUTBOLT
1. USING THE SCREWDRIVER TIP OF THE 2BIT TOOL, REMOVE THE PREATTACHED BOLT AND NUT FROM THE HANDLEBAR BASE.
2. SLIDE THE HANDLEBAR ONTO THE SCOOTER STEM.
3. PUSH DOWN UNTIL THE PREDRILLED HOLES IN THE HANDLEBAR EACH ALIGN WITH A PREDRILLED HOLE ON
ONE SIDE OF THE STEM.
4. INSERT THE BOLT THROUGH THE HOLE ON THE SIDE OF THE HANDLEBAR ON WHICH YOUR RIGHT HAND WILL GO
WHEN RIDING.
5. TWIST THE NUT ONTO THE END OF BOLT AND TIGHTEN THE BOLT USING THE SCREWDRIVER END OF THE 2BIT TOOL.

13

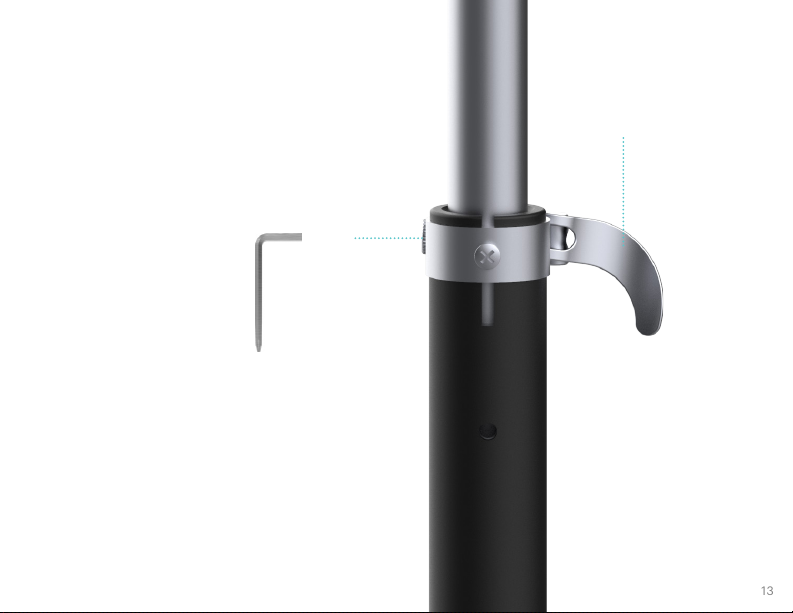

1.3 Adjusting the Handlebar
1. USING THE ALLEN KEY TIP OF THE 2BIT
TOOL, LOOSEN THE STEM CLAMP KNOB.
2. OPEN THE STEM CLAMP LEVER.
STEM CLAMP LEVER
KNOB

14
STEM PIN
STEM PIN HOLE
3. WHILE PRESSING IN THE STEM PIN,
LIFT OR LOWER THE HANDLEBAR.
4. WHEN YOU HEAR THE PIN CLICK INTO ANOTHER
HOLE, CLOSE THE STEM CLAMP LEVER AND
TIGHTEN THE KNOB WITH THE ALLEN KEY.
5. MAKE SURE THE HANDLEBAR IS SECURE.
CAUTION: THE STEM PIN ALONE WILL NOT
KEEP THE STEM SECURE. MAKE SURE THE STEM
CLAMP IS ALSO TIGHTENED AND CLOSED PRIOR
TO RIDING.

15
1.4 Inserting the Batteries
1. OPEN THE BATTERY COMPARTMENT COVER WITH THE SCREWDRIVER END OF THE 2BIT TOOL.
2. INSERT 3 AA BATTERIES BASED ON THE +DIRECTIONS INDICATED IN THE BATTERY COMPARTMENT.
3. SCREW THE COMPARTMENT COVER BACK ON.
BATTERY COMPARTMENT COVER

16

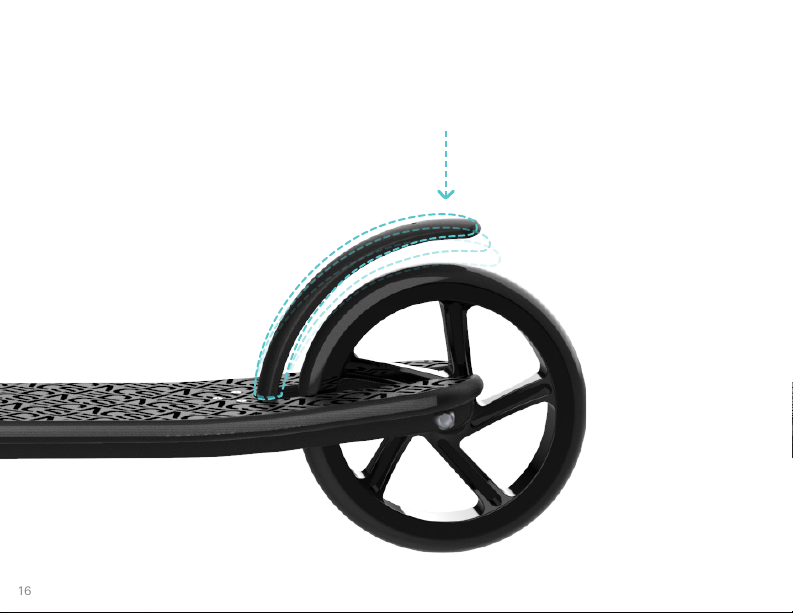

1.5 Using the Brake
PRESS DOWN WITH REAR FOOT TO SLOW DOWN.
APPLY MORE PRESSURE TO COME TO A COMPLETE STOP.

1.6 Helmet Safety
IMPROPER POSITIONING:
THE FOREHEAD IS EXPOSED.
A FALL COULD RESULT IN SERIOUS INJURY.
PROPER POSITIONING:
THE FOREHEAD IS COVERED
BY THE HELMET.
* WEAR A HELMET, APPROPRIATE CLOTHING, SHOES, AND SAFETY GEAR. AVOID CLOTHING THAT CAN GET CAUGHT INTO
OR UNDER THE WHEELS. CLOSEDTOE, FLAT SHOES ARE RECOMMENDED. WEAR AN ASTM F1492 APPROVED HELMET AND
PROTECTIVE GEAR TO PREVENT INJURY IN THE EVENT OF AN ACCIDENT.
17

18

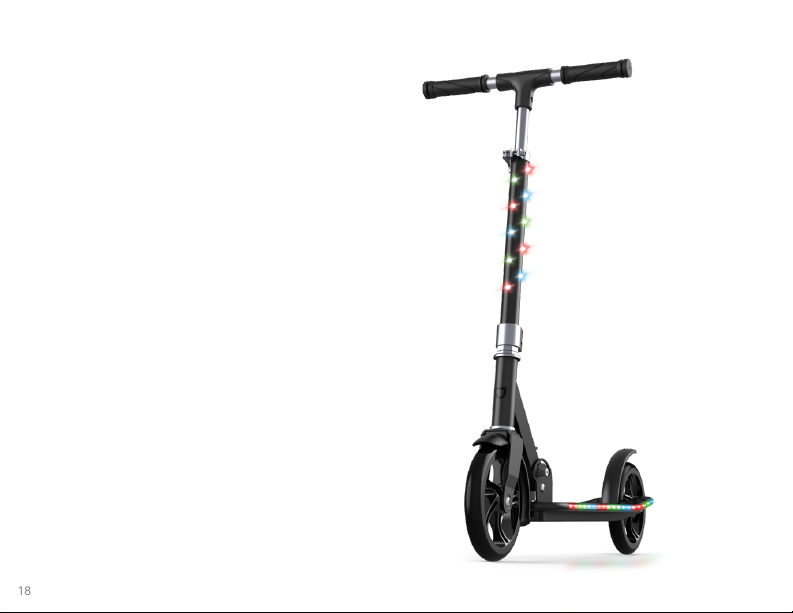

2.1 Riding the Jupiter Jumbo
2. Making Moves
1. PLACE ONE FOOT IN FRONT FACING FORWARD.
2. PLACE THE OTHER FOOT BEHIND IT AT A 70  90° ANGLE.
3. USE THE BACK FOOT TO PUSH OFF THE GROUND AND
PROPEL THE SCOOTER FORWARD.
4. ROTATE THE HANDLEBAR TO THE LEFT OR RIGHT TO
MAKE TURNS.
