JHCTech BRAV-7501 User manual

User’s Manual
BRAV-7501
User’s Manual
Ver.A1.0
Date:9, July, 2020

User’s Manual
Version Note
No.
Ver.
Note
Date
Writer
1
A1.0
first publish
20200709
Echo

User’s Manual
I
Copyright
The documentation and the software included with this product are copy- righted 2020 by Shenzhen JHC
Technology Co., Ltd. All rights are reserved. Shenzhen JHC Technology Co., Ltd. reserves the right to
make improvements in the products described in this manual at any time without notice. No part of this
manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior
written permission of Shenzhen JHC Technology Co., Ltd. Information provided in this manual is intended
to be accurate and reliable. However, Shenzhen JHC Technology Co., Ltd. assumes no responsibility for
its use, nor for any infringements of the rights of third parties, which may result from its use.
Acknowledgements
Award is a trademark of Award Software International, Inc.
IBM, PC/AT, PS/2 and VGA are trademarks of International Business Machines Corporation.
Intel, Skylake and Kabylake are trademarks of Intel Corporation.
Microsoft Windows and MS-DOS are registered trademarks of Microsoft Corp.
RTL is a trademark of Realtek Semi-Conductor Co., Ltd.
All other product names or trademarks are properties of their respective owners.
For more information on this and other JHC products, please visit our websites at:
http://www.jhctech.com.cn

User’s Manual
II
Product Warranty (2 years)
JHC warrants to you, the original purchaser, that each of its products will be free from defects in
materials and workmanship for two years from the date of purchase.
This warranty does not apply to any products which have been repaired or altered by persons other than
repair personnel authorized by JHC, or which have been subject to misuse, abuse, accident or improper
installation.
JHC assumes no liability under the terms of this warranty as a consequence of such events.
Because of JHC.s high quality-control standards and rigorous testing, most of our customers never need
to use our repair service. If an JHC product is defective, it will be repaired or replaced at no charge during
the warranty period. For out-of-warranty repairs, you will be billed according to the cost of replacement
materials, service time and freight. Please consult your dealer for more details.
If you think you have a defective product, follow these steps:
1. Collect all the information about the problem encountered. (For example, CPU speed, JHC products
used, other hardware and software used, etc.) Note anything abnormal and list any onscreen messages
you get when the problem occurs.
2. Call your dealer and describe the problem. Please have your manual, product, and any helpful
information readily available.
3. If your product is diagnosed as defective, obtain an RMA (return merchandise authorization) number
from your dealer. This allows us to process your return more quickly.
4. Carefully pack the defective product, a fully-completed Repair and Replacement Order Card and a
photocopy proof of purchase date (such as your sales receipt) in a shippable container. A product
returned without proof of the purchase date is not eligible for warranty service.
5. Write the RMA number visibly on the outside of the package and ship it prepaid to your dealer.

User’s Manual
III
Declaration of Conformity
CE
This product has passed the CE test for environmental specifications
when shielded cables are used for external wiring. We recommend the use
of shielded cables. This kind of cable is available from JHC. Please
contact your local supplier for ordering information. Test conditions for
passing included the equipment being operated within an industrial enclosure.
In order to protect the product from being damaged by ESD (Electrostatic
Discharge) and EMI leakage, we strongly recommend the use of
CE-compliant industrial enclosure products.
FCC Class B
Note: This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a resident installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, in which case the user will be required to correct the
interference at his own expense.
Technical Support and Assistance
Step 1. Visit the JHC web site at www.jhctech.com.cn where you can find the latest information about the
product.
Step 2. Contact your distributor, sales representative, or JHC’s customer service center for technical
support if you need additional assistance. Please have the following information ready before you
call:
- Product name and serial number
- Description of your peripheral attachments
- Description of your software (operating system, version, application software, etc.)
- A complete description of the problem
- The exact wording of any error messages

User’s Manual
i
CONTENTS
General Information ...........................................................................................................1
1.1 Introduction....................................................................................................................................2
1.2 Features...........................................................................................................................................2
1.3 Specifications..................................................................................................................................3
1.3.1 General...............................................................................................................................3
1.3.2 Display...............................................................................................................................3
1.3.3 Ethernet..............................................................................................................................3
1.3.4 Audio .................................................................................................................................4
1.3.5 Power Consumption...........................................................................................................4
1.4 Environmental Specifications.......................................................................................................4
1.5 3921/3920/3610 Series Specifications ...........................................................................................4
1.6 Mechanical Specifications.............................................................................................................5
Hardware Installation.........................................................................................................8
2.1 Introduction....................................................................................................................................9
2.2 Jumpers setting..............................................................................................................................9
2.2.1 CLEAR/CMOS -Clear CMOS Data.....................................................................................9
2.2.2 AT/ATX- AT/ATX Power on mode selection ....................................................................10
2.3 I/O Ports Indication.....................................................................................................................11
2.3.1 Ethernet Connector (LAN).................................................................................................12
2.3.2 USB Connector...................................................................................................................13
2.3.3 HDMI..................................................................................................................................14
2.3.4 DP.......................................................................................................................................15
2.3.5 VGA......................................................................................................错误!未定义书签。
2.3.6 DIO Connector....................................................................................................................15
2.3.7 Power Input Connector (DC-IN)..........................................................错误!未定义书签。
2.3.8 COM1/2 Connector ............................................................................................................16
2.3.9 COM3/4 Connector ..............................................................................错误!未定义书签。

User’s Manual
ii
2.3.10 PS/2 Connector...................................................................................错误!未定义书签。
2.3.11 Remote Switch signal Connector......................................................................................17
2.3.12 Serial ATA1 (S_SATA1/S_SATA2)..................................................................................18
2.3.13 SATA power connector (SATA_PWR1/SATA_PWR2)....................................................18
2.3.14 mSATA Connector (MSATA1)...........................................................错误!未定义书签。
2.3.15 Mini-PCIe Connector (3GWIFI1) ....................................................................................19
2.3.16 SIM card connector (SIM1)..............................................................................................19
2.3.17 M.2 connector (NGFF1)...................................................................................................20
2.3.18 PCI Slot (In Sub-card ECX-242 or ECI-245).....................................错误!未定义书签。
2.3.19 PCIeX1 Slot (In Sub-card ECX-242).................................................错误!未定义书签。
2.3.20 PCIeX4 Slot (In Sub-card ECX-241)...............................................................................21
2.3.21 PCIeX16 Slot (In Sub-card ECX-241 or ECX-242).........................................................21
2.3.22 LED.....................................................................................................错误!未定义书签。
2.4 Installation....................................................................................................................................23
2.4.1 HDD/SSD Installation ........................................................................................................23
2.4.2 Installing mini-PCIe............................................................................................................24
2.4.3 Installing MSATA.................................................................................错误!未定义书签。
2.4.4 Installing M.2 Module........................................................................................................25
2.4.5 Installing Expansion Functional Module............................................................................27
BIOS Setup.........................................................................................................................29
3.1 BIOS Description.........................................................................................................................30
3.1.1 Entering the Setup Utility...................................................................................................30
3.2 BIOS parameter settings.............................................................................................................31
3.2.1 BIOS Navigation Keys .......................................................................................................32
3.2.2 Main Menu............................................................................................错误!未定义书签。
3.2.3 Advanced Menu.................................................................................... 错误!未定义书签。
3.2.4 Chipset Menu........................................................................................错误!未定义书签。
3.2.5 Security menu.......................................................................................错误!未定义书签。
3.2.6 Boot menu.............................................................................................错误!未定义书签。
3.2.7 Save & Exit menu.................................................................................错误!未定义书签。

User’s Manual
iii
3.3 Updating the BIOS ........................................................................................ 错误!未定义书签。
Driver Installation.............................................................................................................42
4.1 Follow the sequence below to install the drivers: .....................................................................43
4.2 Installation: ..................................................................................................................................43
4.3 CPU TEMP LED driver................................................................................ 错误!未定义书签。
4.4 Utility Software Reference..........................................................................................................44
SYSTEM RESOURCE .....................................................................................................45
5.1 WDT and GPIO ...........................................................................................................................46

User’s Manual
1
General Information
CHAPTER
1

User’s Manual
2
1.1 Introduction
BRAV-7501 is an edge computing system for AIOT and industry 4.0 applications of JHCTECH. It
powered by the Gen. 8th Intel® Coffee lake-S CPU, Up to 8-Core, running with workstation-grade Intel®
C246Chipset. 2-Ch DDR4, 4*DIMM 2666MHz memory, up to 128GB. advanced Intel®UHD Graphics
630, supporting DirectX 12, OpenGL 4.5 and OpenCL 2.0 API.
BRAV-7501 offers 1*HDMI, 2*DP, support 3 independent displays, 3*GbE LANs, support AMT12.0,
4*USB3.1 gen2 (10Gbps), 2*COM RS232/422/485, 8-bit DIO, 1*F-Mini PCIe with SIM slot, which
supports 4G LTE/Wifi/BT/GPS.1*M.2 2280 M-Key(PCIe X4), support NVMe storage, multiple SATA3
(6Gbps) HDD/SSD are used for storage, support raid 0/1/5/10. It supports various expansion slots,
including PCIe×16(or 2*PCIe X8), 2*PCIe×4. Flexible support NVIDIA®GeForce®RTX series
graphics, Capture card. With ATX 600W power supply, BRAV-7501 series is widely used for industrial
automation, AI edge computing, small intelligent workstations, multimedia service systems, visual
control and so on.
1.2 Features
Key Features
Up to 8 Cores, 8th generation Intel®Xeon®/Core™ i7/i5/i3 (Coffee Lake-S)
Workstation-grade Intel®C246/Q370 chipset
4*DDR4 2666MHz, up to 128GB
Expansion
2*PCIe X16 slot (Gen3, support 1*PCIe X16 signal, If another slot is also connected to the
device, it will automatically become 2*PCIe X8 signal)
2*PCIe X8 slot (Gen3, 2*PCIe X4 signal)
1*F-mini PCIe with SIM slot, support 4G LTE/GPS and Wifi/BT
2/4*2.5” SATA HDD/SSD trays, support Raid 0/1/5/10
1*M.2 2280 M-Key, support NVMe storage
2*DP, 1*HDMI, support 3 independent displays
Realtek ALC662VD controller, 1*LINE OUT, 1*MIC
2*Intel I210AT, 1*Intel I219LM, supports Intel AMT 12.0

User’s Manual
3
4*USB3.1, 7*USB2.1
8-bit DIO, 2*COM RS232/422/485
ATX 600W power supply
1.3 Specifications
1.3.1 General
CPU: Up to 8 Cores, 8th generation Intel®Xeon®/Core™ i7/i5/i3 (Coffee Lake-S)
System Memory: 4*DDR4 2666MHz DIMM, Up to 128GB
Watchdog Timer: 255-level interval timer, setup by software
Serial Ports: 2* RS232/422/485 DB9 male
USB: 4*USB 3.1 gen2 Type A, 6*USB2.0 Type A, 1*USB 2.0 Type A port (inside)
DIO: 8-bit DIO, DB9 male
Expansion Interface:
1*Full size Mini PCIe (PCIeX1+USB) with SIM slot
PCI/PCIe slots:
2*PCIe X16 slot (Gen3, support 1*PCIe X16 signal, If another slot is also connected to the device, it
will automatically become 2*PCIe X8 signal), Flexible support NVIDIA®GeForce®RTX series graphics
2*PCIe X8 slot (Gen3, 2*PCIe X4 signal)
Storage:1*M.2 2280 M-Key, support NVMe storage
2*3.5” SATA HDD/SSD bay, support Raid0,1 (BRAV-7501/S001)
4*2.5” SATA HDD/SSD trays, support Raid0/1/5/10 (BRAV-7501/S002)
1.3.2 Display
Chipset: Intel®UHD Graphics
Display Memory: Shared system memory
Resolution: HDMI 4096x2304@24Hz; DP 4096x2160@60Hz
1.3.3 Ethernet
Chipset: 2*Intel®I210AT Ethernet controllers
1* Intel® I219LM Ethernet controller, supports iAMT 12.0
Speed: 10/100/1000 Mbps Integrated
Interface: 3*RJ45

User’s Manual
4
1.3.4 Audio
Chipset: Realtek ALC662VD controller
Interface: 1*Line-out, 1*MIC, 3.5mm phone jack
1.3.5 Power Consumption
Power Consumption: 374W (I7-8700, 16GB DDR , 2*4TB HDD, GTX-1660 Graphics)
Power Supply: ATX 600W power
1.4 Environmental Specifications
Operating temperature:
-20 ~ 50°C (SSD, Airflow)
Relative humidity: 10~90% @ 40°C (non-condensing)
Storage temperature: -40 ~ 85°C (-40 ~ 185°F)
Vibration loading during operation:
With SSD: 5.0 Grms, random, 5 ~ 500 Hz
With HDD:1.0 Grms, random, 5 ~ 500 Hz
Shock during operation:
With SSD: 50g, peak acceleration (11 ms duration)
With HDD:20g peak acceleration (11 ms duration)
EMC: CE, FCC Class B
1.5 BRAV-7501 Series Specifications
Model.
BRAV-7501
System
Processor
8th generation Intel® Xeon®/Core™ i7/i5/i3 (Coffee Lake-S)
Chipset
Intel®C246/Q370
Memory
DDR4 2666MHz, 4*DIMM Socket, Up to 128GB
Storage
1*M.2 2280 M-Key, support NVMe storage
2*3.5” SATA SSD bay, support Raid0,1 (BRAV-7501/S001)

User’s Manual
5
4*2.5” SATA SSD trays, support Raid0/1/5/10 (BRAV-7501/S002)
I/O interface
LAN
2*Intel®I210AT Ethernet
1* Intel®I219LM Ethernet, supports iAMT 12.0
USB
4*USB3.1 gen2 (External)
6*USB2.0 (External), 1*USB2.0 (Internal)
COM
2*RS232/422/485
DIO
8-bit DIO
Display
1*HDMI, 2*DP
PS/2
Keyboard & Mouse
Audio
1*Line Out, 1*MIC
Expansion
Mini-PCIe
1*Full size Mini PCIe (PCIeX1+USB) with SIM slot
PCIe
2*PCIe X16 Slot
2*PCIe X8 Slot
1.6 Mechanical Specifications

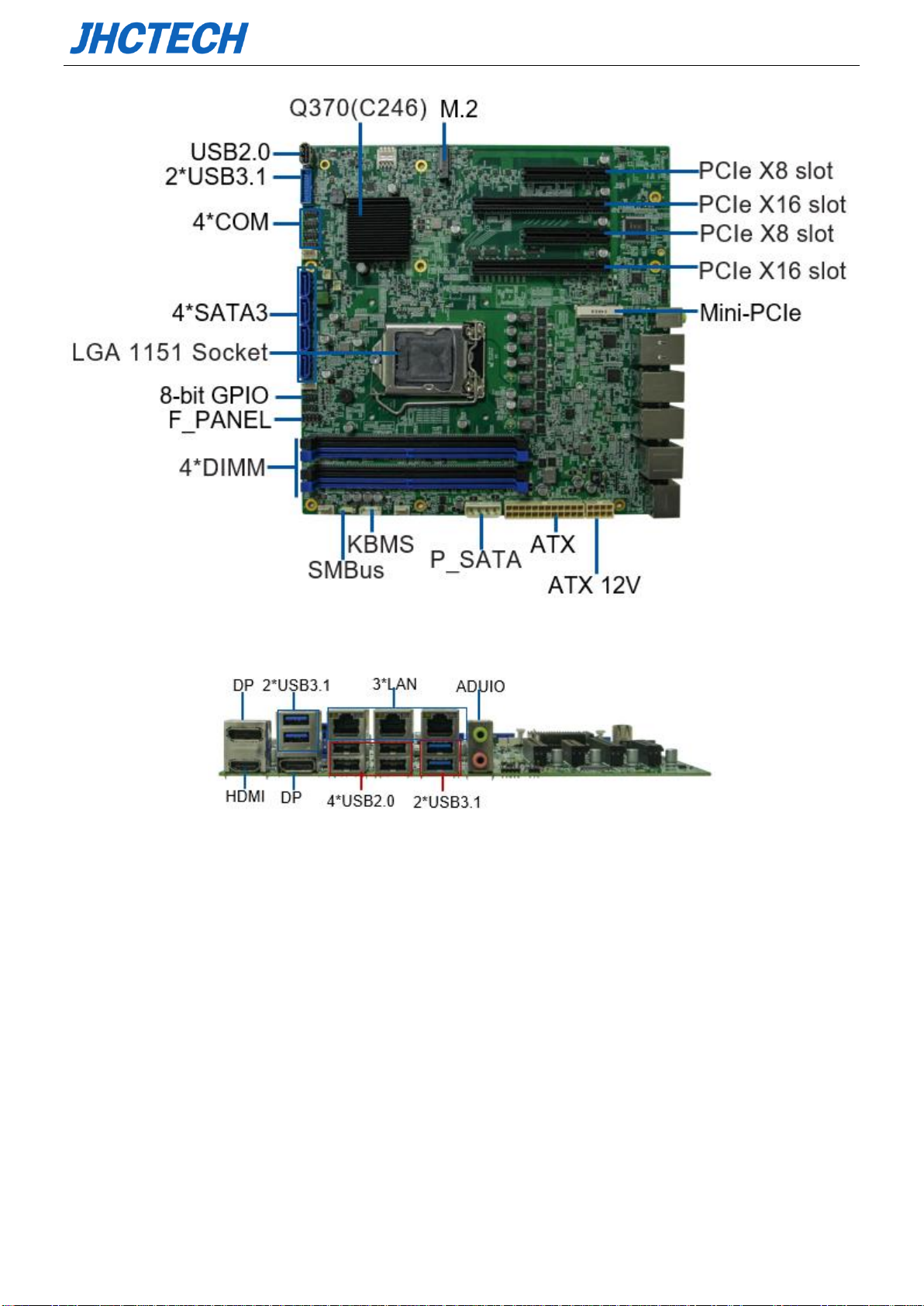

The BRAV-7501 is the edge computing system of JHCTECH, consists of a JHC single board computer
(ATX-I961).
Main Board Front (AXM-I961)

User’s Manual
6
Figure 1.1
Coastline interface (AXM-I961)
Figure 1.2

User’s Manual
7
BRAV-7501 Dimension: Unit: mm
Figure 1.3

User’s Manual
8
Hardware Installation
CHAPTER
2

User’s Manual
9
2.1 Introduction
The following sections show jumpers settings and the external connectors and pin assignments for
applications.
2.2 Jumpers setting
The BRAV-7501 Box Computer has a number of jumpers that allows you to configure your system to suit
your application. The table below shows the function of each of the board’s Jumpers:
Jumpers
Jumpers
Name
Description
CMOS
Clear CMOS Data Setting
Jumper
ATX
Set Power-on mode at AT or ATX
Jumper
2.2.1 CMOS -Clear CMOS Data jumper
Figure 2. 1

User’s Manual
10
If you encounter the followings
a) CMOS data becomes corrupted.
b) You forget the supervisor or user password.
you can reconfigure the system with the default values stored in the ROM BIOS.
To load the default values stored in the ROM BIOS, please follow the steps below.
1. Power-off the system and unplug the power cord.
2. Set CMOS pins 2 and 3 to On. Wait for a few seconds and set CMOS back to its default setting,
pins 1 and 2 On.
3. Now plug the power cord and power-on the system.

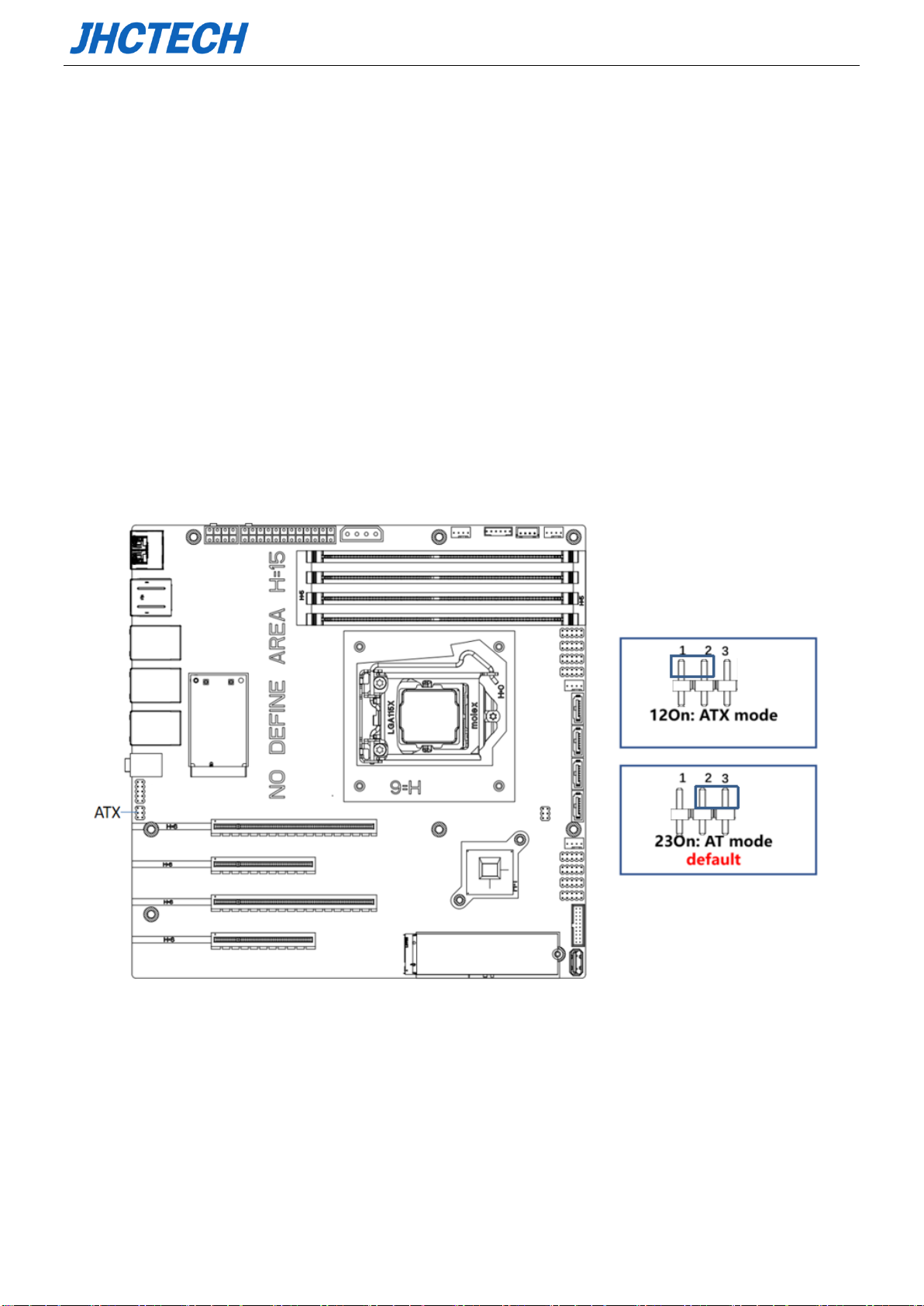

2.2.2ATX- AT/ATX Power on mode selection
Figure 2. 2
The BRAV-7501 provides a AT/ATX jumper, which users can set Power-on mode by it. When you set
pins 2 and 3 on, it means power on by AC Power; When you set pins 1 and 2 on, it means power on by
Power button.

User’s Manual
11
2.3 I/O Ports Indication

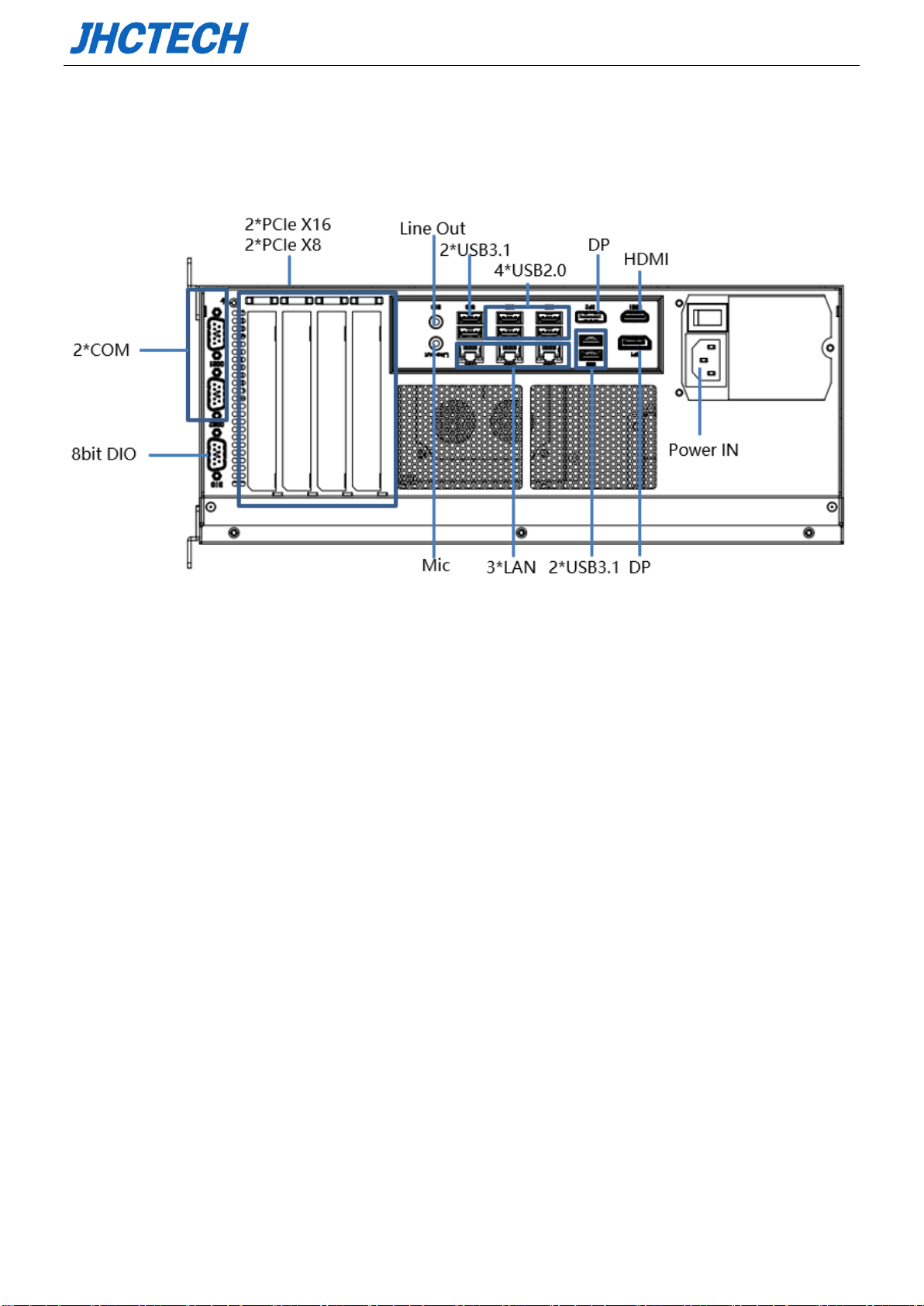

BRAV-7501 Rear Panel I/O Ports
Figure 2. 3
The Rear panel I/O ports consist of the following:
1*Power input connector
1*Mic, 1*Line out: 3.5mm phone jack
2*DP, 1*HDMI
4*USB 2.0 Type A, 4*USB3.1 gen2 Type A
3*Gigabit LAN: RJ45 with LEDs
2*COM: DB9 2*RS232/422/485
8-bit DIO: DB9
2*PCIeX8, 2*PCIeX16

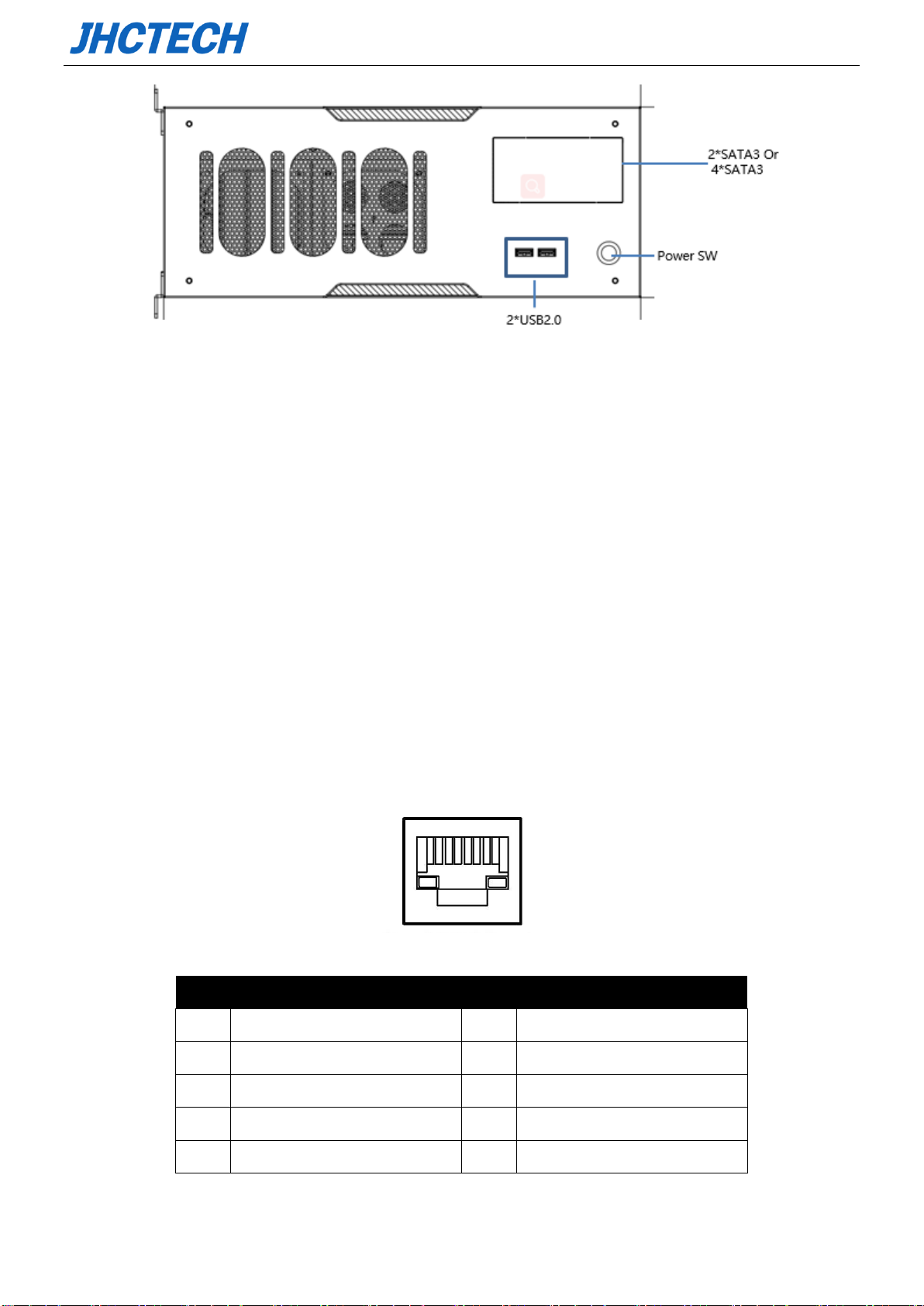

BRAV-7501 Front Panel I/O Ports

User’s Manual
12
Figure 2. 4
The Front panel I/O ports consist of the following:
2*3.5” SATA SSD/HDD bay (BRAV-7501/S001)
4*2.5” SATA SSD/HDD trays (BRAV-7501/S002)
2*USB2.0
Power SW
2.3.1 Ethernet Connector (LAN)
The BRAV-7501 is equipped with 2*Intel I210AT chips and 1*Intel I219LM for 10/100/1000Mbps
Ethernet controllers. The product provides 3*RJ45, with LED indicators on the front side to show its
Active/Link status (Green LED) and Speed status (yellow LED).
Table 2.1 for pin assignments.
Figure 2. 5
Table 2.1: RJ-45 Connector pin assignments
Pin
10/100/1000BaseT Signal
Pin
10/100/1000BaseT Signal
1
TX+(10/100), LAN_DA+(GHz)
5
LAN_DC-(GHz)
2
TX-(10/100), LAN_DA-(GHz)
6
RX-(10/100), LAN_DB-(GHz)
3
RX+(10/100), LAN_DB+(GHz)
7
LAN_DD-(GHz)
4
LAN_DC+(GHz)
8
LAN_DD-(GHz)
