General Information
CHAPTER
1

User’s Manual
2
1.1 Introduction
WPPC-H1780T/WPPC-H1580T is a new product developed by JHC. WPPC-H1780T is a rugged, super-
reliable, fanless embedded waterproof panel PC. The front panel is made of SUS304 stainless steel. The
back cover is made of a 3.0mm 5052 aluminum alloy, which can meet both CPU thermal dissipation
and VESA mounting.It powered by Intel® Celeron J1900 CPU,1-Ch DDR3L 1333 MHz SODIMM, Up
to 8GB. Advanced Gen.7 Intel®HD Graphics.
WPPC-H1780T offers 1*VGA, 1*HDMI, support dual independent displays, 2*GbE LANs, 1*USB3.0,
3*USB2.0, 2*COM RS232/422/485, 1*F-Mini PCIe with SIM slot, which supports 4G/LTE/Wifi/BT/
GPS. 1*mSATA, support AHCI; WPPC-H1780T provides 1*2.5”SATA2 (3Gbps) HDD/SSD are used for
storage, DC 9~36V power supply. WPPC-H1780T supports 17- inch 1280*1024@60Hz TFT LCD,
Resistive/ Capacitive touch. WPPC-H1580T supports 15-inch 1280*1024@60Hz TFT LCD,
Resistive/Capacitive touch. This PC adopts full flat bezel design. In addition to IO interface, the
waterproof grade of this PC can reach IP65/IP66. It has super waterproof, solid and reliable, high
performance, multi - IO, multi –extension, and wide range of applications. Suitable for wet, cold and
harsh environment.
1.2 Features
Key Features
Intel® Baytrail Celeron J1900 2.0-2.42G CPU
Intel SoC
1-Ch DDR3L 1333MHZ SODIMM, Up to 8GB
SUS304 grade stainless steel enclosure
3.0mm 5052 aluminum rear cover
Full Flat bezel design, fanless
Totally IP65/IP66(except for IO interface )
Support for standard VESA 100*100 mounting
15''/17'' LED TFT LCD, Resistive/Capacitive touch
1*HDMI, 1*VGA,2*GbE LAN,2*COM, 1*USB3.0, 3*USB2.0
1*Opt. ANT, support 4G LTE/WiFi/BT4.0
1*Mini PCIe (PCIe+USB, w/SIM)

User’s Manual
3
1*Simple-swap 2.5” SATA bay , 1*mSATA
DC 9~36V power input
1.3 Specifications
1.3.1 General
CPU: Intel® Baytrail Celeron J1900 2.0-2.42G CPU
System Memory: 1-Ch DDR3L, 1333MHz SODIMM up to 8GB
Watchdog Timer: 255-level interval timer, setup by software
Serial Ports: 2* RS232/422/485 DB9 male
USB: 1*USB 3.0 gen2 Type A, 3*USB2.0 Type A
Expansion Interface:
1*Full size Mini PCIe (PCIeX1+USB) with SIM slot
1* Full size mSATA，with USB2.0，support AHCI
Storage:
1*2.5" HDD SATA bay
1.3.2 Display
Chipset: Intel®Gen.7 HD Graphics
Display Memory: Shared system memory
Resolution: VGA 1900x1200@60Hz; HDMI 1920*1080@60Hz
1.3.3 Ethernet
Chipset: 2*Intel®I210AT Ethernet controllers
Speed: 10/100/1000 Mbps Integrated
Interface: 2*RJ45
1.3.4 Power Consumption
Power Consumption: TDP 12V/2.5A (WPPC-H1780T) TDP 12V/1.62A (WPPC-H1580T)
Power Supply: DC 9~36V，D-Jack w/ M8

User’s Manual
4
1.4 Environmental Specifications
Operating temperature: 0~60℃
Relative humidity: 10~90% @ 40°C (non-condensing)
Storage temperature: -40 ~ 85°C (-40 ~ 185°F)
Vibration loading during operation:
With SSD: 5.0 Grms, random, 5 ~ 500 Hz
With HDD:1.0 Grms, random, 5 ~ 500 Hz
Shock during operation:
10g, peak acceleration (11 ms duration)
EMC: CE, FCC Class B
1.5 Order Information
Modol No.
Introduction
WPPC-H1780T-T001
Industrial Waterproof Panel PC, Intel® Baytrail Celeron J1900 CPU, 17”TFT
LCD, Resistive touch, 1*HDMI, 1*VGA, 2*G-LAN, 2*COM, 1*Opt. ANT,
1*USB3.0, 3*USB2.0, 1*Mini PCIe , 1*Simple-swap 2.5”SATA bay,
1*mSATA, DC 9~36V
WPPC-H1780T(P)-T001
Industrial Waterproof Panel PC, Intel® Baytrail Celeron J1900 CPU, 17”TFT
LCD, Capacitive touch, 1*HDMI, 1*VGA, 2*G-LAN, 2*COM, 1*Opt. ANT,
1*USB3.0, 3*USB2.0, 1*Mini PCIe , 1*Simple-swap 2.5”SATA bay,1*mSATA,
DC 9~36V
WPPC-H1580T-T001
Industrial Waterproof Panel PC, Intel® Baytrail Celeron J1900 CPU, 15”TFT
LCD, Resistive touch, 1*HDMI, 1*VGA, 2*G-LAN, 2*COM, 1*Opt. ANT,
1*USB3.0, 3*USB2.0, 1*Mini PCIe , 1*Simple-swap 2.5”SATA bay,
1*mSATA, DC 9~36V
WPPC-H1580T(P)-T001
Industrial Waterproof Panel PC, Intel® Baytrail Celeron J1900 CPU, 15”TFT
LCD, Capacitive touch, 1*HDMI, 1*VGA, 2*G-LAN, 2*COM, 1*Opt. ANT,
1*USB3.0, 3*USB2.0, 1*Mini PCIe , 1*Simple-swap 2.5”SATA bay,1*mSATA,
DC 9~36V

User’s Manual
5
1.6 Mechanical Specifications
The WPPC-H1780T/ WPPC-H1580T is industrial waterproof panel PC of JHCTECH, consists of a JHC
ESBC single board computer (ECM-I715) and installed in the universal aluminum rectangular profile
housing.

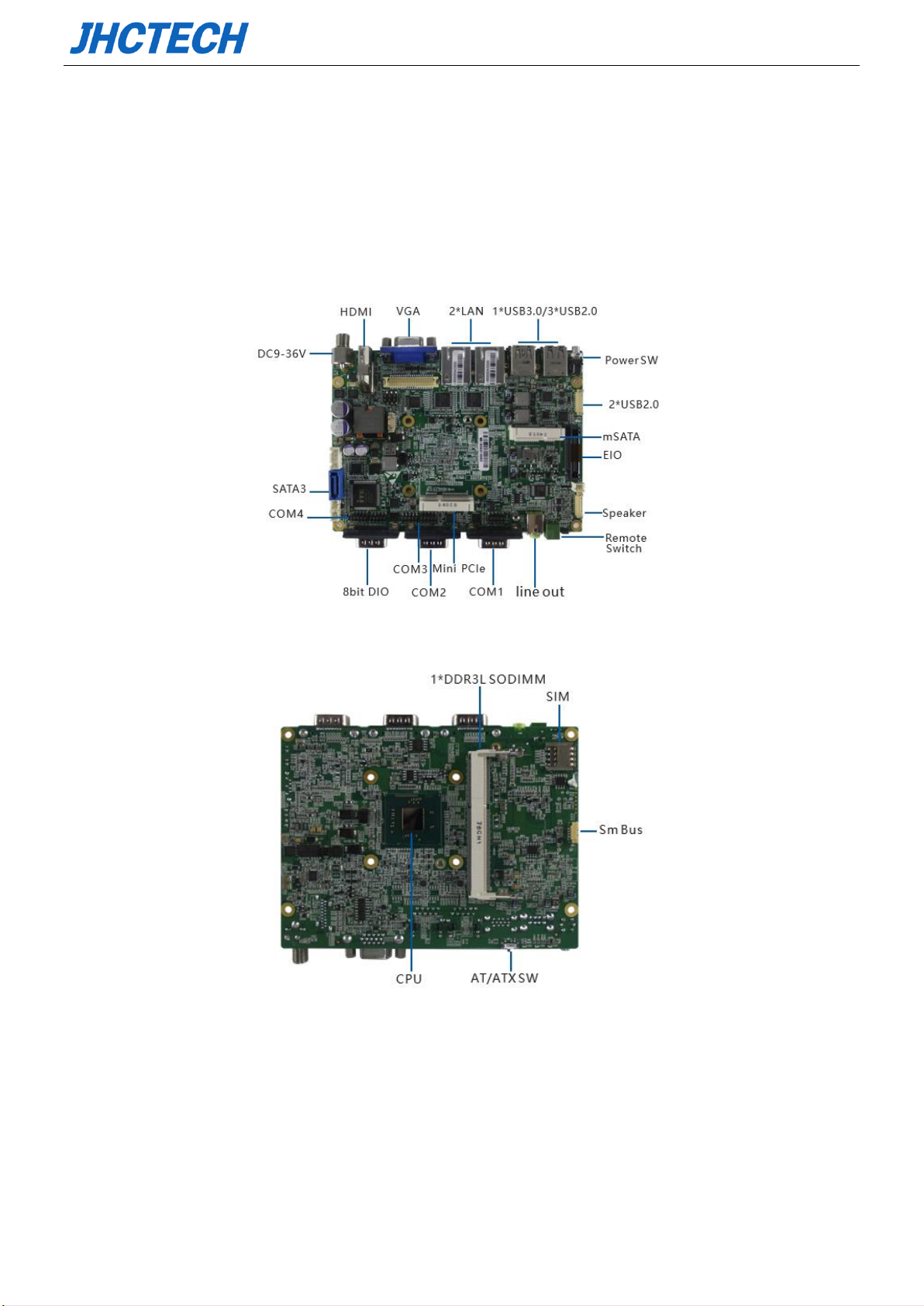

Main Board Front (ECM-I715)
Figure 1.1
Main Board Rear (ECM-I715)
Figure 1.2

User’s Manual
6
WPPC-H1780T/WPPC-H1580T Fornt
Figure 1.3

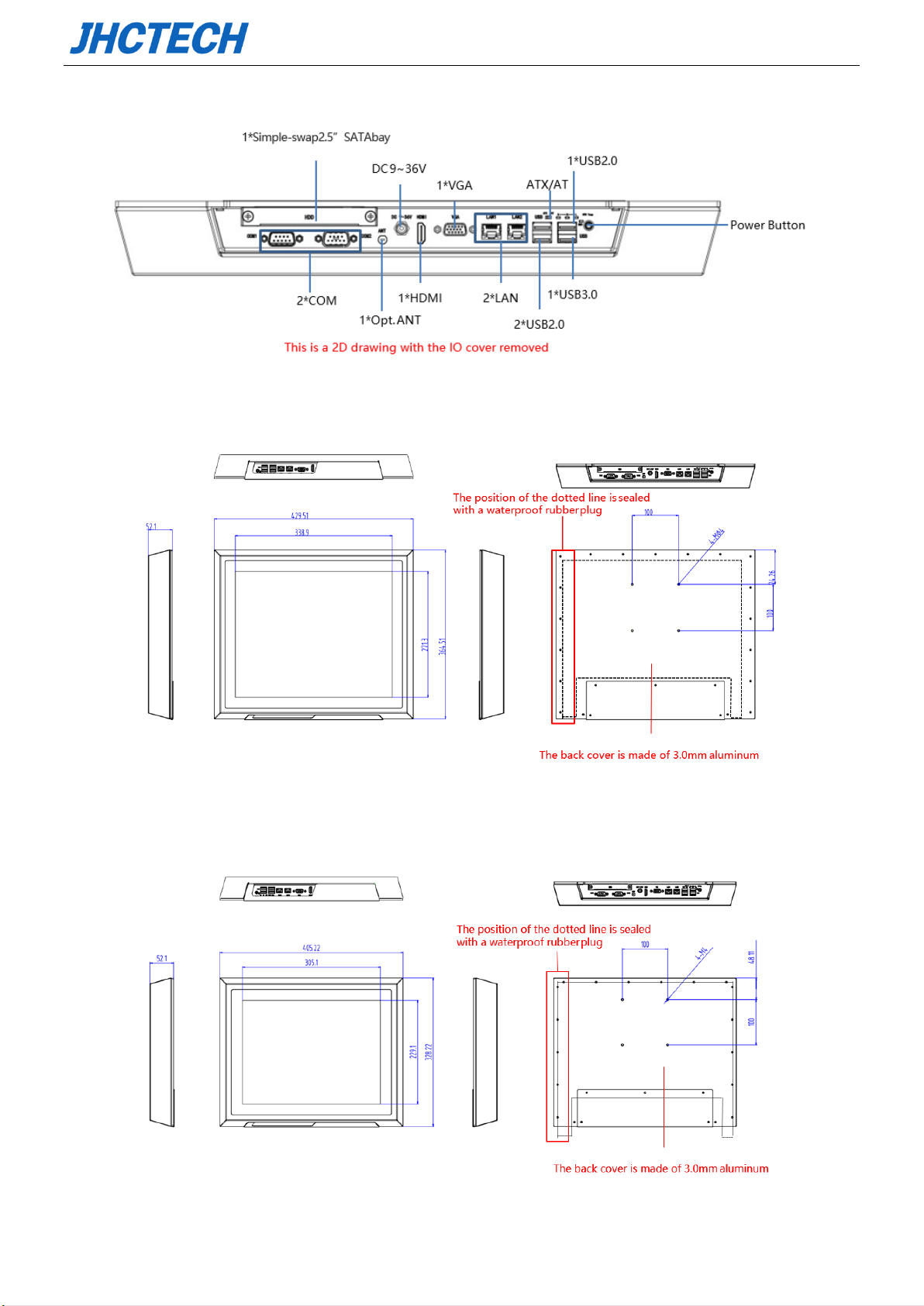

WPPC-H1780T Dimension: Unit: mm
Figure 1.4
WPPC-H1580T Dimension: Unit: mm
Figure 1.5

User’s Manual
7
Hardware Installation
CHAPTER
2

User’s Manual
8
2.1 Introduction
The following sections show jumpers settings and the external connectors and pin assignments for
applications.
2.2 Jumpers setting
The WPPC-H1780T/WPPC-H1580T Box Computer has a number of jumpers that allows you to
configure your system to suit your application. The table below shows the function of each of the board’s
Jumpers:
Jumpers
Jumpers
Name
Description
AT/ATX
Set Power-on mode at AT or ATX
Jumper

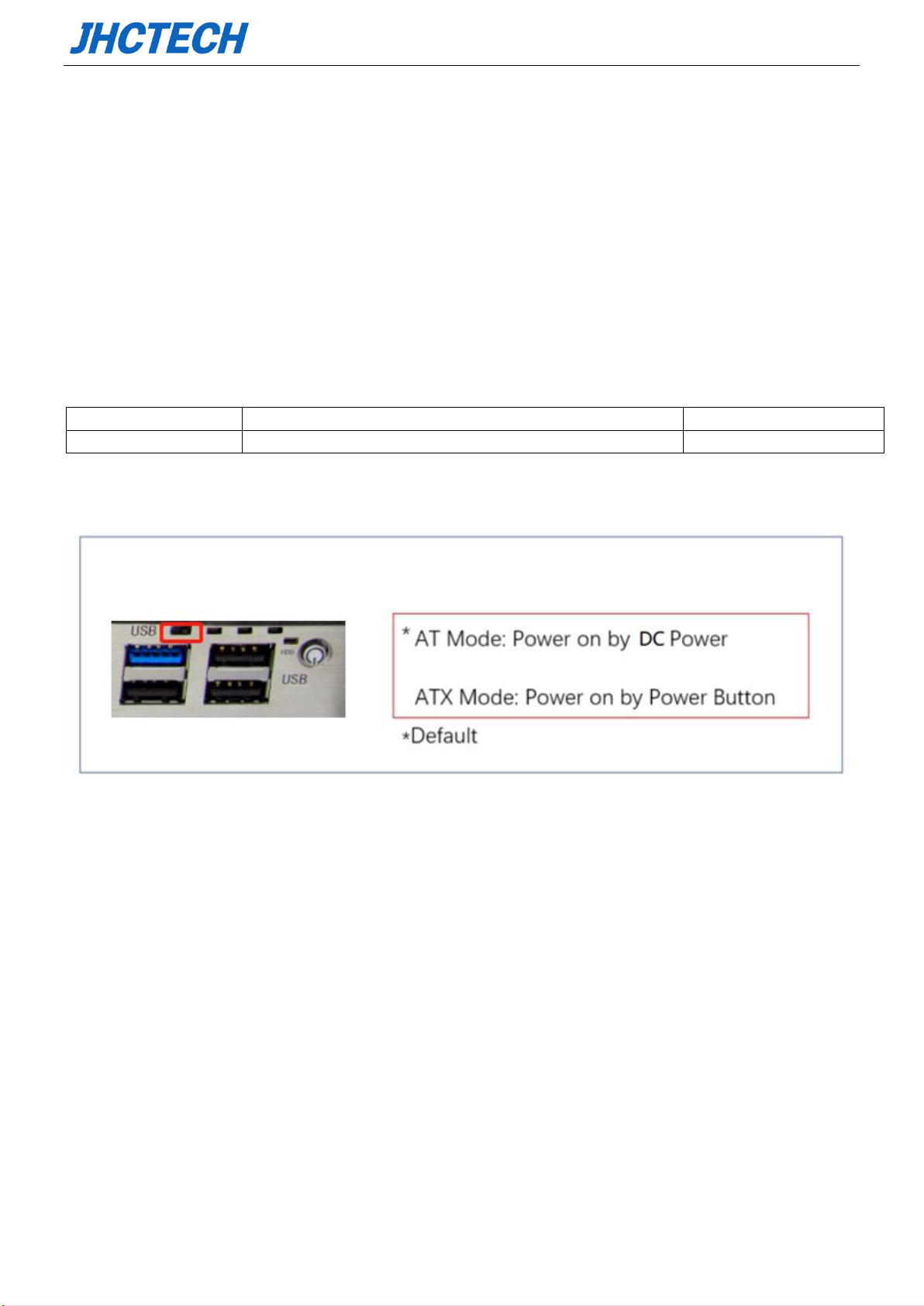

2.2.1 ATX- AT/ATX Power on mode selection
Figure 2. 1
The WPPC-H1780T/WPPC-H1580T provides an AT/ATX jumper, which users can set Power-on mode by
it. When you set pins 2 and 3 on, it means power on by AC Power; when you set pins 1 and 2 on, it means
power on by Power button.
2.3 I/O Ports Indication

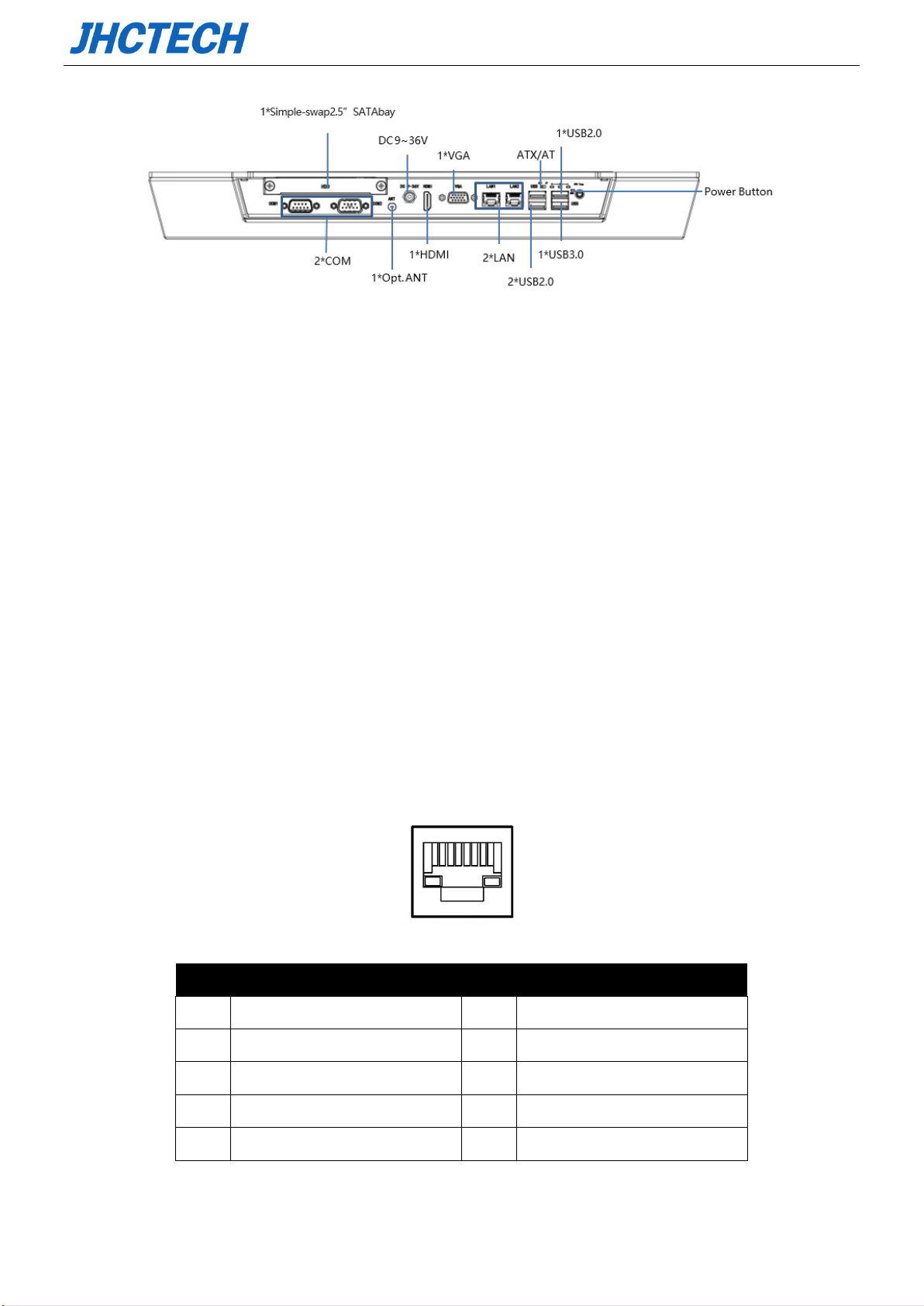

WPPC-H1780T/WPPC-H1580T Front Panel I/O Ports

User’s Manual
9
Figure 2. 2
The Rear panel I/O ports consist of the following:
1*DC-in Power: D-Jack w/ M8 DC 9~36V
1*USB3.0 Type A 、3*USB2.0 TypeA
1*HDMI , 1*VGA
2*LAN:RJ45
2*COM: DB9
`*2.5”SATA2 tray
2.3.1 Ethernet Connector
The WPPC-H1780T/WPPC-H1580T is equipped with 2*Intel I211AT chips for 10/100/1000Mbps
Ethernet controllers. The product provides 2*RJ45, with LED indicators on the front side to show its
Active/Link status (Green LED) and Speed status (yellow LED).
Table 2.1 for pin assignments.
Figure 2. 3
Table 2.1: RJ-45 Connector pin assignments
Pin
10/100/1000BaseT Signal
Pin
10/100/1000BaseT Signal
1
TX+(10/100), LAN_DA+(GHz)
5
LAN_DC-(GHz)
2
TX-(10/100), LAN_DA-(GHz)
6
RX-(10/100), LAN_DB-(GHz)
3
RX+(10/100), LAN_DB+(GHz)
7
LAN_DD-(GHz)
4
LAN_DC+(GHz)
8
LAN_DD-(GHz)

User’s Manual
10

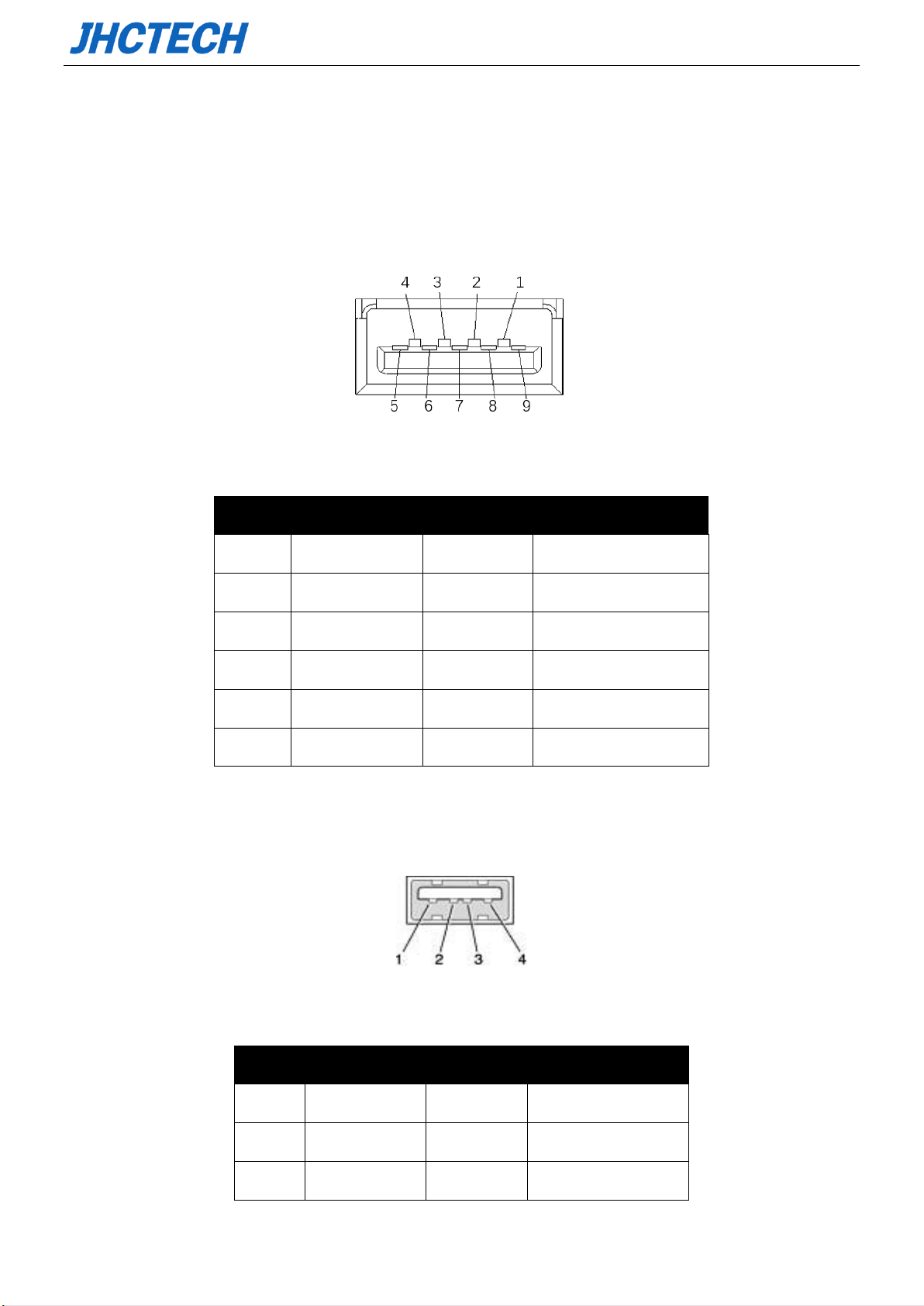

2.3.2 USB Connector
The USB device allows data exchange between your computer and a wide range of simultaneously
accessible external Plug and Play peripherals.
The WPPC-H1780T/WPPC-H1580T provides 1*USB3.0 gen2, 3*USB2.0. The USB interface can be
disabled in the system BIOS setup. Table 2.2 for USB 3.0 pin assignments.
Figure 2. 4
Table 2.2: USB3.0 Port Pin Assignments
Pin
Signal
Pin
Signal
1
VBUS
6
StdA_SSRX+
2
D-
7
GND_DRAIN
3
D+
8
StdA_SSTX-
4
GND
9
StdA_SSTX+
5
StdA_SSRX-
Shell
Shield
Table 2.3 for USB2.0 pin assignments.
Figure 2. 5
Table 2.3: USB2.0 Port Pin Assignments
Pin
Signal
Pin
Signal
1
USB_VCC
2
USB_D-
3
USB_D+
4
USB_GND

User’s Manual
11

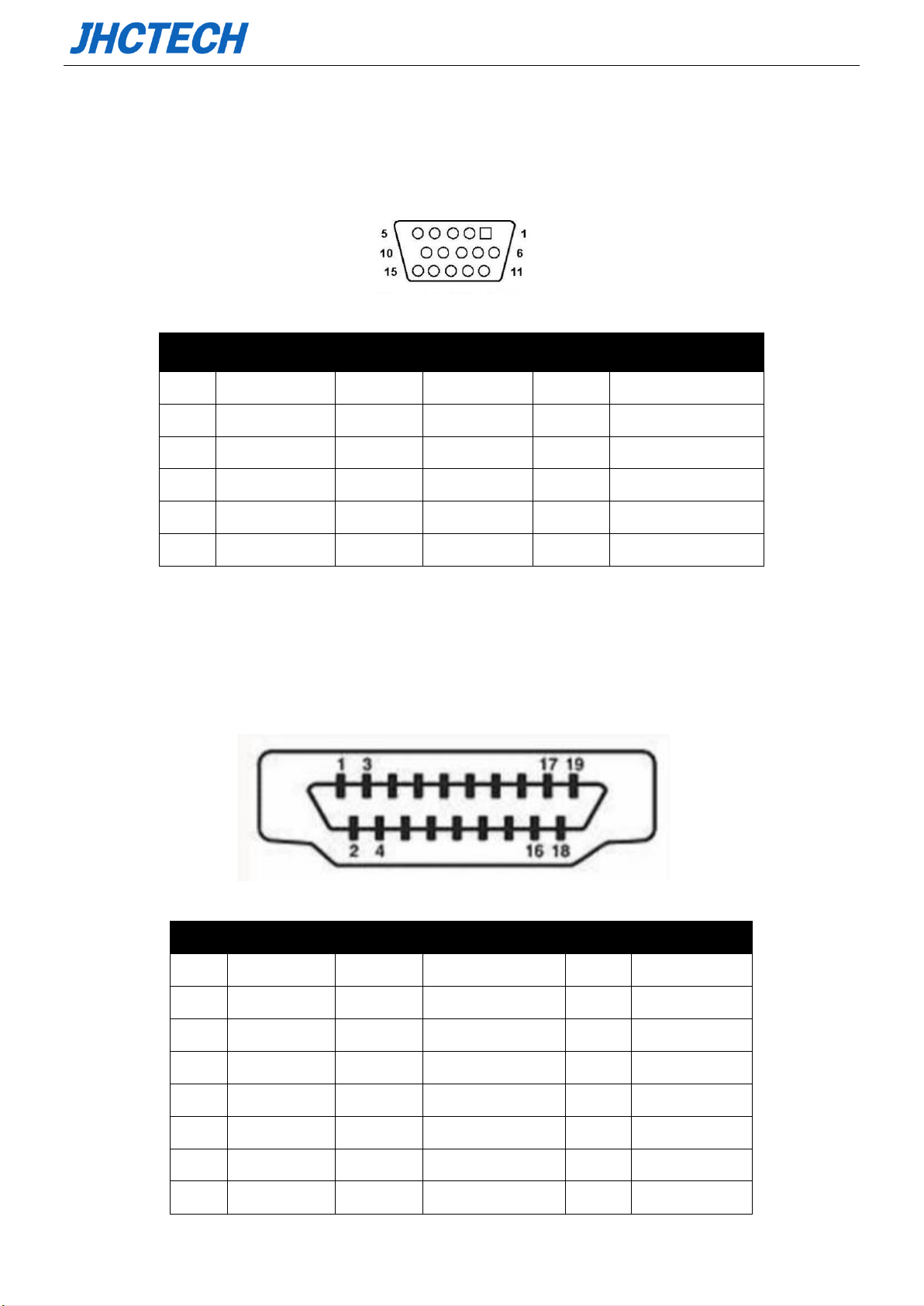

2.3.3 VGA
The WPPC-H1780T/WPPC-H1580T provides a standard VGA display port. They can support the most
resolution up to 1900*1200@60Hz.
Table 2.4 for VGApin assignments.
Figure 2. 6
Table 2.4: VGA Pin Assignments
Pin
Signal
Pin
Signal
Pin
Signal
1
VGA_z_R
6
GND_RGB
11
SPD
2
VGA_z_G
7
GND_7
12
VGA_SDA
3
VGA_z_B
8
GND_RGB
13
MONHSYNC
4
SPC
9
VGA_5V
14
MONVSYNC
5
GND
10
GND
15
VGA_SCL
2.3.4 HDMI
The WPPC-H1780T/WPPC-H1580T provides a standard HDMI ports, it supports the most resolution up
to 1920*1080@60Hz.
Table 2.4 for HDMI pin assignments.
Figure 2. 7
Table 2.5: DP Pin Assignments
Pin
Signal
Pin
Signal
Pin
Signal
1
DATA2_P
8
GND
15
SCL
2
GND
9
DATA0_N
16
SDA
3
DATA2_N
10
CLK_P
17
GND
4
DATA1_P
11
GND
18
VCC
5
GND
12
CLK_N
19
DETECT
6
DATA1_N
13
NC
7
DATA0_P
14
NC

User’s Manual
12

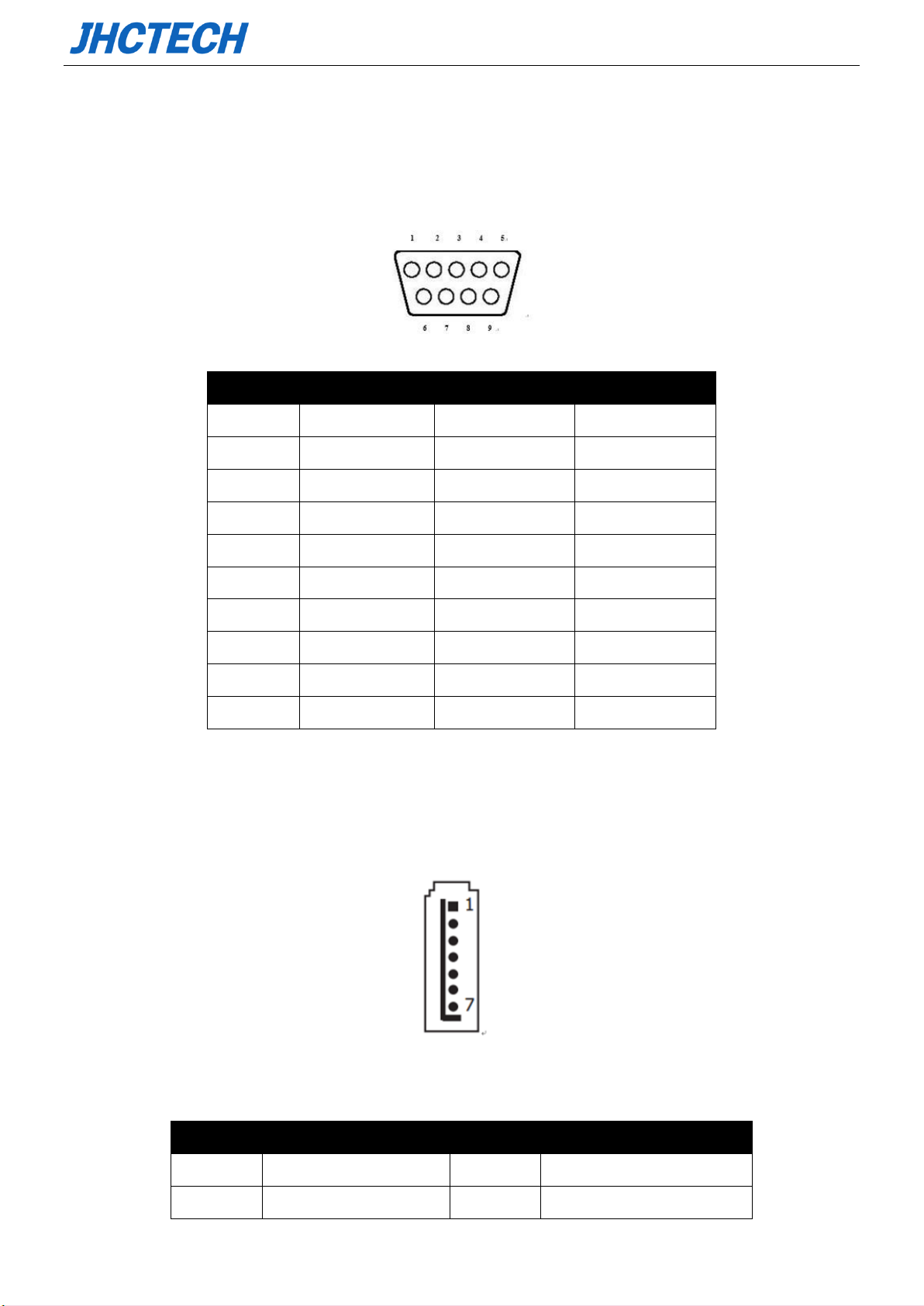

2.3.5 COM Connector
The WPPC-H1780T/WPPC-H1580T provides 2 serial ports of COM1/2/ by 2*D-sub 9-pin connectors.
COM1/2 can be configured as RS232、RS422 or RS485 by BIOS setup. Table 2.6 for COM1/2 pin
assignments.
Figure 2. 1
Table 2.6: COM1/2 Serial Ports Pin Assignments
Pin
RS-232 Signal
RS-422 Signal
RS-485 Signal
1
DCD
TX-
DATA-
2
RxD
TX+
DATA+
3
TxD
RX+
NC
4
DTR
RX-
NC
5
GND
GND
GND
6
DSR
NC
NC
7
RTS
NC
NC
8
CTS
NC
NC
9
RI
NC
NC
2.3.6 Serial ATA
The WPPC-H1780T/WPPC-H1580T provides 1*SATA2.0, data transfer rate up to 3Gb/s. Table 2.7 for
pin assignments.
Figure 2. 2
Table 2.7: Serial ATA pin assignments
Pin
Signal
Pin
Signal
1
GND
5
RX-

User’s Manual
13
2
TX+
6
RX+
3
TX-
7
GND
4
GND
2.3.7 Serial ATA Power
Figure 2. 3
Table 2.8 for pin assignments.
Table 2.8: Serial ATA Power pin assignments
Pin
Signal
Pin
Signal
1
5V
3
GND
2
GND
4
12V
2.3.8 Mini-PCIe Connector
The WPPC-H1780T/WPPC-H1580T provides a Mini PCIe. Mini PCIe interface with PCIe and USB
signal, Install Mini PCI Express cards such as network cards or other cards that comply with the Mini PCI
Express specifications into the Mini PCI Express slot.
(Note: SIM1 slot is connected to MPE1 slot)
Figure 2. 11
