JHCTech KMDA-3230 User manual

User’s Guide
User’s Guide
KMDA-3230
Ver.A1.0
Date:01, Jul. 2020

User’s Guide
Version Note
No.
Ver.
Note
Date
Writer
1
A1.
Final publish
20200701
Echo Guo

User’s Guide
I
Copyright
The documentation and the software included with this product are copy- righted 2020 by Shenzhen JHC
Technology Development Co., Ltd. All rights are reserved. Shenzhen JHC Technology Development Co.,
Ltd. reserves the right to make improvements in the products described in this manual at any time without
notice. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any
means without the prior written permission of Shenzhen JHC Technology Development Co., Ltd.
Information provided in this manual is intended to be accurate and reliable. However, Shenzhen JHC
Technology Development Co., Ltd. assumes no responsibility for its use, nor for any infringements of the
rights of third parties, which may result from its use.
Acknowledgements
Award is a trademark of Award Software International, Inc.
IBM, PC/AT, PS/2 and VGA are trademarks of International Business Machines Corporation.
Intel, Whiskey are trademarks of Intel Corporation.
Microsoft Windows and MS-DOS are registered trademarks of Microsoft Corp.
RTL is a trademark of Realtek Semi-Conductor Co., Ltd.
All other product names or trademarks are properties of their respective owners.
For more information on this and other JHC products, please visit our websites at:
http://www.jhctech.com.cn

User’s Guide
II
Product Warranty (2 years)
JHC warrants to you, the original purchaser, that each of its products will be free from defects in
materials and workmanship for two years from the date of purchase.
This warranty does not apply to any products which have been repaired or altered by persons other than
repair personnel authorized by JHC, or which have been subject to misuse, abuse, accident or improper
installation.
JHC assumes no liability under the terms of this warranty as a consequence of such events.
Because of JHC.s high quality-control standards and rigorous testing, most of our customers never need
to use our repair service. If an JHC product is defective, it will be repaired or replaced at no charge during
the warranty period. For out-of-warranty repairs, you will be billed according to the cost of replacement
materials, service time and freight. Please consult your dealer for more details.
If you think you have a defective product, follow these steps:
1. Collect all the information about the problem encountered. (For example, CPU speed, JHC products
used, other hardware and software used, etc.) Note anything abnormal and list any onscreen messages
you get when the problem occurs.
2. Call your dealer and describe the problem. Please have your manual, product, and any helpful
information readily available.
3. If your product is diagnosed as defective, obtain an RMA (return merchandise authorization) number
from your dealer. This allows us to process your return more quickly.
4. Carefully pack the defective product, a fully-completed Repair and Replacement Order Card and a
photocopy proof of purchase date (such as your sales receipt) in a shippable container. A product
returned without proof of the purchase date is not eligible for warranty service.
5. Write the RMA number visibly on the outside of the package and ship it prepaid to your dealer.

User’s Guide
III
Declaration of Conformity
CE
This product has passed the CE test for environmental specifications
when shielded cables are used for external wiring. We recommend the use
of shielded cables. This kind of cable is available from JHC. Please
contact your local supplier for ordering information. Test conditions for
passing included the equipment being operated within an industrial enclosure.
In order to protect the product from being damaged by ESD (Electrostatic
Discharge) and EMI leakage, we strongly recommend the use of
CE-compliant industrial enclosure products.
FCC Class B
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
Technical Support and Assistance
Step 1. Visit the JHC web site at www.jhctech.com.cn where you can find the latest information about the
product.
Step 2. Contact your distributor, sales representative, or JHC’s customer service center for technical
support if you need additional assistance. Please have the following information ready before you
call:
- Product name and serial number
- Description of your peripheral attachments

User’s Guide
IV
- Description of your software (operating system, version, application software, etc.)
- A complete description of the problem
- The exact wording of any error messages

User’s Guide
i
CONTENTS
General Information....................................................................................................................................1
1.1 Introduction......................................................................................................................................2
1.2 Features............................................................................................................................................2
1.3 Specifications...................................................................................................................................3
1.3.1 General..................................................................................................................................3
1.3.2 Display..............................................................................................................................3
1.3.3 Ethernet ............................................................................................................................3
1.3.4 Audio................................................................................................................................3
1.3.5 Power Consumption.........................................................................................................4
1.4 Environmental Specifications..........................................................................................................4
1.5 Industrial Edge Module –Expandable -A K92618 Specifications..................错误!未定义书签。

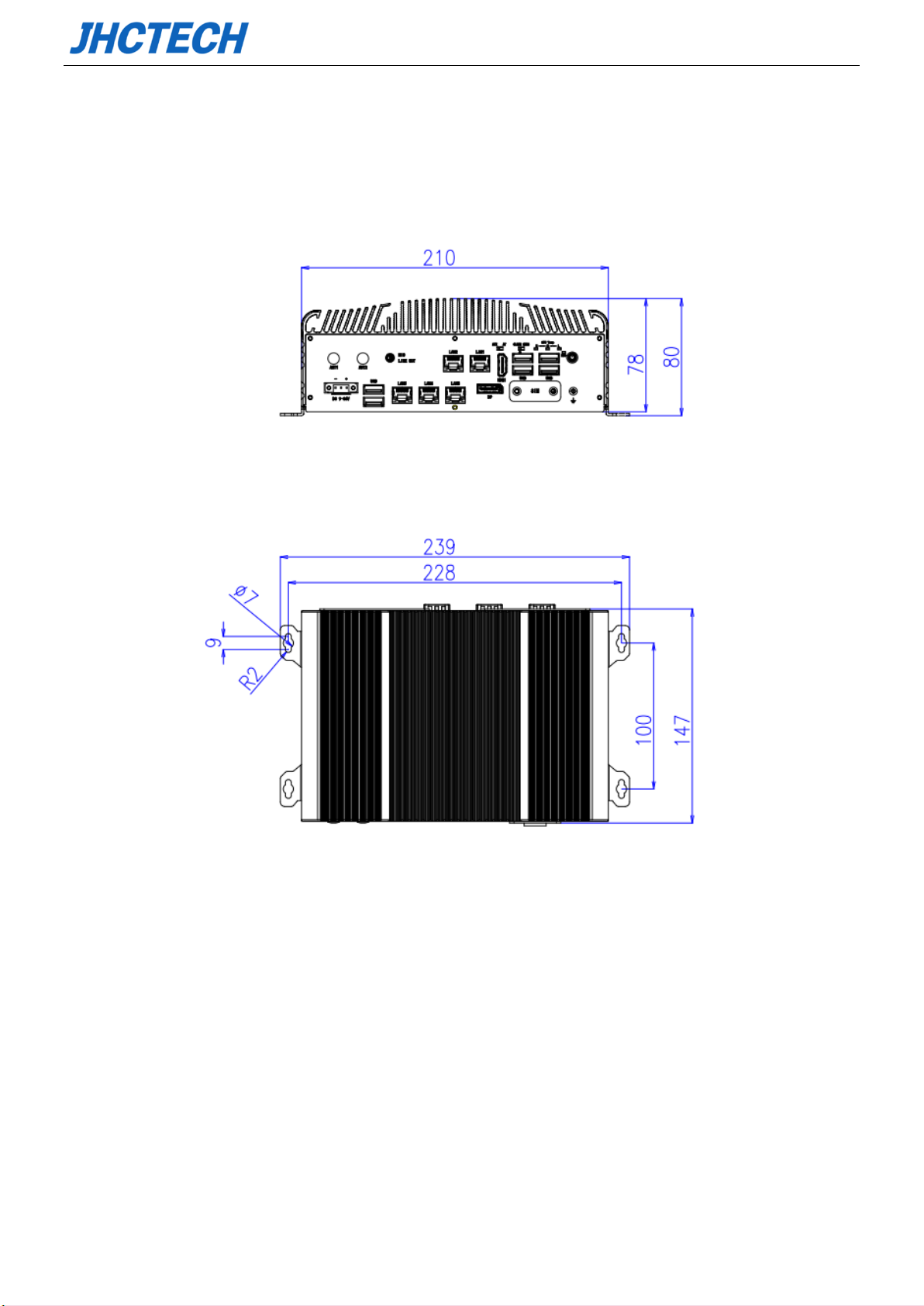

1.6 Mechanical Specifications...............................................................................................................5
Hardware Installation.................................................................................................................................9
2.1 Introduction....................................................................................................................................10
2.2 Switches.........................................................................................................................................10
2.2.1 SW1-Clear CMOS Data .....................................................................................................10
2.2.2 SW2- AT/ATX Power on mode selection...........................................................................11
2.3 I/O/Button/LED Indication............................................................................................................11
2.3.1 Ethernet Connector (LAN).................................................................................................13
2.3.2 USB Connector...................................................................................................................13
2.3.3 HDMI..................................................................................................................................15

User’s Guide
ii
2.3.4 DP.......................................................................................................................................15
2.3.5 DIO Connector....................................................................................................................16
2.3.6 Power Input Connector (DC-IN)........................................................................................17
2.3.7 COM1/2/3 Connector .........................................................................................................17
2.3.8 COM4/5 Connector ............................................................................................................18
2.3.9 Remote Switch signal Connector........................................................................................18
2.3.10 Serial ATA.........................................................................................................................19
2.3.11 SATA power connector .....................................................................................................20
2.3.12 mSATA Connector............................................................................................................21
2.3.13 Mini-PCIe Connector........................................................................................................23
2.3.14 M.2 connector...................................................................................................................25
2.3.15 LED...................................................................................................................................25
2.4 Installation .....................................................................................................................................26
2.4.1 HDD/SSD Installation........................................................................................................26
2.4.2 Installing Mini PCIe ...........................................................................................................28
2.4.3 Installing mSATA ...............................................................................................................29
2.4.4 Installing M.2......................................................................................................................32
BIOS Setup.................................................................................................................................................34
3.1 BIOS Description...........................................................................................................................35
3.1.1 Entering the Setup Utility...................................................................................................35
3.2 BIOS parameter settings................................................................................................................36
3.2.1 BIOS Navigation Keys.......................................................................................................36

User’s Guide
iii
3.2.2 Main Menu..........................................................................................................................37
3.2.3 Advanced Menu..................................................................................................................39
3.2.4 Chipset Menu......................................................................................................................48
3.2.5 Security menu.....................................................................................................................55
3.2.6 Boot menu...........................................................................................................................56
3.3 Updating the BIOS ........................................................................................................................58
Driver Installation .....................................................................................................................................60
4.1 Follow the sequence below to install the drivers:..........................................................................61
4.2 Installation: ....................................................................................................................................61
4.3 CPU TEMP LED driver.................................................................................................................62
4.4 Utility Software Reference ............................................................................................................63
SYSTEM RESOURCE..............................................................................................................................64
5.1 WDT and GPIO .............................................................................................................................65

User’s Guide
1
General Information
CHAPTER
1

User’s Guide
2
1.1 Introduction
KMDA-3230 is an embedded industrial Box Computer, with aluminum chassis and fan-less design. It
powered by Intel® Whiskey lake U Celeron/Core I3/I5/I7 series processors, 2-Ch DDR4, 2* SO-DIMM
up to 32GB.
KMDA-3230 offers 1*HDMI, 1*DP, dual 4K display interfaces, 5*GbE LANs, 4*USB3.1, 2*USB2.0,
5*COM, 8-bit Iso DIO, 1*F-Mini PCIe with SIM slot, which supports 4G LTE/Wifi/BT. 1*M.2, 2230 E-
Key, 1*mSATA and 1*2.5” SATA HDD/SSD are used for storage. DC 9~36V wide power input. The
aluminum profile bottom shell design is good for heat dissipation of hard disk. The machine is small,
powerful and delicate, suitable for industrial Internet of things, machine vision and other applications.
1.2 Features
Key Features
Universal aluminum chassis, fan-less design
Intel® Whiskey lake U Celeron/Core I3/I5/I7 CPU
2*260-pin SODIMM, DDR4 2400MHz , up to 32GB
1* Full Mini PCIe, with SIM slot, PCIe X1+USB2.0 signal, support 3G/4G/Wifi/ BT/ GPRS wireless
1* M.2 E-key 2230, with PCIe X1+USB2.0 signal, expansion of Wifi/BT module
1*2.5” SATA HDD/SSD bay, 1*mSATA for storage
1*DP, 1*HDMI, dual 4K display interfaces
Realtek ALC662VD controller, 1*Line out & Mic
4*Intel® I210AT PCIe Gig. Ethernet，10/100/1000 Mbps adaptive;
1*Intel®I219 LM ,support iAMT 12.0
8-bit Iso DIO,4*USB3.1, 2*USB2.0, 5*COM
Clear CMOS switch is on the front panel, easy to clear CMOS data

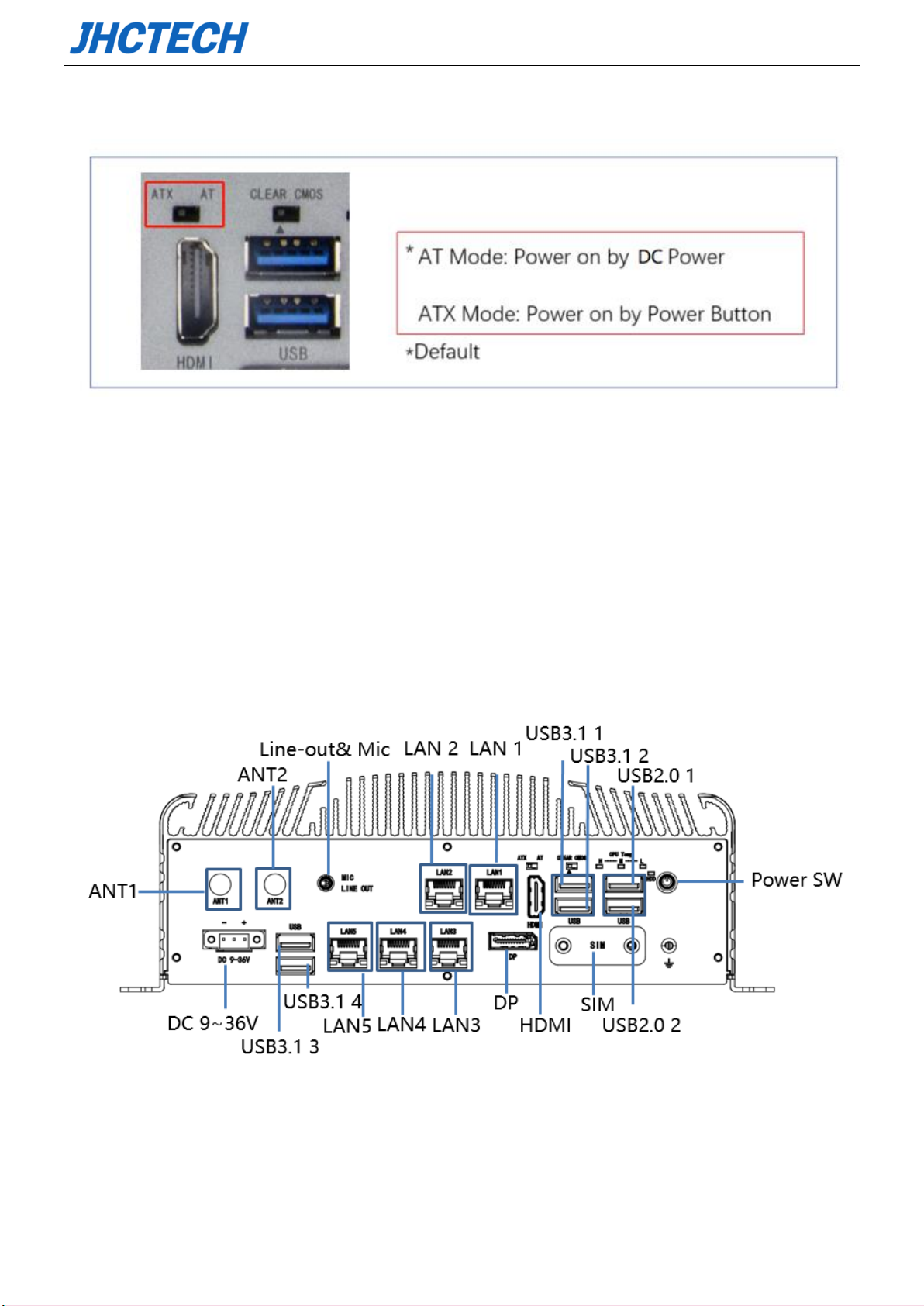

AT/ATX power-on mode selection switch is on the front panel, easy to set power-on mode
DC 9~36V, CPU temperature show in LED

User’s Guide
3
1.3 Specifications
1.3.1 General
CPU: Intel® Whiskey lake U Celeron/Core I3/I5/I7 CPU
System Memory: 2*DDR4 2400MHz SODIMM, Up to 32GB
Watchdog Timer: 255-level interval timer, setup by software
Serial Ports: 3* RS232 DB9 male, 2*RS485 10-Pin Phoenix terminal
USB: 4*USB 3.1 Type A ports, 2*USB2.0 Type A ports
Expansion Interfaces:
1*Full size Mini PCIe (PCIeX1+USB2.0) with SIM slot
1* M.2 E-key 2230, with PCIe X1+USB2.0 signal, expansion of Wifi/BT module
Storage: 1* mSATA
1*2.5” SATA HDD/SSD bay
1.3.2 Display
Chipset: Gen. 9th Intel®UHD Graphics
Display Memory: Shared system memory
Resolution: HDMI 4096* 2304@24Hz, DP 4096* 2304@60Hz
1.3.3 Ethernet
Chipset: 4*Intel® I210AT PCIe Gig. Ethernet, 1*Intel®I219LM, support iAMT12.0
Speed: 10/100/1000 Mbps Integrated
Interface: 5*RJ45
1.3.4 Audio
Chipset: Realtek ALC662VD controller
Interface: 1*Line out&MIC, 3.5mm phone jack

User’s Guide
4
1.3.5 Power Consumption
Input Voltage: DC 9~36V Input
Power Consumption: TDP 12/2.5A (I5-8365UE CPU, 8GB RAM, 128GB SSD)
Power Adapter: AC to DC 12V/5A, 60W
1.4 Environmental Specifications
Operating temperature:
-20 ~ 70°C (Fanless, SSD, Airflow)
Relative humidity: 10~90% @ 40°C (non-condensing)
Storage temperature: -40 ~ 85°C (-40 ~ 185°F)
Vibration loading during operation:
With SSD: 1.09 Grms, random, 5 ~ 500 Hz
With HDD:1.09 Grms, random, 5 ~ 500 Hz
Shock during operation:
With SSD: 50g, peak acceleration (11 ms duration)
With HDD:20g peak acceleration (11 ms duration)
EMC: CE, FCC Class B
1.5 Ordering Info
Modol
No.
CPU
Introduction
KMDA-3230/S001
Intel®Core I3-8145U
Fanless Box Computer，Dual channel DDR4 2*SO-DIMM，
1*HDMI，1*DP，1*Line out&Mic，5*LAN，4*USB3.1，
2*USB2.0，5*COM，8-bit DIO，1*M.2，1*Mini PCIe，
1*SIM slot, 1*mSATA，1*2.5”SATA，DC9~36V
KMDA-3230/S002
Intel®Core I5-8265U
Fanless Box Computer，Dual channel DDR4 2*SO-DIMM，

User’s Guide
5
1*HDMI，1*DP，1*Line out&Mic，5*LAN，4*USB3.1，
2*USB2.0，5*COM，8-bit DIO，1*M.2，1*Mini PCIe，
1*SIM slot, 1*mSATA，1*2.5”SATA，DC9~36V
KMDA-3230/S003
Intel®Core I7-8565U
Fanless Box Computer，Dual channel DDR4 2*SO-DIMM，
1*HDMI，1*DP，1*Line out&Mic，5*LAN，4*USB3.1，
2*USB2.0，5*COM，8-bit DIO，1*M.2，1*Mini PCIe，
1*SIM slot, 1*mSATA，1*2.5”SATA，DC9~36V
KMDA-3230/S004
Intel®Celeron 4305U
Fanless Box Computer，Dual channel DDR4 2*SO-DIMM，
1*HDMI，1*DP，1*Line out&Mic，5*LAN，4*USB3.1，
2*USB2.0，5*COM，8-bit DIO，1*M.2，1*Mini PCIe，
1*SIM slot, 1*mSATA，1*2.5”SATA，DC9~36V
1.6 Mechanical Specifications
The KMDA-3230 consists of a main board (ECM-I909), a subboard (ECB-251)
Main Board Front (ECM-I909)
Figure 1.1

User’s Guide
6

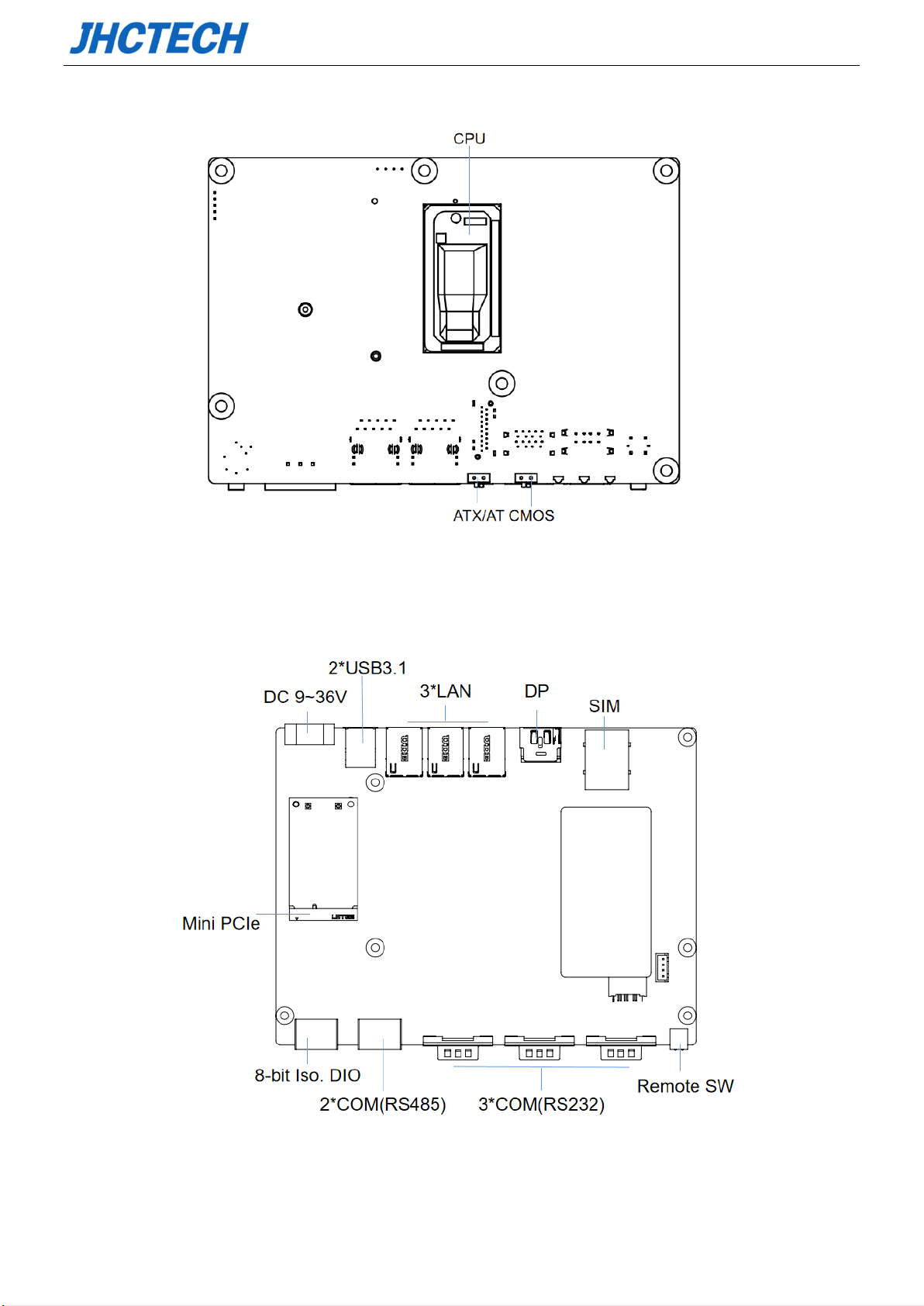

Main Board Rear (ECM-I909)
Figure 1.2
Sub-card (ECB-251)
Figure 1.3
KMDA-3230 Front Panel

User’s Guide
7
Figure 1.4
KMDA-3230 Rear Panel
Figure 1.5

User’s Guide
8
KMDA-3230 Dimension:
Unit: mm
Figure 1.6

User’s Guide
9
Hardware Installation
CHAPTER
2

User’s Guide
10
2.1 Introduction
The following sections show the internal switch settings and the external connectors and pin assignments
for applications.
2.2 Switches
The KMDA-3230 Box Computer has a number of switches on the panel that allows you to configure your
system to suit your application. The table below shows the function of each of the board’s switches:
Switches
Name
Description
SW1
Clear CMOS Data Setting
3-Pin Switch
SW2
Set Power-on mode at AT or ATX
3-Pin Switch
2.2.1 SW1-Clear CMOS Data
Figure 2. 1
If you encounter the followings
a) CMOS data becomes corrupted.
b) You forget the supervisor or user password.
You can reconfigure the system with the default values stored in the ROM BIOS.
To load the default values stored in the ROM BIOS, please follow the steps below.
1. Power-off the system and unplug the power cord.
2. Dial the dip switch to CLEAR mode, stay for 5~6 seconds, and then revert to CMOS mode;
3. Power-On the computer, press the Del key to enter the BIOS setting and reload the optimal default
value;
4. Save and exit the Settings.

User’s Guide
11
2.2.2 SW2- AT/ATX Power on mode selection
Figure 2. 2
The KMDA-3230 provides 1*AT/ATX SW, which users can set Power-on mode by it. When you dial it at
AT, it means power on by AC Power; When you dial it at ATX, it means power on by Power button.
2.3 I/O/Button/LED Indication
KMDA-3230 Front Panel
Figure 2.3
