User’s Manual
User’s Manual
KMDA-3602
Ver.A1.0
Date:19, September, 2018

User’s Manual
Version Note
No.
Ver.
Note
Date
Writer
1
A1.0
first publish
20180919
Tracy Liu

User’s Manual
I
Copyright
The documentation and the software included with this product are copy- righted 2018 by Shenzhen JHC
Technology Co., Ltd. All rights are reserved. Shenzhen JHC Technology Co., Ltd. reserves the right to
make improvements in the products described in this manual at any time without notice. No part of this
manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior
written permission of Shenzhen JHC Technology Co., Ltd. Information provided in this manual is intended
to be accurate and reliable. However, Shenzhen JHC Technology Co., Ltd. assumes no responsibility for
its use, nor for any infringements of the rights of third parties, which may result from its use.
Acknowledgements
Award is a trademark of Award Software International, Inc.
IBM, PC/AT, PS/2 and VGA are trademarks of International Business Machines Corporation.
Intel and Pentium are trademarks of Intel Corporation.
Microsoft Windows and MS-DOS are registered trademarks of Microsoft Corp.
RTL is a trademark of Realtek Semi-Conductor Co., Ltd.
All other product names or trademarks are properties of their respective owners.
For more information on this and other JHC products, please visit our websites at:
http://www.jhctech.com.cn

User’s Manual
II
Product Warranty (2 years)
JHC warrants to you, the original purchaser, that each of its products will be free from defects in
materials and workmanship for two years from the date of purchase.
This warranty does not apply to any products which have been repaired or altered by persons other than
repair personnel authorized by JHC, or which have been subject to misuse, abuse, accident or improper
installation.
JHC assumes no liability under the terms of this warranty as a consequence of such events.
Because of JHC.s high quality-control standards and rigorous testing, most of our customers never need
to use our repair service. If an JHC product is defective, it will be repaired or replaced at no charge during
the warranty period. For out-of-warranty repairs, you will be billed according to the cost of replacement
materials, service time and freight. Please consult your dealer for more details.
If you think you have a defective product, follow these steps:
1. Collect all the information about the problem encountered. (For example, CPU speed, JHC products
used, other hardware and software used, etc.) Note anything abnormal and list any onscreen messages
you get when the problem occurs.
2. Call your dealer and describe the problem. Please have your manual, product, and any helpful
information readily available.
3. If your product is diagnosed as defective, obtain an RMA (return merchandise authorization) number
from your dealer. This allows us to process your return more quickly.
4. Carefully pack the defective product, a fully-completed Repair and Replacement Order Card and a
photocopy proof of purchase date (such as your sales receipt) in a shippable container. A product
returned without proof of the purchase date is not eligible for warranty service.
5. Write the RMA number visibly on the outside of the package and ship it prepaid to your dealer.

User’s Manual
III
Declaration of Conformity
CE
This product has passed the CE test for environmental specifications
when shielded cables are used for external wiring. We recommend the use
of shielded cables. This kind of cable is available from JHC. Please
contact your local supplier for ordering information. Test conditions for
passing included the equipment being operated within an industrial enclosure.
In order to protect the product from being damaged by ESD (Electrostatic
Discharge) and EMI leakage, we strongly recommend the use of
CE-compliant industrial enclosure products.
FCC Class A
Note: This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
Technical Support and Assistance
Step 1. Visit the JHC web site at www.jhctech.com.cn where you can find the latest information about the
product.
Step 2. Contact your distributor, sales representative, or JHC’s customer service center for technical
support if you need additional assistance. Please have the following information ready before you
call:
- Product name and serial number
- Description of your peripheral attachments
- Description of your software (operating system, version,application software, etc.)
- A complete description of the problem
- The exact wording of any error messages

User’s Manual
i
CONTENTS
General Information.......................................................................................................................................1
1.1 Introduction......................................................................................................................................2
1.2 Features............................................................................................................................................2
1.3 Specifications...................................................................................................................................3
1.3.1 General...............................................................................................................................3
1.3.2 Display...............................................................................................................................3
1.3.3 Ethernet..............................................................................................................................3
1.3.4 Audio .................................................................................................................................3
1.3.5 Power Consumption...........................................................................................................4
1.4 Environmental Specifications..........................................................................................................4
1.5 3602 Series Specifications...............................................................................................................4
1.6 Mechanical Specifications...............................................................................................................5
Hardware Installation.....................................................................................................................................8
2.1 Introduction......................................................................................................................................9
2.2 Jumpers and Connectors..................................................................................................................9
2.2.1 Setting Jumpers.....................................................................................................................9
2.3 Jumper Location ............................................................................................................................10

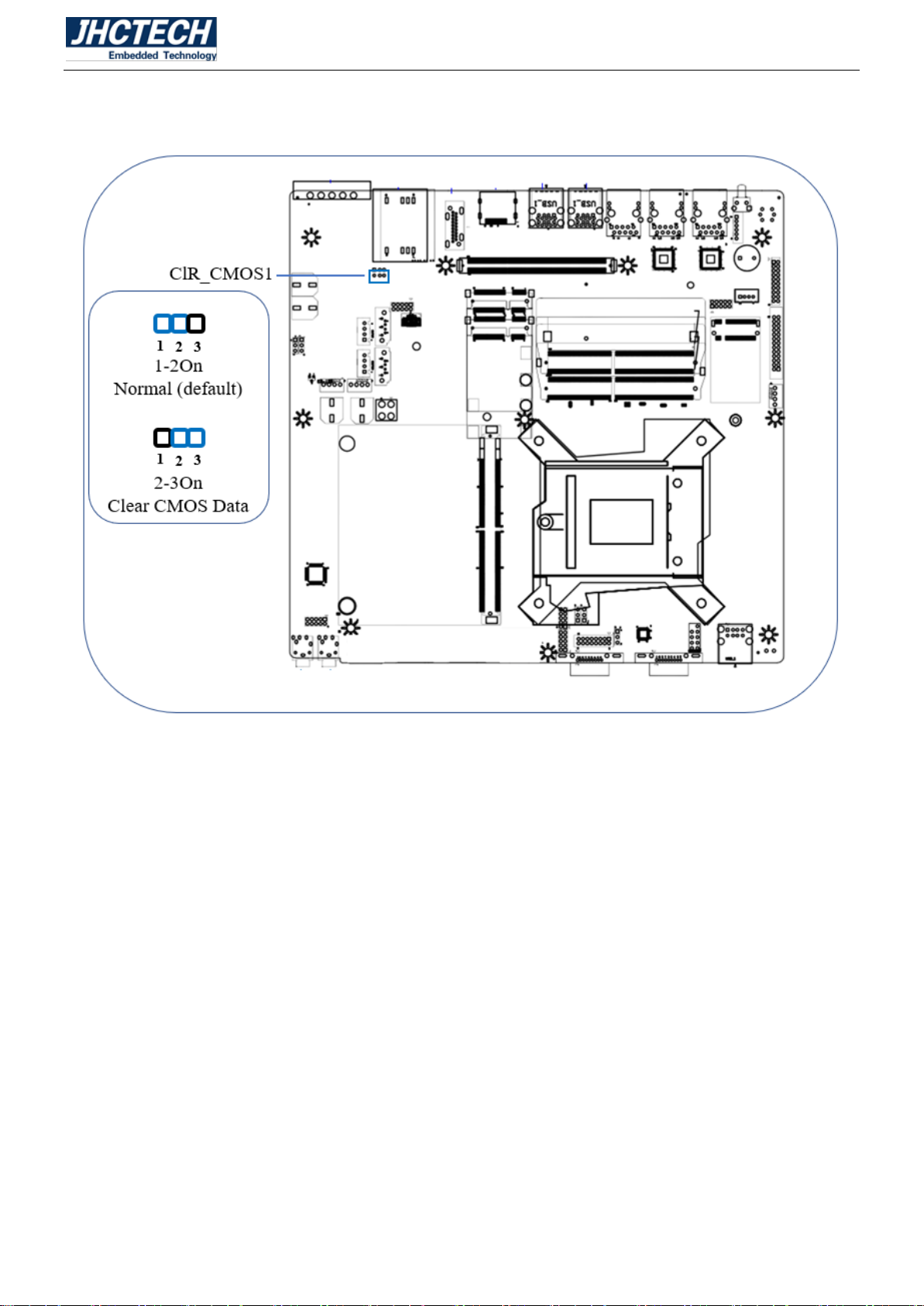

2.3.1 CLR_CMOS1-Clear CMOS Data ......................................................................................11
2.3.3 COM7-ITPS Mode and Power off delay Select.................................................................12
2.4 I/O/Button/LED Indication............................................................................................................12
2.4.1 Ethernet Connector (LAN) .................................................................................................13
2.4.2 USB Connector...................................................................................................................14
2.4.3 HDMI..................................................................................................................................15
2.4.4 DP .......................................................................................................................................15
2.4.5 DIO Connector....................................................................................................................16
2.4.6 Power Input Connector (DC-IN) ........................................................................................17
2.4.7 VGA....................................................................................................................................18

User’s Manual
ii
2.4.8 COM1/2 Connector ............................................................................................................18
2.4.9 Remote Switch signal Connector........................................................................................19
2.4.10 AT/ATX SW......................................................................................................................19
2.4.11 LED...................................................................................................................................19
2.5 Installation .....................................................................................................................................20
2.5.1 HDD/SSD Installation ........................................................................................................20
2.5.2 Installing mini-PCIe............................................................................................................24
2.5.3 Installing MSATA...............................................................................................................30
2.5.4 Installing GPU module .......................................................................................................32
BIOS Setup..................................................................................................................................................34
3.1 BIOS Description...........................................................................................................................35
3.2 BIOS parameter settings................................................................................................................35
3.2.1 BIOS Navigation Keys .......................................................................................................36
3.2.2 Main Menu..........................................................................................................................36
3.2.3 Advanced Menu..................................................................................................................38
3.2.4 Chipset Menu......................................................................................................................41
3.2.5 Security menu .....................................................................................................................43
3.2.6 Boot menu...........................................................................................................................44
3.2.7 Save&Exit menu.................................................................................................................45
3.3 Updating the BIOS ........................................................................................................................45
Driver Installation........................................................................................................................................47
4.1 Follow the sequence below to install the drivers:..........................................................................48
4.2 Installation: ....................................................................................................................................48
4.3 CPU TEMP LED driver.................................................................................................................49
4.4 Utility Software Reference ............................................................................................................49
SYSTEM RESOURCE................................................................................................................................50
5.1 WDT and GPIO .....................................................................................................................................51

User’s Manual
1
General Information
CHAPTER
1

User’s Manual
2
1.1 Introduction
KMDA-3602 is a high-performance In-vehicle computer from JHCTECH, with aluminum chassis and
CPU fanless cooling design. It powered by the latest Intel® Skylake-S/Kabylake-S CPU. It supports dual
channel DDR4 2133/2400MHz memory, up to 32GB. It features gen.9th Intel® HD Graphics and NVIDA
or AMD MXM3.1 GPU module.
KMDA-3602 offers 1*HDMI, 1*DP(Intel HD 4K) and 1*VGA, 1*HDMI and 3*DP(GPU 4K), 7*Gigabit
LAN ports, 6*USB3.0, 2*mini PCIe which support dual 4G LTE/wifi/BT. 1*mSATA, 1*M.2, 1*2.5”
SATA HDD/SSD are used for storage, The SATA HDD/SSD is cooled by aluminum chassis. With DC
6~48V wide power input, ITPS delay power on/off function. With CPU+GPU dual processor, multi-LAN,
multi-display, multi wireless communication and anti-vibration design, it is suitable for mobile law
enforcement vehicle, special engineering vehicle and dynamic face recognition system.
(Note: KMDA-3602-T001 has no GPU module)
1.2 Features
Key Features
⚫Universal aluminum chassis, CPU fanless Cooling
⚫Intel® Q170 Chipset+Skylake-S/Kabylake-S LGA1151 CPU
⚫MXM3.1 NVIDA GTX/AMD RX series GPU module, support 3*DP, 1*HDMI
⚫2*260-pin SODIMM, dual channel DDR4 2133/2400MHz, up to 32GB
⚫1*F-mini PCIe with SIM slot, 1*half-mini PCIe, support 4G LTE and Wifi/BT
⚫1*SATA HDD/SSD bay, 1*mSATA, 1*M.2 2242 B-key for storage
⚫4*DP, 2*HDMI, 1 VGA (KMDA-3602-T001 has 1*DP, 1*HDMI, 1*VGA)
⚫Realtek ALC662VD controller, Audio out and MIC
⚫6*Intel I210AT, 1*Intel I219LM support ivPro, optional 4*Intel I210AT with POE function
⚫16 bit 2.5KV DIO, optional Iso. DIO, 6*USB3.0, 3*USB2.0, 2*COM
⚫2*I-port, optional 1*LPT, 16-bit DIO, 1*M.2, 1*mini PCIe, I/O ports
⚫DC 6~48V, CPU temp. show in LED
(Note: KMDA-3602-T001 has no GPU module, support 1*HDMI, 1*DP, 1*VGA)

User’s Manual
3
1.3 Specifications
1.3.1 General
CPU: Intel®Skylake-S/Kabylake-S LGA1151 CPU
GPU: MXM3.1 NVIDIA GTX/AMD RX series GPU (KMDA-3602-T001 has no GPU)
Chipset: Intel®Q170
System Memory: 2*DDR4 2133/2400MHz SODIMM, Up to 32GB
Watchdog Timer: 255-level interval timer, setup by software
Serial Ports: 2* RS232/422/485 DB9 male, setup by BIOS
USB: 6*USB 3.0 Type A ports(front), 2*USB2.0 Type A ports(rear), 1* USB 2.0 Type A port (inside)
Expansion Interface:
1*Full size Mini PCIe(PCIe+USB)with SIM slot
1*M.2 2242 B-key(PCIeX1+SATA3+USB)with SIM slot
1*Half size mini PCIe(PCIe+USB), 1*mSATA(SATA3.0+USB)
Storage:
1* mSATA (Full size), 1*M.2 2242 B-key
1*2.5” SATA HDD/SSD bay
1.3.2 Display
Chipset: Gen. 9th Intel® HD Graphics and GPU
Display Memory: Shared system memory and exclusive display memory
Resolution: HDMI 3840x2160@30Hz; DP 4096x2304@60Hz; VGA 2650x1600@60Hz
3*DP 1.2/1.3; 1*HDMI 1.4b/2.0 4K/5K display
1.3.3 Ethernet
Chipset: 6*Intel®I210AT Ethernet controllers, 1* Intel® I219LM Ethernet controller
Speed: 10/100/1000 Mbps Integrated
Interface: 7*RJ45
1.3.4 Audio
Chipset: Realtek ALC662VD controller
Interface: 1*Audio out, 1*Mic, 3.5mm phone jack

User’s Manual
4
1.3.5 Power Consumption
Input Voltage: DC 6-48V Input
Power Consumption: TDP 19V/2.0A (I5-7500T CPU, 4GB RAM, 128G SSD)—KMDA-3602-T001
TDP 24V/4.83A (I5-7500T CPU+GTX 1060M)—KMDA-3602-S001
Power Adapter: AC to DC 24V/9.17A, 220W—KMDA-3602-S001
AC to DC 19V/6.32A, 120W—KMDA-3602-T001
Power Requirement: Minimum power input DC 24V/5A—(KMDA-3602-S001)
DC 19V/2A--(KMDA-3602-T001)
1.4 Environmental Specifications
Operating temperature:
-20 ~ 65°C (Fanless, 35W CPU without GPU, SSD, Airflow)—(KMDA-3602-T001)
-10 ~ 50°C (Fanless 35W CPU+80W GPU)—(KMDA-3602-S001)
Relative humidity: 10~90% @ 40°C (non-condensing)
Storage temperature: -40 ~ 85°C (-40 ~ 185°F)
Vibration loading during operation:
With SSD: 5.5 Grms, random, 5 ~ 500 Hz
With HDD:1.5 Grms, random, 5 ~ 500 Hz
Shock during operation:
With SSD: 55g, peak acceleration (11 ms duration)
With HDD:25g peak acceleration (11 ms duration)
EMC: CE, FCC Class A
1.5 3602 Series Specifications
Model NO.
3602-S001
3602-T001
CPU+Chipset
Intel®Q170+SKL/KAL LGA1151
Intel®Q170+SKL/KAL LGA1151
GPU
MXM3.1 GPU
0
LAN
3*LAN 4*POE
7*LAN
USB
6*USB3.0 3USB2.0
6*USB3.0 3USB2.0
COM
2
2
DIO/bit
16-bit iso.
16-bit DIO

User’s Manual
5
Display
2*HDMI, 4*DP, 1*VGA
1*HDMI, 1*DP, 1*VGA
I-port
2
2
Audio
√
√
Expansion
2*mini-PCIe 1*M.2 1*mSATA
2*mini-PCIe 1*M.2 1*mSATA
1.6 Mechanical Specifications
Main Board Front(AXM-I950)
Figure 1.0
Figure 1.1

User’s Manual
6

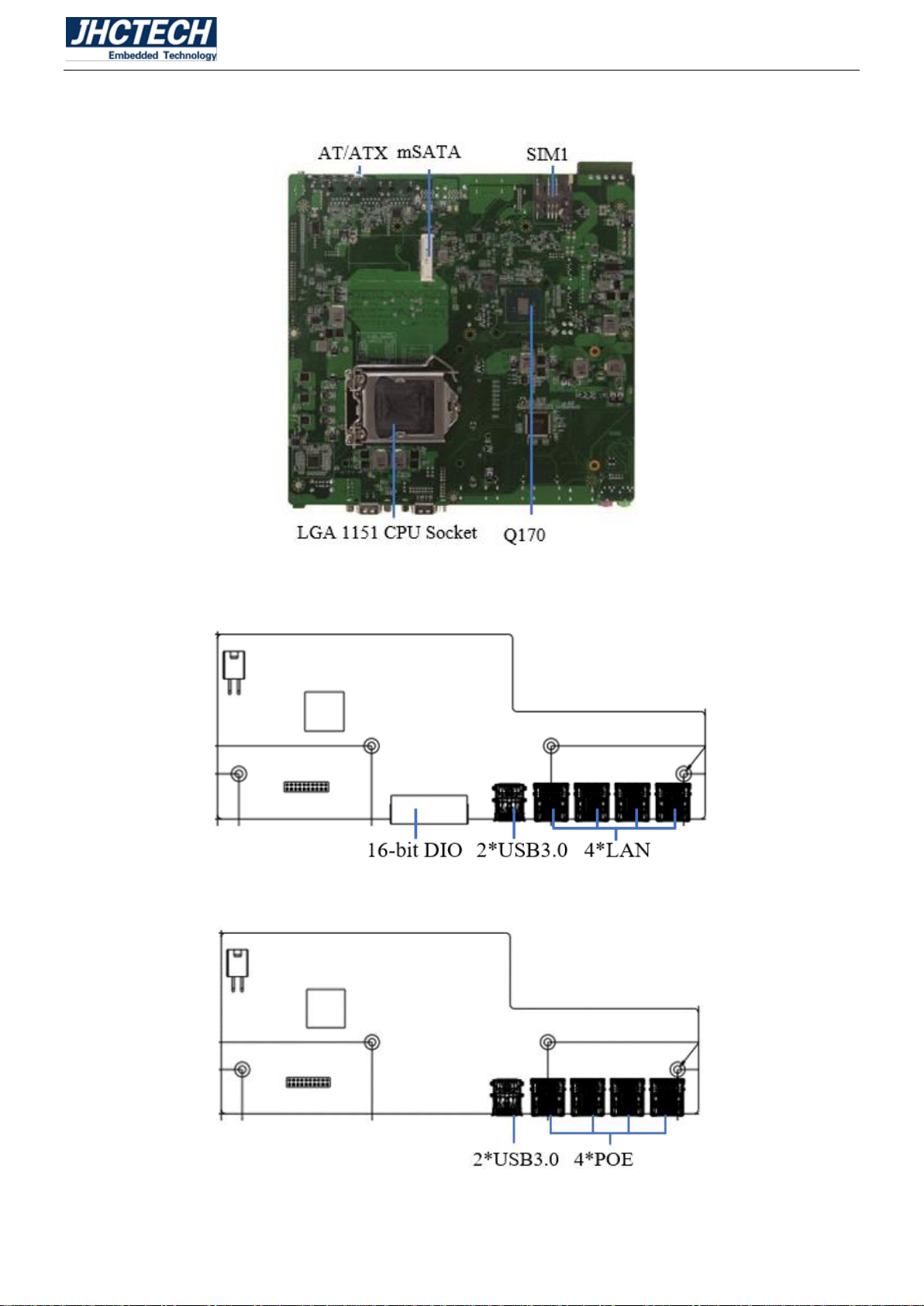

Main Board Rear(AXM-I950)
Figure 1.2
Sub-card(ECB-147-T001)
Figure 1.3
Sub-card(ECB-147-S002)
Figure 1.4

User’s Manual
7
Sub-card(ECB-148)
Figure 1.5
KMDA-3602 Dimension: Unit: mm
Figure 1.6

User’s Manual
8
Hardware Installation
CHAPTER
2

User’s Manual
9
2.1 Introduction
The following sections show the internal jumper settings and the external connectors and pin assignments
for applications.
2.2 Jumpers and Connectors
The KMDA-3602 high-performance In-vehicle computer from JHCTECH, consists of a JHC SBC(AXM-
I950), a sub-card(ECB-147), a sub-card(ECB-148).
The specific combination is as follows：
Model No.
KMDA-3602-S001
KMDA-3602-T001
AXM-I950-S001
✓
✓
GPU
✓

ECB-147-S002
✓

ECB-147-T001

✓
ECB-148
✓

2.2.1 Setting Jumpers
You can configure your KMDA-3602 to match the needs of your application by setting the jumpers. A
jumper is the simplest kind of electrical switch. It consists of two metal pins and a small metal clip (often
protected by a plastic cover) that slides over the pins to connect them. To —close “a jumper, you connect
the pins with the clip”. To —open “a jumper you remove the clip”. Sometimes a jumper will have three
pins, labeled 1, 2, and 3. In this case, you would connect either pins 1 and 2 or pins 2 and 3.
Figure 2.1
The jumper settings are schematically depicted in this manual as follows:

User’s Manual
10
Figure 2.2
A pair of needle-nose pliers may be helpful when working with jumpers. If you have any doubts about the
best hardware configuration for your application, contact your local distributor or sales representative
before you make any changes.
2.3 Jumper Location
The KMDA-3602 high-performance Box Computer has a number of jumpers inside the chassis that
allows you to configure your system to suit your application. The table below shows the function of each
of the board’s jumpers:
Figure 2.3
Jumpers
Jumper
Name
Description
CLR_CMOS1
Clear CMOS Data Setting
3-Pin Block
JP2
ITPS Mode and Power off delay Select
8-Pin Block

User’s Manual
11
2.3.1 CLR_CMOS1-Clear CMOS Data
Figure 2.4
If you encounter the followings
a) CMOS data becomes corrupted.
b) You forget the supervisor or user password.
you can reconfigure the system with the default values stored in the ROM BIOS.
To load the default values stored in the ROM BIOS, please follow the steps below.
1. Power-off the system and unplug the power cord.
2. Set CMOS pins 2 and 3 to On. Wait for a few seconds and set CMOS back to its default setting,
pins 1 and 2 On.
3. Now plug the power cord and power-on the system.

User’s Manual
12
2.3.3 COM7-ITPS Mode and Power off delay Select
Figure 2.5
NOTE: Pin7/8/9/10 are for ITPS mode select; Pin1/2/3/4/5/6 are for ITPS mode power off delay;
2.4 I/O/Button/LED Indication
NOTE: I/O Indication takes KMDA-3602-S001 for example, Other sub-series products only have
different number of interfaces.
Front view:
Figure 2.6

User’s Manual
13
Rear view:
Figure 2.7
2.4.1 Ethernet Connector (LAN)
The KMDA-3602-S001 is equipped with 6 Intel I210AT chips and 1 Intel I219LM for 10/100/1000Mbps
Ethernet controllers. The product provides 7*RJ45, with LED indicators on the front side to show its
Active/Link status (Green LED) and Speed status (yellow LED).
Table 2.0 for pin assignments.
Figure 2.8 Ethernet Connector
Table 2.0: RJ-45 Connector pin assignments
Pin
10/100/1000BaseT Signal
Pin
10/100/1000BaseT Signal
1
TX+(10/100), LAN_DA+(GHz)
5
LAN_DC-(GHz)
2
TX-(10/100), LAN_DA-(GHz)
6
RX-(10/100), LAN_DB-(GHz)
3
RX+(10/100), LAN_DB+(GHz)
7
LAN_DD-(GHz)
4
LAN_DC+(GHz)
8
LAN_DD-(GHz)
Table 2.1 for LAN Led active state.
Table 2.1: RJ-45 Led active state
B Type
Left LED
Right LED
Active LED
10M/100M/1000M Speed LED
