Joto AutoClam Press Manual
Model No.: E-HP-JAR-1515 / E-HP-JAR-1620
OPERATOR’S MANUAL
Bringing images to life
TM
TM
This product is SGS
Electrical Safety Certied

2www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON
Safety Instructions
For Use By Qualied Personnel Only
When using your Heat Press,
basic precautions should always be followed,
including the following:
Read all instructions.
Use heat press only for its intended use.
Always keep the heat press dry. Do not get the heat press wet to reduce the risk of electric shock.
Do not store heat press in a wet/ damp area.
Never pull cord to disconnect the power. Instead, grasp plug and pull to disconnect from power
outlet.
Make sure you protect the power cord by keeping it away from hot surfaces. Avoid placing objects
on top of the cord. This could cause damage to the cord and could be a re hazard risk.
Do not operate heat press with a damaged cord or if the equipment has been damaged. To prevent
risks of injury, please do not disassemble or attempt to repair the heat press by yourself if you are
not qualify to do so. Instead, call or take it to a qualied service person for examination and repair.
Incorrect assembly or repair could increase the risk of re, electric shock, or injury to persons when
the equipment is used.
If heat press being used by or near children, please make sure that it is supervised. Do not leave
equipment unattended while connected.
Metal parts on the press can become hot. Avoid touching the hot metal parts to prevent burns.
Proceed with caution when using the heat press.
To reduce the likelihood of circuit overload, Joto recommends to use a dedicated circuit if possible.
Make sure that the cord is safely secured so it cannot be pulled or tripped over.
If you need to use an extension cord, make sure you use a 20 amperage rated cord. Cords rated
below 20 amperage can overheat. Make sure that the extension cord is safely secured so it cannot
be pulled or tripped over.
Note: Temperature is in Fahrenheit or Celsius. This heat press should not be set to exceed
400˚F (200˚C). Setting the press temperature to above 400˚F (200˚C) may cause a re hazard.
Be careful of the Auto Release feature. Press handle can injure body parts when
auto-releasing. Stand clear of auto-release path.
PLEASE KEEP THE BOX THAT YOUR HEAT PRESS ARRIVED IN,
ALONG WITH ALL ORIGINAL PACKAGING.

3
www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON
Congratulations on your purchase of a Joto AutoClam Heat Press! In order to work
professionally with the machine and start production, please make sure you read this manual
carefully.
Reproduction of this manual requires written consent from Joto. Errors and amendments
of technical details excepted, all rights reserved. Joto is not liable for any direct or indirect
damages caused by the use of this product.
Table of Contents
Safety........................................................2
Introduction .............................................3
ClamShell Heat Press Overview.............4-5
Machine Parts Diagram ............................6
Setting Up Your Heat Press ......................7
Operating Instructions .............................8
Maintenance .............................................9
Heat Pressing Guide ......................... 10-11
Expanded View ................................. 12-13
Circuit Diagram.......................................14
Warranty.................................................15
Contact ...................................................16
This product is SGS
Electrical Safety Certied

4www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON

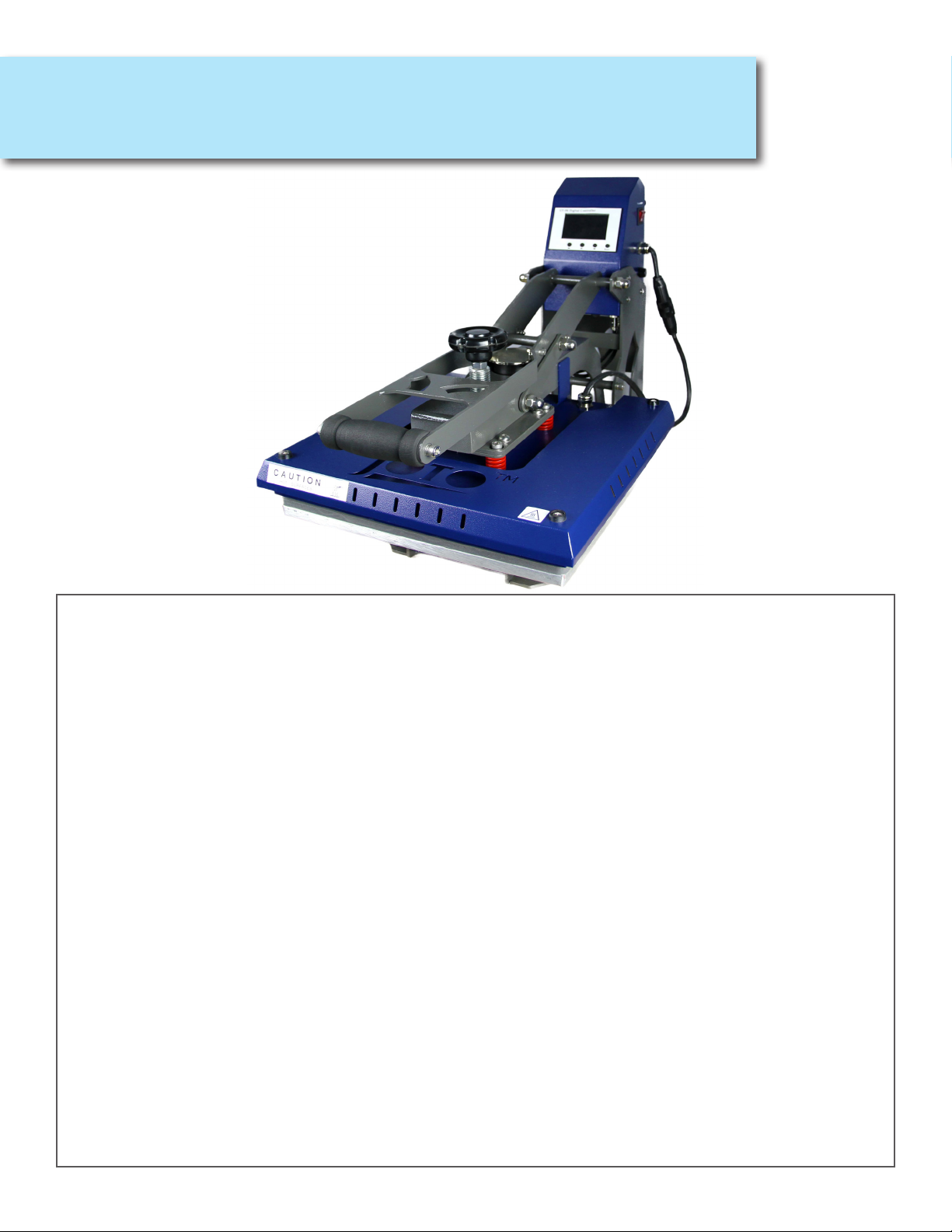

Heat Press Overview
Technical Specs
Model No.: E-HP-JAR-1515 E-HP-JAR-1620
Machine Type: Auto Release Clam Shell Auto Release Clam Shell
Machine Size: 29.44” x 18.89” x 16.14”
(748mm x 480mm x 410mm)
29.44” x 18.89” x 16.14”
(748mm x 480mm x410mm)
Heat platen Size: 15” X 15” 16” X 20”
Under Plate: Exchangeable Exchangeable
Controller GY-06 Digital Controller GY-06 Digital Controller
Printable Materials: Up to 0.19” (5mm) Thickness Up to 0.19” (5mm) Thickness
Voltage: 120V/220V 120V/220V
Power: 1750W/1800W 1750/1800W
Time Range:
Maximum Temp:
0-999 Seconds
491°F (225°C)
0-999 Seconds
491°F (225°C)
Packing Size: 34.64” x 21.25” x 22.83”
(880mm x 540mm x 580mm)
35.82” x 20.47” x 23.22”
(910mm x 520mm x 590mm)
Gross Weight: 90.38lb (41kg) 114.64lb (52kg)
Note: This heat press should not be set to exceed 400˚F (200˚C). Setting
the press temperature to above 400˚F (200˚C) may cause a re hazard.

5
www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON

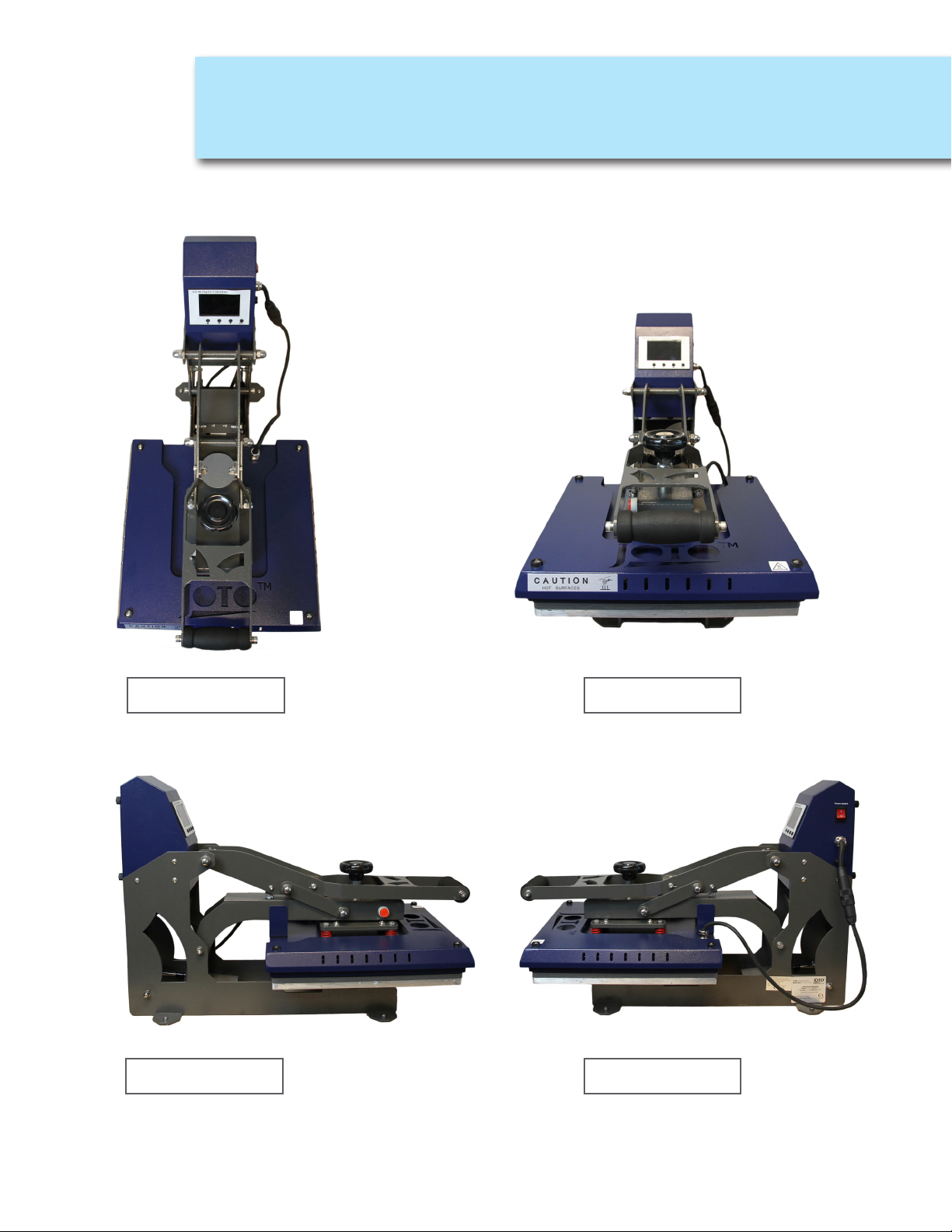

Heat Press Overview
TOP VIEW FRONT VIEW
LEFT VIEW RIGHT VIEW

6www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON

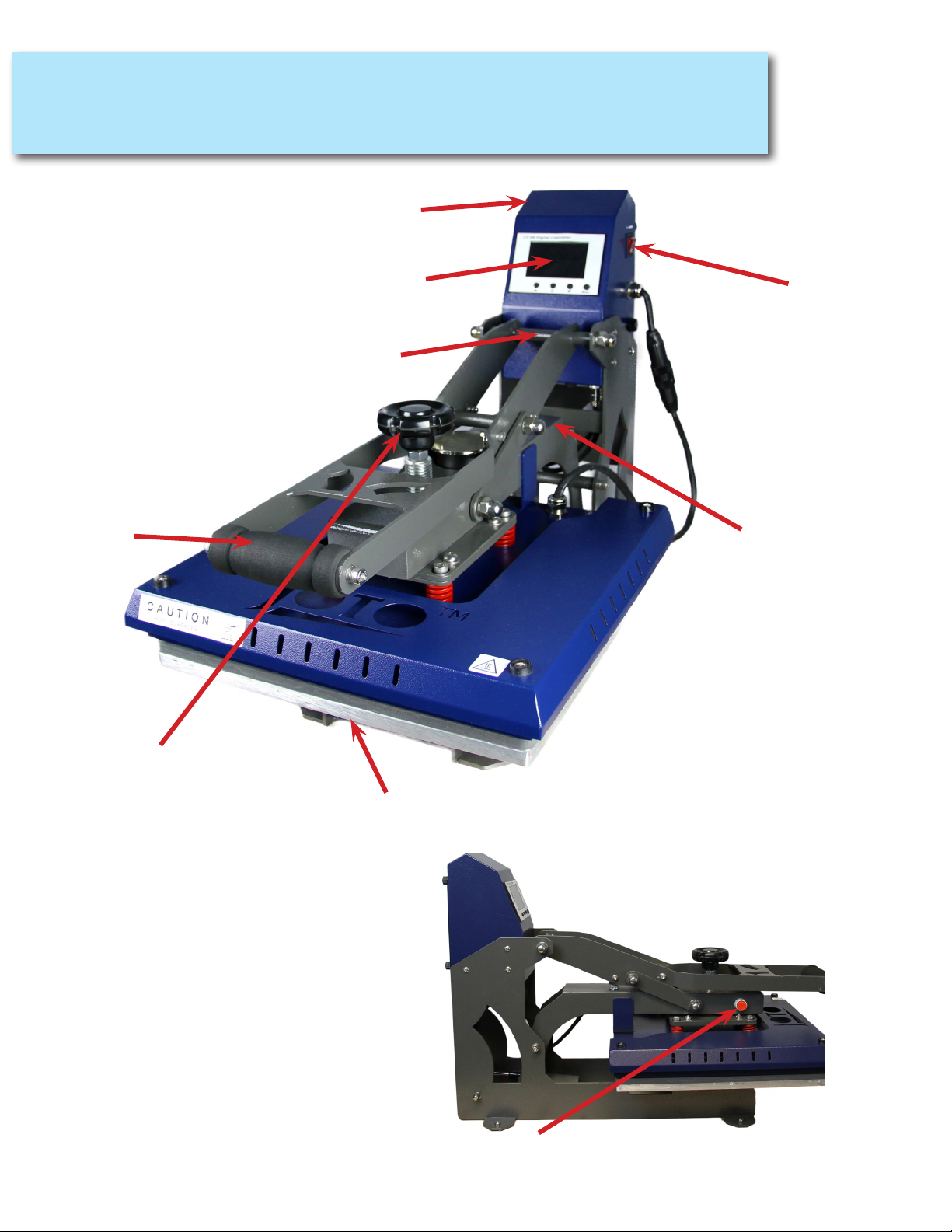

Machine Parts Diagram
Power Switch
Electrical Case
GY-06 Digital Controller
Limit Switch
Pressure Adjust Knob
Electromagnetic
Suck Plate
Emergency Stop Button
Handle Gear for Exchange
Under Plate
Handle Shaft

7
www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON

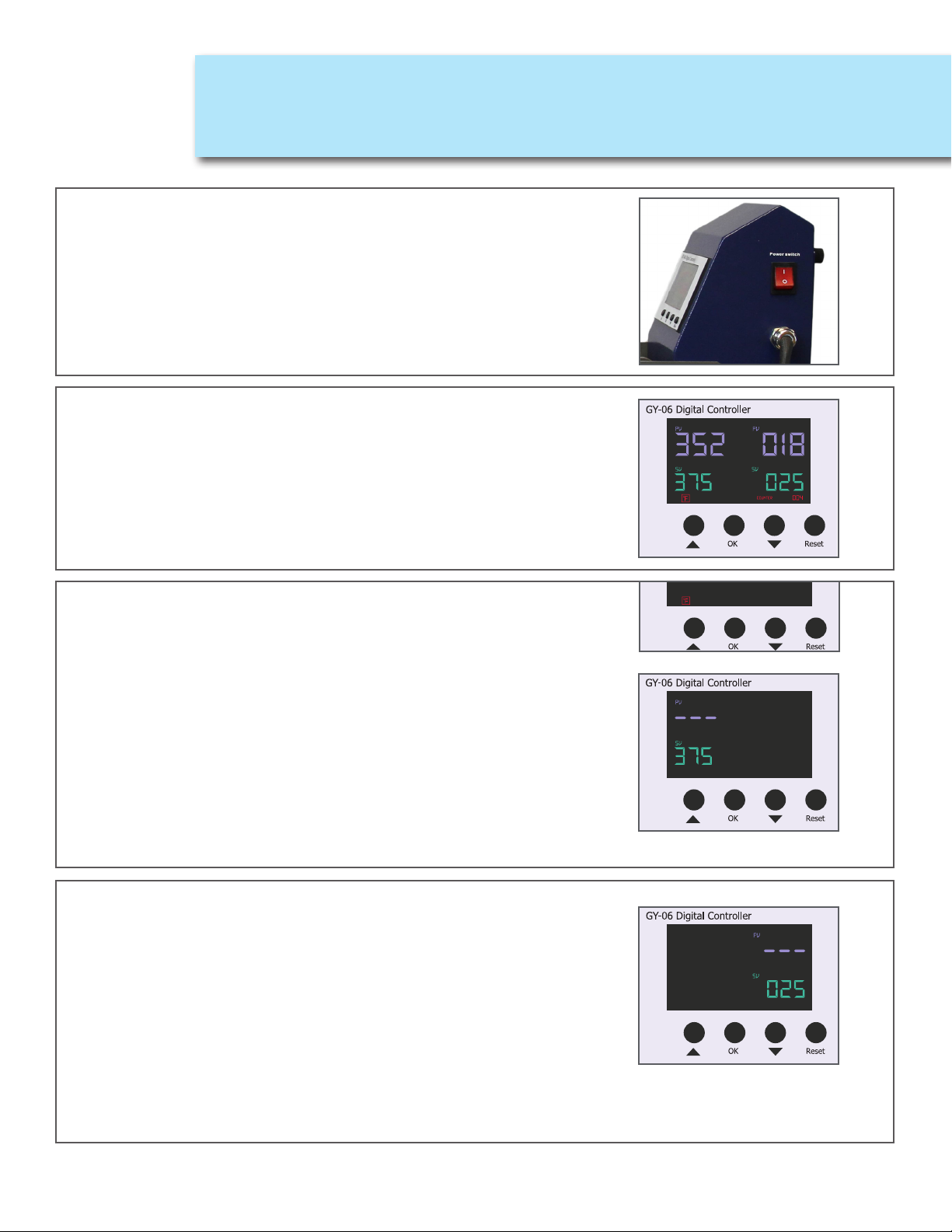

Turning On Your Heat Press
Turn the Main Power Switch on. The
Main Power Switch is at the right side
of the heat press.
Current temperature, set temperature,
current time, set time will display.
How to Read The Display
1.) Left side PV value = Current Temperature
2.) Right side PV value = Current Time
3.) Left side SV value = Set Press Temperature
4.) Right side SV value = Set Press Time
Setting Press Temperature
Press OK to start. Use the up and down
arrows to choose to display in °F or °C.
°F stands for Fahrenheit
°C stands for Celsius
Once selection is made, press OK to save.
Green set temperature value will ash.
Use the up and down arrows to set
press temperature value. Press OK to save.
Setting Press Time
Green Set Time Value will ash
Use the up and down arrows to change
the value.
Press OK to save the value.
Wait until the current
temperature is the same as the set temperature
before using. The press will beep once set temperature
is reached. Close and open the press to stop the beeping.
Setting Up Your Heat Press
Note: Setting the press temperature to above 400˚F (200˚C) may cause a re hazard.

8www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON
Operating Instructions
Pressing a T-shirt
1.) Turn ON the Main Power Switch.
2.) Set the appropriate Press Temperature, and Time as per your transfer vinyl
or sublimation instructions.
3.) Place your t-shirt on the heat press.
5.) Set the pressure. Press the blank shirt to ensure there is adequate pressure
before placing transfer materials on top of the shirt.
Adjust the pressure knob accordingly.
6.) Wait until current temperature is the same as the set temperature. Once the
press has reached set temperature, place transfer material on the shirt. For
Sublimation, place the paper with the image face down. For cuttable transfer
vinyl, place the matte side with the transparent carrier backing facing the heat
platen. If unsure, please refer to the instructions you received with your
transfer materials.
7.) Once Press is closed the current time value will start counting down. Once the
timer reaches the last 2 seconds before reaching 0, it will start to beep to warn
you. It is recommended to stand clear of the press and let the auto-open
feature work without obstruction. Once time reaches zero, the press will open.
Note: Once the press is closed, it cannot be opened manually until the timer
reaches zero. In an emergency, you may press the red emergency stop button
to force open the press. When pressing the red emergency stop button, the
press will open immediately without warning. Keep hands on the heat press
handle at all times during and after pressing the emergency stop button. Not
securing the handle with your hands may cause injury.
8.) For most sublimation and transfer vinyl, the peel is hot. If unsure, refer to the
instructions that came with your transfer materials.

9
www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON
Maintenance
General Maintenance
Please switch off the machine and unplug the power cord when the machine is not in use.
To protect the heat platen, do not allow any hard surface objects to be in direct contact with
the platen. This includes zippers, buttons, metal sublimation items and more. When pressing
these items, place a protective sheet between the platen and the objects.
The heat platen will cool down to the room temperature, if heat press is not used for more than
30 minutes.
The heat-releasing fan will automatically starts when the temperature of heat platen reaches 80
degree C (176 degree F). It helps to reduce the temperature of electrical parts and prolong the
service life of them.
Please add the lubrication oil regularly on the joints. To prolong the life of your heat press. The
frequency will depend on how often you use your machine.
Note: This heat press should not be set to exceed 400˚F (200˚C). Setting the press
temperature to above 400˚F (200˚C) may cause a re hazard.
If your mug press stops working, please contact Joto at
1-800-565-5686 so we can help you troubleshoot.

10 www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON
Heat Pressing Guide
MultiCut One-4-All
Temperature: 265˚F
Time: 3-5 seconds
Peel: Warm (Cotton)
MultiCut New Flock
Temperature: 310-330˚F
Time: 15 seconds
Peel: Warm
MultiCut Nylon
Temperature: 300-305˚F
1st Press Time: 3-4 seconds
2nd Press Time: 10-15 seconds
MultiCut Premium
Temperature: 310-330˚F
Time: 45 seconds
Peel: Warm/Cool
MultiCut Lustre
Temperature: 310-330˚F
Time: 15-20 seconds
Peel: Hot to Cold
MultiCut Style
Temperature: 310-330˚F
Time: 15-20 seconds
Peel: Hot to Cold
Transfer Vinyls
CL TrimFree Dark
(REQUIRE A WHITE TONER PRINTER)
Temperature: 310˚F
1st Press Time: 120 seconds
2nd Press Time: 30 seconds
Inkjet Light
Temperature: 350-365˚F
Time: 20 seconds
Peel: Warm
CL TrimFree Light
Temperature: 330˚F
Time: 30 seconds
Peel: Warm (5-10 seconds)
Inkjet Dark
Temperature: 375˚F
Time: 20-25 seconds
Peel: Cool
Transfer Papers
For more instructions, please visit our website at www.jotoimagingsupplies.com/support/how-to-library/instructions.html
For more instructions, please visit our website at www.jotoimagingsupplies.com/support/how-to-library/instructions.html

11
www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON
Heat Pressing Guide
Sublimatable Ceramic
Tiles
Temperature: 400˚F
Time: 360-420 seconds
Peel: Hot
Method: Substrate face down
Image face up
Porcelain Ornaments
Temperature: 400˚F
Time: 180-240 seconds
Peel: Hot
Method: Substrate face down
Image face up
Coasters with Cork
Bottom
Temperature: 400˚F
Time: 75 seconds
Peel: Hot
Method: Substrate face up
Image face down
Pot Holder
Temperature: 360˚F
Time: 120 seconds
Peel: Immediate
Method: Substrate face up
Image face down
iLumipiX Photo
Panels
Temperature: 400˚F
Time: 65-150 seconds
Time may varied based on size.
Scan the QR code on the left for
instructions or visit our website.
Sublimatable Towels
Temperature: 360˚F
Time: 120 seconds
Peel: Hot
Method: Substrate face up
Image face down
Sublimatable Pillows
Temperature: 375˚F
Time: 45 seconds
Peel: Immediate
Method: Substrate face up
Image face down
Sublimatable Slates
Temperature: 360˚F
Time: 480 seconds
Peel: Immediate
Method: Substrate face up
Image face down
Sublimation Items
For more instructions, please visit our website at www.jotoimagingsupplies.com/support/how-to-library/instructions.html

12 www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON
Expanded Diagram

13
www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON
Serial
No.
Part Name Qty Serial
No.
Part Name Qty
1 Frame welding plate 1 38 Aviation Socket 2
2 Cover 1 39 Right-Side Plate Of The Handle 1
3 Left side panel 1 40 Connection Strap 2
4 Mold spring 1 41 Welding Plate Of The Handle 1
5 Anti-spring U plate 1 42 Stationary Shaft Of The Handle 1
6 Gas spring connecting plate 1 43 Annular Gear Gaske 10
7 Snap ring shaft 1 44 Welding Plate Of The Machine Arm 1
8 Machine feet 1 45 Eva Handle Cover 1
9 Boom welding plate 1 46 Sinuate Handwheel 1
10 Fixed shaft 1 47 Adjusting Weld Nut 1
11 Boom welding sleeve 1 48 Hexagon Screw 1
12 Electromagnet 1 49 Welding Plate For Upper Cover of The
Machine Arm
1
13 Magnetic switch 1 50 Hexagonal Cup Head Screw 6
14 Handle left panel 1 51 Red Switch Button 1
15 Handle xing pin 2 52 Connecting Plate 1
16 Electromagnet suction plate 1 53 Large Flat Head Cross Screw 8
17 Ball nut M10 6 54 Plastic Heat Insulation Ring 4
18 Magnetic switch xing plate 1 55 Connecting Plate 1 1
19 Handle xed shaft 1 56 Hexagonal Cup Head Screw 4
20 Handle sleeve 1 57 Heating Tubes 1
21 Internal tooth gasket 10 58 Silicon Pad 1
22 Electrical installation board 1 59 Anti-Scald Protect Cover 1
23 Left side panel of electric box 1 60 Cable Connector 1
24 Fuse Holder R3-53 1 61 Heating Platen 1
25 Power Cable 1 62 Pillar 4
26 Product sufx 1 63 Flat Gasket 12
27 Cross nut M4 8 64 Base Plate 1
28 Electric box rear cover 1 65 Base plate Mounting Plate 1
29 Line row 1 66 Machine Feet Mounting Plate 2
30 Electric box panel 1 67 Flat Gasket 2
31 GY-06 Digital Controller 1 68 Five-Star Handle 2
32 M4 Nut 10 69 Base Plate Aluminum Prole 2
33 Rocker switch 1 70 Gas Spring 2
34 Right side panel of electric box 1 71 Annular Gear Gasket 10
35 Assemble the elbow socket 1 72 Machine Feet 4
36 K-type thermocouple MPJ-K-F 1 73 Gas Spring Connector 2
37 Solid state relay SSR-40DA 1 74 Machine Arm Limit Plate 1
Expanded Diagram

14 www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON
Circuit Diagram
E-HP-JAR-1515M E-HP-JAR-1620M

15
www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON
JOTO warrants to the original purchaser JOTO’s E-HP-JAR-1620/ E-HP-JAR-1515 heat presses or component
that such heat press or component is free from defects in materials and workmanship, subject to the
limitations set forth below.
IN LIEU OF ALL WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION ANY
IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, WHICH JOTO
HEREBY DISCLAIMS, THE OBLIGATIONS OF JOTO UNDER THIS WARRANTY ARE EXPRESSLY LIMITED TO THE
FOLLOWING:
a. JOTO will repair or replace at its option, free of charge, any product, component of its products, and any
component it sells separately which is installed in JOTO’s heat presses, within twenty-four months and sixty
months for the heating platen after shipment by same.
b. This warranty does not apply to damage incurred in shipment. Damage incurred in shipment should be
reported to the designated carrier. It is the carrier’s responsibility to ensure arrival in undamaged condition.
c. Service labor, when requested in connection with any of the above items covered by this warranty, will be
charged for traveling expenses only.
d. This warranty applies only if the product or component proves to be defective under conditions of normal
use. It does not apply to breakage or to defects resulting from accident, alteration, misuse, or improper
installation.
e. This warranty does not include installation of the product or component.
f. Prior to any return of a product or component, Buyer must receive written authorization to do so from JOTO.
After written authorization, Buyer shall return the defective product or component freight prepaid by the
original purchaser and JOTO will ship the replacement or repaired component freight prepaid by JOTO.
g. This warranty is effective only if the product or component is installed in a location and manner prescribed
by JOTO instructions and only if it is maintained in accordance therewith. This warranty shall become
ineffective if the product or component is altered by anyone other than JOTO employees. JOTO neither
assumes, nor authorizes any person to assume for it, any obligation or liability other than as specied herein.
JOTO WILL IN NO CASE AND UNDER NO CIRCUMSTANCES BE LIABLE FOR SPECIAL OR CONSEQUENTIAL
DAMAGES, LOSS OF PROFIT OR COMMISSION, OR FOR LOSS OR DELAY IN PRODUCTION.
Without limiting the generality of the foregoing, JOTO will not be liable with respect to furnishing or delay in
furnishing any product or component, the use, resale or other disposition thereof, failure to furnish the same,
or any other cause. JOTO liability arising out of the supply of any product or component, its use, resale or
other disposition, or out of any guarantee or warranty, express or implied, or any other cause shall in no case
exceed the cost to JOTO of the product or component which JOTO has agreed to supply. All liability of JOTO
with respect to any product or component shall terminate upon the expiration of the twenty-four month period
described above.
-Any controversy or claim arising out of or relating to transactions or orders or breach thereof, including
breach of warranty, shall be settled by arbitration in Blaine, Washington, pursuant to the rules of American
Arbitration Association. Any award made against JOTO shall be limited as provided above. Judgment upon
award rendered by arbitration may be entered in any court having jurisdiction thereof. However, at JOTO’s
option, this paragraph shall not apply to collection by JOTO of the price of any product sold or any action
related thereto.
Warranty Statement
PLEASE KEEP THE BOX THAT YOUR HEAT PRESS ARRIVED IN,
ALONG WITH ALL ORIGINAL PACKAGING.

Bringing images to life
TM
TM
www.jotoimagingsupplies.com
Tel: [phone]
Fax: [phone]
Coquitlam, BC | Brampton, ON
Blaine, WA | Las Vegas, NV |Antioch TN
