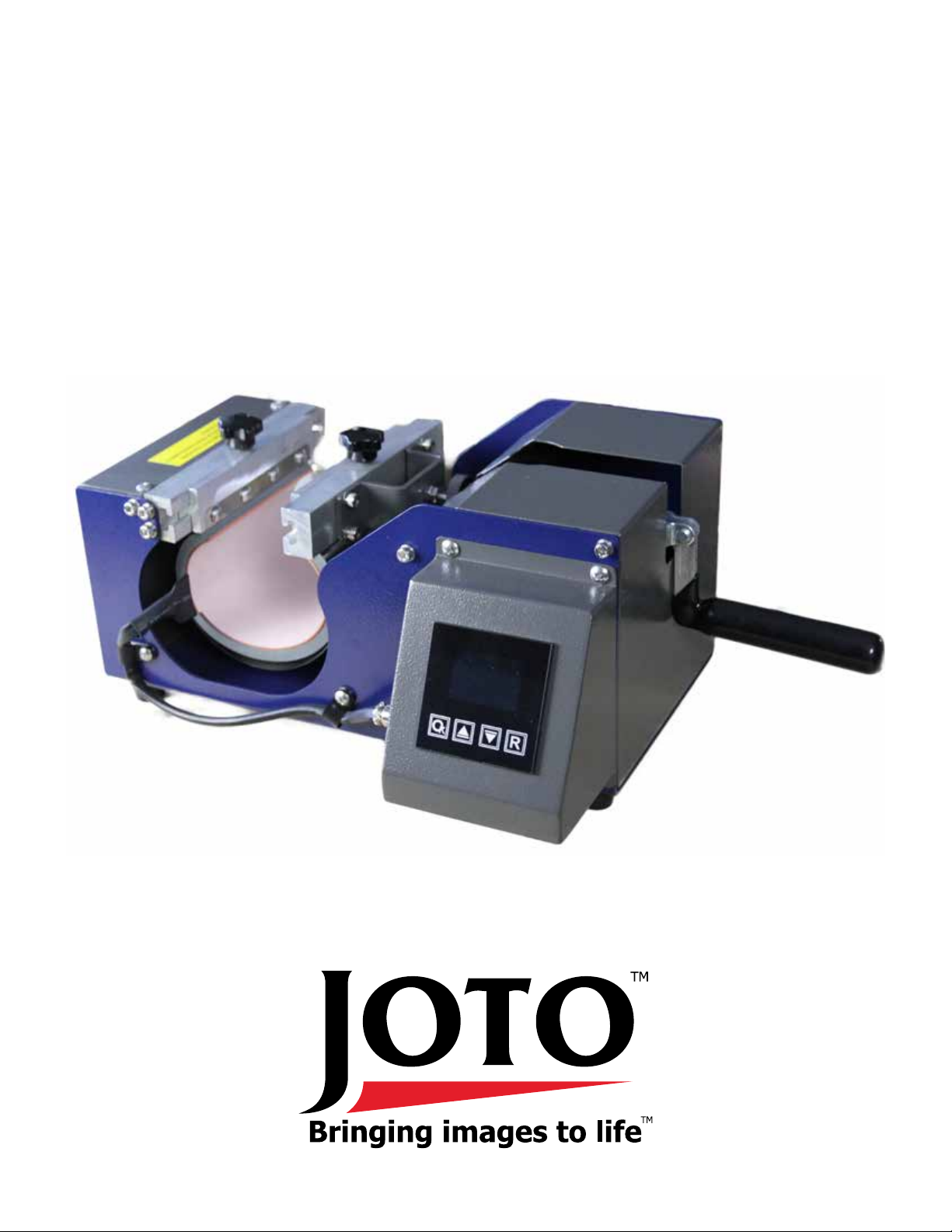

Joto MugPress User manual

Single Station
Includes 4 elements
Joto Digital Mug MugPress Manual-
Single Station Includes 4 Elements
Model No.: E-HP-JMP-1S4E
OPERATOR’S MANUAL

2www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON
Safety Instructions
For Use By Qualied Personnel Only
When using your Mug Press,
basic precautions should always be followed,
including the following:
Read all instructions.
Use mug press only for its intended use.
Always keep the mug press dry. Do not get the mug press wet to reduce the risk of electric shock.
Avoid storing mug press in a wet/ damp area.
Never pull the cord to disconnect the power. Instead, grasp plug and pull to disconnect from power
outlet.
Make sure you protect the power cord by keeping it away from hot surfaces. Avoid placing objects
on top of the cord. This could cause damage to the cord and could be a re hazard risk.
Do not operate mug press with a damaged cord or if the equipment has been damaged. To prevent
risks of injury, please do not disassemble or attempt to repair the mug press by yourself if you are
not qualify to do so. Instead, call or take it to a qualied service person for examination and repair.
Incorrect assembly or repair could increase the risk of re, electric shock, or injury to persons when
the equipment is used.
If mug press being used by or near children, please make sure that it is supervised. Do not leave
equipment unattended while connected.
Metal parts on the press can become hot. Avoid touching the hot metal parts to prevent burns.
Proceed with caution when using the mug press.
To reduce the likelihood of circuit overload, Joto recommends to use a dedicated circuit if possible.
Make sure that the cord is safely secured so it cannot be pulled or tripped over.
If you need to use an extension cord, make sure you use a 20 amperage rated cord. Cords rated
below 20 amperage can overheat. Make sure that the extension cord is safely secured so it cannot
be pulled or tripped over.
Note: Temperature is in Fahrenheit or Celsius. This mug press should not be set to exceed
400˚F (200˚C). Setting the press temperature to above 400˚F (200˚C) will burn out your mug
element and may cause a re hazard.
Do not use any other power cords other than the one provided with this machine. Doing so may
result in a re hazard. If you need a replacement cord, please call Joto at 1-800-565-5686 to
request one.
PLEASE KEEP THE BOX THAT YOUR MUG PRESS ARRIVED IN,
ALONG WITH ALL ORIGINAL PACKAGING.

3
www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON
Congratulations on your purchase of a Joto Single Station Mug Press with 4 elements! In order
to work professionally with the machine and start production, please make sure you read this
manual carefully.
Reproduction of this manual requires written consent from Joto. Errors and amendments
of technical details excepted, all rights reserved. Joto is not liable for any direct or indirect
damages caused by the use of this product.
Table of Contents
Safety........................................................2
Introduction .............................................3
Mug Press Overview ..............................4-5
Machine Parts Diagram ............................6
Setting Up Your Mug Press .......................7
Elements Overview ...................................8
Operating Instructions .............................9
Replacing The Mug Element ...................10
Joto Sublimation Guide .......................... 11
Maintenance ...........................................11
Expanded View ................................. 12-13
Circuit Diagram .......................................14
Warranty .................................................15
Contact Information ...............................16

4www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON
Mug Press Overview
Technical Specs
Model No.: E-HP-JMP-1S4E
Machine Type: Single Station Mug Press with 4 Elements
Machine Size: 18.70” x 13.97” x 12.20”
(475 x 355 x 310mm)
Printable Articles Max Size: 6” x 4”
Mug Heater Size: Dia.6-7.5cm for 11oz, 15oz etc Mug
Dia. 7.5-9cm for Water Bottle
12oz/17oz Latte Mug Heater
Voltage: 220V/1Phase; 110V/1Phase
Power: 130W, 0.59A
Recommended Settings: 30~280s; 356~400°F or 180~200°C
Time Range: 0~999s
Maximum Temp: 400˚F (200˚C)
Packing Size: 18.70” x 13.97” x 12.20” (47.5 x 35.5 x 31cm)
Gross Weight: 21.38lbs (9.70kg)
Note: Temperature is in Fahrenheit or Celsius. This mug press should not be set to exceed 400˚F
(200˚C). Setting the press temperature to above 400˚ (200˚C) will burn out your mug element and
may cause a re hazard.

5
www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON
Mug Press Overview
TOP VIEW SIDE VIEW
FRONT VIEW
BACK VIEW

6www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON
Machine Parts Diagram
BACK VIEW TOP VIEW
SIDE VIEW
Digital Controller
Pressure
Adjustment
Knob
Power ON/
OFF Switch
Power Cord
Connection
Handle Bar Grip
Mug Element

7
www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON
Setting Up Your Mug Press
Turning On Your Mug Press
Turn the Main Power Switch on. The
Main Power Switch is at the back
of the heat press.
Current temperature will display. Usually has the value
“OFF”, indicating low temperature.
How to Read The Display
1.) If a number value shows on this display and no lights
are lit in the the middle 3 slots, it is displaying the
current temperature
2.) If the display has a value of “LO” it means low
current temperature (under 200˚F/ 95˚C).
Setting Press Temperature
Press to start. Use the up and down
arrows to choose to display in °F or °C.
°F stands for Fahrenheit
°C stands for Celsius
Once selection is made, press to save
Now use the arrow to change the value of the set
temperature. The left light in the middle is lit to
indicate you are in the set temperature mode.
Setting Press Time
Press the button to save the set temperature value
Now change the set time value with the up and down
arrows. Please note, the set time is in seconds.
The middle light in the middle is lit to indicate you are
in the set temperature mode. Now Press to save
the set time value.
Wait until the current temperature is the same as the set
temperature before using. The press will beep once set temperature is reached.
Close and open the press to stop the beeping.
Note: This mug press should not be set to exceed 400˚F/ 200˚C. Setting the press temperature to
above 400˚F/ 200˚C will burn out your mug element and may cause a re hazard.

8www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON

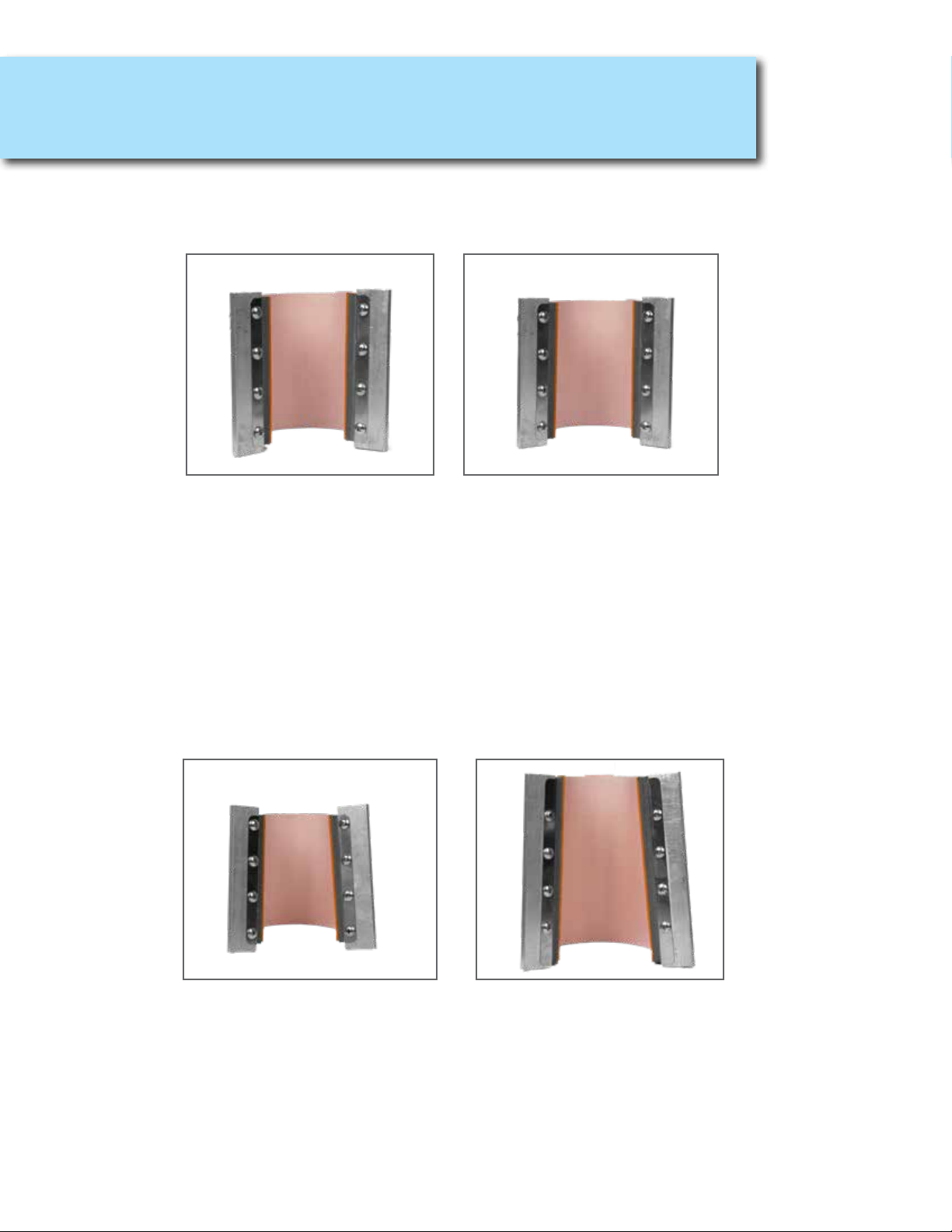

Elements Overview
17oz Latte Element
● 12oz Wine Cup with Lid
● 16 Stainless Steel Tumbler
● 17oz Latte
12oz Latte Element
● 12oz Latte
11oz/ 15oz Mug Element
● 10oz SS Coee Mug
● Bone China Mug with Gold
Rim
● 11oz/ 15oz Mugs
● 12oz Mason Jar
● 12oz Enamel Cup
● 14oz/ 17oz Travel Mug
● 16oz /20oz Beer Stein
Water Bottle Element
● 17oz Coke Shaped Bottle
● Water Bottle with Bamboo
lid
● 650ml Aluminium Bottle
with Straw
● Stainless Steel Water Bottle
● Aluminum Water Bottle

9
www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON
Operating Process
Pressing a Drinkware
1.) Turn OFF the Power Switch.
2.) Change to the correct element (see Page 8), and turn ON the Power Switch.
2.) Set the appropriate Press Temperature, and Time.
3.) Tape your imaged transfer/sublimation paper to your mug with heat tape.
4.) Set the pressure. To do this, place a blank drinkware into the element.
Adjust the pressure knob until the drinkware ts snuggly in the element with
the heat shield wrapped around the bottle (just enough pressure so that the
drinkware cannot be moved once press is closed).
Turn pressure knob counter-clockwise to tighten and clockwise to loosen.
5.) Wait until current temperature is the same as set temperature. Once the mug
press is at temperature, place drinkware into the press. Close the mug press.
Note: Ensure the timer starts immediately after closing the press. If it does
not, take the bottle out & wait for the temperature to go up to the set temp.
6.) Timer will start counting down. The press will beep when the set time has
lapsed. When mug press beeps, open mug press and take out your drinkware.
7a.) For sublimation, peel immediately and dunk into warm-cold water to stop the
sublimation process.
7b.) For Hard Surface Papers, Dunk in warm-cold water. Then wait until the
mug is cold before peeling.

10 www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON

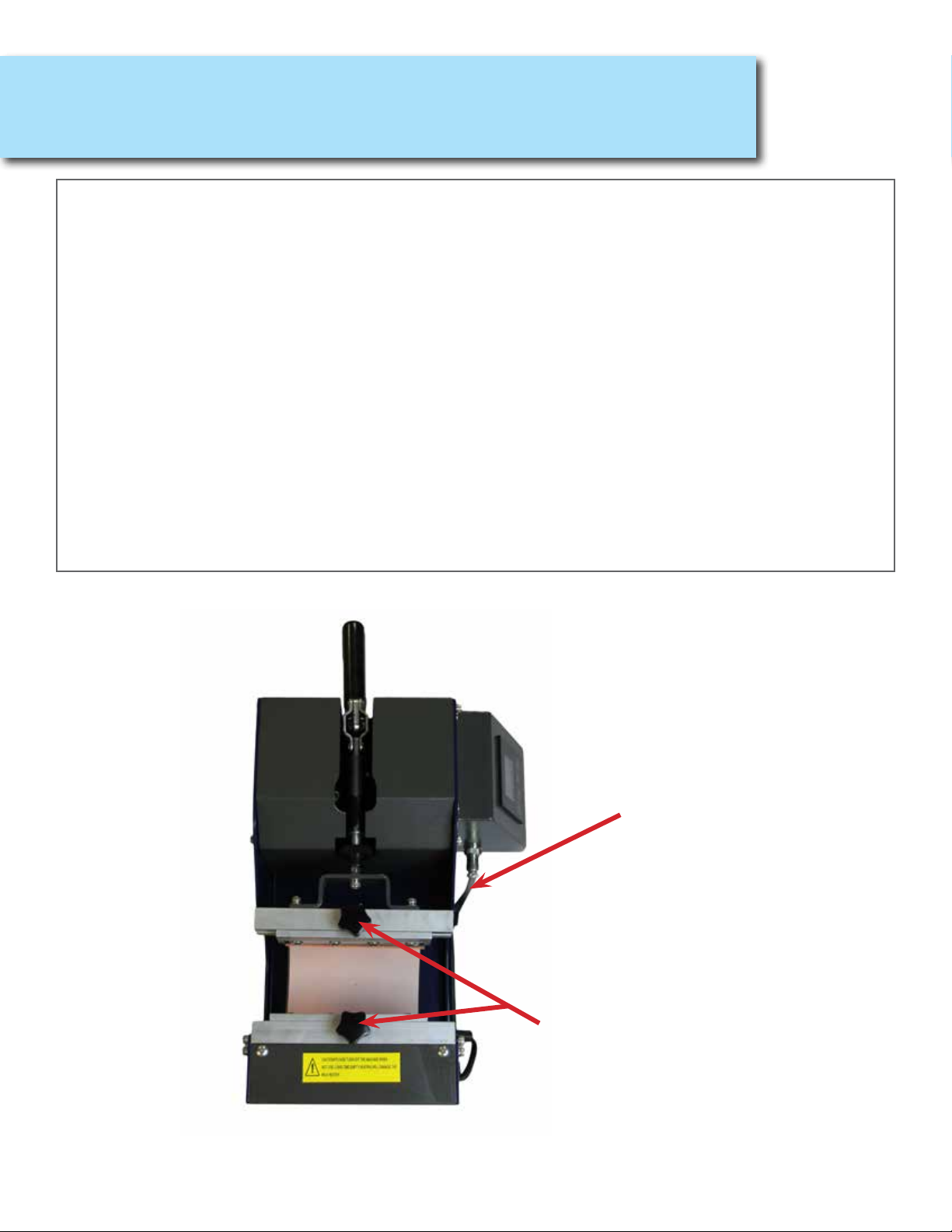

Mug Element
Cord and Ring
2 Screws that
hold mug
element in place
Replacing your Mug Element
1.) Ensure the power switch is o
2.) Unplug the mug press if it is still plugged in.
3.) Detach the mug element cord from the mug press. Unscrew the ring that holds
the cord in place before detaching. See below diagram for detailed instructions
4.) With the Mug Press open, unscrew the two screws that hold the mug
element in place.
5.) Gently slide the mug element out of the mug press. Please be careful not to
damage the cord or the mug press.
6.) Gently slide the new mug element into the mug press
7.) Re-screw the four screws to keep the mug element in place
8.) Connect the new mug element cord to the mug press.
Ensure that the pattern on the cord matches the socket on the mug press.
Replacing The Mug Element

11
www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON
Maintenance
General Maintenance
Please switch o the machine and unplug the power cord when the machine is not in use.
To prolong the life of the mug press, do not use excessive pressure when pressing mugs. If
excessive pressure is used, this may damage the mug press or the mug element and cause it to
malfunction
Keep the mug press in a dry place at all times.
Mug elements will wear out over time. When they wear out, you will need to replace them with
new ones. The rated life expectancy of an mug element is approximately 1000-2000 mugs.
Elements may wear out earlier due to other factors:
1.) No mug is in the press when on and the press is closed
2.) Physical abuse
3.) Environmental factors
Note: Temperature is in Fahrenheit or Celsius. This mug press should not be set to
exceed 400˚F/ 200˚C. Setting the press temperature to above 400˚F/ 200˚C will burn
out your mug element and may cause a re hazard.
If your mug press stops working, please contact Joto at
1-800-565-5686 so we can help you troubleshoot.
Mug Pressing Guide
11oz Mugs
Temperature: 360˚F (180˚C)
Time: 150-180 seconds
20oz Glass Beer Mug
Temperature: 360˚F (180˚C)
Time: 240 seconds
Aluminum Water Bottles
Temperature: 320˚F (160˚C)
Time: 120-140 seconds
15oz Mugs
Temperature: 360˚F (180˚C)
Time: 150-180 seconds
16oz Frosted Beer Mug
Temperature: 360˚F (180˚C)
Time: 240 seconds
Stainless Steel Water Bottles
Temperature: 320˚F (160˚C)
Time: 120-140 seconds
For more instructions, please visit our website at www.jotoimagingsupplies.com/support/how-to-library/instructions.html

12 www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON

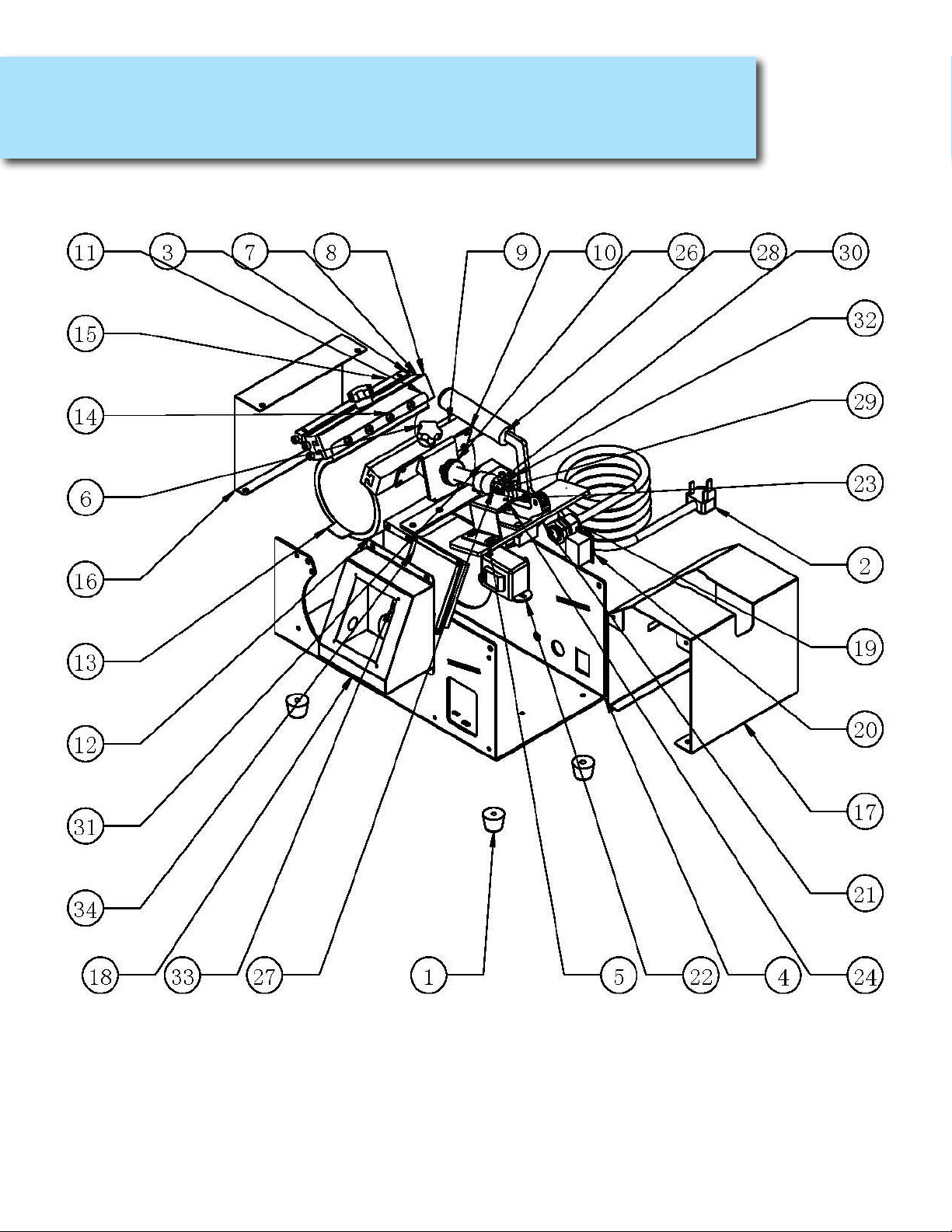

Expanded Diagram

13
www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON
Expanded Diagram
Serial
No.
Part Name Qty Serial
No.
Part Name Qty
1 Machine Base 4 18 External temperature
control sheet
1
2 Power Cord 1 19 Mirror power cord 1
3 GB_FASTENER_SCREWS_
HSHCS M5X16-N
6 20 Rocker switch 1
4 Frame 1 21 Circuit breaker 20A 1
5 Quick clamp mounting plate 1 1 22 Transformer 1
6 M6 hand wheel screw 2 23 Limit switch xing plate Z 1
7Slider xture 1 24 Limit switch 1
8 Aluminum slider 2 25 Four-core aviation plug 1
9Slider xing plate 1 26 Adjustment screw 1
10 Slider xed bending plate 1 27 Quick clip base 1
11 Beer mug coaster
stainless steel tape
1 28 Quick grip handle 1
12 Beer mug coaster silicone 1 29 Quick clip action bar 2
13 Beer mug coaster heating pad 1 30 Quick clip axis 1
14 M5 screw 8 31 Positioning member 1
15 180 pole 1 32 Positioning platen 1
16 Decorative board 1 33 New vertical controller shell 1
17 Parts machine assembly 1 34 Panel for new controller 1

14 www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON
Circuit Diagram

15
www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON
Warranty Statement
Joto warrants to the original purchaser Joto’s E-HP-JMP-1S4E mug press or component that such mug press or
component is free from defects in materials and workmanship, subject to the limitations set forth below.
IN LIEU OF ALL WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION ANY
IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, WHICH JOTO
HEREBY DISCLAIMS, THE OBLIGATIONS OF JOTO UNDER THIS WARRANTY ARE EXPRESSLY LIMITED TO
THE FOLLOWING:
a. Joto will repair or replace at its option, free of charge, any product, component of its products, and any
component it sells separately which is installed in Joto’s heat presses, within twelve months and six months for
the heating element after shipment by same.
b. This warranty does not apply to damage incurred in shipment. Damage incurred in shipment should be
reported to the designated carrier. It is the carrier’s responsibility to ensure arrival in undamaged condition.
c. Service labor, when requested in connection with any of the above items covered by this warranty, will be
charged for traveling expenses only.
d. This warranty applies only if the product or component proves to be defective under conditions of normal
use. It does not apply to breakage or to defects resulting from accident, alteration, misuse, or improper
installation.
e. This warranty does not include installation of the product or component.
f. Prior to any return of a product or component, Buyer must receive written authorization to do so from Joto.
After written authorization, Buyer shall return the defective product or component freight prepaid by the
original purchaser and Joto will ship the replacement or repaired component freight prepaid by Joto.
g. This warranty is eective only if the product or component is installed in a location and manner prescribed
by JOTO instructions and only if it is maintained in accordance therewith. This warranty shall become
ineective if the product or component is altered by anyone other than JOTO employees. JOTO neither
assumes, nor authorizes any person to assume for it, any obligation or liability other than as specied herein.
JOTO WILL IN NO CASE AND UNDER NO CIRCUMSTANCES BE LIABLE FOR SPECIAL OR CONSEQUENTIAL
DAMAGES, LOSS OF PROFIT OR COMMISSION, OR FOR LOSS OR DELAY IN PRODUCTION.
Without limiting the generality of the foregoing, Joto will not be liable with respect to furnishing or delay in
furnishing any product or component, the use, resale, or other disposition thereof, failure to furnish the same,
or any other cause. Joto liability arising out of the supply of any product or component, its use, resale, or
other disposition, or out of any guarantee or warranty, express or implied, or any other cause shall in no case
exceed the cost to Joto of the product or component which JOTO has agreed to supply. All liability of Joto with
respect to any product or component shall terminate upon the expiration of the twelve-month period described
above.
-Any controversy or claim arising out of or relating to transactions or orders or breach thereof, including
breach of warranty, shall be settled by arbitration in Blaine, Washington, pursuant to the rules of American
Arbitration Association. Any award made against Joto shall be limited as provided above. Judgment upon
award rendered by arbitration may be entered in any court having jurisdiction thereof. However, at Joto’s
option, this paragraph shall not apply to collection by Joto of the price of any product sold or any action
related thereto.
PLEASE KEEP THE BOX THAT YOUR MUG PRESS ARRIVED IN,
ALONG WITH ALL ORIGINAL PACKAGING.

www.jotoimagingsupplies.com
Tel: [phone]
Fax: [phone]
Coquitlam, BC | Brampton, ON
Blaine, WA | Las Vegas, NV |Antioch TN
