Joto E-HP-JLF-3243 User manual

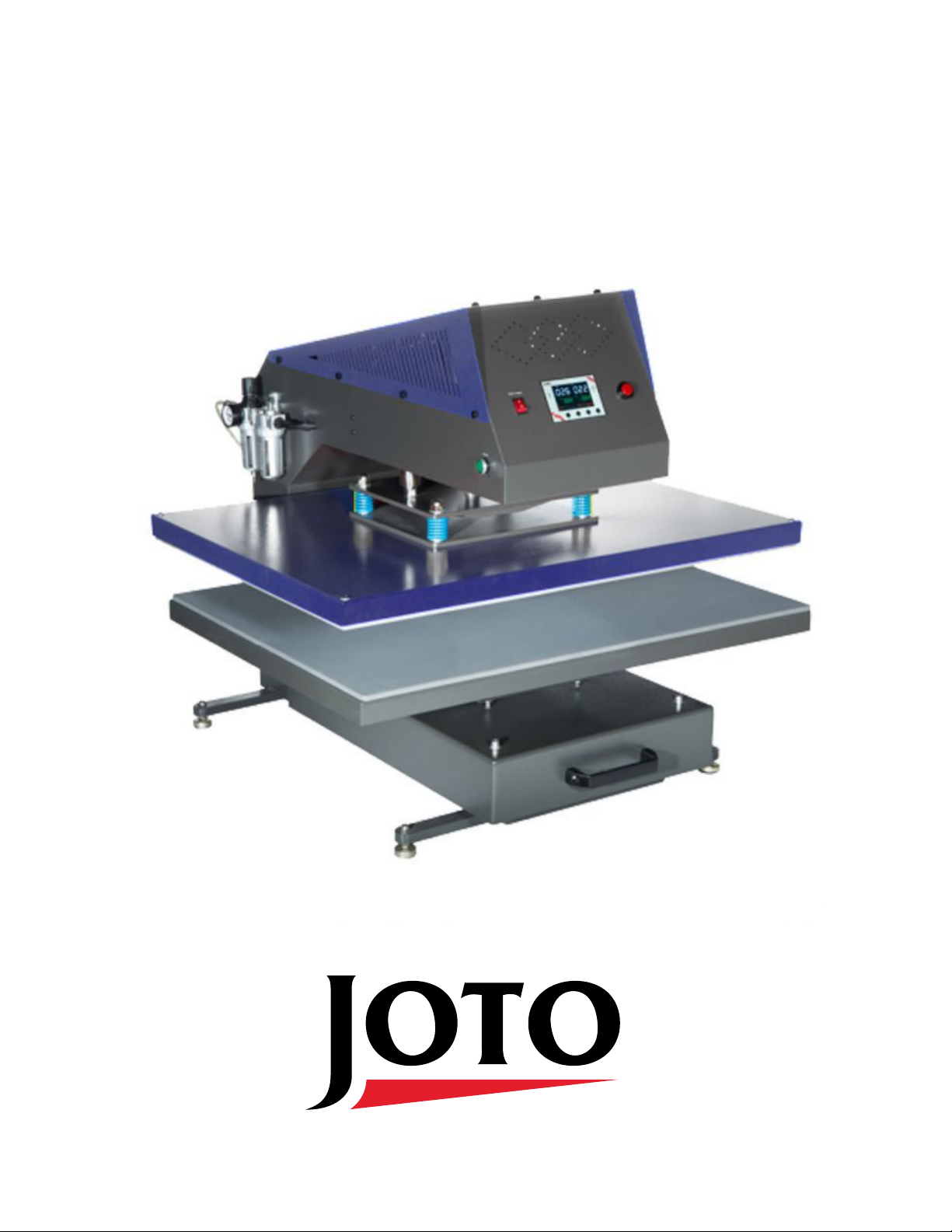

Joto Large Format Heat Press
Model No.: E-HP-JLF-3243
OPERATOR’S MANUAL
Bringing images to life
TM
TM

2www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON
Safety Instructions
For Use By Qualied Personnel Only
When using your Heat Press,
basic precautions should always be followed,
including the following:
Read all instructions.
Use heat press only for its intended use.
Always keep the heat press dry. Do not get the heat press wet to reduce the risk of electric shock.
Do not store heat press in a wet/ damp area.
Never pull cord to disconnect the power. Instead, grasp plug and pull to disconnect from power
outlet.
Make sure you protect the power cord by keeping it away from hot surfaces. Avoid placing objects
on top of the cord. This could cause damage to the cord and could be a re hazard risk.
Do not operate heat press with a damaged cord or if the equipment has been damaged. To prevent
risks of injury, please do not disassemble or attempt to repair the heat press by yourself if you are
not qualify to do so. Instead, call or take it to a qualied service person for examination and repair.
Incorrect assembly or repair could increase the risk of re, electric shock, or injury to persons when
the equipment is used.
If heat press being used by or near children, please make sure that it is supervised. Do not leave
equipment unattended while connected.
Metal parts on the press can become hot. Avoid touching the hot metal parts to prevent burns.
Proceed with caution when using the heat press.
To reduce the likelihood of circuit overload, Joto recommends to use a dedicated circuit if possible.
Make sure that the cord is safely secured so it cannot be pulled or tripped over.
If you need to use an extension cord, make sure you use a 20 amperage rated cord. Cords rated
below 20 amperage can overheat. Make sure that the extension cord is safely secured so it cannot
be pulled or tripped over.
Note: Temperature is in Fahrenheit or Celsius. This heat press should not be set to exceed
400˚F (200˚C). Setting the press temperature to above 400˚F (200˚C) may cause a re hazard.
PLEASE KEEP THE BOX THAT YOUR HEAT PRESS ARRIVED IN,
ALONG WITH ALL ORIGINAL PACKAGING.

3
www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON
Congratulations on your purchase of a Joto Large Format Heat Press! In order to work
professionally with the machine and start production, please make sure you read this manual
carefully.
Reproduction of this manual requires written consent from Joto. Errors and amendments
of technical details excepted, all rights reserved. Joto is not liable for any direct or indirect
damages caused by the use of this product.
Table of Contents
Safety........................................................2
Introduction .............................................3
Large Format Heat Press Overview ..........4
Machine Parts Diagram ............................5
Setting Up Your Heat Press ......................6
Operating Instructions .............................7
Heat Pressing Guide ..............................8-9
Maintenance ...........................................10
Troubleshooting .....................................11
Expanded View ................................. 12-13
Circuit Diagram .......................................14
Warranty .................................................15
Contact ...................................................16

4www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON
Technical Specs
Model No.: E-HP-JLF-3243
Machine Type: Large Format 31.5” x 43.3”
Machine Size: 48.22” x 51.02” x 39.13”
(1225mm x 1296mm x 994mm)
Printable Articles: Up to 0.78” (20mm) Thickness
Controller GY-06 Digital Controller
Voltage: 220v/ 1 Phase/ 120v/ 1 Phase
Power: 8.1kw
Time Range:
Maximum Temp:
0~999s
437F (225C)
Packing Size: 54.33” x 60.23” x 49.60”
(1380mm x 1530mm x 1260mm)
Gross Weight: 340kg (Wooden crate)
Note: This heat press should not be set to exceed 400˚F (200˚C). Setting
the press temperature to above 400˚F (200˚C) may cause a re hazard.
Heat Press Overview

5
www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON

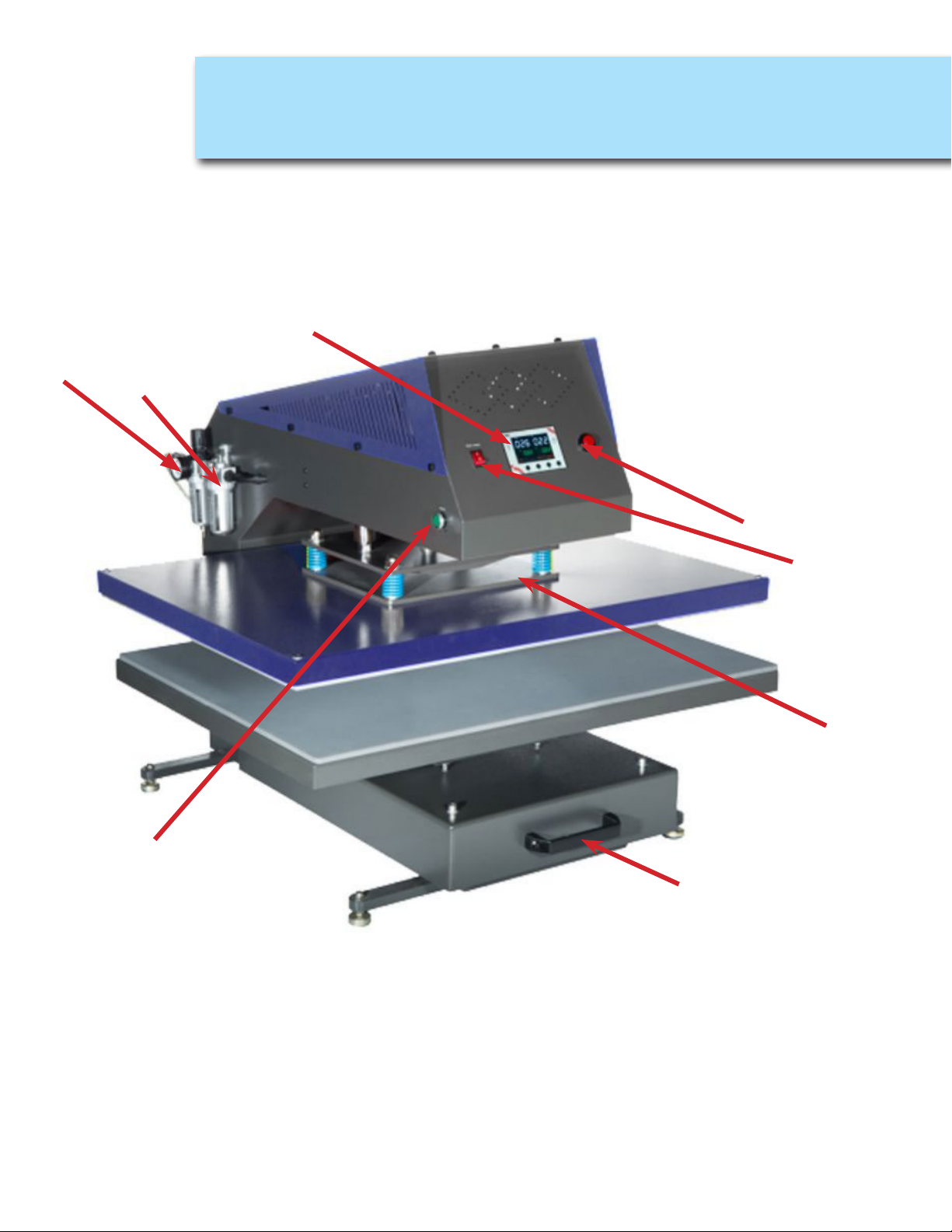

Machine Parts Diagram
GY-06 Digital
Controller
Power
Switch
Emergency
Stop Button
Air lter
Large Format Handle
Connection Plate
Start Swith
Valve

6www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON
Setting Up Your Large Format

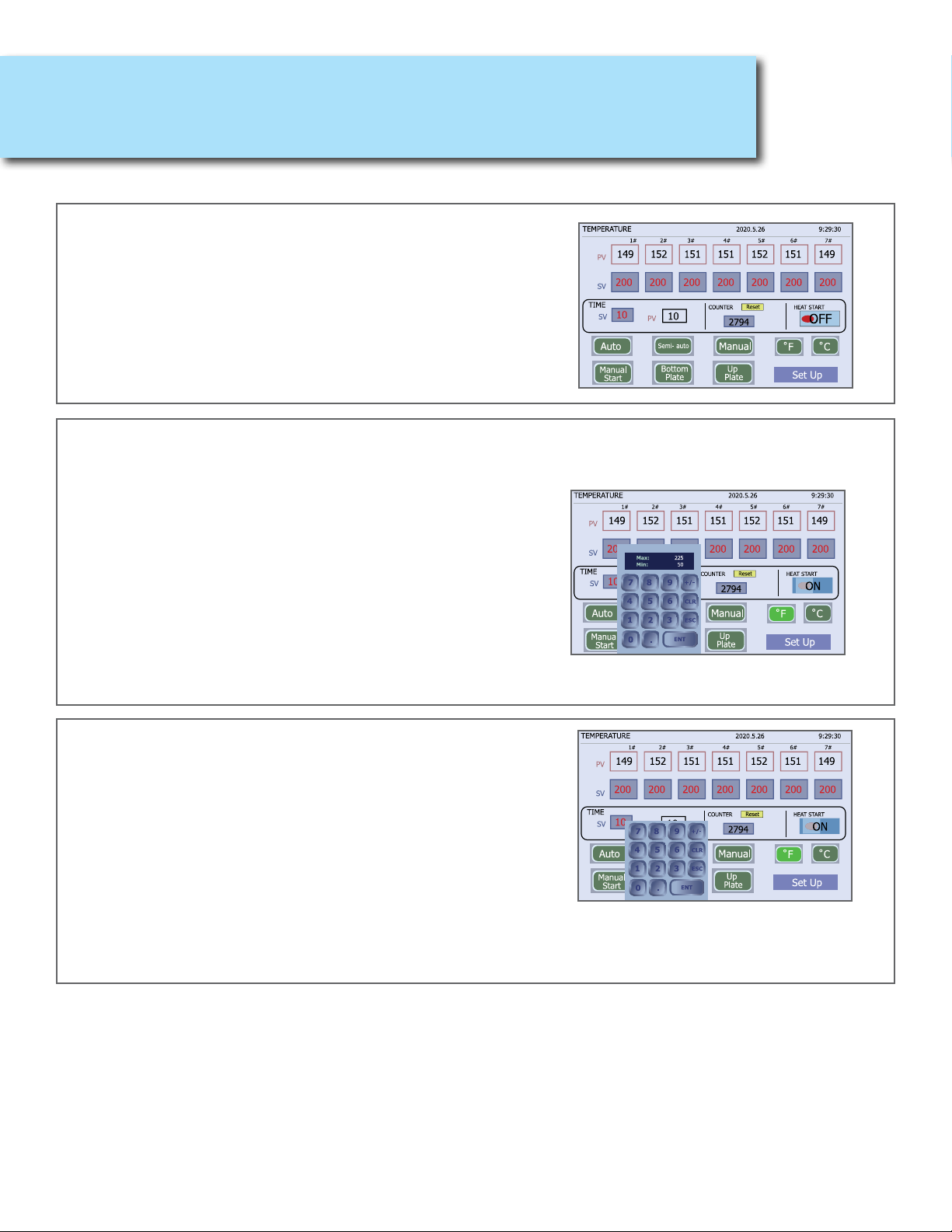

How to Read The Display
1.) Turn on Heat Press, display screen will switch on
2.) Right side PV value = Current Temperature
3.) Left side PV value = Current Time
4.) Right side SV value = Set Press Temperature
5.) Left side SV value = Set Press Time
Setting Press Temperature
Press the corresponding number of SV to start.
Touch the °F or °C buttons to choose to display
in °F or °C.
°F stands for Fahrenheit
°C stands for Celsius
Press ENT to save and exit,
CLR to clear the settings, ESC to reset.
Use keypad to set press temperature value.
Press ENT to save
Setting Press Time
Press the SV Time Value and a keypad will
show up.
Press the numbers on the keypad change
the value.
Press ENT to save the value.
Wait until the current
temperature is the same as the set temperature
before using. The press will beep once set temperature
is reached. Close and open the press to stop the beeping.
Note: Setting the press temperature to above 400˚F (200˚C) may cause a re hazard.

7
www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON
Operating Instructions
Pressing a images to your substrate
1.) Ensure that the air supply is connected to the press.
2.) Turn on the Main Power Switch.
3.) Adjust the air pressure to 0.6-0.8Mpa. Heat platen will open automatically.
4.) Draw out the under plate and place the substrate on top of the under plate.
5.) Set the appropriate Press Temperature, and Time as per your transfer paper,
transfer vinyl or sublimation instructions.
6.) Wait until current temperature is the same as the set temperature. Once the
press has reached set temperature, place transfer material on the shirt. For
Sublimation, place the paper with the image face down. For cuttable transfer
vinyl, place the matte side with the transparent carrier backing facing the heat
platen. For some sublimation items, the imaged transfer paper is on
the bottom with image face up while the substrate is placed on top with printable
side face down. If unsure, please refer to the instructions you received with your
transfer materials.
7.) Push the green start-up switch. The platen will close automatically.
The current time value will start counting down. Once the
timer reaches the last 2 seconds before reaching 0, it will start to beep to warn
you. It is recommended to stand clear of the press and let the auto-open
feature work without obstruction. Once time reaches zero, the press will open.
Note: Once the press is closed, it cannot be opened manually until the timer
reaches zero. In an emergency, you may press the red emergency stop button
to force open the press. When pressing the red emergency stop button, the
press will open immediately without warning. Keep hands on the heat press
handle at all times during and after pressing the emergency stop button. Not
securing the handle with your hands may cause injury.
8.) For most sublimation and transfer vinyl, the peel is hot. If unsure, refer to the
instructions that came with your transfer materials.
CAUTION: Suitable air pressure is 0.4-0.5Mpa or 75-80Psi. Do not exceed this range as
too much air pressure may damage the machine, and not enough air pressure
will not allow the heat platen to work properly.

8www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON
Heat Pressing Guide
MultiCut One-4-All
Temperature: 265˚F
Time: 3-5 seconds
Peel: Warm (Cotton)
MultiCut New Flock
Temperature: 310-330˚F
Time: 15 seconds
Peel: Warm
MultiCut Nylon
Temperature: 300-305˚F
1st Press Time: 3-4 seconds
2nd Press Time: 10-15 seconds
MultiCut Premium
Temperature: 310-330˚F
Time: 45 seconds
Peel: Warm/Cool
MultiCut Lustre
Temperature: 310-330˚F
Time: 15-20 seconds
Peel: Hot to Cold
MultiCut Style
Temperature: 310-330˚F
Time: 15-20 seconds
Peel: Hot to Cold
Transfer Vinyls
CL TrimFree Dark
(REQUIRE A WHITE TONER PRINTER)
Temperature: 310˚F
1st Press Time: 120 seconds
2nd Press Time: 30 seconds
Inkjet Light
Temperature: 350-365˚F
Time: 20 seconds
Peel: Warm
CL TrimFree Light
Temperature: 330˚F
Time: 30 seconds
Peel: Warm (5-10 seconds)
Inkjet Dark
Temperature: 375˚F
Time: 20-25 seconds
Peel: Cool
Transfer Papers
For more instructions, please visit our website at www.jotoimagingsupplies.com/support/how-to-library/instructions.html
For more instructions, please visit our website at www.jotoimagingsupplies.com/support/how-to-library/instructions.html

9
www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON
Heat Pressing Guide
Sublimatable Ceramic
Tiles
Temperature: 400˚F
Time: 360-420 seconds
Peel: Hot
Method: Substrate face down
Image face up
Porcelain Ornaments
Temperature: 400˚F
Time: 180-240 seconds
Peel: Hot
Method: Substrate face down
Image face up
Coasters with Cork
Bottom
Temperature: 400˚F
Time: 75 seconds
Peel: Hot
Method: Substrate face up
Image face down
Pot Holder
Temperature: 360˚F
Time: 120 seconds
Peel: Immediate
Method: Substrate face up
Image face down
iLumipiX Photo
Panels
Temperature: 400˚F
Time: 65-150 seconds
Time may varied based on size.
Scan the QR code on the left for
instructions or visit our website.
Sublimatable Towels
Temperature: 360˚F
Time: 120 seconds
Peel: Hot
Method: Substrate face up
Image face down
Sublimatable Pillows
Temperature: 375˚F
Time: 45 seconds
Peel: Immediate
Method: Substrate face up
Image face down
Sublimatable Slates
Temperature: 360˚F
Time: 480 seconds
Peel: Immediate
Method: Substrate face up
Image face down
Sublimation Items
For more instructions, please visit our website at www.jotoimagingsupplies.com/support/how-to-library/instructions.html

10 www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON
Maintenance
General Maintenance
Please switch OFF the machine and unplug the power cord when the machine is not in use.
To protect the heat platen, do not allow any hard surface objects to be in direct contact with
the platen. This includes zippers, buttons, metal sublimation items. When pressing these
items, place a protective sheet between the platen and the objects.
Please add the lubrication oil regularly on the pivot parts to prolong the life of your heat
press. The frequency will depend on how often you use your machine. Failing to lubricate your
machine regular will cause the pivot joints to dry out, and they will be subject to friction and
wear.
The cooling fan will automatically start when the temperature of heat platen reaches 80˚C
(176˚F). This helps to cool electrical parts and prolong the heat press.
The heat platen will cool down to room temperature if heat press is not used for more than 30
minutes.
Note: This heat press should not be set to exceed 400˚F (200˚C). Setting the
press temperature to above 400˚F (200˚C) may cause a re hazard.
If your mug press stops working, please contact Joto at
1-800-565-5686 so we can help you troubleshoot.

11
www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON
Troubleshooting
Printing Process
A. The color is a little bit light: The temperature is too low, the pressure is uneven,
or the time is too short.
B. The picture is vague: The printing time is long, causing the spread of ink.
C. The printing cover looks not brilliant: The pressure is too heavy or the tempera-
ture is too high.
D. The print is partially vague: The heat of the pressing area is uneven.
E. The print has some scar or brown tint: The pressing time is too long.
F. The print is in dierent colors: The pressure is uneven or the surface of the print-
ing material is uneven.

12 www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON

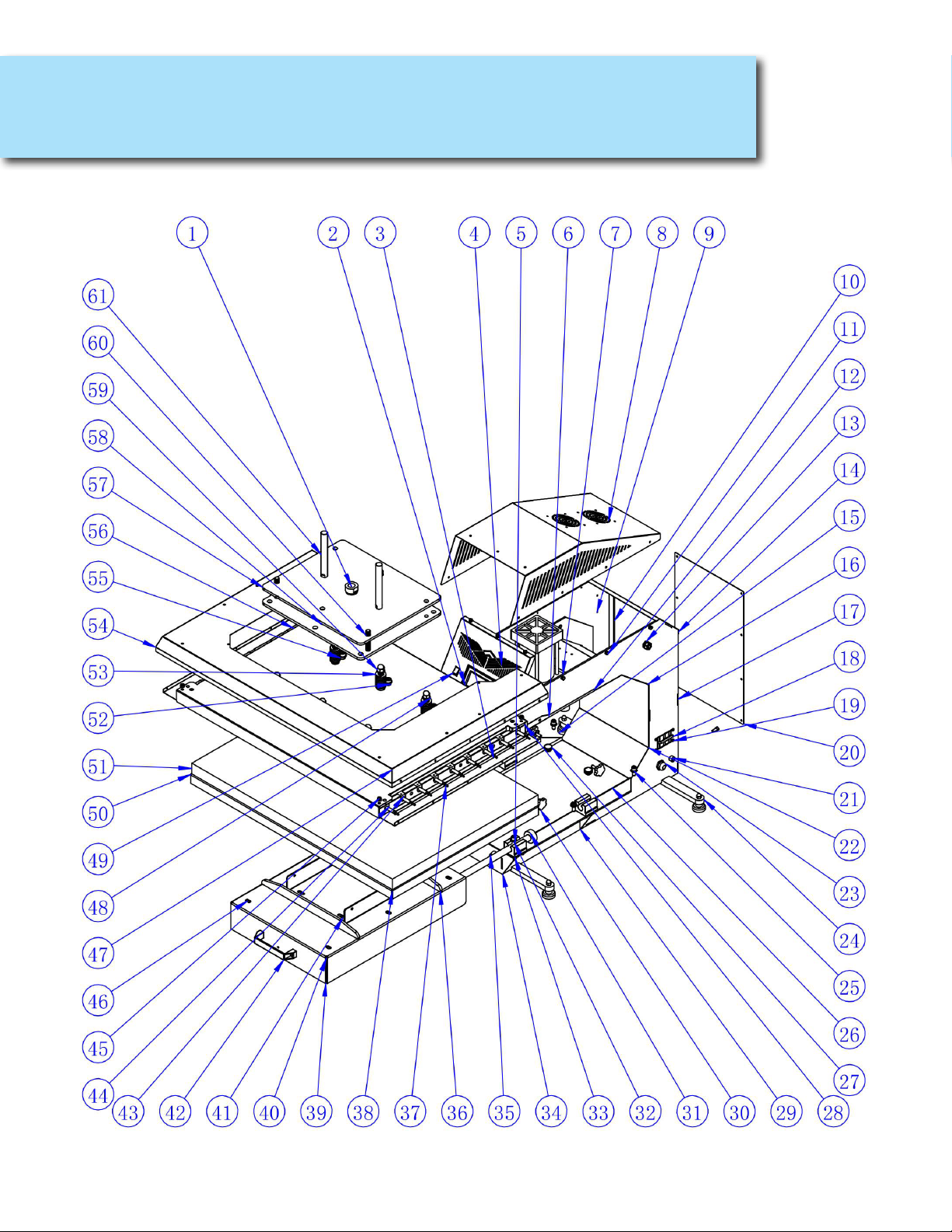

Expanded Diagram

13
www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON
Serial
No.
Part Name Qty Serial
No.
Part Name Qty
1 Adapter plate welding plug 7 1 32 GB_FASTENER_WASHER_PWNA 12 27
2 PLC Digital Time & Temp.
Control
1 33 25 Open slider 4
3 Plate electrode 1 16 34 Front sealing plate 1 1
4 Anti-shake sleeve 1 2 35 Conical machine feet 2
5 GB_FASTENER_SCREWS_
HSHCS M12X25-N
40 36 Drawing board stiener 2
6 Rack panel 1 1 37 40 Heating pipe 1020 9
7 Cylinder 125-75 1 38 Stiener 40 1
8 Upper cooling cover 3 1 39 Draw-out Bottom plate 1 1
9 Left plate rack 1 1 40 25 Chrome rod 2
10 Rear cover pad 2 41 Adjustment board 1
11 M5x12 Hand wheel screw 11 42 Big handle 1
12 Cylinder xing plate 1 1 43 Pure aluminum plate heating plate
80100
1
13 New Snake Fitting 2 44 Both sides sealing plate 6 2
14 Rear welding plate 1 45 Insulated plastic ring 4
15 Cup type machine feet 4 46 12 Aluminum 1 2
16 Rack stiener 1 2 47 Trunking cover X 2
17 Rack connection board 1 7 48 GB_FASTENER_WASHER_SMWC 16 12
18 Air switch 1 1 49 X2_00D7_X0 X2_00DC_X0 X2_00BF_X0 1
19 GB_CROSS_SCREWS_
TYPE138M5X12-N
4 50 Bend based plate 1
20 Machine rear cover 1 1 51 Recycled cotton 50 1
21 prat0153 1 52 Adapter plate pad 40 6
22 Inner welding plate 1 1 53 60X40 Blue compression spring 6
23 Connector 1 54 Both ends Heat insulation panels 1
24 Machine feet at iron 2 55 GB_HEXAGON_TYPE21M16X55-48-N 6
25 GB_FASTENER_WASHER_SW 12 26 56 Modify Rear cover 40 1
26 Right side of the rack1 1 57 Adapter board 1 1
27 Base plate locking hand wheel
M12
4 58 Adapter board 2 1
28 Heating plate four corner pad 8 4 59 GB_SPECIAL_TYPE18 M10-N 10
29 Rack base reinforcement 1-1 2 60 M16X100 Screw 6
30 Adjustment hand wheel M10 4 61 Upper and lower rails 32 2
31 50 Urethane 2
Expanded Diagram

14 www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON
Circuit Diagram
LN
(250V/15A)
11PPhhaasseePPoowweerr
SSwwiittcchh//rreessiidduuaall
ccuurrrreennttooppeerraatteedd cciirrccuuiitt--bbrreeaakkeerr
((338800VV4400AA))
L1 N1
224400℃℃
G
LL11
Y0 Y1 Y2 Y3 Y4 Y5COM1 COM2 Y6 Y7 NC
GND
Switching Power
SSSSRR11
（（RREELLAAYY::SSSSRR--8800DDAA））
SSSSRR22
24V+
LL11NN11
NC
X7
X6X5
X4
X3
X2
COM2
X1X0
COM1
0V
24V
B-
A+ RA A- NC B+ RB NC
24V-
24V+
24V+
24V+
10
24V-
KA
SSSSRR11
SSSSRR22
Start*2Pcs
24V-
24V-
LED1
LED2
MODEL:GC-043-16MAL
INPUT:DC24V(±15%)
L
L
L
N
N
N
16
14 13
12
06
06
02
06
03
24V-
24V+
03
03
03
10
06
04
03
09
11
01
15
KA-2
LL
DC24V
Solenoid valve coil
Buzzer
FU 250V 3A
Sensor 2Sensor 1
Sensor 2
Sensor 1
14
16 16
01 02
24V+
1#
2#
1#2#
2#
1#
Fan*2pcs
224400℃℃
Relay
LIMIT SWITCH
APHD-43P
E-HP-JLF-3243

15
www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON
JOTO warrants to the original purchaser JOTO’s E-HP-JLF-3243 heat presses or component that such heat
press or component is free from defects in materials and workmanship, subject to the limitations set forth
below.
IN LIEU OF ALL WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION ANY
IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, WHICH JOTO
HEREBY DISCLAIMS, THE OBLIGATIONS OF JOTO UNDER THIS WARRANTY ARE EXPRESSLY LIMITED TO THE
FOLLOWING:
a. JOTO will repair or replace at its option, free of charge, any product, component of its products, and any
component it sells separately which is installed in JOTO’s heat presses, within twenty-four months and sixty
months for the heating platen after shipment by same.
b. This warranty does not apply to damage incurred in shipment. Damage incurred in shipment should be
reported to the designated carrier. It is the carrier’s responsibility to ensure arrival in undamaged condition.
c. Service labor, when requested in connection with any of the above items covered by this warranty, will be
charged for traveling expenses only.
d. This warranty applies only if the product or component proves to be defective under conditions of normal
use. It does not apply to breakage or to defects resulting from accident, alteration, misuse, or improper
installation.
e. This warranty does not include installation of the product or component.
f. Prior to any return of a product or component, Buyer must receive written authorization to do so from JOTO.
After written authorization, Buyer shall return the defective product or component freight prepaid by the
original purchaser and JOTO will ship the replacement or repaired component freight prepaid by JOTO.
g. This warranty is eective only if the product or component is installed in a location and manner prescribed
by JOTO instructions and only if it is maintained in accordance therewith. This warranty shall become
ineective if the product or component is altered by anyone other than JOTO employees. JOTO neither
assumes, nor authorizes any person to assume for it, any obligation or liability other than as specied herein.
JOTO WILL IN NO CASE AND UNDER NO CIRCUMSTANCES BE LIABLE FOR SPECIAL OR CONSEQUENTIAL
DAMAGES, LOSS OF PROFIT OR COMMISSION, OR FOR LOSS OR DELAY IN PRODUCTION.
Without limiting the generality of the foregoing, JOTO will not be liable with respect to furnishing or delay in
furnishing any product or component, the use, resale or other disposition thereof, failure to furnish the same,
or any other cause. JOTO liability arising out of the supply of any product or component, its use, resale or
other disposition, or out of any guarantee or warranty, express or implied, or any other cause shall in no case
exceed the cost to JOTO of the product or component which JOTO has agreed to supply. All liability of JOTO
with respect to any product or component shall terminate upon the expiration of the twenty-four month period
described above.
-Any controversy or claim arising out of or relating to transactions or orders or breach thereof, including
breach of warranty, shall be settled by arbitration in Blaine, Washington, pursuant to the rules of American
Arbitration Association. Any award made against JOTO shall be limited as provided above. Judgment upon
award rendered by arbitration may be entered in any court having jurisdiction thereof. However, at JOTO’s
option, this paragraph shall not apply to collection by JOTO of the price of any product sold or any action
related thereto.
Warranty Statement
PLEASE KEEP THE BOX THAT YOUR HEAT PRESS ARRIVED IN,
ALONG WITH ALL ORIGINAL PACKAGING.

Bringing images to life
TM
TM
www.jotoimagingsupplies.com
Tel: [phone]
Fax: [phone]
Coquitlam, BC | Brampton, ON
Blaine, WA | Las Vegas, NV |Antioch TN
