JRC JFV-700 Series User manual

COLOR ECHO SOUNDER
JFV-700 SERIES
JFV-700
JFV-700HP
INSTALLATION MANUAL
H-7ZPBS6504A

1
General Information
This installation manual describes the installation, maintenance and inspection proce-
dures for the JFV-700 series. Prior to the installation, users are requested to read this
manual well and familiarize with its contents so that an optimum function may be derived
from the JFV-700.
Note that the grounding work is indispensable to prevent electric shock hazards as well
as to ensure the intended function of the set. Don’t try to ignore the grounding work.
For the operation of the set, refer to the Instruction Manual.

2
Before You Begin
Symbols Used In This Manual
Related Symbols Marks
In this manual, and on the equipment, we use several warning signs to call your attention to impor-
tant to items that, if not handled correctly, could present danger to yourself or property. These
warning note classifications are as described below.
Please be fully aware of the importance of these items before using this manual.
Examples of Related Symbol Marks Used in this Manual and on the Unit
Warning Label
You can see the warning label on the top of the unit.
Do you attempt to remove the warning label from the unit or impair or modify it.
Each marks is intended to alert the user to the presence of prohibited
activity. The picture/word in/beside each mark alerts you to operations that
are prohibited
WARNING
CAUTION
Hot Surface
Prohibition
Each △mark is intended to alert the user to the presence of precautions
including danger and warning items. The picture in each △mark alerts
you to operations that should be carefully performed.
Prohibitions
disassembly
Instruction
Each ●mark is intended to alert the user to the presence of necessary in-
structions. The picture in each ●mark alerts you to operations that must
be performed..
Indicates warning items that, if ignored, may result
in serious personal injury or even death.
Indicated cautionary items that, if ignored, may
result in personal injury or physical damage.

3

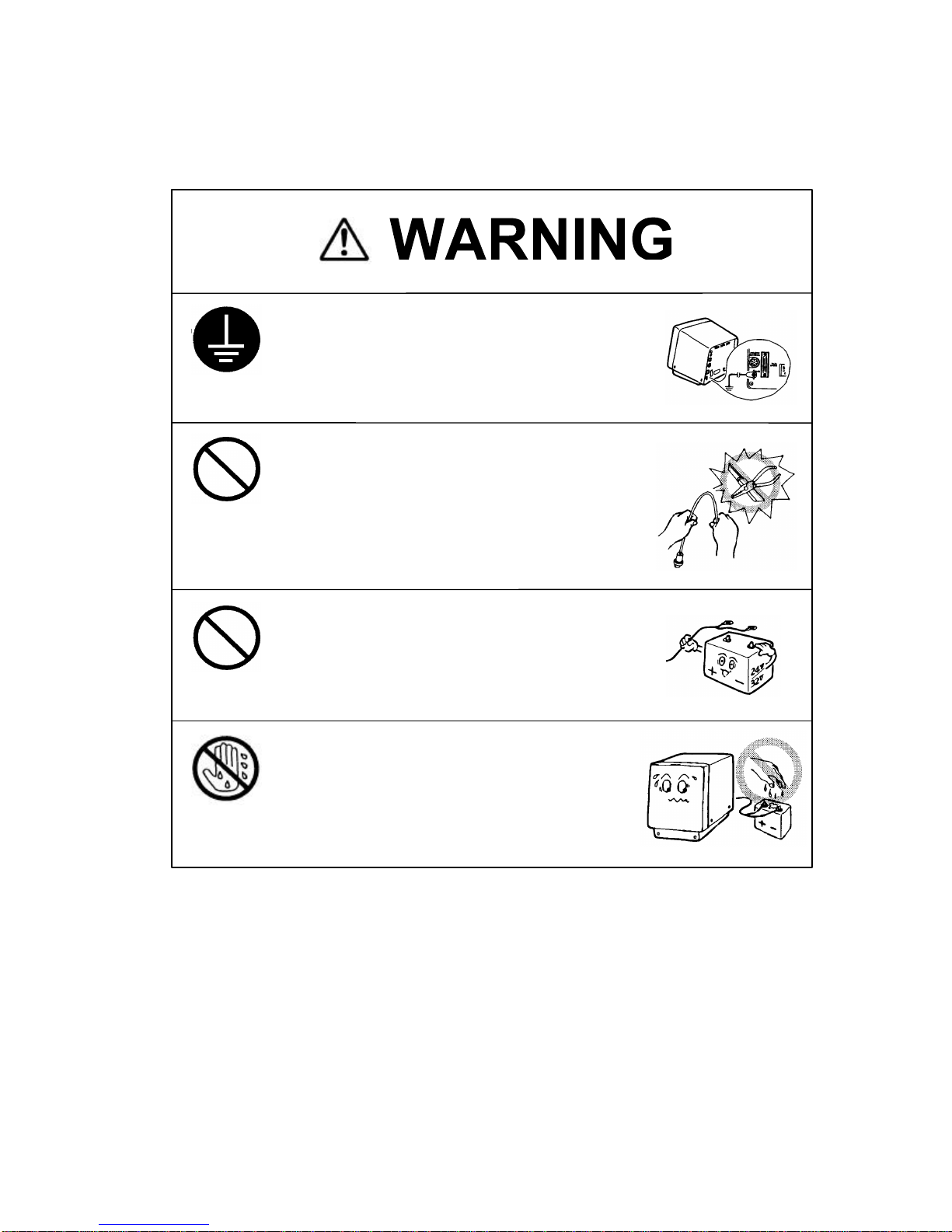

Usage Hints
When installing this set, be sure to connect
the grounding wire to the grounding terminal
of the set. Otherwise, an electric shock can
result when a failure or leakage occurred on
the set.
Do not damage, break or modify the power
cord.
Placing a heavy load, heating, pulling or for-
cibly bending the cord can damage it result-
ing in a fire or an electric shock.
Do not use this set at a voltage other than the
supply voltage stated on the set. Otherwise,
a fire, an electric shock or system failure can
result.
Do not touch inside the set with wet hands.
When your hands are wet, don’t try to con-
nect or disconnect the power cord or touch
the switches. Otherwise, an electric shock
can result.

4
When cleaning the surface, do not use any
organic solvent such as thinner or benzene.
Otherwise, the painting on the surface may be
damaged.
For cleaning the surface, remove the dust,
then wipe with clean dry cloth.
Do not try to make transmission when the
transducer is not connected, otherwise, the
transducer may fail.
Do not try to make transmission when the
transducer is not in water. Otherwise, the
transducer or transmitter may fail.
Do not bring the set in a cooled state suddenly
into a warm room.
A high voltage may leak due to dew condensa
-
tion resulting in a failure. In this case, use
the set after leaving it alone for 30 minutes.
When removing the power cord, be sure to re-
move the power cord terminal correctly.
Pulling the power cord can damage it resulting
in a fire or an electric shock.
No!
Not connected
Power
on
Trans-
mit
benzene
Thinner

5
General Information･････････････････････････････････････････････････････････････････ 1
Before you Begin ･･･････････････････････････････････････････････････････････････････ 2
Usage Hints ･･･････････････････････････････････････････････････････････････････････ 3
1 Configuration
1.1 List of Models･････････････････････････････････････････････････････････ 6
1.2 List of Components ････････････････････････････････････････････････････ 7
2 Installation
2.1 Mounting of Echo Sounder･･････････････････････････････････････････････ 9
2.2 Connection Between Components ･･････････････････････････････････････ 11
2.3 Connecting the Power Supply and Transducer Connectors ･････････････････ 12
2.4 Transducer Installation Procedure ･･････････････････････････････････････ 14
2.5 List of Transducers Equipped ･･････････････････････････････････････････ 23
2.6 Grounding Work･･････････････････････････････････････････････････････ 25
2.7 Connecting Optional Equipment ････････････････････････････････････････ 26
2.8 Connecting the Water Temperature Sensor (Thermistor type)･･･････････････ 27
2.9 Connecting External Equipment
2.9.1 Output of Sea Bottom Depth ･････････････････････････････････ 29
2.9.2 Output of Cursor Position Water Depth ････････････････････････ 29
2.9.3 Input of Water Temperature Data (NMEA type sensor)･･･････････ 30
2.9.4 Connection to Squid Fishing Gear ････････････････････････････ 31
2.10 Connecting the Remote Controller (NCH-466E)･･････････････････････････ 32
2.11 Actions Required After the Installation ･･････････････････････････････････ 32
2.12 Actions Taken for Noise Trouble･･･････････････････････････････････････ 32
3 Adjustment After Installation
3.1 Adjustment of Frequency ･･････････････････････････････････････････････ 34
3.2 Fishing Method and Corresponding Setup････････････････････････････････ 35
3.3 Setup Changes Needed When Switched from Our Competitors ･････････････ 35
4 Frequency Change
4.1 Switching to Single Frequency･･････････････････････････････････････････ 36
4.2 Switching to Dual Frequency ･･･････････････････････････････････････････ 38
4.3 Implementing the Master Reset･････････････････････････････････････････ 47
5 Appendix
5.1 Parts List and Assembly Drawing ･･･････････････････････････････････････ 50
5.2 System Setting as Delivered ･･･････････････････････････････････････････ 52
5.3 Menu Tree ･･････････････････････････････････････････････････････････ 57
5.4 CWB-1038 CHASSIS ･････････････････････････････････････････････････ 59

6
1 Configuration
1.1 List of Models
Digit １ ２ ３ ４ ５ ６ ７ ８ ９ 10 11 12 13 14
ＪＦＶ−７００ＨＰ □□□□□
① ② ③ ④⑤
①Model identification
NO: JFV-700 1kw with vertical display.
HP: JFV-700HP 3kw with vertical display.
②Characters used on the display panel
J: Japanese
E: English
③Selection of piezoelectric transducer Output 1kW
Wide Beam Narrow Beam
Frequency
ＫＤ Ｋ Rubber ＫＲ Rubber
Output
3kW
２００kHz Ｙ Ｒ Ａ Ｏ Ｆ Ｋ
７５kHz − Ｓ Ｂ Ｐ Ｇ Ｌ
５０kHz Ｚ Ｔ Ｃ Ｑ Ｈ Ｍ
３８kHz − − − − ４ ４
２８kHz − − − − Ｊ Ｎ
Other Ｕ Ｖ Ｗ
200 kHz in the single frequency mode is indicated by an alphabet code
followed by an asterisks (＊). See below.
200 kHz：Ｋ＊ Other frequencies are indicated as below.
75 kHz,50 kHz,38 kHz､28 kHz：＊Ｌ、＊Ｍ、＊４、＊Ｎ
④Identification of input voltage
B: 12/24/32 VDC
J: 100/110/220 VAC
⑤Customized specification
Individual customized specification is indicated by a corresponding code.
Examples
JFV-700E＊ＨJ: 1kw type, for the single frequency of 50 kHz wide beam rubber
type transducer, fabricated per AC specification and employing the
English language for the display panel characters.
JFV-700HPEKMB: 3kw type, for the frequency of 200 to 50 kHz, fabricated per DC
specification and employing the English language for the display
panel characters.

7
1.2 List of Components
Standard Components
Description Model No. Quantity Remarks
Echo sounder １ｋＷ
３ｋＷ
ＪＦＶ−７００
ＪＦＶ−７００ＨＰ １Any one of the two.
Transducer Depends on the frequency
and mounting method. 1 or 2
Spares ７ＺＸＢＳ００１５ １ 2 pieces of fuse.
Power cable ７ＺＣＮＡ０８２７Ａ
（ＣＦＱ−８８２７） １3.0 meters long with4P connec-
tors.
Instruction
manual １ｋＷ
３ｋＷ
７ＺＰＢＳ２５０４
７ＺＰＢＳ２５０５ １Any one of the two.
Washer ４ Ｍ６
Accessories Tapping screws ４ Ｍ６×２５ｍｍ
Optional Accessories
Description Model No. Quantity Remarks
Filter ＭＰＯＬ３０２５２
Remote
controllerJapanese
English
ＮＣＨ−４６６Ｊ
ＮＣＨ−４６６Ｅ With 4 meters long cable.
Interface mounting
parts ７ＺＺＢＳ０００６
Cable for remote controller
NMEA connector
Camp filter
Rectifier ＮＢＡ−３２６３ Input 100/110/220 VAC and output
24 VDC.

8
2 Installation
Do not install the set in a place that exposes the CRT to direct sun
for a long time or a place whose environmental temperature can
reach 55 degree Centigrade or above. Otherwise, fire hazards or
system failure can result from such operating environment.
Do not install the set on an unstable place such as shaky or in-
clined bench. Otherwise, personal injuries can result from the
fallen or collapse set.
Environment of the set must be free of magnetism field. Failure to
observe this precaution may disturb the screen display colors of
water depths or of alarms, thus causing accidents.
Do not close the ventilation port of the set. Otherwise, fire haz-
ards or system failure can result from the heated set.
Reasonable care must be exercised for the routing of piezoelectric
transducer, power cable and grounding cable. Otherwise, the
echo sounder can adversely effect other equipment or vice versa.
When the echo sounder installation is complete, turn on power for
all other equipment to make sure that they are free of troubles.

9
2.1 Mounting of Echo Sounder
(1) Mounting location
1. The transducer cable tends to pick up generate noise, thus the echo sounder must
be installed in a location that can prevent interference between the cable and a co-
axial cable on a radio equipment.
2. The echo sounder must not be installed near a DSB or amateur radio equipment.

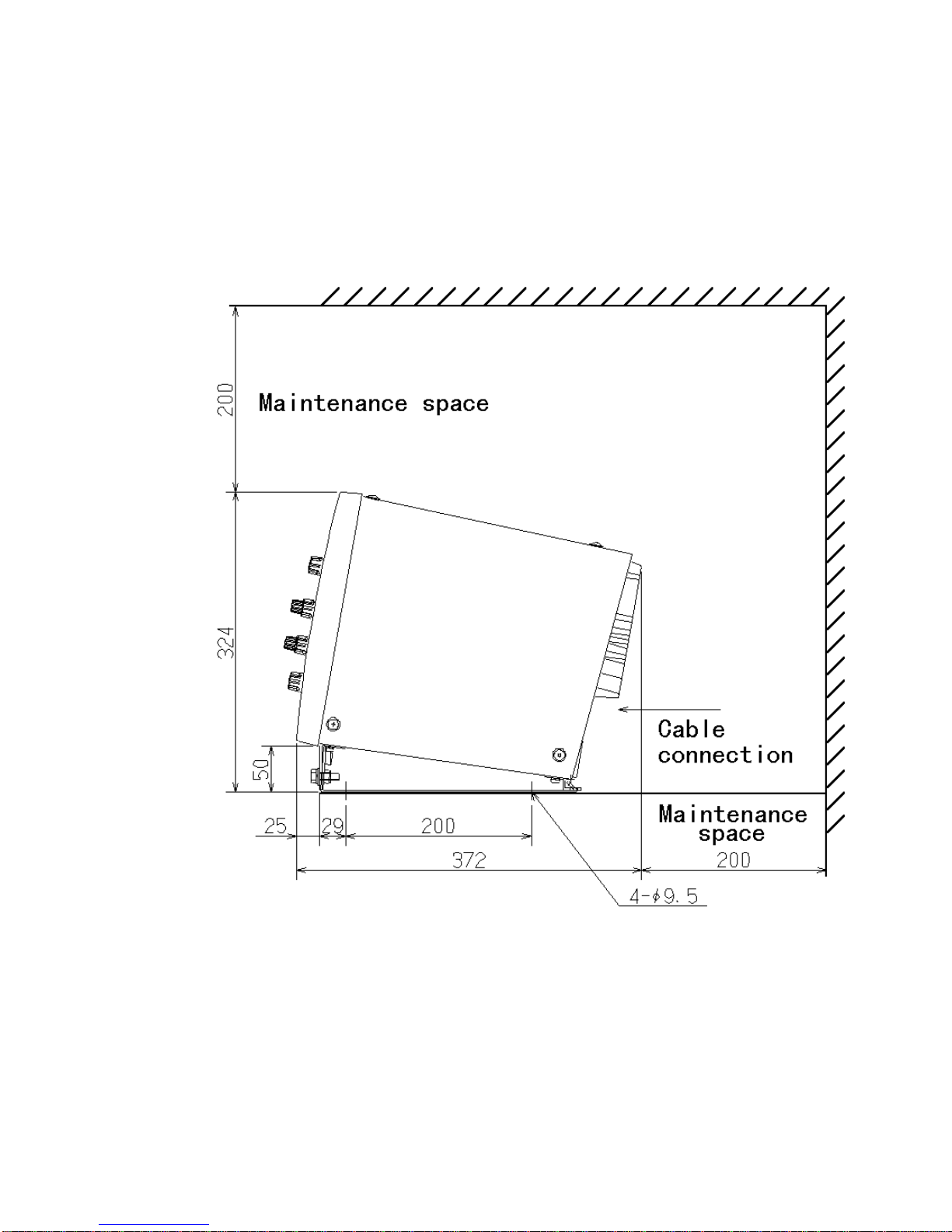

Side View of Mounted Echo Sounder ( Unit : mm )

10
(2) Mounting procedure
1. Loosen two main body fixing bolts situated at lower front side of the main body, then
remove the mounting plate.
2. Drill four tapping screw holes (φ4 mm) in the main body mounting location.
3. Using the tapping screws attached to the main body, fix the mounting plate to the
desk.
4. Using the two bolts already being removed (in the step 1 above), fix the main body
to the mounting plate.
Top View of Mounted Echo Sounder

11

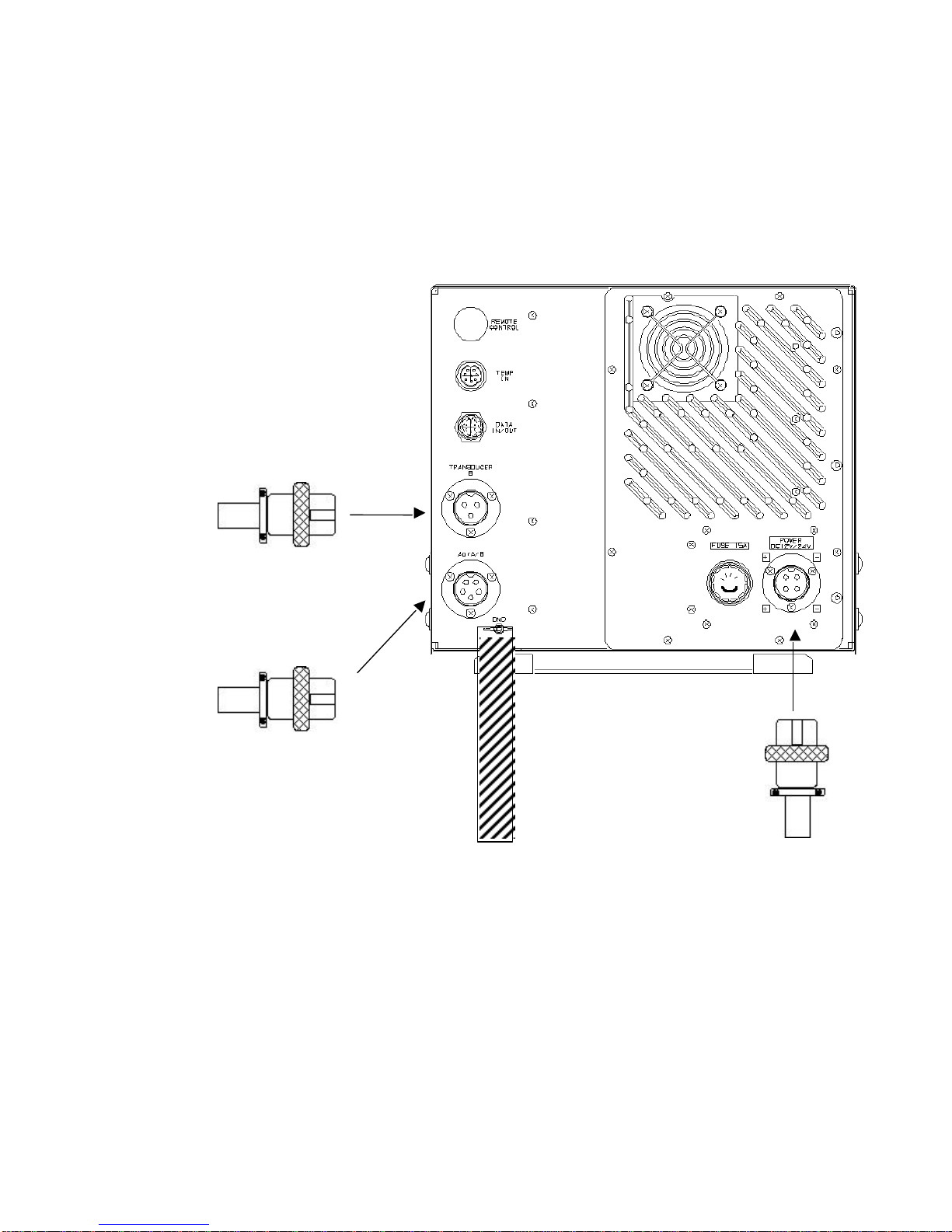

2.2 Connection Between Components

12
2.3 Connecting the Power Supply and Transducer Connectors
(1) Connecting the Power Cables
1. Use 7ZCNA0827A(CFQ-8827) for the power cable.
2. Connect the power cables as indicated below:
3. When the installation requires to extend the power cable, the cable used must be
DPYC-2.5or above so that voltage on the connector when conducted may not go
10.2V or less.
4. At powering on, 8A current (10.2V) is conducted to the JFV-700HP for two sec-
onds. Current capacity of a circuit breaker, if any, must be suitable for the above
current.
5. If you connect the power cable to the power terminal used on the radio equipment,
noise can be generated on the equipment.
(2) Power Cable Connecting Procedure for AC specification
1. Connect NBA-3263 rectifier to the AC power supply (100/110/220V), then connect
the power cable to the rectifier.
(3) Power Cable Wiring Procedure
1. Don't try to bundle the radio equipment coaxial cable with the echo sounder power
cable. Such practice can generate noise on the radio equipment.
(4) Transducer Cable Connecting Procedure
1. Connectors are attached to the transducer. Connect the cables to the connectors
as indicated below, then solder them to the connectors.
Connector BConnector A/B or A Connector A/ B or A
transducer for a single, transducer for
dual or low frequency dual and high frequency transducer for dual frequency
Cable Pin No. Cable Pin No. Cable Pin No. Freq.
White 1-1White 1 Low
Shield 2White 2 Red 2 High
Black 3Shield 3Shield 3
Black 4 Green 4 High
-5Black 5 Low
Connector type ＨＳ２１Ｐ−３ ＨＳ２１Ｐ−５ ＨＳ２１Ｐ−５
Cable Connector pin number Polarity
Red 1+
White 2+
Black 3-
Green 4-
Shield Connector case -

13
(5) Transducer Cable Wiring Procedure
1. Don't try to bundle the transducer cable with other cables. When this cable is
routed along with another cable, 50 cm minimum space must be provided between
the them.
2. The cable on the echo sounder transducer tends to pick up or generate noise, thus
it must not be bundled with the coaxial cable on the radio equipment.
3. It is recommended to route the transducer cable through iron pipe.
Power Supply and Transducer Connectors Connection Diagram
To the transducer
Low frequency side when the
single or dual frequency mode
is selected.
(75 kHz, 50 kHz, 38 kHz and 28
High frequency side when
the dual frequency mode is
selected.
Ground
0.5×30
Copper plate
Power connector
HS21P‑4
For DC specs., connect the 7ZCBS0827A (CFQ-8827) to the inboard power supply.
For AC specs., connect the 7ZCBS0827A (CFQ-8827) to the NBA-3263 rectifier.
Use DPYCY-2.0 (or higher in ratings) as an extension power cable.

14
2.4 Transducer Installation Procedure
Transducer mounting for fiberglass or wooden hull bottom installation
MASS

15
Transducer mounting for fiberglass or wooden hull bottom installation
MASS

16
Broad side installation
MASS
MAS
S

17
MASS
MASS
MASS

18
MASS
MASS
MASS
