JST CS10-WC930 User manual

Application/Anwendungsbereich:
Mit d For processing of JST contacts
Zur Verarbeitung der JST Kontakte
SVH-41T-P1.1 AWG 20-16
Instruction Manual/Bedienungsanleitung
Crimp Tool/Crimp-Werkzeug CS 10 –WC 930
11
Open the tool.
Werkzeug öffnen.
13
12
Loosen the flap locator.
Schwenkanschlag lösen.
Remove the crimped contact.
Gecrimpten Kontakt entnehmen.
Close the tool lightly until the contact
is held (1. Ratchet Lever)
Werkzeug leicht vorschließen, bis
Kontakt gehalten wird (1.Rastung).
AWG 18
9
10
Open the tool.
Werkzeug öffnen.
Click out the Flap
locator stop.
Schwenkanschlag
herausklappen.
The contact lies in the centre of
the respective profile.
Kontakt liegt zur Mitte des
jeweiligen Profils.
1
3
4
7
8
2
6
AWG 20
AWG 16
Flap Locator
5
Contact has to be inserted to the
stop. Please pay attention to the
cross section.
Kontakt bis Anschlag einschieben.
Querschnittsbereich beachten!
Close the Flap locator.
Schwenkanschlag bis Anschlag
einschwenken!
Insert the cable until insulation
Stop blade.
Leiter bis Iso-Stop Blech
einschieben.
Close the tool.
Werkzeug schließen.

Other JST Crimping Tools manuals

JST CS 30L-WC 591 User manual

JST

JST CS 30L-WC 591 User manual

JST BCT-8150 User manual

JST

JST BCT-8150 User manual

JST CS 30-WC-720 User manual

JST

JST CS 30-WC-720 User manual

JST CS10-WC110 User manual

JST

JST CS10-WC110 User manual

JST WC 240 User manual

JST

JST WC 240 User manual

JST CS 10 – JWPF User manual

JST

JST CS 10 – JWPF User manual

JST CS10-WC520 User manual

JST

JST CS10-WC520 User manual

JST CS 10-WC 491 User manual

JST

JST CS 10-WC 491 User manual

JST WC-160 User manual

JST

JST WC-160 User manual

JST WC – SH 2832 User manual

JST

JST WC – SH 2832 User manual

JST CS 10-WC 244 User manual

JST

JST CS 10-WC 244 User manual

JST WC Series User manual

JST

JST WC Series User manual

JST CS 10 L-WC-SF371 User manual

JST

JST CS 10 L-WC-SF371 User manual

JST WC Series User manual

JST

JST WC Series User manual

JST AP-K2N User manual

JST

JST AP-K2N User manual

JST CS 10 User manual

JST

JST CS 10 User manual

JST CS 10-WC260 User manual

JST

JST CS 10-WC260 User manual

JST CS 10 - WC 122 User manual

JST

JST CS 10 - WC 122 User manual

JST CS 30 User manual

JST

JST CS 30 User manual

JST CS 10-WC 260 User manual

JST

JST CS 10-WC 260 User manual

JST WC-ZE 2426 User manual

JST

JST WC-ZE 2426 User manual

JST WZ 0.08-16 User manual

JST

JST WZ 0.08-16 User manual

JST CS 10 User manual

JST

JST CS 10 User manual

JST AP-K2 User manual

JST

JST AP-K2 User manual

Popular Crimping Tools manuals by other brands

Cembre B1350-C Operation and maintenance manual

Cembre

Cembre B1350-C Operation and maintenance manual

BEL Stewart 2940252-01 operating instructions

BEL

BEL Stewart 2940252-01 operating instructions

UTILCO UR-U42 instruction manual

UTILCO

UTILCO UR-U42 instruction manual

Danfoss FT1244 Operator's manual

Danfoss

Danfoss FT1244 Operator's manual

ZURN QickClamp QCRTQCRM Operation instructions

ZURN

ZURN QickClamp QCRTQCRM Operation instructions

molex 207129 Series Operating Instruction and Specifications Sheet

molex

molex 207129 Series Operating Instruction and Specifications Sheet

HRS HT803 instruction manual

HRS

HRS HT803 instruction manual

Tyco Electronics 2-231652-1 instruction sheet

Tyco Electronics

Tyco Electronics 2-231652-1 instruction sheet

KIMBALL MIDWEST K300 Series Operator's manual

KIMBALL MIDWEST

KIMBALL MIDWEST K300 Series Operator's manual

Winic W-T5082 manual

Winic

Winic W-T5082 manual

Hilpress 17000 operating instructions

Hilpress

Hilpress 17000 operating instructions

Astro Tool 613214 quick start guide

Astro Tool

Astro Tool 613214 quick start guide

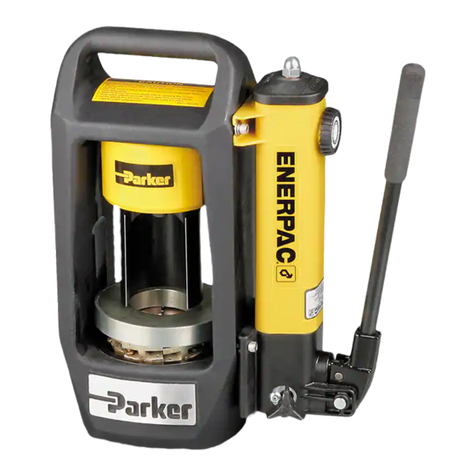

Parker MiniKrimp 94C-001-PFD Technical manual
