JUKI AB-1351 User manual

AB-1351
INSTRUCTION MANUAL
* "CompactFlash(TM)" is the registered trademark of SanDisk Corporation, U.S.A.
ENGLISH

vi
CONTENTS
!. Machine (about the sewing machine) ...............................1
Precautions for use.................................................................................................. 1

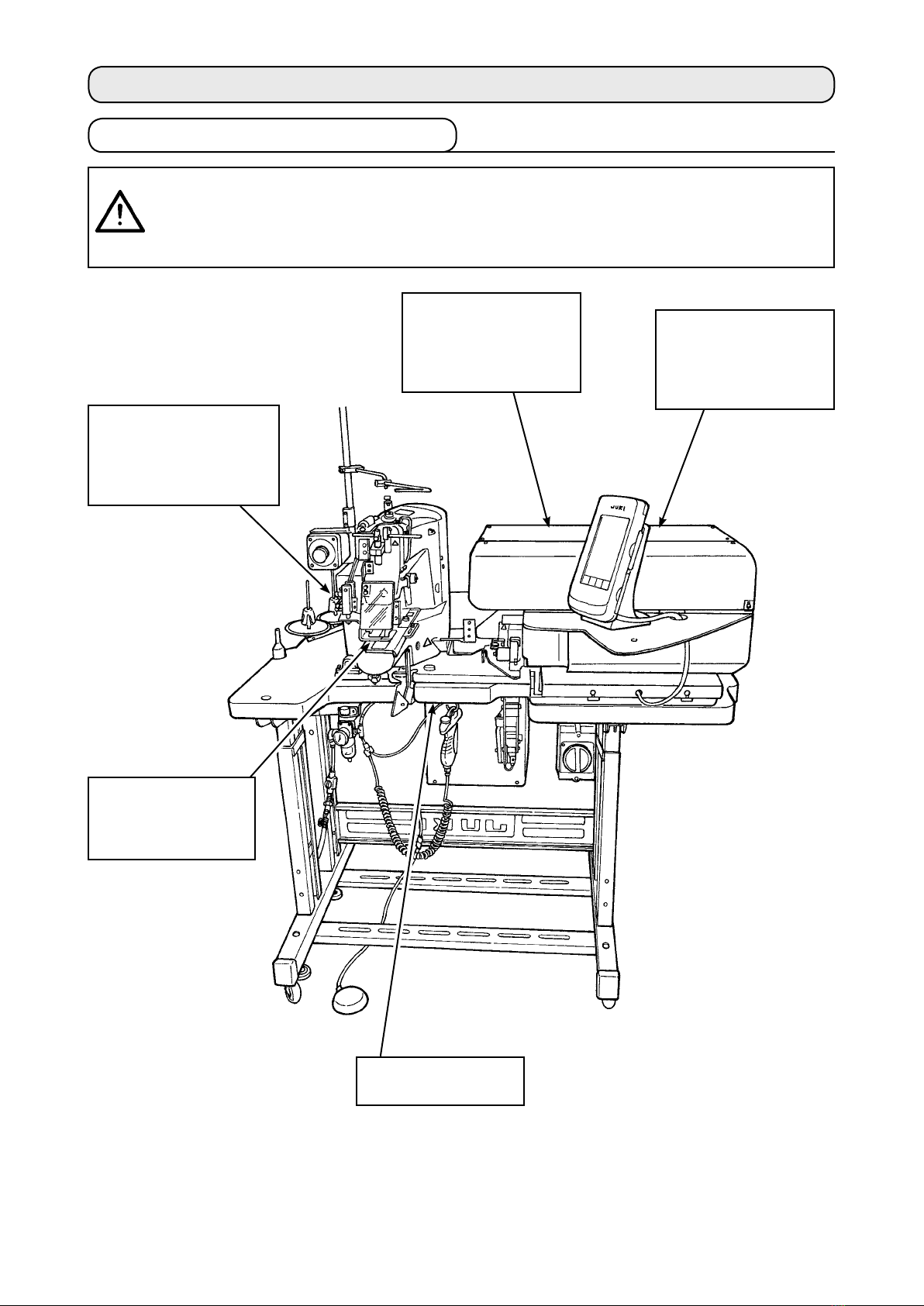

1. Conguration........................................................................................................ 2

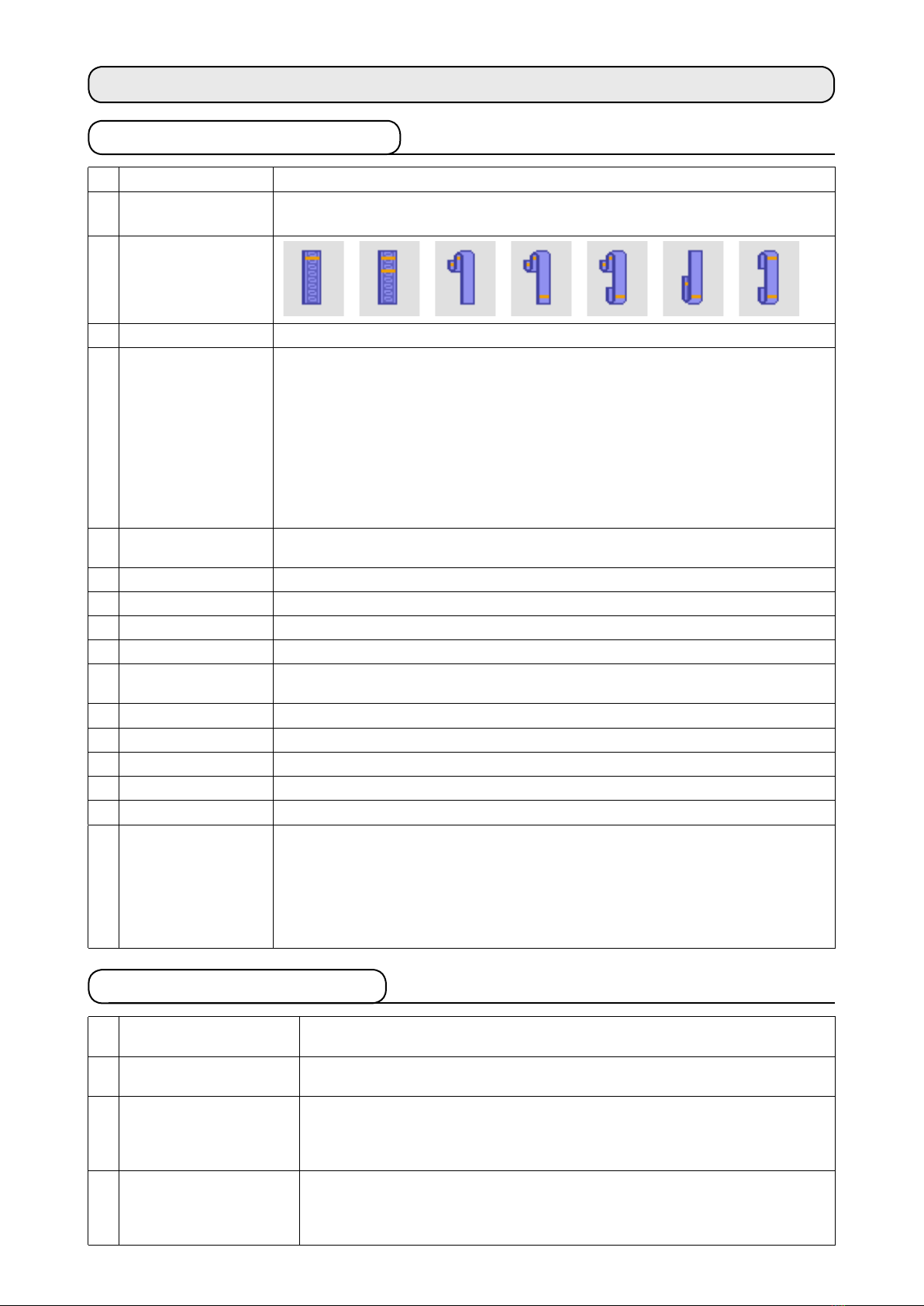

2. Specications ....................................................................................................... 3
2-1. Mechanical specications.............................................................................................. 3
2-2. Electrical specications ................................................................................................. 3
2-3. Sewing shape of belt-loops ........................................................................................... 4

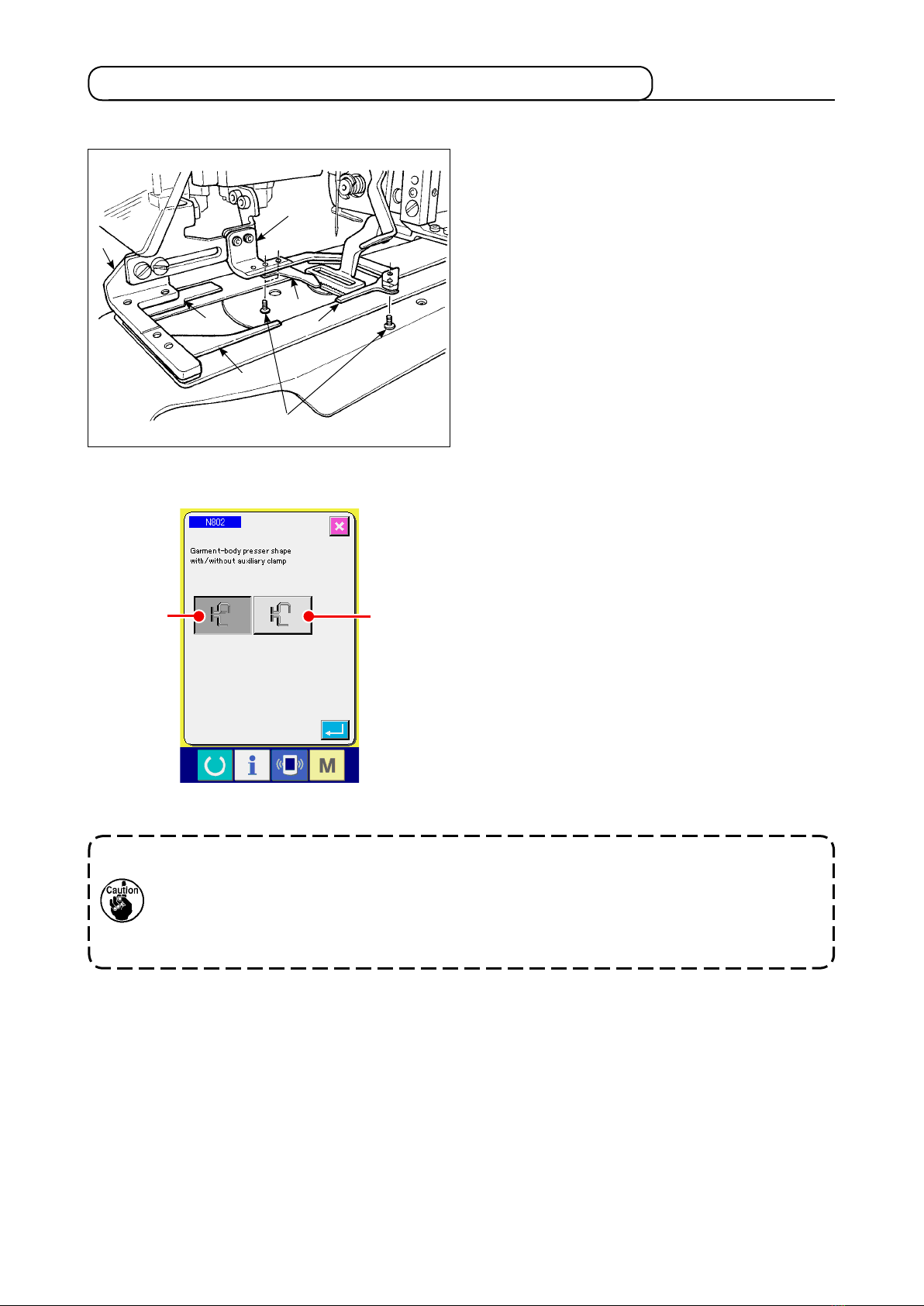

2-4. Garment body presser/work clamp foot specications .............................................. 5
(1) Garment body presser ..................................................................................................................5
(2) Work clamp foot of the sewing machine ....................................................................................... 6
3. Installation ............................................................................................................ 7
3-1. Removing the packing materials................................................................................... 7
3-2. Fixing the machine ......................................................................................................... 8
3-3. Connecting the air coupler ............................................................................................ 8
3-4. Connecting the power plug............................................................................................ 9

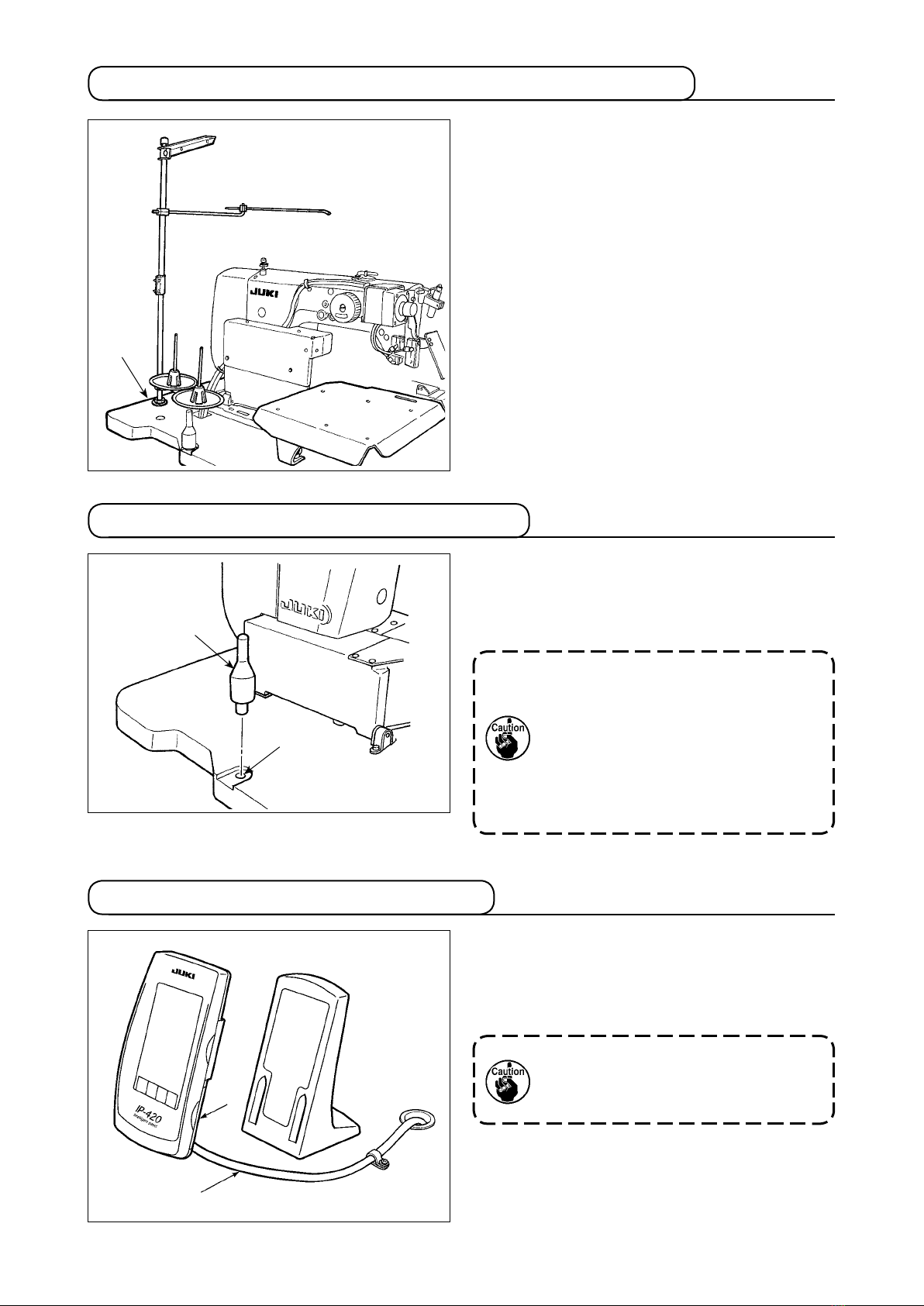

3-5. Assembling the thread stand and installing on the machine ................................... 11
3-6. Installing the machine head support bar.................................................................... 11
3-7. Installing the operation panel IP-420 .......................................................................... 11

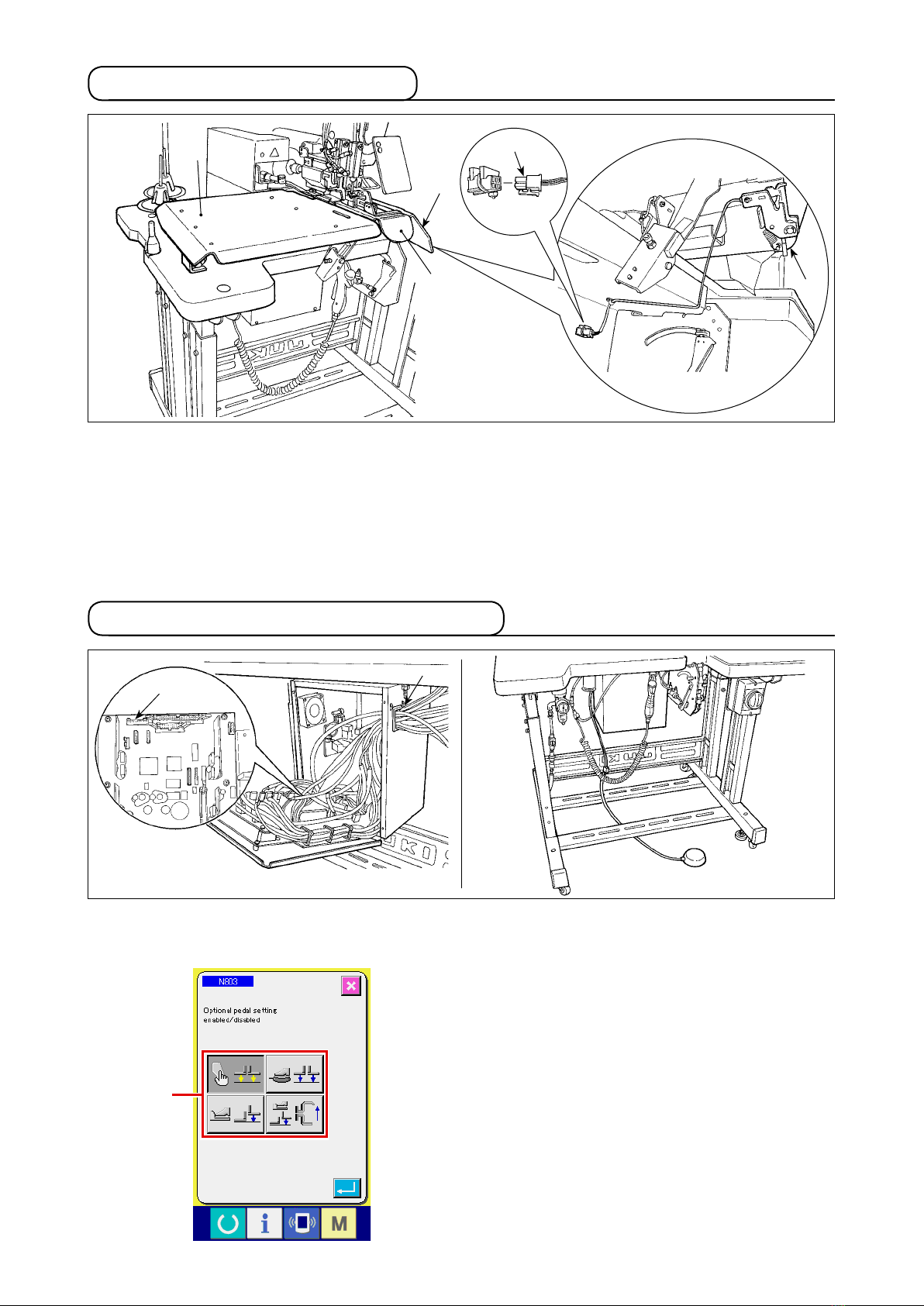

3-8. Installing the auxiliary table......................................................................................... 12
3-9. Installing the manual pedal (optional) ........................................................................ 12

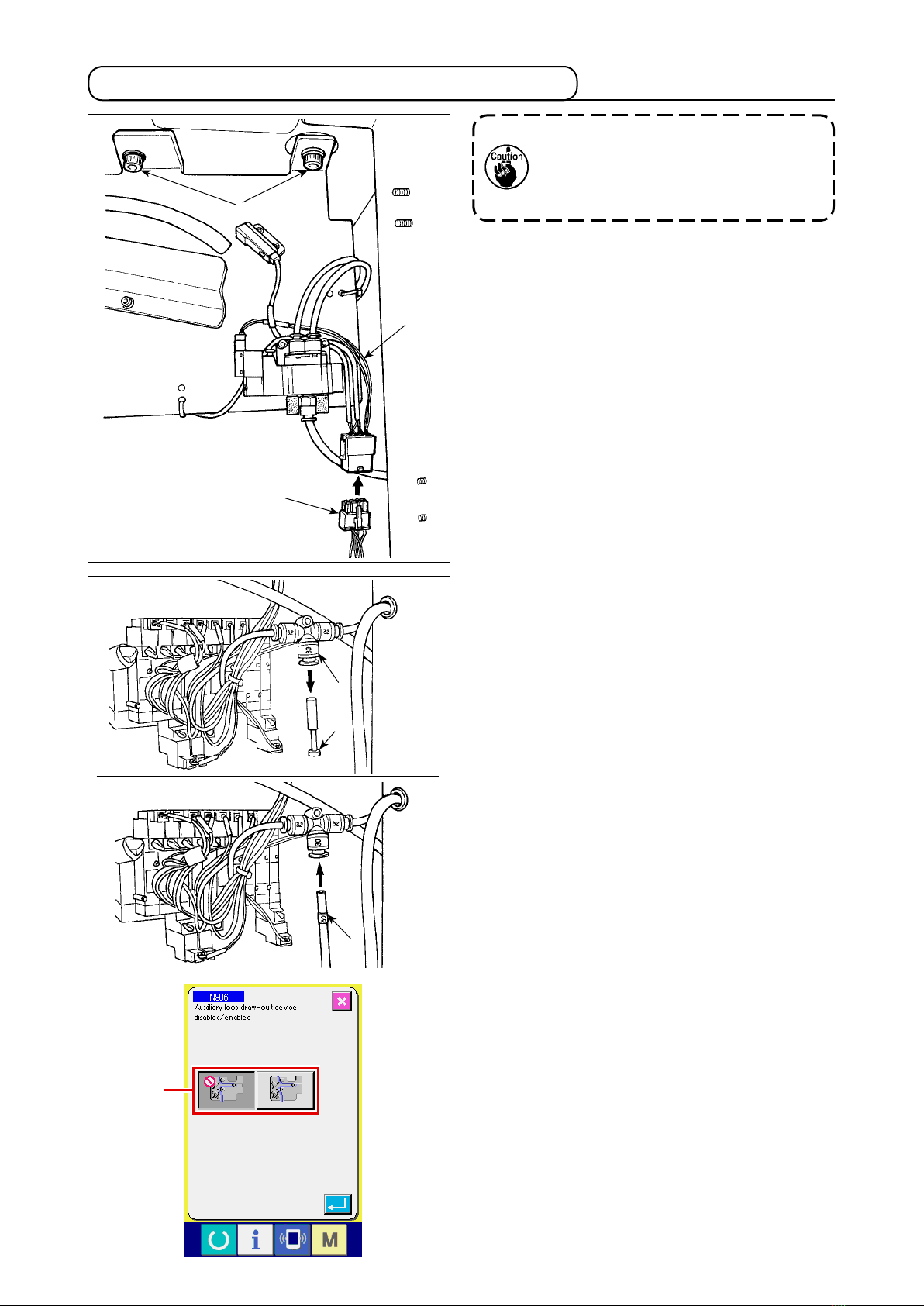

3-10. Installing the belt loop feeding unit (optional) ......................................................... 13
3-11. Installing the additional marking light (optional) ..................................................... 14
4. Preparation of the sewing machine.................................................................. 15
4-1. Lubrication .................................................................................................................... 15
4-2. Attaching the needle..................................................................................................... 15
4-3. Threading the machine head ....................................................................................... 16
4-4. Installing and removing the bobbin case ................................................................... 16
4-5. Installing the bobbin..................................................................................................... 17
4-6. Adjusting the thread tension ....................................................................................... 17
4-7. Adjusting the thread take-up spring ........................................................................... 18
4-8. Example of the thread tension..................................................................................... 18
5. Operating the sewing machine ......................................................................... 19
5-1. Emergency stop switch................................................................................................ 19
(1) Method for operating the emergency stop switch ....................................................................... 19
(2) Precautions with the emergency stop switch..............................................................................19
5-2. Winding a bobbin.......................................................................................................... 20
(1) To wind a bobbin while the sewing machine is performing sewing............................................. 20
(2) To wind a bobbin independently .................................................................................................20
5-3. Thread clamp device .................................................................................................... 21
5-4. Placing a belt loop ........................................................................................................ 22
5-5. Adjusting the belt loop tension ................................................................................... 23
5-6. Setting the belt loop thickness.................................................................................... 23

vii
5-7. Method for changing the belt loop width.................................................................... 24
5-8. Method for adjusting the workpiece stopper ............................................................. 25
5-9. Start switch.................................................................................................................... 25
@. OPERATION (OPERATION PANEL) .................................26
1. Introduction ........................................................................................................ 26
2. Method for using the operation panel .............................................................. 30
2-1. Name of each section of IP-420 ................................................................................... 30
2-2. Buttons to be used in common ................................................................................... 31
2-3. Basic operation of IP-420 ............................................................................................. 32
2-4. Liquid crystal display section when the belt loop individual sewing is selected ........33
(1) Belt loop individual sewing data entry screen.............................................................................33
(2) Belt loop individual sewing screen..............................................................................................35
2-5. How to change over the sewing shape....................................................................... 37
2-6. How to change the belt loop length ............................................................................ 38
(1) How to change the belt loop dimensions .................................................................................... 38
(2) Changing the belt loop length (entire length) and precautions to be taken ................................39
(3) Changing the belt loop length by the selection of the frame of the work clamp foot .................. 39
2-7. How to lower the garment body presser and the work clamp foot .......................... 40
2-8. Using counter................................................................................................................ 41
(1) Setting procedure of the counter ................................................................................................41
(2) Count-up releasing procedure ....................................................................................................43
(3) How to change the counter value during sewing ........................................................................ 43
2-9. How to register a new belt loop pattern number ....................................................... 44
2-10. How to name a belt loop pattern number ................................................................. 46
2-11. How to select a belt loop pattern number................................................................. 47
(1) Selection on the data entry screen .............................................................................................47
(2) Selection by the direct button .....................................................................................................48
2-12. How to copy a belt loop pattern number .................................................................. 49
2-13. Belt loop teaching function........................................................................................ 50
2-14. How to carry out the step operation ......................................................................... 52
(1) Setback step operation ............................................................................................................... 53
(2) Sewing position step operation...................................................................................................53
2-15. Function of canceling grasping of a belt loop for the next sewing ....................... 55
2-16. How to carry out the bartacking setting ................................................................... 56
2-17. Liquid crystal display at the time of setting the bartacking ................................... 57
(1) LK unit data entry screen............................................................................................................57
(2) LK unit sewing screen.................................................................................................................59
2-18. How to select the sewing shape (bartacking setting) ............................................. 61
2-19. List of sewing shapes................................................................................................. 62
2-20. How to change the item data (bartacking setting)................................................... 63
2-21. How to check the sewing shape................................................................................ 64
2-22. How to change the thread tension command from needle entry point to needle entry point ..........65
(1) How to add/change the thread tension command from needle entry point to needle entry point....... 65
(2) How to delete the thread tension command from needle entry point to needle entry point........66
2-23. How to register a new user-pattern........................................................................... 68
2-24. How to change the sewing mode .............................................................................. 69

viii
2-25. LCD section when the cycle sewing is selected...................................................... 70
(1) Cycle sewing data entry screen..................................................................................................70
(2) Sewing screen of the cycle sewing.............................................................................................72
2-26. How to carry out cycle sewing .................................................................................. 74
(1) Selection of the cycle-sewing data .............................................................................................74
(2) Method to create the cycle-sewing data ..................................................................................... 75
(3) Method to insert the cycle-sewing data ......................................................................................76
(4) Method for deleting the cycle sewing data.................................................................................. 77
(5) Method for deleting a step of the cycle sewing data...................................................................77
2-27. How to edit the sewing data....................................................................................... 78
(1) Method for changing the sewing data.........................................................................................78
(2) Sewing data list...........................................................................................................................79
2-28. How to change the memory switch data .................................................................. 86
(1) Method for changing the memory switch data ............................................................................ 86
(2) Memory switch data list ..............................................................................................................87
2-29. How to set the device ................................................................................................. 91
(1) Device setting changing procedure ............................................................................................91
(2) Listing of the device settings....................................................................................................... 92
2-30. How to adjust the origin of work clamp foot ............................................................ 94
2-31. Using communication function ................................................................................. 95
(1) Handling possible data ...............................................................................................................95
(2) Performing communication by using the media..........................................................................95
(3) Performing communication by using USB .................................................................................. 95
(4) Take-in of the data ......................................................................................................................96
(5) Taking in plural data together......................................................................................................97
2-32. Performing formatting of the media.......................................................................... 99
2-33. Trial stitching function ............................................................................................. 100
2-34. How to use information ............................................................................................ 102
(1) How to visually check maintenance/inspection information......................................................103
(2) How to reset the warning ..........................................................................................................104
(3) How to set the time ...................................................................................................................105
3. ERROR CODE LIST .......................................................................................... 106
4. Massage list ...................................................................................................... 119
#. Maintenance ....................................................................123
1. Maintenance...................................................................................................... 123
1-1. Discharging drainage water....................................................................................... 123
1-2. Adjusting the height of the needle bar...................................................................... 123
1-3. Adjusting the needle-to-shuttle relation ................................................................... 124
1-4. Adjusting the lift of the work clamp foot .................................................................. 125
1-5. The moving knife and counter knife ......................................................................... 125
1-6. Needle thread clamp device....................................................................................... 126
1-7. Adjustment of the wiper ............................................................................................. 126
1-8. Thread breakage detector plate ................................................................................ 127
1-9. Draining waste oil ....................................................................................................... 127
1-10. Amount of oil supplied to the hook......................................................................... 127
1-11. Replacing the work clamp foot of the sewing machine ........................................ 128

ix
1-12. Replacing the feed plate of the sewing machine ................................................... 128
1-13. Replacing the fork..................................................................................................... 129
1-14. Replacing the fuse .................................................................................................... 129
1-15. Changing the voltage of 100/200V........................................................................... 130
1-16. Replenishing the designated places with grease .................................................. 131
(1) Addition of grease to the machine head ...................................................................................131
(2) Addition of grease to devices.................................................................................................... 133
1-17. Troubles and corrective measures (sewing conditions)....................................... 135
2. Option................................................................................................................ 137
2-1. Optional parts.............................................................................................................. 137
2-2. Gauges......................................................................................................................... 137
2-3. Miscellaneous ............................................................................................................. 137
2-4. Silicon oil pipes........................................................................................................... 137

– 1 –
!. Machine (about the sewing machine)
Following items have to be checked every working day before the operation of the machine and before the start
of work hours.
1. Ascertain that the oil pan is lled with the predetermined amount of oil.
2. Never operate the machine unless the oil pan has been lled up with oil.
3. Ascertain that the pressure gauge indicates the designated air pressure of 0.5 MPa.
* (This is necessary particularly when the compressor is stopped for a lunch break or the
like.)
If the compressed air pressure is equal to or less than the designated value, troubles such
as interference between the parts can occur. It is therefore necessary to carefully check the
compressed air pressure.
4. Check whether the needle thread/bobbin thread need to be replenished.
5. To perform sewing immediately after turning ON the power switch, perform trial stitching
rst, then proceed with sewing of actual products after the test sewing.
6. In the case drainage water accumulates in the regulator section, expel it from there before
starting work.
Precautions for use

– 2 –
1. Conguration
This machine consists of the following nine sections:
A Mechanical section of the main body structure (table stand, table, covers, start switch, etc.)
B Belt loop feeder unit (belt loop draw-out device, belt loop drawing device, etc)
C Belt loop tension releasing unit
D Pneumatic control equipment section (pneumatic equipment, pneumatic piping, etc.)
E Sewing machine section
F Control device
G Operation panel
H Emergency stop switch
I Belt-loop feeding unit (optional)
The machine is able to automatically sew desired belt-loops only by operating the start switch after
having placed a material (garment body) at the predetermined position on the machine.
When you press emergency stop switch H, the power to the devices are turned OFF to stop them.
G
H
E
D
A
F
I
B
C

– 3 –
2. Specications
1
Sewing machine in use LK-1961/AB H (exclusive intermediate machine head AB-1351 based on LK-1900A SS)
2 Sewing speed Max. number of revolutions 2,500 sti/min (adjustable range: 400 to 2,500 sti/min)
The stitching pitch has to be set at 3.2 mm or less. (Stitching pitch is input in increments of 100 sti/min.)
3 Belt-loop shape
4 Belt-loop width 8 to 20 mm
5 Standard sewing
pattern
* Linear bartacking (exclusive pattern for AB-1351)
Pattern No. selection method (from among 12-stitch, 15-stitch, 21-stitch, 28-stitch, 36-stitch
and 41-stitch) is adopted. The widthwise pattern size is input on the operation panel. The
lengthwise pattern size is restricted to the 0 mm, and the widthwise one is restricted to the
range from 6 mm to 23 mm. (The lengthwise pattern size is input in increments of 0.1 mm.)
* Zigzag bartacking (exclusive pattern for AB-1351)
Pattern No. selection method (from among 28-stitch, 36-stitch and 42-stitch) is adopted. The
widthwise and lengthwise pattern sizes are input on the operation panel. The lengthwise pattern
size is restricted to the range from 1 mm to 3.2 mm, and the widthwise one is restricted to the
range from 6 to 23 mm. (The lengthwise/widthwise pattern size is input in increments of 0.1 mm.)
6Lift of the work clamp
foot of sewing machine
The distance from the top surface of the throat plate to the undersurface of the work
clamp foot is 20 mm.
7 Needle bar stroke 45.7 mm (for 1903A)
8 Needle ORGAN needle DP x 17 #14 (Standard)
9 Hook in use Semi-rotary standard hook (x1.0)
10 Thread Spun #50 (recommended) Filament #50
11 Safety feature The machine automatically stops in the case a belt-loop clamping fault or thread
breakage is detected.
12 Lubrication oil JUKI New Defrix Oil No.2
13 Air pressure used 0.5 MPa
14 Air consumption 10 dm³ (ANR)/min or less
15 Dimensions W: 1,200 mm L: 850 mm H: 1,210 mm
16 Weight 205.5 Kg
17 Noise Declaration
- Equivalent continuous emission sound pressure level (LpA) at the workstation :
A-weighted value of 82.0 dB; (Includes KpA = 2.5 dB); according to ISO 10821- C.6.3 -ISO 11204
GR2 at 2,500 sti/min for the sewing cycle, 5.5s ON. (Pattern: No.4, 21 Stitches, Max Speed)
- Sound power level (LWA) ;
A-weighted value of 85.0 dB; (Includes KWA = 2.5 dB); according to ISO 10821- C.6.3 -ISO 11204
GR2 at 2,500 sti/min for the sewing cycle, 5.5s ON. (Pattern: No.4, 21 Stitches, Max Speed)
2-1. Mechanical specications
2-2. Electrical specications
1Number of patterns that
can be stored in memory
99 patterns can be set.
2Number of cycles that can
be stored in memory
Number of programs: 20
For each program, as many as 30 belt-loops can be set.
3 Input power source Single-phase 200 – 240 VAC, 50/60Hz
3-phase, 200 - 240 VAC, 50/60 Hz (switchable to single-phase 100 - 120 V)
Supply voltage uctuation: Rated voltage ± 10 % or less
* Adaptable to 380/400/415 VAC with the addition of an optional transformer.
4 Power consumption 3-phase, 200 V type: 250 VA (instantaneous maximum power consumption: 450 VA)
Single-phase, 220 V type: 280 VA (instantaneous maximum power consumption: 670 VA)
* Average power when the machine sews 4000 belt-loops in eight hours under No. 4
sewing mode

– 4 –
2-3. Sewing shape of belt-loops
Work clamp foot for linear
bartacking
Work clamp foot for zigzag
bartacking
No.1
A = 4 mm
B = 59 to 99 mm
A = 6 mm
B = 59 to 99 mm
No.2
A = 4 mm
B = 15 to 30 mm
C = 45 to 99 mm
A = 6 mm
B = 15 to 30 mm
C = 45 to 99 mm
No.3
A = 4 mm
B = 45 to 109 mm
C = 5 to 11 mm
D = (2) mm
A = 6 mm
B = 45 to 109 mm
C = 5 to 11 mm
D = (2) mm
No.4
A = 4 mm
B = 30 to 50 mm
C = 5 to 11 mm
D = 5 to 30 mm
E = 6 mm
A = 6 mm
B = 30 to 50 mm
C = 5 to 11 mm
D = 5 to 30 mm
E = 12 mm
No.5
A = 4 mm
B = 30 to 61 mm
C = 5 to 11 mm
D = 2 to 8 mm
E = 2.5 mm
F = 10 mm
A = 6 mm
B = 30 to 61 mm
C = 5 to 11 mm
D = 2 to 8 mm
E = 4 mm
F = 10 mm
No.6
A = 4 mm
B = 45 to 99 mm
C = 15 to 30 mm
D = 2.5 mm
A = 6 mm
B = 45 to 99 mm
C = 15 to 30 mm
D = 2.5 mm
No.7
A = 10 mm
B = 30 to 60 mm
D = 3 mm
E = 3 mm
F = 10 mm
Loosening amount = 0 to 10
AB
B
C
A
A
C
C
A
CA
B
B
B
D
D
E
D
F
E
A
A
C
B
B
F
D
D
E
1. The range of belt-loop feeding length (the entire length of a belt-loop shown on the
operation panel) is from 58 mm to 130 mm. If the belt-loop feeding length exceeding the
aforementioned range is set, an error will occur.
2. In the case "distance B + distance D" exceeds 66 mm when using No. 4 or No. 5 patter,
an error will occur.
3. The dimensions of the belt loop sewing shape displayed on the operation panel are
only for reference. The dimensions vary according to the belt-loop material. Be sure to
adjust the settings of belt loop dimensions so that your desired nished dimensions
are achieved.

– 5 –
2-4. Garment body presser/work clamp foot specications
Garment body presser 1and 2for securing the
garment body is provided as standard with auxil-
iary clamps 3, 4, 5and 6.
Be aware that the auxiliary clamps 3may be
required to be removed according to the sewing
shape of the belt-loop.
In the case of two kinds of sewing shapes; No. 2
and No. 6, auxiliary clamp 3has to be removed.
Loosen two screws 7and remove the auxiliary
clamps 3from the garment body presser 1.
(1) Garment body presser
If you have changed the garment body presser,
set the machine setting N802 according to the
garment body presser actually being used.
A Additional clamp is provided
B Additional clamp is not provided
→Refer to "@-2-29. How to set the device", p.91.
AB
1
2
4
7
6
3
5
1. For belt loop shapes Nos. 5 and 7, auxiliary clamps 4and 6are damaged since they
are rubbed by the fork pin which rolls the belt loop. If the auxiliary clamps are heav-
ily damaged, they can deform or break. It is necessary to periodically change auxiliary
clamps with new ones.
2. Install the auxiliary clamps at right angles to garment body pressers 1and 2. Be sure
to check that the auxiliary clamps do not interfere with other parts.

– 6 –
The work clamp foot of the sewing machine for lin-
ear bartacking is mounted as standard.
It is used when liner bartacking is used for sewing
various kinds of belt loops.
Be aware that, to carry out zigzag bartacking, the
currently installed work clamp foot and the feed
plate have to be replaced with those for zigzag
bartacking, and zigzag bartacking has to be set on
the operation panel.
In addition, when the work clamp foot for zigzag
bartacking is installed, auxiliary clamp 3has to
be re-positioned accordingly by loosening two
screws 7 as shown in the gure at the left. (Re-
fer to "!-2-4 (1) Garment body presser/work
clamp foot specications", p.5.)
(2) Work clamp foot of the sewing machine
If you have changed the work clamp foot of the
sewing machine, set the machine setting N801
according to the work clamp foot actually being
used.
A Feeding frame for linear bartacking
(initial value)
B Feeding frame for zigzag bartacking
→Refer to "@-2-29. How to set the device", p.91.
AB
73
3
7
Work clamp foot of the sewing
machine for linear bartacking
Work clamp foot of the sewing
machine for zigzag bartacking

– 7 –
3. Installation
3-1. Removing the packing materials
Remove the cover.
Remove the string and
packing material which are
used to x the belt loop
tension releasing unit.
Remove the cover.
Remove the string and
packing material which
are used to x the belt
loop drawing unit.
Remove the upper
section cover. Remove
the string and packing
material which are used
to x the XY unit.
Remove the adhesive
tape which is used to
x the garment body
presser.
Remove the machine
head xation bolt.
CAUTION :
1. If you lift the machine, do not hold any of the devices or the mechanical section of the
sewing machine but hold the table.
2. When you move the machine, the machine head xation bolt must be attached to the
machine. Be sure to carefully keep the machine head xation bolt.

– 8 –
3-2. Fixing the machine
Connect air coupler 1supplied with the unit as
an accessory to air hose 2. Then, connect the air
coupler to coupler 3on the main body side.
3-3. Connecting the air coupler
1. After having connected coupler 1
with air cock 4closed, carefully
open air cock 4to supply air.
2. Check to be sure that the pressure
gauge of the regulator indicates 0.5
MPa.
1
2
3
4
CAUTION :
1. In order to protect against accidents causing personal injury or death, move the
machine to a level and stable place and secure it by lowering adjuster bolts 2(at four
locations) placed at the side of casters 1.
2. When adjusting the leg height of the sewing machine, the leg xing bolts 3need to be
loosened to move the leg up or down. When the xing bolts have been loosened, there
is a danger for the legs to suddenly drop down. Therefore, be careful when loosening
the bolts.
1
2
3

– 9 –
3-4. Connecting the power plug
The method to connect the product to the power source differs by the product specications. Be sure to
connect the product to the power source according to the power specications.
1For the single-phase, 200 - 240 V type product
Connect the sky-blue/brown wire of the power cord to the supply terminal (200 - 240 VAC) and the
yellow/green one to the earth terminal respectively.
2For the 3-phase, 200 - 240 V type product
Connect the red/white/black wire of the power cord to the supply terminal (200 - 240 VAC) and the
yellow/green one to the earth terminal respectively.
3For the product provided with an high-voltage optional transformer
Connect the black wires (three) of the power cord to the supply terminal (380 - 415 VAC) and the
yellow/green wire to the earth terminal respectively. The product can be connected to 380/400/415
V power terminals according to the setting of the input tap of the transformer. (Standard setting at
the time of shipment: 380 V)
4 In the case the single-phase, 200 - 240 V type product is modied to the 3-phase, 380/400/415 V
type one
Optional parts are required.
• High-voltage optional transformer Parts No.: 40005422
• Power cord Parts No.: 40070548
In the case of the 3-phase, 380/400/415 V power supply, this product is operated under the
single-phase connection state.

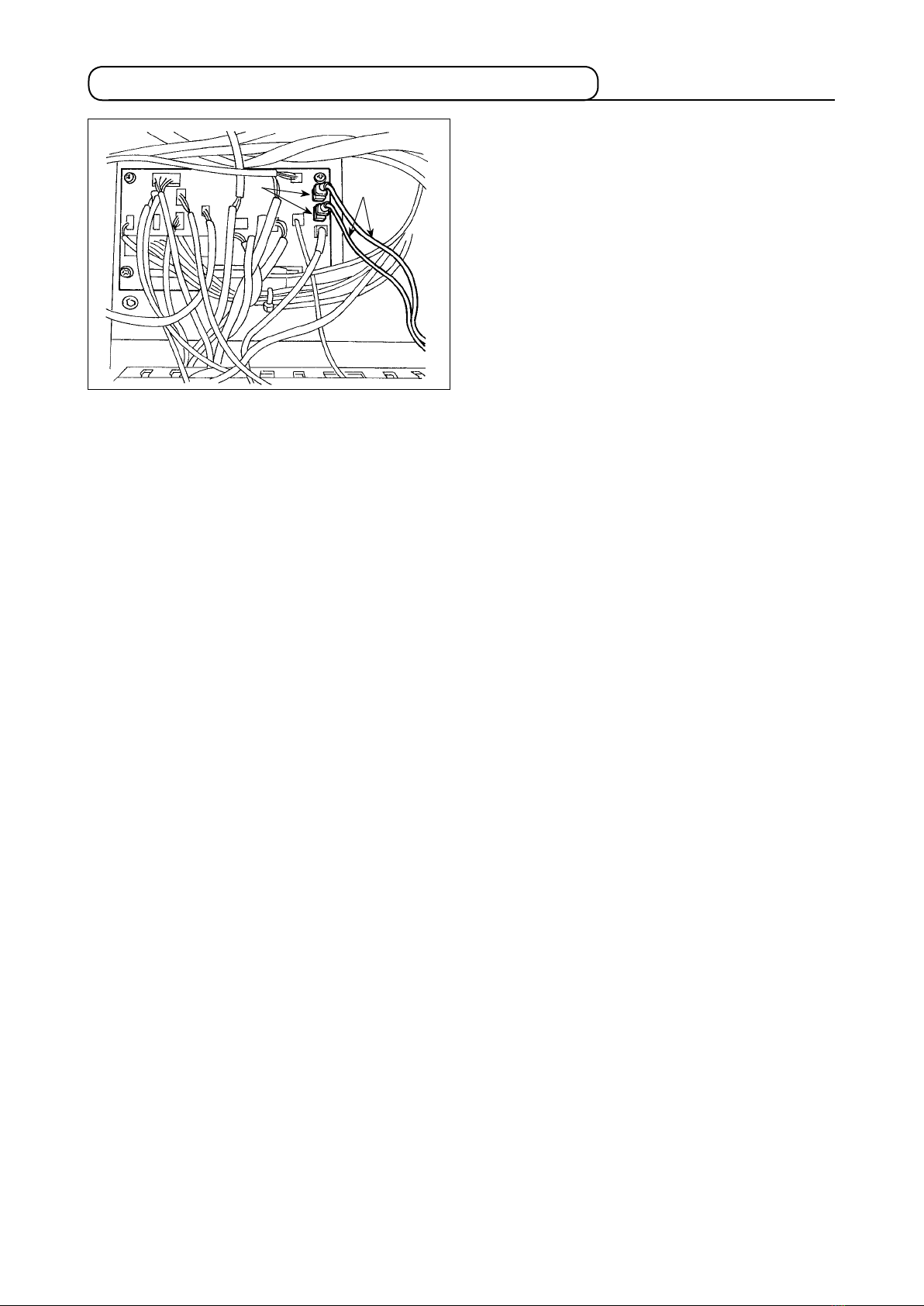

[Precaution to be taken when changing the power of the high-voltage optional transformer]
To use high-voltage optional transformer 1with
the input voltage of 400 V or 415 V, you need to
replace input power cord 2of high-voltage op-
tional transformer 1correspondingly. Change
power input cord 2(brown) which is connected to
the 380 V power terminal with the one for 400 V or
415 V connection.
In order to protect against accidents,
the aforementioned work should be
carried out after having left the sewing
machine for 5 minutes or more with
the power switch turned OFF and the
cord removed.
High-voltage optional transformer 1is placed on
the side face of the control box.
1
2
CAUTION :
In order to protect against accidents caused by a ground fault or dielectric voltage, be
sure to have the adequate power plug mounted by a person who has electrical expertise. It
is also important to connect the power plug to the grounded receptacle.

– 10 –
[How to install the high-voltage optional transformer (part number: 40090561)]
1) Loosen four screws on the front side of emer-
gency stop switch 1. Open the switch box.
Remove the power cord (brown, sky blue,
yellow/green wires) from the secondary side
(on the side 2is printed).
2) Connect the power cord to the optional trans-
former. Connect the power cord (40005423:
Three-wire cord) supplied with the unit to the
optional transformer.
Brown wire →380/400/415 V (according to
the power specications)
Blue wire →0 V (next to the 380 V)
Yellow/green wire →E (on the ring terminal side)
Connect the cord on the control box side (the
cord which has been removed in Step 1).
Brown wire →220 V
Sky blue wire →(next to the E)
Yellow/green wire →E
3) Install optional transformer on the side face
of control box 2. Refer to "HIGH VOLTAGE
TRANSFORMER SETUP INSTRUCTION
(40005426)" for connecting procedure.
4) Connect the power cord supplied with the unit
to emergency stop switch 1.
Brown wire →2-1
Sky blue wire →2-2
Yellow/green wire →E
(Brown and sky blue wires respectively have a
fork terminal.)
5) Re-tighten the four screws of emergency switch
1. Take care not to leave a gap in the switch.
6) Change the cord on the plug side of the
power switch. (40070548: 4-wire cord)
Open the power switch. Remove connection
cords on the side of L1, L2 and L3.
Black 1, 2 and 3 wires (on the forked terminal
side) → L1, L2 and L3 in the power switch
Yellow/green wire →Ground (in the power switch)
* Discard the cord mounted your machine at
the time of delivery.
(Inner part of the emergency stop switch)
(Wiring of the optional transformer)
Supplied power
cord
Common (ground)
On the control box
side
Secondary
side
(indicated
as 2)
E
2−1 2−2 2−3
E 0V 220V 0V 380V 400V 415V
CAUTION :
To protect against accidents such as an electric shock, be sure to turn the power off and
remove the power cord from the receptacle before the following work.
1
23

– 11 –
Insert the thread stand in the hole in table 1and
x by fastening a washer and a nut placed on the
top and underside of table.
3-5. Assembling the thread stand and installing on the machine
Securely mount machine head support bar includ-
ed in the accessories supplied with the unit.
Drive machine head support bar 1in hole 2in
the machine table.
3-6. Installing the machine head support bar
1
2
Open the cover on right side face 2section of
the IP-420 and connect the connector of cable 1
which is secured with adhesive tape on the upper
right face of the table to the IP-420.
3-7. Installing the operation panel IP-420
To protect the operation panel IP-420
from malfunctioning due to static
electricity, mount the operation panel
on the operation panel base.
When tilting the sewing machine, tilt
the sewing machine slowly so that no
excessive force will be applied to the
head support bar.
And when returning the sewing ma-
chine back to its original position,
be careful not to have your hand get
caught between the base and the sew-
ing machine bed.
1
1
2

– 12 –
Open the cover of the control box. Insert connector CN88 of the manual pedal into connector 1CN51
in the control box via the junction cable (40073659). Pass the cable through 2in the control box.
3-9. Installing the manual pedal (optional)
1
2
Loosen the buttery nut on the top surface of the table. Install the auxiliary table for attaching straps left
1and right 2in place.
Install it at such a location where a clearance of 3 mm is provided between the throat plate 3and each
auxiliary table.
Remove the start switch connector provided as standard at the time of delivery. Then, insert start switch
connector 4which has been mounted on auxiliary table right 2.
3-8. Installing the auxiliary table
A
Change the setting to “with optional pedal” on the
machine setting N803 A.
→Refer to "@-2-29. How to set the device", p.91.
1
2
32
4

– 13 –
Mount the belt loop feeding unit on the table and
x it by tightening screws 1on the underside of
the table.
Connect exclusive junction cable 2to the junction
board located behind the main body.
Connect junction cable 2to connector 3on the
feeding unit side.
Pull out plug 5from air coupling 4. Then, con-
nect air tube 6on the belt loop feeding unit side
to air coupling 4.
3-10. Installing the belt loop feeding unit (optional)
In the case the belt loop feeding unit
is to be installed on the machine, the
belt loop guide parts installed as stan-
dard at the time of delivery have to be
removed.
2
3
4
5
6
A
1
Change the setting to “with belt loop feeding auxil-
iary unit” on the machine setting N806 A.
→Refer to "@-2-29. How to set the device", p.91.

– 14 –
Insert exclusive junction cable 1into connector
CN85 2of the junction board located behind the
main body.
(There are three CN85 connectors including the
one used as standard. You may insert the junction
cable any of the three connectors.)
3-11. Installing the additional marking light (optional)
1
2
