Jura IMPRESSA A5 One Touch Manual

Elektroapparate AG
Technical information
Technical Support
Language
EN
IMPRESSA A5 One Touch
Author: Patrik Studer
Checked:
Approved:
Docu.-name:
Technische_Informationen_IMPRESSA_A5_OT_EN.doc
L:\Geräte\Linie_A\A5_OT\Schulungsunterlagen\E\Technisch
e_Informationen_IMPRESSA_A5_OT_EN.doc
Date:
Rev. A:
Rev. B:
Rev. C:
Rev. D:
Rev. E:
Rev. F:
24.09.2013
20.02.2014
Page 1/10
IMPRESSA A5 One Touch
Alu
p

Elektroapparate AG
Technical information
Technical Support
Language
EN
IMPRESSA A5 One Touch
Author: Patrik Studer
Checked:
Approved:
Docu.-name:
Technische_Informationen_IMPRESSA_A5_OT_EN.doc
L:\Geräte\Linie_A\A5_OT\Schulungsunterlagen\E\Technisch
e_Informationen_IMPRESSA_A5_OT_EN.doc
Date:
Rev. A:
Rev. B:
Rev. C:
Rev. D:
Rev. E:
Rev. F:
24.09.2013
20.02.2014
Page 2/10
Table of contents:
1Control elements:.....................................................................................................................3
1.1 Service connector: .....................................................................................................................4
2Key combinations:....................................................................................................................4
2.1 Reset to “first use” (Language, Fill system, Initializing):................................................................4
2.2 Read out software version: .........................................................................................................4
3Display: ....................................................................................................................................5
4Grinder Aroma+: ......................................................................................................................5
5Bean container: ........................................................................................................................5
6Monitoring:...............................................................................................................................5
6.1 Aroma preservation lid: ..............................................................................................................5
6.2 Powder funnel surveillance: ........................................................................................................5
6.3 Water tank: ...............................................................................................................................5
6.4 Grounds container:.....................................................................................................................5
6.5 Residual water container: ...........................................................................................................5
7Mains switch (Zero Energy Switch): ........................................................................................6
8Dual coffee spout: ....................................................................................................................6
9Heating:....................................................................................................................................6
10 Brewing unit Micro:...............................................................................................................6
11 Filter CLARIS BLUE: ..............................................................................................................6
12 Cleaning counter:..................................................................................................................6
13 Decalcification: .....................................................................................................................7
14 Products:...............................................................................................................................7
14.1 Coffee water: .........................................................................................................................7
14.2 Coffee flavour, aroma strength: ...............................................................................................7
14.3 Temperature: .........................................................................................................................8
14.4 Milk: ......................................................................................................................................8
14.5 Pause: ...................................................................................................................................8
15 CLARIS FILTER:.....................................................................................................................8
16 Energy Safe Mode, ESM:........................................................................................................8
17 Automatic switch off time:....................................................................................................8
18 Rinses:...................................................................................................................................8
18.1 Switch on rinse:......................................................................................................................8
18.2 Cappuccino rinse: ...................................................................................................................8
19 Unit for amount of water: .....................................................................................................9
20 Languages:............................................................................................................................9
21 Empty system completely: ....................................................................................................9
22 Prepare appliance for resale: ............................................................................................. 10
23 Error messages: ................................................................................................................. 10
Revision:
A: Chapter 1.1, 6.2, 9, 10, 13.2,

Elektroapparate AG
Technical information
Technical Support
Language
EN
IMPRESSA A5 One Touch
Author: Patrik Studer
Checked:
Approved:
Docu.-name:
Technische_Informationen_IMPRESSA_A5_OT_EN.doc
L:\Geräte\Linie_A\A5_OT\Schulungsunterlagen\E\Technisch
e_Informationen_IMPRESSA_A5_OT_EN.doc
Date:
Rev. A:
Rev. B:
Rev. C:
Rev. D:
Rev. E:
Rev. F:
24.09.2013
20.02.2014
Page 3/10

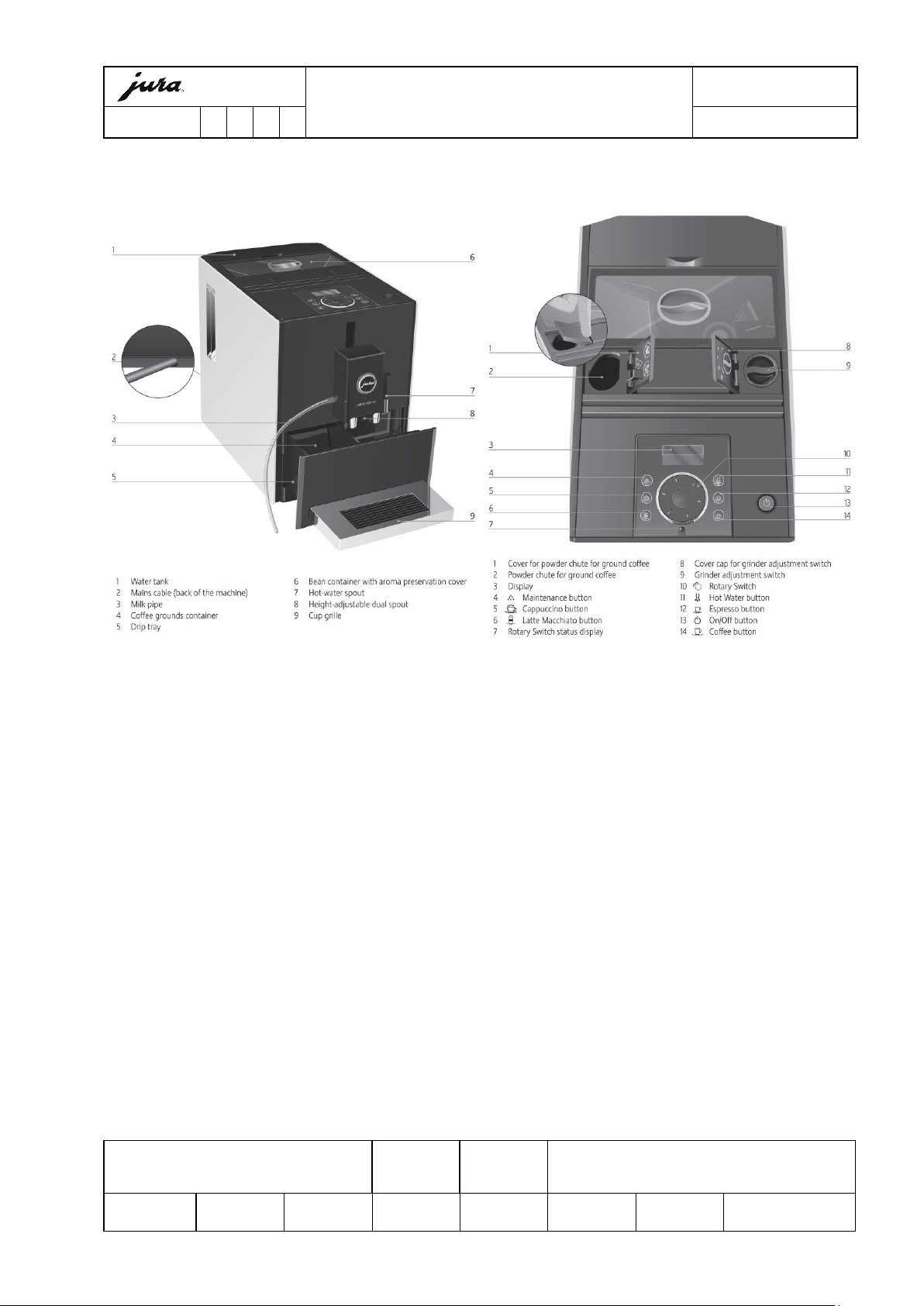

1Control elements:

Elektroapparate AG
Technical information
Technical Support
Language
EN
IMPRESSA A5 One Touch
Author: Patrik Studer
Checked:
Approved:
Docu.-name:
Technische_Informationen_IMPRESSA_A5_OT_EN.doc
L:\Geräte\Linie_A\A5_OT\Schulungsunterlagen\E\Technisch
e_Informationen_IMPRESSA_A5_OT_EN.doc
Date:
Rev. A:
Rev. B:
Rev. C:
Rev. D:
Rev. E:
Rev. F:
24.09.2013
20.02.2014
Page 4/10
1.1 Service connector:
To release the service-cover you can follow up the steps below (analogue to ENA Micro GII):
Insert a metal ruler (thickness max. 0.5 mm) on the front side and slide it to the left
(pay attention to not scratch the control panel)
New:
Unlock tool for service cover ENA Micro Art. No. 71178
Support this action by pushing with finger from above
Release the left lock analogue the right
2Key combinations:
2.1 Reset to “first use” (Language, Fill system, Initializing):
Appliance is ready for coffee
Empty system according to (chapter 21)
Switch on appliance
Do not set the filter and continue until the message FILL SYSTEM is shown on the display
Push the button ROTARY SWITCH & ESPRESSO simultaneously until the message OK
shows up
Switch off appliance
2.2 Read out software version:
Appliance is switched on
Open powder chute
Push the button ROTARY SWITCH & MAINTENANCE simultaneously until the message OK
shows up
(SW-Version Main, Loader-Version Main, Machine number, Serial number Main, Production date
UCHI Main)

Elektroapparate AG
Technical information
Technical Support
Language
EN
IMPRESSA A5 One Touch
Author: Patrik Studer
Checked:
Approved:
Docu.-name:
Technische_Informationen_IMPRESSA_A5_OT_EN.doc
L:\Geräte\Linie_A\A5_OT\Schulungsunterlagen\E\Technisch
e_Informationen_IMPRESSA_A5_OT_EN.doc
Date:
Rev. A:
Rev. B:
Rev. C:
Rev. D:
Rev. E:
Rev. F:
24.09.2013
20.02.2014
Page 5/10
3Display:
10 digit LCD-display
Green: Coffee readiness / Products
Red: Maintenance / Alarm
Yellow: Programming

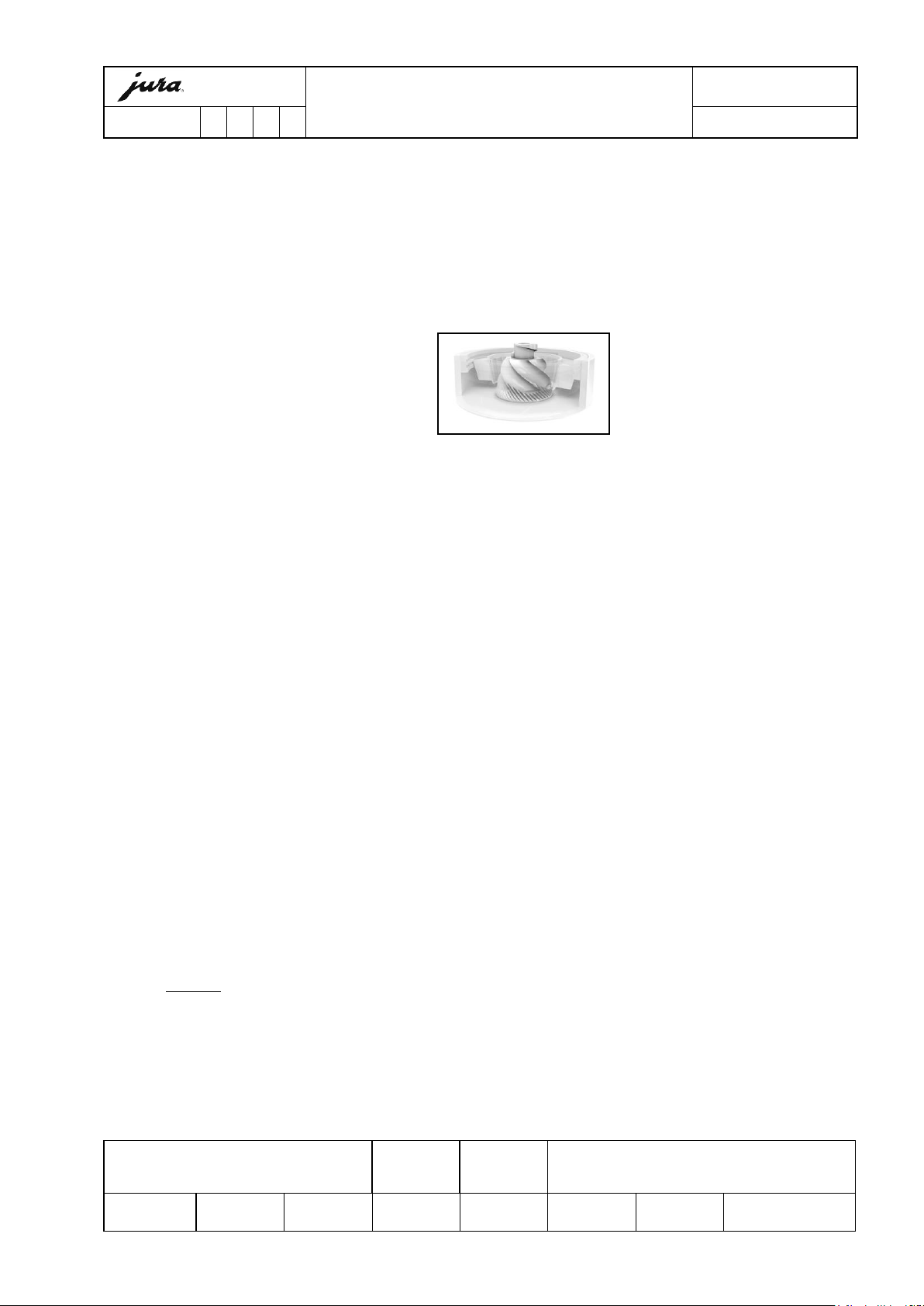

4Grinder Aroma+:
Precision grinder, 5grinding degrees
5Bean container:
Capacity 125 g
6Monitoring:
6.1 Aroma preservation lid:
With a UV protection and silicon seal
Checked by a micro switch (CLOSE COVER)
6.2 Powder funnel surveillance:
Checked by a REED/Magnet (FILL POWDER)
Place 1 level measuring spoon of ground coffee into the filler funnel (due to overfilling)
When not drawing off a product then the powder will be wetted and pushed down into the grounds
container after 1 min.
Timeout of 1.5 sec. until powder draw off is enabled
6.3 Water tank:
Capacity 1.1 liters
Monitored with a floater (FILL WATER TANK)
6.4 Grounds container:
Tray of the residual water container is checked by a micro switch
(EMPTY TRAY / EMPTY GROUNDS)
After max. 10 portions (flavour MILD), the message (EMPTY GROUNDS) shows up
With milk products (Cappuccino, Latte Macchiato), the message shows up after max. 5 draw offs.
Reason: There is no residual water monitoring and if one would rinse into the container after each
milk product, the residual water container would overflow after 10 draw offs.
6.5 Residual water container:
Not monitored
Capacity 0.8 liter

Elektroapparate AG
Technical information
Technical Support
Language
EN
IMPRESSA A5 One Touch
Author: Patrik Studer
Checked:
Approved:
Docu.-name:
Technische_Informationen_IMPRESSA_A5_OT_EN.doc
L:\Geräte\Linie_A\A5_OT\Schulungsunterlagen\E\Technisch
e_Informationen_IMPRESSA_A5_OT_EN.doc
Date:
Rev. A:
Rev. B:
Rev. C:
Rev. D:
Rev. E:
Rev. F:
24.09.2013
20.02.2014
Page 6/10
7Mains switch (Zero Energy Switch):
The IMPRESSA A5 OT is equipped with a Zero Energy Switch (ZES)
8Dual coffee spout:
Height adjustable coffee spout from 55 until 138 mm
Easy cleaning possibility with numbered parts
Fine foam technology
9Heating:
New thermoblock TB2010 (1400 W)
10 Brewing unit Micro:
Is approximately 3 cm lower in height compared to the standard brewing unit
Maximum coffee powder capacity is lower than the standard brewing unit
11 Filter CLARIS BLUE:
Liters
Switch on rinses
Display
Rem.
50
180
FILTER / READY
There is no time measurement
After max. 2 months the filter capacity is reached.
Monitor the elapsed time as shown on the date plate on the cartridge holder.
Steam will also be calculated with an internal factor
New ENA-CLARIS-Filter Blue with hexagon-support
Rinse water amount only 300 ml
12 Cleaning counter:
Draw offs
Switch on rinses
Display message
180
80
CLEAN / READY

Elektroapparate AG
Technical information
Technical Support
Language
EN
IMPRESSA A5 One Touch
Author: Patrik Studer
Checked:
Approved:
Docu.-name:
Technische_Informationen_IMPRESSA_A5_OT_EN.doc
L:\Geräte\Linie_A\A5_OT\Schulungsunterlagen\E\Technisch
e_Informationen_IMPRESSA_A5_OT_EN.doc
Date:
Rev. A:
Rev. B:
Rev. C:
Rev. D:
Rev. E:
Rev. F:
24.09.2013
20.02.2014
Page 7/10

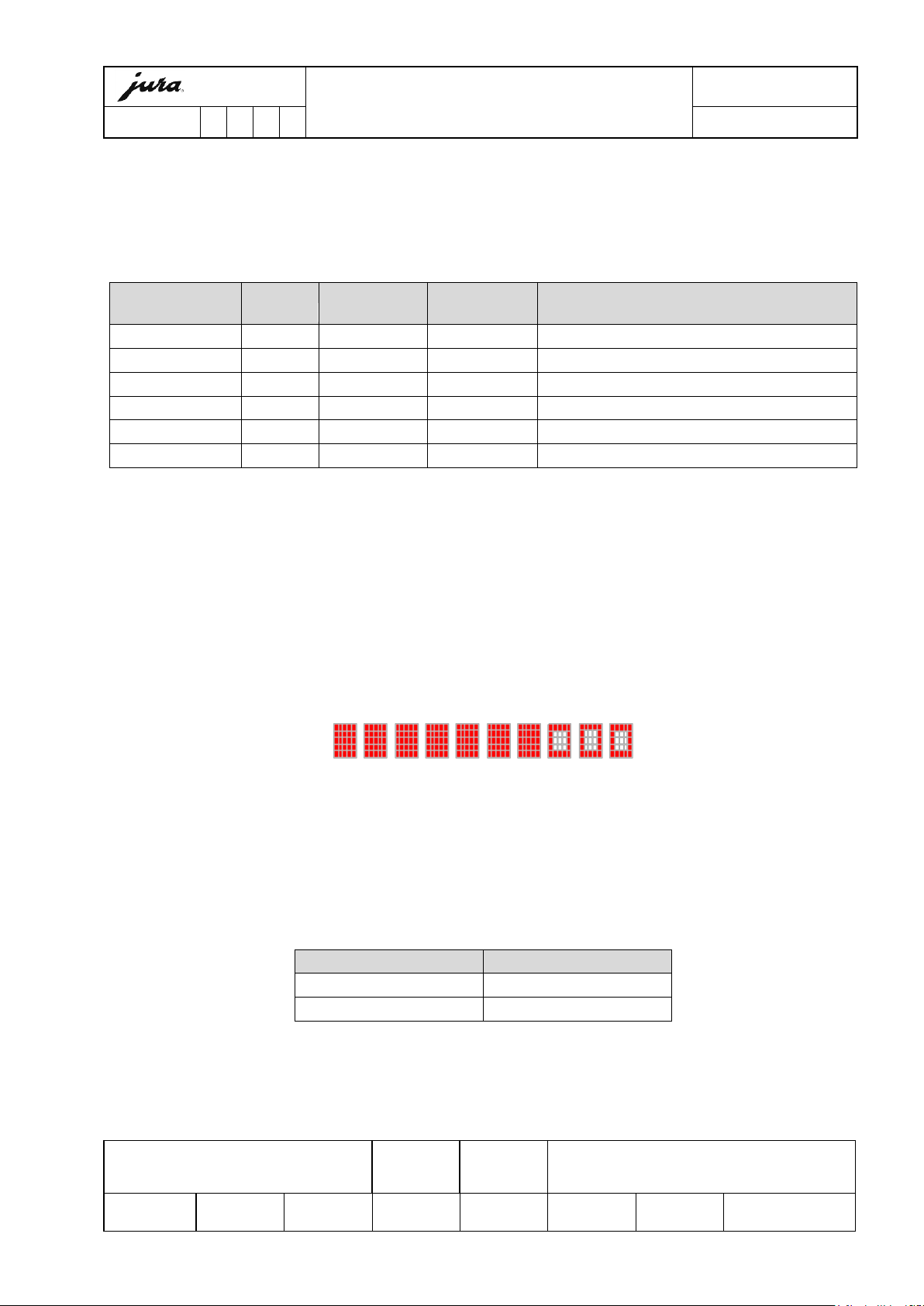

13 Decalcification:
After reaching the programmed amount of water, according to the water hardness level, the display
shows DE-SCALE / READY
Steam will also be calculated with an internal factor
Water
hardness level
°dH
AQUADUR
°dH
Liters
Message
(When reached the amount of water)
0 = not possible
1
1 ... 7
5 ... 10
220
DE-SCALE / READY
2
8 ... 15
10 ... 15
100
DE-SCALE / READY
3
16 ... 23
15 ... 20
60
DE-SCALE / READY
4
24 ... 30
20 ... 25
40
DE-SCALE / READY
(No acoustic warning)
Conversion factors:
1 °dH = 1.25 °e = 17.86 ppm (CaCO3) = 1.78 °f
14 Products:
2 Cups of Coffee/Espresso products possible by pressing 2x the product
(2x grinding and brewing preparation).
Ground coffee not possible.
No pure steam product (milk foam) possible
The amount of water can still be changed after the grinding/pre-brewing process by turning the
Rotary Switch
Process bar during product draw off
14.1 Coffee water:
Amount Coffee: 25 ml ... 240 ml (0.5 oz ... 8.0 oz)
Amount Hot water: 25 ml ... 450 ml (0.5 oz ... 15.0 oz)
Display calculating tolerance: 0.5 ... 15.0 oz in 0.5 oz steps
14.2 Coffee flavour, aroma strength:
Possibility to choose the flavour before a draw off by turning the Rotary Switch.
The flavour can still be changed during the grinding process (also backwards).
Flavour
Grinder Aroma+
NORMAL
2.7 sec.
STRONG
3.4 sec.
Place only 1 level measuring spoon of ground coffee into the filler funnel (due to overfilling)

Elektroapparate AG
Technical information
Technical Support
Language
EN
IMPRESSA A5 One Touch
Author: Patrik Studer
Checked:
Approved:
Docu.-name:
Technische_Informationen_IMPRESSA_A5_OT_EN.doc
L:\Geräte\Linie_A\A5_OT\Schulungsunterlagen\E\Technisch
e_Informationen_IMPRESSA_A5_OT_EN.doc
Date:
Rev. A:
Rev. B:
Rev. C:
Rev. D:
Rev. E:
Rev. F:
24.09.2013
20.02.2014
Page 8/10
14.3 Temperature:
Programmable: NORMAL / HIGH (Difference is approx. 2 °C (3.6 °F) )
Draw off temperature is measured at the outlet and is, depending on settings, between
82 °C ... 89 °C (179 °F ... 192 °F)
In the range of < 80 ml, an intelligent heating system comes to action which is able to remember
the time of the last product taken. Therefore, at the beginning of a draw off it will heat up slightly
higher in temperature to compensate the loss.
14.4 Milk:
Range: 3 sec. ... 120 sec.
14.5 Pause:
Range: 0 sec. ... 60 sec.
15 CLARIS FILTER:
YES () or NO (---)
16 Energy Safe Mode, ESM:
ESM direct draw off: Draw off coffee right away out of the stand-by mode
Programmable:
ECONOMY --- Always ready (~10.6 Wh)
ECONOMY Thermoblock switches off after 5 minutes, after the last draw off (~4.3 Wh)
Display: ENERGY ON
Stand-by power: 0W
17 Automatic switch off time:
15 MIN, 0.5/1/2/3 to 9 hours (disabling not possible)
18 Rinses:
18.1 Switch on rinse:
Manual (INIT RINSEMANUAL) or automatically (INIT RINSEAUTOMATIC)
18.2 Cappuccino rinse:
After 10 minutes (C-RINSEAFTER 10’) or now (C-RINSENOW)

Elektroapparate AG
Technical information
Technical Support
Language
EN
IMPRESSA A5 One Touch
Author: Patrik Studer
Checked:
Approved:
Docu.-name:
Technische_Informationen_IMPRESSA_A5_OT_EN.doc
L:\Geräte\Linie_A\A5_OT\Schulungsunterlagen\E\Technisch
e_Informationen_IMPRESSA_A5_OT_EN.doc
Date:
Rev. A:
Rev. B:
Rev. C:
Rev. D:
Rev. E:
Rev. F:
24.09.2013
20.02.2014
Page 9/10
19 Unit for amount of water:
ML or OZ
20 Languages:
7 languages DE / EN / FR / NL / IT / ES / PT / +
With the “Language Download Kit”, one is able to program an additional language
21 Empty system completely:
Frost protection
1. Precondition: The ENA is switched on and READY
2. Put a receptacle under the nozzle
3. Press the HOT WATER button, hot water flows out of the hot-water nozzle
4. Remove and empty the water tank
5. Hot water will continue to flow until the system is empty
6. (FILL WATER TANK)
7. Press the On/Off button to switch the machine off

Elektroapparate AG
Technical information
Technical Support
Language
EN
IMPRESSA A5 One Touch
Author: Patrik Studer
Checked:
Approved:
Docu.-name:
Technische_Informationen_IMPRESSA_A5_OT_EN.doc
L:\Geräte\Linie_A\A5_OT\Schulungsunterlagen\E\Technisch
e_Informationen_IMPRESSA_A5_OT_EN.doc
Date:
Rev. A:
Rev. B:
Rev. C:
Rev. D:
Rev. E:
Rev. F:
24.09.2013
20.02.2014
Page 10/10
22 Prepare appliance for resale:
Procedure:
All products will be reset to factory settings and the fluid system is empty due to protection against frost.
The appliance asks the customer for the desired language and afterwards it will fill the system with water.
Initial position:
The appliance is fully working and if necessary, an exit diagnosis has been made with the animation system.
The IMPRESSA A5 OT cannot be reset to factory settings, this has to be done manually.
If an exit diagnosis had been made, no further action is needed due to IMPRESSA A5 OT will ask for
the language afterwards
1. Switch on appliance until the following message appears on the display READY
2. Empty the system completely (frost protection) according to the manual
Press the HOT WATER button, hot water flows out of the hot-water nozzle
Remove and empty the water tank
Hot water will flow until the system is empty (FILL WATER TANK)
Press the key ON/OFF to switch off the appliance
3. Switch on again the appliance
4. Press the keys ROTARY SWITCH & ESPRESSO simultaneously, until the message OK appears on
the display
5. Switch off the appliance
23 Error messages:
If there is a malfunction, an error message as described below is shown on the display:
The appliance switches-OFF automatically 5 sec. after an ERROR
Display Message
Designation
ERROR 1
COFFEE: Temperature sensor notify “value below tolerance”
ERROR 2
COFFEE: Temperature sensor notify “value above tolerance”
ERROR 5
Heating up not possible
ERROR 6
Multivalve could not initialize
ERROR 8
“Positioning” / “Initialisation” of brewing unit not possible
ERROR 9
Logic relay is defective
ERROR 10
Heating was too hot (mains interferences received)
TOO HOT
Maintenance programs cannot be carried out, as there had been used a
steam-product before
