JVA Z Series User guide

JVA ELECTRIC FENCE SYSTEMS
JVA Z-Series Installer Manual
for Single Zone Energizers
May 2019
Models*: Z11, Z13, Z14, Z14R, Z18 and Z114
*Note: Dual Zone Energizers are covered in a separate manual.

JVA Z Energizer Range Concept
Thank you for choosing our product. The JVA brand is a range of electric fencing
products carefully selected from leading manufacturers around the world to
meet the needs of perimeter security.
THE JVA Z RANGE ENERGIZER CONCEPT
The JVA Range of Energizers has been collaboratively designed and manufactured
by an international team with over 30 years of electric fence experience earned
in some of the most testing security environments in the world. It aims to provide
the very best low-cost, high-voltage security energizers in the world. They are
compact, integrated and fully programmable electric fence energizers with built-in
alarm units and LCD out and return voltage display. They also have the option of
being controlled from a remote LCD keypad.
State-of-the-
art energizer
design IP4 x
and ABS plastic
Unique LCD
display depicting
fence out and
return voltage
Wall-mountable, robust
energizer housing with easily
detachable PCB chassis for
ease of installation and repair
Unique LCD keypad
option depicting fence
and alarm condition
TWO-YEAR WARRANTY
All JVA products carry a 2-year warranty against defective
components and workmanship. The warranty excludes damage
caused by acts of Nature such as lightning or ooding, power
supply surges, rough handling, malicious action or incorrect wiring.
Please retain your invoice as proof of purchase and
ll in the warranty form on page 45.
2-yr
WARRANTY
JVA ELECTRIC FENCE SYSTEMS

i
JVA ELECTRIC FENCE SYSTEMS JVA ELECTRIC FENCE SYSTEMS
1. INTRODUCTION ...................................................................................... 1
Glossary..................................................................................................... 1
2. FEATURES ............................................................................................... 2
2.1 Power .............................................................................................. 2
2.2 Control/Monitoring ............................................................................ 2
2.3 Safety .............................................................................................. 4
2.4 Reliability .......................................................................................... 4
3. SPECIFICATIONS .................................................................................... 5
3.1 Z11SpecicationsTable................................................................... 5
3.2 Z13SpecicationsTable................................................................... 5
3.3 Z14/Z14RSpecicationTable........................................................... 6
3.4 Z18SpecicationTable ................................................................... 6
3.5 Z114SpecicationTable.................................................................. 7
3.6 Notes for all Z-Series energizers ..................................................... 7
4. DESCRIPTION .......................................................................................... 8
4.1 Z-Series Exterior .............................................................................. 8
4.2 High Voltage Terminals .................................................................... 9
4.3 LCD Voltage Display ........................................................................ 9
4.4 Status LED Lights ............................................................................ 10
4.5 4-line LCD Keypad (PTE0240) ........................................................ 11
4.6 Internal Beeper/Keypad Beeper ...................................................... 23
4.7 Cabling ............................................................................................. 23
4.8 Lightning Protection.......................................................................... 23
4.9 Monitor Earth.................................................................................... 23
4.10 Noise and Interference .................................................................... 23
4.11 Programmable Options .................................................................... 24
4.12 Low Power Mode ............................................................................. 24
4.13 Control Inputs .................................................................................. 24
4.14 Groups.............................................................................................. 24
5. INSTALLATION ......................................................................................... 25
5.1 Installation Steps .............................................................................. 25
5.2 Example Fence Wiring Diagrams..................................................... 26
6. OPERATION ............................................................................................. 28
6.1 Arm/Disarm Control.......................................................................... 28
6.2 When an Alarm Occurs .................................................................... 28
6.3 To Silence the Alarm ........................................................................ 29
6.4 Standby Battery ............................................................................... 29
6.5 Error (Service) Light ......................................................................... 29
CONTENTS

ii
JVA ELECTRIC FENCE SYSTEMS JVA ELECTRIC FENCE SYSTEMS
7. TECHNICAL INFORMATION .................................................................... 30
7.1 Low Voltage Terminals ..................................................................... 30
7.2 Power Options ................................................................................. 32
7.3 Battery Information .......................................................................... 32
7.4 LEDs ................................................................................................ 32
7.5 Status LED Error Codes................................................................... 32
7.6 Jumpers ........................................................................................... 33
7.7 Start-up Events................................................................................. 33
7.8 Multiple Keypads ............................................................................. 34
7.9 Tamper Circuit (Z14R, Z18 and Z114).............................................. 34
8. SECTOR SETUP TESTS AND ADJUSTMENT ........................................ 35
8.1 Introduction ...................................................................................... 35
8.2 Basic Fence Tests ........................................................................... 35
8.3 Fault Condition Tests ....................................................................... 36
9. LEGAL AND SAFETY REQUIREMENTS FOR ELECTRIC FENCES ...... 37
APPENDIX A: Group Simultaneous Pulse Feature ........................................... 38
APPENDIX B: Pulse Synchronization ............................................................... 43
WARRANTY ....................................................................................................... 45
Contents

1
JVA ELECTRIC FENCE SYSTEMS JVA ELECTRIC FENCE SYSTEMS
1. INTRODUCTION
The JVA Z-Series Electric Fence Energizers are designed and manufactured
exclusively for JVA by Pakton Technologies of Brisbane, Australia. This manual is an
OEM Manual for the Z-Series (Z11, Z13, Z14, Z14R, Z18 and Z114) security electric
fence energizers.
Z11 Single Zone, Conventional 1.5 Joule (Output). Z13 Single Zone, Conventional
2.8 Joule (Output).
Z14 Single Zone, Conventional or Bi-Polar 4 Joule (Output). Z14R Z14 with Relays
and IR Tamper Circuit.
Z18 Single Zone, Conventional or Bi-Polar 8 Joule (Output), contains Relays and IR
Tamper Circuit. Z114 Single Zone, Conventional or Bi-Polar 14 Joule (Output),
contains IR Tamper Circuit.
This manual relates to:
PCB versions: 7v42+ for the Z13/Z14/Z14R, 1v10+ for the Z114.
Firmwareversion:7.50orhigher(thermwareversionisshownontheLCDonreset)
Current Firmware: 8V32.
Introduction
Glossary
OEM – Original equipment manufacturer.
Zone – A high voltage fence output and return to provide perimeter security.
Control Input – Aninputthatallowstheusertocontrolspecicfunctionsofthe
Energizer.
Relay Output – A programmable output (provided by a physical relay) to indicate
an Energizer/Fence condition, such as Fence Alarm, Low Battery
Voltage.
Bi-polar – A Bi-Polar fence is an all-live wire fence. A Bi-Polar Energizer has
the ability to pulse synchronised positive and negative pulses down
alternate wires of the same fence line.
Conventional – A Conventional electric fence is wired in such a way that alternate
live and earth wires are on the fence.
Feed Voltage – (Also Fence Feed) The Voltage connection from the Energizer to
the start of the fence zone.
Return Voltage – (Also Fence Return) The Voltage connection from the end of a
fence zone to the monitoring circuit of the Energizer.
On/Armed – The Energizer is transmitting high (or low) voltage pulses onto the
fence. The fence is secure.
O󰀨/Disarmed – The fence zone is unsecure, but is safe to perform maintenance on.
Positive Voltage – The Positive fence voltage on a Bi-polar Fence.
Negative Voltage – The Negative fence voltage on a Bi-Polar Fence.
Low Power mode – The fence live wires operate at a much lower voltage, typically 500V
peak. This ensures detection together with public safety.

2
JVA ELECTRIC FENCE SYSTEMS JVA ELECTRIC FENCE SYSTEMS
Features
2. FEATURES
2.1 Power
2.1.1 Z13
• 2.8joulespeakoutputenergy
• Mainspoweredviaexternaltransformer(16-18Vac1A)
• Batterychargerwithspaceforaninternal7aH12Vrechargeablebackup
battery which ensures continued operation of the energizer for up to 12
hours on high power + 14 hours on low power (Max setting on low and high
power)
2.1.2 Z14/Z14R
• 4 joules peak output energy (The Z14R is limited to 2.5 when in Group
Mode)
• Mainspoweredviaexternaltransformer(16-18Vac1A)
• Batterychargerwithspaceforaninternal7aH12Vrechargeablebackup
battery which ensures continued operation of the energizer for up to 10
hours on high power + 14 hours on low power (Max setting on low and high
power)
2.1.3 Z18
• AsperZ14with8Joulesoutput
• Mainspoweredviaexternaltransformer(16-18Vac1.5A)
• Batterychargerwithspaceforaninternal7aH12Vrechargeableback
up battery which ensures continued operation of the energizer for up to 4.5
hours on high power + 10 hours on low power (Max setting on low and high
power)
2.1.4 Z114
• AsperZ14with14Joulesoutput
• Mainspoweredviaexternaltransformer(16-18Vac1.5A)
• Batterychargerwithspaceforaninternal7aH12Vrechargeableback
up battery which ensures continued operation of the energizer for up to 4
hours on high power + 10 hours on low power (Max setting on low and high
power)
2.2 Control/Monitoring
2.2.1 Z11 and Z13
• TwoControlInputswhichcanbeconguredtotakeNO(NormallyOpen)or
NC (Normally Closed) control contacts
• Two12VdrivenOutputs(alsoreferredtoasRelays)

3
JVA ELECTRIC FENCE SYSTEMS JVA ELECTRIC FENCE SYSTEMS
Features
• AllRelaysmaybeassignedtoanyalarmfunction
• LEDstatuslights
• Internalbeeper
• ACfail,LowBatteryandBadBatterydetection
• Keypadprogrammableoptions
• Lowpowermode–ensuresdetectiontogetherwithpublicsafetyduringthe
day
• Adjustableenergizerpoweroutputlevel
• Willsupplypowerto,andcommunicatewith,uptotwokeypads
2.2.2 Z14
• Two Control Inputs which can be congured to take NO or NC control
contacts
• Two12VdrivenOutputs(alsoreferredtoasRelays)
• AllRelaysmaybeassignedtoanyalarmfunction
• LCDvoltagedisplay
• LEDstatuslights
• Internalbeeper
• ACfail,LowBatteryandBadBatterydetection
• Keypadprogrammableoptions
• Lowpowermode–ensuresdetectiontogetherwithpublicsafetyduringthe
day
• Adjustableenergizerpoweroutputlevel
• Willoperatewithupto3keypads
2.2.3 Z14R (as per Z14 with additional)
• Three“FormC”contactRelayswithchangeovercontacts
• InfraredtamperbeamdisablestheEnergizerifthelidisremoved
• TestedtoIEC/AS/NZS60335.2.76,testreportsavailableonrequest
• AZ14RslavewillnotreifnotconnectedtoaMaster(Er-16displayed)
• WheningroupmodeaZ14Rislimitedto2.5Joutput
2.2.4 Z18
• AsperZ14
• Three“FormC”contactRelayswithchangeovercontacts
• InfraredtamperbeamdisablestheEnergizerifthelidisremoved
2.2.5 Z114
• AsperZ14
• InfraredtamperbeamdisablestheEnergizerifthelidisremoved

JVA ELECTRIC FENCE SYSTEMS JVA ELECTRIC FENCE SYSTEMS
4
JVA ELECTRIC FENCE SYSTEMS JVA ELECTRIC FENCE SYSTEMS
Features
2.3 Safety
• Enclosedfenceterminals
• Wallmountable,robustenclosurewithdetachablePCBchassisforeaseof
installation and repair
• InfraredtamperbeamdisablestheEnergizerifthelidisremoved(Z14R,
Z18 and Z114 only)
2.4 Reliability
• 1YearWarranty
• Microprocessorcontrolled
• Pluggablescrewterminals
• Stateoftheart,robust,casedesignIP4xABS
• Inbuiltlightningprotectionfrombothmainsandfencesides,external
fence lightning protection is still advised in high lightning prone areas
• AllInputsandOutputsareprotectedagainststrayfencevoltage

5
JVA ELECTRIC FENCE SYSTEMS JVA ELECTRIC FENCE SYSTEMS
Specications
JVA ELECTRIC FENCE SYSTEMS JVA ELECTRIC FENCE SYSTEMS
3. SPECIFICATIONS
3.1 Z11SpecicationsTable
SpecicationName Specication
Energizer Output Voltage 9.0kV peak no load
Peak Output Energy 1.4 Joules at 500 Ohm
Pulse Rate Locked at 0.8 Hz
12V DC Power Consumption Energizer On – 155mA average, 250mA peak
EnergizerO󰀨–20mA
Not including keypad (add 30mA) or Auxiliary power
AC Power Input 16-18Vac 1A recommended1
Battery Charger Output Float voltage 14V, 300mA, short circuit protection, reverse
battery protection
Switched Outputs 12V 2.5A maximum combined load powered Output
Recommended Operating
Temperature
-15°C to +50°C
Enclosure IP4x ABS Plastic
Size 300mm high, 190mm wide, 115mm deep
Weight – packed no battery 1.5 kg
3.2Z13SpecicationsTable
SpecicationName Specication
Energizer Output Voltage 9.8kV peak no load
Peak Output Energy 2.8 Joules at 500 Ohm
Pulse Rate Locked at 0.9 Hz
12V DC Power Consumption Energizer On – 245mA average, 339mA peak
EnergizerO󰀨–18mA
Not including keypad or Auxiliary power
AC Power Input 16-18Vac 1A1
Battery Charger Output Float voltage 14V, 300mA, short circuit protection, reverse
battery protection
Switched Outputs 12V 2.5A maximum combined load powered Output
Recommended Operating
Temperature
-15°C to +50°C
Enclosure IP4x ABS Plastic
Size 300mm high, 190mm wide, 115mm deep
Weight – packed no battery 1.9 kg
1A 24Vdc 1.5A supply can be used in place of the 16Vac. The correct connection is +24V to the right AC pin,
GND to the left AC pin. Due to the stored energy in a 24Vdc plug-pack, an AC Fail could occur 5 minutes
before the Energizer reports this fault

6
JVA ELECTRIC FENCE SYSTEMS JVA ELECTRIC FENCE SYSTEMS
Specications
3.3 Z14/Z14RSpecicationTable
SpecicationName Specication
Energizer Output Voltage 9.0kV peak no load
Peak Output Energy 4 Joules at 500 Ohm, Limited to 2.5J in Group Mode
Pulse Rate Locked at 0.9 Hz
12V DC Power Consumption Energizer On – 550mA average, 700mA peak.
EnergizerO󰀨–28mA
Not including keypad or Auxiliary power
AC Power Input 16-18Vac 1A2
Battery Charger Output Float voltage 14V, 700mA, short circuit protection, reverse
battery protection
Switched Outputs Three30V1A“FormC”change-overcontacts(Z14Ronly)
Two 12V 2.5A maximum combined load powered Outputs
Recommended Operating
Temperature
-15°C to +50°C
Enclosure IP4x ABS Plastic
Size 300mm high, 190mm wide, 115mm deep
Weight – packed no battery 1.9 kg
3.4 Z18SpecicationTable
SpecicationName Specication
Energizer Output Voltage 8.5kV peak no load
Peak Output Energy 8 Joules
Pulse Rate Locked at 0.9 Hz
12V DC Power Consumption Energizer On – 870mA average, 1220mA peak.
EnergizerO󰀨–28mA
Not including keypad or Auxiliary power
AC Power Input 16-18Vac 1.5A22
Battery Charger Output Float voltage 14V, 700mA, short circuit protection, reverse
battery protection
Switched Outputs Three30V1A“FormC”change-overcontacts
Three 12V 2.5A maximum combined load powered output
Recommended Operating
Temperature
-15°C to +50°C
Enclosure IP4x ABS Plastic
Size 300mm high, 190mm wide, 115mm deep
Weight – packed no battery 2.5 kg
2A 24Vdc 1.5A supply can be used in place of the 16Vac. The correct connection is +24V to the right AC pin,
GND to the left AC pin. Due to the stored energy in a 24Vdc plug-pack, an AC Fail could occur 5 minutes
before the Energizer reports this fault

7
JVA ELECTRIC FENCE SYSTEMS JVA ELECTRIC FENCE SYSTEMS
Specications
3 A 24Vdc 1.5A supply can be used in place of the 16Vac. The correct connection is +24V to the right AC pin,
GND to the left AC pin. Due to the stored energy in a 24Vdc plug-pack, an AC Fail could occur 5 minutes
before the Energizer reports this fault
3.5 Z114SpecicationTable
SpecicationName Specication
Energizer Output Voltage 9.5kV peak no load
Peak Output Energy 14 Joules
Pulse Rate Locked at 0.75 Hz
12V DC Power Consumption Energizer On – 1450mA average, 2660mA peak.
EnergizerO󰀨–27mA
Not including keypad or Auxiliary power
AC Power Input 16-18Vac 1.5A3
Battery Charger Output Float voltage 14V, 1A, short circuit protection, reverse
battery protection
Switched Outputs Two 12V 2.5A maximum combined load powered output
Recommended Operating
Temperature
-15°C to +50°C
Enclosure IP4x ABS Plastic
Size 303mm (H) x 223mm (W) x 115mm (D)
Weight – packed no battery 3.1 kg
3.6 Notes for all Z-Series Energizers
When the battery voltage drops below 6.5V the energizer will stop functioning but will
continue to draw some current (approximately 10mA).
• There are potentially lethal high voltages inside the
Z-Series Energizers.
• The high voltage inside the Z-Series Energizers may
take a long time to discharge. Wait at least 10 minutes
afterturningo󰀨beforeopeningthecase.
• Before working on the high voltage wiring of an
electric fence, it is recommended that the energizer be
disarmed and an intentional short circuit is placed from the fence live wires to
earth. This is a sensible precaution against the energizer being turned on by
others or malfunctioning while working on the fence.
• Ifan electric fenceispart of amultipleenergizer system andthedistance
between two separate electric fences, each powered by separate energizers,
islessthan2.5meters,theenergizersmustbeconguredtooperateingroup
mode.
DANGER

8
JVA ELECTRIC FENCE SYSTEMS JVA ELECTRIC FENCE SYSTEMS
Description
4. DESCRIPTION
4.1 Z-Series Exterior
4.1.1 Z14/Z14R Exterior 4.1.2 Z18 Exterior
4.1.3 Z114 Exterior
Z14 exterior Z18 exterior
Z114 exterior
4.1.4 Z11 Exterior
Z11 exterior

9
JVA ELECTRIC FENCE SYSTEMS JVA ELECTRIC FENCE SYSTEMS
Description
4.1.2 Z18 Exterior
4.2HighVoltageTerminals
NOTE: The high voltage feed and return terminals on the Z28 are the opposite
way around to the Z13/Z14/14R/Z18/Z114, as can be seen in the following two sub
sections. On the single channel units the feeds are on the right and the returns are
on the left. On the Z28 the feeds are on the left and the returns are on the right.
4.2.1 Z13/Z14/Z14R/Z18HighVoltageTerminals
Z14/Z14R High Voltage terminals
Z1X LCD
4.3 LCD Voltage Display
4.3.1 Z1X LCD Voltage Display
The display on the JVA Z13/Z14/Z18 shows the voltage at the fence and return
terminals. The left is the return and the right is the feed voltage. Arrows at the top of
the display indicate that the energizer is in conventional mode.
The Stored Joules will be displayed every
approximately 4–5 seconds. The reading
will vary depending on the load on the
fence. Stored Joules displayed is the current
storedjoulestogeneratetheoutputvoltage
requested in Option 1 (Voltage Setting). If
the fence is in good condition, this value will
be low. As more load comes onto the fence,
the amount of joules will increase to meet
the requested voltage.
WhenconguredforBi-PolaroperationtheleftsideisthepositiveReturnVoltageand
the right is the negative Return Voltage.
The LCD also shows the programming option and current setting when in programming
mode. This allows the programming options settings to be checked easily.

10
JVA ELECTRIC FENCE SYSTEMS JVA ELECTRIC FENCE SYSTEMS
Description
4.3.2 Z114 LCD Voltage Display
The display on the JVA Z114 shows the voltage at the Fence Feed and Fence Return
terminals.
The LCD also shows the programming option and current setting when in programming
mode. This allows the programming options settings to be checked easily.
Z114 LCD Display and Status LEDs
4.4 Status LED Lights
4.4.1 Z13/Z14/Z14R/Z18 Status LED Lights
Power – On whenever the Energizer has power.
Armed – OnwhentheEnergizerisarmed(pulsing),willashwheninlowpower
mode.
Fence – Flashes Green (PCB’s 7v45+) when the Energizer is on and the
voltageisgood,ashesRedifthevoltagefallsbelowtheFenceAlarm
Voltage, stays Red when there is a fence alarm (either Zone).
Gate – Flashes Red when the Gate is open, stays Red when there is a gate
alarm.
Status – Flashes an error code for energizer (service) errors. See the table in
section 7.5 Status LED Error Codes.

11
JVA ELECTRIC FENCE SYSTEMS JVA ELECTRIC FENCE SYSTEMS
Description
4.4.2 Z114 Status LED Lights
Armed1 – OnwhenZone1oftheEnergizerisarmed(pulsing),willashwhenin
low power mode.
Fence 1 – Flashes if the return voltage falls below the Fence Alarm Voltage,
stays on when there is a Zone 1 fence alarm.
Gate 1 – Flashes Red when the Gate is open, stays Red when there is a Gate
1 alarm.
Power – On whenever the Energizer has power.
From code version 7.77 onward, Fence and Gate LEDs are latched on (like the
strobe) until cleared using the clear alarm memory sequence (*1#) or the Energizer
is re-armed.
4.5 4-Line LCD Keypad (PTE0240)
Introduction
The JVA 4-Line LCD Keypad is an integral component in the JVA Security Electric
Fence product range. Providing a centralised interface between the Customer and
their Perimeter Security Solution; it displays the current condition of each security
device connected and can draw attention to adverse fence conditions. The keypad is
used to control individual fence Energizers, Monitors or the entire site. The Customer
has access to all of these features via a Menu Driven system or by entering key
sequences. Security Installers also use the keypad to congure the JVA Security
devices to the customer’s needs.
FeaturesandBenets
The PTE0240 LCD keypad is a second generation Z-Series Keypad
• Menudriveninterface
• 4-lineBacklitLCDdisplay
• Quickarm/disarmkeys
• 500-entryEvent-Log
• Battery-BackedRealTimeClock
• Control,monitorandprogramanyZ-Seriesdevice
• Displaysarm/disarmedstatusandanytroubleoralarm
• ShowsfencevoltagesforZ-Serieselectricfenceenergizersandmonitors
• Programmablezonenames
• Keyareaglowsredonalarm
• EventLogstoresDateandTimeofAlarmorTrouble

12
JVA ELECTRIC FENCE SYSTEMS JVA ELECTRIC FENCE SYSTEMS
Description
Limitations
1.TheMenu-drivenprogrammingrequires8v20orhigherrmwareinEnergizers.
2.  As the rmware is upgraded from time to time, an older keypad may not be
compatiblewiththelatestZ-Seriesdevices.Thermwareversioncanbeseen
by pressing *9#.
Opening the Keypad
Push the 4 side tabs in to release the cover from the base. This can be done one
side at a time. Once the cover has been removed from the base plastic, the keypad
hardware will slide up to release it from the base.
Installation
The Keypad only requires three wire connections to JVA Energizers or Monitors. This
is the +12V, GND and DATA connections on the back of the Keypad circuit board.

13
JVA ELECTRIC FENCE SYSTEMS JVA ELECTRIC FENCE SYSTEMS
Description

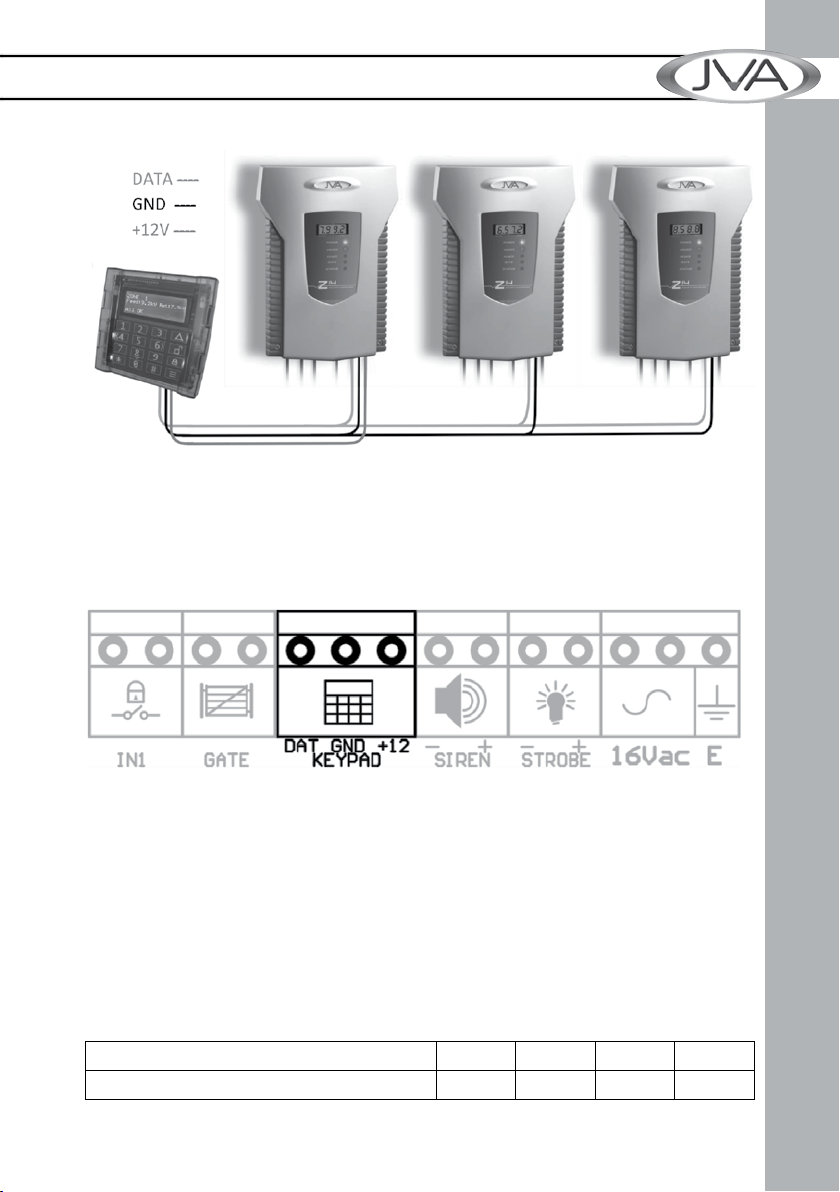

When connecting a Group of Energizers together, the +12V wire is only required
between the Keypad and Energizer. The other Energizers are connected together
using the GND and DAT terminals only.
Keypad terminals on a JVA Single Zone Energizer
Keypad Operation
Note: Z-Series Energizers/Monitors have the following Default PINs
User PIN: 1234
Installer PIN: 012345
Discovering Energizers
Function Key 1 Key 2 Key 3 Key 4
Discover Devices connected to the Keypad * 6 8 #

14
JVA ELECTRIC FENCE SYSTEMS JVA ELECTRIC FENCE SYSTEMS
Description
The Keypad needs to discover all of the Energizers/Monitors connected to the Keypad
for it to work properly. This is best achieved after each Energizer/Monitor has been
conguredandwiredtogetherinagroup.Thedisplaywillshow“Analysing”followed
by the device type connected at each zone.
NOTE: All Energizers/Monitors need to be Disarmed before starting the Discovery
process.
Arming/DisarmingtheSiteUsingtheKeypad
To Arm the site, press the Lock button.
It will ask for your PIN. Enter the USER PIN and press #
To Disarm the site, press the Un-Lock button.
It will ask for your PIN. Enter the USER PIN and press #
To Silence a Siren on an Energizer/Monitor press the Menu
Button. It will ask for your PIN. Enter the USER PIN and press #
Pressthe#keyontheMenuitem“SilenceSiren”
Ashort-cutforthisistojustenter1470#directly.
Keypad Status Display
In normal operation the keypad shows a Summary Page followed by the status of
each device connected to the Keypad.
Summary
page:
Z14 page:
JVA Security
13:17 01/11/2015
Disarmed
All OK
The Installer’s Details (Dealer Message)
24hr Clock and Date
If the site is Armed/Part Armed or Disarmed
If the site is in Alarm/Trouble or All OK
ZONE 1
Feed:8.6kV Ret:7.5kV
Alarm: Fence
The Name of the Zone (Zone Label)
The Energizer Voltages
Alarms/Troubles are displayed here
The keypad will automatically scroll the display through all relevant information on
each connected Energizer/Monitor. Each screen is shown for about 5 seconds. To
pause this, press # and the auto scrolling will stop for 20 seconds.
Pressing the # key again will advance the display one step.

15
JVA ELECTRIC FENCE SYSTEMS JVA ELECTRIC FENCE SYSTEMS
Description
The keypad will automatically display a new Zone Alarm or Trouble and it will remain
on this page for 3 minutes. Pressing # again will advance the screen. If the Keypad
beeper is sounding, any key press will silence it.
Keypad Menu
The Keypad Menu system can be accessed by pressing the Menu key.
Key in either the USER PIN or INSTALLER PIN followed by the Enter
key to proceed.
To access the Menu items below Exit Menu the Installer PIN is required.
Main Menu
Menu Function (when # key is pressed)
Mute Siren Mutes Energizer or Monitor Sirens currently sounding
Clear Alarms Sends the Clear Alarm Memory command to the Energizers/
Monitors. Thiswillclear“LatchedFenceAlarms”iftheproblemhas
been cleared.
Show Event Log Displays the Event Log. Use Up/Down keys to scan through events.
The # key will exit the Log
Arm Low Power Arm the Site in Low Power Mode
Arm High Power Arm the Site in High Power Mode
Test Menu See Test Menu
Keypad options See Test Menu
Keypad Options
Set Clock Displays the current clock for editing. See Event Log.
The Event log contains information about Alarms, Troubles and Arm/
Disarm commands. Each event is displayed on a separate page.
Press the Up or Down key to change pages. Press # to exit the Log.
Themostrecententryisdisplayedwhenthelogisrstopened.
Setting the Clock
Menu Function (when Enter key is pressed)
Analyse group Discovers the Energizers connected to the
Keypad
Siren Test Turns on the Energizer/Monitor Siren
Outputs for 2 seconds
Battery Test Triggers the Battery Test in connected
Energizers/Monitors. See the LCD display of
the Energizer for the results.
Show Model Displays the Keypad Version
Reset Energizers Forces the Energizers to reset

16
JVA ELECTRIC FENCE SYSTEMS JVA ELECTRIC FENCE SYSTEMS
Description
Menu Function (when # key is pressed)
Show Shortcuts Displays commonly used Key Sequences for reference
Remember User
PIN /
Forget User PIN
This will ‘save’ the USER PIN entered. From now on, the Quick Arm/
Disarm buttons will not require a PIN to operate. Pressing Menu
button immediately enter the Menu system as well.
Delete the ‘saved’ USER PIN
Exit Menu Exits the Keypad Menu
Program Device
Program Sectors
Clear Log Requires Installer PIN to access. Clears the Event Log
Program this
Keypad
Requires Installer PIN to access. See ProgramDevice:
RequirementsforMenuDrivenProgramming
Forthissystemtoworke󰀨ectively,allconnectedEnergizers/Monitors
need to be Mk2 protocol compliant. This version is usually found in
the Black Plastic box, rather than a Silver Plastic box.
Procedure
The Keypad takes around 10 seconds to enter Menu Driven
Programming mode. Once entered, the list of connected devices will
be listed.
UsetheUp/Downarrowtochoosethedevicetobecongured.
Press#andtheKeypadwillLoadthecongurationfromthe
Energizer.
Use the Up/Down arrows to move around the options and the Left/
Right arrows to change the selected value.
Options with >> displayed have a SubMenu that is accessed by
pressing the Right Arrow. Use the Up/Down arrows to select the new
options and Left/Right to change the selected value.
To exit this SubMenu, press the Up arrow till the cursor is at the <<
line. Now press the Left Arrow.
Press#atanytimetoSavethenewcongurationtotheDevice.
Press*atanytimetoDiscardtheconguration.
ExitingDeviceProgramming
Press the Menu at any time to completely exit Device Programming.
ProgramSectors
Program this Keypad
Default Keypad Returns the keypad to Factory Defaults
