JVA Z114 User manual
JVA ELECTRIC FENCE SYSTEMS
Installation and User Manual
HI POWER
SECURITY
ENERGIZER
114
Edition 1, 2014
State-of-the-art energizer
design IP4 x and ABS plastic
Unique LCD display depicting
fence out and return voltage
JVA Z Energizer Range Concept
Thank you for choosing our product. The JVA brand is a range of electric fencing
products carefully selected from leading manufacturers around the world to
meet the needs of perimeter security.
THE JVA Z RANGE ENERGIZER CONCEPT
The JVA Range of Energizers has been collaboratively designed and manufactured
by an international team with over 30 years of electric fence experience earned
in some of the most testing security environments in the world. It aims to provide
the very best low-cost, high-voltage security energizers in the world. They are
compact, integrated and fully programmable electric fence energizers with built-in
alarm units and LCD out and return voltage display. They also have the option of
being controlled from a remote LCD keypad.
Wall-mountable, robust energizer
housing with easily detachable PCB
chassis for ease of installation and repair
Unique LCD keypad
option depicting fence
and alarm condition
TWO-YEAR WARRANTY
All JVA products carry a 2-year warranty against defective components
and workmanship. The warranty excludes damage caused by acts of
Please retain your invoice as proof of purchase and
JVA ELECTRIC FENCE SYSTEMS
New JVA Anrdoid keypad
– example of one of the
many information screens.
Details available from
nearest Stax branch.
VALID FOR
2
YEARS
JVA ELECTRIC FENCE SYSTEMS
3
Contents
CONTENTS
1 INTRODUCTION ................................................................................... 3
2 FEATURES AND BENEFITS ................................................................ 4
2.1 More Features ......................................................................................... 4
3 SPECIFICATIONS ................................................................................. 5
4 DESCRIPTION ...................................................................................... 6
4.1 JVA Z114 – Exterior ................................................................................. 6
4.2 Front Panel Status Lights ........................................................................ 6
4.3 Front Panel LCD Display ......................................................................... 7
4.4 Inputs and Outputs .................................................................................. 7
4.5 Status Codes ........................................................................................... 7
4.6 Keypad (Optional) ................................................................................... 7
4.7 Z Series Models ...................................................................................... 7
4.8 Keypad (Optional) ................................................................................... 8
4.9 Internal Beeper/Keypad Beeper .............................................................. 8
4.10 Programmable Options ........................................................................... 8
4.11 Arm Input (control input 1) and Key Switch ............................................. 8
4.12 Gate Input (control input 2) ..................................................................... 8
4.13 Low Power Mode .................................................................................... 9
4.14 Group Simultaneous Pulse Feature ........................................................ 9
4.15 Remote Control Unit (Optional) ............................................................... 9
4.16 Cabling .................................................................................................... 9
4.17 Lightning Protection ................................................................................ 9
4.18 Earth Loop Monitoring ............................................................................. 10
4.19 Noise and Interference ............................................................................ 10
4.20 PC Control ............................................................................................... 10
4.21 Web Server ............................................................................................. 10
5 INSTALLATION ...................................................................................... 11
5.1 Installation Steps ..................................................................................... 11
........................................................... 12
5.3 Examples of Fence (High Voltage) Wiring Diagrams .............................. 13
5.4 Control ..................................................................................................... 14
5.5 Turning to Low Power Mode ................................................................... 14
5.6 When an Alarm Occurs ........................................................................... 14
5.7 To Silence the Alarm ............................................................................... 15
5.8 Changing the PIN Number ...................................................................... 15
5.9 Standby Battery ....................................................................................... 15
5.10 Status Light ............................................................................................. 15
6 TECHNICAL INFORMATION ............................................................... 16
6.1 Power Options ......................................................................................... 17
6.2 Status Codes ........................................................................................... 17
6.3 Jumpers .................................................................................................. 18
............................................ 18
JVA ELECTRIC FENCE SYSTEMS
Contents
7 INSTALLATION PROGRAMMING OPTIONS ..................................... 19
7.1 Programming Mode ................................................................................. 19
7.2 To Exit Programming Mode ..................................................................... 19
7.3 Changing the Installer PIN ...................................................................... 19
7.4 Changing an Option ................................................................................ 19
7.5 Programming Options in Brief ................................................................. 20
7.6 Programming Options in Detail ............................................................... 21
7.6.1 Power Level (01x#) ................................................................... 21
7.6.2 Low Power Level (02x#) ............................................................ 21
7.6.3 Fence Alarm Voltage (03x#) ...................................................... 22
7.6.4 Low Power Alarm Level (05x#) ................................................. 22
7.6.5 Missed Pulse Count (06x#) ....................................................... 22
7.6.6 Battery Alarm Voltage (07x#) .................................................... 23
7.6.7 Siren On Time (08x#) ................................................................ 23
................................................................ 23
7.6.9 Siren Cycles (10x#) ................................................................... 24
7.6.10 Input Type (11x#) ...................................................................... 24
7.6.11 Input 2 Function (12x#) ............................................................. 24
7.6.12 Gate Entry/Exit Delay (13x#) ..................................................... 24
7.6.13 Chime Mode (14x#) ................................................................... 25
7.6.14 Binary Options (16x#) ............................................................... 25
7.6.15 Anti-Bridging Threshold (17x#) ................................................. 26
7.6.16 Binary Options 2 (18x#) ............................................................ 26
7.6.17 Auto Re-arm Time (20x#) .......................................................... 27
7.6.18 Relay Functions ........................................................................ 27
7.6.19 Group Mode (26x#) ................................................................... 28
8 JVA Z114 LCD KEYPAD FEATURES ................................................... 29
8.1 Keypad Status LEDs ............................................................................... 29
8.1.1 Arming/Disarming the Fence Using the Keypad ..................................... 29
8.1.2 Menus ..................................................................................................... 29
8.1.3 Keypad Status Display ............................................................................ 30
8.1.4 Changing the Keypad Messages and Address ....................................... 30
8.2 To Exit Keypad Programming .................................................................. 31
8.3 Connecting Multiple Keypads to a System .............................................. 31
.................................................. 32
8.5 Summary of LCD Keypad Functions. ...................................................... 33
9 REMOTE CONTROL UNIT ................................................................... 34
9.1 Features .................................................................................................. 34
9.2 Installation ............................................................................................... 35
................................................................... 35
APPENDIX A GROUP SIMULTANEOUS PULSE FEATURE ............................ 36
Group Simultaneous Pulse Feature .................................................................. 36
Group Mode Programming (26x#) ..................................................................... 36
Group Linking via the Keypad “Bus” .................................................................. 37
APPENDIX B RSA LEGAL AND SAFETY REQUIREMENTS
FOR A SECURITY ELECTRIC FENCE .......................................................... 38
JVA ELECTRIC FENCE SYSTEMS
5
1. INTRODUCTION
Thank you for purchasing a JVA security electric fence energizer. The growing use
security professionals are placing in this form of perimeter security. The reason for
reduce false alarms when compared to other technologies.
D The JVA electric fence around your property shows you mean busi-
ness.
D
D
D
D The JVA’s voltage monitor warns you of any tampering with the fence.
D
electronic watchman.
Once every second the JVA
Z114 energizer produces a
high-voltage pulse and sends
it down the fence live wires.
The JVA Z114 then monitors
the voltage at the end of this
voltage is being maintained
along the entire fence line.
In the event of a voltage drop
alerting you to the problem.
Designed and manufactured
to meet the most stringent
the JVA Z114 is in a class
of its own when it comes to
An electric fence system
which meets current safety
regulations
Introduction
JVA ELECTRIC FENCE SYSTEMS
6
2. FEATURES AND BENEFITS
• Australian designed and
manufactured
High reliability and great service
• Programmable Options Customise the energizer to unique fence conditions
•
Enclosure with easily
detachable PCB Chassis
Ease of installation and repair
• Inbuilt LCD Voltage
Display and Status Lights
See fence conditions at a glance
• Internal 7Ah 12V
Rechargeable Battery
Ensure continued operation of your security electric
fence in the event of a mains power failure
• Optional LCD Keypad Ease of control and display of fence voltages
• Optional PC and Internet
Connections
Integration with security information management
systems
• Low Power Mode Detection together with reduced voltage for during
the day
• Switched +12V Outputs
for Siren and Strobe
Local audible and visual indication alerting user to
breach of security
• Earth Monitor Input Ensures that all the wires on the fence are monitored
continually
• Enclosed Fence
Terminals
Tamper resistant and prevents accidental contact with
high voltage
2.1 More Features
Meets Safety and EMC standards (reports available on request)
Features and Benets
JVA ELECTRIC FENCE SYSTEMS
7
3. SPECIFICATIONS
Energizer Output Voltage 9.5kV peak no load
Peak Output Energy 14 Joules at 200 Ohms
Pulse Rate Locked at 0.8 Hz
12v DC Power Consumption
Not including keypad or auxiliary power
AC Power Input 16-18Vac 35W
Battery Charger Output
polarity protection
Siren and Strobe Outputs
at 30W (combined)
Enclosure IP4x ABS plastic
Size 303mm (H) x 223mm (W) x 122mm (D)
3.1 kg
the fence live wires to earth. This is a precaustion against the energizer being
turned on by others while work on the fence is in progress.
WARNING
Specications
JVA ELECTRIC FENCE SYSTEMS
8

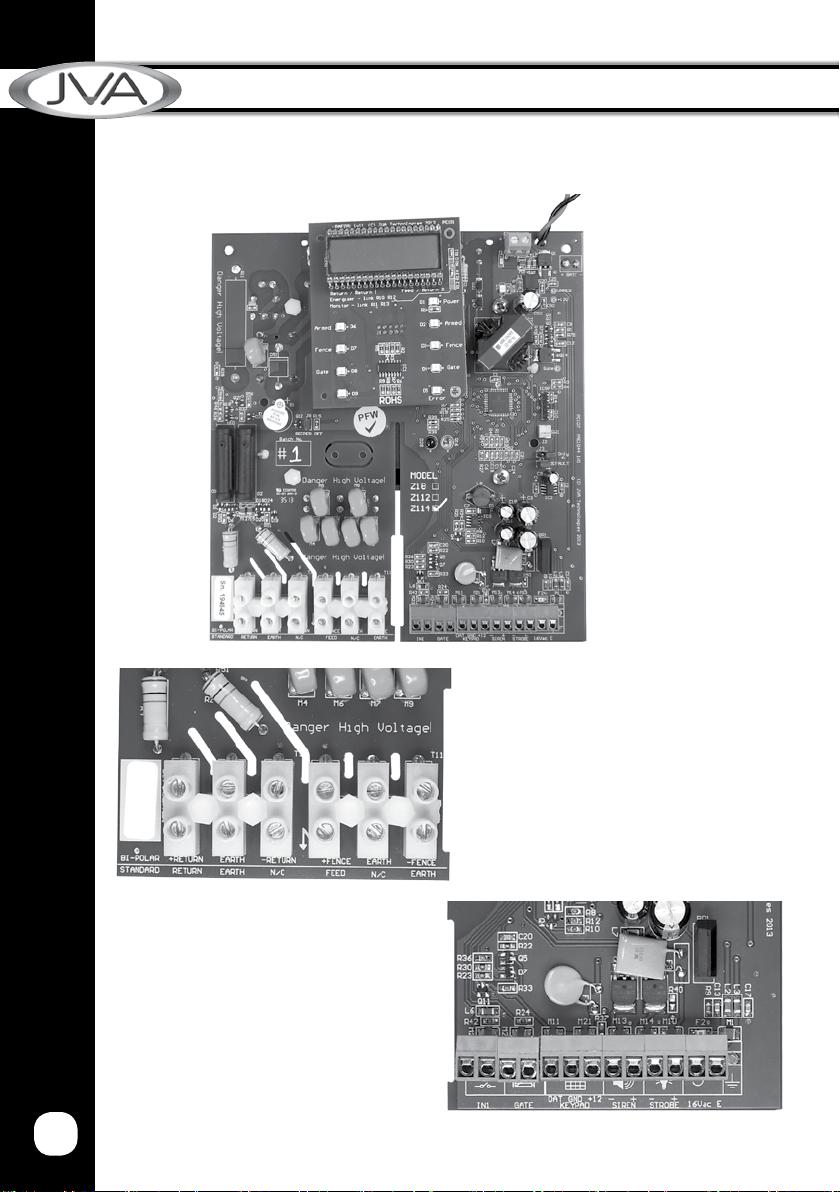

4. DESCRIPTION
4.1 JVA Z114 – Exterior
4.2 Front Panel Status Lights
POWER On whenever the unit has power
ARMED
FENCE Red when there is a fence alarm
GATE On when there is a gate alarm
STATUS
energizer. See the table in section 6.2 – Status Codes.
Description
JVA ELECTRIC FENCE SYSTEMS
9
4.3 Front Panel LCD Display
The display on the JVA Z114 shows the voltage at the fence and return terminals.
The left is the return and the right is the feed voltage. Arrows at the top of the display
operation the left side is the positive Return Voltage and the right is the negative
Return Voltage.
The LCD also shows the programming option and current setting when in program-
ming Mode. This allows the programming options settings to be checked easily.
4.4 Inputs and Outputs
See Section 6.
4.5 Status Codes
See Section 6.2.
4.6 Keypad (Optional)
A keypad can be used to remotely monitor and control the Z114. It is also used to set
4.7 Z Series Models
Z14R Z14 with relays and IR Tamper circuit
circuit
ZM1 Single zone start of fence monitor with Distant Fault Detection™
ZM20 Twenty sector loop monitor
:
Description
JVA ELECTRIC FENCE SYSTEMS
10
4.8 Keypad (Optional)
The Z series LCD keypad allows for easy
remote control of your JVA energizer. Arming
checking the fence voltage: the LCD keypad
makes this easy through a simple menu system
or key sequences (shortcuts). Your security is
protected by a user PIN number.
A keypad is also required to program the
For information on how to control the Z114 via
4.9 Internal Beeper/Keypad Beeper
automatically enters Low Power Mode to preserve the battery.
4.10 Programmable Options
The Z114 has many programmable options. These are also known as Setup
Parameters
explained in Section 7.6. Each parameter has a factory set default.
4.11 Arm Input (control input 1) and Key Switch
The JVA Z series energizer can be armed (to energize the fence) by closing a contact
of the case for this purpose.
can also be wired into the energizer to arm and disarm the unit.
4.12 Gate Input (control input 2)
The gate input may be wired to a gate switch to trigger an alarm when a gate is
This is determined by the programmable option settings.
It is also possible to arm the gate alarm only. See Section 7.6.12 for details.
Description
JVA ELECTRIC FENCE SYSTEMS
11
4.13 Low Power Mode
Z114 energizers can be switched into Low Power Mode. Low Power Mode may be
used in situations where the fence is not required to be a deterrent but is still required
to actively detect intrusion. In Low Power Mode the fence live wires operate at a
keypad to set Low Voltage Mode.
4.14 Group Simultaneous Pulse Feature
In some installations it may be preferable to provide the ability to link multiple units
simultaneous high voltage output pulses and act as if they are one energizer with
multiple outputs. This is designed so that no possible combination of individual
outputs can be dangerous.
4.15 Remote Control Unit (Optional)
The Remote Control Unit provides the Z114 with the ability to arm or disarm the
energizer via a compact key chain fob remote control. If using the remote control the
siren can be used to acknowledge arming with 1 beep and disarm with 2 beeps. See
7.6.13.
The remote controls have a range of up to 100 metres.
4.16 Cabling
High Voltage Cabling (Fence Feed and Returns) should be run using suitably rated
cable. Double insulated electric fence “underground” cable is suitable. High Voltage
Cables must never be run within the same conduit as Low Voltage Cables. A minimum
distance of 30mm should be kept between High Voltage and Low Voltage Cables.
To maintain the IPx4 rating of the enclosure and to ensure moisture does not enter
to seal all the cable passages.
4.17 Lightning Protection
recommended to further reduce lightning damage and thus reduce repair costs.
They are available from your local dealer.
Description
JVA ELECTRIC FENCE SYSTEMS
12
4.18 Earth Loop Monitoring
Section 5.3 for directions on how to wire for earth loop monitoring.
4.19 Noise and Interference
The Z114 contains a microprocessor. Extreme electrical noise can upset micro-
processors. The most likely cause of such noise is the high voltage output from
necessary.
4.20 PC control
A standard Windows PC may be used to control and monitor a group of Z Series
Energizers. Ask your JVA distributor for a demonstration of Perimeter Patrol ™
software. Z Series Energizers can be connected to a PC using either a serial data
4.21 Web Server
Another alternative to remotely controlling JVA Z Series Energizers is to use the
controlled and monitored via a web browser from any internet connected device
anywhere in the world.
Description
JVA ELECTRIC FENCE SYSTEMS
13
5. INSTALLATION
5.1 Installation Steps
2. Design and build the fence. (Beyond the scope of this manual.) Ask your
distributor for help if required.
3. Decide where the JVA Z114 is to be mounted. If on an external wall it should be
4. Remove the JVA Z114 PCB chassis from the housing by removing the 2 screws.
5. Mount the housing by using 4 screws through the rear of the box.
6. Replace the PCB chassis.
8. Wire the low voltage cables to the PCB terminals*. (See Section 5.2)
9. Wire the high voltage cable to the PCB terminals*. (See Section 5.2)
from Earth Out to Earth Return.
12. Fit the battery leads to the battery. The Status Light should blink twice repetitively
13. Mount the 230 – 16V transformer and connect the 16V side to the Z114 16V
input terminals. (AC is not polarity sensitive.) Do not connect a live or neutral to
the earth terminal.
14. Replace the front cover.
15. Turn AC power on.
Light should stop blinking.
17. Arm the unit.
18. Check to ensure that a short anywhere on the fence triggers the alarm.
19. Ensure that the user understands how to change the user code (PIN) and is in
possession of this Installer/User Manual and the installer’s contact details.
Keep high voltage and low voltage cables at least 30mm apart.
Do not run high and low voltage cables in the same conduit.
Installation
JVA ELECTRIC FENCE SYSTEMS
5.2 JVAZ114–InteriorConguration
Low Voltage Terminals
Installation
High Voltage Terminals
JVA ELECTRIC FENCE SYSTEMS
15
5.3 Examples of Fence (High Voltage) Wiring Diagrams
Z114 Energizer congured for conventional fence operation
Z114 Energizer congured for Bi-Polar operation
Installation
Energizer Earth
Energizer Earth
JVA ELECTRIC FENCE SYSTEMS
16
5.4 Control
Your JVA Z114 security energizer has been designed for ease of operation.
side of the unit.
Keypad
while the keypad can be positioned in an easily accessible place. The systems
mains power, energizer on/o, fence voltages, fence alarm,
auxiliary alarm
operational as they may have been disconnected by the installer.
If in doubt consult your installer.
See section 8 for a full description of operating the Keypad.
deter and detect.
will indicate that there is a fault.
5.5 Turning to Low Power Mode
Enter your PIN and press *42# to switch back to Full Power Mode.
to control input 2
5.6 When an Alarm Occurs
then remain on. A siren or strobe connected to the unit will turn on. If the energizer
alarm company monitoring the alarm system.
An alarm will also sound if the gate input is opened and the entry/exit delay time has
elapsed.
Installation
JVA ELECTRIC FENCE SYSTEMS
17
5.7 To Silence the Alarm
system; the Armed Light will still be on. The system will be ready for the next
alarm.
(:The following functions have an eect on alarm timing: Siren On Time,
Siren O Time, Siren Cycles, Auto Re-arm time).
fence alarm light.
the siren will sound again after the programmed O Time has elapsed.
5.8 Changing the PIN Number
5.9 Standby Battery
5.10 Status Light
The energizer status light indicates that the energizer requires attention. See Section
6.2.
Installation
JVA ELECTRIC FENCE SYSTEMS
18
6. TECHNICAL INFORMATION
Low Voltage Terminals
Label Description
IN1 2 Way Energizer control input 1 (dry contact normally open) internally wired in
parallel with the key switch. Can be used for a remote switch or a radio
receiver. The receiver may be powered from the keypad +12V terminal.
GATE 2 Way
make the energizer alternate between Low Voltage and High Voltage
Mode.
KEYPAD 3 Way Supplies power and data line for an external keypad. The +12 source
on these terminals is protected with 1A self-resetting fuse.
SIREN 2 Way Switched 12V output. Low side switched. 30W max (including Siren).
alarm panel.
STROBE 2 Way Switched 12V output. Low side switched. 30W max (including Strobe).
alarm panel.
16Vac 3 Way 16Vac 2.5A power input plus earth. Connection of the earth is only
required where local safety or wiring codes demand it. This should be
connected to the cabinet or mains earth NOT the fence earth.
Batt 2 Way
Technical Information
JVA ELECTRIC FENCE SYSTEMS
19
6.1 Power Options
A 24Vdc 2.5A supply can be used in place of the 16Vac supply. The correct connection
Use only rechargeable batteries.
6.2 Status Codes
Interpretation Corrective Action
1 Tamper detected Fit the energizer lid or link J3
2 Mains supply fail Restore mains power
3 Charge or replace battery
4 PCB service fault Seek advice from your installer or
distributor
Status Codes
to maintain operation by entering Low Power Mode after 4 warning beeps. If the
itself automatically after 4 warning beeps. A PCB fault will disarm the energizer. If an
corrected by disarming and rearming the unit. Should the error recur return the unit
for service.
Technical Information
JVA ELECTRIC FENCE SYSTEMS
20
6.3 Jumpers
Purpose
J3 Inhibits Mains Fail Status
Indication
if the intention is to operate the energizer on DC
only (as in solar power systems).
J4
options to factory defaults
on power up
If the energizer needs to be defaulted to factory
and the energizer will be reset to default settings.
6.4 ConguringaZ114toruninBi-PolarMode
how to modify the Z114 so that it will run in Bi-Polar Mode.
Step 1
both points where it is soldered to prevent any arcing.
Step 2
Set Fence Mode (Programming Option 15)
to Bi-Polar.
Value
0 Bi-Polar
1 Conventional
Z114 Programming Option 15
Technical Information
Table of contents
Other JVA Power Supply manuals
