JVC KW-M150BT User manual

• Updated information (the latest Instruction Manual, etc.) is available from
<http://www.jvc.net/cs/car/>.
B5A-3199-11 EN (M)© 2019 JVC KENWOOD Corporation
KW-M150BT
MONITOR WITH RECEIVER
INSTRUCTION MANUAL
19KWM_M_Ref_1En.indd 1 2019/07/16 8:53

2
Before use
Before use................................................................................. 2
How to read this manual................................................................................... 2
Precautions ................................................................................................................ 2
Getting Started....................................................................... 3
Clock settings........................................................................................................... 3
Basics .......................................................................................... 4
Functions of the Buttons on the Front Panel...................................... 4
Common operations........................................................................................... 4
HOME screen descriptions .............................................................................. 5
List screen ................................................................................................................... 5
Tuner........................................................................................... 6
Tuner Basic Operation......................................................................................... 6
Presetting stations ................................................................................................ 6
Tuner Setup................................................................................................................ 7
USB .............................................................................................. 8
Preparation................................................................................................................. 8
Playback operations............................................................................................. 8
iPod/iPhone ...........................................................................10
Preparation...............................................................................................................10
Playback operations...........................................................................................10
Mirroring ................................................................................. 11
Preparation...............................................................................................................11
Mirroring operations..........................................................................................11
External Components........................................................12
Using external audio/video players.........................................................12
Rear view camera.................................................................................................12
Learning function of steering remote....................................................13
Bluetooth ................................................................................14
Register your smartphone to the unit ...................................................14
Bluetooth Setup....................................................................................................14
Receive a phone call..........................................................................................15
Make a phone call................................................................................................15
Playing Bluetooth Audio Device................................................................16
Controlling Audio ................................................................17
Controlling General Audio.............................................................................17
Equalizer Control..................................................................................................17
Speaker / X’Over setup.....................................................................................17
Listening Position / DTA ..................................................................................18
Sound Effect............................................................................................................18
Remote control.....................................................................18
Functions of the Remote control Buttons...........................................18
Installation..............................................................................19
Before Installation................................................................................................19
Installing the unit.................................................................................................20
About this Unit......................................................................23
More information................................................................................................ 23
Troubleshooting.................................................................................................. 23
Specifications .........................................................................................................24
Copyrights ................................................................................................................26
Precautions
#WARNING
Ñ To prevent injury or re, take the
following precautions:
• To prevent a short circuit, never put or leave any
metallic objects (such as coins or metal tools)
inside the unit.
• Do not watch or fix your eyes on the unit’s display
when you are driving for any extended period.
• If you experience problems during installation,
consult your JVC dealer.
Ñ Precautions on using this unit
• When you purchase optional accessories, check
with your JVC dealer to make sure that they work
with your model and in your area.
• The Radio Data System or Radio Broadcast Data
System feature won’t work where the service is
not supported by any broadcasting station.
Ñ Protecting the monitor
• To protect the monitor from damage, do not
operate the monitor using a ballpoint pen or
similar tool with the sharp tip.
Ñ Cleaning the Unit
If the front panel of this unit is stained, wipe it with
a dry soft cloth such as a silicon cloth. If the front
panel is stained badly, wipe the stain off with a
cloth moistened with neutral cleaner, then wipe it
again with a clean soft dry cloth.
! CAUTION
• Applaying spray cleaner directly to the unit may
affect its mechanical parts. Wiping the front panel
with a hard cloth or using a volatile liquid such as
thinner or alcohol may scratch the surface or erase
screened print.
Ñ How to reset your unit
If the unit or the connected unit fails to operate
properly, reset the unit.
Reset button
Contents
How to read this manual
• The panels shown in this guide are examples used to
provide clear explanations of the operations. For this
reason, they may be different from the actual panels.
• In operation procedures, bracket shape indicates the
key or button you should control.
< >: indicates the name of panel buttons.
[ ]: indicates the name of touch keys
19KWM_M_Ref_1En.indd 2 2019/07/16 8:53

3
English |
Continued on the next page...

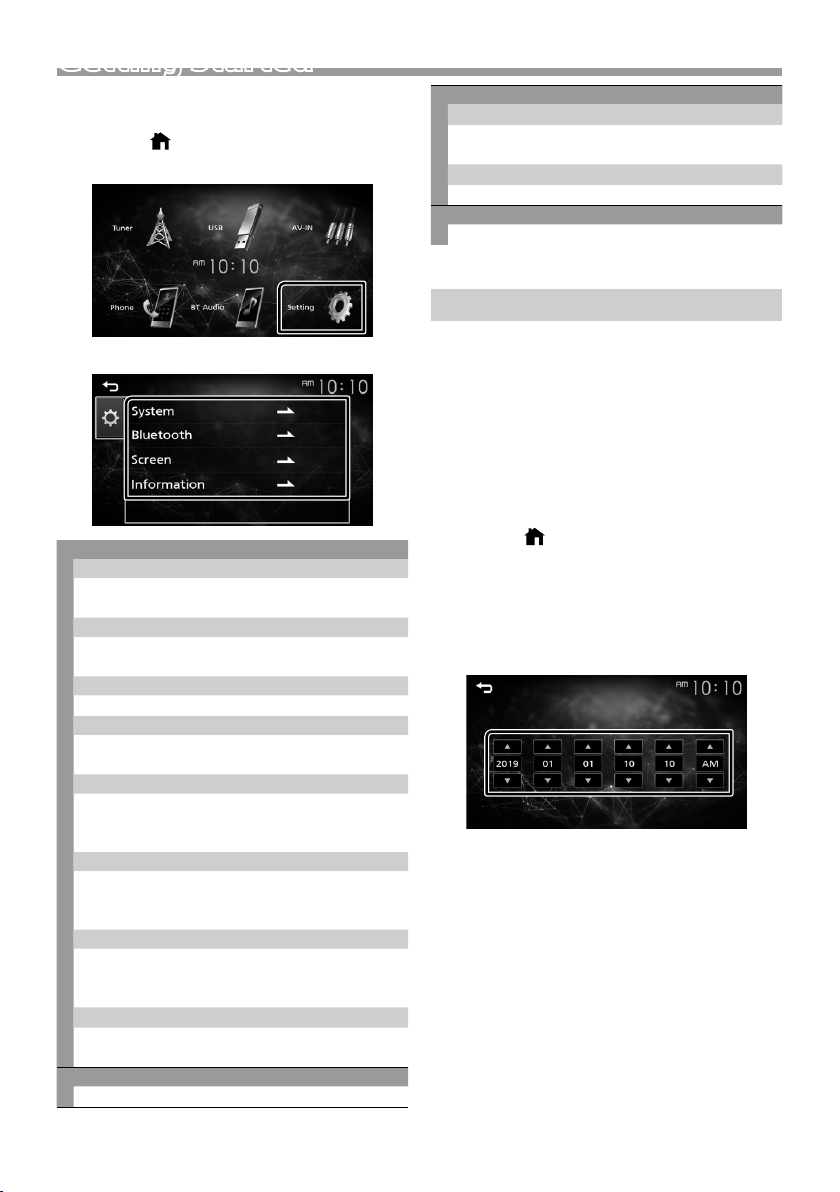

Getting Started
1 Turn the ignition key of your car to ACC.
The unit is turned on.
2 Press the < > button.
3 Touch [Setting].
4 Touch the corresponding key and set the value.
[System]
[Beep Tone]
Activates or deactivates the key-touch tone.
“ON” (Default), “OFF”
[Language]
Select the language used for the control screen
and setting items. Default is “English”.
[Time/Date]
Adjust the clock time. (P.3)
[Clock Mode]
Select the time display format.
[12hr] (Default) / [24hr]
[Steering Remote]
Sets the desired function in the steering remote
controller. See Learning function of steering
remote (P.13).
[Parking Guidelines]
You can display parking guidelines to enable
easier parking when you shift the gear to the
reverse (R) position. Default is “ON”.

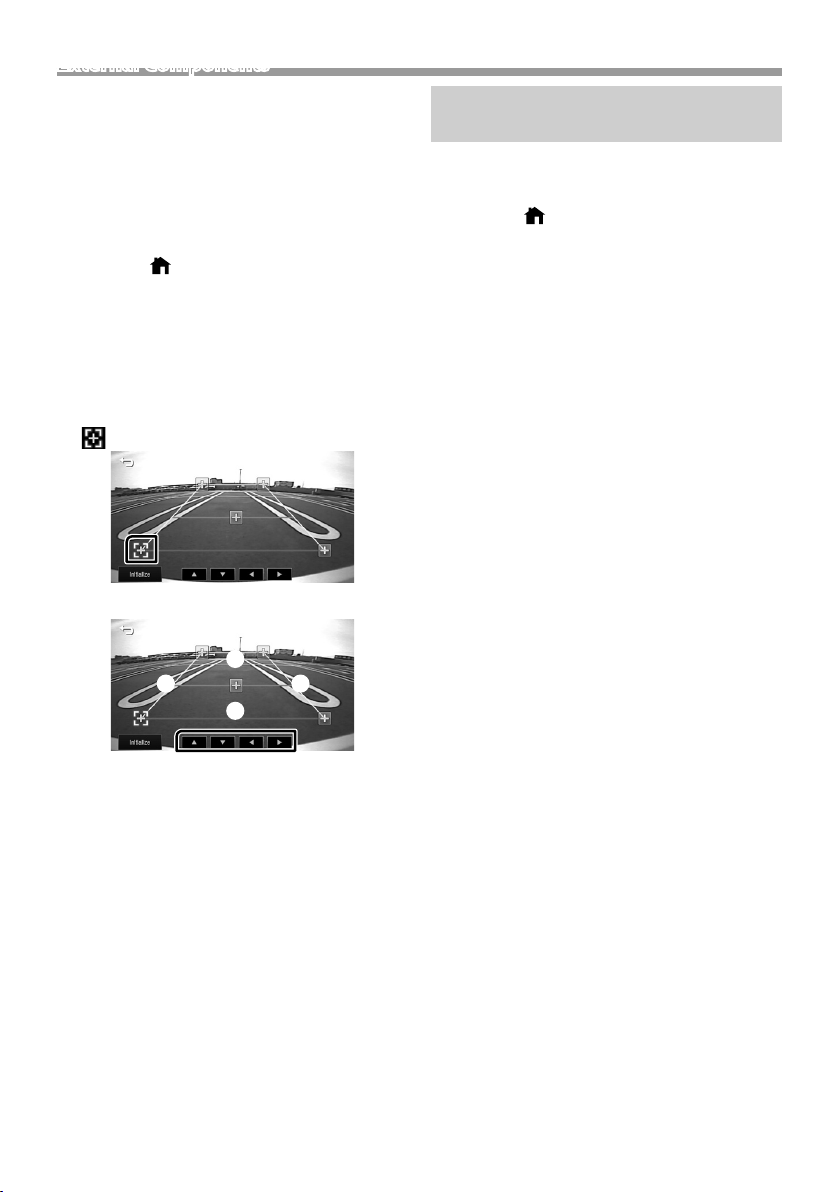

[Guidelines SETUP]
If you select [ON] for [Parking Guidelines], you can
adjust the parking guidelines. See To adjust the
parking guidelines (P.13).
[System Reset]
Touch [System Reset] and then touch [YES] to set
all the settings to the initial default settings.
[Bluetooth]
Displays the Bluetooth Settings screen. (P.14)
[Screen]
[Dimmer]
Select the dimmer mode.
“High” (Default) / “Mid” / “Low”
[Demo]
Select the demonstration mode. Default is “ON”.
[Information]
Displays the software version of this unit.
5 Touch [6].
Clock settings
Ñ Synchronizing the clock time with FM
RDS
Activate [RDS Clock Sync].
See Tuner Setup (P.7).
Ñ Adjusting the clock manually
✎NOTE
• Deactivate [RDS Clock Sync] before adjusting the
clock.
1 Press the < > button.
2 Touch [Setting].
3 Touch [System].
4 Touch [Time/Date].
Clock screen appears.
5 Touch [R] or [S] to set the clock time.
6 Touch [6].
19KWM_M_Ref_1En.indd 3 2019/07/16 8:53

4
BasicsBasics

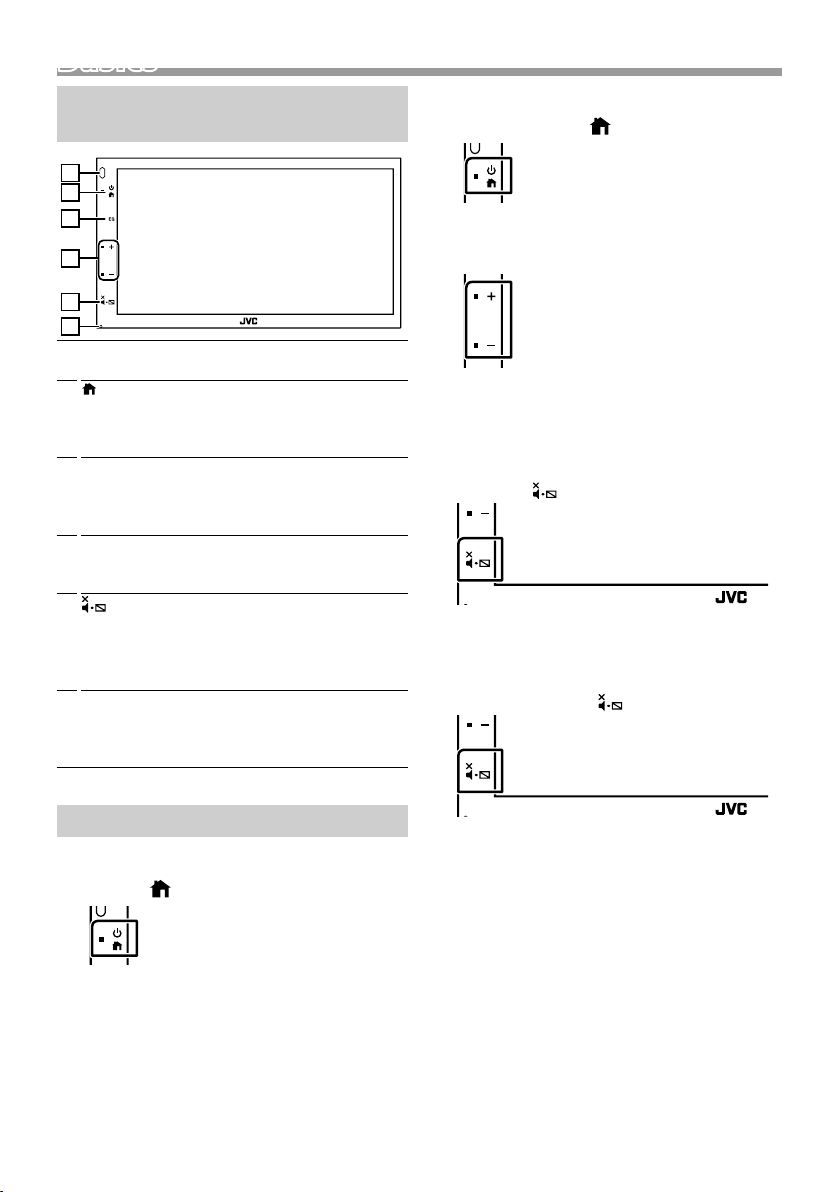

Functions of the Buttons on the
Front Panel
1
2
3
4
5
6
1Remote Sensor
• Receives the remote control signal.
2(HOME)
• Displays the HOME screen. (P.5)
• Pressing for 1 second turns the power off.
• When the power off, turns the power on.
3EQ
• Displays the Audio screen.* (P.17)
* The Audio screen is not displayed during SETUP
screen or on the list screen etc,
4+ , – (Volume)
• Adjusts volume. The volume will go up until 20
when you keep pressing [ + ].
5(MUTE, Display o)
• Mutes/restores the sound.
• Pressing for 1 second turns the screen off.
When the screen is off, touch the display to turn
on the screen.
6Reset
• If the unit or the connected unit fails to operate
properly, the unit returns to factory settings
when this button is pressed.
Common operations
Ñ Turning on the power
1 Press the < > button.
Ñ Turning o the power
1 Press and hold the < > button.
Ñ Adjusting the volume
1 Press the <+> or <–> button.
✎NOTE
• The volume will go up until 20 when you keep
pressing [ + ].
Ñ Mutes the sound
1 Press the < > button.
⿠To restore the sound, touch the button again, or
adjust the volume.
Ñ Turn o the screen
1 Press and hold the < > button.
⿠To turn on the screen, touch the display.
19KWM_M_Ref_1En.indd 4 2019/07/16 8:53

5
English |
Basics
Continued on the next page...
HOME screen descriptions
1 Press the < > button.
HOME screen appears.
2
5
3
6
4
7
1
1Clock display
Touch to displays the Clock screen.
2Switches to the Tuner broadcast. (P.6)
3[USB]
Plays files on a USB device. (P.8)
[iPod]
Plays an iPod/iPhone. (P.10)
• When iPod/iPhone is connected.
[Mirroring]
Displays the Mirroring screen. (P.11)
• When android device with “Mirroring OB for
JVC” application installed is connected.
4Switches to an external component connected to
the AV-IN input terminal. (P.12)
5Displays the Hands Free screen. (P.15)
6Plays a Bluetooth audio player. (P.16)
7Displays the SETUP screen. (P.3)
List screen
There are some common function keys in the list
screens of most sources.
1 You can change the page to display more items
by pressing [R]/ [S].
19KWM_M_Ref_1En.indd 5 2019/07/16 8:53

6
Tuner
Tuner
Tuner Basic Operation
1 Press the < > button.
2 Touch [Tuner].
Ñ Source control screen
2
1
3
4
1Displays the information of the current station:
PS name, Frequency, PTY Genre, Indicator Items
2[FM] : Switches the FM band.
“FM1”, “FM2”, “FM3”
[AM] : Switches the AM band.
“AM1”, “AM2”
[E][F] : Tunes in a station with good
reception automatically.
[ ] : Displays the Tuner Setup screen. (P.7)
3Recalls the memorized station.
When touched for 2 seconds, stores the current
receiving station in memory.
4[ ] : Returns to previous screen.
[ ] : Displays the Audio screen. (P.17)
Presetting stations
Ñ Auto memory
You can preset 6 stations for the current band (FM1/
FM2/FM3/AM1/AM2).
1 Touch [FM] or [AM] to select the band.
2 Touch [ ].
3 Touch [Auto Store].
The local stations with the strongest signals are
found and stored automatically.
Ñ Manual memory
You can store the current receiving station in
memory.
1 Tune in to a station you want to preset.
2 Touch and hold [#] (#:1-6) in which you want to
store the station.
Ñ Recalling the preset station
1 Touch [#] (#:1-6).
19KWM_M_Ref_1En.indd 6 2019/07/16 8:53

7
English |
Tuner
Continued on the next page...
Tuner Setup
1 Touch [ ].
2 Set each item as follows.
[Auto Store]
Automatically searches and stores the 6 stations with
the strongest signals for the selected band.
“Auto Store” appears.
[Area]
“Other”: For Asia, AM/FM intervals: 9 kHz/50 kHz.
[Local Seek]
Tunes in only to the stations with sufficient signal
strength. (LOC indicator lights up.)
“ON”, “OFF” (Default)
[RDS] *1
Displays the RDS Settings screen.
[AF]
When station reception is poor, automatically
switches to the station that is broadcasting the
same program over the same Radio Data System
network.
“ON” (Default), “OFF”
[TA]
Switches to the traffic information automatically
when the traffic bulletin starts. (TI indicator lights
up.)
“ON”, “OFF” (Default)
[RDS Clock Sync]
Synchronizing the Radio Data System station time
data and this unit’s clock.
“ON” (Default), “OFF”
[PTY]
Select a program type.
[PTY Seek]
Searches for a program by program type.
*1 FM only
3 Touch [6].
19KWM_M_Ref_1En.indd 7 2019/07/16 8:53

8
USB
Continued on the next page...

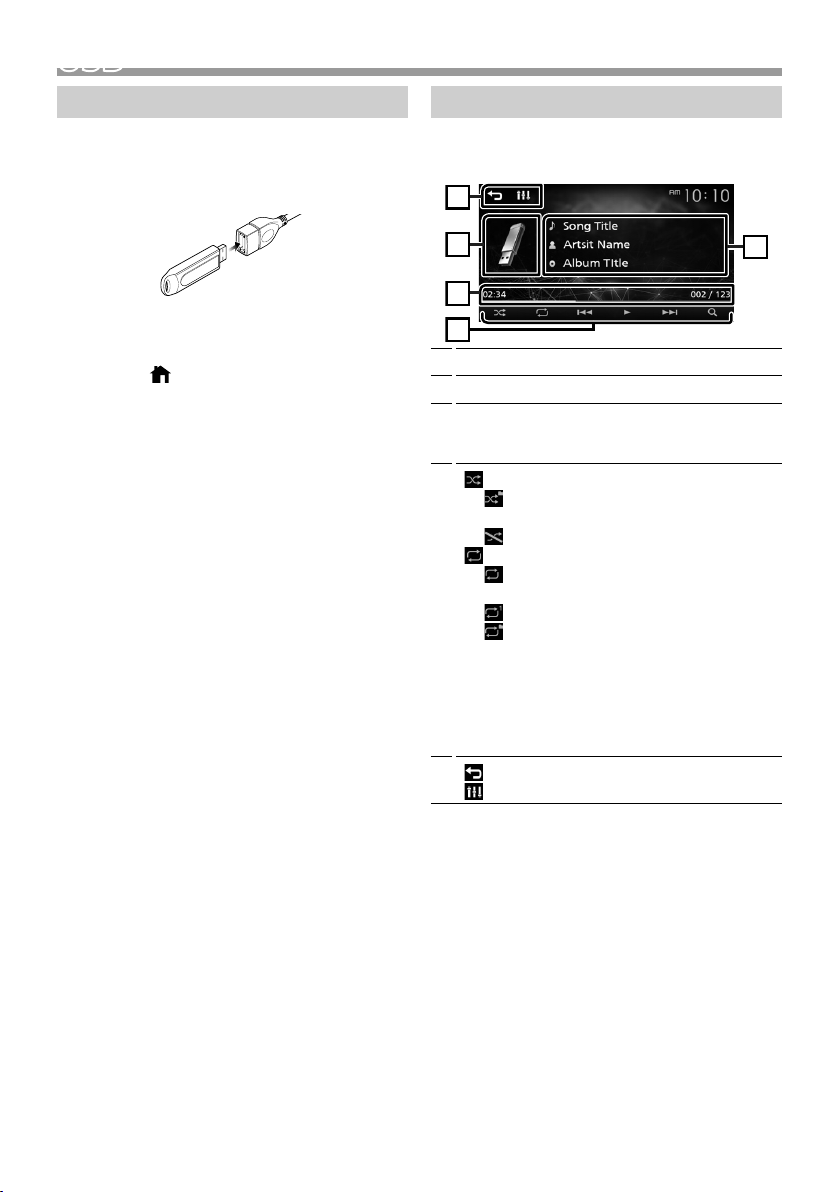

USB
Preparation
Ñ Connecting a USB device
1 Remove the cap of the USB terminal.
2 Connect the USB device with the USB cable.
The unit reads the device and playback starts.
Ñ To disconnect the USB device:
1 Press the < > button.
2 Touch a source other than [USB].
3 Detach the USB device.
Ñ Usable USB device
This unit can play MPEG1/ MPEG2/ MPEG4/ H.264/
MKV/ MP3/WMA/ AAC/ WAV/ FLAC/ OGG les stored
in a USB mass storage class device. (P.23)
• File system: FAT16/ FAT32/ NTFS
• This unit can recognize a total of 9 999 files and
320 folders (a maximum of 9 999 files per folder).
• The maximum number of characters:
– Folder names : 70 characters
– File names : 70 characters
– Tag : 70 characters
✎NOTE
• When the USB device is connected to this unit, it can
be charged through the USB cable.
• Install the USB device in the place where it will not
affect safe driving.
• You cannot connect a USB device via a USB hub and
Multi Card Reader.
• Take backups of the audio files used with this unit.
The files may be erased depending on the operating
conditions of the USB device.
We shall have no compensation for any damage
arising from any erased data.
• No USB device comes with this unit. You need to
purchase a commercially available USB device.
• Cap the USB terminal whenever not using.
Playback operations
Ñ Control the music you are listening to on
the source control screen.
1
5
4
3
2
1The jacket of the currently playing file is displayed.
2Displays the information of the current file.
3Playing time/File number
Play time bar : For confirmation of current playing
position.
4[ ] : Selects Random playback mode.
: Randomly plays all files in the current
folder.
(Default): Normal playback.
[ ] : Selects Repeat playback mode.
(Default): Repeats all files in the USB
device.
: Repeats the current file.
: Repeats all files in the current folder.
[U], [H] : Plays or pauses.
[E], [F] : Searches the previous/next
content.
Touch and hold to fast forward or fast
backward.
[1] : Searches file. (P.9)
5[ ] : Returns to previous screen.
[ ] : Displays the Audio screen. (P.17)
19KWM_M_Ref_1En.indd 8 2019/07/16 8:53

9
English |
USB
Continued on the next page...Continued on the next page...
Ñ For Video playback
1 When the operation buttons are not displayed
on the screen, touch the display.
1
4
3
2
1[ ] : You can adjust image quality in video
screen.
[Brightness] : Adjusts the brightness. (00
to 10)
[Contrast] : Adjusts the contrast. (00 to 10)
[Color] : Adjusts the color. (00 to 10)
[Tint] : Adjusts the tint. (00 to 10)
[INITIALIZE] : To clear the adjustment.
2Playing time
Play time bar : For confirmation of current playing
position.
3[U], [H] : Plays or pauses.
[E], [F] : Searches the previous/next
content.
Touch and hold to fast forward or fast
backward.
[1] : Searches file. (P.9)
[NORMAL]/[16:9]/[4:3] : Select a screen mode.
4[ ] : Returns to previous screen.
[ ] : Displays the Audio screen. (P.17)
Ñ Selecting a track in a list (Searches le)
1 Touch [1].
2 Select whether you search by audio files [ ],
video files [ ].
3 Touch [ ] to moves to the upper hierarchy.
4 Touch the desired folder.
When you touch a folder its contents are displayed.
• Touch [6] to moves to the upper hierarchy.
5 Touch desired item from the content list.
Playback starts.
✎NOTE
• The source control screen appears when you touch
[6] at the top hierarchy.
19KWM_M_Ref_1En.indd 9 2019/07/16 8:53

10
iPod/iPhoneiPod/iPhone
Preparation
Ñ Connecting iPod/iPhone
• For Lightning connector models: Use USB
Audio cable for iPod/iPhone—KS-U62 (optional
accessory).
• For details about connecting iPod/iPhone, see
page 22 .
1 Remove the cap of the USB terminal.
2 Connect the iPod/iPhone.
The unit reads the device and playback starts.
Ñ To disconnect the iPod/iPhone
1 Press the < > button.
2 Touch a source other than [iPod].
3 Detach the iPod/iPhone.
Ñ Connectable iPod/iPhone
The following models can be connected to this unit.
Made for
• iPhone XS Max
• iPhone XS
• iPhone XR
• iPhone X
• iPhone 8 Plus
• iPhone 8
• iPhone 7 Plus
• iPhone 7
• iPhone SE
• iPhone 6s Plus
• iPhone 6s
• iPhone 6 Plus
• iPhone 6
• iPhone 5s
✎NOTE
• If you start playback after connecting the iPod, the
music that has been played by the iPod is played
first.
• Cap the USB terminal whenever not using.
Playback operations
Ñ Control the music you are listening to on
the source control screen.
1
5
4
3
2
1Artwork (Shown if the track contains artwork)
2Displays the information of the current file.
3Playing time/File number
Play time bar : For confirmation of current playing
position.
4[ ] : Selects Random playback mode.
: Functions the same as Shuffle Songs.
: Random off
[ ] : Selects Repeat playback mode.
: Functions the same as Repeat All.
: Functions the same as Repeat One.
: Repeat off
[U], [H] : Plays or pauses.
[E], [F] : Searches the previous/next
content.
Touch and hold to fast forward or fast
backward.
[1] : Searches content. (P.10)
5[ ] : Returns to previous screen.
[ ] : Displays the Audio screen. (P.17)
Ñ Selecting a content in a list
1 Touch [1].
2 Touch desired item.
When you touch a category its contents are
displayed.
3 Touch desired item from the content list.
Playback starts.
• Touch [6] to moves to the upper hierarchy.
✎NOTE
• The source control screen appears when you touch
[6] at the top hierarchy.
19KWM_M_Ref_1En.indd 10 2019/07/16 8:53

11
English |
Mirroring
Continued on the next page...

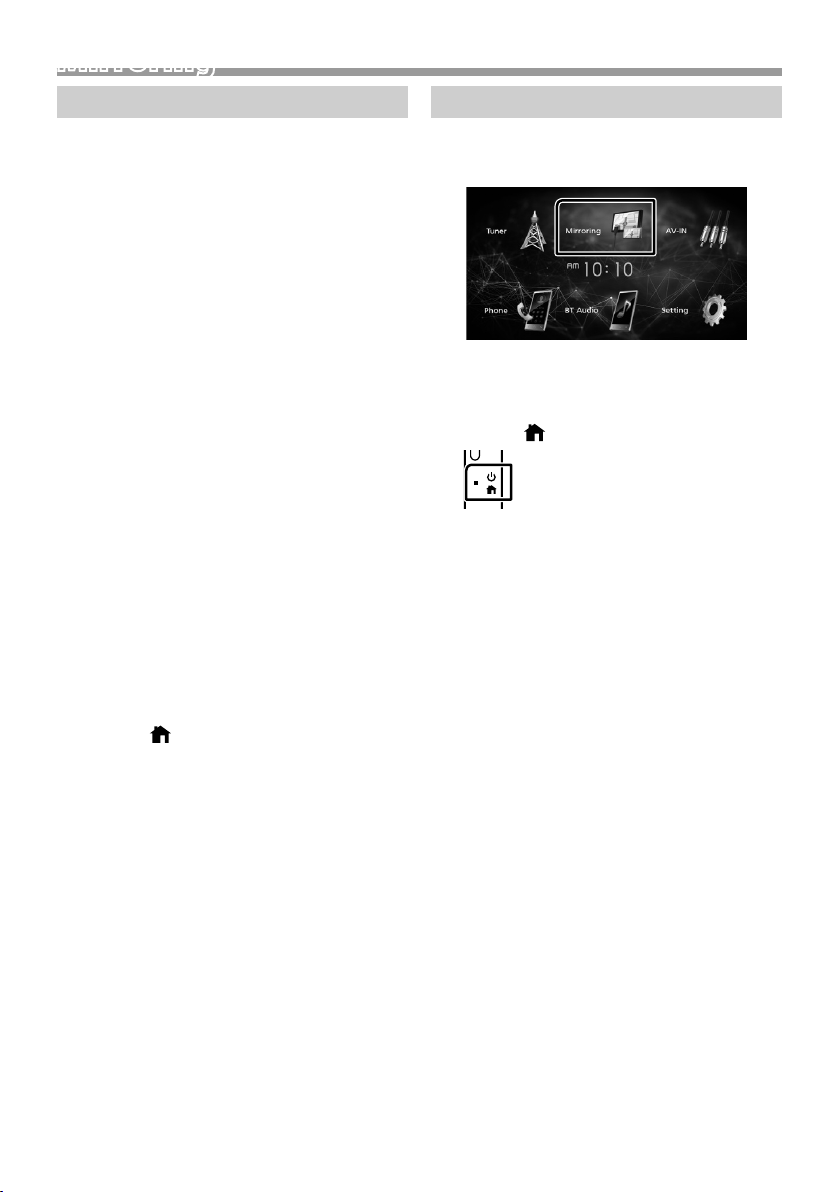

Mirroring
Preparation
You can display and control the App on the unit
while your smartphone is connected to the USB
terminal.
✎NOTE
• Pair your smartphone with the unit via Bluetooth.
See Register your smartphone to the unit
(P.14)and Connect the Bluetooth device.
Ñ Compatible Android smartphone
• Android version 7.0 or later
• Bluetooth support
✎NOTE
• This unit may not work for some Android
smartphone’s.
Ñ Connecting Android smartphone
1 Download Mirroring App from Google Play.
Install the latest version of the Mirroring application
“Mirroring OB for JVC” on your Android.
2 Remove the cap of the USB terminal.
3 Connect the Android smartphone. (P.22)
4 Launch Mirroring App on your Android
Smartphone.
Touch “OK”to start Mirroring App.
Touch “Start now” to start capturing your Android
screen.
5 Start to enjoy Mirroring.
Ñ To disconnect the Android smartphone
1 Press the < > button.
2 Touch a source other than [Mirroring].
3 Detach the Android smartphone.
Mirroring operations
Ñ Mirroring Operation
1 Touch [Mirroring].
• You can display the same screen of the Android
device on the monitor of the unit.
Ñ To turn o the Mirroring
1 Press the < > button.
• HOME screen appears.
19KWM_M_Ref_1En.indd 11 2019/07/16 8:53

12
External ComponentsExternal Components

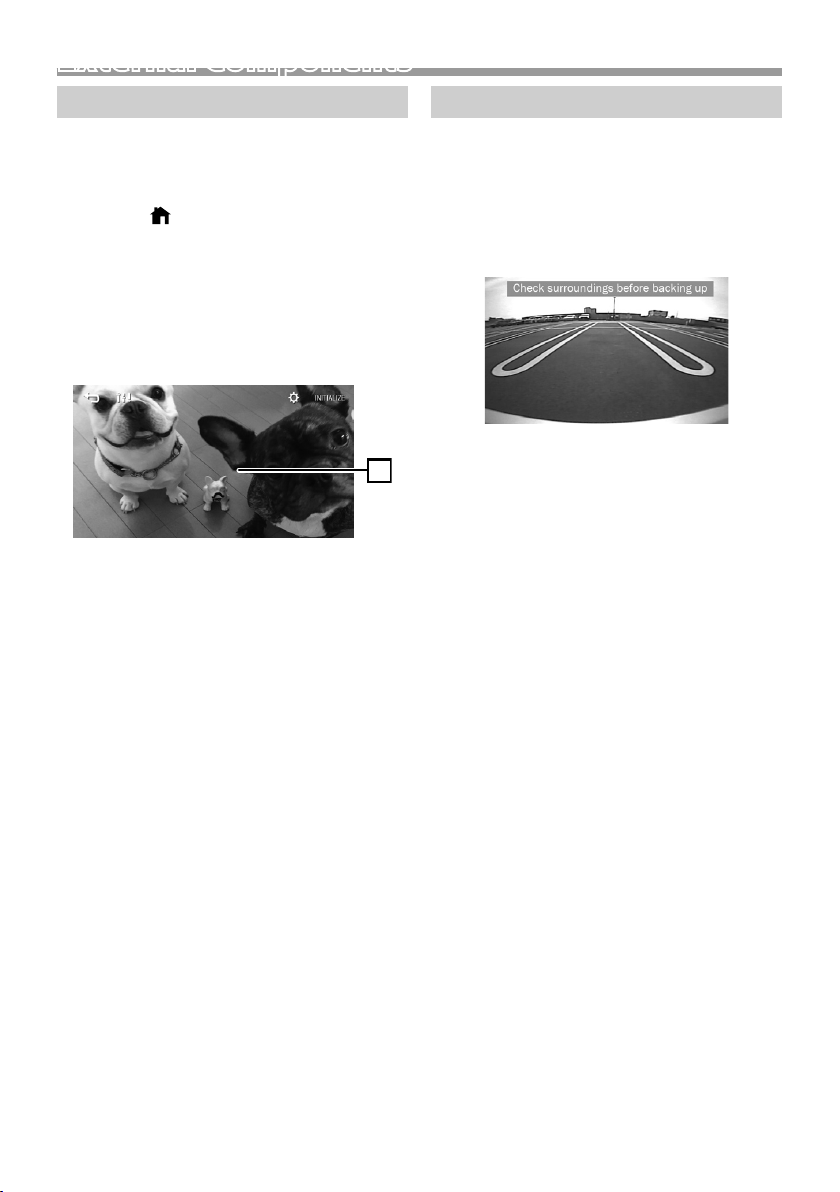

Using external audio/video players
Ñ Starting playback
1 Connect an external component to the AV-IN
input terminal. (P.21)
2 Press the < > button.
3 Touch [AV-IN].
4 Turn on the connected component and start
playing the source.
Ñ For Video playback
1 When the operation buttons are not displayed
on the screen, touch the display.
1
✎NOTE
• When the picture from the rear view camera is
displayed on the AV-IN screen, the picture output
from the Visual Output terminal disappears.
Rear view camera
To use a rear view camera, the REVERSE lead
connection is required. For connecting a rear view
camera. (P.21)
Ñ Displaying the picture from the rear
view camera
The rear view screen is displayed when you shift the
gear to the reverse (R) position.
• To erase the caution message, touch the screen.
19KWM_M_Ref_1En.indd 12 2019/07/16 8:53

13
English |
External Components
Continued on the next page...
Ñ To adjust the parking guidelines
✎NOTE
• Install the rear view camera in the appropriate
position according to the instruction manual
supplied with the rear view camera.
• When adjusting the parking guidelines, make sure
to apply the parking brake to prevent the car from
moving.
1 Press the < > button.
2 Touch [Setting].
3 Touch [System].
4 Touch [T] or [U] of [Parking Guidelines] and set
to [ON].
5 Touch [Guidelines SETUP].
6 Adjust the parking guidelines by selecting the
[ ] mark.
7 Adjusting the position of the selected mark.
A
B
C D
Make sure that lines A and B are horizontally
parallel, and that lines C and D are of the same
length.
✎NOTE
• Touch [Initialize] and then touch [Yes] to set all the
marks to their initial default position.
Learning function of steering
remote
This function is available only when your vehicle
is equipped with the electrical steering remote
controller.
1 Press the < > button.
2 Touch [Setting].
3 Touch [System].
4 Touch [Steering Remote].
5 Touch the function you want to set.
6 Press and hold the steering remote controller
button.
✎NOTE
• You can have the unit learned all buttons at a time.
In that case, press the all buttons one at a time and
after pressing all of them, touch [6] in Steering
Remote Controller Setting screen.
7 Repeat steps 5 and 6 as necessary.
8 Touch [6].
✎NOTE
• Touch [Initialize] and then touch [Yes] to set all the
settings to the initial default settings.
19KWM_M_Ref_1En.indd 13 2019/07/16 8:53

14
Bluetooth

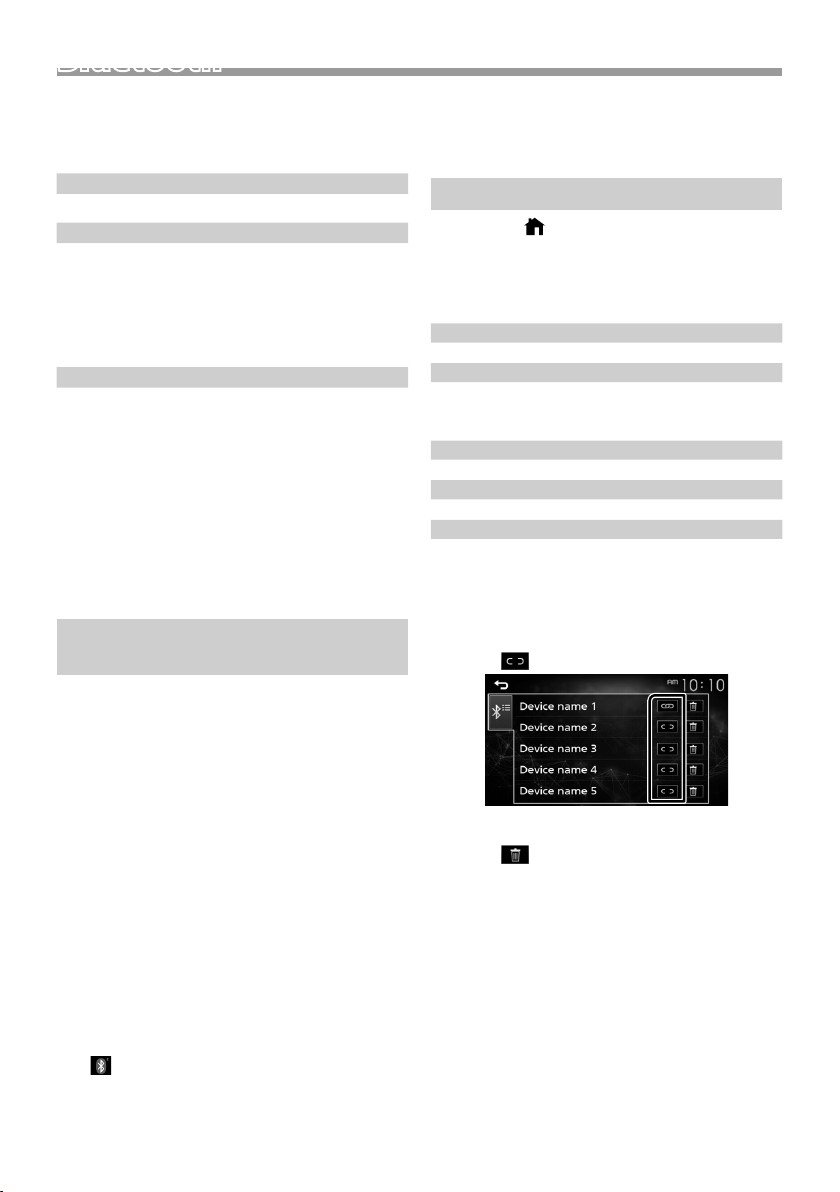

Ñ About the Bluetooth smartphone and
Bluetooth audio player
This unit conforms to the following Bluetooth
specications:
Version
Bluetooth Ver.4.2
Prole
Smartphone/ Cell-phone:
HFP (V1.6) (Hands Free Profile)
PBAP (Phonebook Access Profile)
Audio player:
A2DP (Advanced Audio Distribution Profile)
AVRCP (V1.5) (Audio/Video Remote Control Profile)
Sound codec
SBC
Ñ About mobile phones compatible with
Phone book Access Prole (PBAP)
If your mobile phone supports PBAP, you can
display the following items on the touch panel
screen when the mobile phone is connected.
• Phone book (up to 1000 entries)
• Dialed calls, received calls, and missed calls (up to 50
entries in total)
Register your smartphone to the
unit
You can use your Bluetooth smartphone when
paired to this unit.
You can register up to 8 Bluetooth devices.
• You can pair the device and the unit using SSP
(Secure Simple Pairing) which only requires
confirmation.
• One device can be connected at a time.
• When you register a new Bluetooth device,
disconnect the Bluetooth device currently
connected and then register the new device.
• A new device cannot be registered if there are 8
registered Bluetooth units. Delete unnecessary
registration. (P.14)
1 Turn on the Bluetooth function on your
smartphone/cell-phone.
2 Search the unit (“KW-M150BT”) from your
smartphone/cell-phone.
If a PIN code is required, enter the PIN code
(“0000”).
• appears when the Bluetooth smartphone is
connected.
Ñ Disconnecting the device
• Turn off the Bluetooth function from your
smartphone/cell-phone.
• Turn off the ignition switch.
Bluetooth Setup
1 Press the < > button.
2 Touch [Setting].
3 Touch [Bluetooth].
4 Touch the corresponding key and set the value.
[Select Device]
Connect the Bluetooth device.
[Phone Auto Answer]
Set the automatic response time to pick-up an
incoming call.
“OFF” (Default) / “ON”
[Device Name]
The Bluetooth device name of this unit is displayed.
[Pin Code]
Displays the PIN code.
[Device address]
Displays the device address.
Ñ Connect the Bluetooth device
1 Touch [Select Device] on the Bluetooth Setup
screen.
2 Touch [ ] of the device you want to connect.
To delete the registered Bluetooth device
1 Touch [ ] on the Select Device screen.
Bluetooth
19KWM_M_Ref_1En.indd 14 2019/07/16 8:53

15
English |
Bluetooth
Continued on the next page...
Receive a phone call
1 Touch [Û].
• [Ý] : Reject an incoming call.
Ñ Operations during a call
[Ý]Ending a call
You can send tones by touching desired keys
on the screen.
• Touch [6] to close the window.
Switches the speaking voice output between
smartphone/cell-phone and speaker.
⿠Adjust the receiver volume
Press the <+> or <–> button.
Make a phone call
1 Press the < > button.
2 Touch [Phone].
3 See the table below for each operation method.
Call by entering a phone number
1) Enter a phone number with number keys.
2) Touch [Û].
Make a call
• Touch [ ] to delete the last entry.
Call using call records
1) Touch [ ].
2) Touch [ ] (Incoming Calls), [ ] (Outgoing
Calls), [ ] (Missed Calls).
3) Select the phone number from the list.
Make a call
Call using the phonebook
1) Touch [ ].
2) Select the name from the list.
Make a call
• [ ] : Updates the phonebook. Touch this
button after you have made a change
to the phonebook of your smartphone/
cell-phone.
19KWM_M_Ref_1En.indd 15 2019/07/16 8:53

16
Bluetooth

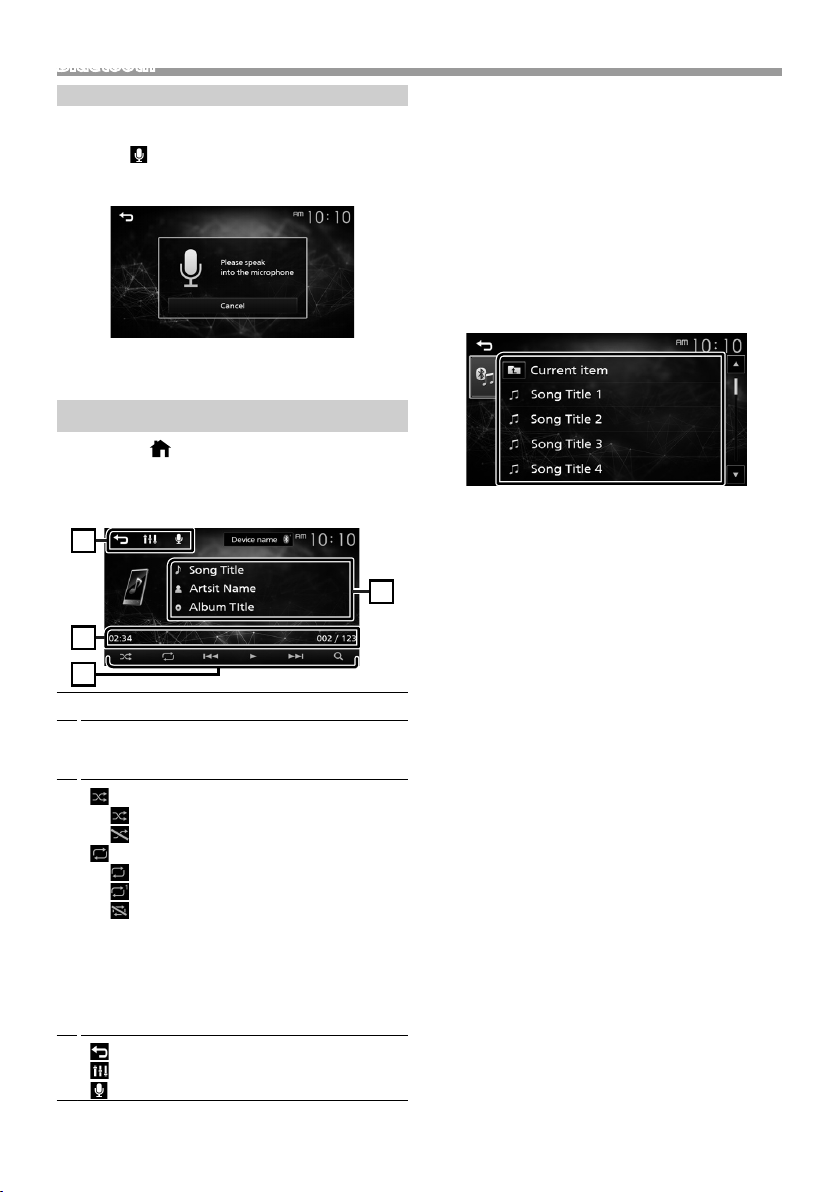

Call by voice
You can make a voice call using the voice
recognition function of the Bluetooth smartphone.
1) Touch [ ].
2) Say the name registered in the Bluetooth
smartphone.
• Touch [Cancel] to cancel voice dialing.
Playing Bluetooth Audio Device
1 Press the < > button.
2 Touch [BT Audio].
Ñ Source control screen
1
4
3
2
1Displays the information of the current file.
2Playing time/File number
Play time bar : For confirmation of current playing
position.
3[ ] : Selects Random playback mode.
: Randomly plays all files.
: Random off
[ ] : Selects Repeat playback mode.
: Repeats all files.
: Repeats the current file.
: Repeat off
[U], [H] : Plays or pauses.
[E], [F] : Searches the previous/next
content.
Touch and hold to fast forward or fast
backward.
[1] : Searches file. (P.16)
4[ ] : Returns to previous screen.
[ ] : Displays the Audio screen. (P.17)
[ ] : Displays the Voice Recognition screen.*
✎NOTE
• Operations and display indications may differ
according to their availability on the connected
device.
* You can access the voice recognition function
of the Bluetooth smartphone connected to this
unit. (The functionality depends on the Bluetooth
smartphone.)
Ñ Selecting a content in a list
1 Touch [1].
2 Touch desired item.
When you touch a category its contents are
displayed.
3 Touch desired item from the content list.
Playback starts.
• Touch [6] to moves to the upper hierarchy.
✎NOTE
• The source control screen appears when you touch
[6] at the top hierarchy.
19KWM_M_Ref_1En.indd 16 2019/07/16 8:53

17
English |
Controlling Audio
Continued on the next page...
You can adjust various settings such as audio
balance or subwoofer level.
1 Press the <EQ> button.
2 See the below for each operation method.
Controlling General Audio
1 Press the <EQ> button.
2 Touch [Fader / Balance].
3 Set each item as follows.
[Fader Balance]
Balance
[U] [T]
Adjust the left and right volume
balance.
15 (right) to 15 (left)
Fader
[R] [S]
Adjust the front and rear volume
balance.
15 (front) to 15 (rear)
[INITIALIZE] To clear the adjustment.
[Listening Position]
[.]Select a listening position from “Front
Left”, “Front All”, “Front Right”, and
“Middle”.
[INITIALIZE] To clear the adjustment.
Equalizer Control
1 Press the <EQ> button.
2 Touch [Equalizer].
3 Set each item as follows.
1
2
3
4
1You can select frequency bar and adjust its level.
(-9 to +9)
• The adjustments are stored.
2To recall the preset equalizer curve.
3Recalls the memorized EQ curve.
4Initialize the current EQ curve.
Speaker / X’Over setup
1 Press the <EQ> button.
2 Touch [Speaker / X’Over].
3 Touch the speaker to set up.
4 Set each item as follows.
Mode
[OFF], [ON]
[ON] : Filter adjustment.
[OFF] : Turns off the filter.
Slope
[R] [S]
Set a crossover slope.
Frequence
[R] [S]
• High Pass Filter adjustment. (When
Front or Rear is selected)
• Low Pass Filter adjustment. (When
Subwoofer is selected)
Level
[R] [S]
Adjust the gain of the front speaker,
rear speaker, or subwoofer.
Phase
Inversion
Set the phase of subwoofer output.
[ ] to shift the phase 180 degrees.
(When Subwoofer is selected)
[INITIALIZE] To clear the adjustment.
Controlling Audio
19KWM_M_Ref_1En.indd 17 2019/07/16 8:53

18
Controlling Audio

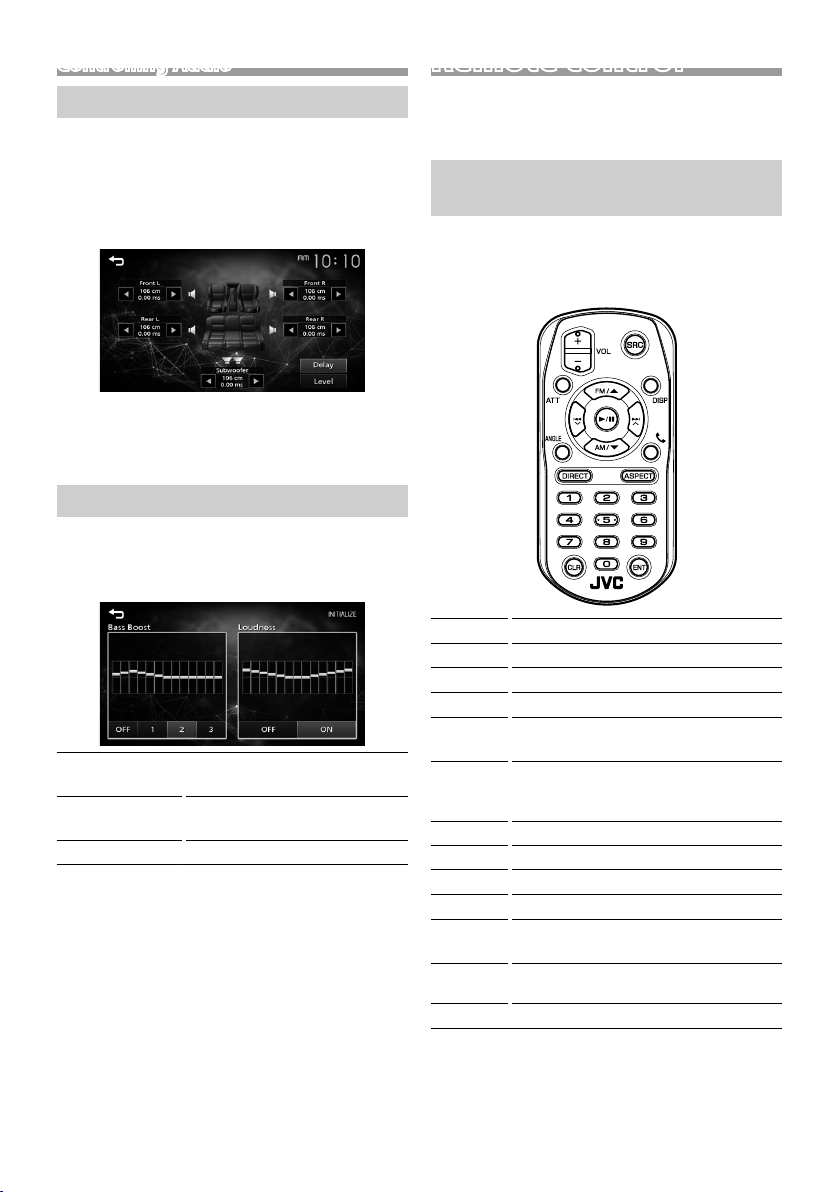

Listening Position / DTA
1 Press the <EQ> button.
2 Touch [Position / DTA].
3 Touch [Delay].
4 Touch [T] or [U] to adjust the delay time of the
selected speaker.
5 Touch [Level].
6 Touch [T] or [U] to adjust the sound level of the
selected speaker.
Sound Eect
1 Press the <EQ> button.
2 Touch [Sound Effect].
3 Set each item as follows.
Bass Boost
[OFF], [1], [2], [3]
Set the amount of bass boost
Loudness
[OFF], [ON]
Set the amount of boost of low
and high tones.
[INITIALIZE] To clear the adjustment.
Remote control
This unit can be operated using the remote control.
The remote control RM-RK258 (optional accessory)
can be used.
Functions of the Remote control
Buttons
• Aim the remote control directly at the remote sensor
on the faceplate.
• DO NOT expose the remote sensor to bright light
(direct sunlight or artificial lighting).
SRC Switches to the source to be played.
VOL + – Adjusts the volume.
ATT Mutes/restores the sound
DISP Not used.
FM/R
AM/S
During tuner source, select FM/ AM band
to be received.
E 2
F 3
Selects the track or file to be played.
During tuner source, switches to
broadcast stations received by the unit.
ANGLE Not used.
ÛWhen a call comes in, answers the call.
DIRECT Not used.
ASPECT Not used.
Numeric
Keypad
Not used.
CLR Clears the telephone number input on
the Phone screen.
ENT Not used.
19KWM_M_Ref_1En.indd 18 2019/07/16 8:53

19
English |
Installation
Continued on the next page...
Installation
Before Installation
Before installation of this unit, please note the
following precautions.
#WARNINGS
• If you connect the ignition wire (red) and the battery
wire (yellow) to the car chassis (ground), you may
cause a short circuit, that in turn may start a fire.
Always connect those wires to the power source
running through the fuse box.
• Do not cut out the fuse from the ignition wire (red)
and the battery wire (yellow). The power supply
must be connected to the wires via the fuse.
#CAUTION
• Install this unit in the console of your vehicle.
Do not touch the metal part of this unit during and
shortly after the use of the unit. Metal part such as
the heat sink and enclosure become hot.
✎NOTE
• Mounting and wiring this product requires skills and
experience. For best safety, leave the mounting and
wiring work to professionals.
• Make sure to ground the unit to a negative 12V DC
power supply.
• Do not install the unit in a spot exposed to direct
sunlight or excessive heat or humidity. Also avoid
places with too much dust or the possibility of water
splashing.
• Do not use your own screws. Use only the screws
provided. If you use the wrong screws, you could
damage the unit.
• If your car’s ignition does not have an ACC position,
connect the ignition wires to a power source that
can be turned on and off with the ignition key. If you
connect the ignition wire to a power source with a
constant voltage supply, such as with battery wires,
the battery may be drained.
• If the console has a lid, make sure to install the unit
so that the front panel will not hit the lid when
closing and opening.
• If the fuse blows, first make sure the wires aren’t
touching to cause a short circuit, then replace the
old fuse with one with the same rating.
• Insulate unconnected wires with vinyl tape or other
similar material. To prevent a short circuit, do not
remove the caps on the ends of the unconnected
wires or the terminals.
• Secure the wires with cable clamps and wrap vinyl
tape around the wires that comes into contact with
metal parts to protect the wires and to prevent short
circuit.
• Connect the speaker wires correctly to the terminals
to which they correspond. The unit may be
damaged or fail to work if you share the ¤wires or
ground them to any metal part in the car.
• When only two speakers are being connected to
the system, connect the connectors either to both
the front output terminals or to both the rear output
terminals (do not mix front and rear). For example,
if you connect the ¢connector of the left speaker
to a front output terminal, do not connect the ¤
connector to a rear output terminal.
• After the unit is installed, check whether the brake
lamps, blinkers, wipers, etc. on the car are working
properly.
• Mount the unit so that the mounting angle is 30°
or less.
• Do not press hard on the panel surface when installing
the unit to the vehicle. Otherwise scars, damage, or
failure may result.
• Reception may drop if there are metal objects near
the Bluetooth antenna.
Bluetooth antenna unit
19KWM_M_Ref_1En.indd 19 2019/07/16 8:53

20
Installation
Ñ Supplied accessories for installation
1
x1
2
x1
3(2 m)
x1
4(3 m)
x1
5
(M5 × 6 mm) x6
6
(M5 × 8 mm) x6
Ñ Installation procedure
1) To prevent a short circuit, remove the key from
the ignition and disconnect the ¤terminal of the
battery.
2) Make the proper input and output wire
connections for each unit.
3) Connect the wire on the wiring harness.
4) Take Connector B on the wiring harness and
connect it to the speaker connector in your vehicle.
5) Take Connector A on the wiring harness and
connect it to the external power connector on your
vehicle.
6) Connect the wiring harness connector to the unit.
7) Install the unit in your car.
8) Reconnect the ¤terminal of the battery.
9) Press the reset button.
Installing the unit
Ñ Japanese cars (North America, South
America sales area only)
5or 6
5or 6
Car Bracket
Ñ Microphone unit
1) Check the installation position of the microphone
(accessory 4).
2) Clean the installation surface.
3) Remove the separator of the microphone
(accessory 4), and stick the microphone to the
place shown below.
4) Wire the microphone cable up to the unit with it
secured at several positions using tape or other
desired method.
5) Adjust the direction of the microphone (accessory
4) to the driver.
4
Fix a cable with a commercial item of tape.
✎NOTE
• Swap the clips if necessary.
19KWM_M_Ref_1En.indd 20 2019/07/16 8:53
