JVC HR-XVC1U User manual

Serial Number
IMPORTANT NOTE TO THE CUSTOMER:
In the space below, enter the serial number for your
television (located on the rear of the television cabinet).
Staple your sales receipt or invoice to the inside cover of this guide.
Keep this user's guide in a convenient place for future reference.
Keep the carton and original packaging for future use.
For model:
HR-XVC1U
DVD/VIDEO CASSETTE RECORDER
USER’S GUIDE
¤
T
V
/
V
C
R
C
H
+
TV VCR DVD
POWER
DVD MENU
MARKER RETURN
OPEN/
CLOSE
DISPLAY A.TRK C.RESET
ZERO RETURN
SUB TITLE
ANGLE
SEARCH
MODE
SP/EP
PLAY
MODE
ZOOM TITLE
REPEAT
A-B
TV
POWER
INPUT
TV VOL
0
TIMER TV/VCR
REW
PLAY
FF
REC
STOP
PAUSE
SKIP
/INDEX SKIP /INDEX
T
V
/
V
C
R
C
H
—
SET SET
ENTER/
SELECT
SET UP
MENU
CANCEL
OSD
A.MONITOR
SLOW
SKIP
SEARCH
VCR/DVD/TV

All manuals and user guides at all-guides.com
all-guides.com

2

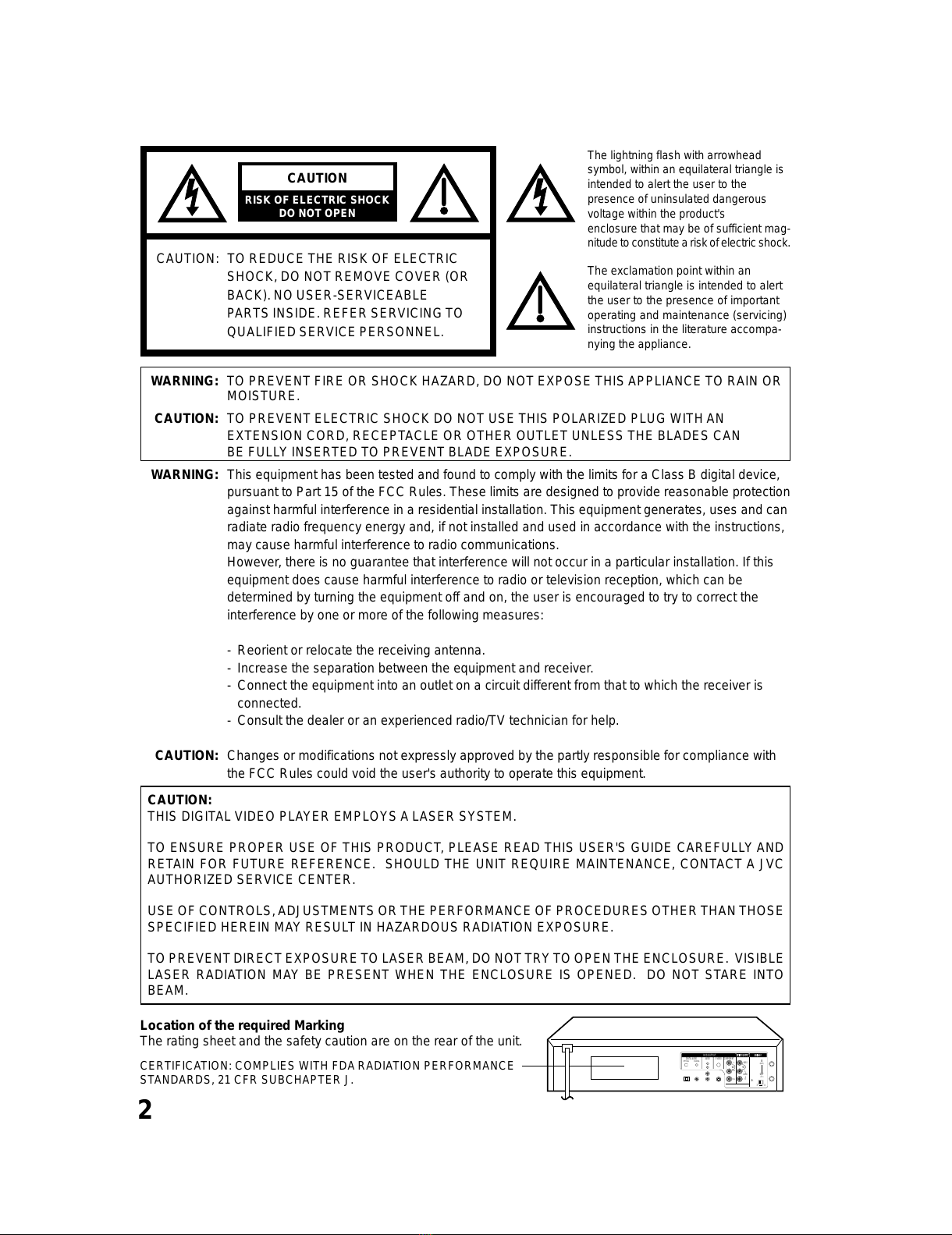

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.
CAUTION: TO PREVENT ELECTRIC SHOCK DO NOT USE THIS POLARIZED PLUG WITH AN
EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN
BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
CAUTION:
THIS DIGITAL VIDEO PLAYER EMPLOYS A LASER SYSTEM.
TO ENSURE PROPER USE OF THIS PRODUCT, PLEASE READ THIS USER'S GUIDE CAREFULLY AND
RETAIN FOR FUTURE REFERENCE. SHOULD THE UNIT REQUIRE MAINTENANCE, CONTACT A JVC
AUTHORIZED SERVICE CENTER.
USE OF CONTROLS,ADJUSTMENTS OR THE PERFORMANCE OF PROCEDURES OTHERTHAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
TO PREVENTDIRECT EXPOSURE TO LASER BEAM, DO NOT TRYTO OPEN THE ENCLOSURE. VISIBLE
LASER RADIATION MAY BE PRESENT WHEN THE ENCLOSURE IS OPENED. DO NOT STARE INTO
BEAM.
Location of the required Marking
The rating sheet and the safety caution are on the rear of the unit.
CERTIFICATION: COMPLIES WITH FDA RADIATION PERFORMANCE
STANDARDS, 21 CFR SUBCHAPTER J.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
The lightning flash with arrowhead
symbol, within an equilateral triangle is
intended to alert the user to the
presence of uninsulated dangerous
voltage within the product's
enclosure that may be of sufficient mag-
nitudetoconstitutearisk of electric shock.
The exclamation point within an
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance (servicing)
instructions in the literature accompa-
nying the appliance.
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR
BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIEDSERVICE PERSONNEL.
WARNING: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
CAUTION: Changes or modifications not expressly approved by the partly responsible for compliance with
the FCC Rules could void the user's authority to operate this equipment.
3
CH.
IN
OUT
ANT.
DIGITAL AUDIO AUDIO S-VIDEO COMPONENT
DVD OUTPUT
L
R
VIDEO
OPTICAL COAXIAL
AUDIO
L
R
4
( )
TV
( )
Y
P B /C B
P R /C R
All manuals and user guides at all-guides.com

3
Important safeguards
1. READ INSTRUCTIONS
All the safety and operating instructions should be read before the unit is operated.
2. RETAIN INSTRUCTIONS
The safety and operating instructions should be retained for future reference.
3. HEED WARNINGS
All warnings on the unit and in the operating instructions should be adhered to.
4. FOLLOW INSTRUCTIONS
All operating and use instructions should be followed.
5. CLEANING
Unplug this unit from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.
Use a damp cloth for cleaning the exterior cabinet only.
6. ATTACHMENTS
The manufacturer of this unit does not make any recommendations for attachments, as they may cause
hazards.
7. WATER AND MOISTURE
Do not use this unit near water. For example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet
basement, or near a swimming pool.
8. ACCESSORIES
Do not place this unit on an unstable cart, stand, tripod, bracket, or table.
The unit may fall, causing serious injury, and serious damage to the unit.
8A. An appliance and cart combination should be moved with care. Quick stops,
excessive force, and uneven surfaces may cause the appliance and cart
combination to overturn.
9. VENTILATION
Slots and openings in the cabinet back or bottom are provided for ventilation,
and to ensure reliable operation of the unit, and to protect it from overheating.
These openings must not be blocked or covered. The openings should never be blocked by placing the unit
on a bed, sofa, rug, or other similar surface. This unit should never be placed near or over a radiator or heat
source. This unit should not be placed in a built-in installations such as a bookcase or rack unless proper
ventilation is provided or the manufacturer’s instructions have been adhered to.
10. POWER SOURCES
This unit should be operated only from the type of power source indicated on the rating plate. If you are not
sure of the type of power supply to your home, consult your appliance dealer or local power company. For
units intended to operate from battery power, or other sources, refer to the operating instructions.
11. GROUNDING OR POLARIZATION
This unit is equipped with a polarized alternating-current line plug (a plug having one blade wider than the
other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert
the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to
replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug, if your unit is equipped
with a 3-wire grounding-type plug, a plug having a third (grounding) pin. This plug will only fit into a ground-
ing-type power outlet. This too, is a safety feature. If you are unable to insert the plug into the outlet, contact
your electrician to replace your obsolete outlet.
Do not defeat the safety purpose of the grounding-type plug.
12. POWER-CORD PROTECTION
Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed
upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point
where they exit from the appliance.
S3126A
PORTABLE CART WARNING
(symbol provided by RETAC)
All manuals and user guides at all-guides.com

4
13. LIGHTNING
To protect your unit from a lightning storm, or when it is left unattended and unused for long periods of time,
unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the
unit due to lightning and power line surges.
14. POWER LINES
An outside antenna system should not be located in the vicinity of overhead power lines or other electric
light or power circuits, or where it can fall into such power lines or circuits. When installing an outside
antenna system, extreme care should be taken to keep from touching such power lines or circuits, as
contact with them might be fatal.
15. OVERLOADING
Do not overload wall outlets and extension cords, as this can result in a risk of fire or electric shock.
16. OBJECT AND LIQUID ENTRY
Do not push objects through any openings in this unit, as they may touch dangerous voltage points or short
out parts that could result in fire or electric shock. Never spill or spray any type of liquid into the unit.
17. OUTDOOR ANTENNA GROUNDING
If an outside antenna or cable system is connected to the unit, be sure the antenna or cable system is
grounded to provide some protection against voltage surges and built-up static charges, Section 810 of the
National Electrical Code, ANSI/NFPA 70, provides information with respect to proper grounding of the mast
and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding
conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for
the grounding electrode.
18. SERVICING
Do not attempt to service this unit yourself as opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified service personnel.
19. DAMAGE REQUIRING SERVICE
Unplug this unit from the wall outlet and refer servicing to qualified service personnel under the following
conditions:
a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the unit.
c. If the unit has been exposed to rain or water.
d. If the unit does not operate normally by following the operating instructions. Adjust only those
controls that are covered by the operating instructions, as an improper adjustment of other controls
may result in damage and will often require extensive work by a qualified technician to restore the
unit to its normal operation.
e. If the unit has been dropped or the cabinet has been damaged.
f . When the unit exhibits a distinct change in performance, this indicates a need for service.
20. REPLACEMENT PARTS
When replacement parts are required, be sure the service technician uses replacement parts specified by
the manufacturer or those that have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric shock or other hazards.
21. SAFETY CHECK
Upon completion of any service or repairs to this unit, ask the service technician to perform safety checks to
determine that the unit is in proper operating condition.
22. HEAT
The product should be situated away from heat sources such as radiators, heat registers, stoves, or other
products (including amplifiers) that produce heat.
23. DISC TRAY
Keep your fingers well clear of the disc tray as it is closing. It may cause serious personal injury.
24. CONNECTING
When you connect the product to other equipment, turn off the power and unplug all of the equipment from
the wall outlet. Failure to do so may cause an electric shock and serious personal injury. Read the owner's
manual of the other equipment carefully and follow the instructions when making any connections.
Important safeguards
All manuals and user guides at all-guides.com

5

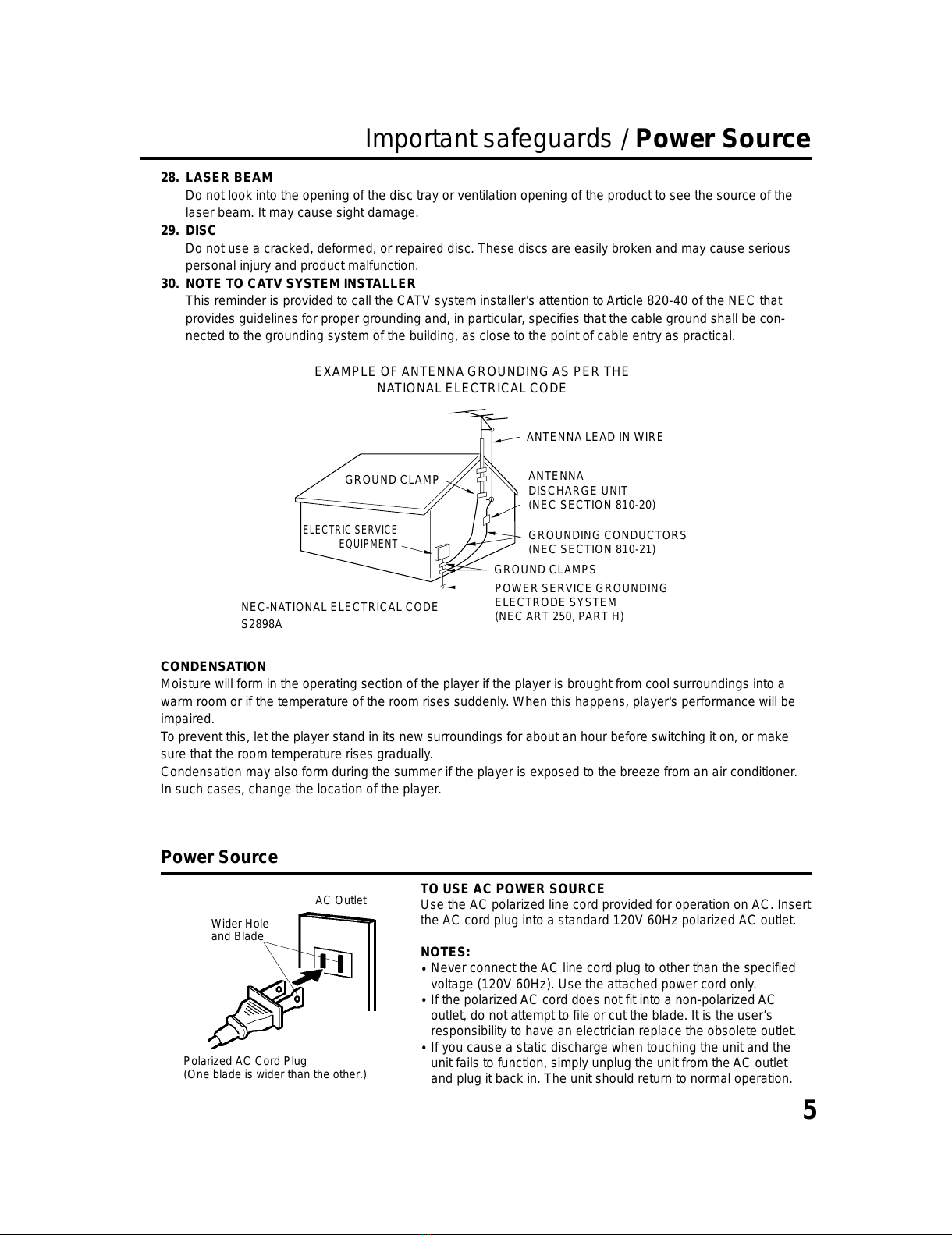

EXAMPLE OF ANTENNA GROUNDING AS PER THE
NATIONAL ELECTRICAL CODE
CONDENSATION
Moisture will form in the operating section of the player if the player is brought from cool surroundings into a
warm room or if the temperature of the room rises suddenly. When this happens, player's performance will be
impaired.
To prevent this, let the player stand in its new surroundings for about an hour before switching it on, or make
sure that the room temperature rises gradually.
Condensation may also form during the summer if the player is exposed to the breeze from an air conditioner.
In such cases, change the location of the player.
28. LASER BEAM
Do not look into the opening of the disc tray or ventilation opening of the product to see the source of the
laser beam. It may cause sight damage.
29. DISC
Do not use a cracked, deformed, or repaired disc. These discs are easily broken and may cause serious
personal injury and product malfunction.
30. NOTE TO CATV SYSTEM INSTALLER
This reminder is provided to call the CATV system installer’s attention toArticle 820-40 of the NEC that
provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be con-
nected to the grounding system of the building, as close to the point of cable entry as practical.
TO USE AC POWER SOURCE
Use the AC polarized line cord provided for operation on AC. Insert
the AC cord plug into a standard 120V 60Hz polarized AC outlet.
NOTES:
•Never connect the AC line cord plug to other than the specified
voltage (120V 60Hz). Use the attached power cord only.
•If the polarized AC cord does not fit into a non-polarized AC
outlet, do not attempt to file or cut the blade. It is the user’s
responsibility to have an electrician replace the obsolete outlet.
•If you cause a static discharge when touching the unit and the
unit fails to function, simply unplug the unit from the AC outlet
and plug it back in. The unit should return to normal operation.
Polarized AC Cord Plug
(One blade is wider than the other.)
AC Outlet
Wider Hole
and Blade
Power Source
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
ANTENNA LEAD IN WIRE
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
GROUND CLAMP
ELECTRIC SERVICE
EQUIPMENT
NEC-NATIONAL ELECTRICAL CODE
S2898A
Important safeguards / Power Source
All manuals and user guides at all-guides.com

6
Features
VCR/DVD/CD Player
•VCR With DVD/CD player - Unique space saving design combines a Hi-Fi Video cassette recorder and a DVD/CD
player. The DVD disc has much more capacity, but is the same size as the audio CD disc. Picture quality is higher
than Super VHS. Audio quality is higher than audio CD. The DVD PLAYER can play back video CDs and audio CDs.
•High Quality Picture - More than 500 lines(VCR mode: 230 lines) of Horizontal Resolution. It exceeds Super VHS
(400 lines) or Laser Disc (430 lines) in resolution.
VCR Section
•Stereo/SAP Reception - This VCR is designed to receive stereo and separate audio program (SAP) broadcasts
where available.
•SQPB - Tapes recorded in the S-VHS system can be played back simply on this VCR.
•4 Video Heads - Provides optimal picture quality for special effects playback.
•19µm HEAD - For superior picture quality even in EP mode, 19micron width technology heils to avoid crosstalk and
boost EP picture quality to near SP levels. With procision technology, ghosts and color beats are virtually eliminated.
•Hi-Fi Stereo Sound - With a frequency response of 20 to 20,000 Hz and a dynamic range of better than 90dB, this
VCR provides a level of excellence that rivals compact discs.
•Instant Timer Recording (ITR) - Simply by pressing the REC and PLAY buttons, the VCR can be programmed for
up to 5 hours of recording with an immediate start.
•Skip Search - When the SKIP SEARCH button is pressed during playback, the VCR will automatically search
forward in 30 second increments to a maximum of 3 minutes with each press of the SKIP SEARCH button, and then
return to normal playback.
DVD Section
•Compatible with a wide range of DVD audio outputs
Digital Audio Jack (Optical or Coaxial):
•When a component with a built-in Dolby Digital decoder is connected, Dolby Digital sound can produce the effect
of being in a movie theater or a concert hall.
•Surround standard different from Dolby Digital. This format is already in use in many theaters. By connecting this
unit to a DTS decoder or an AV amplifier with a built-in DTS decoder, the DTS audio of DVD discs recorded in this
format can be enjoyed. However, audio will not be output from the analog audio output jacks.
•By connecting this unit to an AV amplifier with a built-in MPEG decoder, the MPEG audio of DVD discs recorded in
this format can be enjoyed.
•The Linear PCM sound of a 48 kHz/16 bit through 96 kHz/20 bit exceeds audio CD sound.
•Surround audio - This DVD equipped with a “Spatializer 3D surround system”. It can produce the effect of being in a
cinema or a concert hall.
•Multi-Language - Since this DVD matches with 124 language-subtitles/-soundtracks, you can enjoy selecting a
favorite one. (You can not select the language that is not recorded on the disc.)
•Multi-Angle - Pictures of Sports or a Live Concert are recorded with many cameras. When you play such a disc, you
can change the angles during playback. (If a Multi-Angle is not recorded on the disc, you can not change the angle.)
•Repeat Playback - You can repeat chapter, track, title, sides or material between two selected points.
•Program/Random Playback (Audio CD) - You can play back tracks in programmed or random-selected sequences.
•Zoom (DVD only) - You can zoom in on the selected subject on the screen during playback.
•Video Aspect Ratio - You can change the aspect ratio of the screen for your monitor/television on a suitable disc.
•Parental Control - You can limit the playback of scenes or sounds of adult DVD discs which have a parental level
rating.
This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents
and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright
protection technology must be authorized by Macrovision Corporation or other rights owners and is intended for home
and other limited viewing uses only unless otherwise authorized by Macrovision Corporation or other rights owners.
Reverse engineering or disassembly is prohibited.
Manufactured under license from Dolby Laboratories. “Dolby”and the double-D symbol are trademarks of Dolby
Laboratories. Confidential unpublished works. © 1992-1997 Dolby Laboratories, Inc. All rights reserved.
“DTS”and “DTS Digital Out”are trademarks of Digital Theater Systems, Inc.
Certain audio features of this product manufactured under license from Desper Products,Inc. Spatializer and the circle
- in - square device are trademarks owned by Desper Products,Inc.
Unauthorized recording of copyrighted television programs, films, video cassettes and other materials may
infringe the rights of copyright owners and be contrary to copyright laws.
*
*
*
*
*
All manuals and user guides at all-guides.com
all-guides.com

7
Contents
IMPORTANT SAFEGUARDS .............................................. 3
Power source ....................................................................... 5
Features ............................................................................... 6
Contents............................................................................... 7
Parts and functions .............................................................. 8
Remote control..................................................................... 9
Antenna connections.......................................................... 11
Cable TV connections ........................................................ 12
Before using your unit
Disc .................................................................................... 25
Setting setup language ...................................................... 26
Playback procedure ........................................................... 27
Special playback ................................................................ 28
Playback operation
Zooming ............................................................................. 29
Repeat playback................................................................. 30
Program playback/Random playback (Audio CD).............. 31
Changing soundtrack language ......................................... 32
Subtitles ............................................................................. 33
Changing angles/Title selection/DVD menu....................... 34
Advanced Function
Additional Information
Parental control setting ...................................................... 35
To change the parental level .............................................. 36
Temporary disabling of rating level by DVD disc................ 37
Setting the aspect ratio of TV screen ................................. 38
Setting on screen display/Status display of Disc................ 39
Setting menu language ...................................................... 40
Setting subtitle language.................................................... 41
Setting audio soundtrack language.................................... 42
Language code list ............................................................. 43
Connection to other equipments ........................................ 44
Problems and troubleshooting ............................................. 46
Reception disturbances...................................................... 48
Specifications ..................................................................... 49
Appendix (Remote programming) ...................................... 50
Setting the language .......................................................... 13
TV operation....................................................................... 14
Closed caption ................................................................... 16
To memorize channels ....................................................... 17
Setting the V-Chip .............................................................. 19
Picture control adjustment..................................................22
Stereo and separate audio program (SAP)........................ 23
Sound control adjustment .................................................. 24
TV operation
Contents
has not
fixed yet!
All manuals and user guides at all-guides.com

8
3
CH.
IN
OUT
ANT.
DIGITAL AUDIO AUDIO S-VIDEO COMPONENT
DVD OUTPUT
L
R
VIDEO
OPTICAL COAXIAL
AUDIO
L
R
4
( )
TV
( )
Y
PB/CB
PR/CR
POWER VIDEO (M) L - AUDIO - R VCR CH
VCR/DVD
EJECT
OPEN/CLOSE
PLAY STOP
REW FF REC DVD
Parts and functions
Front
STOP button
Rear
AC power cord
PLAY button
OPEN/CLOSE button
Disc tray
POWER
button
DVD/VCR common AUDIO (L/R)/VIDEO OUT
jacks
3/4 Channel Selector Switch
DVD COAXIAL DIGITAL
AUDIO OUT jack
RF IN jack
CHANNEL +/–buttons
AUDIO (L/R)/
VIDEO IN jacks FF (Fast Forward) button
Remote sensor
EJECT button
VCR lamp
VCR/DVD select button
Cassette Loading Slot
REW (Rewind) button REC button
DVD lamp
DVD OPTICAL
DIGITALAUDIO
OUT jack
DVD AUDIO (L/R) OUT jacks
DVD S-VIDEO OUT jack DVD COMPONENT OUT jacks
RF OUT jack
All manuals and user guides at all-guides.com

9
No. Display Description
VCR mode
1
2
3
4
5
6
7
1 2 34
7
6
5
Playback
Stop
Still picture
Frame advanced playback
Forward slowmotion
Backward slowmotion
Fast Forward playback
Review playback
Skip chapter to forward
direction
Skip chapter to reverse
direction
Open or Close the tray
Auto resume
Direction button’s mark
A-B repeat
Subtitle language
Soundtrack language
Angle
Zoom
Parental level locked
Parental level unlocked
Screen size: Normal TV
Screen size: PAN SCAN
Screen size: WIDE
Shows Prohibited act
Output sound for Video-CD
AB
Explanation for On-Screen-Symbol:
Display
8
9
10
11
VCR
DVD
CD
PM
10 : 00
01 : 00
2
c36
L
TRK
REC
CH2
Playback (lights) / Auto resume (flashes)
Still picture
DVD disc is inserted.
Audio CD is inserted.
Display for afternoon (lights out in the morning)
Clock display (colon[ : ] flashes)
Counter display by hour/minute at VCR/DVD / by minute/second at CD
Track number display for CD
TV channel display for VCR
CATV channel display
External input display
Timer recording display
Video tape is in the unit
Track display for CD
Normal recording display (flashes during Instant Timer Recording - ITR)
Note:
Some discs may be displayed wrong or e.g. chapter number, playback time, etc. may not be displayed.
89 10
11
All manuals and user guides at all-guides.com

10
TV/VCR/DVD switch Switch to operate TV or VCR or DVD 10,50
POWER Power on/off 13,14
DVD MENU Display menu of DVD software 34
MARKER Index 34
RETURN Remove DVD set up menu 35-42
OPEN/CLOSE Open the tray/ Close the tray 27
DISPLAY Call information of DVD section 15
A.TRK Digital AUTO TRACKING 33
SUBTITLE Set Subtitle 33
COUNTER RESET Reset the counter to 00:00 33
ANGLE Change playback angle 33
ZERO RETURN Stop the tape when the counter reaches
00:00 33
SEARCH MODE Locating desired scene 33
SP/EP Sets the tape speed for recording 33
PLAY MODE Select playback mode 33
ZOOM Zoom 29
TITLE Select title 34
REPEAT A-B Repeat playback between A and B 30
0-9 Direct channel selection of TV 14,18
Input setting 31
Enter a passward 19,21,35-37
TIMER Set the unit to start recording at a preset
time. 30
TV/VCR Switches between TV and VCR 30
TV POWER Turn the connected TV on or off 30
INPUT Switch between TV channel/LINE 45
TV VOL +/–Adjust the connected TV’s volume 30
REW Tape rewind/Review playback 30
PLAY Playback 27,28,31,34
FF Tape Fast forward/Fast Forward playback 30
REC Recording 30
STOP Stop 27
PAUSE Still picture/Recording pause on/off 27
SKIP /
Skip chapter to forward or reverse direction 33
INDEX / Search for the INDEX mark. 33
TV/VCR CH +/–Select channel of TV or VCR 33
/ Cursor buttons 33
SET –/+ Setting buttons 33
/ Cursor buttons 33
ENTER Enter information in the menu 13,19,21,26,
SELECT Select option in the menu 27,29-31,34-42
SET UP MENU Display menu of DVD setup 27,29-31,34-42
CANCEL Delete Timer program 27
Reset information in the menu 27
OSD Call information of VCR section 27
A.MONITOR
Switches sound between mono, stereo and SAP 27
Change sound track language of DVD 27
SLOW Slowmotion playback 2
SKIP SEARCH Skip the unwanted short material of tape 2
Remote control
Page
This Remote can control some functions
(TV POWER, NUMBER(0-9),INPUT, TV
VOL +/–,TV CH +/–and ENTER) of a
remote controllable JVC TV by slide TV/
VCR/DVD switch to TV.
JVC TV Remote Control
NOTE:
It’s not possible to operate a unit not
equipped with a remote sensor.
ThisRemote cancontrol aJVCTVonly.
Whenyouoperate theVCR orDVD,the
TV/VCR/DVD switch must be slided to
VCR/DVD again. Otherwise the VCR/
DVD may not operate properly.
•
•
•
T
V
/
V
C
R
C
H
+
TV VCR DVD
POWER
DVD MENU
MARKER RETURN
OPEN/
CLOSE
DISPLAY A.TRK C.RESET
ZERO RETURN
SUB TITLE
ANGLE
SEARCH
MODE
SP/EP
PLAY
MODE
ZOOM TITLE
REPEAT
A-B
TV
POWER
INPUT
TV VOL
0
TIMER TV/VCR
REW
PLAY
FF
REC
STOP
PAUSE
SKIP
/INDEX SKIP /INDEX
T
V
/
V
C
R
C
H
—
SET SET
ENTER/
SELECT
SET UP
MENU
CANCEL
OSD
A.MONITOR
SLOW
SKIP
SEARCH
VCR/DVD/TV
All manuals and user guides at all-guides.com

11
Inserting Batteries
123
Operation
•Aim the remote control at the remote sensor and
press control buttons to operate.
•Operate the remote control within 30°angle on
either side of the remote sensor, up to a dis-
tance of Approx. 5 meters.
Remote control
Replace the compartment
cover.
Install two "AA" batteries
(supplied), paying attention to
the polarity diagram in the
battery compartment.
Slide the battery compartment
cover in the direction of the
arrow.
Approx. 5 meters
BATTERYPRECAUTIONS
The precautions below should be followed when using batteries in this device:
1.Use only the size and type of batteries specified.
2.Be sure to follow the correct polarity when installing the batteries as indicated in the battery compartment.
Reversed batteries may cause damage to the device. To avoid a potential short circuit, insert the “–” end first.
3. Do not mix different types of batteries together (e.g. Alkaline and Carbon-zinc) or old batteries with fresh ones.
4.If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from
possible battery leakage.
5.Do not try to recharge batteries not intended to be recharged; they can overheat and rupture. (Follow battery
manufacturer’s directions.)
•Before you can operate the remote control, you must first install the batteries (included). See “Inserting
Batteries”on this page above for instructions.
•Press POWER to turn the DVD/VCR on or off.
•Make sure TV/VCR/DVD switch is set to VCR/DVD.
•Press VCR CH + and VCR CH –to scan through the channels. Tap VCR CH + or VCR CH –to move through
the channels one channel at a time.
•The VCR CH +/–and SET +/–are also used to navigate JVC’s onscreen menu system.
•You can directly access specific channels using Number keys pad.
•Each press of VCR or DVD on the remote control, switches the screen between the VCR screen (VCR mode)
and the DVD screen (DVD mode). You can operate a VCR and SETUP menu in the VCR mode, and a DVD
and SETUP menu in the DVD mode.
REMOTE CONTROL BASICS

All manuals and user guides at all-guides.com
all-guides.com

12
OUT
IN
OUT
IN
OUT
IN
NOTES: •A clear picture will not be obtained by the DVD/VCR unless the antenna signal is good. Connect the
antenna to the DVD/VCR properly.
•Forbetterqualityrecording, an indoorantennaora telescopic antennaisnot recommended. Theuseof
an outdoor type antenna is required.
•If you are not sure about the connection, please refer to qualified service personnel.
If you are using an antenna system, follow the instructions. If you are a cable (CATV) subscriber, skip ahead
to page 14 for the proper connections.

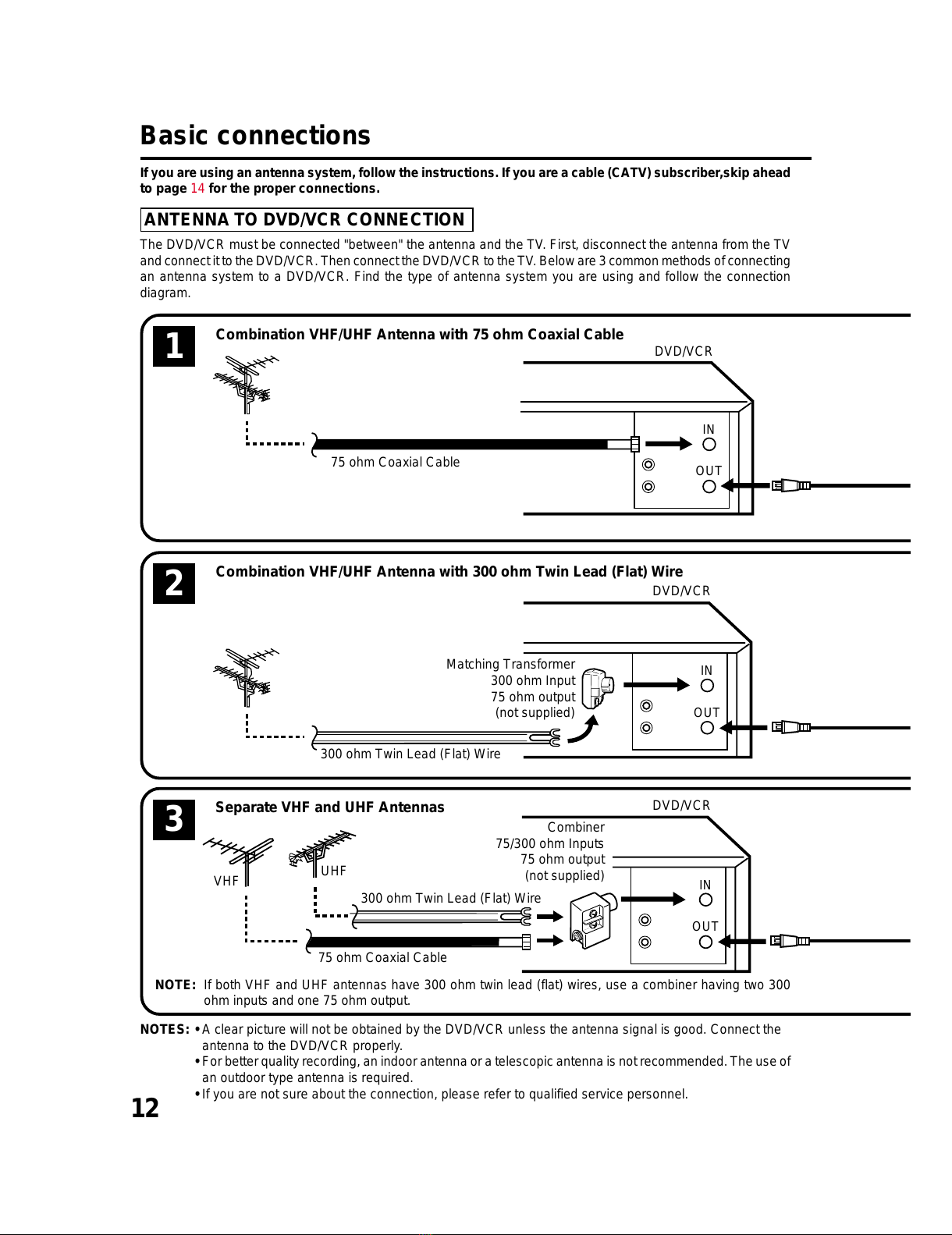

ANTENNA TO DVD/VCR CONNECTION
The DVD/VCR must be connected "between" the antenna and the TV. First, disconnect the antenna from the TV
andconnectit tothe DVD/VCR.Thenconnect theDVD/VCR totheTV. Beloware3 commonmethods ofconnecting
an antenna system to a DVD/VCR. Find the type of antenna system you are using and follow the connection
diagram.
If both VHF and UHF antennas have 300 ohm twin lead (flat) wires, use a combiner having two 300
ohm inputs and one 75 ohm output.
NOTE:
Basic connections
Combination VHF/UHF Antenna with 75 ohm Coaxial Cable
Combination VHF/UHF Antenna with 300 ohm Twin Lead (Flat) Wire
Separate VHF and UHF Antennas
1
2
3
DVD/VCR
VHF UHF
300 ohm Twin Lead (Flat) Wire
Matching Transformer
300 ohm Input
75 ohm output
(not supplied)
300 ohm Twin Lead (Flat) Wire
75 ohm Coaxial Cable
75 ohm Coaxial Cable
Combiner
75/300 ohm Inputs
75 ohm output
(not supplied)
DVD/VCR
DVD/VCR
All manuals and user guides at all-guides.com

13
UHF
VHF
UHF
VHF
VHF/UHF IN
NOTE: If a VHF or UHF antenna is
used, set the TV/CATV
menu option to the "TV"
mode.
NOTE: If a VHF or UHF antenna is
used, set the TV/CATV
menu option to the "TV"
mode.
NOTE: If a VHF or UHF antenna is
used, set the TV/CATV
menu option to the "TV"
mode.
75 ohm Coaxial Cable (supplied)
Splitter
75 ohm Input
75/300 ohm outputs
(not supplied)
Splitter
75 ohm Input
300 ohm outputs
(not supplied)
TV with single 75 ohm VHF/UHF
antenna input
TV with 300 ohm UHFand 75 ohm VHF
antenna inputs
TV with 300 ohm UHF and 300 ohm VHF
antenna inputs
DVD/VCR TO TV CONNECTION
After you have connected the antenna to the DVD/VCR, you must connect the DVD/VCR to the TV.
Below are 3 common methods of connecting your DVD/VCR to a TV. Find the type of TV you are using and follow
the connection diagram.
This DVD/VCR has a single 75 ohm output for connection to a TV. If your TV has separate VHF and UHF antenna
inputs (numbers 2 and 3 below), use a splitter to connect the DVD/VCR to the TV for VHF and UHF reception.
TV
TV
TV
75 ohm Coaxial Cable
(supplied)
75 ohm Coaxial Cable
(supplied)
Basic connections
All manuals and user guides at all-guides.com

14

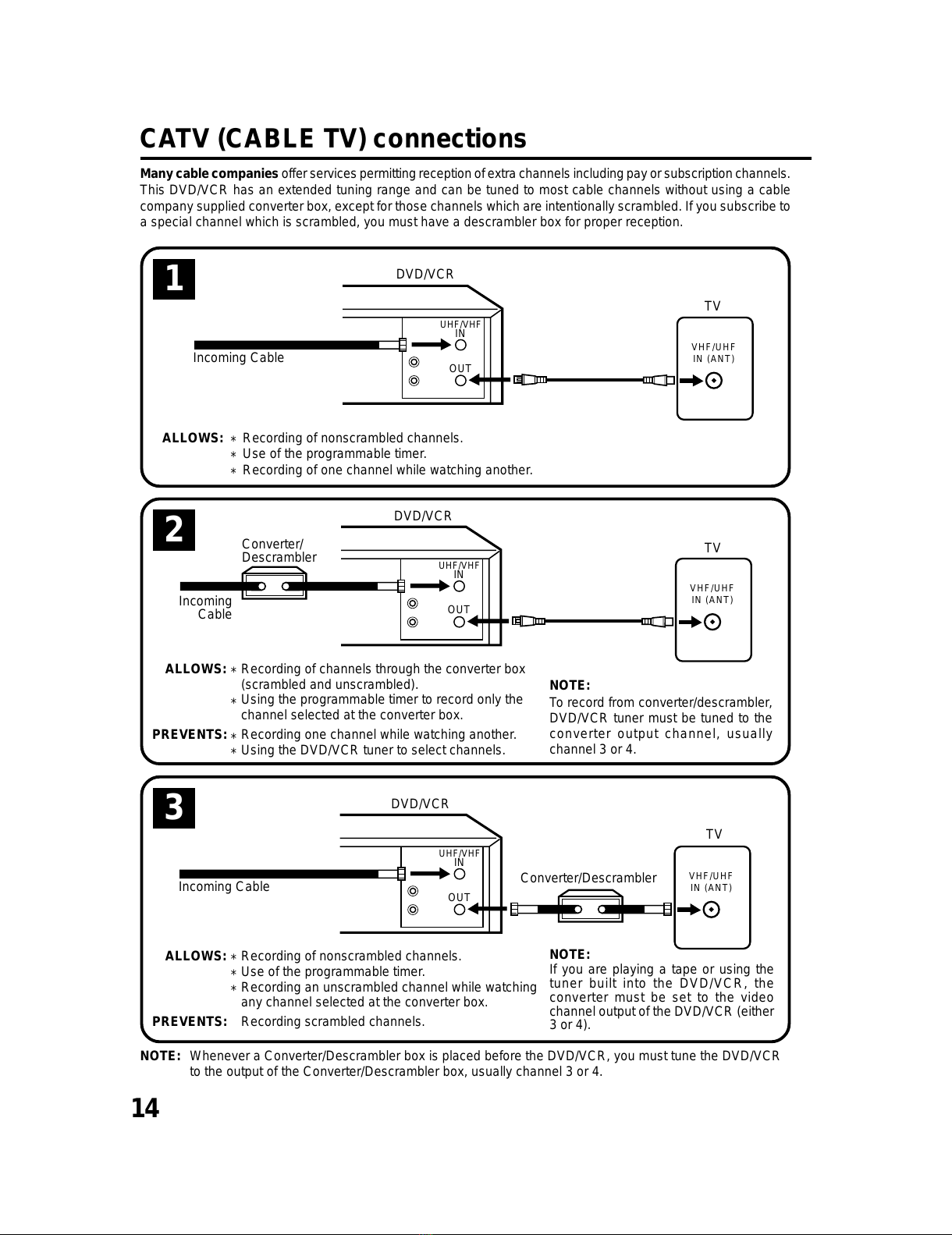

Many cable companies offerservices permittingreception ofextra channelsincluding payorsubscriptionchannels.
This DVD/VCR has an extended tuning range and can be tuned to most cable channels without using a cable
company supplied converter box, except for those channels which are intentionally scrambled. If you subscribe to
a special channel which is scrambled, you must have a descrambler box for proper reception.
CATV (CABLE TV) connections
NOTE: Whenever a Converter/Descrambler box is placed before the DVD/VCR, you must tune the DVD/VCR
to the output of the Converter/Descrambler box, usually channel 3 or 4.
ALLOWS: *Recording of nonscrambled channels.
*Use of the programmable timer.
*Recording of one channel while watching another.
ALLOWS: *Recording of channels through the converter box
(scrambled and unscrambled).
*Using the programmable timer to record only the
channel selected at the converter box.
PREVENTS: *Recording one channel while watching another.
*Using the DVD/VCR tuner to select channels.
1
2
OUT
IN
UHF/VHF
VHF/UHF
IN (ANT)
DVD/VCR
Incoming Cable
TV
OUT
IN
UHF/VHF
VHF/UHF
IN (ANT)
Converter/
Descrambler
Incoming
Cable
TV
OUT
IN
UHF/VHF
VHF/UHF
IN (ANT)
Incoming Cable Converter/Descrambler
TV
3
ALLOWS: *Recording of nonscrambled channels.
*Use of the programmable timer.
*Recording an unscrambled channel while watching
any channel selected at the converter box.
PREVENTS: Recording scrambled channels.
To record from converter/descrambler,
DVD/VCR tuner must be tuned to the
converter output channel, usually
channel 3 or 4.
If you are playing a tape or using the
tuner built into the DVD/VCR, the
converter must be set to the video
channel output of the DVD/VCR (either
3 or 4).
NOTE:
NOTE:
DVD/VCR
DVD/VCR
All manuals and user guides at all-guides.com

15

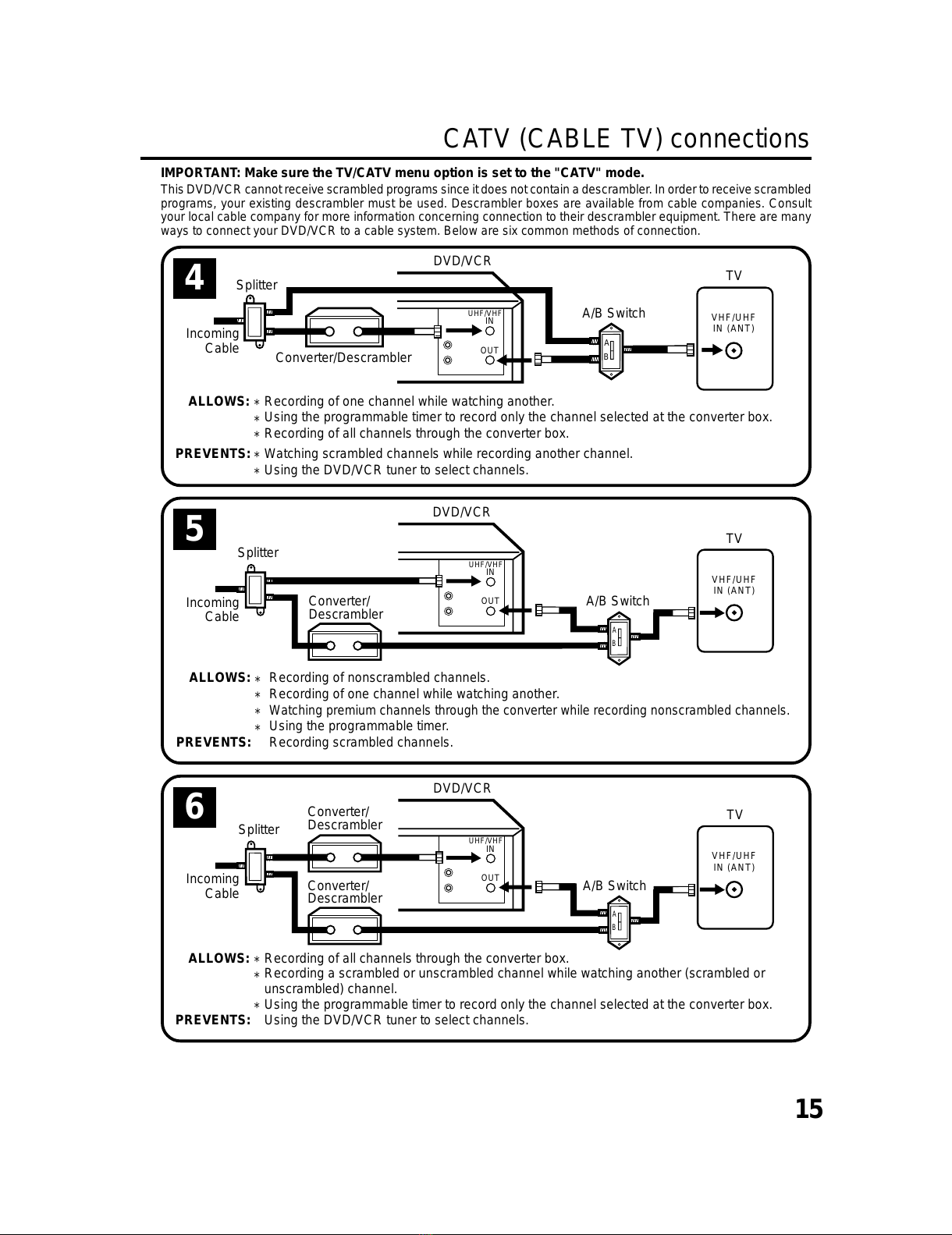

ThisDVD/VCR cannotreceive scrambledprograms sinceit doesnotcontain adescrambler. Inorder toreceive scrambled
programs, your existing descrambler must be used. Descrambler boxes are available from cable companies. Consult
your local cable company for more information concerning connection to their descrambler equipment. There are many
ways to connect your DVD/VCR to a cable system. Below are six common methods of connection.
IMPORTANT: Make sure the TV/CATV menu option is set to the "CATV" mode.
Incoming
Cable
4
5
6
ALLOWS: *Recording of one channel while watching another.
*Using the programmable timer to record only the channel selected at the converter box.
*Recording of all channels through the converter box.
PREVENTS: *Watching scrambled channels while recording another channel.
*Using the DVD/VCR tuner to select channels.
VHF/UHF
IN (ANT)
OUT
IN
A
B
UHF/VHF
DVD/VCR
Splitter
Converter/Descrambler
TV
VHF/UHF
IN (ANT)
OUT
IN
UHF/VHF
A
B
DVD/VCR
Converter/
Descrambler A/B Switch
TV
Incoming
Cable
Splitter
ALLOWS: *Recording of nonscrambled channels.
*Recording of one channel while watching another.
*
Watching premium channels through the converter while recording nonscrambled channels.
*Using the programmable timer.
PREVENTS: Recording scrambled channels.
ALLOWS: *Recording of all channels through the converter box.
*Recording a scrambled or unscrambled channel while watching another (scrambled or
unscrambled) channel.
*Using the programmable timer to record only the channel selected at the converter box.
PREVENTS: Using the DVD/VCR tuner to select channels.
VHF/UHF
IN (ANT)
OUT
IN
UHF/VHF
A
B
DVD/VCR
A/B Switch
Splitter TV
Incoming
Cable
Converter/
Descrambler
Converter/
Descrambler
A/B Switch
CATV (CABLE TV) connections
All manuals and user guides at all-guides.com

16
3
CH.
IN
OUT
ANT.
DIGITAL AUDIO AUDIO S-VIDEO COMPONENT
DVD OUTPUT
L
R
VIDEO
OPTICAL COAXIAL
AUDIO
L
R
4
( )
TV
( )
Y
P B /C B
P R /C R
3
CH.
IN
OUT
ANT.
DIGITAL AUDIO AUDIO S-VIDEO COMPONENT
DVD OUTPUT
L
R
VIDEO
OPTICAL COAXIAL
AUDIO
L
R
4
( )
TV
( )
Y
P B /C B
P R /C R
3
CH.
IN
OUT
ANT.
DIGITAL AUDIO AUDIO S-VIDEO COMPONENT
DVD OUTPUT
L
R
VIDEO
OPTICAL COAXIAL
AUDIO
L
R
4
( )
TV
( )
Y
P B /C B
P R /C R
Playback Connection
To Audio (R) Input
To Audio (L) Input
To Video
Input
Audio (L) Output
Audio (R) Output
Video Output
DVD/VCR
TV
AUDIO/VIDEO Cord (supplied)
Connect to a TV with Audio/Video Output
You need an AUDIO/VIDEO Cord for connection.
Connect to a TV with S-Video Output
DVD/VCR
TV
S-Video Cord (not supplied)
To Audio (R) Input
To S-Video Input
To Audio (L) Input
To S-Video Output
AUDIO Cord (not supplied)
Audio (L) Output
Audio (R) Output
TheexactarrangementyouusetointerconnectvariousvideoandaudiocomponentstotheDVD/VCRisdependent
on the model and features of each component. Check the Owner's Manual provided with each component for the
location of video and audio inputs and outputs.
Connect to a BS TUNER
To Audio (R) Input
To Audio (L) Input
To Video Input
DVD/VCR
TV
AUDIO/VIDEO Cord (supplied)
BS Tuner
Satellite
Antenna To ANT. Input
75 ohm Coaxial Cable (not supplied)
ANT. Input
ANT. output
To ANT.
Input
ANT.
Output
75 ohm Coaxial
Cable (supplied)
Antenna
All manuals and user guides at all-guides.com
all-guides.com

17
A/V-RGB-Composite
DIGITAL
AUDIO VIDEOAUDIO
(D)
(G)
R
L
OUTPUT ÆSORTIE ÆAUSGANG
SCART ÆPRISE PERITEL
Connect to an AV Amplifier with built-in digital surround
If you are using an Amplifier with a built-in digital surround as follows, you can enjoy the various audio systems
such as Dolby Digital and DTS by using the Optical or Coaxial Digital Output.
Use this connection to connect an:
•AV amplifier with built-in *Dolby Digital decoder
•AV amplifier with built-in *DTS decoder
Playback Connection
Connect to a Stereo Amplifier with Audio Output
NOTE:
•
•
•
•
•
When you make the connections above, do not set DOLBY DIGITAL to DOLBYDIGITALor DTS to ON on theAV
Amplifier. If you do, a loud noise will suddenly come out from the speakers, affecting your ears or causing the
speakers to be damaged.
Caution for the optical digital audio output connector: Do not connect to an amplifier (with an optical digital input
connector) which does not contain a Dolby Digital, DTS or MPEG decoder. Otherwise, any attempt to play DVDs
may cause such a high level of noise that it may be harmful to your ears and damage your speakers.
DTS audio will be output only from the COAXIAL or OPTICAL output. To hear DTS audio, DTS-Decoder is
necessary.
When playing DTS-encoded CDs, only noise will be heard from the speakers or analogue stereo outputs.
Some DTS decoders which do not support DVD-DTS interface may not work properly with the unit.
S-Video cord (not supplied) To S-Video Input
Coaxial digital cable (not supplied)
AV Amplifier with built-
in various decoder as
above
DVD/VCR
TV
Optical digital cable (not supplied)
Connecting the optical digital cable
When you connect the optical digital cable (not supplied), remove the dust protection cap from the rear of DVD.
When not using the optical digital cable, attach the dust protection cap to protect against dust.
•
•
NOTE: IfyourTVhasCOMPONENTVIDEOIN jack,you canconnectthe DVD/VCRtotheTV witha COMPONENT
cable (not supplied) as shown below. COMPONENT VIDEO output jack can send high-quality video signal to aTV
than S-Video Input.
You may connect to an AVAmplifier with an Optical digital cable (not supplied) instead of a Coaxial digital
cable.
NOTE:
You may connect to a TV
with a Component video
cable(not supplied) or S-
Video cable(not supplied)
insteadof a videocable(not
supplied).
OUTPUT
FRONT
R
L
SURROUND
DIGITAL
AUDIO AUDIO VIDEO
CENTER
SUB WOOFER
SCARTÆPRISE PERITEL
TV-RGB-Composite
A/V-IN
R
L
To Audio (L) Input
To Video
Input
To Audio (R) Input
Video Output TV
AUDIO Cord (not supplied)
Amplifier
VIDEO Cord (not supplied)
DVD
Audio (R) Output
Audio (L)
Output
All manuals and user guides at all-guides.com

18
Setting the Video Channel / Setting the language
To view playback of a recorded tape,
or to watch a program selected by
the VCR's channel selector, the TV
must be set to channel 3 or 4 (video
channel).
Ifthe unitdoes notoperate properly,
or No key operation (by the unit
and/or the remote control): Static
electricity, etc.,mayaffecttheplayer's
operation. Disconnect the AC power
cord once, then connect it again.
If there is no pressing of any buttons
for more than 60 seconds, then the
VCR switch back to TV-operation
automatically.
The VCR section has its own menu
and also DVD section has its own
menu (see page 26).
NOTE:
•
•
•
1To turn on the VCR/DVD, at first slide TV/VCR/DVD switch to
VCR/DVD. Then press POWER to turn on the VCR/DVD.
2Press VCR to select the VCR mode. The VCR indicator will
light.
You can choose from three different languages (English,
French and Spanish) for the on-screen displays.
When a TV is connected with the 75 ohm coaxial cable only.
3Set the 3/4 Channel selector switch (Rear of the VCR) to CH 3
or 4.
4Turn ON the TV and set to CH 3 or 4 to correspond with the
channel selected in step 3.
5Press TV/VCR to select the VCR position.
The TV/VCR indicator will light.
6Select any channel to receive a TV station in your area.
The channel number will appear on the screen for about
4 seconds.
For a push-button TV tuner
If CH 3 or 4 corresponding to the video channel cannot be tuned
on your TV, proceed as follows: set the VCR 3/4 channel selector
and the TV to CH 3 or 4, play back a prerecorded tape and tune
the TV to receive a sharp color picture from the video cassette
recorder. Refer to your TV owner's manual for details.
Setting the Video Channel
Setting the language
< / / / /MENU >
V-CHIP SET
LANGUAGE/IDIOMA/LANGUE
< / / / /MENU >
V-CHIP SET
LANGUAGE/IDIOMA/LANGUE
3
Press SETUP MENU,
If you use the unit for the first time
and press SETUP MENU, instead
of the main menu screen on the
right the SYSTEM SET UP menu
screen in step 2may appear.
Press or to select the
desired language: English
(ENGLISH), Spanish
(ESPAÑOL) or French
(FRANCAIS), then press
ENTER.
1
2Press or to select the
“LANGUAGE”option, then press
ENTER.
4Press SETUP MENU until the MENU screen is cleared.
T
V
/
V
C
R
C
H
+
TV VCR DVD
POWER
DVD MENU
MARKER RETURN
OPEN/
CLOSE
DISPLAY A.TRK C.RESET
ZERO RETURN
SUB TITLE
ANGLE
SEARCH
MODE
SP/EP
PLAY
MODE
ZOOM TITLE
REPEAT
A-B
TV
POWER
INPUT
TV VOL
0
TIMER TV/VCR
REW
PLAY
FF
REC
STOP
PAUSE
SKIP
/INDEX SKIP /INDEX
T
V
/
V
C
R
C
H
—
SET SET
ENTER/
SELECT
SET UP
MENU
CANCEL
OSD
A.MONITOR
SLOW
SKIP
SEARCH
< / / / /MENU >
V-CHIP SET
LANGUAGE/IDIOMA/LANGUE
All manuals and user guides at all-guides.com

19
< / / / /MENU >
V-CHIP SET
LANGUAGE/IDIOMA/LANGUE
Auto clock setting
The Auto Clock feature enables the automatic clock setting and updating, and also to set the Time Zone
and Daylight Saving Time by receiving XDS (Extended Data Service) information carried on the channel
signal.
Press SETUP MENU. The VCR menu screen will appear.
Press or to select the SYSTEM SET UP menu, then
press ENTER.
2Press or to select the
“STANDARD TIME”option, then
press ENTER.
AfterAuto Clocksetting, in somecase
the clock may display the other time
zone’s. You can correct the clock by
selecting your Time Zone setting
above.
When the clock is not set or you set
theclockmanually,TimeZone setting
is not available.
NOTE:
You must set the antenna connection before the AC cord plug is
inserted into the AC outlet.
1
Preparation:
Auto clock setting
WAIT 30 MINUTES! when the power switch is off, after the
connections of the antenna and the power plug. Because the Auto
Clock setting feature is activate.
After the clock is set automatically, you may have to set the Time
Zone and Daylight Saving Time.
Press POWER to turn on the VCR/DVD after the Auto Clock operation
completed.
When shipped from factory, the AUTO CLOCK option is set to ON position.
If you turn the VCR/DVD on during Auto Clock setting, the clock is not set.
With cable box connection, if the Auto Clock Setting is unsuccessful,
please select the PBS channel carrying the XDS information, then
turn the VCR/DVD off. After 30 minutes, turn the VCR/DVD on, and
if the clock is not set automatically, set the clock manually. (See page 17)
•
•
•
Canadian Viewers:
Please see note regarding the AUTO CLOCK SETTING option on page 58.
< / / / /MENU >
V-CHIP SET
LANGUAGE/IDIOMA/LANGUE
3Press or to select your
Time Zone, then press the
ENTER.
Time Zone setting (STANDARD TIME)
4Press SETUP MENU until the MENU screen is cleared.
•
•
Turn ON the TV.
When a TV is connected with an audio/video cable, select the video
input mode on the TV.
When a TV is connected only with an antenna cable, set to the
video channel 3 or 4. Then select VCR position with TV/VCR.
Make sure the VCR mode has been selected. (Is the VCR indicator
being light?) (see step 1~2on page 16)
Preparation:
•
•
•
•
In the rare event that you live within broadcast range of two
stations in two different time zones, the VCR/DVD may recognize
the wrong station for the AUTO CLOCK set. To correct the
situation:
T
V
/
V
C
R
C
H
+
TV VCR DVD
POWER
DVD MENU
MARKER RETURN
OPEN/
CLOSE
DISPLAY A.TRK C.RESET
ZERO RETURN
SUB TITLE
ANGLE
SEARCH
MODE
SP/EP
PLAY
MODE
ZOOM TITLE
REPEAT
A-B
TV
POWER
INPUT
TV VOL
0
TIMER TV/VCR
REW
PLAY
FF
REC
STOP
PAUSE
SKIP
/INDEX SKIP /INDEX
T
V
/
V
C
R
C
H
—
SET SET
ENTER/
SELECT
SET UP
MENU
CANCEL
OSD
A.MONITOR
SLOW
SKIP
SEARCH
VCR/DVD/TV
All manuals and user guides at all-guides.com

20
< / / / /MENU >
V-CHIP SET
LANGUAGE/IDIOMA/LANGUE
Auto clock setting
Daylight saving time setting
Repeat the steps 1~2on page
17 and select DAYLIGHT
SAVING TIME, then press
ENTER.
1
2Press or to select one of
the options, then press ENTER.
You can set the Daylight saving
time automatically or manually.
When you want to set the Daylight Saving Time manually, on
the first Sunday in April you set to “ON”, and on the last
Sunday in October you set to “OFF”.
for manual setting
(forward one hour)
for manual setting
(back one hour)
for automatic setting
(read XDS in the signal)
ON:
OFF:
AUTO:
When shipped from factory, the DAYLIGHT SAVING TIME
option is set to AUTO position.
When the clock is not set, Daylight Saving Time setting is not
available.
When there is no Daylight Saving Time in your area, always
select OFF position in step 2.
•
•
•
NOTES:
Turn ON the TV.
When a TV is connected with an audio/video cable, select the
video input mode on the TV.
When a TV is connected only with an antenna cable, set to the
video channel 3 or 4. Then select VCR position with TV/VCR.
Make sure TV/VCR/DVD switch has been slided to VCR/DVD.
Then press VCR to select the VCR mode. (The VCR indicator
will light)
Preparation:
•
•
•
•
T
V
/
V
C
R
C
H
+
TV VCR DVD
POWER
DVD MENU
MARKER RETURN
OPEN/
CLOSE
DISPLAY A.TRK C.RESET
ZERO RETURN
SUB TITLE
ANGLE
SEARCH
MODE
SP/EP
PLAY
MODE
ZOOM TITLE
REPEAT
A-B
TV
POWER
INPUT
TV VOL
0
TIMER TV/VCR
REW
PLAY
FF
REC
STOP
PAUSE
SKIP
/INDEX SKIP /INDEX
T
V
/
V
C
R
C
H
—
SET SET
ENTER/
SELECT
SET UP
MENU
CANCEL
OSD
A.MONITOR
SLOW
SKIP
SEARCH
VCR/DVD/TV
< / / / /MENU >
V-CHIP SET
LANGUAGE/IDIOMA/LANGUE
All manuals and user guides at all-guides.com
