JVC KW-M875DBW User manual

The product with the Hi-Res Audio logo is conformed to
Hi-Res Audio standard defined by Japan Audio Society.
The logo is used under license from Japan Audio Society.
B5K-0861-00 (E)© 2021 JVCKENWOOD Corporation
KW-M875DBW
• Updated information (the latest Instruction Manual, system updates, new functions, etc.) is available from
• Des informations actualisées (le dernier mode d'emploi, les mises à jour du système, les nouvelles fonctions, etc.) sont disponibles sur le site
• Aktualisierte Informationen (die aktuelle Bedienungsanleitung, Systemupdates, neue Funktionen usw.) finden Sie unter
• Bijgewerkte informatie (de meest recente instructiehandleiding, systeemupdates, nieuwe functies, enz.) is beschikbaar op
• Informazioni aggiornate (il Manuale di istruzioni più recente, aggiornamenti di sistema, nuove funzioni, ecc.) sono disponibili da
• La información actualizada (el Manual de instrucciones más actualizado, actualizaciones del sistema, nuevas funciones, etc.) está disponible desde
• Estão disponíveis informações atualizadas (o Manual de Instruções mais recente, atualizações de sistema, novas funções, etc.) em
• Обновленная информация (последняя инструкция по эксплуатации, системные обновления, новые функции и др.) доступна по адресу
<https://www.jvc.net/cs/car/>
MONITOR WITH RECEIVER
Quick Start Guide
MONITEUR AVEC RÉCEPTEUR
Guide de démarrage rapide
MONITOR MIT RECEIVER
Schnellstartanleitung
MONITOR MET ONTVANGER
Snelstartgids
MONITOR CON RICEVITORE
Guida rapida all’avvio
MONITOR CON RECEPTOR
Guía de inicio rápido
MONITOR COM RECETOR
Guia de Início Rápido
МОНИТОР С РЕСИВЕРОМ
Краткое руководство по
началу работы

2
Important Notice on Software
Ñ Software License on This
Product
The software embedded in this product
comprises a number of independent software
components, each of which is copyrighted by
JVCKENWOOD Corporation or by a third party.
This product uses software components that
are based on an End-User License Agreement
(hereinafter called“EULA”) stipulated by
JVCKENWOOD Corporation and by third parties.
The EULA dictates the availability of the source
codes of free-software components as a
prerequisite to distributing them in executable
form under the terms of the GNU General
Public License or the Lesser General Public
License (hereinafter called“GPL/LGPL”). To get
information about the software components
that are subject to the terms of the GPL/LGPL,
please visit the following Website:
Website URL https://www3.jvckenwood.com/
english/download/gpl/
Queries concerning the contents of the source
code or the like will not be accepted.
Please note that software components based
on a EULA that is not subject to the terms of the
GPL/LGPL or those that have been developed
or created by JVCKENWOOD Corporation will
be excluded from the scope of source code
disclosure.
Because licenses to use software components
distributed under the GPL/LGPL are offered to
the customers for free of charge, no warranty is
granted to the customers, whether explicitly or
implicitly, to the extent of the applicable laws.
Unless otherwise stipulated by the applicable
laws or agreed upon in writing, the copyright
holders or those who are entitled to modify
and redistribute the software components are
not held responsible for any and all damages
resulting from their use or from inability to use
them. For more information about the terms of
use of the software components, required items
of compliance and so on, please refer to the
GPL/LGPL.
Customers wishing themselves to use a software
component that is subject to the GPL/LGPL
embedded in this product are encouraged to
read the terms of the corresponding license
before use. Because each individual license
is prescribed by a third party other than
JVCKENWOOD Corporation, the original (English)
of the license is presented.
EULA
Ñ Software License Agreement
JVCKENWOOD Corporation (hereinafter called
“Licensor”) holds either the copyright to the
embedded software or the right to sublicense it.
This agreement establishes the conditions under
which the customer uses this“Licensed Software.”
The customer shall agree to the terms of this
license agreement before proceeding to use
Licensed Software.
This agreement is deemed to have taken effect
when the customer (hereinafter called“User”)
has used a product implementation of Licensed
Software.
The Licensed Software may contain software
Licensor has been licensed to use by third parties
directly or indirectly. Some third parties may
have terms of use prescribed for their customers,
apart from this Software License Agreement. This
agreement does not apply to such software. Be
sure to consult“Important Notice on Software”as
presented separately.
Article 1 (General)
Licensor grants to User a non-exclusive, non-
assignable right of use Licensed Software
within the country where the User purchases
the Product (hereinafter the "Country") (except
for the exception provided for in Paragraph 1,
Article 3).
Article 2 (Right of Use)
1. The rise of use granted under this agreement
is the right to use Licensed Software in this
product.
2. User may not duplicate, copy, modify, add to,
translate or otherwise alter, or loan licensed
Software and the associated literature in
whole or in part.
3. Use of Licensed Software is limited to a private
extent, and Licensed Software may not be
distributed, licensed or sublicensed for any
purposes whatsoever, including commercial
use.
4. User shall use Licensed Software as per the
instruction manual or instructions given in the
help file and may not use or duplicate data in
violations of the regulations of the Copyright
Law or other governing laws by using
Licensed Software in whole or in part.

3
Article 3 (Terms of License)
1. In assigning this product, User may not retain
the original copy of the embedded Licensed
Software (including associated literature,
updates and upgrades) and any duplicates
and associated literature with regard to
the license to use Licensed Software. User
may transfer Licensed Software only to the
condition of binding the assignee to abide by
the terms of this Software License Agreement.
2. User may not reverse-engineer, disassemble,
decompile or otherwise analyze the source
code of Licensed Software.
Article 4 (Rights to Licensed Software)
All rights to Licensed Software and the
associated literature, including copyrights, shall
reside with Licensor or
the original right holder who has granted the
Right of Use and right to sublicense to Licensor
(hereinafter referred to as “Original Right
Holder”), and User does not have any rights
other than Right of Use granted hereunder
with regard to Licensed Software and the
associated literature.
Article 5 (Exemption Granted to Licensor)
1. Licensor and Original Right Holder do not
assume any responsibility for damages
caused to User or third parties resulting from
the exercise by User of the license granted
hereunder, unless otherwise provided by any
law to the contrary.
2. Licensor does not warrant Licensed Software
to be merchantable, compatible and fit for
specific purposes.
Article 6 (Responsibility for Third Parties)
If disputes over the infringement of third
parties’intellectual property rights, such as
copyrights and patent rights, arise out of the
use of Licensed Software by User, User shall
resolve these disputes at User’s own expenses
while keep Licensor and Original Right Holder
harmless.
Article 7 (Secrecy Obligation)
User shall keep confidential Licensed Software
provided hereunder, information contained in
the associated literature or the like and those
provisions of this agreement not yet in public
knowledge and may not disclose or leak these to
third parties without prior written consent from
Licensor.
Article 8 (Cancellation of the Agreement)
Licensor reserves the right to cancel this
agreement forthwith and claim compensation
from User for the damages caused by such
cancellation when User:
(1) Breaches any of the provisions of this
agreement, or
(2) Has received a petition for seizure, provisional
seizure, provisional disposition or any other
kind of compulsory execution.
Article 9 (Destruction of Licensed Software)
If this agreement is terminated under the
provision of the foregoing paragraph, User
shall destroy Licensed Software, along with all
associated literature and its duplicates, within
two (2) weeks from the date of termination.
Article 10 (Copyright Protection)
1. Copyrights and all other intellectual property
rights relating to Licensed Software shall
reside with Licensor and Original Right Holder
and in no circumstances with User.
2. User shall abide by the laws relating to
copyrights and intellectual property rights in
using Licensed Software.
Article 11 (Export Control)
1. Licensed Software and the associated
literature or the like may not be exported
to places outside the Country (including
transmission outside the Country over the
Internet or the like).
2. User agrees that Licensed Software is subject
to export controls imposed by the Country
and the United States of America.
3. User agrees to comply with all the
international and domestic laws that apply
to this software (U.S. Export Administration
Regulations and regulations established by
the U.S., the Country and their governmental
agencies regarding usage by end users and
export destinations).
Article 12 (Miscellaneous)
1. Even if this agreement is invalidated in part by
law, all other provisions shall remain in effect.
2. Licensor and User shall consult each other in
good faith to resolve any matters not provided
for in this agreement or questions arising from
the interpretation of this agreement.
3. Licensor and User agree that this agreement
is governed by the law of Japan and that all
disputes involving claims and obligations that
may arise out of this agreement will be settled
by arbitration at the Tokyo District Court as the
court of first instance.

Contents
4
Before Use
About the Quick start guide
• This Quick Start Guide describes basic functions of this
unit. For functions not described in this Guide, refer to
the Instruction Manual on the following website:
https://www.jvc.net/cs/car/
• The Instruction manual is subject to change for
modification of specifications and so forth. Be sure to
download the latest edition of the Instruction manual
for reference.
Precautions
#WARNINGS
Ñ To prevent injury or fire, take
the following precautions:
• To prevent a short circuit, never put or leave
any metallic objects (such as coins or metallic
tools) inside the unit.
• Do not watch or fix your eyes on the unit’s
display when you are driving for any extended
period.
• If you experience problems during installation,
consult your JVC dealer.
Ñ Precautions on using this unit
• When you purchase optional accessories,
check with your JVC dealer to make sure that
they work with your model and in your area.
• You can select a language to display menus,
audio file tags, etc. See User Interface Setup
(P.56) in the Instruction Manual.
• The Radio Data System feature won’t work in
areas where the service is not supported by
any broadcasting station.
Before Use .............................................4
About the Quick start guide ................................. 4
Precautions ................................................................. 4
How to read this manual........................................ 5
Touch screen operations........................................ 5
Note for specifications............................................ 6
Basic Operations................................... 6
Functions of the Buttons on the Front Panel.. 6
Turning on the Unit.................................................. 7
Date and clock settings.......................................... 7
HOME screen descriptions .................................... 7
Popup menu............................................................... 8
Tuner ............................................................................. 9
Digital Radio............................................................... 9
USB/iPod/iPhone ....................................................10
Bluetooth Control...............................11
Register the Bluetooth device............................11
Using the Hands-Free Unit..................................12

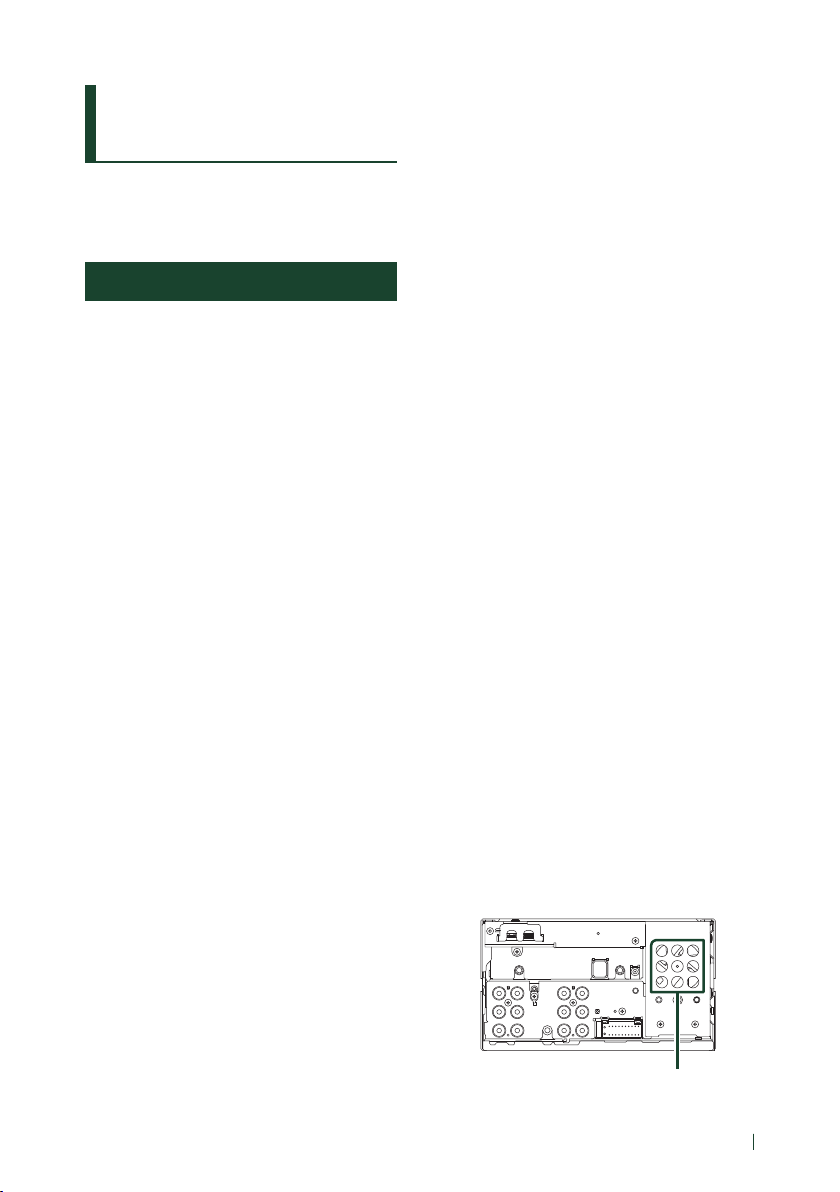

Connection/Installation.....................13
Before Installation ..................................................13
Installing the unit....................................................14
Appendix.............................................21
Contents

Before Use
5English
Ñ Protecting the monitor
• To protect the monitor from damage, do not
operate the monitor using a ball point pen or
similar tool with a sharp tip.
Ñ Cleaning the unit
• If the faceplate of this unit is stained, wipe it
with a dry soft cloth such as a silicon cloth.
If the faceplate is stained badly, wipe it with
a cloth moistened with neutral cleaner, then
wipe it again with a clean soft dry cloth.
NOTE
• Applying spray cleaner directly to the unit
may damage its mechanical parts. Wiping the
faceplate with a hard cloth or using a volatile
liquid such as thinner or alcohol may scratch the
surface or erase the screened print.
Ñ Acquiring GPS signal
The first time you turn on this unit, you must
wait while the system acquires satellite signals
for the first time. This process could take up
to several minutes. Make sure your vehicle
is outdoors in an open area away from tall
buildings and trees for fastest acquisition.
After the system acquires satellites for the first
time, it will acquire satellites quickly each time
thereafter.
Ñ About GLONASS
This unit uses Global Navigation Satellite System
(GLONASS) in addition to GPS.
Combining GPS and GLONASS can refine
positioning accuracy than using GPS only.
Ñ Caution for Smartphone Users
Simultaneously running multiple applications
on your smartphone while screen sharing places
heavy demand on the microprocessor of the
phone, potentially affecting communication and
performance.
For best results while pairing with your JVC
receiver, please be sure to close any unused
applications.
How to read this manual
• The screens and panels shown in this manual are
examples used to provide a clear explanation of
operations.
For this reason, they may be different from the actual
screens or panels, or some display patterns may be
different from the actual ones.
• Display language: English is used for the purpose
of explanation. You can select a display language
from the [SETUP]menu. See User Interface Setup
(P.56) in the Instruction Manual.
This symbol on the product means
there are important operating and
maintenance instructions in this
manual.
Be sure to carefully read
instructions in this manual.
Touch screen operations
To perform operations on the screen, you need
to touch, touch and hold, flick or swipe to
select an item, display a setting menu screen
or change pages.
●Touch
Touch the screen gently to
select an item on the screen.
●Touch and hold
Touch the screen and keep
your finger in place until
the display changes or a
message is displayed.
●Flick
Slide your finger quickly
to the left or right on the
screen to change the page.
You can scroll a list screen
by flicking up/down on the
screen.
●Swipe
Slide your finger up or down
on the screen to scroll the
screen.

Before Use
6
Gesture Touch Control:
You can also control playback by moving your
finger on the touch panel as follows (for some
sources, the gesture touch control function is
not available).
• Sliding the finger upward/downward:
Equivalent to the operation of pressing []/
[](Media). Tuner Preset broadcast stations
are switched.
• Sliding the finger leftward/rightward:
Equivalent to the operation of pressing [E]
/ [F].
• Moving your finger clockwise or counter-
clockwise: Increases/decreases the volume.
On the HOME screen, you can control the
widget by sliding two fingers. (P.7)
Note for specifications
■Bluetooth section
Frequency
: 2.402 – 2.480 GHz
Output Power
: +4dBm (MAX), Power Class2
■General
Operating Voltage
: 12 V DC car battery
Speaker Impedance
: 4 – 8 Ω
Basic Operations
Functions of the Buttons on
the Front Panel
1 2 3
NOTE
• The panels shown in this manual are examples
used to provide a clear explanation of operations.
For this reason, they may be different from the
actual panels.
Name Motion
1
–, +
(Volume)
• Adjusts the volume.
The volume will go up to 15 when you
keep pressing [+].
2
FNC
• Displays the popup menu screen.
• Pressing for 1 second starts the voice
recognition function. While Apple
CarPlay or Android Auto is connected,
starts the function on the Apple
CarPlay or the Android Auto screen.
• When neither Apple CarPlay, Android
Auto, nor a Bluetooth Hands-Free
phone is connected, pressing and
holding displays Bluetooth pairing
waiting dialog.
• When the power is off, turns the
power on.
3
Remote
Sensor
• Receives the remote control signal.

Basic Operations
7English
Turning on the Unit
1 Press the [FNC]button.
 The unit is turned on.
●To turn off the unit
1 Press the [FNC]button.
 Popup menu appears.
2 Touch [ ].
 HOME screen appears.
3 Touch [ ].
4 Touch [Power Off].
Date and clock settings
1 Press the [FNC]button.
 Popup menu appears.
2 Touch [ ].
 HOME screen appears.
3 Touch [ ].
4 Touch [User Interface].
 User Interface screen appears.
5 Touch [Time Zone].
6 Select the time zone.
7 Set each item as follows.
Scroll the page to show hidden items.
■[Time Format]
Select the time display format.
[12-Hour]/[24-Hour](Default)
■[Clock]
[GPS-SYNC](Default): Synchronizes the clock
time with the GPS.
[Manual]: Set the clock manually.
■[Time Zone]
Select the time zone.
■[Clock Adjust]
If you select [Manual]for Clock, adjust the
date and time manually. See Adjust the
date and time manually (P.11) in the
Instruction Manual.
NOTE
• Please set the date and time. If they are not set,
some functions may not work.
HOME screen descriptions
Most functions can be performed from the
HOME screen.
1
1 13 4 5
12
1
• Short-cut playback source icons
2
• Current source information.
• Touch to display the control screen of the
current source.
3
• Displays the source selection screen.
4
• Widget
– You can change the display to big or split
widget mode by sliding 2 fingers upward/
downward.
5
• Displays the SETUP screen.

Basic Operations
8

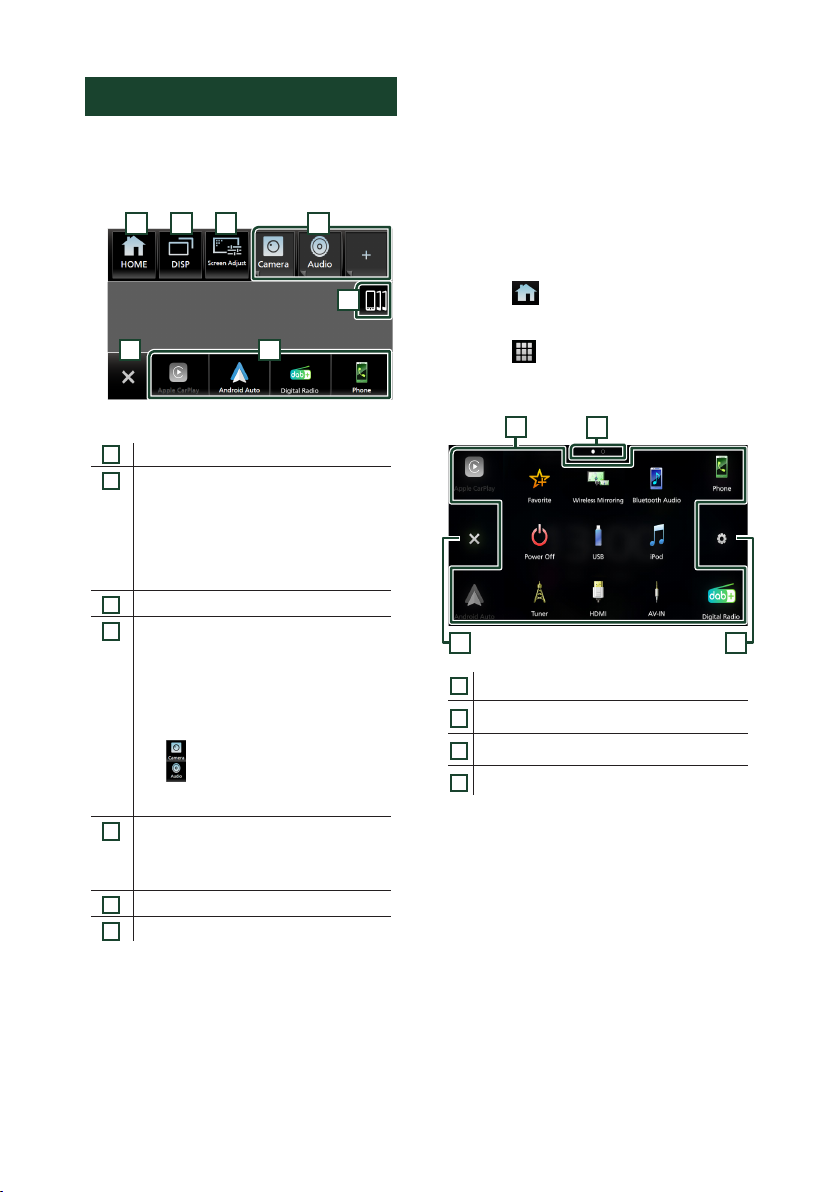

Popup menu
1 Press the [FNC]button.
 Popup menu appears.
2 Touch to display the popup menu.
76
41 2 3
5
The contents of the menu are as follows.
1
• Displays the HOME screen. (P.7)
2
• Switches between screens.
The screen to be switched to depends
on the [DISP Key]setting on the User
Interface screen. See User Interface
Setup (P.56) in the Instruction Manual.
• Touch and hold to turns the screen off.
To turn on the screen: Touch the display.
3
• Displays the Screen Adjustment screen.
4
• Function key1 to 3: The current screen
changes to the one you have set. The
function key1 and 2 are set to [Camera]
and [Audio]function as default. For
the function setting, see Customize
popup menu functions (P.57) in the
Instruction Manual.
– [
]: Displays the view camera screen.
– [
]: Displays the Audio screen.
• Touch and hold to display the Customize
FNC Menu screen.
5
• Displays the Android Auto device list. This
icon appears only when Android Auto is
connected and two or more devices can
be used as Android Auto device.
6
• Close the popup menu.
7
• Short-cut source icons.
Ñ Source selection screen
description
You can display icons of all playback sources
and options on the source selection screen.
To change pages, flick your finger leftward/
rightward on the screen.
1 Press the [FNC]button.
 Popup menu appears.
2 Touch [ ].
 HOME screen appears.
3 Touch [ ].
From the screen, you can select the
following sources and functions.
2
3 4
1
1
• Changes playback sources.
2
• Page indication
3
• Returns to the previous screen.
4
• Displays the SETUP screen.

Basic Operations
9English
Tuner
To listen to the Tuner source, touch [Tuner]
icon on the source selection screen. (P.8)
3
4
1
5
6
2
1
Information display
• Displays the information on the current station:
Frequency
Preset#: Preset number
2
Seek mode
Touch to switch seek mode in the following
sequence: [AUTO1], [AUTO2], [MANUAL].
• [AUTO1]: Tunes in a station with good
reception automatically.
• [AUTO2]: Tunes in the memorized stations one
after another.
• [MANUAL]: Switches to the next frequency
manually.
3
Operation keys
• [E][F]: Tunes in a station. The method of
switching frequencies can be changed (see
2
Seek mode).
4
Preset list
• Touching [
]/[ ] allows you to change the
display size.
• Recalls the memorized station.
• When touched for 2 seconds, stores the
currently being received station in the
memory.
5
Function panel
Touch the left side of the screen to display the
function panel. Touch again to close the panel.
• [TI](FM only) : Selects the traffic information
mode.
• [SETUP](FM only) : Displays the Radio SETUP
screen.
• [SSM](FM only) : Presets stations automatically.
• [PTY](FM only) : Searches for a program by
program type.
• [MONO](FM only) : Selects the Monaural
reception mode.
• [LO.S](FM only) : Turns the Local Seek function
on or off.
6
Band keys
Switches bands (between FM and AM).
Ñ Auto memory (FM only)
You can store stations with good reception in
the memory automatically.
1 Touch [FM].
2 Touch []on the left side of the screen.
Touch [SSM].
3 Touch [Ye s ].
 Auto memory starts.
Digital Radio
To listen to Digital Radio source, touch [Digital
Radio]icon on the source selection screen.
(P.8)
5
3
1
4
2
1
Information display
• Displays the information on the current station:
Service Name
• Touch to switch between the Control and
Information screen.
2
Seek mode
Touch to switch seek modes in the following
sequence: [AUTO1], [AUTO2], [MANUAL].
• [AUTO1]: Tunes in a ensemble with good
reception automatically.
• [AUTO2]: Tunes in the memorized ensemble
one after another.
• [MANUAL]: Switches to the next ensemble
manually.

Basic Operations
10
3
Operation keys
• [1]: Displays the Service List screen.
• [E][F]: Tunes in a ensemble, service, and
component. The seek mode switching can be
changed. (See
2
Seek mode.)
4
Preset list
• Touching [
]/[ ] allows you to change the
display size.
• Recalls the memorized service.
• When touched for 2 seconds, stores the
currently being received service in the
memory.
5
Function panel
Touch the left side of the screen to display the
function panel. Touch again to close the panel.
• [TI]: Selects the traffic information mode.
• [SETUP]: Displays the Digital Radio SETUP
screen.
• [PTY]: Searches for a program by program type.
• [DLS]: Display the Dynamic Label Segment
screen.
USB/iPod/iPhone
Ñ Connecting a USB device/iPod/
iPhone
1 Connect the USB device via the USB
terminal.
Connect the iPod/iPhone using the
KS-U62 (optional accessory) and USB
adaptor or USB-C to Lightning cable (sold
separately).
2 Press the [FNC]button.
3 Touch [ ].
4 Touch [ ].
5 Touch [USB]or [iPod]. (P.8)
Ñ Disconnect the USB device/
iPod/iPhone
1 Touch [ ].
2 Touch a source other than [USB].
3 Detach the USB device/iPod/iPhone.
Ñ Basic Operation
4
2
3
1
1
Track information
• Displays the information on the current file.
2
Operation keys
• [1]: Searches track/file.
• [E][F]: Searches the previous/next track/
file.
• [DH]: Plays or pauses.
3
Content list
• Touch the right side of the screen to display
the Content list. Touch again to close the list.
• Displays the playing list. When you touch a
track/file name on the list, playback will start.
4
Function panel (USB only)
Touch the left side of the screen to display the
function panel. Touch again to close the panel.
• [
][ ] : Searches for the previous/next
folder.
Video screen (USB only)
6
55
5
File search area (Video file only)
Touch to search for the next/previous file.
6
Key display area (Video file only)
Touch to display the control screen.

Bluetooth Control
11English
Ñ Search Operation
You can search music or video files by the
following operations.
1 Touch [1].
2 Touch [S].
3 Select a list type.
4 Select whether you search audio files
or video files . (USB only)
5 Touch the desired category.
 The list corresponding to your selection
appears.
6 Touch to select the desired item in the
list. Repeat this step until you find the
desired file.
Bluetooth Control
Using the Bluetooth function allows you to use
various functions such as listening to the audio
file and making/receiving a call.
Register the Bluetooth device
It is necessary to register the Bluetooth audio
device or smartphone/cell-phone in this unit
before using the Bluetooth function.
You can register up to 10 Bluetooth devices.
NOTE
• Up to 10 Bluetooth devices can be registered. If
an attempt is made to register the 11th Bluetooth
device, the Bluetooth device connected on the
earliest date will be deleted to register the 11th one.
1 Press the [FNC]button.
 Popup menu appears.
2 Touch [ ].
 HOME screen appears.
3 Touch [ ].
 SETUP Menu screen appears.
4 Touch [Connection].
 Connection SETUP screen appears.
5 Touch [Device List]on the Connection
Setup screen.
6 Touch [ ] on the Device List screen.
 Bluetooth pairing waiting dialog
appears.
7 Search for the unit (”KW-M****”) from
your smartphone/cell-phone.
Complete steps 7 to 9 within 30 seconds.
8 Operate your smartphone/cell-phone
according to the displayed messages.
●Confirm the request both on the
smartphone/cell-phone.
●Input the PIN Code in your
smartphone/cell-phone.
PIN Code is set to“0000”as the default.
9 Touch [Ye s ].

Bluetooth Control
12
Using the Hands-Free Unit
You can use the telephone function by
connecting the Bluetooth telephone to this
unit.
Ñ Make a call
1 Press the [FNC]button.
 Popup menu appears.
2 Touch [ ].
 HOME screen appears.
3 Touch [ ].
4 Touch [Phone].
 Hands Free screen appears.
5 Select a dialing method.
• [ ]: Call using call records
• [
]: Call using the phonebook
• [
]: Call using the preset number
• [
]: Call by entering a phone number
Call by entering a phone number
1 Touch [ ].
2 Enter a phone number with number keys.
3 Touch [ ].
Call using call records
1 Touch [ ].
2 Select the phone number from the list.
Call using the phonebook
1 Touch [ ].
2 Touch [ ].
3 Select the initial.
• Characters with no corresponding name
will not appear.
4 Select the person you want to call from
the list.
5 Select the phone number from the list.
Call using the preset number
1 Touch [ ].
2 Touch the name or phone number.
Ñ Receive a call
1 Touch [ ] to answer a phone call or
[
]to reject an incoming call.
To end call
1 While talking, touch [ ].

Connection/Installation
13English
Connection/
Installation
This section is for the professional installer.
For safety's sake, leave wiring and mounting to
professionals. Consult the car audio dealer.
Before Installation
Before installation of this unit, please note the
following precautions.
#WARNINGS
• If you connect the ignition wire (red) and
the battery wire (yellow) to the car chassis
(ground), you may cause a short circuit, that
in turn may start a fire. Always connect those
wires to the power source running through
the fuse box.
• Do not cut out the fuse from the ignition wire
(red) and the battery wire (yellow). The power
supply must be connected to the wires via
the fuse.
#CAUTION
• Install this unit in the console of your vehicle.
Do not touch the metal part of this unit during
and shortly after the use of the unit. Metal part
such as the heat sink and enclosure become
hot.
NOTE
• Mounting and wiring this product requires
skills and experience. For best safety, leave the
mounting and wiring work to professionals.
• Make sure to ground the unit to a negative 12V
DC power supply.
• Do not install the unit in a spot exposed to
direct sunlight or excessive heat or humidity.
Also avoid places with too much dust or the
possibility of water splashing.
• Do not use your own screws. Use only the
screws provided. If you use the wrong screws,
you could damage the unit.
• If the power is not turned ON (“There is an
error in the speaker wiring. Please check the
connections.”is displayed), the speaker wire
may have a short-circuit or touched the chassis
of the vehicle and the protection function may
have been activated. Therefore, the speaker
wire should be checked.
• If your car’s ignition does not have an ACC
position, connect the ignition wires to a power
source that can be turned on and off with the
ignition key. If you connect the ignition wire to
a power source with a constant voltage supply,
such as with battery wires, the battery may be
drained.
• If the console has a lid, make sure to install the
unit so that the front panel will not hit the lid
when closing and opening.
• If the fuse blows, first make sure the wires are
not touching to cause a short circuit, then
replace the old fuse with one with the same
rating.
• Insulate unconnected wires with vinyl tape or
other similar material. To prevent a short circuit,
do not remove the caps on the ends of the
unconnected wires or the terminals.
• Connect the speaker wires correctly to the
terminals to which they correspond. The unit
may be damaged or fail to work if you share
the ¤wires or ground them to any metal part
in the car.
• When only two speakers are being connected
to the system, connect the connectors either
to both the front output terminals or to both
the rear output terminals (do not mix front
and rear). For example, if you connect the ¢
connector of the left speaker to a front output
terminal, do not connect the ¤connector to
a rear output terminal.
• After the unit is installed, check whether the
brake lamps, blinkers, wipers, etc. on the car
are working properly.
• This unit has the cooling fan to decrease the
internal temperature. Do not mount the unit
in a place where the cooling fan of the unit is
blocked. Blocking these openings will inhibit
the cooling of the internal temperature and
result in malfunction.
Cooling fan

Connection/Installation
14
• Mount the unit so that the mounting angle is
30° or less.
• Do not connect anything to the terminal
printed with "NC". "NC" means "Non
Connection" or "No Connecting". If other
signals are supplied to the terminal, the unit
may not work properly.
• Do not press hard on the panel surface when
installing the unit to the vehicle. Otherwise
scars, damage, or failure may result.
• Reception may drop if there are metal objects
near the Bluetooth/Wi-Fi antenna.
Bluetooth/Wi-Fi antenna unit
Ñ Supplied accessories for
installation
1
x1
6
x1
2
(1 m)
x1
7
(M5 x 8 mm)x6
3
x1
8
(M5 x 8 mm)x6
4(3 m)
x1
9
(3.5 m) x1
5
x2
0
x1
Ñ Installation procedure
1) To prevent a short circuit, remove the key
from the ignition and disconnect the ¤
terminal of the battery.
2) Make the proper input and output wire
connections for each unit.
3) Connect the wire on the wiring harness.
4) Connect the ISO connector to the wiring
harness.
5) Connect the wiring harness connector to the
unit.
6) Install the unit in your car.
7) Reconnect the ¤terminal of the battery.
8) Perform the Initial Setup.
See Initial SETUP (P.8) in the Instruction
Manual.
Installing the unit
7or 8
7or 8
Car Bracket
NOTE
• Make sure that the unit is installed securely in
place. If the unit is unstable, it may malfunction
(eg, the sound may skip).
Ñ Trim plate
1) Attach accessory 6to the unit.

Connection/Installation
15English
Ñ GPS antenna
GPS antenna is installed inside of the car. It
should be installed as horizontally as possible
to allow easy reception of the GPS satellite
signals.
To mount the GPS antenna inside your vehicle:
1) Clean your dashboard or other surface.
2) Remove the separator of the metal plate
(accessory 0).
3) Press the metal plate (accessory 0) down
firmly on your dashboard or other mounting
surface. You can bend the metal plate
(accessory 0) to conform to a curved surface,
if necessary.
4) Remove the separator of the GPS antenna
(accessory 9), and stick the antenna to the
metal plate (accessory 0).
0
9
NOTE
• Use the supplied GPS antenna. Using the GPS
antenna other than the supplied one may cause a
drop in positioning accuracy.
• Depending on the type of car, reception of the
GPS satellite signals might not be possible with
an inside installation.
• Please install this GPS antenna in an area away
from any antennas that are used with CB radios or
satellite televisions.
• The GPS antenna should be installed at a position
that is spaced at least 12 inch (30 cm) from
smartphone/cell-phone or other transmitting
antennas. Signals from the GPS satellite may be
interfered with by these types of communication.
• Painting the GPS antenna with (metallic) paint
may cause a drop in performance.
Ñ Microphone unit
1) Check the installation position of the
microphone (accessory 4).
2) Clean the installation surface.
3) Remove the separator of the microphone
(accessory 4), and stick the microphone to
the place shown below.
4) Wire the microphone cable up to the unit
with it secured at several positions using tape
or other desired method.
5) Adjust the direction of the microphone
(accessory 4) to the driver.
4
Fix a cable with a commercial item of tape.
Ñ Removing the trim plate
1) Engage the catch pins on the extraction key
(accessory 5) and remove the two locks on
the lower level.
Lower the trim plate (accessory 6) and pull it
forward as shown in the figure.
5
6
Lock
Catch
NOTE
• The trim plate can be removed from the top side
in the same manner.
2) When the lower level is removed, remove the
upper two locations.

Connection/Installation
16
Ñ Removing the unit
1) Remove the trim plate. (P.15)
2) Insert the two extraction key (accessory 5)
deeply into the slots on each side, as shown.
5
3) Lower the extraction key toward the bottom,
and pull out the unit halfway while pressing
towards the inside.
NOTE
• Be careful to avoid injury from the catch pins on
the extraction key.
4) Pull the unit all the way out with your hands,
being careful not to drop it.
Ñ Wiring harness (Accessory 1)
connector function guide
Pin Color and function
A-4 Yellow Battery
A-5 Blue/White [2] Power Control
A-6 Orange/White Dimmer
A-7 Red Ignition (ACC)
A-8 Black Earth (Ground) Connection
B-1/B-2 Purple (+) / Purple/Black (–) Rear Right
B-3/B-4 Gray (+) / Gray/Black (–) Front Right
B-5/B-6 White (+) / White/Black (–) Front Left
B-7/B-8 Green (+) / Green/Black (–) Rear Left
For details, see Connecting wires to terminals
(P.17).
*Speaker Impedance: 4-8 Ω
[1] [2]: Blue/White wire is provided two wires, [1] and [2].
Blue/White wire total output ([1] + [2]):
12 V =350 mA
#WARNING for Connecting the ISO
Connector
The pin arrangement for the ISO connectors depends
on the type of vehicle you drive. Make sure to make
the proper connections to prevent damage to the
unit. The default connection for the wiring harness is
described in (1) below. If the ISO connector pins are set
as described in (2), make the connection as illustrated.
Please be sure to reconnect the cable as shown (2)
below to install this unit to the Volkswagen vehicles etc.
(1): Default setting
The red (A-7 pin) of the vehicle’s ISO connector is linked
with the ignition, and the yellow (A-4 pin) is connected
to the constant power supply.
Red (Ignition cable)
Yellow (Battery cable) Yellow (A-4 pin)
Red (A-7 pin)
Unit Vehicle
(2)
The red (A-7 pin) of the vehicle’s ISO connector is
connected to the constant power supply, and the
yellow (A-4 pin) is linked to the ignition.
Red (Ignition cable)
Yellow (Battery cable) Yellow (A-4 pin)
Red (A-7 pin)
Unit Vehicle

Connection/Installation
17English
Ñ Connecting wires to terminals
MUTE
P. CONT
ANT CONT
STEERING WHEEL
REMOTEINPUT
REMOTE CONT
REVERSE
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
PRK SW
S SENS
Fuse (15A)
Connect either to the power control terminal when
using the optional power amplifier, or to the power
terminal for the booster amplifier of the film-type or
short pole type antenna.
Blue/White [1]
(Power control/Antenna control wire)
Connect to the terminal that is grounded when either
the telephone rings or during conversation.
Brown
(Mute control wire)
Purple/White
(Reverse sensor wire) (2 m)
Pink
(Speed Pulse Input) (2m)
Light Blue/Yellow
(Steering remote control wire)
Connect to vehicle’s reverse lamp harness when using
the optional rear view camera.
Connect to the vehicle’s speed pulse harness.
Do not cut the "S SENS" tag or failure may result.
To steering remote
To use the steering wheel remote control feature,
you need an exclusive remote adapter (not supplied)
matched to your car.
If no connections are made, do not let the cable
come out from the tab.
Accessory 1
Connect to the vehicle’s parking brake detection switch
harness.
Light Green
(Parking sensor wire) (2 m)
For best safety, be sure to connect
the parking sensor.
A B C
A: Black (Ground wire)
B: Yellow (Battery wire)
C: Red (Ignition wire)
[1] [2]: Blue/White wire is provided two wires, [1] and [2]. Blue/White wire total output ([1] + [2]): 12 V =350 mA
Connector B
Connector A
Other cable : Not used.

Connection/Installation
18
Ñ 3-way speaker system setup Ñ Connecting the system and
external components
7
6
12
4
1
3
2
1314
5
11
9
8
10
1
Accessory 4: Bluetooth Microphone
2
When connecting to an external amplifier,
connect its ground wire to the car’s chassis to
avoid damaging the unit.
Rear Audio Preout
(Left; White, Right; Red)
Front Audio Preout
(Left; White, Right; Red)
Subwoofer Preout
(Left; White, Right; Red)
3
FM/AM antenna input
4
AV-IN (for audio) input (ø3.5 mini jack)
5
VIDEO Input (Yellow)
Connect a RCA cable (sold separately) to VIDEO
input terminal to use AV-IN (for visual) or Side
(Left or Right) view camera Input (Yellow).
For more information, see To set up the
camera assignment settings (P.41) in the
Instruction Manual.
6
Front view camera input (Yellow) *1
For more information, see To set up the
camera assignment settings (P.41) in the
Instruction Manual.
7
Rear view camera input (Yellow)
8
3rd view camera input (Yellow)
For more information, see To set up the
camera assignment settings (P.41) in the
Instruction Manual.
NOTE
• For speaker system setup, see 3-way speaker
system setup (P.63) in the Instruction Manual.
• For speaker setup and crossover setup, see
Speaker / X’over setup (P.64) in the
Instruction Manual.
• For how to connect speaker wires to terminals
other than speaker terminals and Preout
terminals, see Connecting the system and
external components (P.18) and Connecting
wires to terminals (P.17).
+
+
+
+
When connecting to an external amplifier,
connect its ground wire to the car’s chassis to
avoid damaging the unit.
White/Black
Gray/Black
Green/Black
Purple/Black
Speaker impedance: 4-8 Ω
Purple
Green
Gray
White
To mid range left
speaker
Subwoofer Preout
To mid range right
speaker
Mid Range Preout
To tweeter left speaker
Tweeter Preout
To tweeter right
speaker
Power amplifier
(optional
accessory)
RCA Cable
(Sold separately)
Input
Speaker
Preout

Connection/Installation
19English
9
DAB antenna jack (SMB connector)
!
When using a commercially available Digital
Radio antenna, the diameter of the SMB
connector must be Φ6.5 mm or less.
Φ 6.5 mm (maximum)
10
Connect to vehicle’s steering remote harness.
Contact your JVC dealer for details.
11
Accessory 9: GPS Antenna
Use the supplied GPS antenna. Using the GPS
antenna other than the supplied one may
cause a drop in positioning accuracy.
12
VIDEO Output (Yellow)
13
USB terminal (USB Type-C®)
14
HDMI input (Type-D)
Connect a KS-U70 (optional accessory) to HDMI
input terminal.
W: 11.1 mm or less
H: 7.7 mm or less
D: 21.5 mm or less
W
HD
*1 Side (Left or Right) view camera can also be
connected to
6
.
Installation/removal of fixing bracket
When you connect the cable to HDMI terminal
and USB terminal, remove the fixture. After
connecting the cable, put the fixture again.
Fixture
USB cable
HDMI cable
Ñ Connecting a USB device
Accessory 2(1.0 m)
Accessory 3
USB terminal [1]
USB Type-A device [2]
[1] USB maximum power supply current :
DC 5 V =3.0 A
[2] Sold separately
Ñ Connecting an iPod/iPhone
KS-U70 (1.8 m) [3]
iPod/iPhone[2]
USB-C to Lightning Cable [2]
USB terminal [1]
HDMI terminal
Lightning Digital
AV Adapter [2]
KS-U62 (0.8 m) [3]
Accessory 3
Accessory 2(1.0 m)
[1] USB maximum power supply current :
DC 5 V =3.0 A
[2] Sold separately
[3] Optional accessory

Connection/Installation
20
Ñ Connecting an Android™
smartphone
USB Type-A Cable [2]
Android™ smartphone [2]
USB terminal [1]
USB Type-C Cable [2]
Accessory 2(1.0 m) Accessory 3
[1] USB maximum power supply current :
DC 5 V =3.0 A
[2] Sold separately
Ñ Connecting the camera
[2] Front view camera [1]
Left side view camera [1] Right side view camera [1]
Rear view
camera [1]
[1] Sold separately
[2] See To set up the camera assignment
settings (P.41) in the Instruction Manual.
