Kaabo Wolf Warrior 25Ah User manual

Electric scooter
USER MANUAL

Product Introduce 1
Product Specification
3
Safety Instruction 4
Fold & Unfold 5
Display & Key Settings 7
Take The First Ride 11
Warranty
13
Memo 14
TABLE OF CONTENTS

PRODUCT
DIAGRAM
[14]
[13]
PRODUCT
INTRODUCE
Forging Frame
Dual High Torque Engine
Hand Bar
Taillight
LCD Display
Dual Charging
LED Spotlight
Spotlight Switch
[1] Handle Bar [2] Single Dual Switch [3] Ligt And Horn Switch
[4] Display [5] Hydraulic Brake [6] Hydraulic Fork
[7] Light [8] Horn [9] Tubeless Tire
[10] Folding Lever [11] Protection Bracket [12] Pedal
[13] Side Light [14] Rear Shock Absorber
Locking Shaft Folding Lever
01 02
01

PRODUCT
SPECIFICATION
SAFETY
INSTRUCTION
SPECIFICATION
Configuration
60 V
25 AH
60 V
35 AH (LG)
Max. Range 100 km (Eco Mode) 150 km (Eco Mode)
Max. Speed 80 km/h (Dual-drive Mode)
Max. Load 150 kg
Climbing Angles ≥ 45° (Around)
Ground Clearance 20 cm
Charging 13 h+ (2A Charger) 17 h+ (2A Charger)
Motor 1200 W x 2
N.W 44 kg 46 kg
Frame Aluminum Alloy + Forging
Brake Hydraulic Brake + EABS Hydraulic Brake + ABS
Shock Absorber Front Hydraulic Shock Absorber Rear Spring
Display LCD Display LCD Sport Display
Tire 11 inch Tire
Open Size 1210 x 625 x 1250 mm
Folding Size 1500 x 270 x 470 mm
* The specification can be changed by manufacturer to meet the requirements and laws of
different countries and regions.
*The distance on the specification is 60kg load, 20km/h constant speed riding basis and the
driving distance can be shortened by the riding terrain and the driving way of user.
*The distance can be affected by loaded weight, wind direct (wind speed), riding surface
density, slope and tire condition.
Tips
This Chapter is very important. Please read carefully and understand
all the instruction. We will not be responsible for any property loss,
casualties, accidents, legal disputes caused by violation of the safety
instrutions on chapter.
Safety Instruction
1. Do not drive under rain
2. Do not repair by yourself, electric shocks can occur.
3. Please follow the local traffic law.
4. The scooter is desinged for one person only.
5. Please wear safety protective equipment such as a helmet,gloves,elbow
and knee pads for riding.
6. Please practice on open ground first before ride on the road.
7. Please full charge the battery before first time use
8. Please do not cut off the power when scooter is running.
9. Please storage scooter within temperature range from -5℃ to 50℃.
10. If the scooter is not used for a long timelong time, please charge it
once every month to maintain the longevity of the battery.
11. Keep feet on pedal during the riding.
03 04
80km/h is maximum design speed, please do not exceed
maximum speed for local traffic requirements when you driving
this equipments, otherwise there may be danger!
03
02

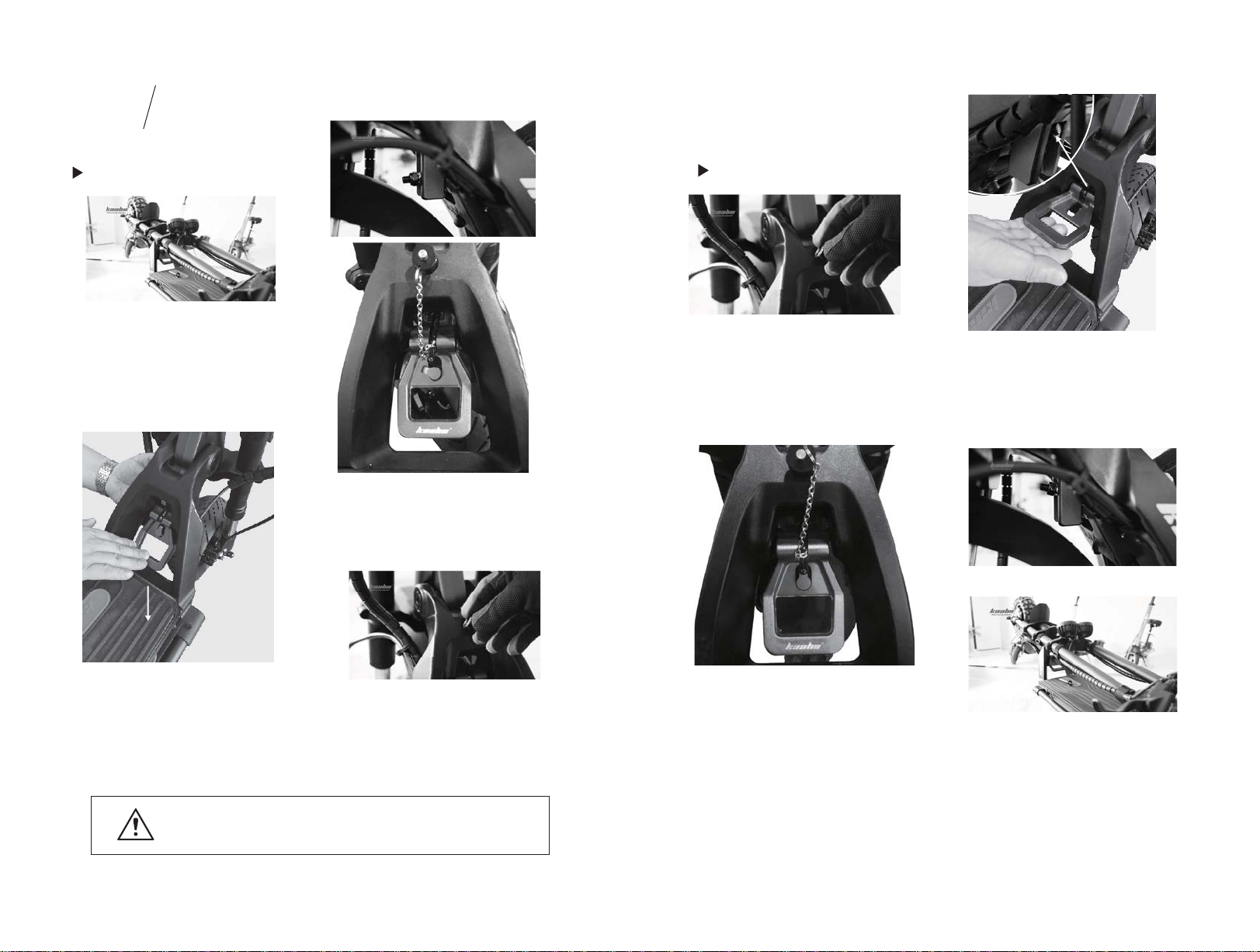

FOLD &
UNFOLD
Unfold
Step1:
Lift up front fork (pleaseadjust
the position of locking shaft if
needed)
Step3:
Adjust the postion of the
protection nut
Fold
Step1:
Take out protection pin by
pushing the head of the pin and
start the fold.
Step3:
Pull up the folding Lever to fold the
scooter. The locking shaft will move
like The photo below
Step2:
Put down the folding lever. And
make sure the locking shaft well
positioned like the photo below
Step4:
Insert the protection pin and
completed the unfold.
Step2:
Adjust the postion of the
protection nut Step4:
Lay down the front fork and folding
completed.
05 06
Please make sure the locking shaft is well locked
, this is very important !
04

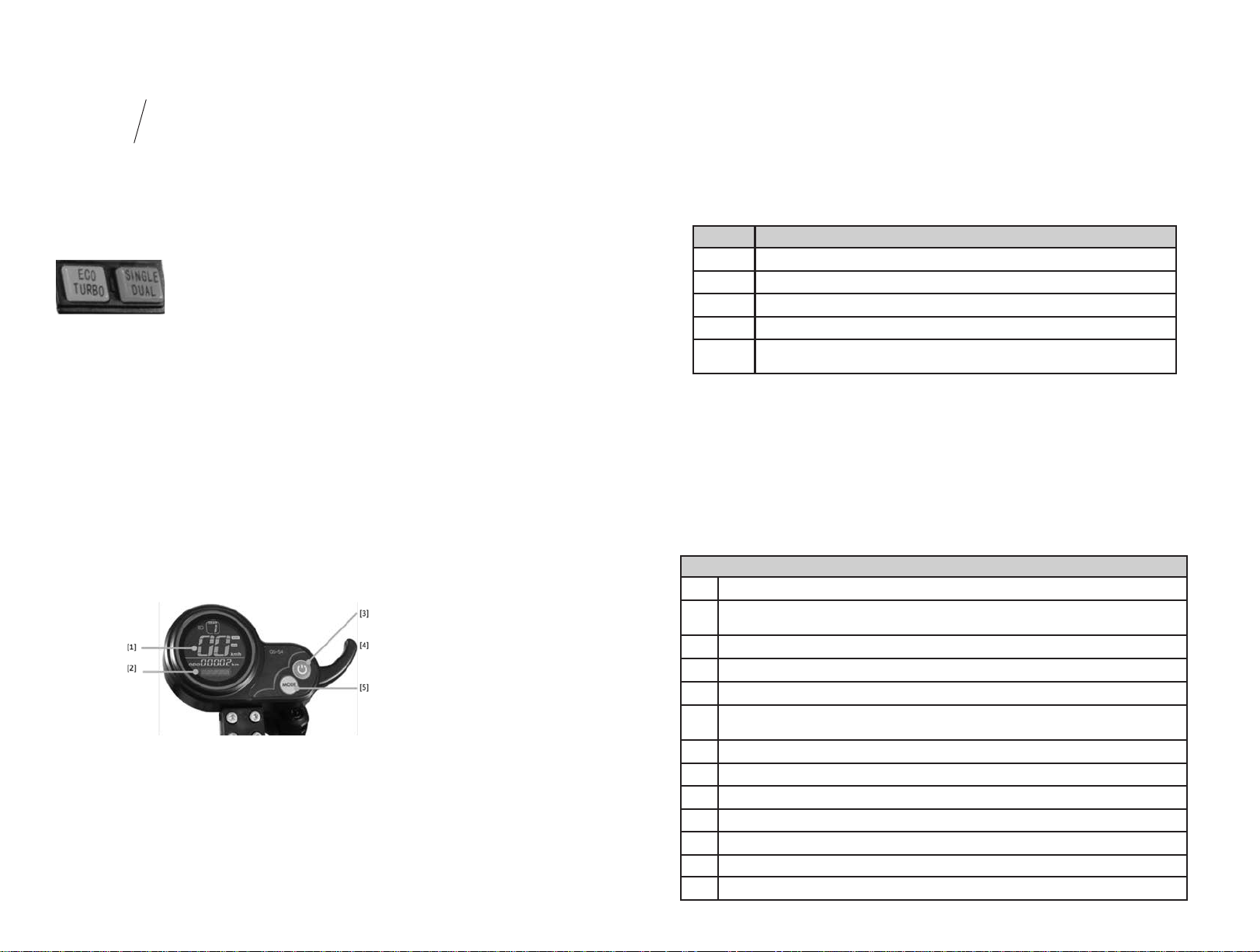

DISPLAY &
KEY SETTINGS
Driving Mode Selection
Located underneath the main display on the right side of
the handle bar you can find two switches to configure
driving modes:
The ECO/TURBO switch regulates the power of your scooter. By pressing
down the button, ECO mode is activated which will reduce torque and top
speed to maximize range. When the button is not pressed, TURBO mode is
activated and there is no restriction of power.
The SINGLE/DUAL switch toggles single or dual motor drive. By pressing down
the button DUAL motor drive is activated. When the button is not pressed,
SINGLE (rear) motor drive is activated.
For Maximum range, select ECO mode and SINGLE motor drive. For maximum
power and speed, select TURBO mode and DUAL motor drive.
Display Settings –Wolf Warrior 25Ah
The Wolf warrior 25Ah scooter is equipped with the following display:
3. Power Button. To turn the scooter on or off press button for 2 seconds.
4. Accelerator. Pull to accelerate. The stronger you pull, the faster it
accelerates. The scooter is delivered in “Non-Zero Start” setting
(Kick-And-Go is ON), i.e. the accelerator only works if the scooter is
already in motion.
5. Mode Button. Press to select various display options:
MODE
COMMENT
TIME
Time since powering on the scooter.
TRIP
Distance travelled since powering on the scooter.
ODO
Total distance travelled.
VOL
Current battery voltage.
CH2:00
Charging mode. Time (2 hours) scooter stays ON (overrides auto-switch off)
so you can use display’s USB port to charge e.g. your phone.
Detailed P-settings mode. To access P-settings to make various advanced
changes, press POWER [3] and MODE [5] simultaneously for 2 seconds.
Cycle through the P-settings using the MODE button. To select a P-setting in
order to make changes press the POWER button. Change the value (up or
down) using the MODE (Up) and POWER (Down) buttons. To return to the P-
settings menu after changing a value, wait 2 seconds. To return to operating
mode, wait a further 2 seconds. Only
Gear change. To change the gear (1=slow, 2=medium, 3=fast), while the
scooter is powered ON, press the POWER button to enter gear setting mode.
Press MODE to switch between gears. To return to operating mode either
press POWER or wait for 2 seconds.
1. Speedometer. Shows the speed at which you are travelling.
2. Battery Indicator. Charge your scooter frequently, do not let it run out
of battery. As a rough guideline, charge at or below 2 bars.
07 08
05
P-SETTINGS
P0
Tire diameter (11= 11 inch). Do not change.
P1
Controller shut-down voltage. Default set to 52V (minimum is 48V – we recommend
52V to preserve battery life).
P2
Motor magnetic pole setting. Default is 30. Do not change.
P3
Speed signal selection. Default is 0. Do not change.
P4
Distance / speed unit. 0=km, 1=miles
P5
Start setting. 1=non-zero start (Kick-and-Go), accelerator won’t work if scooter not in
motion; 0=immediate start (CAUTION while using this!)
P6
Cruise control. 0=cruise control OFF, 1=cruise control ON.
P7
Initial acceleration. 0=strong, 1=soft.
P8
Electric (regenerative) braking (E-ABS). 0=E-ABS off, 1=E-ABS on
P9
Speed limit as % of top speed, i.e. 100=no speed limit.
PA
Clear total distance travelled (ODO).
PB
Scooter auto-turn off time in minutes.
PC
Display brightness (1=low, 3=high)

While driving, keep the accelerator steady for a few seconds until Cruise
Control kicks in and scooter travels at constant speed without driver holding
down the accelerator. When you activate the brakes Cruise Control will be
Display Settings –Wolf Warrior 35Ah
The Wolf Warrior 35Ah scooter is equipped with the following LCD display:
1. Speedometer. Shows the speed at which you are travelling.
2. Battery Indicator. Charge your scooter frequently, do not let it run out
of battery. As a rough guideline, charge at or below 2 bars.
3. Gear. Shows the selected gear.
4. Gear selector. Press to set gear (1=slow, 2=medium, 3=fast).
5. Power Button. To turn the scooter on or off press button for 2 seconds.
6. Accelerator. Pull to accelerate. The stronger you pull, the faster it
accelerates. The scooter is delivered in “Non-Zero Start” setting
(Kick-And-Go is ON), i.e. the accelerator only works if the scooter is
already in motion.
7. Mode Button. Press to select various display options:
MODE
COMMENT
TIME
Time since powering on the scooter.
TRIP
Distance travelled since powering on the scooter.
ODO
Total distance travelled.
VOL
Current voltage.
CHA
Number of times battery has been charged (inaccurate as only full
discharges are counted)
Detailed P-settings mode. To access P-settings to make various advanced
changes, press MODE [7] for 2-3 seconds.
Cycle through the P-settings using the MODE button [7]. In order to change a
P-setting press GEAR button [4]. To return to operating mode, wait a few
seconds.
P-SETTINGS
P0
Tire diameter (11 = 11 inch). Do not change.
P1
System voltage. Default 60V. Do not change.
P2
Motor magnetic pole setting. Default 15. Do not change.
P3
Speed signal selection. Default is 0. Do not change.
P4
Distance / speed unit. 0=km, 1=miles
P5
Start setting. 1=non-zero start (Kick-and-Go), accelerator won’t work if scooter not
in motion; 0=immediate start (CAUTION while using this!)
P6 Cruise control. 0=cruise control OFF, 1=cruise control ON. Advanced riders only.
P7
Initial acceleration. 0=strong power, 5=least power.
P8
Speed limit as % of top speed, i.e. 100=no speed limit.
P9
Motor torque. 1=50% of max. torque, 2=75% of max. torque, 3=max. torque
PA
Electric (regenerative) braking strength (E-ABS). 0=None, 1=Weak, 2=Medium,
3=strong.
PB
Display brightness (0=off, 5=highest illumination)
PC Scooter auto-turn off time in minutes (1-30 minutes).
PD
ABS (anti-lock braking system) setting. 0=ABS off, 1=ABS on (as in a car, the brake
engages and disengages rapidly to prevent the wheel from blocking)
WARNING: Due to increased vibration and force and on scooter components when
using ABS, do frequently check that all bolts are properly fastened.
Cruise Control.Cruise control allows you to maintain your driving speed auto-
matically without continuing to hold down the accelerator. In order to enter
Cruise Control, activate it first in the P-settings [P6].
While driving, keep the accelerator steady for 3-5 seconds until Cruise Control
kicks in and scooter travels at constant speed without driver holding down
the accelerator. When you activate the brakes, Cruise Control will be
cancelled. CAUTION: Ride in a position where you can immediately access the
brake to cancel Cruise Control if necessary.
09 10

TAKE THE
FIRST RIDE
Start
You should choose a right place when first riding, which is outdoors and
should be flat, not be slippery and smooth, without obstacles.
Riving
1. Press power switch to start.
2.Put one foot on the front section of the pedal and other foot on the
ground. Boost yourself forward by the foot on the ground to start riding.
Slightly pull the accelerator and tilt body forwards.
3.When the scooter starts to go forward, get your feet both on pedal.
The harder you press the accelerator, the quicker you will be.
Battery & Charger
Every piece of the scooter is equipped with specialized lithium battery
and intelligent charger, so do not adopt other brand’s charger.
Lithium Battery
It is time to charge the scooter when the battery meter flickers or
there is only one bar of power left. If the scooter is not used for long time,
please charge it once a month at least, otherwise the battery may
be damaged.
Charger
After scooter fully charged, please unplug charger in time.
Parking
Slightly and gradually brake to cut power and slow down.
Do not brake hard,otherwise may lead to tire attrition, or suffer a sudden
loss of power and fall down.
Instruction of Charging
1. Insert the charging plug into the charge hole of the scooter first
and then plug the other end to the AC supply.
2. It is under charging when the indicator light of the charger shows red.
And when the red light turns to green. It means the scooter is fully
charged.
11 12
06
