Kaixin KX5600 User manual

KAIXIN
KX5600
Full Digital Ultrasonic Diagnostic
Instruments (Vet)
User’s Manual
XUZHOU KAIXIN Electronic Instrument Co., Ltd.

Full Digital Ultrasonic Diagnostic Instruments User’s Manual V1.00
Introduction
Thank you for purchasing KX5600 full digital ultrasonic diagnostic instruments.
Users shall carefully read through this manual and fully understand the text before operating the
equipment.
Please keep this manual after reading so that you can access at any time when needed.
The user’s manual issue date: June 15, 2014, Version: V1.00
For the changes of appearance, this manual is subject to change without further notice!
Intellectual Property Information
The user’s manual and the corresponding intellectual property rights belonging to Xuzhou Kaixin
Electronic Instrument Company Ltd. (hereinafter referred to as Kaixin).
Individual or organization may not copy, modify or translate any part of this user’s manual,
without the express written permission of Kaixin.
Statement
Kaixin has the final explanation right of this user’s manual.
Kaixin was considered responsible for the safety, reliability and performance in case of meeting
all the following requirements:
1. Assembly, expansion, readjustment, improve and repair are all performed by professionals
recognized by Kaixin;
2. All replacement parts and accessories, consumables involved repairs are Kaixin company
(original) or approved by Kaixin;
3. Related electrical equipment complies with national standards and the requirements of the
user’s manual;
4. Operate the product in accordance with the user’s manual.
Warranty and repair service
Purchased the product warranty, sees the company's service policies.
Manufacturer’s Information
Xuzhou Kaixin Electronic Instrument Co., Ltd.
Kaixin Mansion, C-01, Economic Development Zone, Xuzhou, Jiangsu, China.
Post Code: 221004
Tel: [phone] 87733758
Fax: [phone] 87792848
Website: http://www.kxele.com
E-mail: [e-mail]
F-1

Full Digital Ultrasonic Diagnostic Instruments User’s Manual V1.00
Important Statement
1. User shall be fully responsible for the maintenance and management of this product after
purchasing this product.
2. Even in the warranty period, warranty does not include the following:
a) Damage or loss caused by error or rough using.
b) Damage or loss caused by force majeure (such as fires, earthquakes, floods, or lightning
etc.).
c) Damage or loss caused by not meeting the conditions of use specified by the system, such
as inadequate power supply, incorrect installation or environmental conditions do not
meeting the requirements.
d) Damage or loss caused by not used the system in the initial buy region.
e) Damage or loss caused by the system purchased not by Kaixin or its authorized dealer or
agents.
3. Medical personnel qualified with professional qualifications only to use this system.
4. Do not modify the software or hardware of the equipment without authorization of the
manufacturer.
5. In any case, Kaixin shall not be liable for the problems, damages or losses due to
re-installation, alteration or repair the system by non-Kaixin designated personnel.
6. This product is intended to provide clinical diagnostic data for the doctor.
The doctor shall be responsible for the diagnostic process. Kaixin shall not be liable for any
problems arising out of the process.
7. Be sure to back up important data to external storage media, such as notebooks.
8. Due to operator’s error or abnormal condition causing the data stored in the internal system is
lost, Kaixin is not responsible.
9. This user’s manual contains warnings for predictable dangers. Users shall also exercise care at
any time to be aware of the dangers unforeseen in this manual. Kaixin shall not be liable for
the damages and losses arising out of neglecting to follow the operation instructions herein
described.
10. This user’s manual shall be furnished with the machine so that managerial and operating
personnel can refer to it any time as necessary. Once the managerial personnel of the system
changes, it shall hand over this user’s manual.
11. Deal with the exhausted product according to the local statute.
12. The maintenance and servicing of product shall be performed by the trained engineer or by
Kaixin Electronic Instrument Company Ltd.
F-2

Full Digital Ultrasonic Diagnostic Instruments User’s Manual V1.00
Safety Cautions
1. Warning Symbols and Definitions
The following warning symbols are used in this manual to indicate safety level and other important
items. Please remember these symbols and understand the meaning as you read this user’s manual.
These symbols convey specific meanings as detailed in the table below:
Symbols & Words Connotation
Danger Indicates an imminent danger that may result in personal death or
serious
injury
if
not
avoided.
Warning
Indicates
a
potential
danger
that
may
result
in
personal
injury
if
not
avoided.
Attention
Indicates
a
potential
danger
or
unexpected
use
condition
that
may
result
in
light
injury
or
p
roperty
loss
or
affecting
the
use
if
not
avoided.

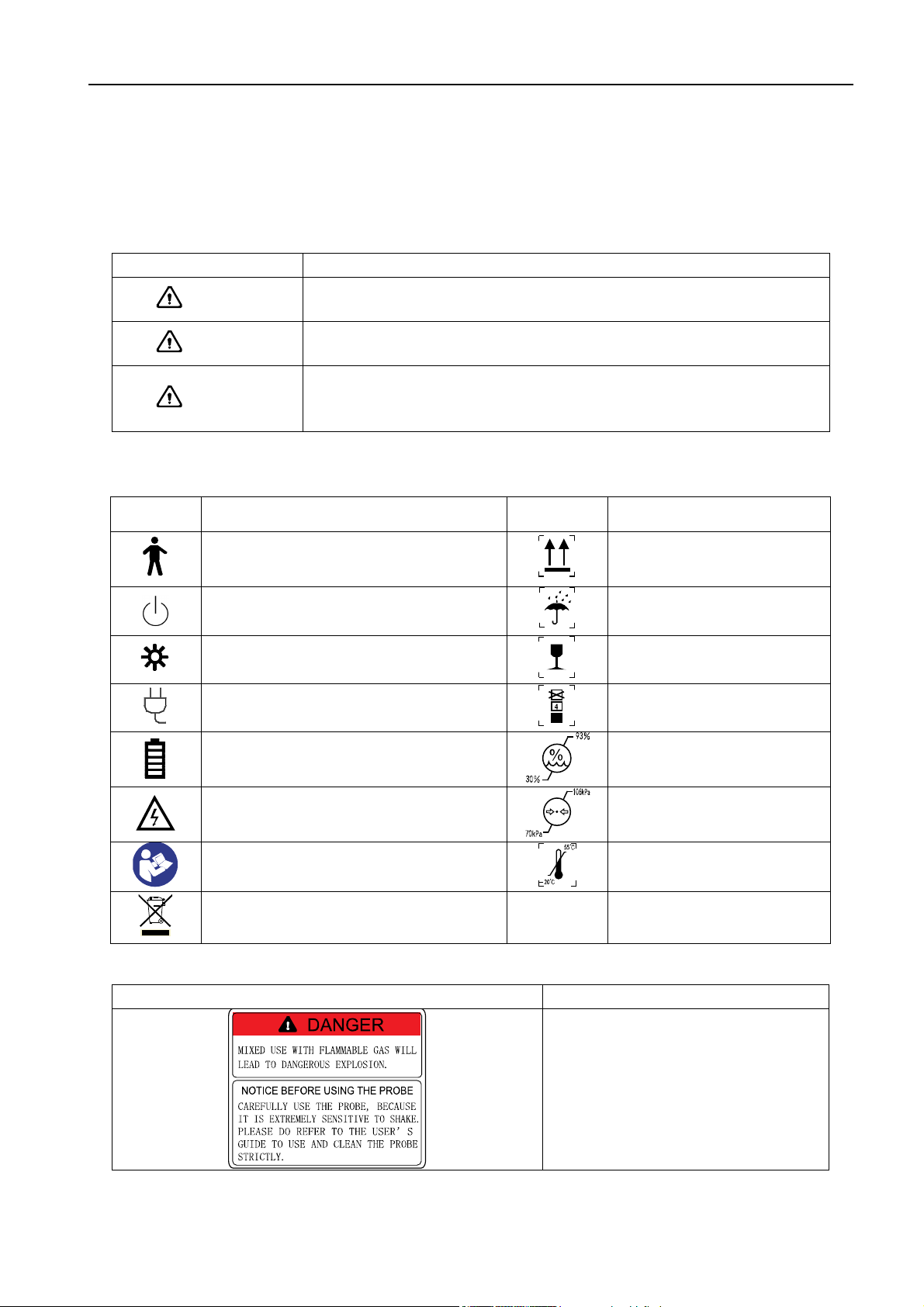

2. Safety Symbols
Symbols Meaning Symbols Meaning
Type B applied part Up
Power switch Keep dry
Power supply indication Fragile
Adapter connection indication Stacking limit by number
Battery charge indicator Humidity limitation
Dangerous voltage Atmospheric pressure
limitation
Follow instructions for use Temperature limits
Marking for the separate collection of
electrical and electronic equipment
3. Labels
Label Description
Danger:
1. It may have explosion hazard if
used with flammable gas.
2. Operate the probe with care.
Read the probe information in
the relevant manual for proper
probe use.
F-3

Full Digital Ultrasonic Diagnostic Instruments User’s Manual V1.00
Attention:
Do not place object on the machine.
Do not apply external force on the
machine. Close the keyboard before
moving the machine.
Attention:
It is prohibited to scratch or squeeze
the LCD.
Warning:
The device should be used only
with external AC/DC adapter
provided by manufacturer. Use of
other AC/DC adapter may cause
damaged to the device or cause fire
and electric shock hazards.
F-4
Symbol for the marking of electrical and electronics devices according to
Directive 2002/96/EC. The device, accessories and the packaging have to
be disposed of waste correctly at the end of the usage. Please follow Local
Ordinances or Regulations for disposal.

Full Digital Ultrasonic Diagnostic Instruments User’s Manual V1.00
Contents
Chapter One Technical Specifications………………………………………………………1
Chapter Two System Outline …………………………………………………………… 2
2.1 System structure components…………………………………………………………2

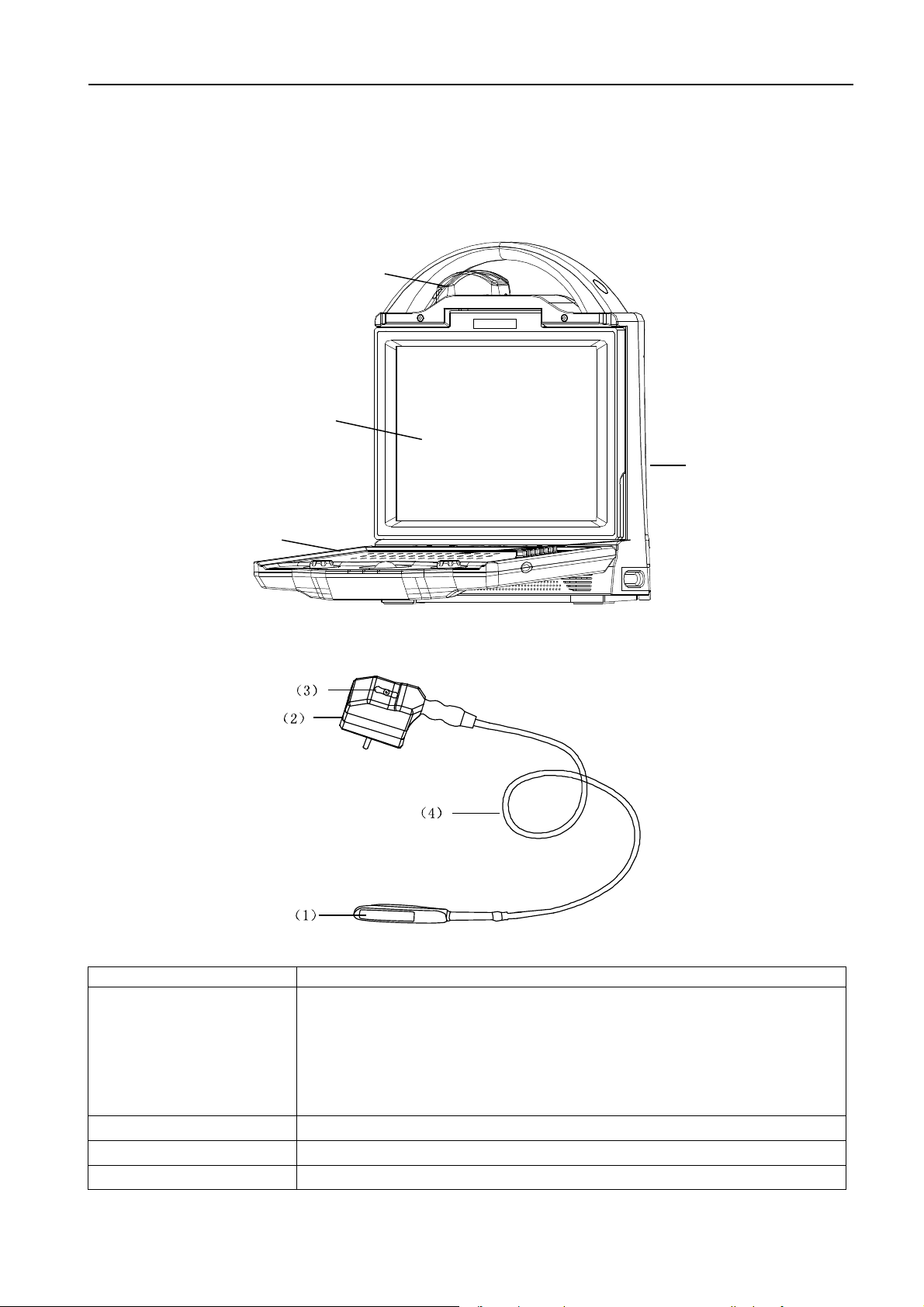

2.2 Components name………………………………………………………………………2
2.3 Parts of the probe……………………………………………………………………… 2

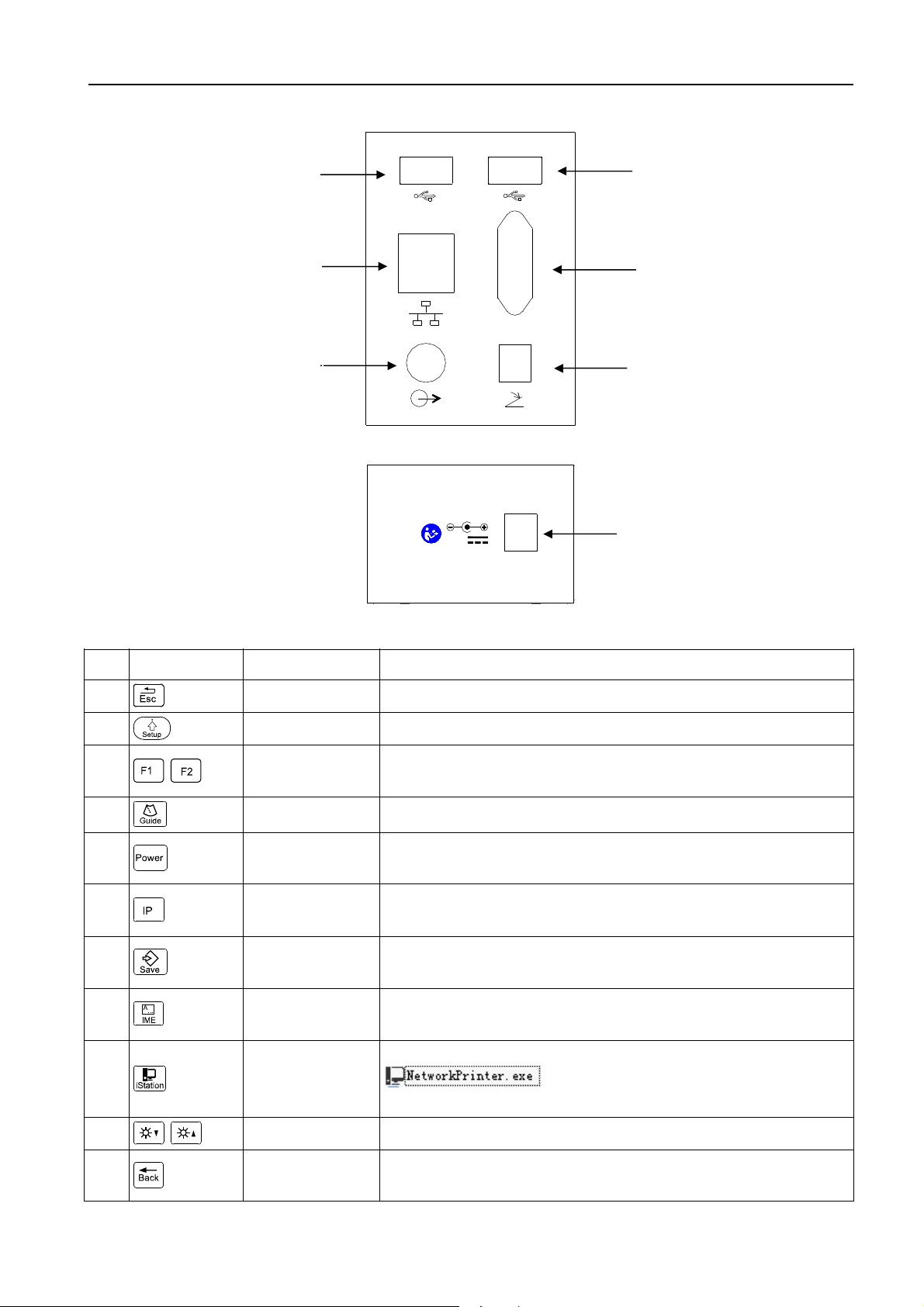

2.4 Rear panel instruction………………………………………………………………… 3

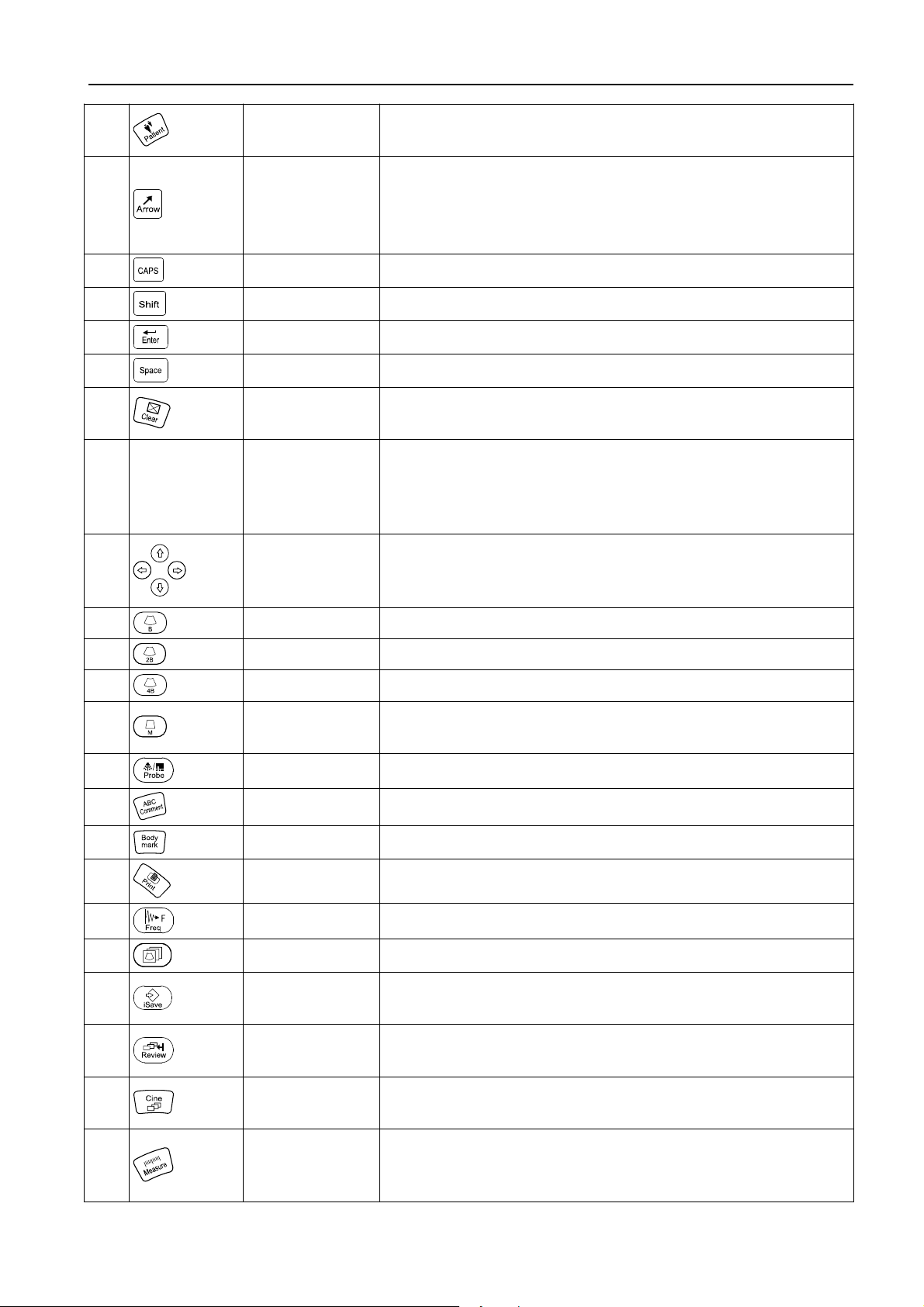

2.5 Function keys instruction………………………………………………………………3
Chapter Three System Configuration………………………………………………………6
Chapter Four Operation Condition…………………………………………………………6
Chapter Five System Installation and Check……………………………………………… 7
5.1 System placement……………………………………………………………………8
5.2 Probe bracket installation……………………………………………………………8
5.3 Ultrasonic probe installation………………………………………………………… 8
5.4 Install/Remove the battery……………………………………………………………9
5.5 Install foot switch…………………………………………………………………… 9
5.6 Connection to video recorder…………………………………………………………9
5.7 Connection to power……………………………………………………………………9
5.8 Ultrasonic probe check before and after operation…………………………………10
5.9 Main unit check before and after operation………………………………………10
5.10 System reset……………………………………………………………………………10
Chapter Six Preset……………………………………………………………………… 11

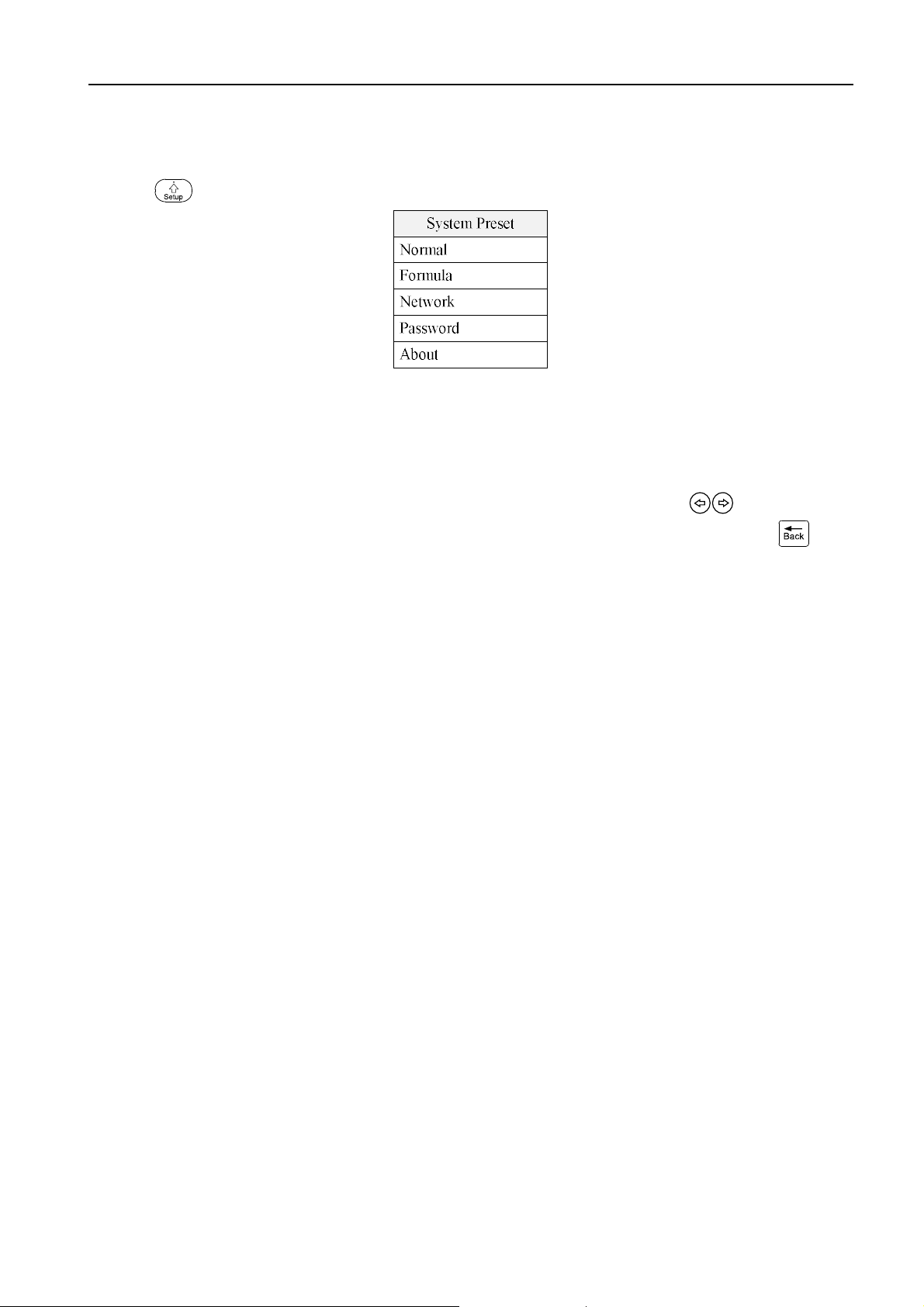

6.1 System preset……………………………………………………………………………11
6.1.1 Normal……………………………………………………………………… ………11
6.1.2 Formula preset………………………………………………………………………12
6.1.3 Net Settng……………………………………………………………………………12
6.1.4 Password preset………………………………………………………………………13
Chapter Seven Functional Operation……………………………………………………14
7.1 Startup and Shutdown………………………………………………………………14
7.2 Keyboard light………………………………………………………………………14
7.3 Patient basic information……………………………………………………………14
7.4 Probe selection………………………………………………………………………14
7.5 Mode selection………………………………………………………………………14
7.5.1 B mode………………………………………………………………………………14
7.5.2 B/B mode……………………………………………………………………………14
7.5.3 4B mode………………………………………………………………………………14
7.5.4 B/M mode……………………………………………………………………………14
7.5.5 M mode………………………………………………………………………………14
7.6 Image quality adjustment and image control……………………………………… 15
7.6.1 Image brightness adjustment……………………………………………………15
7.6.2 TGC adjustment…………………………………………………………………… 15
7.6.3 Total gain adjustment……………………………………………………………… 15
7.6.4 Dynamic range adjustment…………………………………………………………15
7.6.5 Frequency adjustment (Frequency conversion)…………………………………15
7.6.6 Frame correlation adjustment…………………………………………………… 15
7.6.7 Edge enhancement adjustment…………………………………………………… 15
7.6.8 Compression curve adjustment……………………………………………………15
7.6.9 Image post-process adjustment……………………………………………………16
7.6.10 Image optimization………………………………………………………………16
7.6.11 Depth range selection……………………………………………………………16

Full Digital Ultrasonic Diagnostic Instruments User’s Manual V1.00
7.6.12 Image up/down reverse……………………………………………………………16
7.6.13 Image left/right reverse……………………………………………………………16
7.6.14 Angle/Width change………………………………………………………………16
7.6.15 Color selection…………………………………………………………………… 16
7.6.16 Image freeze/unfreeze…………………………………………………………… 16
7.7 Puncture guide……………………………………………………………………… 16
7.8 Lithotripsy positioning line…………………………………………………………17
7.9 Body mark …………………………………………………………………………… 17
7.10 One-key storage………………………………………………………………………17
7.11 Play back and Measurement………………………………………………………17
7.12 Annotation……………………………………………………………………………18
7.13 M image function……………………………………………………………………18
Chapter Eight Image management………………………………………………………19
8.1 Enter/exit image management……………………………………………………19
8.2 Image management interface…………………………………………………… 19
8.3 Manage the folder and file………………………………………………………19
Chapter Nine Print and Transfer files……………………………………………………20
9.1 Print……………………………………………………………………………………20
9.1.1 Network print……………………………………………………………………… 20
9.1.2 USB Print…………………………………………………………………………21
9.2 Transfer BMP files………………………………………………………………… 21
Chapter Ten B General Measurement………………………………………………… 22
10.1 Distance measurement…………………………………………………………… 22
10.2 Circumference/area measurement………………………………………………… 22
10.3 Volume measurement………………………………………………………………23
10.4 Angle measurement…………………………………………………………………24
10.5 Histogram measurement…………………………………………………………… 24
10.6 Profile measurement…………………………………………………………………25
10.7 Depth measurement………………………………………………………………… 25
10.8 Stenosis ratio measurement…………………………………………………………25
Chapter Eleven B Obstetric Measurement………………………………………………27
11.1 Measurement and Calculation items…………………………………………………27
11.2 Obstetric-Bovine…………………………………………………………………… 27
11.3 Obstetric-canine, equine, feline, goat, llama, ovine, and swine………………27
11.4 Measurement of Swine’s lean percentage…………………………………………27
Chapter Twelve M General Measurement………………………………………………28
12.1 Depth measurement………………………………………………………………… 28
12.2 Slope measurement………………………………………………………………… 28
12.3 Heart rate measurement…………………………………………………………… 28
12.4 Time measurement………………………………………………………………… 29
Chapter Thirteen System Maintenance………………………………………………… 30
13.1 Maintenance by users……………………………………………………………… 30
13.1.1 System cleaning and disinfection………………………………………………30
13.2 Replace the fuse…………………………………………………………………… 33
13.3 Use and maintenance for the rechargeable battery………………………………33
13.4 Troubleshooting…………………………………………………………………… 35
13.5 Periodic safety checks…………………………………………………………… 35
13.6 System block diagram……………………………………………………………36
Chapter Fourteen Storage and Transportation……………………………………………37
Chapter Fifteen Safety Classification………………………………………………… 37

Full Digital Ultrasonic Diagnostic Instruments User’s Manual V1.00
- 1 -
Chapter One Technical Specifications
1.1 Technical Parameter
1. Gray scale: 256
2. Monitor: 10.4” LCD
3. Adapter rating: 100-240V~, 1.2-0.6A, 50-60Hz
4. Output of Adapter: DC12.8V 3.0A
5. Main device rating: DC12V 3.0A
6. Main Unit Size: approx. 256 * 150 * 326 (L * M * H, mm)
7. Weight of main unit: approx. 4.5 kg (excluding accessories)
1.2 Primary Functions
1. Mode conversion function;
2. M speed conversion function;
3. Depth range selection function;
4. Probe switching function;
5. Compression curve function;
6. Frequency conversion function;
7. Frame correlation function;
8. Edge enhancement function;
9. Image post-process function;
10. Image optimization function;
11. Image freeze/unfreeze;
12. Many segments adjustable TGC, adjustment of total gain and dynamic range;
13. Image storage function;
14. Image management function;
15. Image up/down and left/right reversal;
16. Angle/width change function;
17. Auto time display, case information and image annotation;
18. Body marks function;
19. B general measurement of distance, depth, circumference/area, volume, angle, histogram,
profile, stenosis ratio;
20. OB software package includes 25 obstetric tables about 8 kinds of animals and it
can automatically calculate GA and EDC;
21. M general measurement of depth, slope, heart rate and time;
22. System preset function;
23. Transfer image to Network Printer by one-key;
24. Network print function;
25. LCD brightness adjustment function;
26. PAL-NTSC conversion;
27. Puncture guide function;
28. Lithotripsy positioning line function;
29. Cine playback function;
30. Energy-saving function;
31. Chinese-English switch function;
32. Have various reports.

Full Digital Ultrasonic Diagnostic Instruments User’s Manual V1.00
- 2 -
Chapter Two System Outline
2.1 System structure components
KX5600 full digital ultrasonic diagnostic instruments (Vet) are composed of main unit, probe etc.
2.2 Components name
Fig. KX5600 Main unit sketch map
2.3 Parts of the probe (Take 6.5MHz animal transrectal linear array probe for example)
Fig. Name of 6.5MHz animal transrectal linear array probe parts
Name
Function
(1) Acoustic lens
To convert electric signal to ultrasonic signal based on principle of
converse piezoelectric effect. The ultrasonic signal, after entering the
human body, is reflected as echo wave and converted to electric signal
again. The acoustic lens is on the probe surface. Supply ultrasonic
coupling gel to the acoustic lens surface when performing ultrasonic
diagnosis.
(2)
Probe
connector
To
connect
the
probe
to
ultrasonic
diagnostic
system
(3)
Lock/
loosen
knob
To
lock/
loosen
the
connection
of
probe
to
ultrasonic
diagnostic
system
(4)
Cable
To
connect
the
probe
to
the
probe
connector
Display
Keyboard
Probe
Main unit

Full Digital Ultrasonic Diagnostic Instruments User’s Manual V1.00
- 3 -
2.4 Rear panel instruction
Color SVGA Out
Fig. Real panel A sketch map
12V
Fig. Real panel B sketch map
2.5 Function keys instruction
SN Key symbol Key name Key function
1 Exit Exit dialog, menu or measurement;
2 Preset Enter/exit system preset interface;
3User-defined
keys (reserved)
4 Puncture guide Display or switch the puncture guide line;
5Acoustic power
(to be upgraded)
In real-time scanning mode, press the key to adjust the
acoustic power parameters of system;
6Image
post-process Press key to adjust the image post-process;
8 Store In frozen status, the current display image or report is saved
to C disk or U disk;
9Change
language Switching Russian and English;
10 One-key transfer
Press the key to transfer images to the software
, the specific use of Network Printer sees
its instructions for use;
11 LCD setting Adjust the brightness of LCD;
12 Backspace Delete the character before the cursor while the cursor move
left;
Network
interface
Color
SVGA
output
Video
output
interface
USB
port
Power
input
interface
USB port
Foot
switch

Full Digital Ultrasonic Diagnostic Instruments User’s Manual V1.00
- 4 -
13 New patient ·Access to new patient module;
·Input the information and data for new patient;
14 Arrow
·In annotation status, press the key to enter the function of
arrow mark;
·Now, through rotate【Gain】or【Function】knob to adjust the
direction of arrow mark.
15 Case conversion Switch the input between capital letters and small letters;
16 Shift Shift key with the standard keyboard;
17 Enter Accept the input data;
18 Space Input space character;
19 Clear Press the key to clear annotations, arrow marks, body mark,
measurement markers and measured results on the image;
20 Omit Numbers, letters,
symbols
·Main characters: characters on the keyboard, next-row
letters/numbers/symbols of the multiplex keys;
·Superscript characters: up-row letters and symbols of the
multiplex keys.
21 Direction keys
·Adjust the start-end positon and angle of punction guide
lines;
·Direction keys can be used to change the position of cursor.
22 B mode Press key to enter B mode;
23 B/B mode Press key to enter B/B mode;
24 4B mode Press key to enter 4B mode;
25 M mode Press the key to enter B/M mode; press again to enter M
mode;
26 Switch probe Switch the probe model;
27 Text input In frozen status, enter/exit text input status;
28 Body marks Press the key to enter body mark module;
29 Print Press the key to print the image or report;
30 Frequency Press the key to adjust the conversion frequency;
31 Frame average In real time mode, press the key to adjust the frame average;
32 Store In frozen status, the current display image or report is saved
to C disk or U disk;
35 Image
management
·In frozen status, enter the image management module;
·Review the saved patient images;
36 Cine playback In frozen status, press the key to enter the cine playback
status;
37 Measurement
and calculation
·Press the key to enter/exit the measurement menu;
·In the measurement, press key to exchange starting point and
end point;

Full Digital Ultrasonic Diagnostic Instruments User’s Manual V1.00
- 5 -

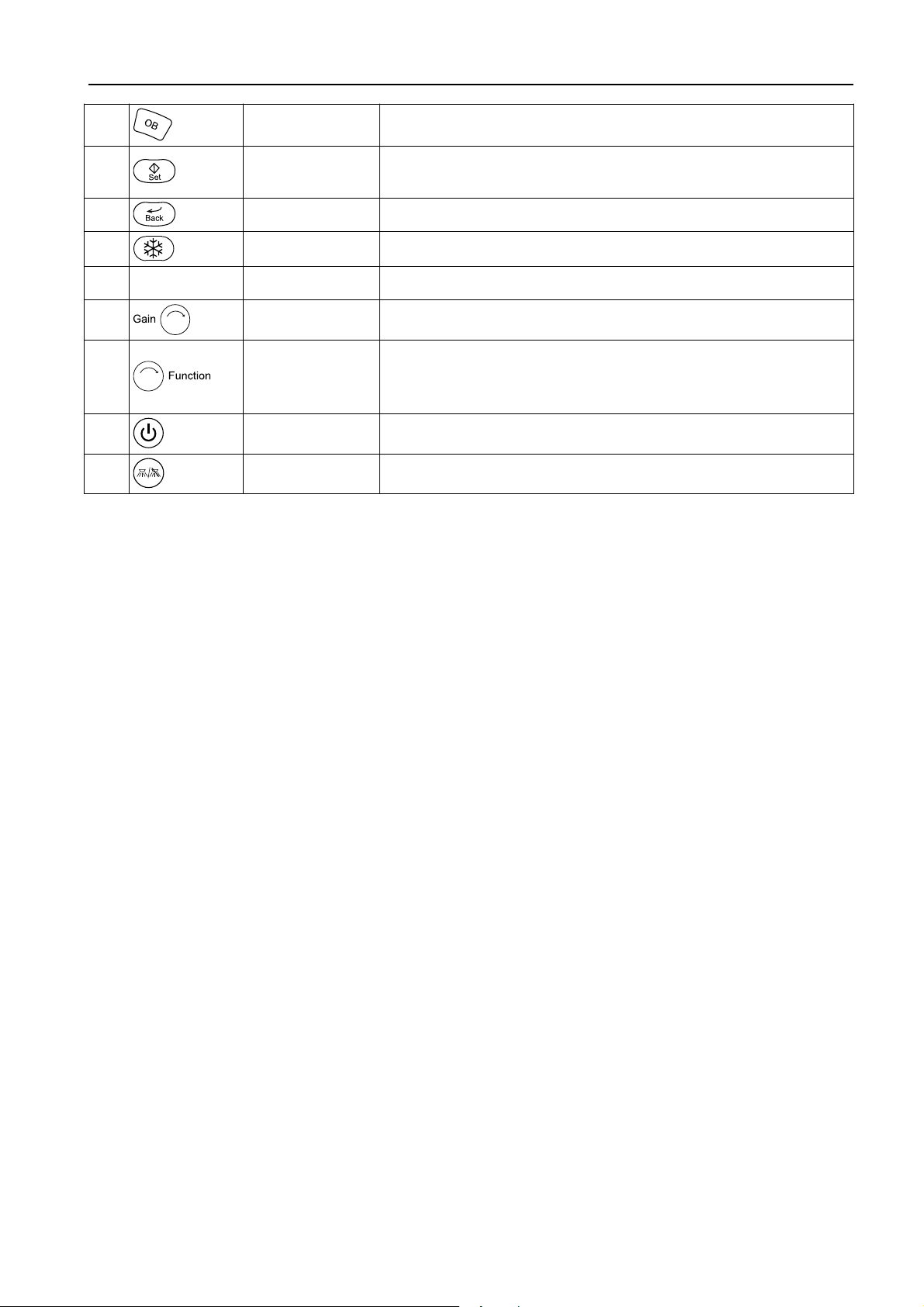

38 Obstetric Press the key to enter/exit obstetric measurement menu;
39 Set ·Press key to perform the confirm function;
·Press the key to increase the values of parameters;
40 Back Press the key to decrease the values of parameters;
41 Freeze Press the key to freeze or unfreeze the image;
42 『TGC』TGC Through the segments to adjust the gain at different depths;
43 Gain Rotate【Gain】knob to adjust the image’s gain;
44 Depth range
selection
In real time status, press key to select depth range;
In real time status, press number key 0-9, can fast select the
corresponding depth range.
45 Power switch Open/close the main unit;
46 Keyboard light Open/close the keyboard light.

Full Digital Ultrasonic Diagnostic Instruments User’s Manual V1.00
- 6 -
Chapter Three System Configuration
3.1 Typical configuration
1. Main unit 1 unit 2. 6.5MHz animal transrectal linear array probe 1 PC
3. Power adapter 1 PC
3.2 Optional parts
1. 3.5 MHz convex array probe 2. 3.5 MHz linear array loin probe
3. 4.0 MHz convex array transrectal probe 4. 6.5 MHz micro-convex probe
5. 7.5 MHz high frequency linear array probe 6. Video recorder
7. Foot switch 8. Internal battery
9. Charger
Chapter Four Operation Condition
4.1 Power supply
Adapter rating: 100-240V~, 1.2-0.6A, 50-60Hz
Adapter model: BJE01-40-001M
Output of Adapter: DC12.8V 3.0A
Main device rating: DC12V 3.0A
4.2 Operation Environment
Ambient temperature: 10℃-40℃
Relative humidity: 30%-75% (without condensation)
Atmospheric pressure: 700hPa-1060hPa
Altitude: < 2000 m
Overvoltage: Overvoltage CategoryⅡ
Pollution degree: 2
4.3 Storage and Transport
Ambient temperature: -20℃-55℃
Relative humidity: 30%-93% (without condensation)
Atmospheric pressure: 700hPa-1060hPa
Attention: The mains voltage is varies with different countries or regions.
Danger: Do not use this equipment where flammable gas (such as anesthetic gas,
oxygen or hydrogen) or flammable liquid (such as alcohol) are present. Failure to do
so may result in explosion.
Warning: Avoid using this equipment with high frequency operational equipment,
or danger may occur.
Attention: System should be avoided using in following environments:
1. Splash 2. Moist
3. Rain 4. Thunderstorm weather
5. No ventilation 6.Close to heat source
7. Direct sunlight 8. Dramatic temperature change
9. Poisonous gas 10. Corrosive gas
11. Strong shock 12. Strong electromagnetic field (e.g. MRI)
13. Radiation (e.g. X-ray, CT) 14. Defibrillators or short wave therapy equipment

Full Digital Ultrasonic Diagnostic Instruments User’s Manual V1.00
- 7 -
Chapter Five System Installation and Check
Warning:
1. If breakers and fuse of the mains power socket are identical to those of this system,
and they are used to control the current for equipment like life support system, the
system shall not be connected to such power supply socket as it may cause breaker
or fuse to trip and cut off the power supply to the entire premise in case of
malfunction or over current with this ultrasonic system.
2. All plugs of instruments of this system shall be connected into the power socket
with protective earth on the wall and the socket must meet the requirement of
power rating of instrument. Multiple portable socket-outlets can not be used for
the system.
3. Equipment that connects the signal input part or signal output part must only
connect the accessories authorized in this manual, and connect the equipment that
complies with the respective IEC standards (IEC 60950 for data processing
equipment and IEC 60601-1 for medical equipment). If in doubt, consult the
technical service department or your local representative.
4. When this system is installed or used around patient, try to avoid the patient
touching the system. If system has some unknown defects, it may cause danger of
electric shock.
5. If the integrity of the external protective conductor in the installation or its
arrangement is in doubt, equipment shall be operated from its internal electrical
power
source
.
Warning:
1. When instrument works abnormally, do stop working, turn off the power and
check the reason, then contacts the KAIXIN Company about it.
2. Turn off power and pull out of the plug from socket after each ultrasonic
diagnostic operation.
3. It is forbidden to drag and press the power and probe cables emphatically;
regularly inspect whether there is pull-apart and bareness, if there is the
phenomena like this, turn off power supply immediately and change it for new one.
4. It is forbidden to load and unload the probe or move the instrument in galvanic to
avoid danger of safety.
5. Pull out of the plug from socket after operation in thunderstorm weather to avoid
the instrument being damaged by lightening.
6. If the temperature changes greatly in short time will cause vapor recovery inside of
instrument, the case may damage the instrument.
7. The instrument is turned off completely only by disconnecting the power supply
from
the
wall
socket.
Warning: To avoid the risk of electric shock, this equipment must only be connected
to a supply mains with protective earth.
Warning: The power adapter, probes, foot switch, battery as described in this
section may be replaced by operator. To replace according to the method of this
section, does not result in an unacceptable risk.

Full Digital Ultrasonic Diagnostic Instruments User’s Manual V1.00
- 8 -
5.1 System placement
Please carefully read through and fully understand the safety cautions before moving and placing
the system.
1. Unpack the instrument case and check the goods for its completeness according to the packing
list.
2. Place the instrument on a stable and leveled position.
3. Leave adequate space of 20 centimeters as minimum from rear, left and right side of the
instrument.
5.2 Probe bracket installation
The probe bracket should be mounted behind the main unit.
5.3 Ultrasonic probe installation
5.3.1 Ultrasonic probe connection
1. Open the probe locking knob with the cable to right; insert the probe connector into the probe
socket on the right-hand of the main unit until the metal spring plates is evenly contacted.
Tightly press the connector.
2. Rotate the probe locking knob 90 degree clockwise and lock it.
3. Check if the probe connector is locked. After turning off the system, plug the probe connector
in the probe socket then rotate the locking knob clockwise to lock it.
Warning: Before connecting or using the probe, make sure that the probe,
connecting cable and connector are in normal condition (free of cracks or drop). Use
of defective probe may cause electric shock.
Warning:
1. The Kaixin ultrasonic probe shall be connected to the dedicated Kaixin ultrasonic
system only. Select proper probe according to the relevant instructions of
ultrasonic diagnostic system.
2. Check the ultrasonic probe and connecting cable after diagnostic operation. Use of
defective probe may cause electric shock.
3. Do not knock or bump the probe; or it may be damaged and may cause patient
subjected to electric shock.
4. Unauthorized disassembly of the probe shall be prohibited as it may cause electric
shock.
Attention:
1. Turn off the ultrasonic system before disconnecting the ultrasonic probe.
Disconnecting the probe with system power on may damage the system or probe.
2. Before disconnecting the ultrasonic probe, place the probe on the probe bracket so
that the probe may not be damaged or injury person by unexpected fall.
3. Freeze the instrument when instrument is start-up without operation to increase of
service life of probe.
4. Repeat available machine time should be more than 5 minutes to avoid turn on/off
power supply in short time.
Attention: Adequate space from rear, left and right side of the machine shall be
reserved, or the machine may malfunction under excessive heat inside the enclosure.

Full Digital Ultrasonic Diagnostic Instruments User’s Manual V1.00
- 9 -
5.3.2 Ultrasonic probe disconnection
Shutdown the system; rotate the locking knob 90 degree counterclockwise, pull out the probe
connector vertically.
5.4 Install/Remove the battery
1. Install the battery
Shutdown the system; remove the battery cover on the right side of main unit. According to the
direction of battery indication to install the battery and then install the battery cover.
2. Remove the battery
Shutdown the system; remove the battery cover on the right side of main unit, push forward
the battery putter at the bottom of main unit and the battery is launched, remove the battery.

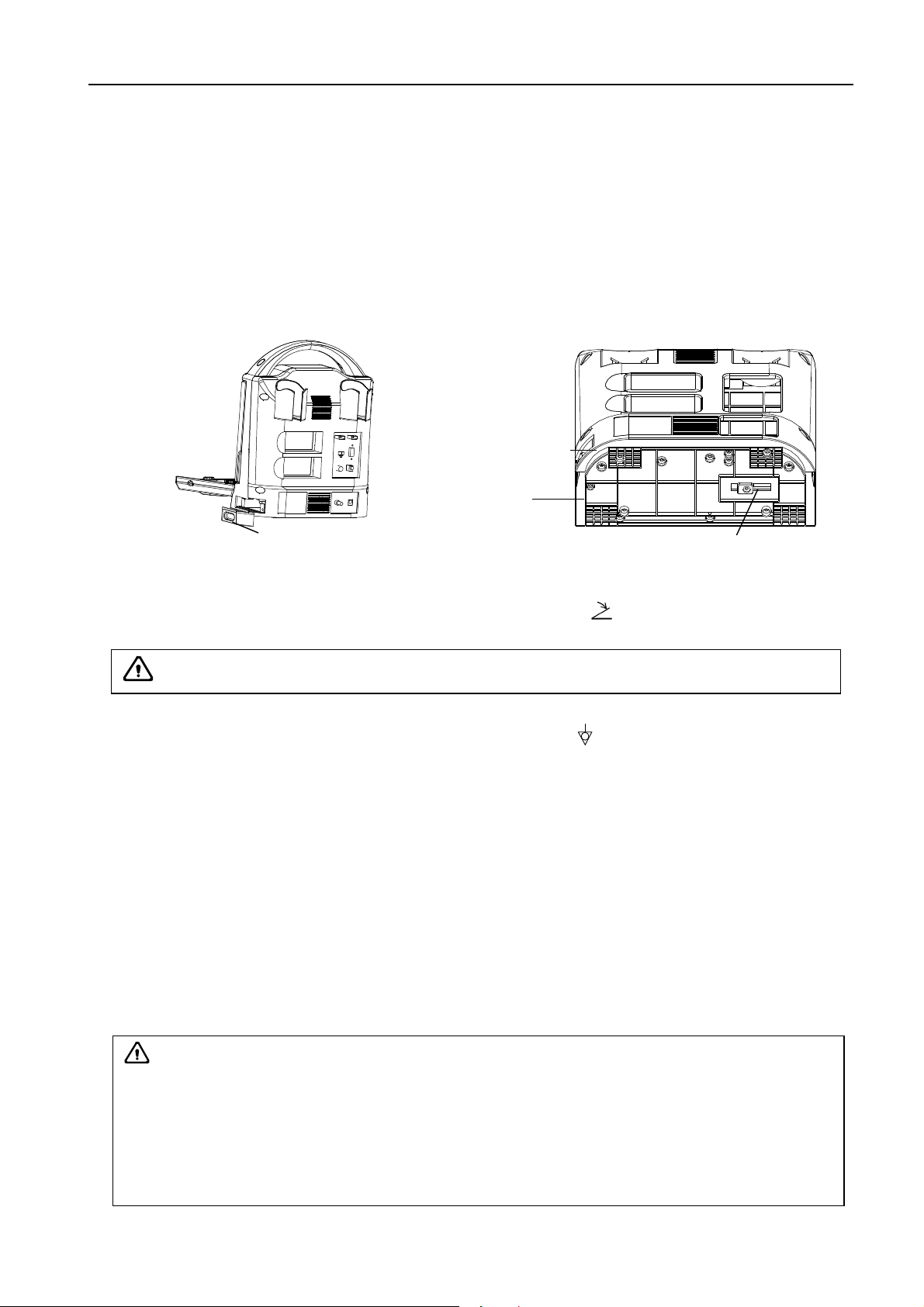

Fig. Install, Remove the battery
5.5 Install foot switch
Shutdown the system; insert the plug of foot-switch into the “ ” socket at the back of the main
unit.
5.6 Connection to video recorder
1. Shutdown the system; connect the equipotential terminal ( ) of the video recorder to the
earthing;
2. Connect one end of the video cable to the video recorder and the other end to the video output
interface on the rear panel of the main unit;
3. Insert one end of power plug (jack) of the video recorder to its power input socket, the other
end to the power supply socket.
5.7 Connection to power
1. Connect to the power adapter
Insert the output plug of adapter into DC power input port, which is on the right of main unit.
2. Connect to the main power supply
Insert the power plug (jack) furnished with the machine into power input socket of the power
adapter, the other end to the mains socket-outlet. The instrument uses three-core power supply.
It connects with the protective earth line when power plug inserts into its socket.
Warning:
1. Adapter has no switch. The isolation of the system with the MAINS used to unplug the
adapter as the intended isolation means.
2. The equipment should be used only with adapter provided by Kaixin Company.
3. To avoid damaging power adapter or harming people by unexpected fallen, make sure
the power adapter is placed on the leveled desk.
4. The operator must not touch signal input/ signal output and patient simultaneously.
Battery cover Battery putter
Bottom of the
main unit
Battery cover
Attention: The waterproof grade of foot switch is IPX1.

Full Digital Ultrasonic Diagnostic Instruments User’s Manual V1.00
- 10 -
5.8 Ultrasonic probe check before and after operation
Before and after ultrasonic diagnosis to check if there are any exceptionally on the surface of the
probe or cable jacket, such as peeling, cracks, bulge, or if the acoustic lens is reliable, cleaned or
disinfected.
5.9 Main unit check before and after operation
5.9.1 Inspection before start-up
Check the following items before starting the machine:
1. The temperature, humidity and atmospheric pressure shall meet the requirement of operation
conditions.
2. No condensation occurs.
3. No distortion, damage or contamination on system and peripheral. Clean the parts as specified
in relevant sections, if the contaminant is present.
4. Check the control panel, LCD screen and enclosure to ensure they are in good working
condition and free of abnormity (such as cracks and loosened screws).
5. No damage on cable (such as power cable), and hard up on its connection.
6. Check probe and its cable to ensure they are free of abnormity (such as scuffing, drop-off or
contamination). If the contaminant is present, clean the contaminated objects as specified in
relevant sections.
7. See to it that there are no foreign objects on the control panel (Remove the object if any).
8. No barriers around the intake of equipment.
9. See to it that whether probe has been cleaned, disinfected; else dispose it as specified in
relevant sections.
10. Check all the ports of the machine for possible damage or blockage.
11. Clean the field and environment.
5.9.2 Inspection after start-up
Check the following items after starting the machine:
1. No abnormal voice, strange smell and overheating appear.
2. Check the machine to ensure a normal start-up: The power indication light is on; startup
picture is shown on the screen, and then the machine will automatically enter B mode.
3. Check the acoustic lens for abnormal heat when the probe is in use. This can be done by hand
touching the probe to feel the temperature of the lens.
4. Check the image to ensure trouble-free display (no excessive noise or flicker).
5. Check the control panel to ensure normal operation condition.
6. Check the instrument to ensure that the phenomenon of too high local temperature will not
appear.
5.10 System reset
In case of abnormal screen display or not work for system operation, try to restart the system by
turning on/off the power.
Attention: Thoroughly clean the coupling gel on the probe surface each time after
ultrasonic operation, or the coupling gel may become hardened on the acoustic lens of the
probe, deteriorating quality of image.
Attention: If the overheat acoustic lens is placed on the patient’s skin, heat injury may
occur.

Full Digital Ultrasonic Diagnostic Instruments User’s Manual V1.00
- 11 -
Chapter Six Preset
6.1 System preset
Press key on the keyboard, “System Preset” menu will be displayed on the screen.
Fig. System preset menu
6.1.1 Normal
Move the cursor to the “Normal”, press『Set』key, the cursor is in the input box of hospital name.
Hospital Name setting
Press “Number/Character” keys to enter hospital name; if need to revise, press direction keys or
operate trackball and press『Set』key, move the cursor to the back of revised position, press key to
delete the previous character and retype.
Key Sound setting
Move the cursor to the “Key Sound” selection box, press『Set』key, “√” will be shown in the
selection box, key sound is open.
Character Brightness setting
Move the cursor to the “Char Bright” drop-down box, press 『Set 』key to select the desired
brightness.
Waiting Time setting
1. Move the cursor to the “Waiting Time” input box, press『Set』key to confirm the cursor position;
2. Input the screensaver time, number (0-100), screensaver time in minute.
Note: Go beyond the system setting energy-saving time without pressing any key, the system
will automatically enter the energy saving status. Press any key, system will return to
normal operation status.
Time, Date and the Format of date
1. Move the cursor to the “Time Set” input box and press『Set』key to confirm the cursor position
then input “hour, minute, second”;
2. Move the cursor to the “Date Set” input box and press『Set』key to confirm the cursor position
then input “year, month, day”;
3. Move the cursor to drop-down box of the “Date Format” and choose the right format.
Language setting
Move the cursor to the dot of “Chinese” or “English”, press『Set』key to confirm.
Video Format selection
Move the cursor to the dot of “PAL” or “NTSC”, press『Set』key to confirm.
CPU Temperature
Move the cursor to the “CPU Temp” drop-down box, press『Set』key to to select the desired CPU
shutdown temperature of main unit.
After presetting the system parameters “Hospital”, “Key Sound”, “Char Bright”, “Waiting Time”,

Full Digital Ultrasonic Diagnostic Instruments User’s Manual V1.00
- 12 -
“Time set”, “Date Set”, “Date Format”, “Language”, “Video Format” and “CPU Temperture”, move
the cursor to「OK」then press『Set』key, the system will preserve the data of preset and exit the dialog
box; If choose「Cancel」, press『Set』key, the system will give up the data of preset and exit the dialog
box. You also can press key to give up and exit the preset.
6.1.2 Formula preset
Move the cursor to the “Formula”, press『Set』key to show the “Formula” dialog box.
Move the cursor to the setting position of gestational week for the bovine, canine, equine, feline,
goat, llama, ovine and swine, press “Default”; then choose goat species or obstetric table for canine,
move the cursor to
「OK」
after finishing the preset and press
『Set』
key, the system will preserve those
data of preset and exit the dialog box; If you choose
「Cancel」
and press
『Set』key, the system will give
up those data of preset and exit the dialog box. You also can press key to give up and exit the
preset.
6.1.3 Net Setting
1. Move the cursor to the『Net Setting』, press『Set』key to show the “Net Setting” dialog box, the
setting is as shown below:
Use the following IP address
Set the IP address of full digital ultrasonic diagnostic instrument:
IP address: IP address of KX5600 instrument;
LAN Server Set
Set LAN server’s network properties:
IP address: IP address of LAN server (that is IP address of PC installing print program);
TCP Port: the default is 8866.
2. Finish the settings of LAN server and properly connected to the LAN;
3. Run the on the PC;
4. Press「OK」in the Net Setting interface, press『Set』key, the screen pops up warning information
“Shut down and power on in 1 min”, after the instrument reboots, the lower right corner of the
screen will appear icon , it indicates that the network connection is successful; If the
network is not connected successfully, please check the IP address and TCP port, as well as the
network cable is properly connected.
5. Choose「Cancel」press『Set』key or directly press key to exit the net preset.
Warning: After software upgraded, start the machine and must first click “Default”
in the “Formula” to restore the default values; otherwise obstetric table may occur
calculation error.

Full Digital Ultrasonic Diagnostic Instruments User’s Manual V1.00
- 13 -
6.1.4 Password preset
Move the cursor to the “Password” , press『Set』key to display the “Password” dialog box.
Password setting
1. Move the cursor to the “Demo Date” column, press『Set』key to confirm the cursor position,
enter the trial “Day” number;
2. Move the cursor to the “Enter Password” column, press『Set』key to confirm the cursor position,
enter the password;
3. Again move the cursor to the “Confirm Password” column, press『Set』key to confirm the
cursor position, re-enter the password;
4. Move the cursor to select「PassWord Set」in the dialog box, press『Set』key to pop up
“Password successfully set!” prompt box;
5. Move the cursor to select「OK」, press『Set』key to exit the password preset interface.
Explanation:
1. Trial days setting range: 1 to 999 days.
2. Password setting range: Password is composed of numbers and its length is up to 6-bit.
3. When the trial days are up to the setting date, the system will automatically freeze and
stop working, the freeze icon will flash.
Cancel the password setting
1. Enter the system preset interface;
2. Move the cursor to the “Password” , press『Set』key. Display the“Password” dialog box;
3. In the “Enter Password” box, enter the password has been set;
4. Move the cursor to the「Password Remove」, press『Set』key, the system pops up prompt box
“Password is canceled”;
5. Move the cursor to the「OK」, press『Set』key to exit the password preset interface.
Warning: Business personnel or service personnel setting the password, be sure to
remember the set password, make notes! If you forget password, consult Kaixin
Company.
