Product Overview
This chapter mainly introduces the characteristics of
FX-STP WIFI calcium anti-pump, application and
out-of-box instructions.

Kamoer Fluid Tech(Shanghai) Co.,Ltd. FX-STP WIFI User Manual
9
Product Overview
Brief Introduction
FX-STP WIFI peristaltic pump is a high-flow, high-precision step peristaltic pump, with
high precision, screen display, low noise, maintenance-free and other advantages. The
appliance can be operated via a button or remotely controlled with your mobile phone via
Wi-Fi.
Feature Highlights
Small and powerful in size
Simple structure, easy maintenance, quick replacement of pump tube
Pharmed BPT imported pump tube with standard, long life, heat, acid and alkali
resistance, ozone and UV rays, anti-aging and oxidation.
With display, intuitive view of status parameters.
With potential knob situ at the temperature to facilitate the adjustment of pump
parameters.
Support for flow calibration
Includes real-time clock, runs automatically according to setting parameters, and
does not lose power-down parameters.
Support for iOS and Android devices to control titration pumps via WIFI, and app
upgrade titration pump firmware

Kamoer Fluid Tech(Shanghai) Co.,Ltd. FX-STP WIFI User Manual
10
Applications
Marine life breeding
Out-of-the-Box Preparation
Before opening the box, check if the outer packaging is damaged during transport.
After opening the box, refer to the packing list in the appendix to make sure that all
parts are not missing and check for visible breakage.
Contact the manufacturer immediately if any defects are found during the out-of-box
process.

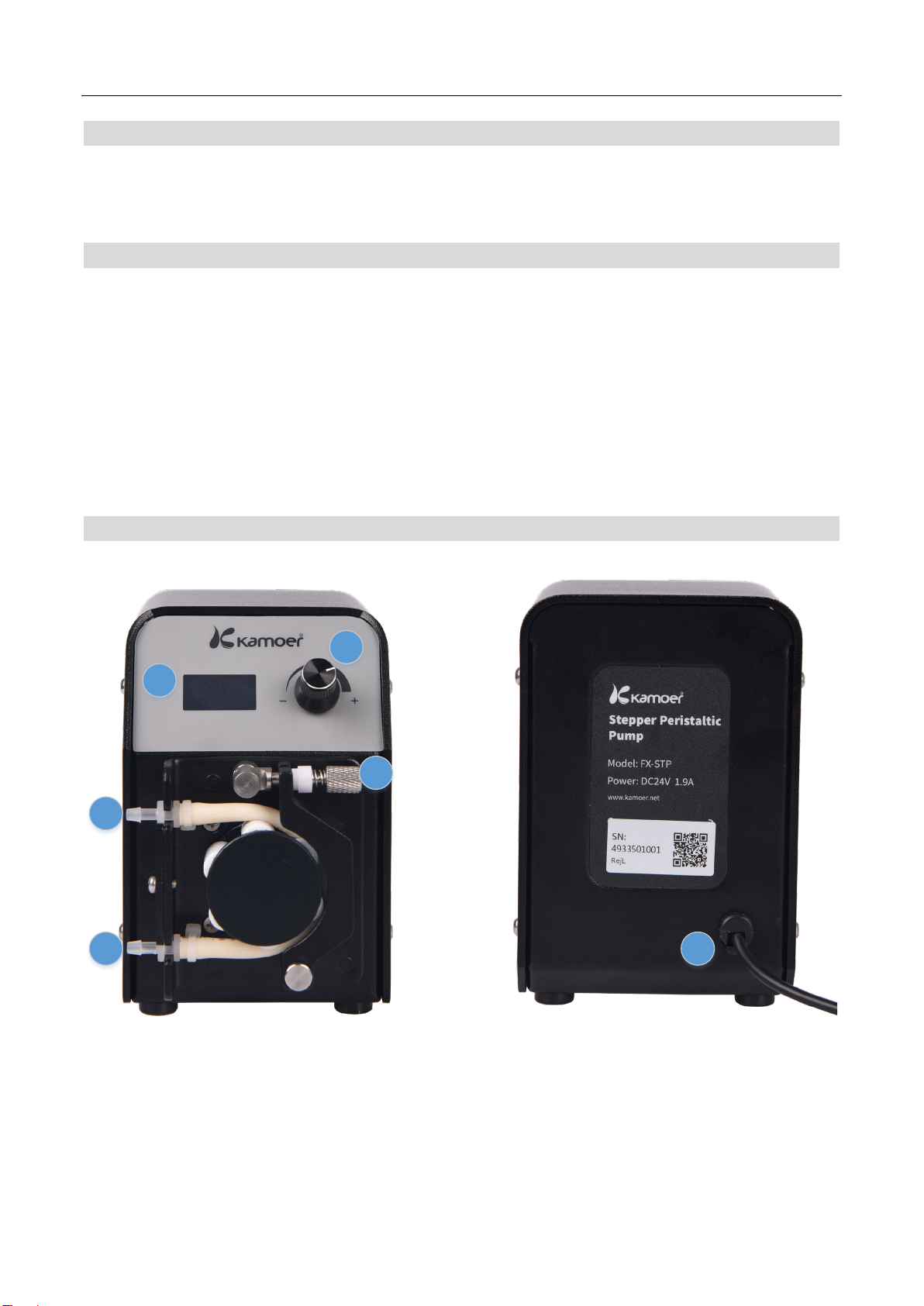

Part Name and Line Connection
1
2
3
4
5 6
1.Display 2. Adjustment knob 3. Adjusting Screws
4. Inlet 5. Outlet 6. DC24V Power Connector

Kamoer Fluid Tech(Shanghai) Co.,Ltd. FX-STP WIFI User Manual
11
Speed Adjustment
Button
Display screen
Connect Sea tank
3.2*6.4 Tube
Connect Calcium
Anti-pump 6.4*9.6
Tube
1/8 to 1/4 connector 3.2*6.4 Tube
24V Power
supply(Back)
Line Connection Diagram

Kamoer Fluid Tech(Shanghai) Co.,Ltd. FX-STP WIFI User Manual
12
Product Installation
This chapter focuses on how to install the FX-STP
WIFI calcium anti-pump, as well as the precautions
during installation.

Kamoer Fluid Tech(Shanghai) Co.,Ltd. FX-STP WIFI User Manual
13
Product Installation
This calcium anti-pump belongs to the self-absorbing pump, when the inlet and
outlet drop too much, may produce siphon or return phenomenon.
In order to avoid siphoning and return, the titration pump should be placed in a
reasonable position to ensure that the height difference between the inlet and the outlet
is within 0.5 meters.
The connection tube of the inlet should be as short as possible, and the drain connection
tube should be suspended above the cylinder.
Please carefully check the direction of connection between the inlet and outlet is correct,
never back fire.
Reference part connection section.

Kamoer Fluid Tech(Shanghai) Co.,Ltd. FX-STP WIFI User Manual
14
Operate the device with a knob
This chapter focuses on how to control FX-STP WIFI
calcium anti-pump using the knob on the device

Kamoer Fluid Tech(Shanghai) Co.,Ltd. FX-STP WIFI User Manual
15
Operate the device with a knob
Screen Status Description
WiFi Control
60.0ml/min
Work Mode NET O
60.0ml/min
Running...
ac
bd
L
e
f
Running...
a.Work Mode: indicates the functional position of the interface, and the operating mode
indicates that the machine is working on the home page
b.Work Status Indication: In the non-lock screen state, press the button, the pump
starts to work, at this point the middle of the screen shows the "in operation..." copy,
press the button while the pump is working, the pump stops.
c.Network Connection Status Indication
NET O: Indicates that the network is normal, at which point the device can be
operated via an App connection
NET S: Indicates that the device is in the distribution network state, need the user
network to complete before the normal networking
NET F1: Indicates that the device failed to connect to the router
NET F2: Indicates that the device successfully connected to the router, but failed to
connect to the cloud
d.Flow Display: Shows the flow rate of the pump, which can be adjusted by adjusting
the knob while the pump is running.
e.Lock Screen Status: the user does not operate the device for a long time, the device
screen will enter the screen protection state, screen protection state will show an L letter
on the screen, from top to bottom line dynamic display, to use the knob to operate the
device, you need to unlock the screen to operate, press the knob to unlock the screen.

Kamoer Fluid Tech(Shanghai) Co.,Ltd. FX-STP WIFI User Manual
16
f.App Control: The interface displayed when the phone app controls, when the interface
is in the app control, the knob can not control the device.
Pump Operation Control
Work Mode NET O
60.0ml/min
Running...
b
Work Mode NET O
60.0ml/min
a
a. Pump Stop Mode
b. Pump Work
Control the start of the pump stop: in the pump screen display operating mode state,
by pressing the knob on the pump, to switch the operating state of the pump, in the case
of pump rest, press the knob, the pump into work, in the pump running state, press the
knob, the pump stop;
Control the speed of the pump: in the state of pump operation, the rotary button can
adjust the flow rate of the pump, the speed of the rotary button pump increases, the
counterclockwise rotary button reduces the flow rate, the speed of the rotary button can
control the speed of the adjustment flow rate.
Pump Menu Description
Menu
WiFi Settings
lang Cal
Work Mode NET O
60.0ml/min
In the operating mode pump stop state, the rotary button into the device menu
interface, menu interface, by rotating the button to switch different menu options,
when the cursor on a certain option, press the button into the corresponding
interface of this option;
Menu: menu interface title, when the cursor is on the menu, press the button, back to the
next level of the interface;

Kamoer Fluid Tech(Shanghai) Co.,Ltd. FX-STP WIFI User Manual
17
Language: the language of the pump;
Bid: click to enter the pump's bid interface;
WiFi: click to enter the pump distribution network function interface, the specific
operation refers to the app distribution network chapter;
Settings: Click on the serial number of the entry pump to display and restore the factory
settings interface.
Calibration
Menu
WiFi Settings
lang
Cal ibra te
48.0ml/min
120.0rpm 60s
Cal b c
d
a
a. Bid: calibration interface title bar, when the cursor in the title bar, press the button,
the pump into the superior interface;
b. Speed: calibration speed, adjustable, through the rotary button to rotate the cursor to
the speed, press the button into the speed editing state, through the rotary button to
modify the speed, press the knob again, exit the speed editing state;
Cal ibra te
48.0ml/min
E:120.0rpm 60s
Cal ibra te
48.0ml/min
120.0rpm 60s
c. Calibration time: calibration time, fixed to 60 seconds, when the cursor on the
calibration time, press the button, the pump starts to run, when the 60 seconds
countdown is complete, the user will get the liquid volume input into the pump to
complete the calibration;
d. Flow rate: The current speed corresponds to the flow rate, where the user will get the
liquid volume input to complete the calibration when the calibration is complete.
Cal ibra te
E:48.0ml/min
120.0rpm 60s
Cal ibra te
48.0ml/min
120.0rpm 60s
The specific calibration process is as follows

Kamoer Fluid Tech(Shanghai) Co.,Ltd. FX-STP WIFI User Manual
18
Cal ibra te
48.0ml/min
E:120.0rpm 60s
Cal ibra te
48.0ml/min
120.0rpm 60s
Cal ibra te
48.0ml/min
120.0rpm 60s
Cal ibra te
48.0ml/min
120.0rpm 23s
Cal ibra te
E:48.0ml/min
120.0rpm 60s
Cal ibra te
49.0ml/min
120.0rpm 60s
a b c d
ef
Prepare a measuring tube, put the pump pipe out of the pipe into the measuring tube,
into the water, ready to set the standard;
a. Rotate the button to move the cursor to the speed selection item;
b. Press the button to enter the speed editing, the speed editor under the spin button
edit the speed, after editing, press the button again to complete the editing;
c. Rotate the button to the calibration time item and press the button to start the
calibration;
d. Waiting for the countdown to the calibration to be completed;
e. When the countdown to the calibration is complete, enter the input calibration result
state, the volume of the liquid in the measuring tube is entered into the interface
by the rotary button, press the button to complete the input, the calibration is
completed.

Kamoer Fluid Tech(Shanghai) Co.,Ltd. FX-STP WIFI User Manual
19
APP Use
This chapter focuses on how to use the App to
control FX-STP WIFI calcium anti-pump.

Kamoer Fluid Tech(Shanghai) Co.,Ltd. FX-STP WIFI User Manual
20
APP Use
Connect Titration Pumps to the Cloud
This device supports mobile phone app remote operation, through the mobile phone
app remote operation first of all, the device configuration to connect to the network, the
specific operation steps are as follows:
1
2
1-2. Open the app, click the "button" button in the upper right corner of the device to add
the device, select "Add device" to enter the add device interface, select
"Kamoer-FX-STP" in the list of supported devices and click Enter;
